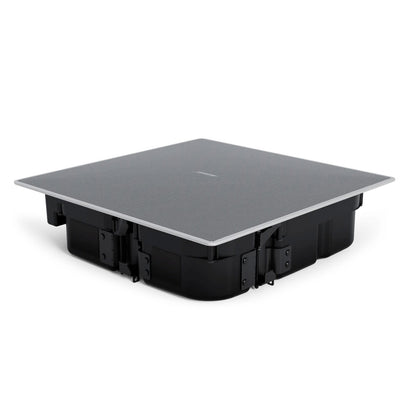

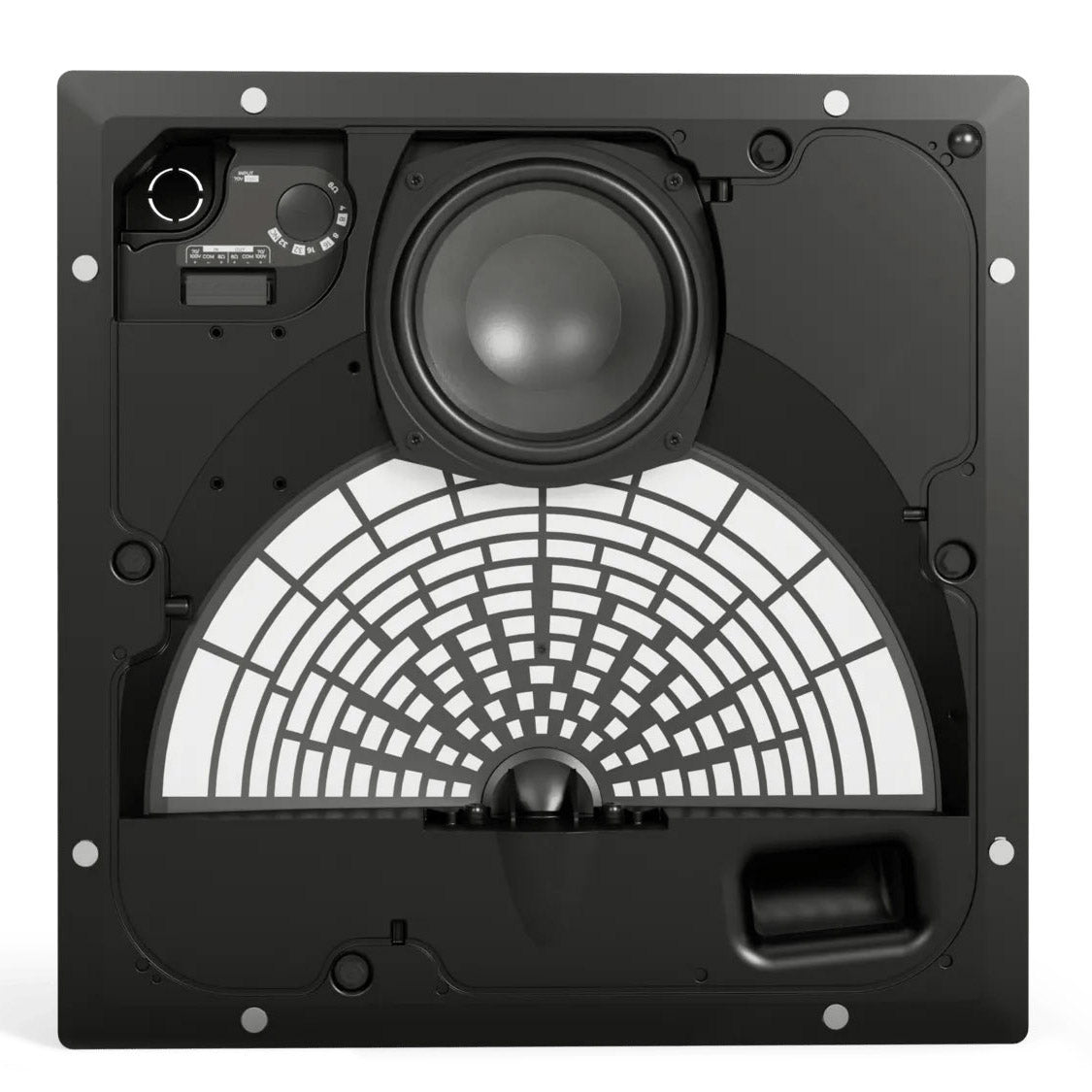

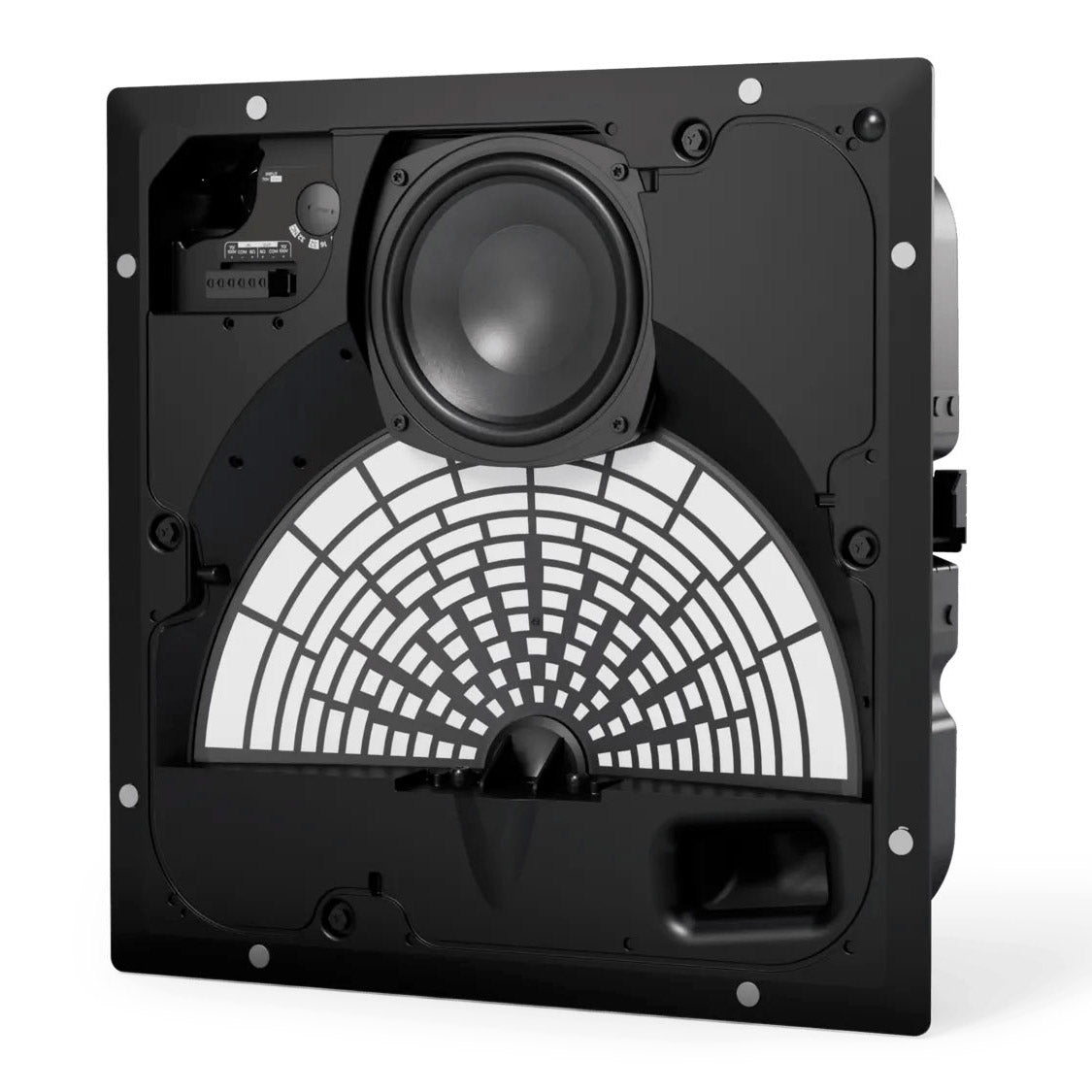

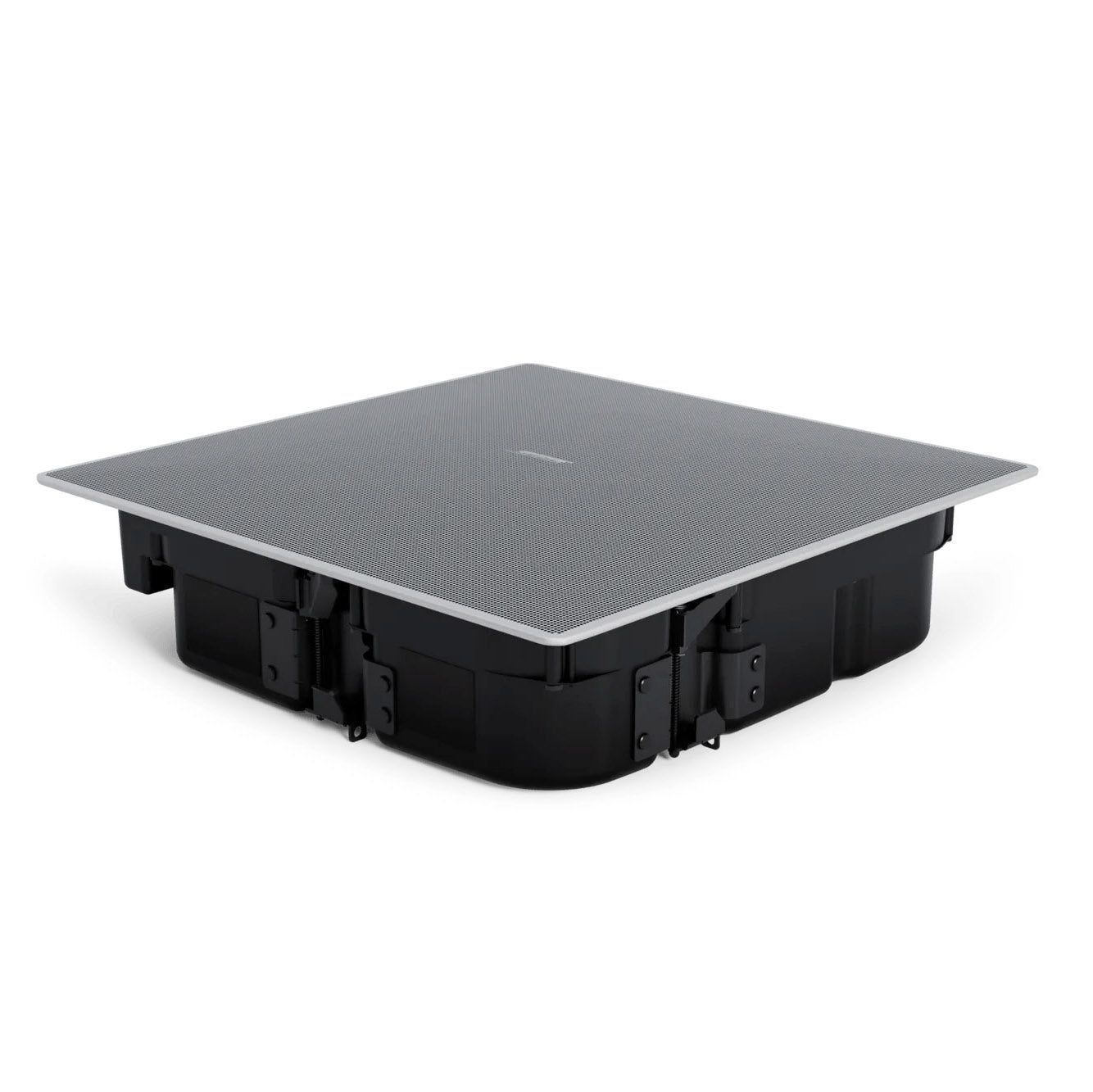

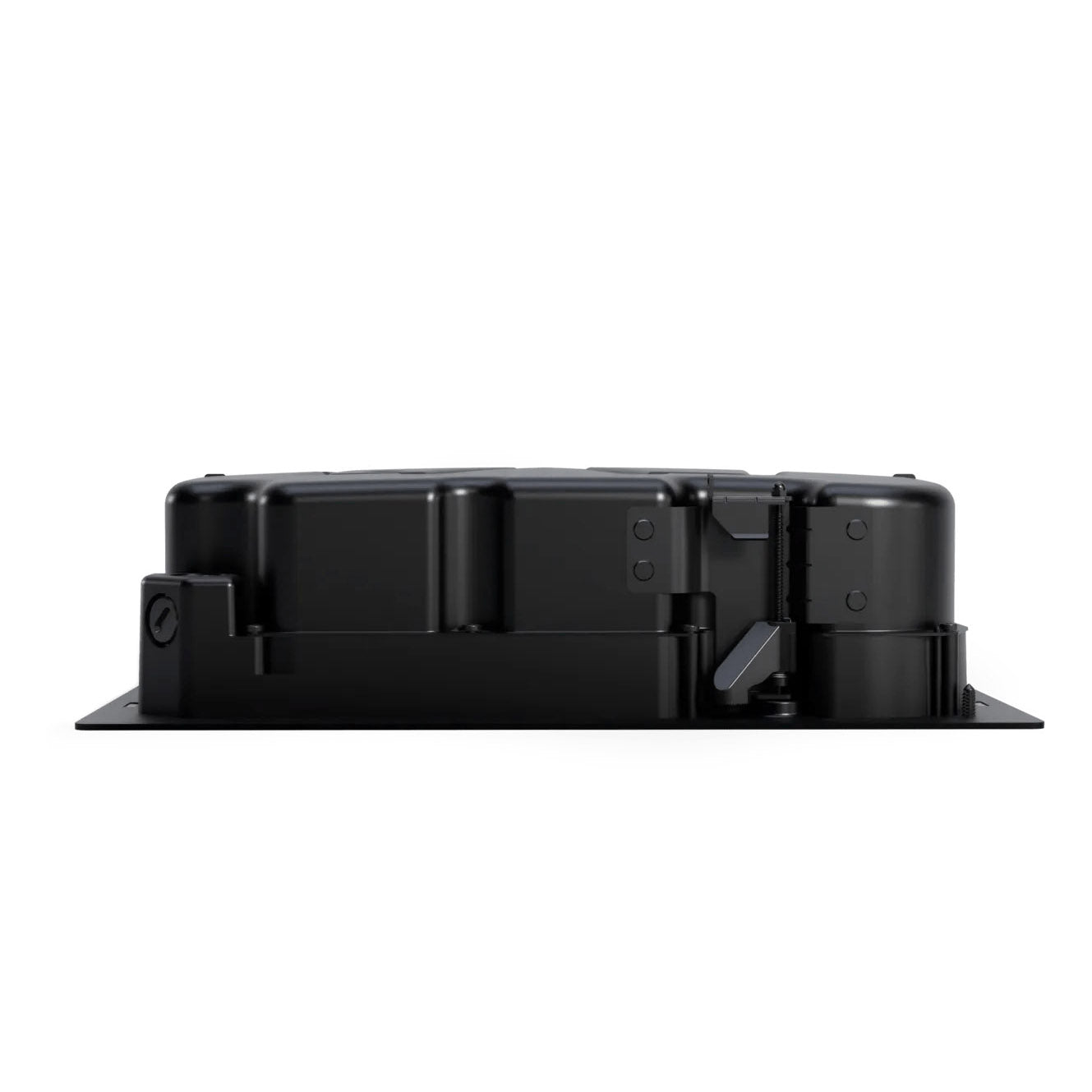

Bose EM180-LP EdgeMax Loudspeaker

Bose EM180-LP EdgeMax Loudspeaker

SoundPro Item: 147668 | Part Number: EM180-LP

$649.00
$779.00 $649.00
Your Price Sold out
MSRP: $779.00 | MAP: $649.00

Usually ships in 5-7 business days

  • Patented PhaseGuide technology evenly distributes sound throughout the space to ensure all listeners enjoy the same experience regardless of their location
  • In-ceiling installation for minimum visual impact, with fewer units required to deliver uniform sound
  • High-frequency compression driver and high-excursion woofer for exceptional audio quality and power
  • In-ceiling mounting along room edges and corners; purpose-built for specific horizontal coverage-90 degrees for corner placement or a wider 180 degrees-ideal for near-field and wide coverage
  • Wall-boundary loading for greater bass response and performance
  • 2-way passive crossover with bypassable 70/100V transformer
  • Consistent voicing across the EdgeMax family
  • QuickHold spring-loaded mounting system for easy installs
  • Magnetically attached grille for quick access to wiring and tap settings
  • Shallow 4-inch (10 cm) backcan height for rooms with above-ceiling limitations and tighter clearances
  • 80-degree vertical coverage angle for use in rooms with lower ceilings
  • UL 62368 and UL 2043 safety standard compliance
Log in or register for YOUR best price

EdgeMax loudspeakers combine bold surface-mount performance with stealthy design to shatter the limitations of traditional in-ceiling loudspeakers. Patented PhaseGuide® technology enables EdgeMax loudspeakers to project powerful, focused sound asymmetrically from the room's edges to the center.

New EdgeMax LP models feature an 80-degree vertical coverage angle for use in rooms with lower ceilings, and their shallow 4-inch backcan is ideal for spaces with above-ceiling limitations and tighter clearances. Larger rooms with higher SPL needs benefit from the powerful, deeper 9-inch cans and 75-degree vertical coverage of the original EdgeMax models.

EdgeMax models are purpose-built to provide specific horizontal coverage. The EM180-LP's 180-degree horizontal coverage angle makes it ideal for placement along the ceiling edge. It provides a wide and consistent sound pattern optimized for near-field applications and room-filling coverage.

Integrators can "mix and match" original EdgeMax and new LP loudspeakers, particularly in challenging installations with varying space dimensions and above-ceiling obstructions.

View full details

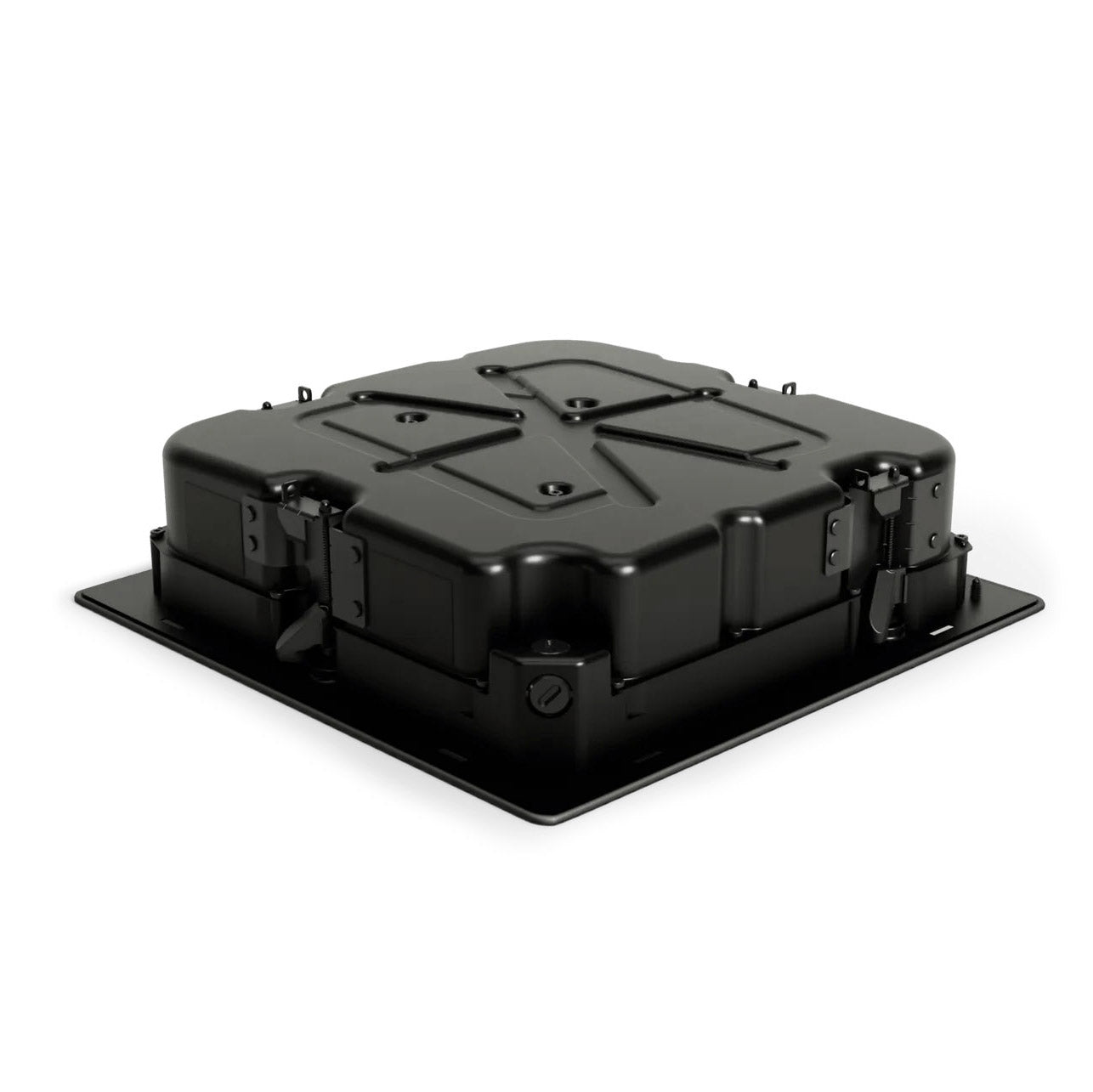

  • Enclosure MaterialEngineered-plastics front baffle with integrated steel-formed enclosure
  • EnvironmentalIndoor only

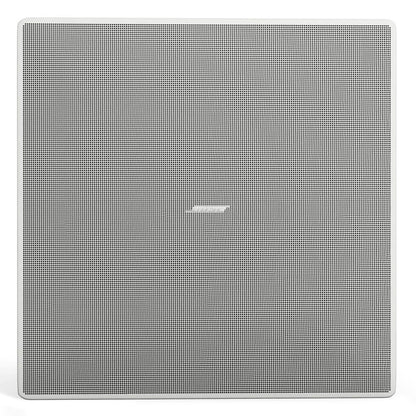

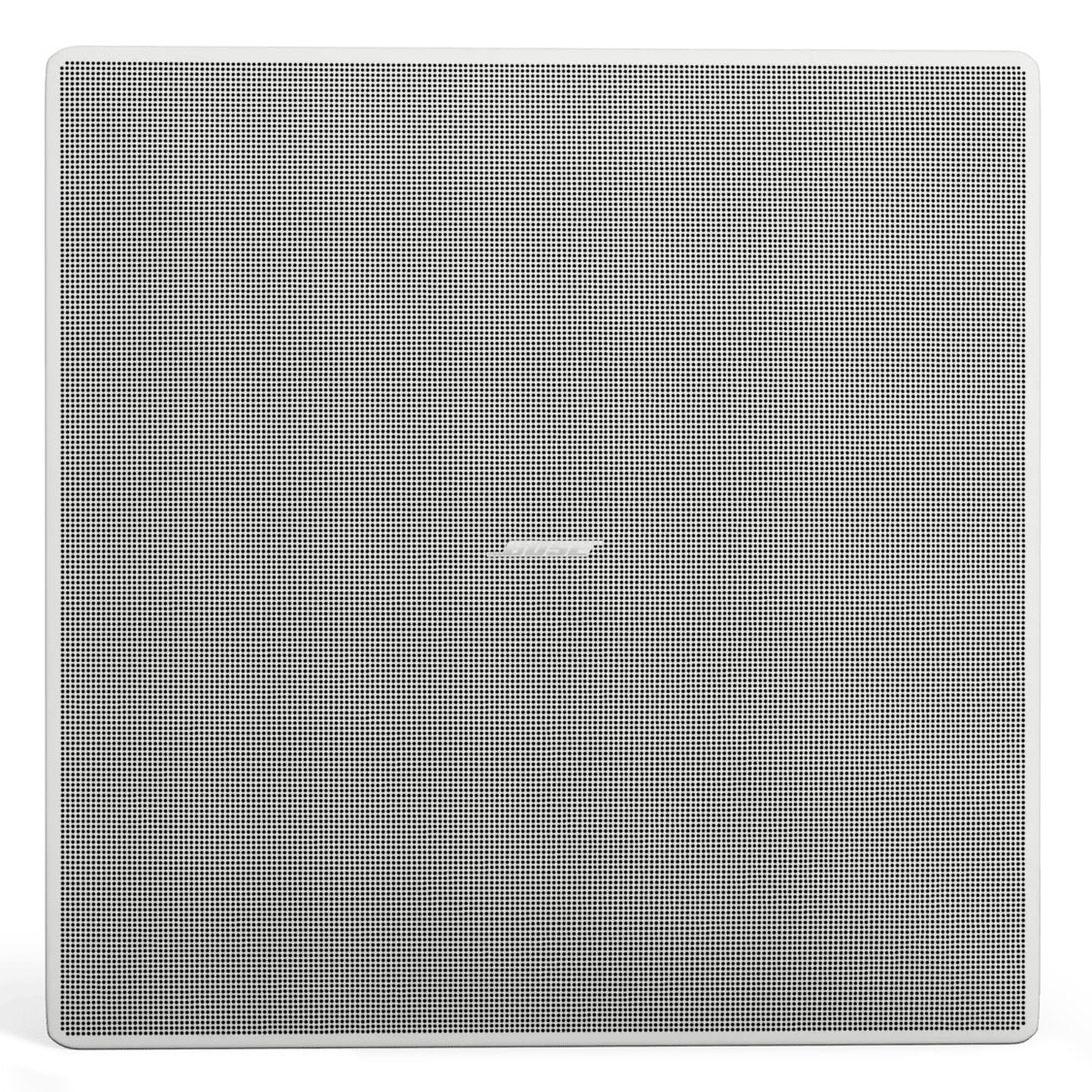

  • GrilleMicroperforated steel, powder-coated finish, paintable
  • Ceiling Cutout345 mm x 345 mm x 100 mm (13.6 in x 13.6 in x 3.9 in), length x width x mounting depth
  • Suspension/Mounting(4) Quickhold spring-loaded mounting arms, (4) safety cable attachment points
  • Product Dimensions (HxWxD)339 mm x 339 mm x 100 mm (13.4 in x 13.4 in x 3.9 in) enclosure / 390 mm x 390 mm x 13 mm (15.4 in x 15.4 in x 0.5 in) grille flange
  • Net Weight7.6 kg (16.7 lb), loudspeaker with grille (single)
  • Shipping Weight11.1 kg (24.5 lb)
  • Frequency Range (-10 dB)45 Hz - 19,000 Hz
  • Coverage, Horizontal180°
  • Calculated Maximum SPL @ 1 m106 dB continuous, 112 dB peak
  • Nominal Impedance8 Ω (transformer bypassed)
  • Power Handling, long-term continuous32W
  • Power Handling, Peak128W
  • Recommended Signal ProcessingRecommended but not required
  • Sensitivity (SPL/1 W at 1 m)91 dB
  • Transformer Taps, 100V8 W, 16 W, 32 W, bypass
  • Transformer Taps, 70V4 W, 8 W, 16 W, 32 W, bypass
  • Coverage, Vertical80°
  • Crossover1 kHz, passive 2-way crossover with integrated 70/100V transformer
  • Driver ProtectionRecommended high-pass protection 55 Hz with minimum 24-dB/octave filter
  • High-Frequency1 x compression driver, 1.3 in (33 mm) voice coil
  • Low-Frequency1 x 5.25-in (133 mm) woofer, 1.5-in (38 mm) voice coil
