• Canon CR-N100 4K NDI PTZ Camera
1 1

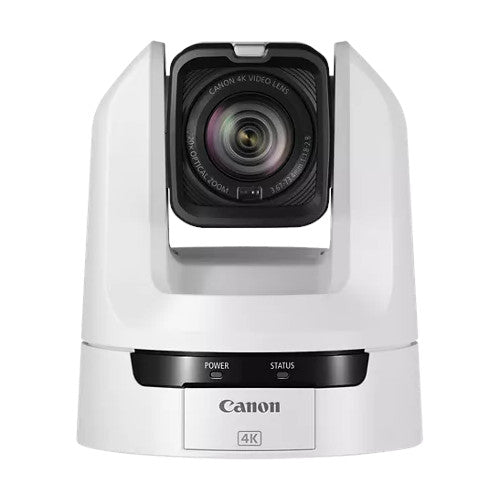

Canon CR-N100 4K NDI PTZ Camera | Color: White

Canon CR-N100 4K NDI PTZ Camera | Color: White

SoundPro Item: 141030 | Part Number: CR-N100 (WHITE)

$2,219.00
$2,441.00 $2,219.00
Your Price Sold out
MSRP: $2,441.00 | MAP: $2,219.00

Usually ships in 5-7 business days

  • 1/2.3" CMOS Sensor with Hybrid Auto Focus
  • High Quality 4K 30P and Full HD 60P over HDMI and IP
  • 20x Optical Zoom Lens with Optical Image Stabilization
  • HDMI, IP, USB Video Out
  • High-precision drive mechanism for smooth, responsive PTZ performance
  • Tally lamp on the front of the lens to indicate camera status at a glance
  • Supports PoE+, variety of serial/IP control protocol support include Canon XC Protocol,
  • Standard Control for Easy Integration into any Production Environment
  • Supports Canon's Webcam Driver
  • Built-in NDI|HX and SRT support
  • Add-On Application support
Log in or register for YOUR best price

The CR-N100 PTZ camera produces outstanding image quality and is equipped with powerful features and functions in a cost-effective and compact form factor that can easily be placed in a variety of settings. Featuring a Canon 1/2.3" CMOS image sensor capable of 4K UHD video capture at 30 fps, or up to 60 fps in Full HD mode, coupled with a 4K 20x optical zoom lens, the CR-N100 is a versatile tool for that can be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events and more.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.), excluding protrusions
Electrical
Power Supply PoE
PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be usedExternal power source: 24 V DC (using included AC adaptor)
Optics
Zoom Digital
20xOptical: 20x
Iris
Manual/Automatic aperture
Focus
Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
Connectivity
Video Output Format
SDI
HDMI 3840 X 2160
29.97P, 25.00P, 23.98P (4:2:2 10 bit)1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
Network Terminal
LAN x 1, RJ45, 1000Base-T
HDMI OUT Terminal
HDMI connector x 1, output only
USB Terminal
Type-C (USB 3.0) x 1
Input
Approx. 13.9 W max. (body only)DC
Construction
Color Options
Satin Black / Titanium White
Lens Configuration
12 elements in 10 groups (including 2 aspheric elements)
Gain
0.0 dB – 36 dB
Controls
Supported Video and Control Protocols
Protocol: XC Protocol, RTSP/RTP, NDI®|HX, SRT, RTMP/RTMPS, Standard Protocol Communication (Serial), Standard Protocol Communication (IP)
Environmental
Operating Environment Temperature
0°C – +40°C (+32°F – +104°F)Humidity: 10% – 90% (without condensation)
Shipping
Weight
Approx. 2.2 kg (4.86 lb.) (body only)
General
Camera
Image Sensor Type 1/2.3 (1/2.3 in.) single-plate CMOS sensorTotal pixels: approx. 21.14 megapixelsEffective pixels: approx. 8.29 megapixels (3840 x 2160), Lens f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture35mm equivalent focal length:[4K UHD] approx. 29.3 (W) – 601 mm (T)[Full HD] approx. 30.5 (W) – 627 mm (T), White Balance AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual*Color temperatures are given for reference purposes only
Minimum Focusing Distance
1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
Horizontal
65.6 (W) – 3.6° (T)Vertical: 39.8° (W) – 2.0° (T)[Full HD]
Shutter Speed
1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Gamma
Normal1 (Standard), Normal3 (BT.709)
Image Stabilizer
Optical-shift
Min. Subject Illumination
Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
Tilt Pan Operation Range
Horizontal ±170°Pan operation speed: 0.2° – 300°/sec.
Tilt Operation Range
Vertical -30° – +100°Tilt operation speed: 0.2° – 180°/sec.
Resolution
1280 x 720When frame frequency is 59.94/50.00
Hz
14.99 fps, when frame frequency is 23.98
Number of Presets
Max. 100 (including home position)
Communication Control
LAN, Wi-Fi, Serial, IR
RS-422 Terminal
RJ45 connector x 1
Interface
Mic Terminal 3.5 mm stereo mini jack (unbalanced, plug-in power supported)Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or more/Att.: 20 dBSensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or moreSupply Voltage: 2.4 V DC (Bias resistance: 2.2 k)
Supported Controllers Hardware
RC-IP100
RC-IP1000Software
Remote Camera Control Application
