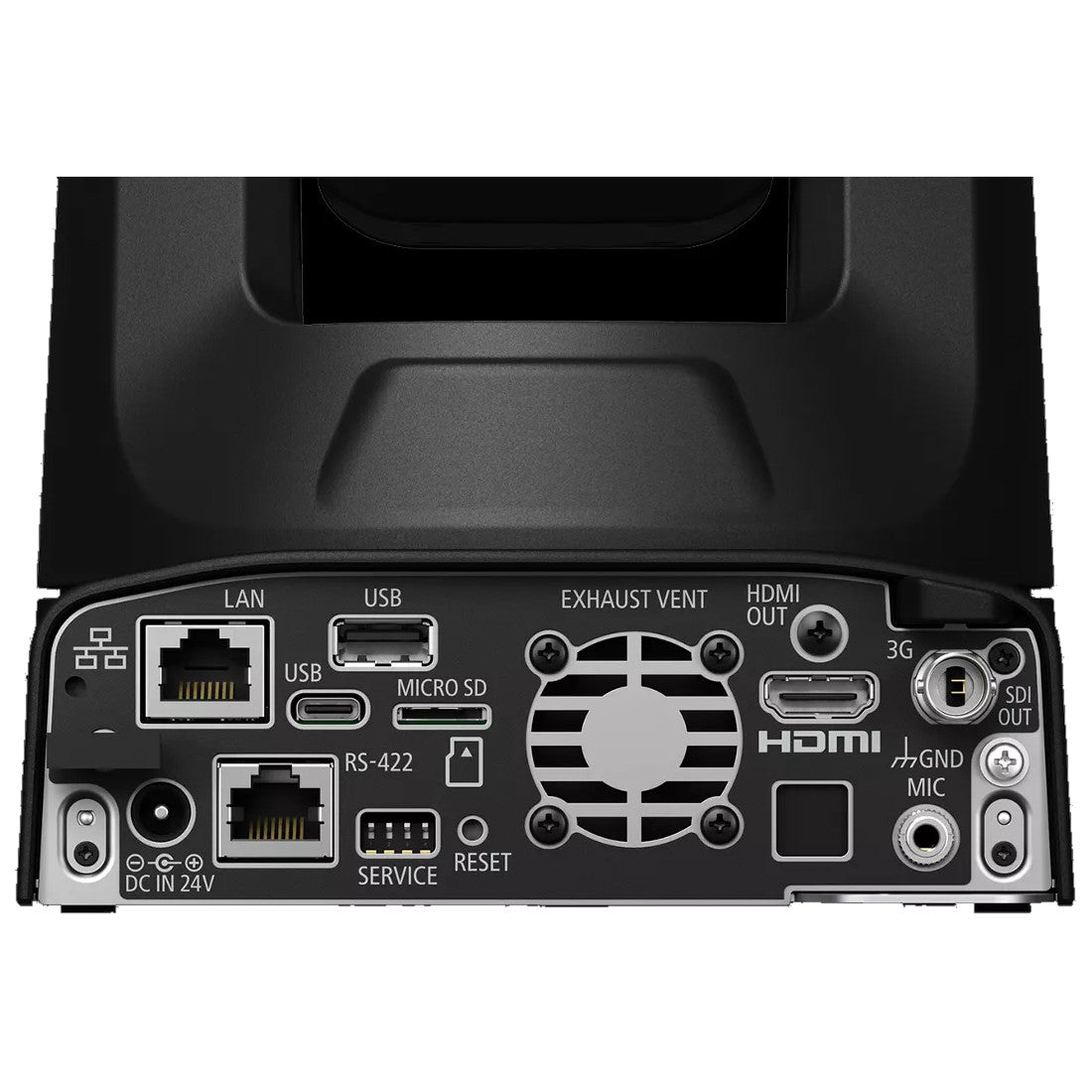

  • Canon CR-N300 4K NDI 20x Zoom PTZ Camera back panel
1 11

Canon CR-N300 4K NDI 20x Zoom PTZ Camera | Color: Black

Canon CR-N300 4K NDI 20x Zoom PTZ Camera | Color: Black

SoundPro Item: 138422 | Part Number: CR-N300 (BLACK)

$2,699.00
$3,332.00 $2,699.00
Your Price Sold out
MSRP: $3,332.00 | MAP: $2,699.00

Usually ships in 5-7 business days

  • 1/2.3" CMOS Sensor with Hybrid Auto Focus
  • High Quality 4K 30p and Full HD 60P Video Output
  • 20x Optical Zoom Lens with Optical Image Stabilization
  • Renowned Canon Color Science
  • 3G-SDI, HDMI, IP, and USB Video Out
  • Built-in NDI|HX and SRT support
  • FreeD support for AR/VR system
  • Supports PoE+, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
Log in or register for YOUR best price

Canon's CR-N300 PTZ camera produces outstanding image quality and is equipped with powerful features and functions for Worship, Education, Broadcast, and more. The CR-N300 PTZ produces incredible 4K and HD image quality with the combination of a 1/2.3" CMOS sensor and the DIGIC DV 6 image processor. This camera incorporates a Canon 4K lens that exhibits a 20x optical zoom ratio that maintains a high level of precision throughout the zoom range. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism equipped with the CR-N300.

The CR-N300 camera supports multiple professional interfaces, including single cable PoE+ connectivity, which allows you to use NDI®|HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-N300 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi. The camera supports multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of 3rd party hardware controllers.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions)
Electrical
PoE+ Input
Approx. 16.2 W* max. (body only)
Power Consumption
*Class 4 (25.5 W required) for power supply devices
Optics
Zoom Digital
20xOptical: 20x
Connectivity
HDMI 3840 X 2160
29.97P, 25.00P, 23.98P (4:2:2 10 bit)1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)*Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)*When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Network Terminal
LAN x 1, RJ45, 1000Base-T
HDMI OUT Terminal
HDMI connector x 1, output only
DC Input
Approx. 15.0 W max. (body only)
Construction
Color
Satin black/Titanium white
Lens Configuration
12 elements in 10 groups (including 2 aspheric elements)
Hardware
RC-IP100
Controls
Supported Video and Control Protocols Protocol
XC Protocol, RTSP/RTP, NDI®|HX2, RTMP/RTMPS, Standard Protocol Communication (Serial), Standard Protocol Communication (IP)
Environmental
Temperature
0°C – +40°C (+32°F – +104°F)
Humidity
10% – 90% (without condensation)
Shipping
Weight)
Approx. 2.2 kg (4.86 lb.) (body only)
General
Camera
Image Sensor Type 1/2.3 (1/2.3 in.) single-plate CMOS sensorTotal pixels: approx. 21.14 megapixelsEffective pixels: approx. 8.29 megapixels (3840 x 2160), Lens f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture35mm equivalent focal length:[4K UHD] approx. 29.3 (W) – 601 mm (T)[Full HD] approx. 30.5 (W) – 627 mm (T)
Minimum Focusing Distance
1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
Angle of View [4K UHD] Horizontal
65.6 (W) – 3.6° (T)Vertical: 39.8° (W) – 2.0° (T)[Full HD] Horizontal: 63.5 (W) – 3.4° (T)Vertical: 38.4° (W) – 1.9° (T)Shutter Speed: 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)Iris: Manual/Automatic apertureGain: 0.0 dB – 36 dBWhite Balance AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual*Color temperatures are given for reference purposes only.Focus: Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AFGamma: Normal1 (Standard), Normal3 (BT.709)Image Stabilizer: Optical-shiftMin. Subject Illumination: Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)Pan and Tilt Pan operation range: Horizontal ±170°Pan operation speed: 0.2° – 300°/sec.Tilt operation range: Vertical -30° – +100°Tilt operation speed: 0.2° – 170°/sec.
SDI 1920 X 1080
59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)*Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)*When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Hz
14.99 fps, when frame frequency is 23.98
Number of Presets
Max. 100 (including home position)
Communication Control
LAN, Wi-Fi, Serial, IR
3G-SDI OUT Terminal
BNC jack (output only) x 1, 0.8 Vp-p/75, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
RS-422 Terminal
RJ45 connector x 1
Interface
Mic Terminal 3.5 mm stereo mini jack (unbalanced, plug-in power supported)Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or more/Att.: 20 dBSensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or moreSupply Voltage: 2.4 V DC (Bias resistance: 2.2 k), USB Terminal Type-A (USB 2.0) x 1 (future expansion)Type-C (USB 3.0) x 1
Media Slot
microSD card slot x 1 (future expansion, recording unavailable)
External Power Source
24 V DC (using included AC adaptor)
Software
Remote Camera Control Application
Power
PoE
PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used
