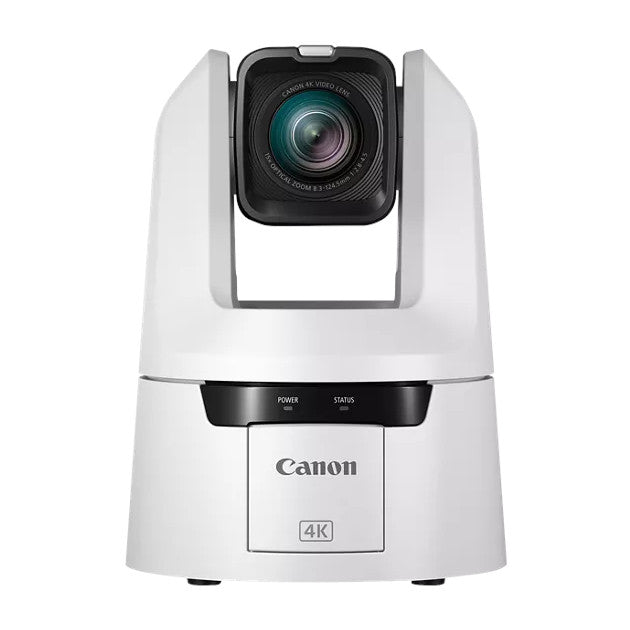

Canon CR-N500 4K NDI 15x Zoom PTZ Camera | Color: White
Canon CR-N500 4K NDI 15x Zoom PTZ Camera | Color: White
SoundPro Item: 138421 | Part Number: 4839C002
Usually ships in 5-7 business days
- 1" 4K UHD CMOS Sensor with Dual Pixel Autofocus
- High Quality 4K 30p and Full HD 60p Video Output
- 15x Optical Zoom Lens with Optical Image Stabilization
- Built-in ND Filter
- Renowned Canon Color Science with Support for Wide DR and Canon Log 3
- 3G-SDI, HDMI, IP, and USB Video Out
- Genlock, Dual XLR and 3.5mm Audio input
- Built-in NDI|HX and SRT support
- FreeD support for AR/VR system
- Supports PoE+, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
Canon's CR-N500 PTZ camera produces outstanding image quality and is equipped with powerful features and functions for Worship, Education, Broadcast, and more. The CR-N500 produces incredible 4K and HD image quality with the combination of a 1" CMOS sensor and DIGIC DV 6 image processor, along with a 15x optical zoom (20x digital) with one of the widest in class 73-degree angle-of-view. These core components provide the image-processing power and speed that enables 4K UHD video acquisition, image stabilization and precise Dual Pixel CMOS AF. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism equipped with the CR-N500.
The CR-N500 camera supports multiple professional interfaces, including single cable PoE+ connectivity, which allows you to use NDI®|HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-N500 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi. The camera supports multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of 3rd party hardware controllers.
- Camera
- Color Options: Satin black/Titanium white
- Image Sensor
- Type 1.0 (1.0 in.) single-plate CMOS sensor
- Total pixels: approx. 13.40 megapixels
- Effective pixels: approx. 8.29 megapixels (3840 x 2160)
- Lens
- f=8.3 124.5 mm, F/2.8 4.5, 15x optical zoom, 9-bladed iris diaphragm
- 35mm equivalent focal length: approx. 25.5 (W) 382.5 mm (T)
- Zoom
- Digital: 20x
- Optical: 15x
- Lens Configuration: 18 elements in 14 groups (including 2 aspheric elements)
- Minimum Focusing Distance: 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
- Angle of View
- Horizontal: 73.0 (W) 5.7° (T)
- Vertical: 45.2° (W) 3.2° (T)
- Shutter Speed: 1/3 1/2000 sec. (specific values depend on the frame frequency and frame rate
- Iris: Manual/Automatic aperture
- Gain: -6.0 db 33.0 db
- ND Filter: Built-in (Off, 1/4, 1/16, 1/64), motor operated
- White Balance
- AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K 15,000 K), Manual
- *Color temperatures are given for reference purposes only.
- Focus
- Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking
- AF type: Dual Pixel CMOS AF, Contrast AF
- Gamma: Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3
- Image Stabilizer: Optical-shift
- Min. Subject Illumination
- 3840 × 2160: Approx. 1.5 lux (shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB)
- 1920 ×1080: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB)
- Pan and Tilt
- Pan operation range: Horizontal ±170°
- Pan operation speed: 0.1° 100°/sec.
- Tilt operation range: Vertical -30° +90°
- Tilt operation speed: 0.1° 100°/sec.
- Video Output Format
- SDI
- 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
- *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
- *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
- HDMI
- 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
- 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
- 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
- *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
- *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
- IP
- 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
- 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
- 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
- 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
- *If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
- *A frame rate that exceeds the frame frequency cannot be selected.
- *JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
- Resolution: 1280 x 720
- When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
- Supported Video and Control Protocols
- Protocol: XC Protocol, RTSP/RTP, NDI®|HX2, RTMP/RTMPS, Standard Protocol Communication (Serial),
- Standard Protocol Communication (IP)
- Number of Presets: Max. 100 (including home position)
- SDI
- Interface
- Communication Control: LAN, Wi-Fi, Serial, IR
- Network Terminal: LAN x 1, RJ45, 1000Base-T
- 3G-SDI OUT Terminal
- BNC jack (output only) x 1, 0.8 Vp-p/75 , unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant
- Embedded audio, Time code (VITC/LTC)
- GEN-LOCK Terminal: BNC jack x 1, 1.0 Vp-p/75, input only
- HDMI OUT Terminal: HDMI connector x 1, output only
- RS-422 Terminal: RJ45 connector x 1
- Input 1 / Input 2 Terminals
- INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
- Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 /Att.: 20 dB
- Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k or more
- Supply Voltage: 48 V DC (Bias resistance: 6.8 k)
- Mic Terminal
- 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
- Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or more/Att.: 20 dB
- Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more
- Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k)
- USB Terminal: Type-A (USB 2.0) x 1
- Media Slot: microSD card slot x 1 (future expansion, recording unavailable)
- Operating Environment
- Temperature: 0°C +40°C (+32°F +104°F)
- Humidity: 10% 90% (without condensation)
- Storage Environment
- Temperature: 0°C +40°C (+32°F +104°F)
- Humidity: 10% 90% (without condensation)
- Power Supply
- PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) PoE cannot be used
- External power source: 24 V DC (using included AC adaptor)
- Power Consumption
- PoE+ Input: Approx. 16.2 W* max. (body only)
- DC Input: Approx. 18.6 W max. (body only)
- *Class 4 (25.5 W required) for power supply devices
- Dimensions (WxHxD) Approx. 200x269x208mm (7.87x10.59x8.19”) (excluding protrusions)
- Weight Approx. 4.1 kg (9.04 lbs.) (body only)
- Supported Controllers
- Hardware: RC-IP100
- Software: Remote Camera Control Application
