Canon CR-N700 4K NDI 15x Zoom PTZ Camera | Color: Black
Canon CR-N700 4K NDI 15x Zoom PTZ Camera | Color: Black
SoundPro Item: 138418 | Part Number: CR-N700 (BLACK)
Regular price
$8,749.00
Regular price
$9,723.00
Sale price
$8,749.00
Unit price
per
MSRP: $9,723.00
| MAP: $8,749.00
Usually ships in 5-7 business days
- 1" 4K UHD CMOS Sensor with Dual Pixel Autofocus with EOS iTR AF X
- High Quality 4K 60p Video Output
- 15x Optical Zoom Lens (30x FHD) with Optical Image Stabilization
- Built-in ND Filter
- Renowned Canon Color Science with Support for Wide DR, Canon Log 3, HDR(HLG/PQ), EOS Standard/Neutral Image Modes
- 12G-SDI, 3G-SDI, HDMI, and IP Video Out
- Genlock, Dual XLR and 3.5mm Audio input
- Built-in NDI|HX and SRT support
- FreeD support for AR/VR system
- Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
The CR-N700 4K PTZ camera is a professional 4K PTZ camera aimed at high-end Broadcast, TV Studios and Live Events. With outstanding 4K60P 4:2:2 10-bit HDR image quality, it offers broadcasters highly advantageous features such as Dual Pixel AF with ‘deep learning’ auto focus, 12G-SDI connectivity, multiple protocols for streaming and control as well as region of interest crop capabilities.
Specifications
Dimensions
Dimensions (WxHxD)
Approx. 200x269x208 mm (7.87x10.59x8.19 in.) (excluding protrusions)
Optics
Zoom Optical
15xDigital: 20xAdvanced
Zoom (FHD)
30x
Iris
Manual/Automatic aperture
Focus Focus Modes
Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face only AF
Connectivity
HDMI 3840 X 2160
59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)1280 x 720: 59.94p/50.00P (4:2:2 10bit)720x576: 50.00P (4:2:2 10bit)720x480: 59.94P (4:2:2 10bit)
Network Terminal
LAN x 1, RJ45, 1000Base-T
Construction
Color
Satin Black / Titanium White
Lens Configuration
14 groups of 18 elements (using 2-sided aspherical lenses and super-UD lenses)
Hardware
RC-IP100
Controls
Supported Video and Control Protocols
XC Protocol, RTSP/RTP, NDI|HX, RTMP/RTMPS, Standard Protocol Communication (Serial), Standard Protocol Communication (IP), FreeD, SRT
Environmental
Temperature
0°C - +40°C (+32°F - +104°F)
Humidity
10% - 90% (without condensation)
General
CMOS Sensortotal Pixels
approx. 13.40 megapixels
Effective Pixels
approx. 8.29 megapixels (3840 x 2160)
Camera
Lens f=8.3 - 124.5 mm, F/2.8 - 4.5, 15x optical zoom, 9-bladed iris diaphragm 35mm equivalent focal length: approx. 25.5 (W) - 382.5 mm (T)
Minimum Focusing Distance
1 cm at wide end, 60 cm across entire zooming range
Angle of View Horizontal
73.0 (W) - 5.7° (T)Vertical: 45.2° (W) - 3.2° (T)
Shutter Speed
1/3 - 1/2000 sec. (specific values depend on the frame frequency)
ND Filter 3 Levels
ND1 (ND: 1/4), ND2 (ND: 1/16), ND3 (ND: 1/64)Material: Glass (with sunlight burn-in protection) Turret switched, motor-driven.
White Balance
AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K - 15,000 K), Manual
Eye Detection.AF Type
Dual Pixel CMOS AF, Contrast AF
Gamma
BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, HDR (PQ), HDR(HLG)
Image Stabilizer
Optical
Tilt Pan Operation Range
Horizontal ±170°Pan operation speed: 0.1° - 100°/sec.
Tilt Operation Range
Vertical -30° - +90°Tilt operation speed: 0.1° - 100°/sec.
3G-SDI 1920 X 1080
59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)1280 x 720: 59.94p/50.00P (4:2:2 10bit)
12G-SDI 3840 X 2160
59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)1280 x 720: 59.94p/50.00P (4:2:2 10bit)720 x 576: 50.00i (4:2:2 10bit)720 x 480: 59.94i (4:2:2 10bit)
IP 3840 X 2160
59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)
Number of Presets
Max. 100 (including home position)
Communication Control
LAN, Wi-Fi, Serial, IR
Interface

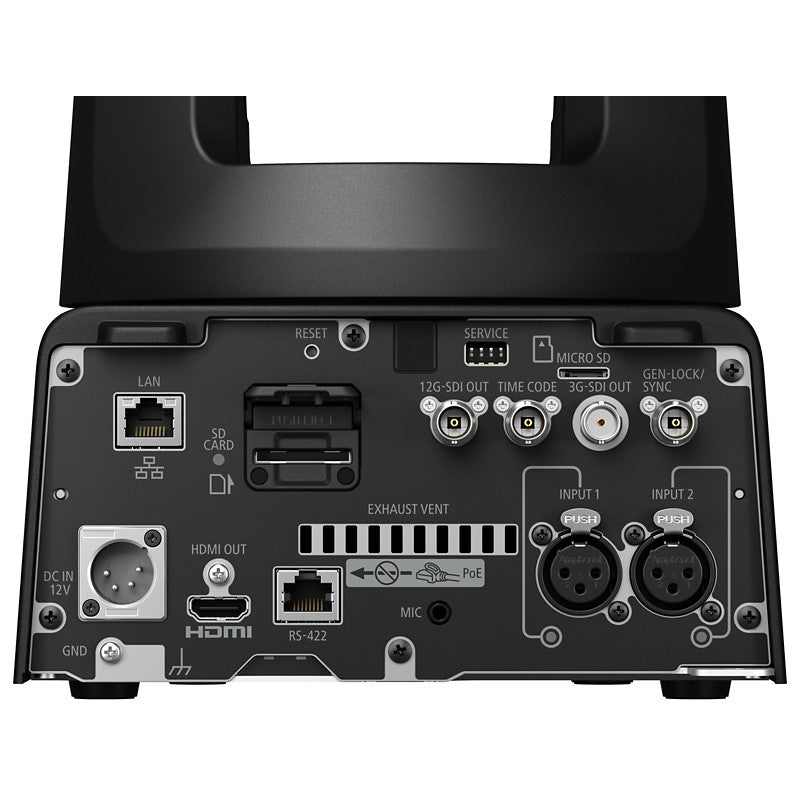

12G/3G-SDI OUT Terminal BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75ΩSMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliantEmbedded audio, Time code (VITC/LTC), Audio Input 1 / Input 2 Terminals INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balancedSensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ω/Att.: 20 dBSensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 kΩ or moreSupply Voltage: 48 V DC (Bias resistance: 6.8 kΩ), Mic Terminal Φ3.5 mm stereo mini jack (unbalanced, plug-in power supported)Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dBSensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or moreSupply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
GEN-LOCK Terminal
BNC jack x 1, 1.0 Vp-p/75Ω
Time Code Terminal
BNC jack x 1, 1.3 Vp-p/50Ω or less
RS-422 Terminal
RJ45 connector x 1
Media Slot
SD Card x1, microSD card slot x 1, future expansion, recording unavailable
External Power Source
12 V DC (4-pin XLR input)
Quietness
NC30 or Lower
Software
Remote Camera Control Application
Power
PoE
PoE++ power supply via LAN connector (IEEE802.3bt compliant)
