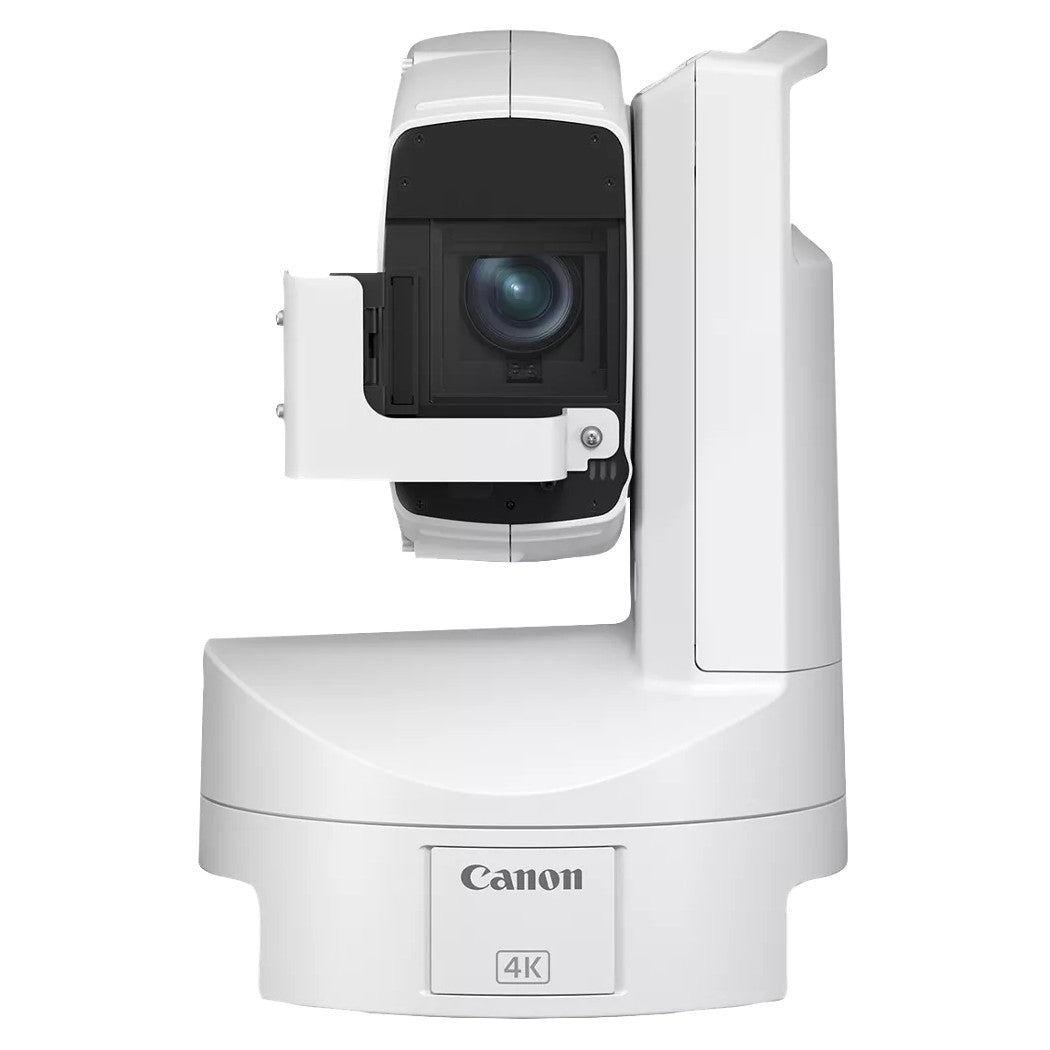

• Canon CR-X300 Outdoor 4K 20x PTZ Camera front

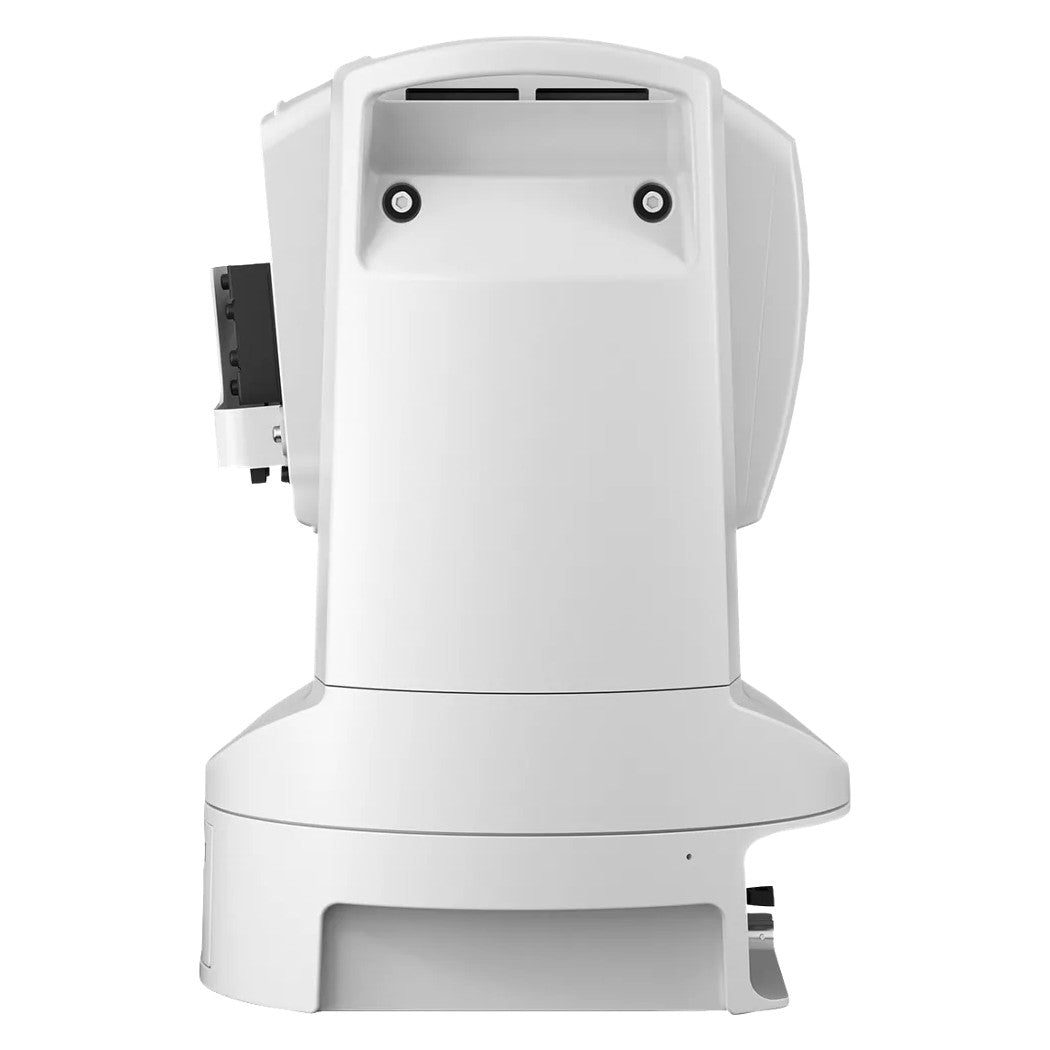

  • Canon CR-X300 Outdoor 4K 20x PTZ Camera back

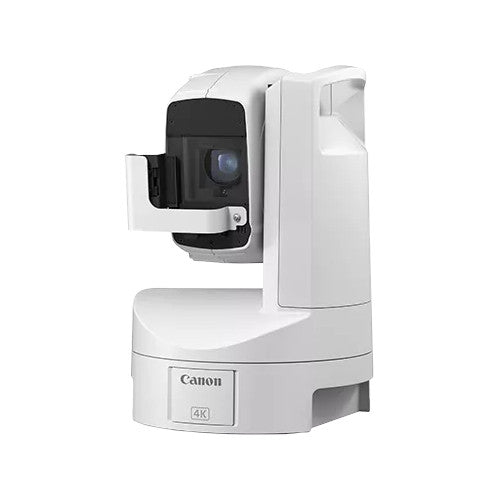

  • Canon CR-X300 Outdoor 4K 20x PTZ Camera left

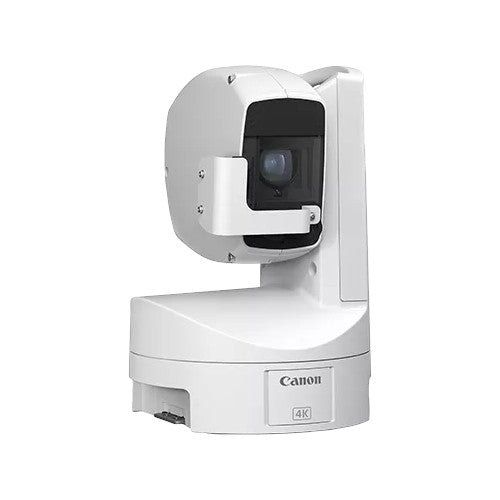

  • Canon CR-X300 Outdoor 4K 20x PTZ Camera right

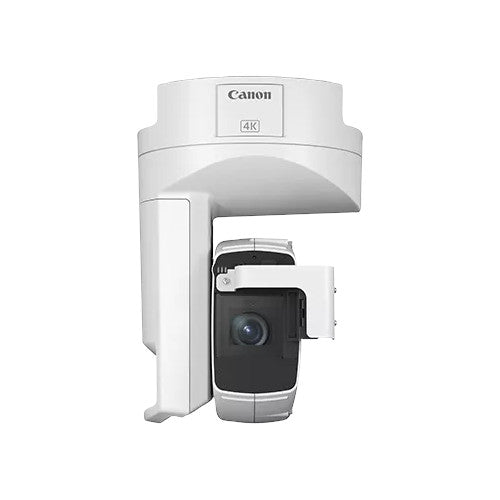

  • Canon CR-X300 Outdoor 4K 20x PTZ Camera upside down

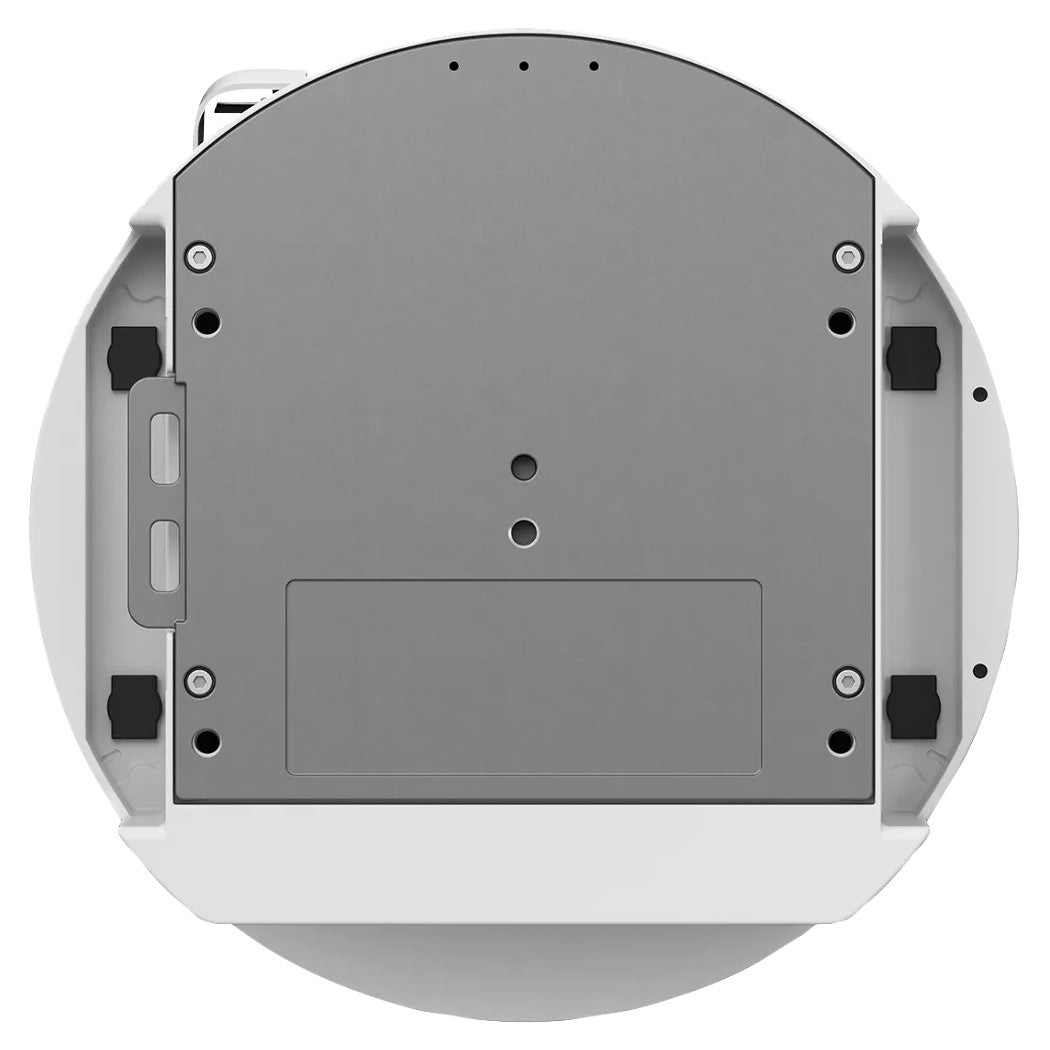

  • Canon CR-X300 Outdoor 4K 20x PTZ Camera bottom

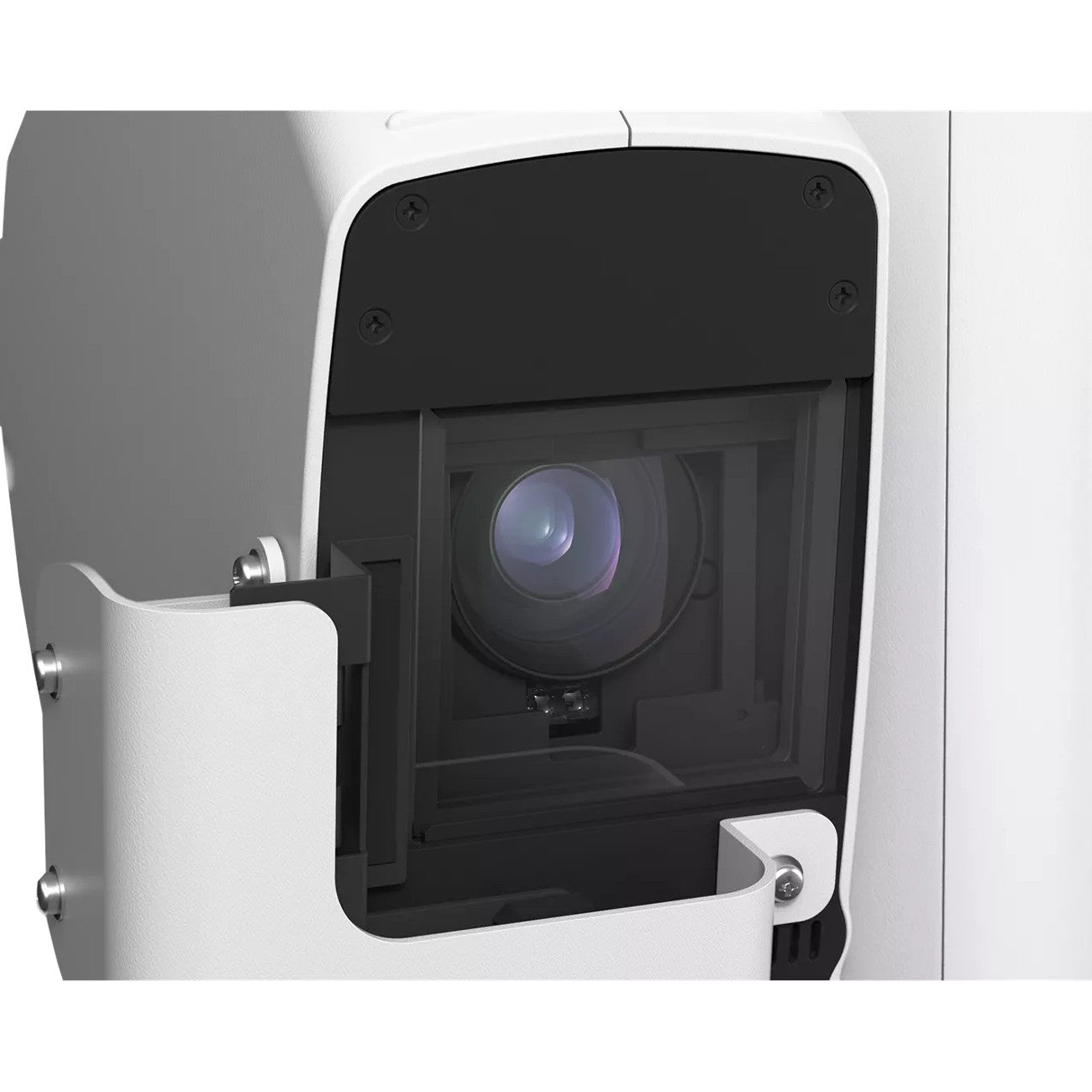

  • Canon CR-X300 Outdoor 4K 20x PTZ Camera detail

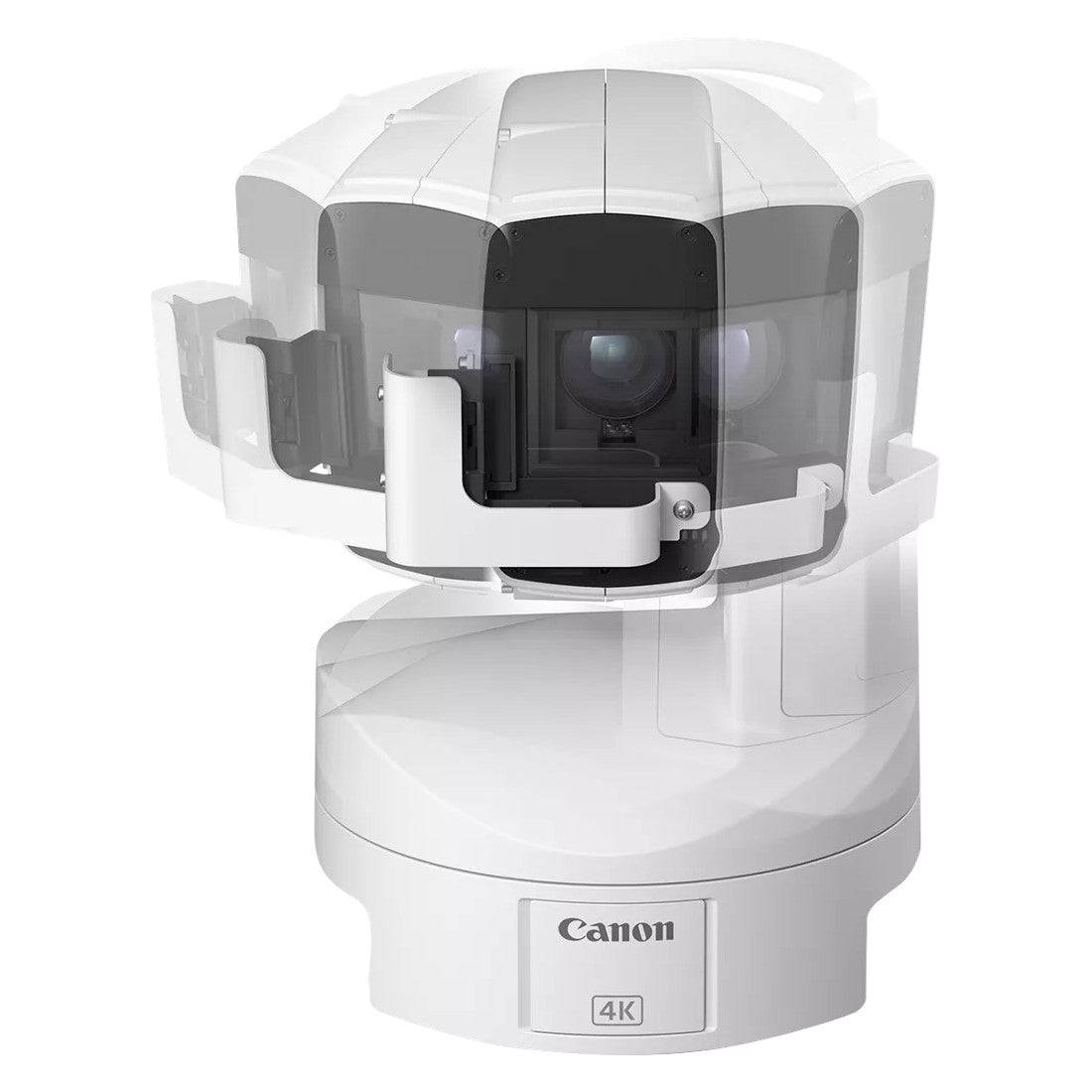

  • Canon CR-X300 Outdoor 4K 20x PTZ Camera rotation

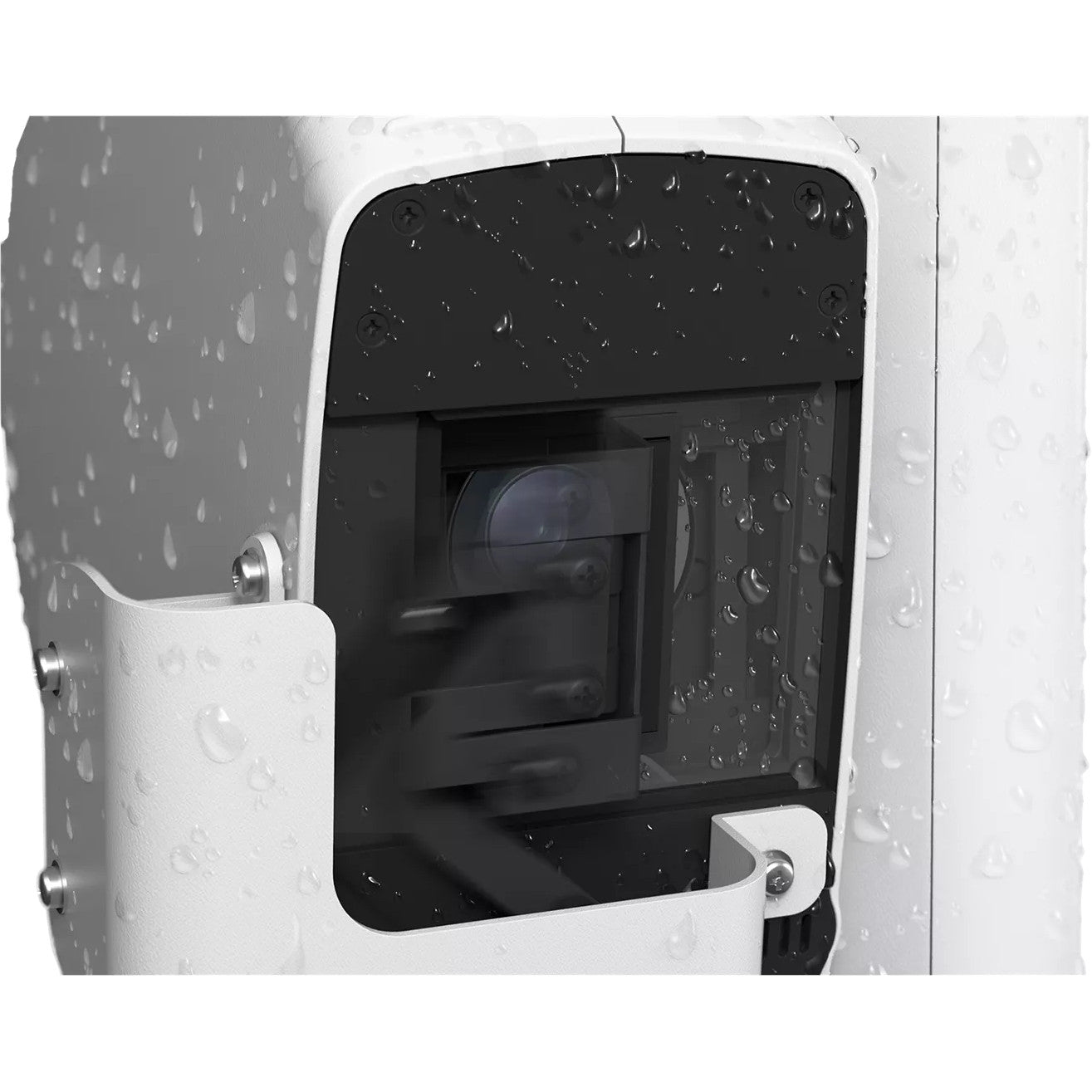

  • Canon CR-X300 Outdoor 4K 20x PTZ Camera water
1 9

Canon CR-X300 Outdoor 4K 20x PTZ Camera

Canon CR-X300 Outdoor 4K 20x PTZ Camera

SoundPro Item: 138425 | Part Number: CR-X300

$13,399.00
$14,850.00 $13,399.00
Your Price Sold out
MSRP: $14,850.00 | MAP: $13,399.00

Usually ships in 5-7 business days

  • 1/2.3" CMOS Sensor with Hybrid Auto Focus
  • High Quality 4K 30p and Full HD 60p Video Output
  • 20x Optical Zoom Lens with Optical Image Stabilization
  • Renowned Canon Color Science
  • Outdoor Camera with Wiper (IP65 Rated)
  • 6G-SDI, HDMI, and IP Video Out
  • Built-in NDI|HX and SRT support
  • Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
Log in or register for YOUR best price

The CR-X300 from Canon features a 1 / 2.3-inch 4k-UHD CMOS imaging sensor and an optical 20x zoom lens, along with the 20x digital zoom. The CR-X300 achieves astounding performance that enables this PTZ camera to be used in high-end production applications, including broadcast, sports, live events, and government. Housed in an aluminum die-cast body, it also features an IP65 rating for protection from dust and water, can be mounted right-side-up or upside down, yet it is small and lightweight enough to be carried around for portable installations Virtually anywhere.

The CR-X300 camera supports multiple professional interfaces, including single cable PoE++ connectivity, which allows you to use NDI®|HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-X300 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi. The camera supports multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of 3rd party hardware controllers.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
Approx. 8.54x12.24x8.54” (217x311x217mm) (excluding protrusions and connector cover)
Electrical
Power Supply PoE
PoE++ power supply via LAN connector (IEEE802.3bt compliant) – PoE and PoE+ cannot be usedExternal power source: 12 V DC (Use the included power cable with DC plug)
Optics
Zoom Optical
20xDigital: 20x
Focus
Focus mode: Manual, Continuous AF, Face Detection AF, Tracking AF type: Hybrid AF, Contrast AF
Connectivity
HDMI 3840 X 2160
29.97P, 25.00P, 23.98P (4:2:2 10 bit)1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)– Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)– When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Network
LAN x 1, RJ45, 1000Base-T
HDMI
HDMI connector x 1, output only
Input
Approx. 39.8 W* max. (body only)DC
Construction
Color Space
Auto, Manual 1/3 – 1/1000 sec.
Color Matrix
BT.709, BT.2020
Gain
0.0 dB – 36.0 dB
Color
Titanium white
Controls
Video Transmission Protocol
XC (Canons original), RTSP/RTP, NDI|HX2, RTMP/RTMPS
Control Protocol
XC (Canons original), NU (Canons original), NDI|HX, Standard Communication (Serial), Standard Communication (IP)
Shipping
Weight
Approx. 15.5 lbs (7 kg ) (body only)
General
Camera
Image Sensor Type 1/2.3 (1/2.3 in.) single-plate CMOS sensorTotal pixels: approx. 21.14 megapixelsEffective pixels: approx. 8.29 megapixels (3840 x 2160), Lens f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom 35mm equivalent focal length: [4K UHD] approx. 29.3 (W) – 601 mm (T)[Full HD] approx. 30.5 (W) – 627 mm (T)8-bladed circular aperture12 elements in 10 groups (including 2 aspheric elements), White Balance AUTO (AWB), Set A, Set B, preset settings (daylight: approx. 5600 K*, tungsten lamp: approx. 3200 K*), color temperature setting (2000 K – 15000 K), Manual* Color temperatures are given for reference purposes only., Built-in Microphone EquippedWaterproof microphone
Minimum Focusing Distance
1 cm (0.39 in.) at maximum wide angle, 60 cm (2.0 ft.) throughout the zoom range (from the front window)
Horizontal
65.6° (W) – 3.6° (T)Vertical: 39.8° (W) – 2.0° (T)[Full HD]
Shutter Speed
1/6 – 1/2000 sec. (specific values depend on the frame frequency)
Shooting Mode
F.Auto, P, Tv, Av, M
Scene Mode
Portrait, Sports, Low light, Spotlight
Gamma
Normal1, Normal3
ND Filter ND Filter
1/8 at maximumEnhanced
ND Filter
1/32
IR Mode
Electrically switchable
Image Stabilizer
Optical-shift (Standard IS, Powered IS)
Min. Subject Illumination
Approx. 3.0 lux (shutter speed 1/60 sec., frame frequency 59.94 Hz (P (Program AE) shooting mode), auto slow shutter "Off")
Video Flip
Supports upright/ceiling installation, flip function ("Auto Flip" enabled/disabled)
SDI 3840 X 2160
29.97P, 25.00P, 23.98P (4:2:2 10 bit)1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)– Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)– When 3840 x 2160 is selected for SDI, video will not be outputted to HDMI.
Hz
14.99 fps,When frame frequency is 50.00/25.00
Preset
Number of presets: Max. 100 (including home position)
Communication Control
LAN, Serial
Interface
6G-SDI BNC jack (output only) x 1, 0.8 Vp-p/75, unbalanced SMPTE 2081, 424, 425, ST 299-2 compliantEmbedded audio, Time code (VITC/LTC)
GEN-LOCK
BNC jack x 1, 1.0 Vp-p/75, input only
RS-422
RJ45 connector x 1
External Device I/O Terminal
AUX connector x 1
Operation Range Pan Operation Range
Horizontal ±180°Tilt operation range: Vertical -40° – +215°
Operation Speed
0.3° – 60°/sec.
Position Accuracy
within ±10
Noise
NC45 or lower (when operating at 60°/sec.)
Wiper
Equipped
Operating Environment
Temperature / Humidity Resistance -15°C – +40°C (+5°F – +104°F), Humidity 90% or less (without condensation)(Startup temperature -10°C – +40°C (+14°F – +104°F)
Survival Wind Speed 15 m/sec.
Normal operation30 m/sec.: Operation possible60 m/sec.: Non destruction
Installation Method
Supports upright/ceiling installation
Dust-resistant/Waterproof
IP65
Paint
Painted for outdoor-use
Supported Controllers Hardware
RC-IP100Software: Remote Camera Control Application
