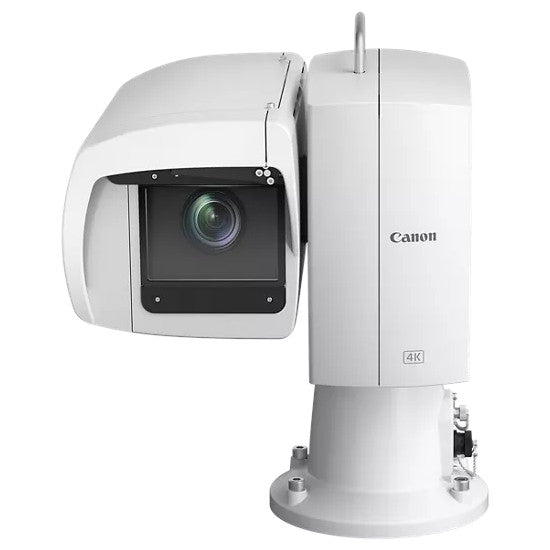

• Canon CR-X500 Outdoor 4K 15x PTZ Camera

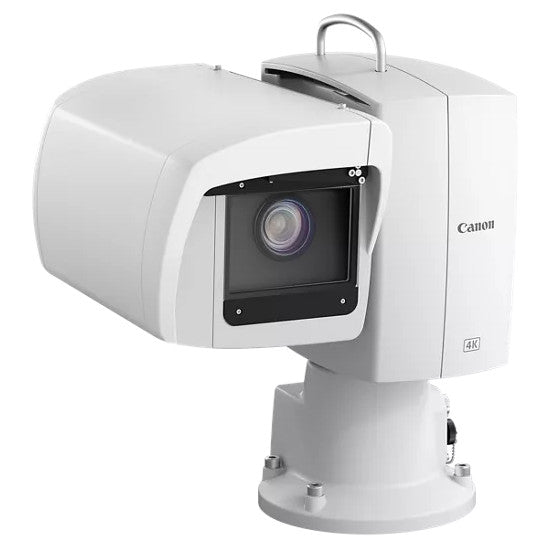

  • Canon CR-X500 Outdoor 4K 15x PTZ Camera right

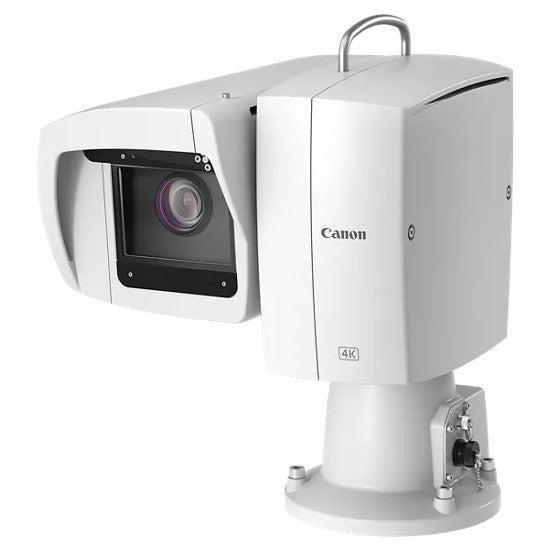

  • Canon CR-X500 Outdoor 4K 15x PTZ Camera left

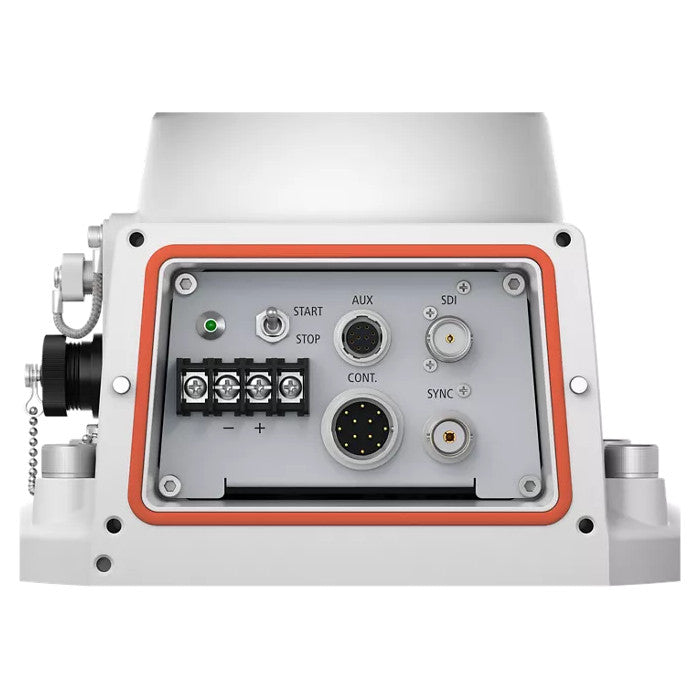

  • Canon CR-X500 Outdoor 4K 15x PTZ Camera back
1 4

Canon CR-X500 Outdoor 4K 15x PTZ Camera

Canon CR-X500 Outdoor 4K 15x PTZ Camera

SoundPro Item: 138424 | Part Number: 5424C002

$24,899.00
$24,899.00 $24,899.00
Your Price Sold out
MSRP: $24,899.00 | MAP: $24,899.00

Usually ships in 5-7 business days

  • 1" CMOS Sensor with Dual Pixel Autofocus
  • High Quality 4K 60p Video Output
  • 15x Optical Zoom Lens (30x FHD) with Optical Image Stabilization
  • Renowned Canon Color Science with Support for Wide DR and Canon Log 3 Image Modes
  • Outdoor Camera with Wiper (IP55 Rated)
  • 12G-SDI Video Out
Log in or register for YOUR best price

The versatile CR-X500 4K PTZ Camera is a successor to Canon’s well-established BU-47H HD PTZ camera. Targeted to bring outstanding image quality at 4K resolution for outdoor use by broadcasters, cable networks, sports stadiums and for weather and traffic monitoring, Canon’s CR-X500 4K PTZ camera is IP-55 rated for dust and water resistance and is equipped with powerful features and functions.

The CR-X500 PTZ produces incredible 4K image quality with the combination of a 1” CMOS sensor, Dual DIGIC DV 6 image processors and 15x Optical 4K UHD Zoom lens. These core components provide the image-processing power and speed that enables 4K UHD video at up to 60P over 12G-SDI and precise focus with Dual Pixel CMOS AF.

View full details
  • Camera
    • Color: White
    • Operating Condition: Outdoor
    • Image Sensor
      • Type 1.0 (1.0 in.) single-plate CMOS sensor
      • Total pixels: approx. 13.40 megapixels
      • Effective pixels: approx. 8.29 megapixels (3840 x 2160)
    • Lens
      • f=8.3 – 124.5 mm, F/2.8 – 4.5, 15x optical zoom, 9-bladed iris diaphragm
      • 35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)
    • Zoom
      • Optical: 15x
      • Advanced Zoom FHD: 30x
    • Lens Configuration: 18 elements in 14 groups (including 2 aspheric elements)
    • Image Stabilizer: Optical-shift
    • Shutter Speed: Auto, Manual 1/3 – 1/1000 sec.
    • Iris: Auto, Manual
    • Gain: Auto, Manual 0 db ~ 33.0 dB
    • ND Filter: Built-in (Off, 1/4, 1/16, 1/64), motor operated
    • Color Sampling: 4:2:2, 10-bit
    • White Balance: AUTO (AWB), Set
    • Focus: Dual Pixel CMOS AF
    • Gamma: Normal1: BT.709, Normal1: BT.2020, Wide DR: BT709, Wide DR: BT2020, PQ: BT2020, HLG: BT2020, Canon Log 3: BT709, Canon Log 3: BT2020
    • Image Quality Adjustment: Master Pedestal, R-Gain, B-Gain, R-Black, B-Black, Gamma, Color Matrix, Knee, Skin Detail, Sharpness, Black Gamma, Noise Reduction
    • Min. Subject Illumination: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB)
  • Pan and Tilt
    • Pan and Tilt
      • Pan operation range: Horizontal ±170°
      • Pan operation speed: 0.5° ~ 25°/sec.
      • Tilt operation range: Vertical -50° ~ +30°
      • Tilt operation speed: 0.3° ~ 20°/sec.
    • Pan, Tilt, Zoom operation: Simultaneous
    • Repeatability: ± 7'
    • Turning Radius: Pan: 620mm dia., Tilt: 430mm dia.
  • Output Format
    • SDI
      • 3840x2160: 59.94P (4:2:2 10 bit)
      • 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
    • Supported Control Protocols: Canon NU Protocol
  • Interface
    • Control Terminal: RS-422 Serial
    • 12G-SDI OUT Terminal: BNC jack (output only) x 1
    • GEN-LOCK Terminal: BNC jack x 1
    • AUX Terminal: Yes
  • Environmental
    • Dustproof Waterproof Rating: IP55
    • Wiper: Yes
    • Paint: Salt-resistant
    • Noise: Less than NC55 under 10° / sec.
    • Wind Resistance
      • Normal Operation: 0-25m/s
      • Operation Possible: 25-35m/s
      • Non-Destructive: 35-60m/s
    • Operating Environment
      • Temperature: -15°C – +40°C (+5°F – +104°F)
      • Humidity: 10% – 90% (without condensation)
  • Other
    • Power Source: External: DC 10.5-15 V, 90W
    • Dimensions (WxHxD): Approx. 337x390x386mm (13.27x15.35x15.2”) (excluding protrusions)
    • Weight: Approx. 17 kg (37.48 lbs)
    • Supported Controllers: Hardware: RC-IP100
