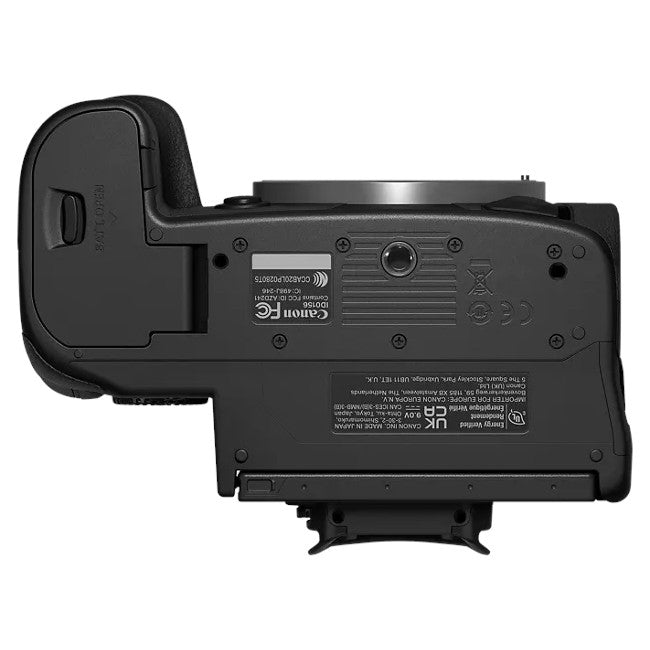

Canon EOS R5 C 8K Cinema Camera with 24-105 Lens
Canon EOS R5 C 8K Cinema Camera with 24-105 Lens
SoundPro Item: 138351 | Part Number: 5077C010
Regular price
$5,149.00
Regular price
$6,210.00
Sale price
$5,149.00
Unit price
per
MSRP: $6,210.00
| MAP: $5,149.00
Usually ships in 5-7 business days
- Supports 8K/60P Internal RAW or Cinema RAW Light Recording, HDMI 8K RAW Output to
- Compatible Recorders, 8K HDR Recording (PQ/HLG)
- Internal Cooling Fan Enables Non-stop 8K/60P Recording
- Expanded Interface for Professional Needs
- Carries on the Ergonomic EOS Design
- Full-featured 13 Assignable Buttons
- 8K Sensor and DIGIC X Processor with 4K and 2K Oversampling
- Approved for use on Netflix productions
Unlock your creative potential with the EOS R5 C, a full frame hybrid camera that expertly combines many of the video formats and features from the Canon Cinema EOS lineup with the distinguished still-imaging capabilities of the EOS R system.
Whether capturing stills or videos, you’ll love the fast and intuitive autofocus, excellent imaging, versatility of non-stop 8K/60P RAW recording, and fast motion recording without cropping the sensor – all in a compact and lightweight design built on the next generation RF Mount System.
Specifications
Certifications
Standards Compliance
IEEE 802.11a/ac/b/g/n
Dimensions
Sensor Size
Approx. 36.0 x 24.0 mm
Pixel Size
Approx. 4.40 micro square
Bit Depth
10 bit
Dimensions (WxHxD)
Approx. 5.6x4x4.4" / 142x101x111mm (Based on CIPA standards.)
Weight
Dimensions and Weight
Weight Approx. 1.7 lbs. / 770g (including battery, CFexpress card; without body cap)Approx. 1.5 lbs. / 680g (body only; without battery, card or body cap)
Electrical
Battery
LP-E6NH/LP-E6N/LP-E6* With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible.With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible.* LP-E6 is automatically recognized as Mode C - Blinking White Drive mode regardless of capacity.
Power Source
Battery Check Automatic battery check when the power switch is turned ON.Displayed in 6 levels on top LCD panel. Battery level can be checked on the LCD panel and in the viewfinder.Battery Info display in Set-up Menu:Type of power source used.Remaining capacity (percentage of battery charge remaining).Recharge performance: (3-level display of battery's ability to hold a charge)
Optics
Focus Method
Dual Pixel CMOS AF II
Connectivity
Wi-Fi®
Transmission Method DS-SS modulation (IEEE 802.11b)OFDM modulation (IEEE 802.11g/n/a/ac), Connection Method (1)Camera access point mode(2)Infrastructure mode, Communication with a Smartphone Images can be viewed, controlled, and received using a smartphone.Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.Images can be sent to a smartphone., Send Images to a Web Service Still photos (RAW, C-RAW, HEIF, and JPEG) and movies (MP4) can be uploaded to image.canon server album.Withthe image.canon server, images can be sent to social media or a photo album link can be sent (by the image.canon specifications).
Print From Wi-Fi® Printers
Not supported.
USB Terminal
Equivalent to Hi-Speed USB (USB 3.1 Gen 2)
Clean HDMI Output
Provided
Microphone Input Terminal
3.5mm diameter stereo mini jack
Construction
When Using Mount Adapter EF-EOS R
Canon EF or EF-S lenses (excluding EF-M lenses)
Lens Mount
Canon RF mount
Color Filter System
RGB primary color filters
Color Space
Selectable between sRGB and Adobe RGB
Color Sampling Method
YCbCr 4:2:2
Compatibility
Compatible Lenses
Canon RF lens group (excluding EF, EF-S and EF-M lenses)
Compatible E-TTL Speedlites
Canon EX- and EL-series Speedlites
Environmental
Working Temperature Range
32-104 F / 0-+40C
Working Humidity
85% or less
General
Type
Digital single-lens non-reflex AF/AE camera
Image Processor
DIGIC X
CFexpress Card
Type B: Card slot
Recording Media
SD card SD card speed class-compatible.Compatible with UHS-IIEye-Fi cards and Multimedia cards (MMC) are not supported.
Effective Pixels
Approx. 45.0 megapixels
Total Pixels
Approx. 47.1 megapixels
Aspect Ratio
3:2 (Horizontal:Vertical)
Low Pass Filter
Installed in front of the image sensor, non-detachable
Image Sensor
Dust Deletion Feature Self Cleaning Sensor Unit Removes dust adhering to the low-pass filter.At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indi-cated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen).After manually activated cleaning, the camera will automatically restart (Power OFF to ON).When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.Dust Delete Data acquisition and appending The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software (v. 4.14 and higher) to automatically erase the dust spots.Not available with EF-S lenses, in cropped shooting or multi-exposure shooting.Manual cleaning (by hand)
Recording Format
Compliant to Design rule for Camera File system 2.0 and Exif 2.3*. (*Supports time difference information in Exif 2.31.)
Image Format
JPEG, HEIF, RAW (CR3, 14 bit RAW format), C-RAW (Canon original)
Movies
ALL-I, IPB, RAW
Recording System
HDR Mode-Continuous Shooting (1) 1 shot only(2) Continuously(3) Multiple Exposure, Advanced shooting operations (1) Focus Bracketing (2) Interval Timer(3) Bulb Timer(4) Multi-Shot NR, File Numbering The following file numbers can be set: File numbering methods Continuous numbering The numbering of captured images continues even after you replace the card.Auto resetWhen you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.Manual reset: Resets the file number to 0001, and creates a new folder automatically.*When manually resetting the file number, folders can also be renamed.
Aspect RatioLarge/RAW/C-RAW
8192 x 5464Medium: 5808 x 3872Small 1: 4176 x 2784Small 2: 2400 x 16001.6x (Crop)*Large/RAW/C-RAW: 5088 x 3392Small 2: 2400 x 16004:3
Aspect RatioLarge
7280 x 5464Medium: 5152 x 3872Small 1: 3712 x 2784Small 2: 2112 x 1600RAW/C-RAW: 8192 x 546416:9
RAW + JPEG / HEIF
Simultaneous Recording: Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.
Picture Style
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined 1-3< In Scene Intelligent Auto, [Auto] will be set automatically.[Standard] is the default setting for [User Def. 1-3].
White Balance
Settings Auto (Ambience priority/White priority)Day LightShadeCloudy*Tungsten lightWhite fluorescent lightFlashCustom (Custom WB)Color temperature* Effective also in twilight and sunset.
Auto White Balance
Option between ambience priority and white priority settings.
White Balance Shift Blue/amber Bias
+-9 levelsMagenta/green bias: +-9 levelsCorrected in reference to the current WB mode's color temperature.
Coverage
Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).
Magnification / Angle of View
Approx. 0.76x / Approx. 35.5 degrees (with 50mm lens at infinity, -1 m -1)
Eye Point
Approx. 23mm (at -1 m -1 from the eyepiece lens end)
Dioptric Adjustment Range
Approx. -4.0 to + 2.0 m -1 (dpt)
Viewfinder
Viewfinder Information Maximum burstPossible shots/Sec. until self-timer shootsFocus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timerShooting modeAF methodAF operationImage qualityCardDrive modeMetering modeNo. of remaining shots for focus bracketing, multiple exposures, or interval timerElectronic levelMovie recording time availableBattery levelImage Stabilizer (IS mode)Histogram (Brightness/RGB)Quick Control buttonAnti-flicker shootingWhite balance/White balance correctionPicture styleAuto Lighting OptimizerStill photo cropping / Aspect ratioAF point (1-point AF)AEB/FEBView AssistHDR PQFlash ready / FE lock / High-speed syncElectronic shutterTouch shutter / Create folderAE lockShutter speed / Multi-function lock warningAperture valueWi-Fi functionWi-F signal strengthBluetooth functionExposure simulationMagnify buttonISO speedHighlight tone priorityExposure compensationExposure level indicator
Autofocus
Number of AF zones available for Automatic Selection AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%Stills: Max. 1053 zones (39 x 27)Movies: Max. 819 zones (39 x21), AF Working Range EV -6 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at 73F/23C, ISO 100)*Except RF lenses with a Defocus Smoothing (DS) coating., AF Methods Face+Tracking AFSpot AF1-point AFExpand AF Area (Above, below, left, and right/Around)Zone AFLarge Zone AF (Vertical/Horizontal), Subject to Detect People, Animals, No Priority*Available with [AF method] set to Face+Tracking, Zone AF, or Large Zone AF (vertical/horizontal)
Metering Modes
Real-time metering with image sensor (384 [24x16 zone metering]) Evaluative metering (AF point-linked)Partial metering (approx. 6.1% of the area at the center of the screen)Spot metering (approx. 3.1% of the area at the center of the screen)Center-weighted average metering
Metering Range
EV -3 - 20 (at 73F/23C, ISO 100) (Still Photo Shooting)
Exposure Control
Exposure Control Modes Scene Intelligent AutoFlexible-priority AE (Fv)Program AE (P)Shutter-priority AE (Safety shift possible) (Tv)Aperture-priority AE (Safety shift possible) (Av)Manual exposure (M)BulbCustom shooting mode C1, C2, C3
Normal
ISO 100-51200 (1/3- or 1-stop incrementsExpanded:
L
equivalent to ISO 50
H
102400For [Highlight tone priority], the minimum ISO speed limit will be ISO 200 to 51200.Expanded ISO cannot be set for HDR mode or during HDR PQ shooting.User-defined ISO speed range - still photo shooting
Minimum
L (50)-51200 (in 1-stop increments)Maximum: ISO 100-H (102400) (in 1-stop* Expanded ISO speeds are noted as being "equivalent" to these speeds.User-defined Auto ISO range - still photo shooting
Compensation Manual
±3 stops in 1/3- or 1/2-stop incrementsAFB: ±3 stops in 1/3- or 1/2-stop incrementsAE Lock Auto AE lock - The metering mode for AE lock after focus can be customized.User-applied AE lock - In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.); Enabled in all metering modes.
Shutter
Type MechanicalElectronic 1st-CurtainElectronic Shutter (1st and 2nd curtain - silent*)*Cannot be used in conjunction with the following functions: flash photography, HDR shooting, multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High].* A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.* In electronic shutter shooting under conditions such as flash firing by other cameras or with fluores-cent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image., Shutter Speeds When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulbWhen [Electronic] is set: 1/8000-0.5 sec.
X-sync Speed Mechanical Shutter
1/200 sec.Elec. 1st-curtain: 1/250 sec.
Shutter Release
Soft-touch electromagnetic release
Self Timer
10-sec. delay, 2-sec. delay
Still Photo IS
Optical IS with RF and EF lenses equipped with Image Stabilization. Always onOnly for shot
Video IS
A narrower angle of view is used when digital image stabilization is selected in the menu. This is equivalent to approx. 1.1x longer focal length when Electronic Image Stabilization mode (Standard) is selected. Also, this is equivalent to approx. 1.43x longer focal length when Electronic Image Stabilization mode (High) is selected.
E-TTL Balance
Ambience priority, standard, flash priority
External Speedlite
E-TTL II Flash Meterings Evaluative (Face Priority)EvaluativeAverage, Slow Sync (P/Av modes) 1/250* - 30 sec., auto1/250* - 1/60 sec., auto1/250* sec. (fixed)* Electronic 1st curtain shutter only* With mechanical shutter — 1/200 sec., Continuous flash control E-TTL each shotE-TTL 1st shot
Flash Function Menu
Provided for EX- and EL-series Speedlites
Flash Exposure Compensation
+-3 stops in 1/3- or 1/2-stop increments
HDR PQ Shooting
Disable / Enable
HDR Specification
ITU-R BT.2100 (PQ)
Focusing
Dual Pixel CMOS AF
Exposure Compensation
+-3 stops in 1/3- or 1/2-stop increments
Canon Log
Provided (Off / Canon Log 3)

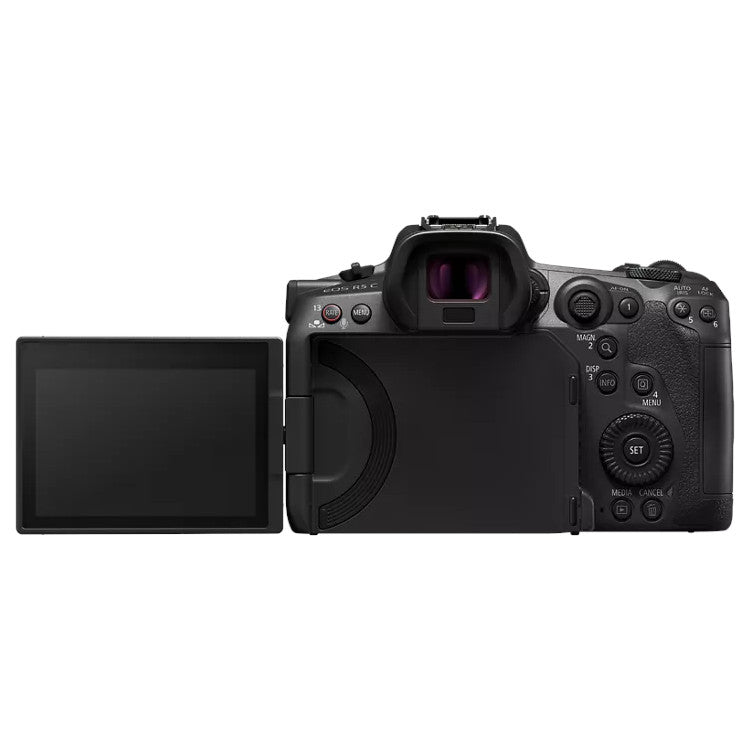

LCD Screen
Monitor Size 3.2-inch (screen aspect ratio of 3:2)3.15 in./8.01cm diagonal (2.63 in./6.67cm width, 1.75 in./4.44cm height)
Dots
Approx. 2.1 million dots
Brightness Control
Manually adjustable to one of seven brightness levels
Coating
Clear View LCD II Anti-smudge coating applied.Anti-reflection coating not applied.
Interface Languages
12 (English, German, Spanish, French, Portuguese, Italian, Ukraine, Russian, Polish, Simplified Chinese, Korean, Japanese)
Highlight Alert
The white areas with no image data will blink.
Histogram
Brightness and RGB
Quick Control Function
Function: The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.
Image Protection and Erase
Protection Single image (select image)Select rangeAll images in a folderAll images on card Image browsing and image search can be based on ratings.Ratings-based image selections also possible with DPP.All found images (only during image search)
Erase
Except protected images Select images to eraseSelect rangeAll images in folderAll images on cardAll found images (only during image search)
Direct Printing
Compatible Printers: Not supported
DPOF: Digital Print Order Format
DPOF: Compliant to DPOF Version 1.1
Transition Frequency (Central Frequency) 2.4 GHz Band
Frequency: 2412 to 2462 MHz Channels: 1 to 11 channels5 GHz band Frequency: 5180 to 5825 MHzChannels: 36 to 165 channels
Remote Operation Using EOS Utility
The camera can be controlled via Wi-Fi® using EOS Utility.
Transmission Method
GFSK modulation
Custom Functions
22 Custom Functions are settable.
Customization
Custom Controls Customizable Buttons Shutter buttonMovie buttonMODE buttonAF-ON buttonAE lock buttonAF point buttonDepth of field preview buttonLens AF stop buttonMulti-function buttonLCD panel illumination buttonSet buttonMulti-controllerCustomizable Dials Main dialQuick control dial 1 and 2Control ring, My Menu Registration Up to six top-tier menu items and Custom Functions can be registered.Up to five My Menu tabs can be added.My Menu tab overall operations Adding a tabDeleting tabs in a batchDeleting all tab itemsSetting the menu displayMy Menu tab detailed operations Selecting a registered itemSorting registered itemsDeleting selected registered itemsDeleting registered items in a batchDeleting tabsChanging a tab name (16 ASCII characters)
For PC Communicationterminal Type
USB Type-CShared with terminal for in-camera charging with USB
Power Adapter PD-E1.In-camera Charging
Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1.Video Output (UVC).Canon App(s) for iPhonePTP connection/GP-E2
Video Out Terminal
HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible Images can be displayed through the HDMI output and on screen at the same time.Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
Headphone Terminal
3.5mm diameter stereo mini jack
Start-up Time
Approx. 0.4 sec. (Based on CIPA testing standards.)
