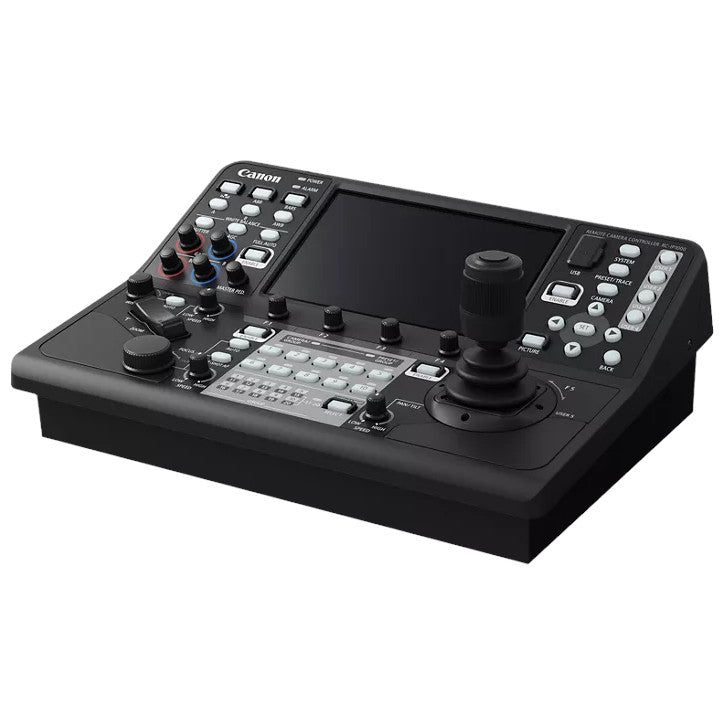

• Canon RC-IP1000 Remote PTZ Camera Controller

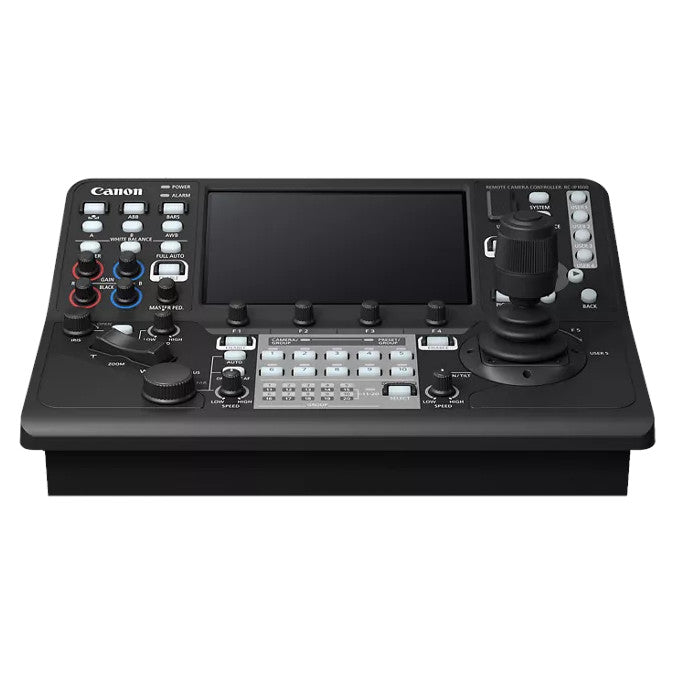

  • Canon RC-IP1000 Remote PTZ Camera Controller front

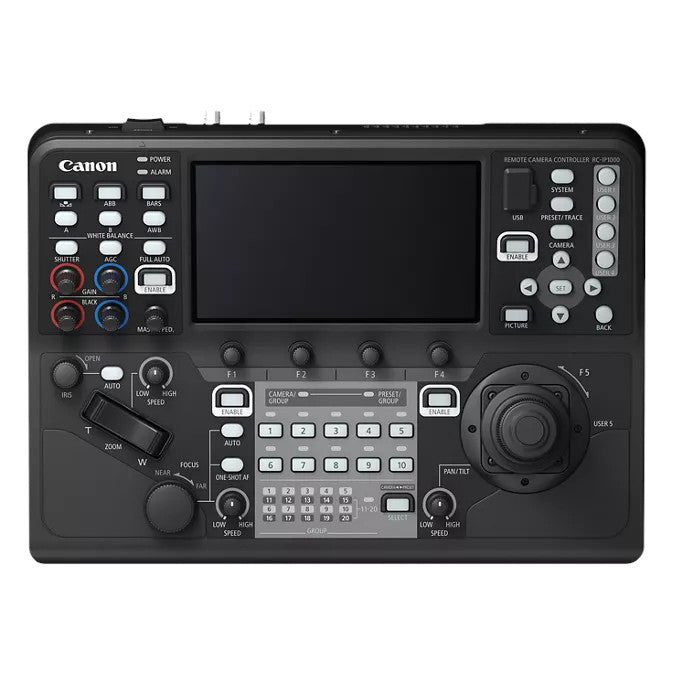

  • Canon RC-IP1000 Remote PTZ Camera Controller top

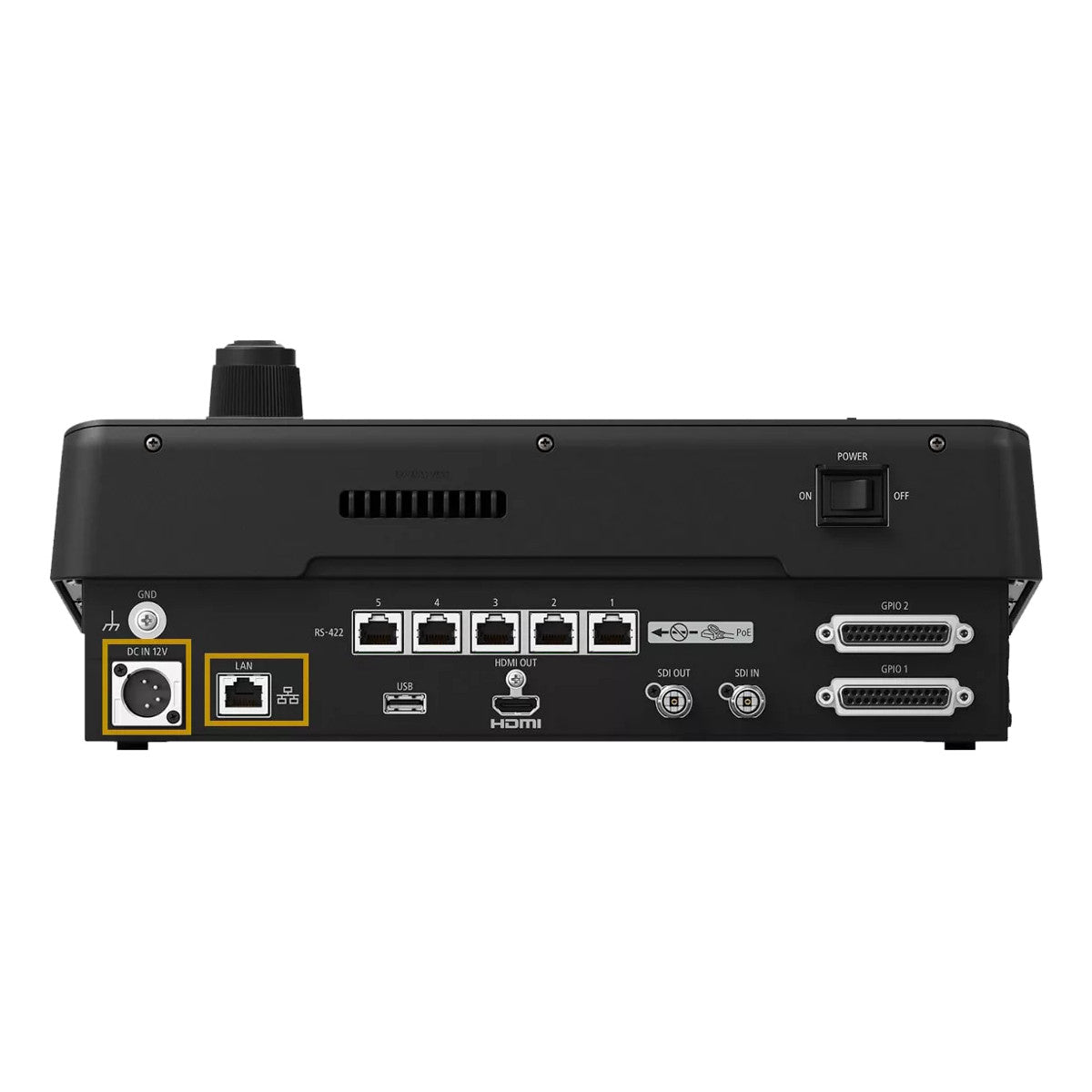

  • Canon RC-IP1000 Remote PTZ Camera Controller back panel

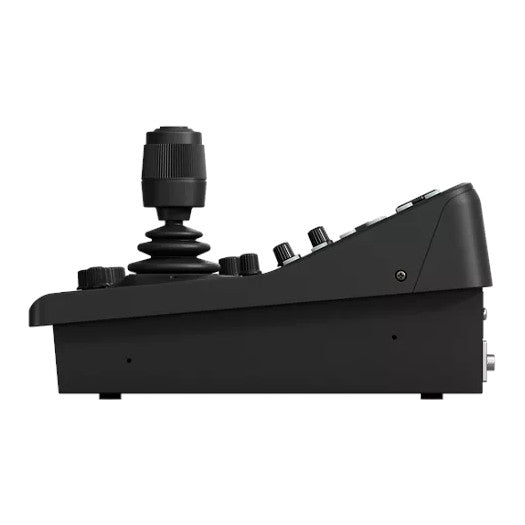

  • Canon RC-IP1000 Remote PTZ Camera Controller left

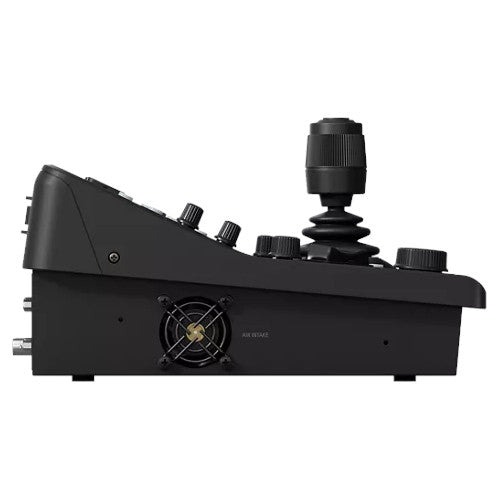

  • Canon RC-IP1000 Remote PTZ Camera Controller right

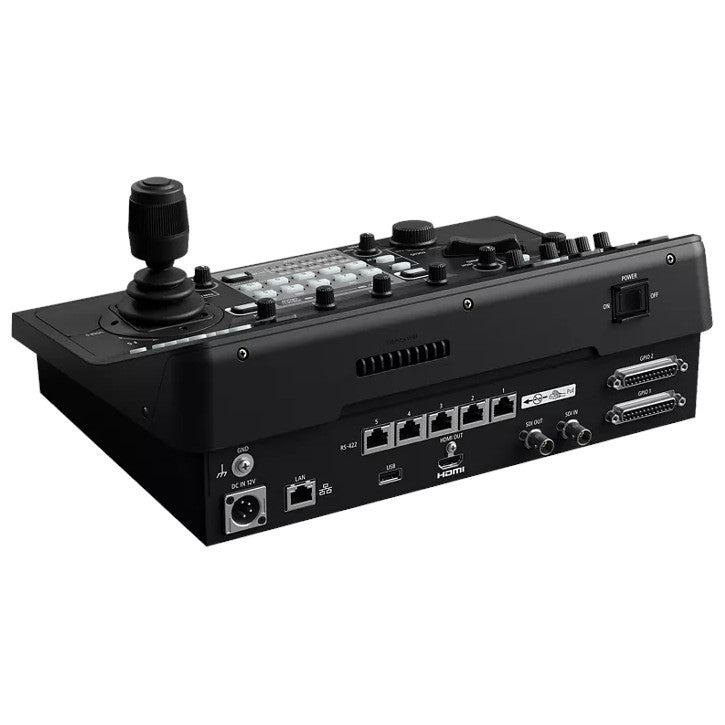

  • Canon RC-IP1000 Remote PTZ Camera Controller back
1 7

Canon RC-IP1000 Remote PTZ Camera Controller

Canon RC-IP1000 Remote PTZ Camera Controller

SoundPro Item: 141031 | Part Number: RC-IP1000

$5,549.00
$6,170.00 $5,549.00
Your Price Sold out
MSRP: $6,170.00 | MAP: $5,549.00

Usually ships in 5-7 business days

  • Full-featured remote camera controller provides smooth PTZ movement and precise control
  • 7” touch panel for a clear display of operation screens, live camera views, and Touch AF
  • User assignable buttons and dials allow users to customize the controller to provide easy access to their most frequently used functions
  • Adjust pan, tilt, zoom and change camera function settings remotely
  • Support for multiple connected cameras to be operated and configured simultaneously
  • Control lever and zoom rocker with adjustable reaction rate
  • 4K 60P video input/output via 12G SDI
  • Control up to 200 supported Canon cameras, including up to 5 over serial
  • Camera OSD menu from compatible cameras can be shown on the touch panel and operated using push-button controls
Log in or register for YOUR best price

The RC-IP1000 is an advanced PTZ controller enabling fast operation of multiple PTZ cameras through a newly developed control interface. Featuring 42 buttons and 14 dials, including assignable buttons, programmable trace operation, and adjustable speed and response controls, this controller helps enable intuitive control of multiple PTZ cameras quickly and easily. With a 7-inch touch panel that provides clear visibility and touch-screen control, showing operation menus and camera video feeds, capability to control up to 200 cameras over IP, and more cutting-edge capabilities, the RC-IP1000 is built for large multi-camera productions.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
Approx. 13.47 x 5.71 x 9.65 inches (342×145×245 mm)
Electrical
Power Consumption PoE+ Input
25.0 W (max power consumption) Class 4 power sourcing equipment (Requests 25.5W)
Connectivity
DC Input
DC 10.8 to 20V, 2.5 A, 4-pin XLR connector
Environmental
Operating Temperature
0°C – +40°C (+32°F – +104°F)
Shipping
Weight
Approx. 7.5 lbs (3.4kg)
General
LAN Terminal
PoE+ power supply supported (IEEE802.3at Compliant), PoE cannot be used DC IN 12V terminal:
Controller Supported Cameras
CR-N700, CR-N500, CR-N300, CR-N100, CR-X500, CR-X300, C500 Mark II (requires firmware v1.0.3.1 or later), C300 Mark III (requires firmware v1.0.1.1 or later), XF605 (requires firmware v1.0.1.1 or later), EOS C70 (requires firmware v1.0.5.1 or later)
Camera Control
Number of Connectable Cameras 200 (5 with serial connection), Number of Camera Select Buttons 10, Number of Camera Groups 20 (10 cameras in 1 group), Video Interfaces 12G-SDI IN/OUT, HDMI OUT, IP IN, Supported Protocols XC protocol (IP)NU protocol (serial), Preset (Store/Play/Delete) Up to 100 for each camera, Trace (Store/Play/Delete) Up to 10 for each camera, Other Controls Control lever, zoom rocker, focus dial, user buttons x 10, dials x 14, up down left right select buttons, Supported Add-On Applications RA-AT001 Auto Tracking ApplicationRA-AL001 Auto-loop Application
Screen
LCD Display 7-inch touch panel, 800 x 480 resolution, Camera Video Preview YES (SDI IN / IP), up to 9 cameras per page, Touch Focus YES (SDI IN / IP), Crop Frame Control YES (SDI IN / IP, CR-N700 only), OSD Menu Display YES (SDI IN / IP, select cameras only*)*XF605, EOS C70, EOS C500 Mark II, EOS C300 Mark III
Terminal
GPIO D-Sub 25pin x 2 ports For GPIO external control/link, LAN / PoE+ RJ45 port IP camera control, IP video input, PoE+ power supply, Serial RJ45 port x 5 Serial camera control, 12G-SDI IN SDI video input, 12G-SDI OUT Video Output, HDMI OUT (Type A) x1 Video Output, 12V DC 4-Pin XLR port DC Power, USB Type A x2 Save Settings, Firmware Update
