ChamSys MagicQ Compact Connect Lighting Control Surface USB

ChamSys MagicQ Compact Connect Lighting Control Surface USB

SoundPro Item: 135654 | Part Number: CHAMMQCOMPACTCONect

$3,500.00
$3,885.00 $3,500.00
Your Price Sold out
MSRP: $3,885.00 | MAP: $3,500.00

Usually ships in 5-7 business days

  • Dual DMX Outputs For Direct Rig Connection
  • Ten Playback Faders Support Fast Live Cue Control
  • Eight Encoders Give Hands-On Parameter Adjustment
  • Sixty-Four Universes Over Network Expand System Scale
  • USB Hub Simplifies Peripheral Connectivity
  • Audio And Remote Inputs Support Flexible Integration
  • Travel-Friendly Size Fits Portable Production Workflows
Log in or register for YOUR best price

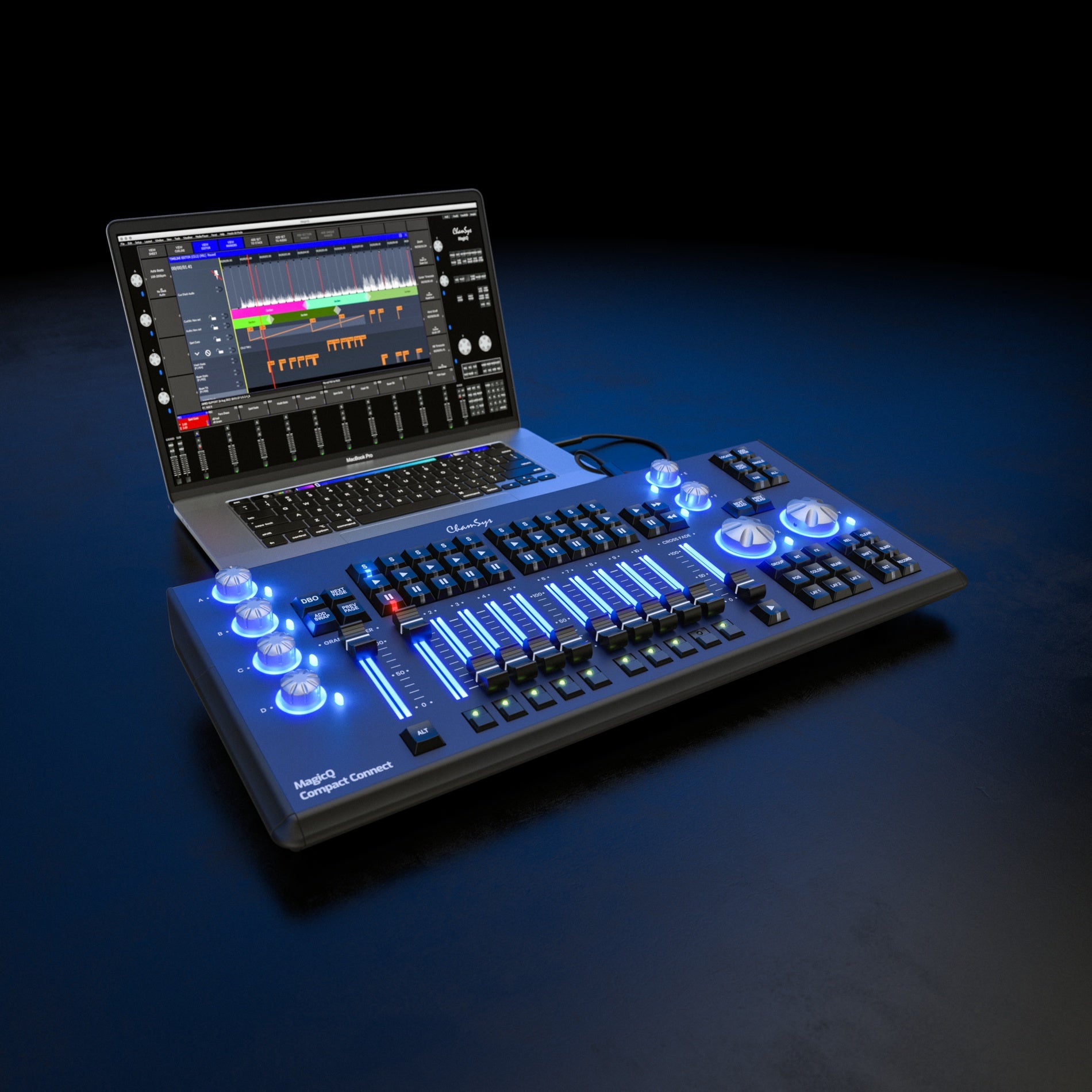

The ChamSys CHAMMQCOMPACTCONect is a compact lighting control surface designed for operators who want tactile show control while running MagicQ on a computer. Built for portable production and fixed installations alike, it connects to PC, Mac, or Linux systems and provides hands-on access to fixture parameters, cue playback, and overall level management in a travel-friendly format.

For real-world show workflows, this unit combines direct DMX connectivity with network-based lighting distribution, making it suitable for lighting, LED, and media control environments. Ten playback faders support live cue execution, while dedicated control elements help streamline busking, programmed playback, and day-to-day venue operation. Its onboard connectivity also adds practical integration points for audio input, remote triggering, and accessory support.

Whether you are equipping a touring package, upgrading a school theatre, or adding a compact desk to a club or studio, this controller offers a practical path into the MagicQ ecosystem without relying on extra output licenses or external dongles for network universes. The included accessories support immediate deployment for production teams that need a capable and portable control solution.

View full details

Specifications

General
Power Input
Neutrik powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains)
15w
Hardware Specifications
Direct DMX Outputs
2
Fader Playbacks
10
Attribute Encoders
8
USB Ports
5 (4 USB-A output, 1 USB-C input)
Network Ports
1
Audio Input
(1 channel, 7 band): Yes
10Scene Input
Yes
Kensington Security Lock Fixing
Yes
Working Light Port
Yes
Software Specifications
Universes
64
Max Number of DMX Channels
32768
Max Number of Fixtures Supported
32768
Max Number of Cues
5000
Max Number of Cue Stacks
2000
Max Number of Groups
5000
Max Number of Palettes
4096
Number of Media Server Layers Supported
50 (each different content)
Supported OS
Windows (8.1 or higher), macOS (10.13 or higher) and Linux
Included Accessories
USB A-C Cable
1
Dual color Desk lights
1
Dust Cover
1
Neutrik powerCON TRUE1 Power Cable
1
Boxed Weights And Dimensions
Width
630mm (24.8 inches)
Depth
360mm (14.2 inches)
Height
230mm (9.1 inches)
Weight
5.5kg (12.1 lb)
Console Weights And Dimensions
Width
522mm (20.5 inches)
Depth
230mm (9 inches)
Height
65mm (2.5 inches
Height (top of encoders)
78mm (3 inches)
Weight
3.65kg (8 lb)
Flight Cased Weights And Dimensions
Width
630mm (24.8 inches)
Depth
360mm (14.2 inches)
Height
230mm (9.1 inches)
Weight
8.0kg (17.7 lb)
