ChamSys MagicQ DIN Lighting Controller

ChamSys MagicQ DIN Lighting Controller

SoundPro Item: 146865 | Part Number: CHAMMQDIN

$6,585.00
$7,310.00 $6,585.00
Your Price Sold out
MSRP: $7,310.00 | MAP: $6,585.00

Usually ships in 5-7 business days

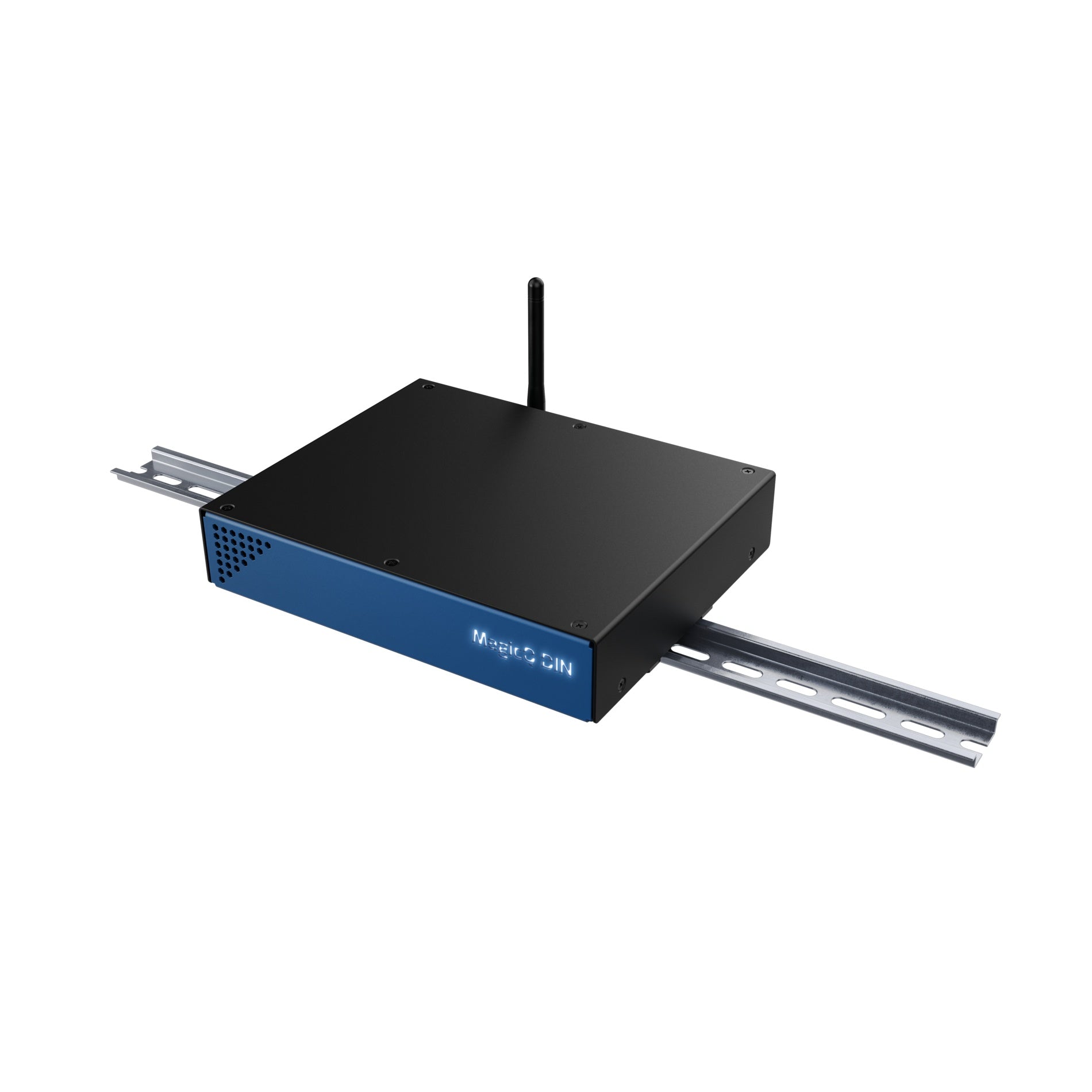

  • DIN Rail Mounting For Clean Installed Racks
  • 24 Universes For Large Lighting Systems
  • HDMI Monitor Output For Clear Visual Setup
  • Built-In Wi-Fi For Flexible Network Access
  • Phoenix DMX Outputs For Secure Wiring
  • OSC Support For Expanded Control Options
  • RDM Autopatch For Faster Fixture Setup
Log in or register for YOUR best price

The ChamSys CHAMMQDIN is a compact lighting controller designed for installations that need professional show control in a space-saving format. Its DIN rail mounting approach makes it well suited to fixed racks, control enclosures, and integrated lighting systems where a traditional console is not practical. With support for 24 universes, expandable to 48 via license upgrade, it offers substantial capacity for venues managing multiple fixtures, scenes, and playback requirements from a permanent control location.

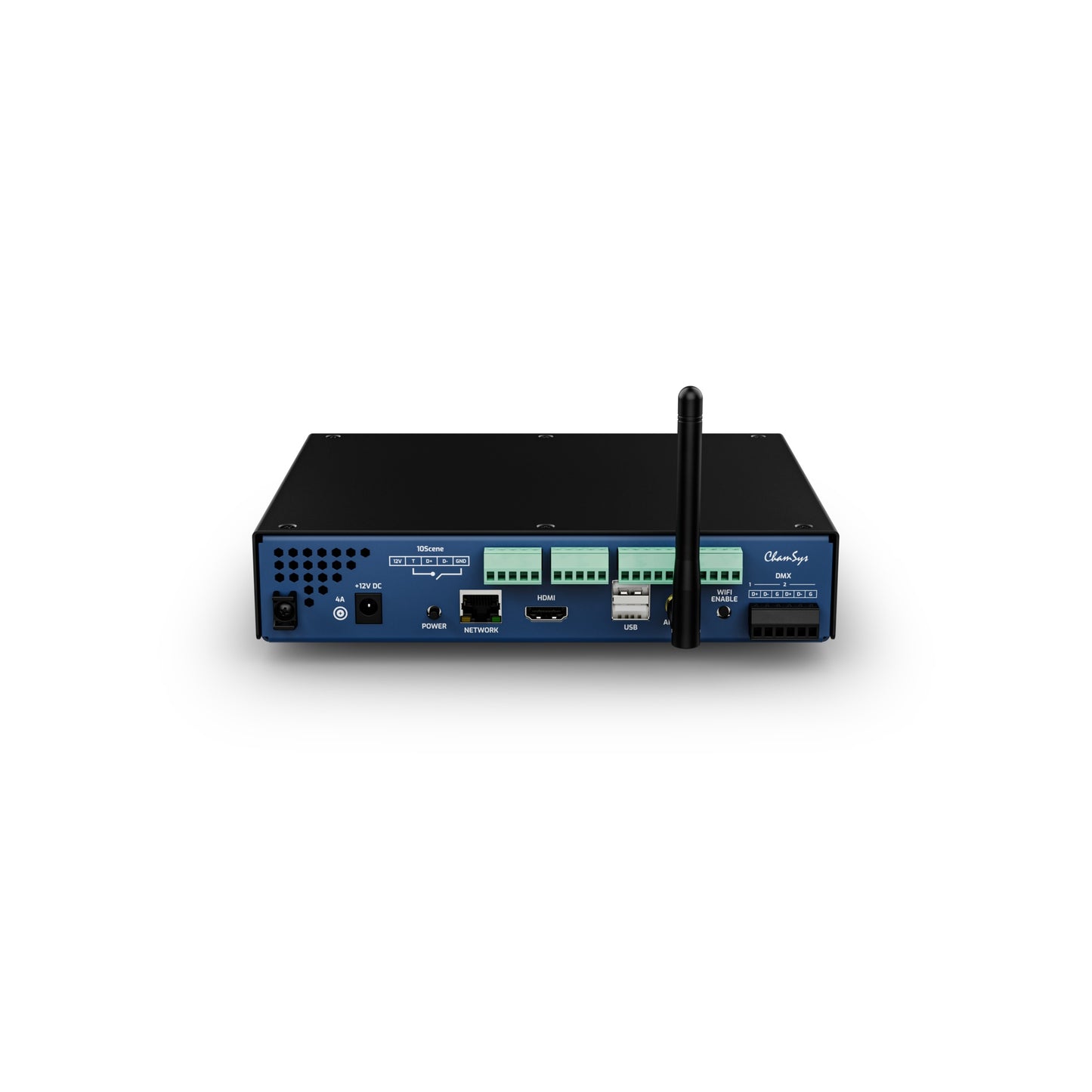

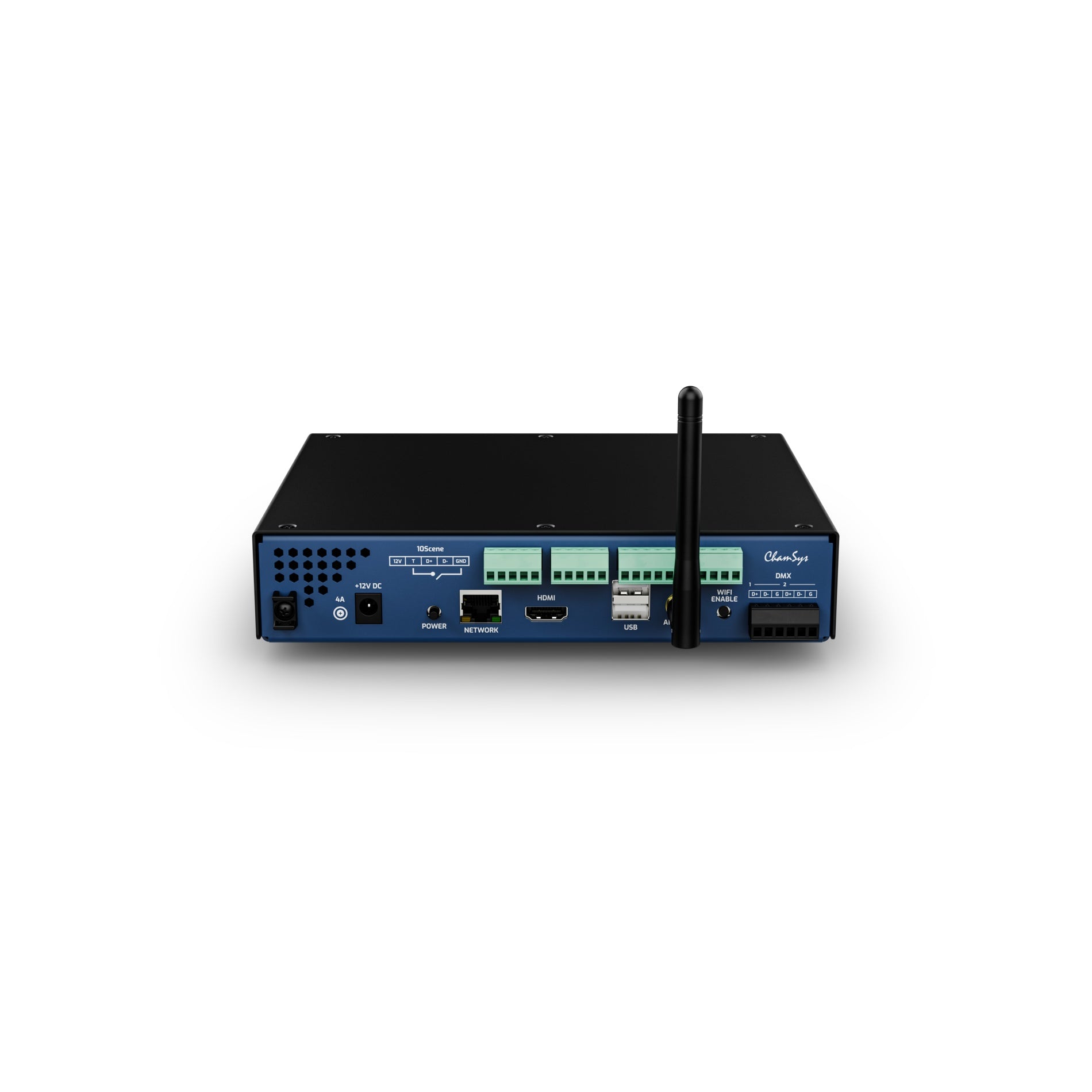

For integrators and venue technicians, the CHAMMQDIN combines local connectivity and system flexibility in a small footprint. It includes two Phoenix screw terminal DMX outputs, a network port, built-in Wi-Fi, USB connectivity, and HDMI output for an external 1920 x 1080 monitor. Software capabilities include OSC support, RDM Autopatch for faster patching workflows, a large fixture library, built-in FX generation, and onboard color tools. This makes it a practical option for architectural lighting, houses of worship, themed environments, entertainment venues, and other installations requiring centralized lighting playback and programming access.

View full details

Specifications

General
Power Input
12v DC
Max Power Consumption (mains)
60w
Hardware Specifications
Universes Supported
24, expandable to 48 via licence upgrade
DMX Outputs Pheonix Screw Terminal
2
External Monitor
1920 x 1080 HDMI
Inbuilt Wi-Fi
Yes
Network Port
1
USB Ports
2
Software Specifications
Max Number of DMX Channels
12288 *expandable to 24576
Max Number of Fixtures Supported
12288 *expandable to 24576
Max Number of Cues
5000
Max Number of Cue Stacks
2000
Max Number of Groups
5000
Max Number of Palettes
4096
Number of Media Server Layers Supported
50 (each different content)
OSC Supported
Yes
Software Feature
RDM Autopatch for fast show patching
Software Feature
Fixture library of over 48,000 fixture files
Software Feature
Built in FX generator
Software Feature
color picker and Gel inbuilt Gel library
Included Accessories
Wi-Fi Antenna
1
DIN Rail Mount Clips
2
10Scene Connectors
4
12v Power Supply
1
Dimensions And Weight
Width
200mm (7.8 inches)
Depth
165mm (6.5 inches)
Height
40mm (1.6 inches)
Weight
0.65kg (1.43lb)
Boxed Dimensions And Weight
Width
268mm (10.5 inches)
Depth
220mm (8.7 inches)
Height
130mm (5.1 inches)
Weight
1.04kg (2.29 lb)
