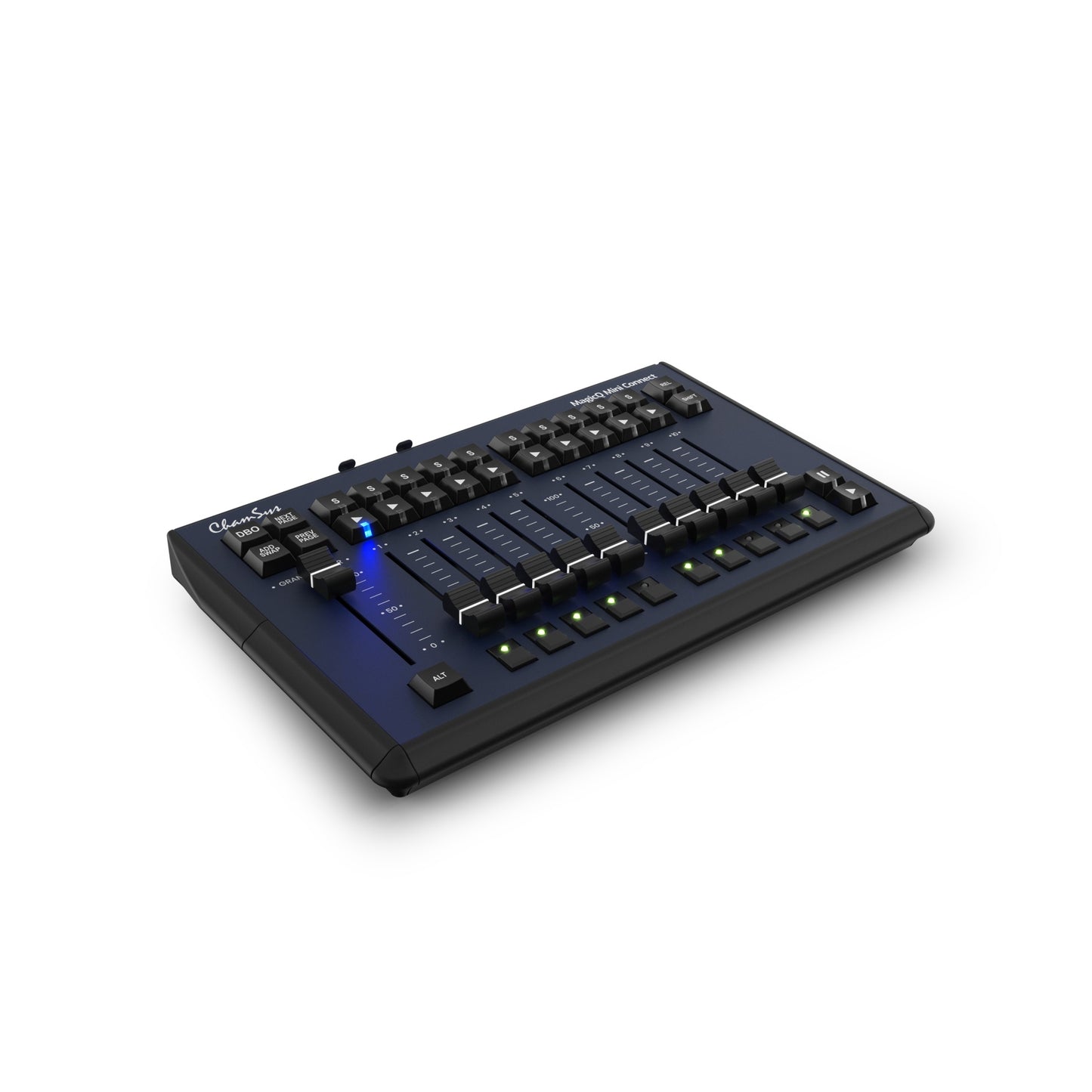

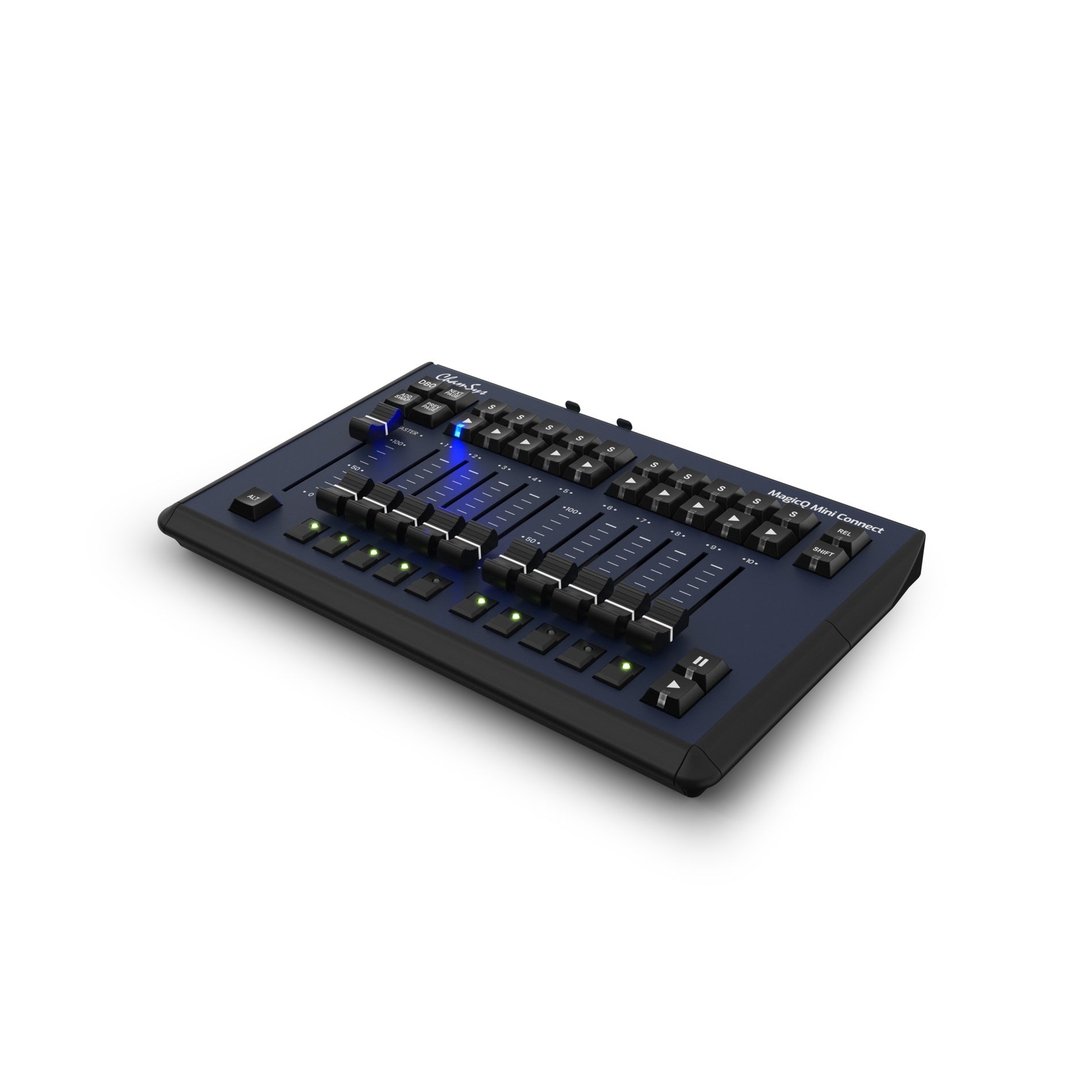

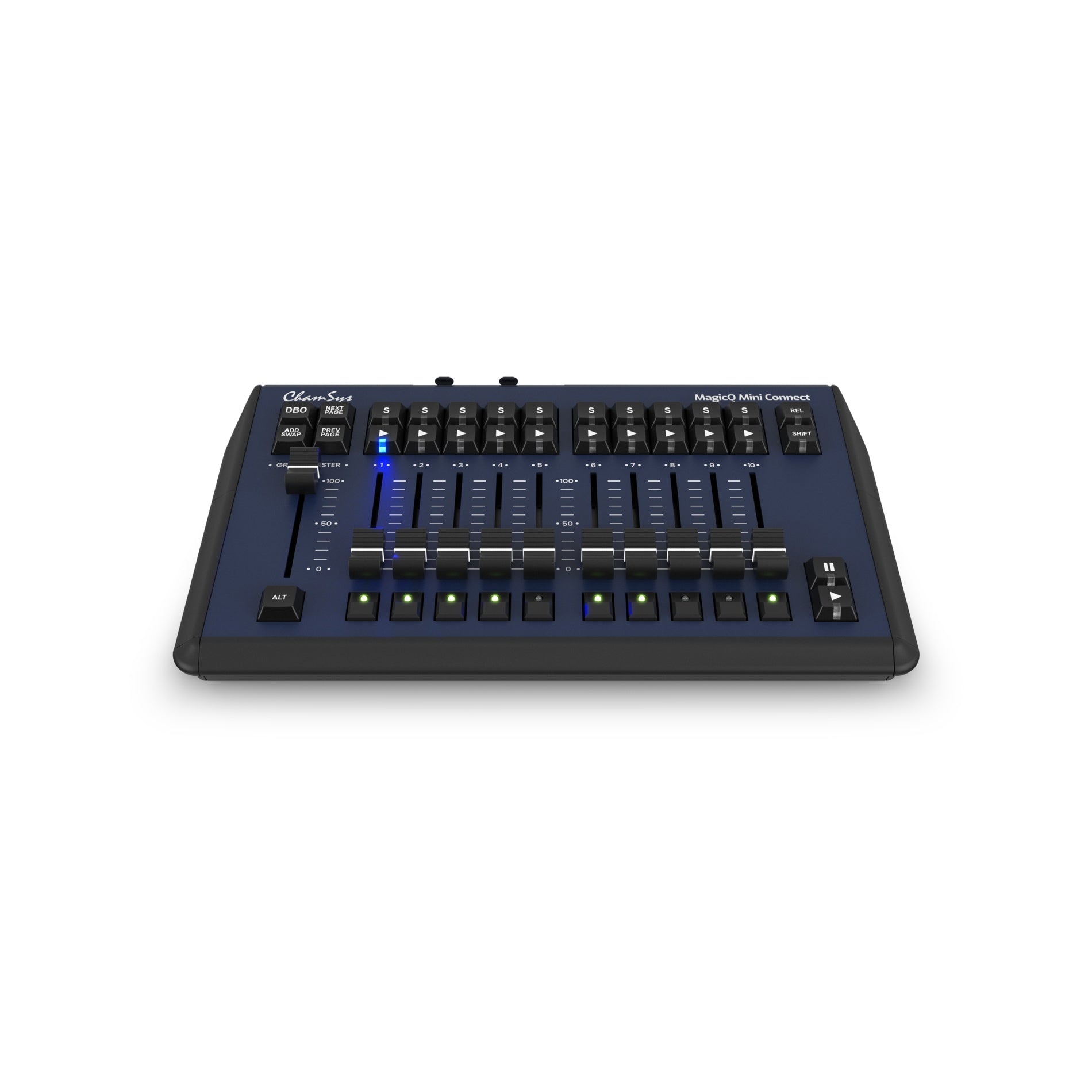

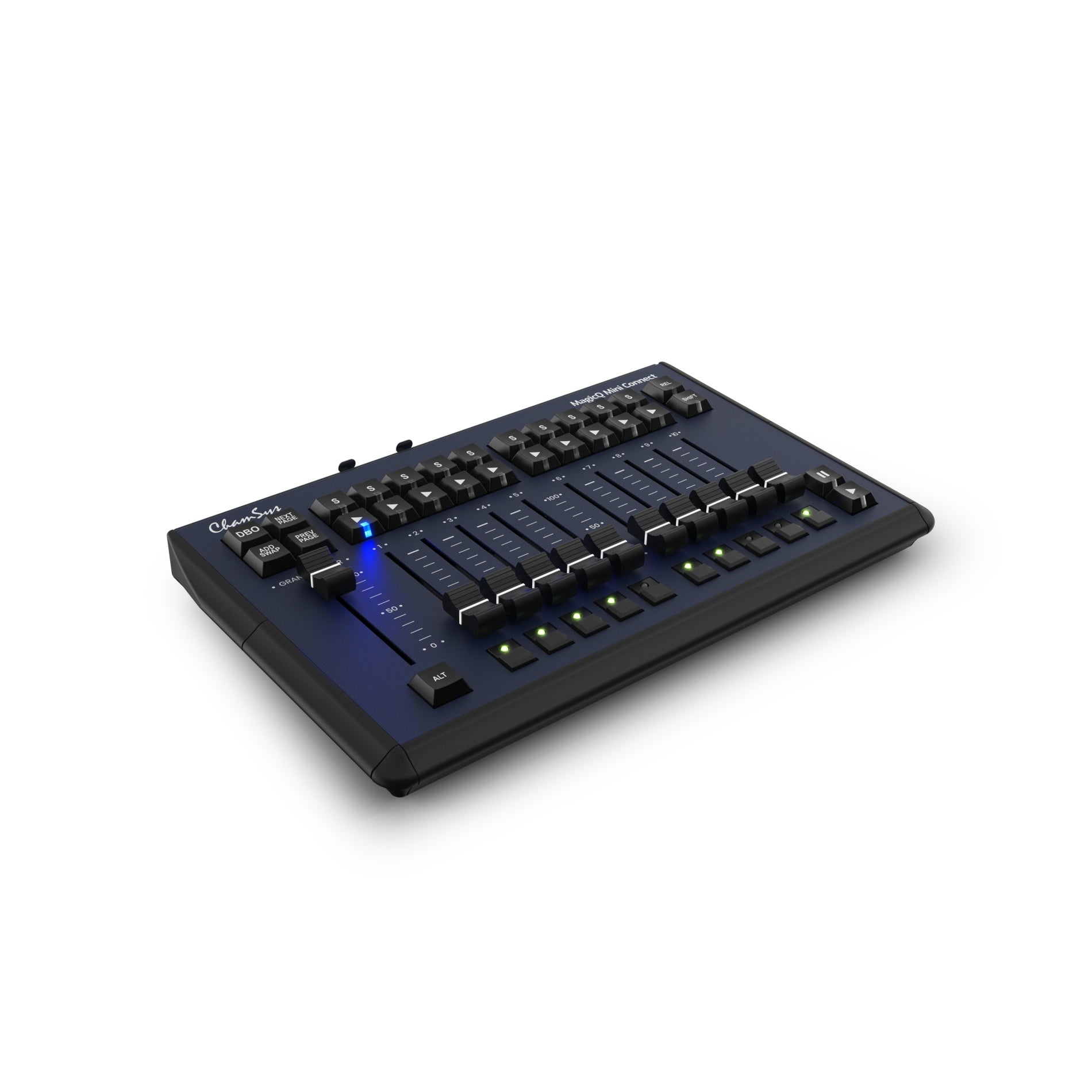

ChamSys MagicQ Compact Mini Connect USB Lighting Controller

ChamSys MagicQ Compact Mini Connect USB Lighting Controller

SoundPro Item: 135653 | Part Number: CHAMMQMINICONNECT

$1,565.00
$1,735.00 $1,565.00
Your Price Sold out
MSRP: $1,735.00 | MAP: $1,565.00

Usually ships in 5-7 business days

  • 10 Playback Faders For Hands-On Cue Control
  • Direct DMX Output For Simple System Connection
  • Network Port Supports Large Show Distribution
  • USB 3 Powered For Easy Portable Setup
  • Grand Master Fader Enables Fast Level Control
  • Works With Windows, macOS, And Linux
  • Included Case Helps Protect During Transport
Log in or register for YOUR best price

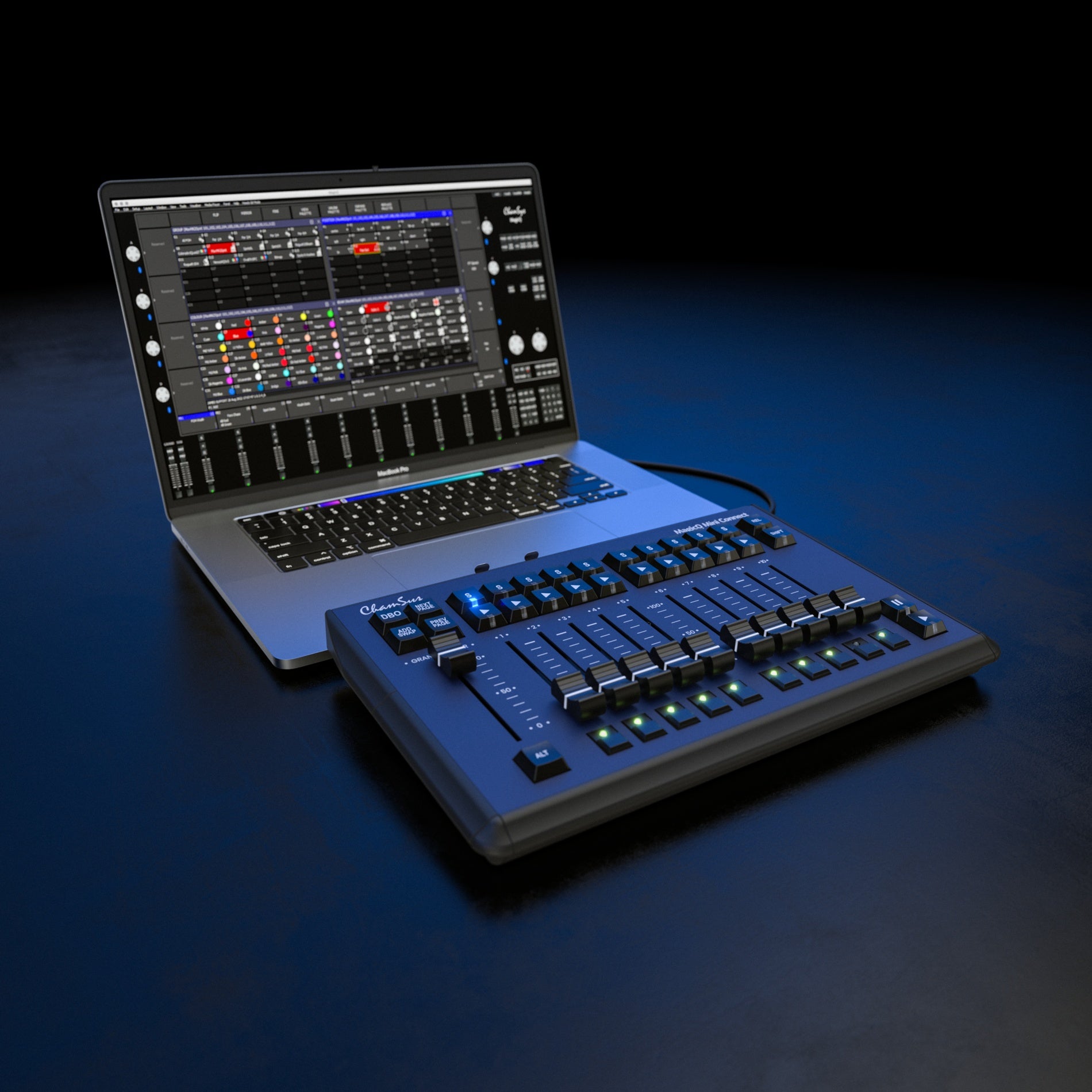

The ChamSys CHAMMQMINICONNECT is a compact USB 3 powered lighting controller designed to add hands-on playback control to MagicQ software on Windows, macOS, or Linux. For programmers and operators who prefer physical faders and dedicated buttons instead of a mouse-only workflow, it provides a practical way to turn a computer into a capable lighting, media, and LED control platform.

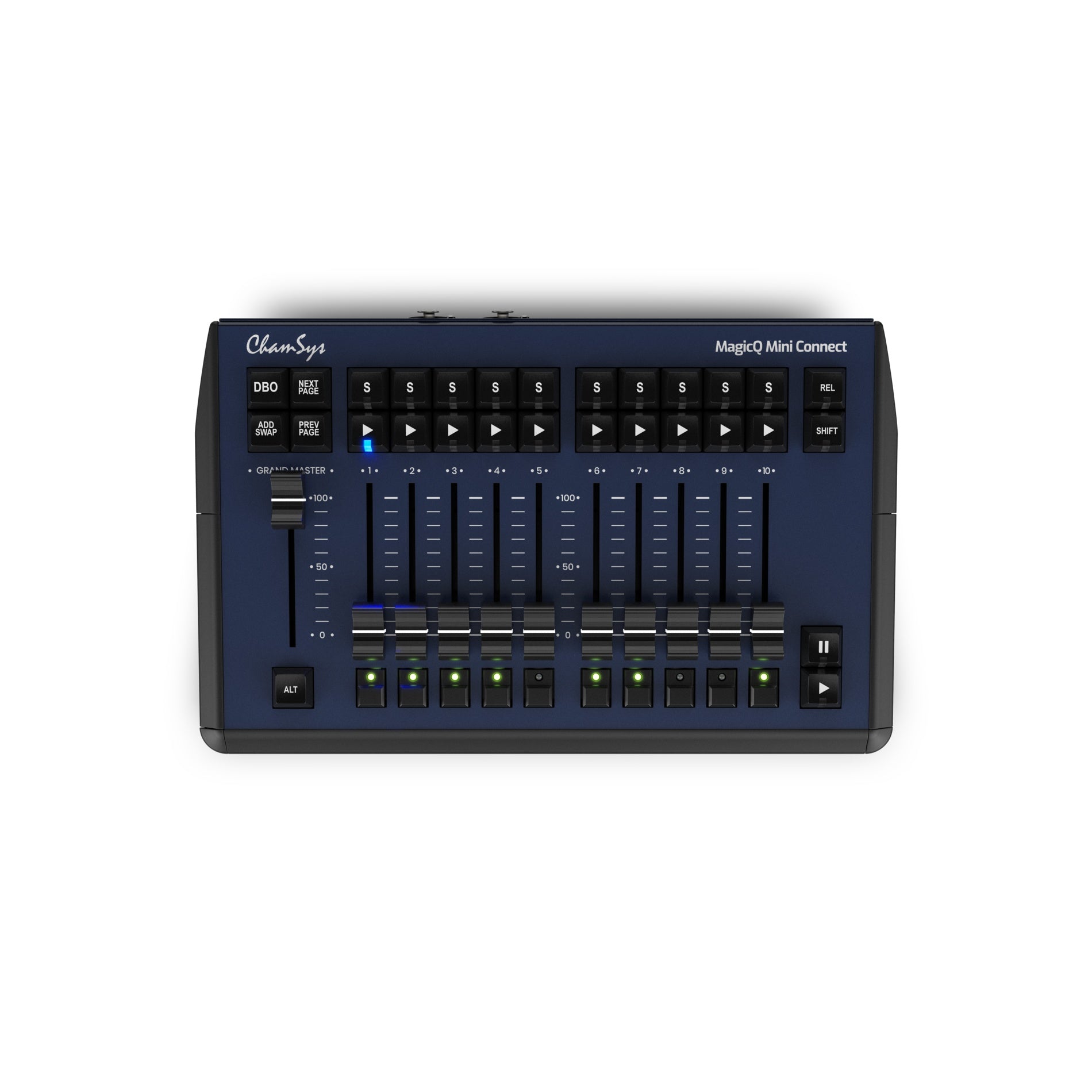

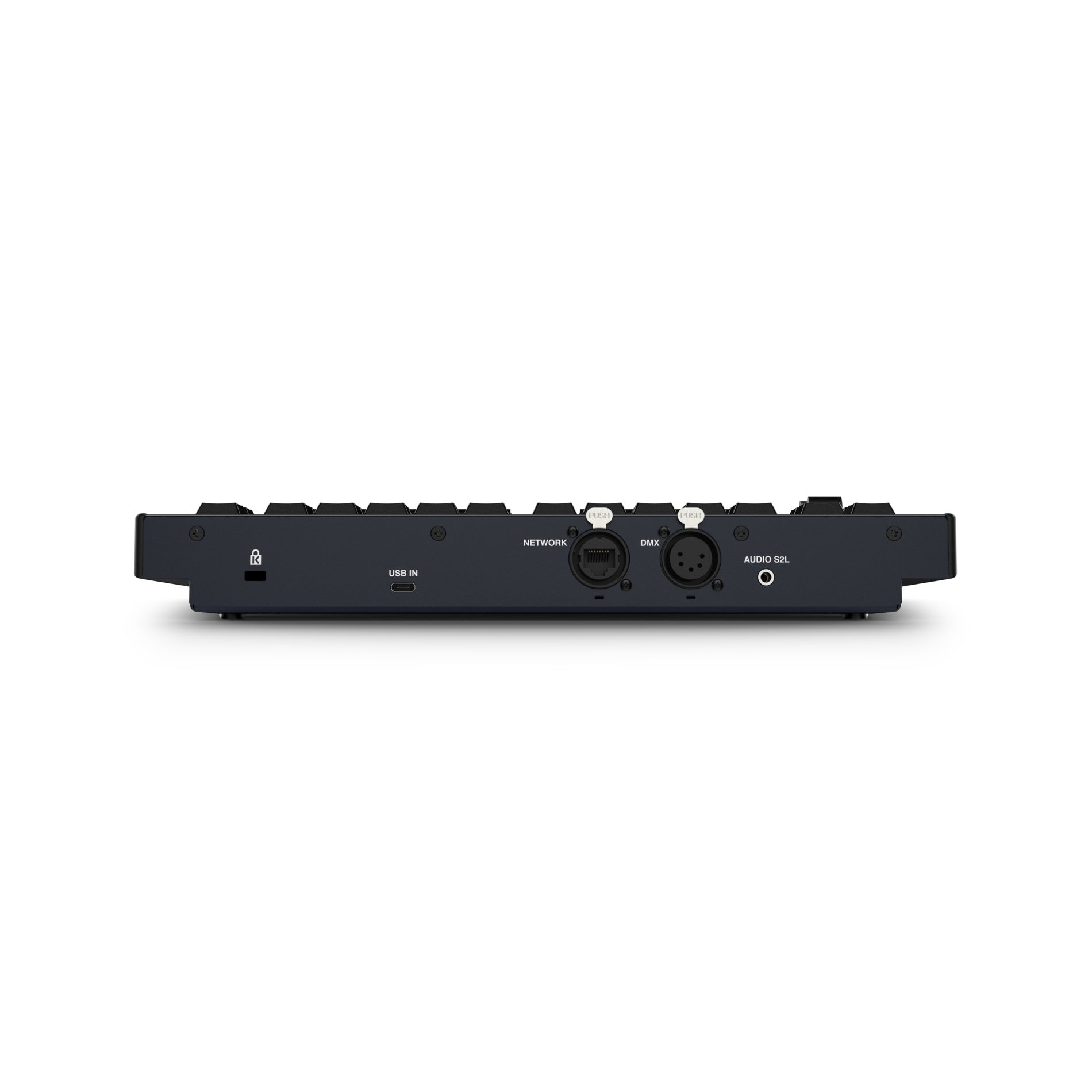

This control surface is well suited for theatres, clubs, venues, and fixed installations where portability matters but live access to cues and playback remains essential. It offers 10 playback faders with Flash, Go, and Select buttons, plus a dedicated Grand Master fader for direct show control. A direct DMX512 output supports local connection, while the onboard network port enables transmission of up to 64 universes of ArtNet and sACN for larger system designs or distributed control setups.

The included lightweight durable case supports transport and storage, making the unit a strong fit for mobile production teams and as a cost-effective backup surface for larger MagicQ console users. With USB-C connectivity and compact dimensions, it integrates easily into programming stations, FOH positions, and temporary production rigs where space is limited.

View full details

Specifications

General
USB Connector
Yes – USB-C
USB 3 Powered
Yes (Must be connected to a USB 3.0 or higher port)
Kensington Security Lock Fixing
1
Hardware Specifications
Fader Playbacks
10
Direct DMX Outputs
1
Network Ports
1
Software Specifications
Universes
64
Max Number of DMX Channels
32768
Max Number of Fixtures Supported
32768
Max Number of Cues
5000
Max Number of Cue Stacks
2000
Max Number of Groups
5000
Max Number of Palettes
4096
Number of Media Server Layers Supported
50 (Each different content)
Supported Platforms
Windows (8.1 or higher), macOS (10.13 or higher) and Linux
Included Accessories
USB A-C Cable
Yes
Lightweight Durable Case
Yes
Boxed Weights And Dimensions
Width
380mm (15 inches)
Depth
100mm (3.94 inches)
Height
300mm (11.8 inches)
Weight
3.0kg (6.6 lb)
Console Weights And Dimensions
Width
327mm (12.9 inches)
Depth
204mm (8.03 inches)
Height
45mm (1.78 inches)
Weight
1.85kg (4 lb)
