ChamSys MagicQ MQ500M Stadium Wing With Case

ChamSys MagicQ MQ500M Stadium Wing With Case

SoundPro Item: 51380 | Part Number: CHAMMQSTPLWINGWITHCASE

$11,500.00
$12,765.00 $11,500.00
Your Price Sold out
MSRP: $12,765.00 | MAP: $11,500.00

Usually ships in 5-7 business days

  • Motorized Playbacks Support Fast Cue Access
  • Dual Cross Faders Aid Smooth Show Transitions
  • RGB Control Lighting Improves Low-Light Visibility
  • Direct DMX Outputs Simplify System Connection
  • Touch Display Supports Hands-On Operation
  • Inbuilt UPS Adds Power Loss Protection
Log in or register for YOUR best price

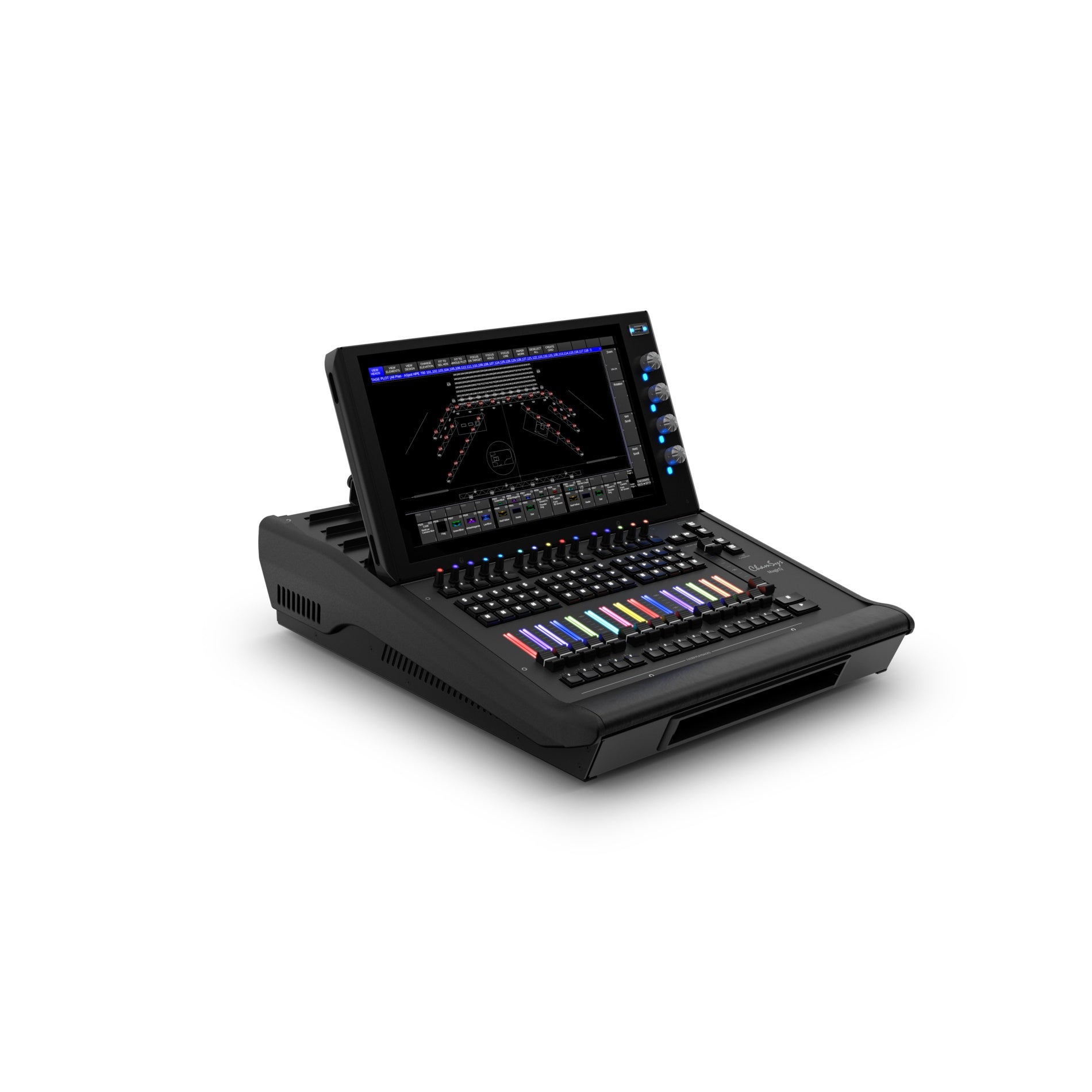

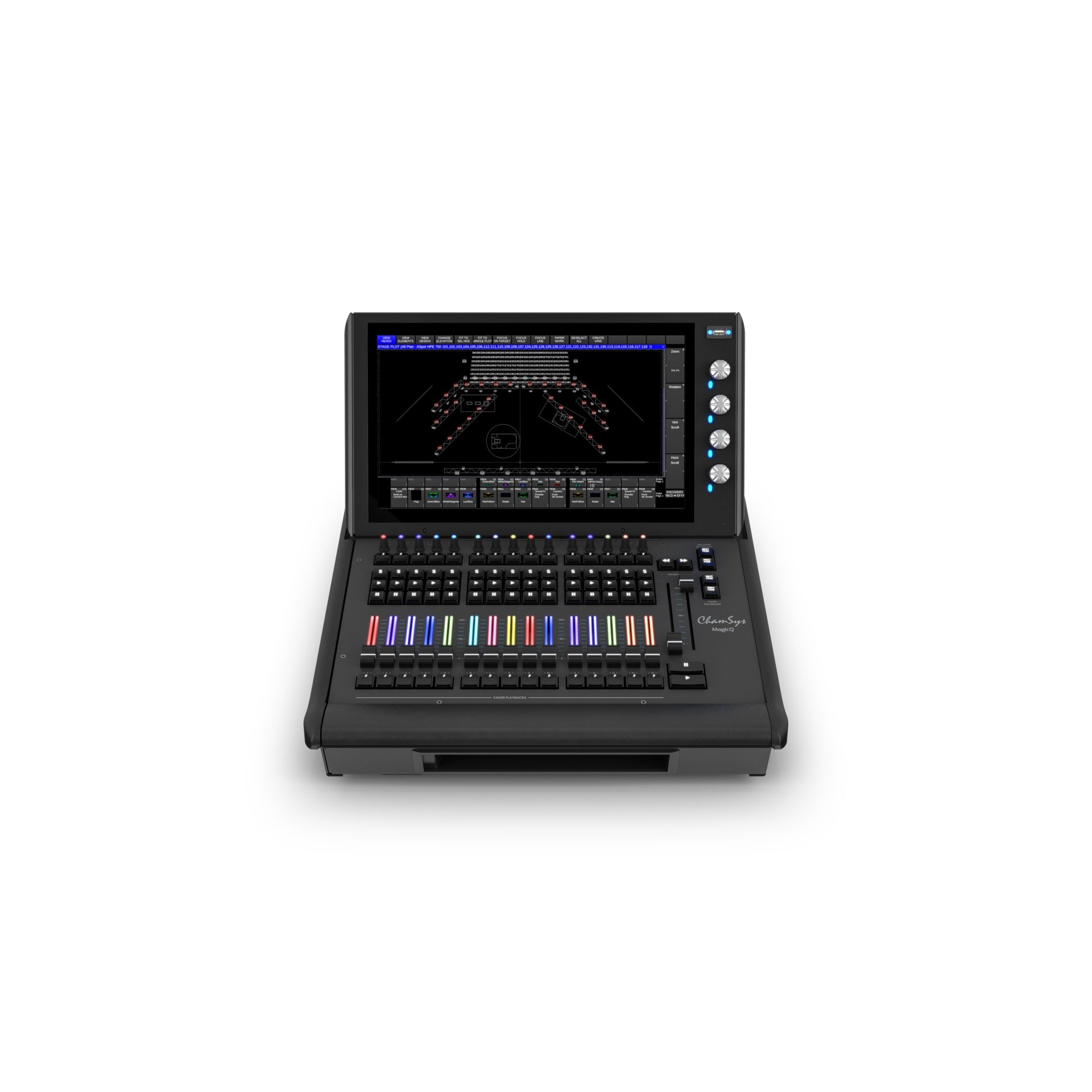

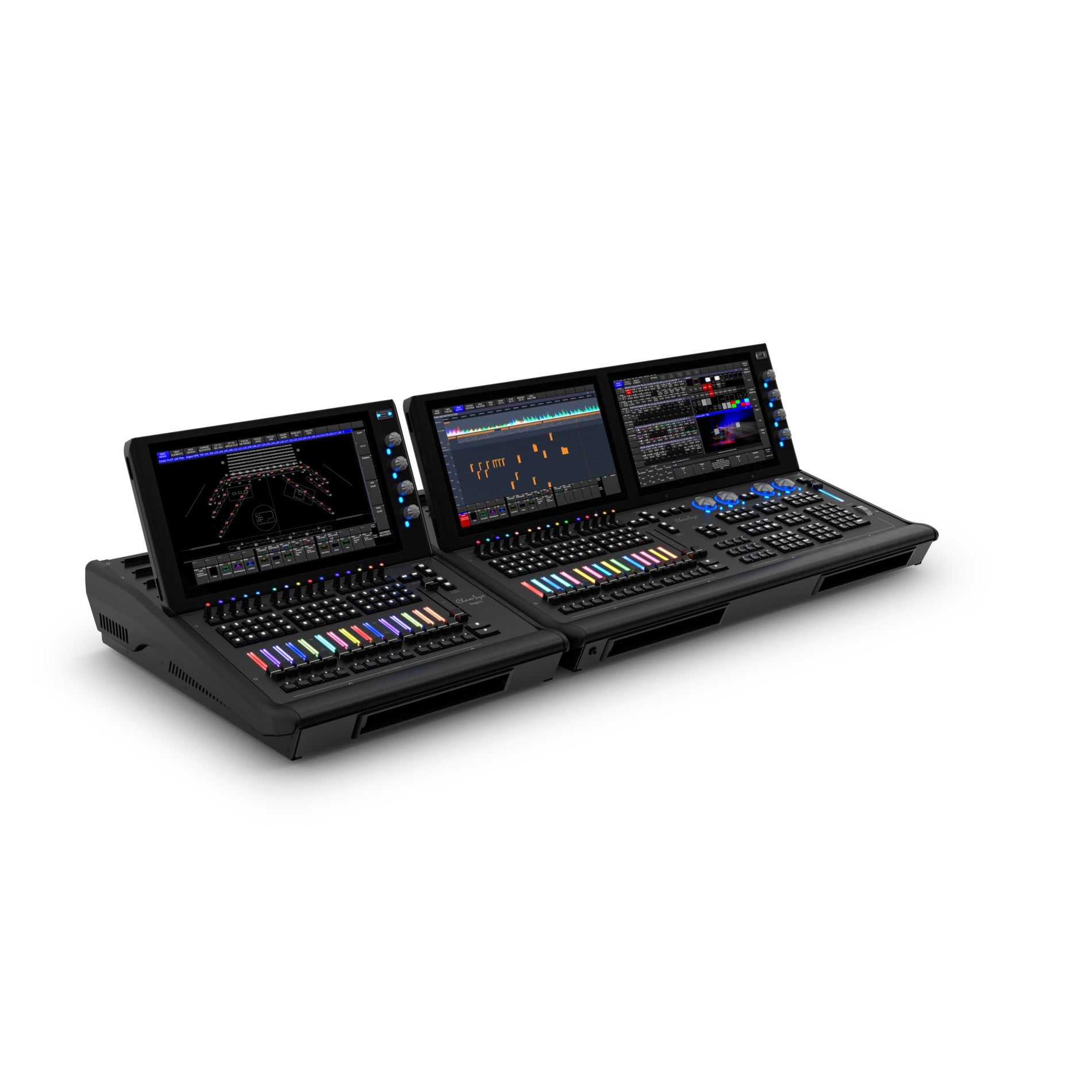

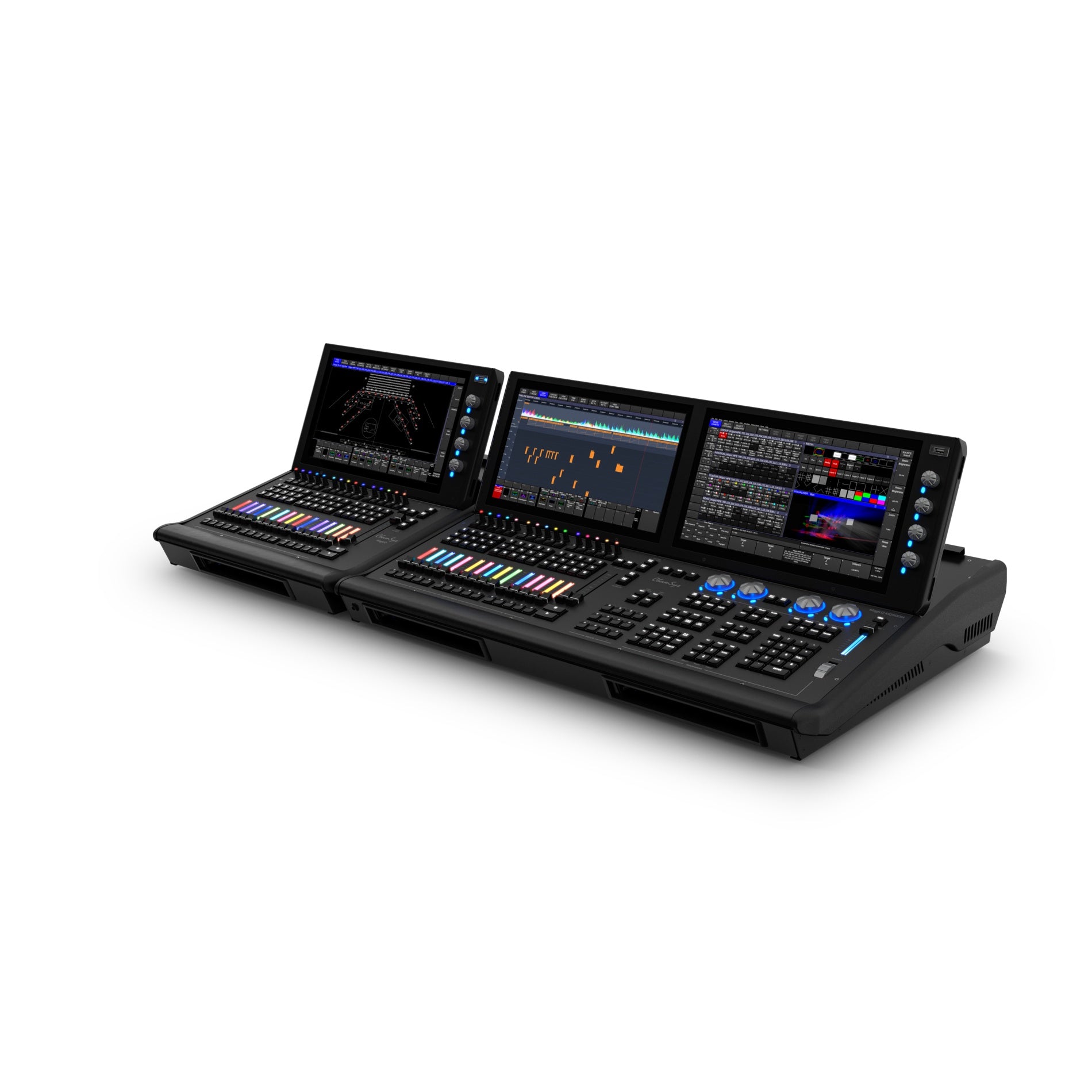

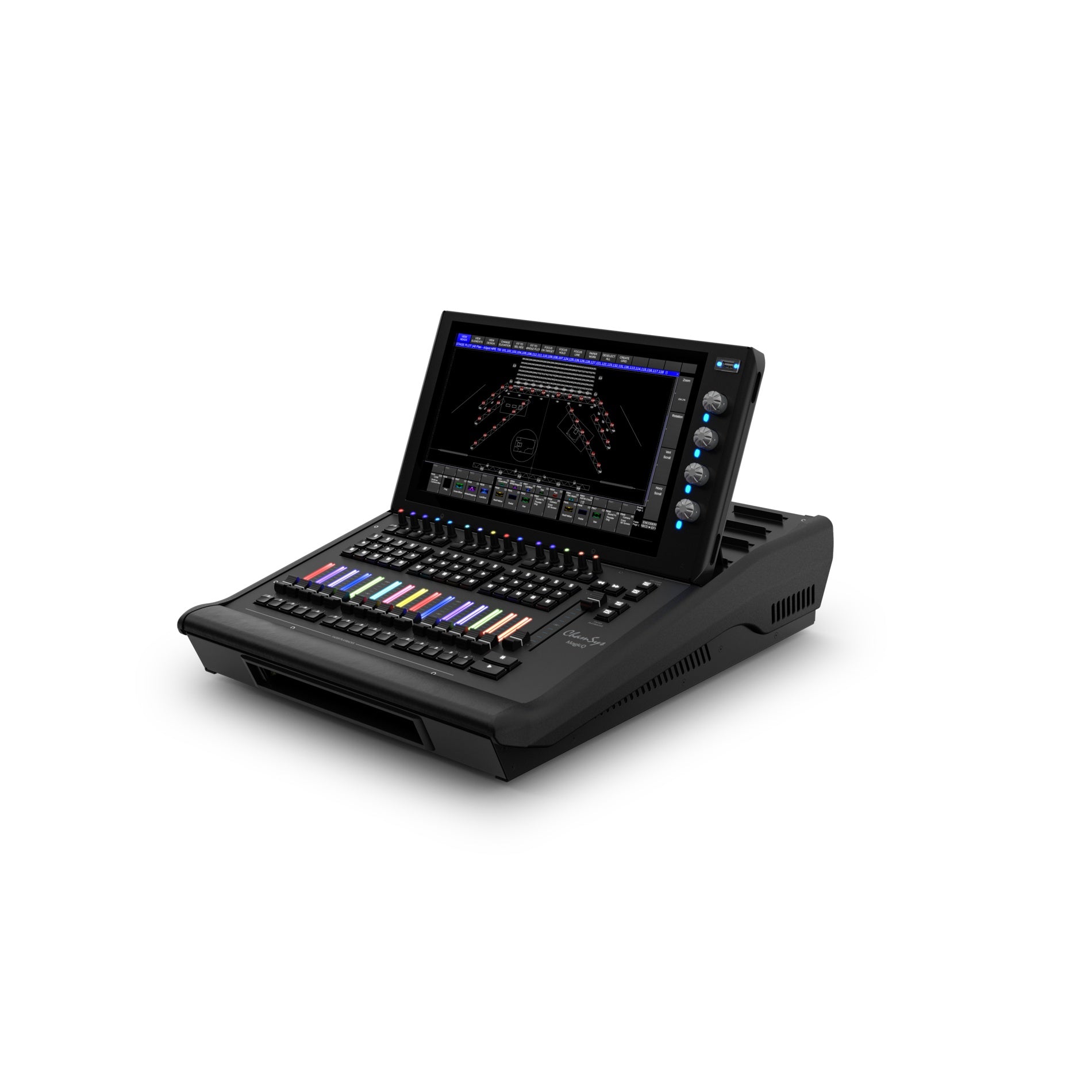

The ChamSys CHAMMQSTPLWINGWITHCASE is a playback wing package supplied with a case for touring and production environments that need expanded hands-on control. Built around 30 total playbacks with 15 motorized playbacks, 15 encoder playbacks, dual motorized cross faders, and four execute encoders, it supports fast cue access for complex lighting operation. The integrated 15" HD multi-touch display provides a direct interface for programming and playback tasks, while RGB illuminated controls improve visual identification in darker control positions.

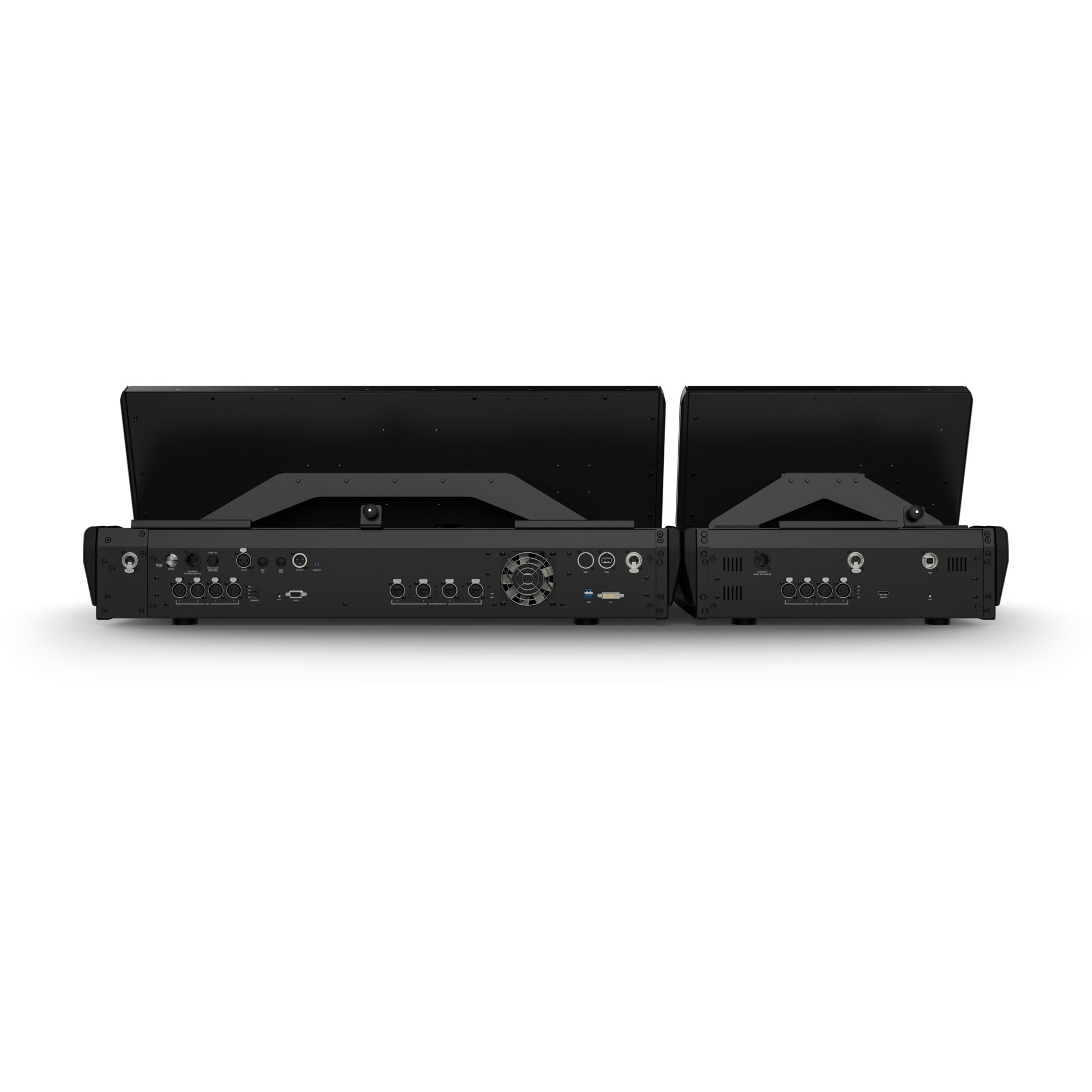

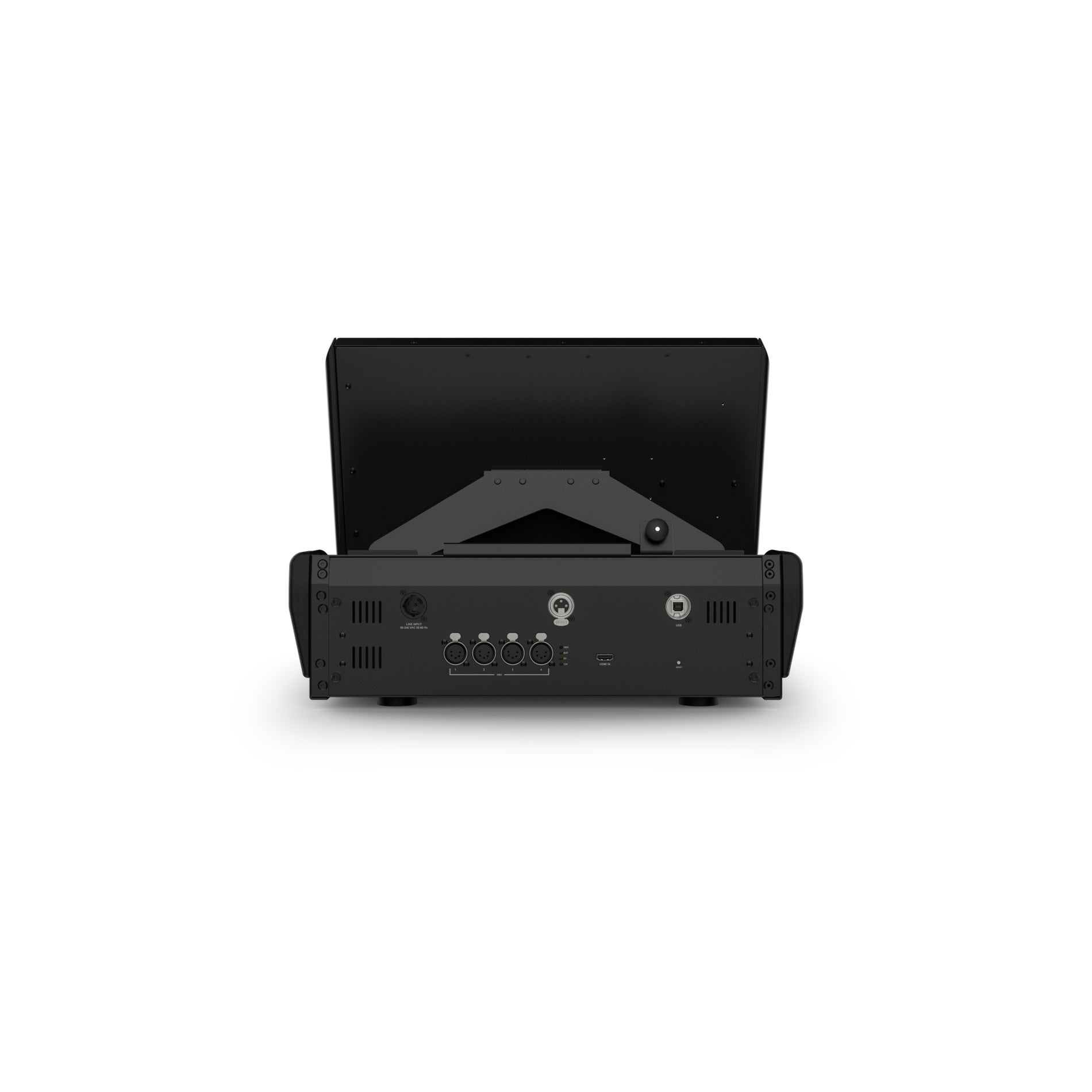

For live event and installed applications, this unit also includes four direct DMX outputs, a high power USB port, backlit keys, and an inbuilt UPS that uses a 12v lead-acid battery. Power is handled through a Neutrik powerCON TRUE1 input with 110 to 240 VAC compatibility. ChamSys also includes practical accessories such as a dual color desk light, dust cover, USB cables, HDMI cables, and a Neutrik powerCON TRUE1 power cable, making it suitable for deployment in professional show control workflows.

View full details

Specifications

Hardware Specifications
Motorised Playbacks
15
Encoder Playbacks
15
Total no of Playbacks
30 (15+15)
Dual Motorised Cross Faders
Yes
Execute Encoders
4
Backlit Keys
Yes
Direct DMX Outputs
4
Illuminated Playback/Encoders with RGB control
Yes
Inbuilt 15″ HD Multi-Touch Display
1
High Power USB Port
1
Inbuilt UPS
Yes, uses 12v Lead-Acid Battery
Front Storage Pocket
1
Power Input
Neutrik powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains)
170w
Software Specifications
Max Number of DMX Channels
131,072
Max Number of Fixtures Supported
131,072
Max Number of Cues
5000
Max Number of Cue Stacks
2000
Max Number of Groups
5000
Max Number of Palettes
4096
Number of Media Server Layers Supported
50 (each different content)
Included Accessories
Dual color Desk light
1
Dust cover
1
Neutrik powerCON TRUE1 Power Cable
1
Neutrik USB A-B connection cable
1
Standard USB A-B connection cable
1
HDMI to HDMI connection cable
1
HDMI to DVI connection cable
1
Boxed Weights and Dimensions
Width
690mm (21 inches)
Depth
590mm (23.3 inches)
Height
340mm (13.3 inches)
Weight
21kg (46.2 lb)
Console Weights and Dimensions
Width
471mm (18.5 inches)
Depth
587mm (23 inches)
Height
85mm high at front (3.3 inches), 188mm high at rear (screens stored) (7.4 inches)
Weight
19kg (41.9 lb)
Flight Cased Weights and Dimensions
Width
690mm (21 inches)
Depth
590mm (23.2 inches)
Height
340mm (13.3 inches)
Weight (console in flight case)
36kg (79 lb)
