ChamSys QuickQ DIN Lighting Controller

ChamSys QuickQ DIN Lighting Controller

SoundPro Item: 146864 | Part Number: CHAMQUICKQDIN

$3,145.00
$3,490.00 $3,145.00
Your Price Sold out
MSRP: $3,490.00 | MAP: $3,145.00

Usually ships in 5-7 business days

  • Four DMX Universes For Scalable Control
  • RDM Outputs Simplify Setup And Device Management
  • Inbuilt Wi-Fi Enables Remote Programming Access
  • Supports Up To Forty 10Scene Wall Plates
  • Hot-Takeover Allows External Console Control
  • QuickQ Software Delivers Familiar Operation

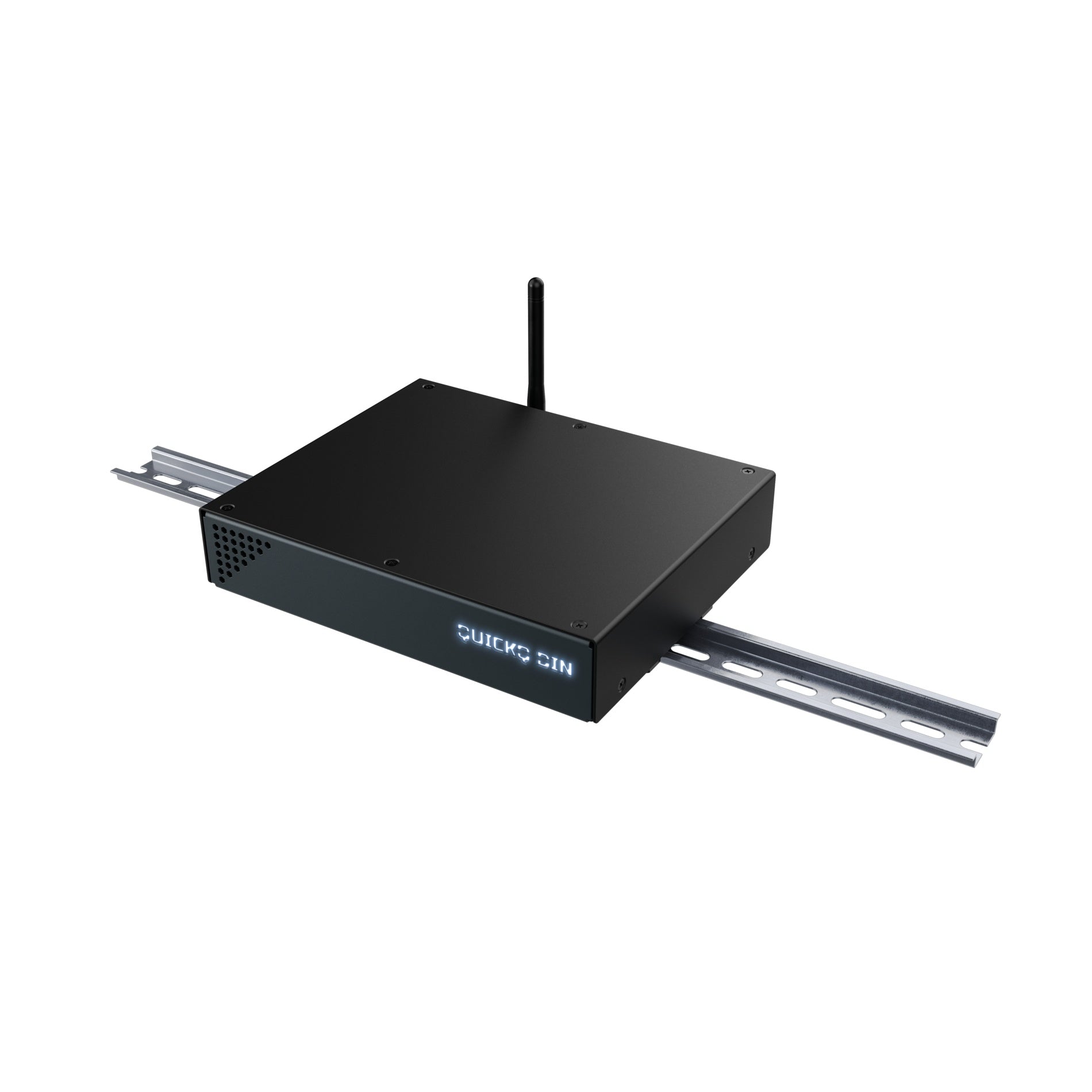

  • DIN Rail Design Fits Installation Racks Neatly
Log in or register for YOUR best price

The ChamSys CHAMQUICKQDIN is a DIN-rail lighting controller built for fixed installations and architectural environments that need compact control hardware with professional show functionality. It provides four universes of DMX output and includes two RDM-enabled DMX outputs on Phoenix screw terminals, making it well suited for projects where clean wiring, remote setup, and dependable operation matter.

Using the same software approach as QuickQ consoles, this unit supports programming and remote control over inbuilt Wi-Fi while fitting neatly into control racks and enclosure-based systems. Four 10Scene ports allow connection for up to forty 10Scene wall plates, giving integrators a practical way to add local scene recall points throughout a venue. Hot-Takeover mode also allows an external console to assume control when required, which can be useful in multipurpose spaces and event-driven installations.

With support for LEDs, dimmers, and moving lights, plus features such as OSC support, an onboard FX generator, RDM Autopatch, and access to a large fixture library, the CHAMQUICKQDIN is positioned for installed lighting systems that need flexibility without a traditional console footprint. Included accessories such as the Wi-Fi antenna, DIN rail mount clips, 10Scene connectors, and 12v power supply help streamline deployment.

View full details

Specifications

General
Power Input
12v DC
Inbuilt Wi-Fi
Yes
Network Port
1
USB Ports
2
External Monitor
1920 x 1080 HDMI
Control
Universes Supported
4
Direct DMX Outputs Pheonix Screw Terminal
2
Max Number Of DMX Channels
2048
Max Number Of Fixtures Supported
2048
OSC Supported
Yes
Supported Fixtures
All – LEDs, Dimmers & Moving Lights
Included Accessories
Wi-Fi Antenna
1
DIN Rail Mount Clips
2
10Scene Connectors
4
12v Power Supply
1
Dimensions And Weight
Width
200mm (7.8 inches)
Depth
165mm (6.5 inches)
Height
40mm (1.6 inches)
Weight
0.65kg (1.43lb)
Boxed Width
268mm (10.5 inches)
Boxed Depth
220mm (8.7 inches)
Boxed Height
130mm (5.1 inches)
Boxed Weight
1.04kg (2.29 lb)
