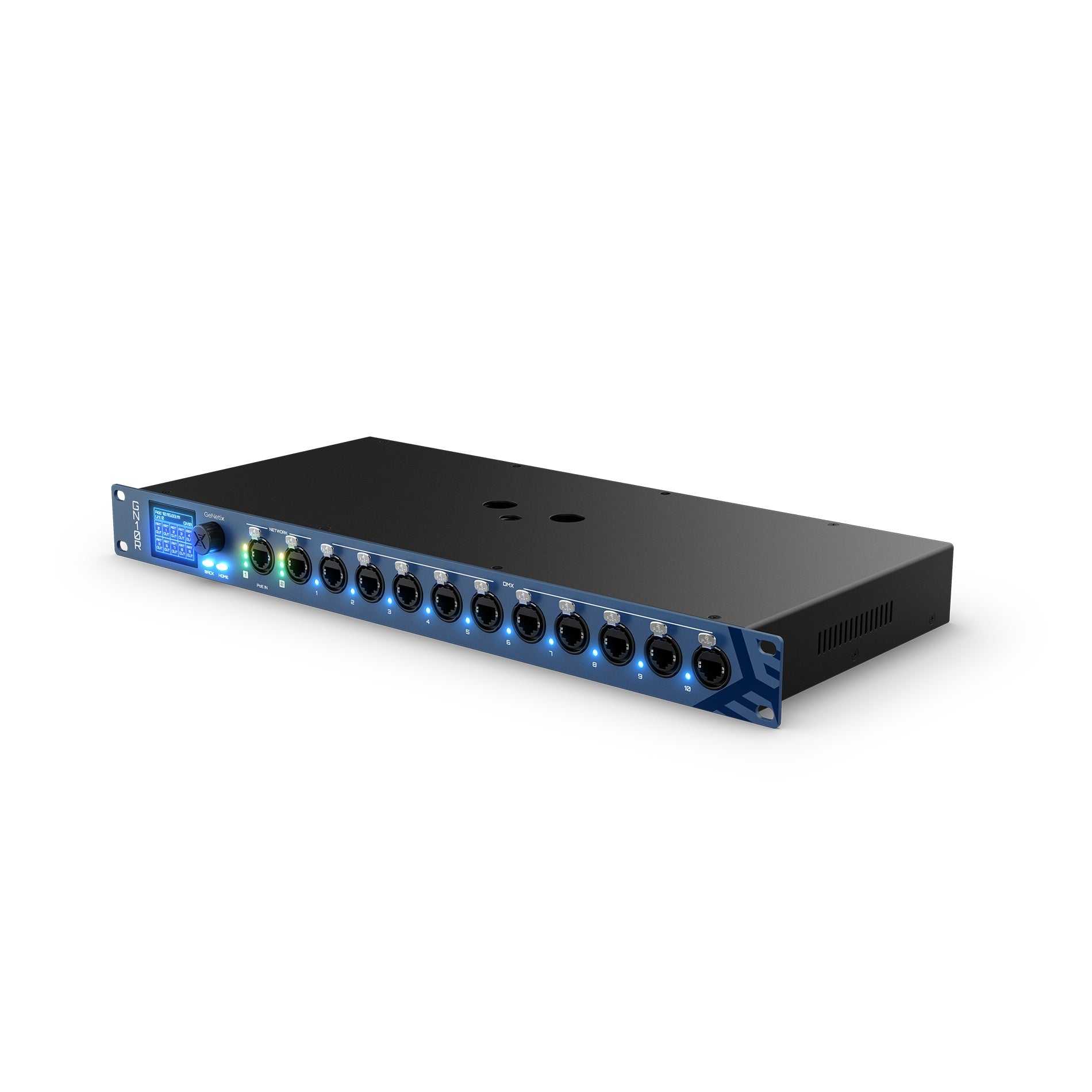

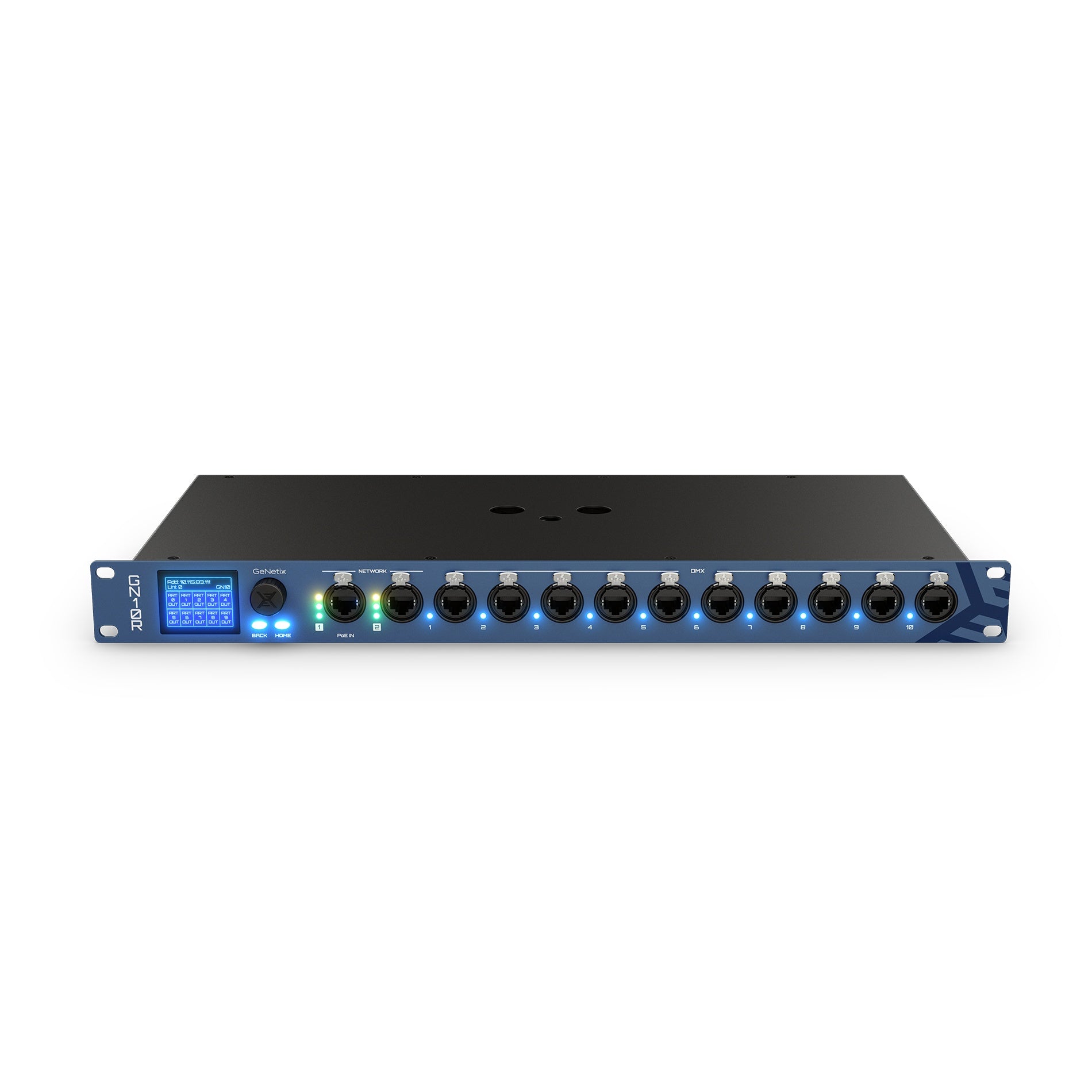

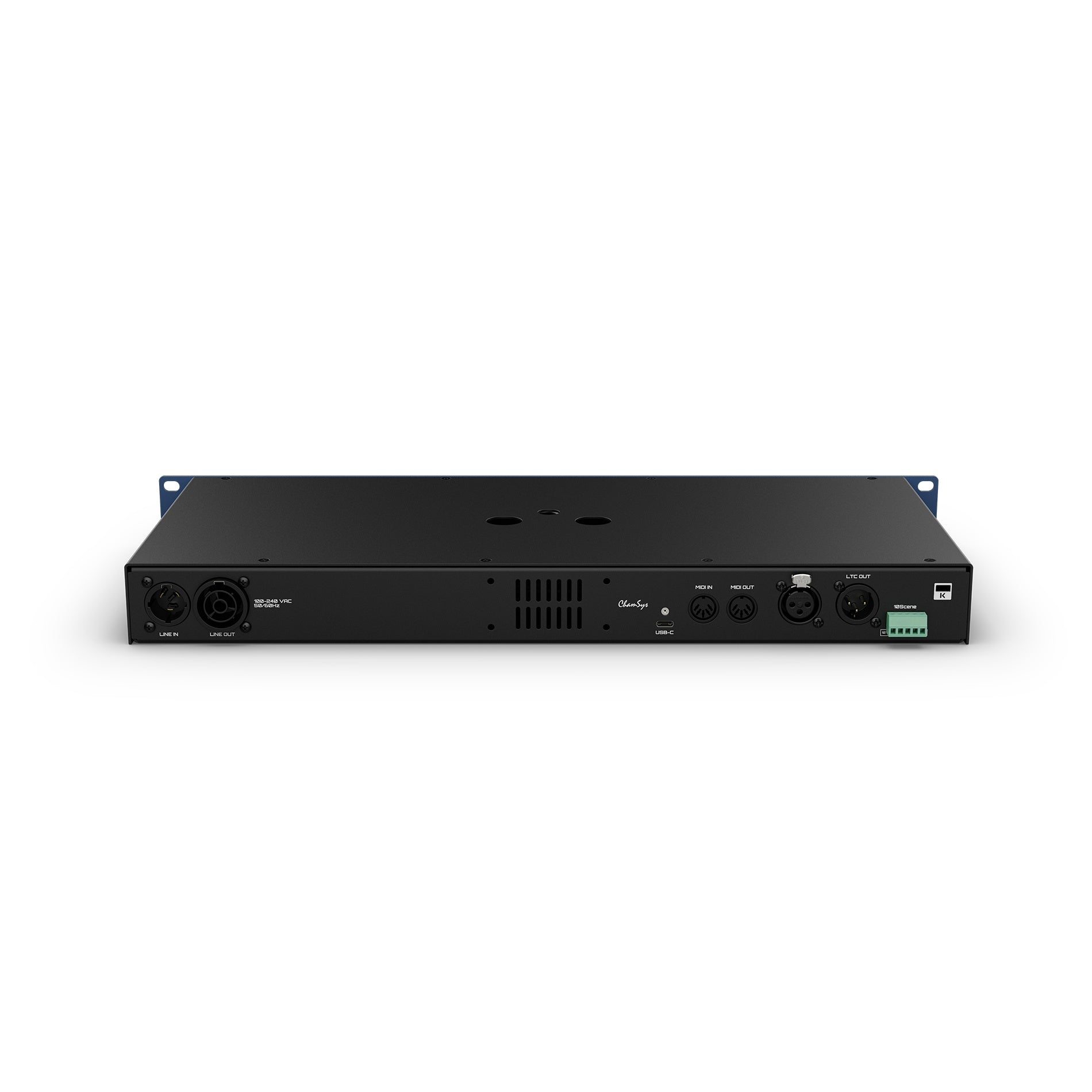

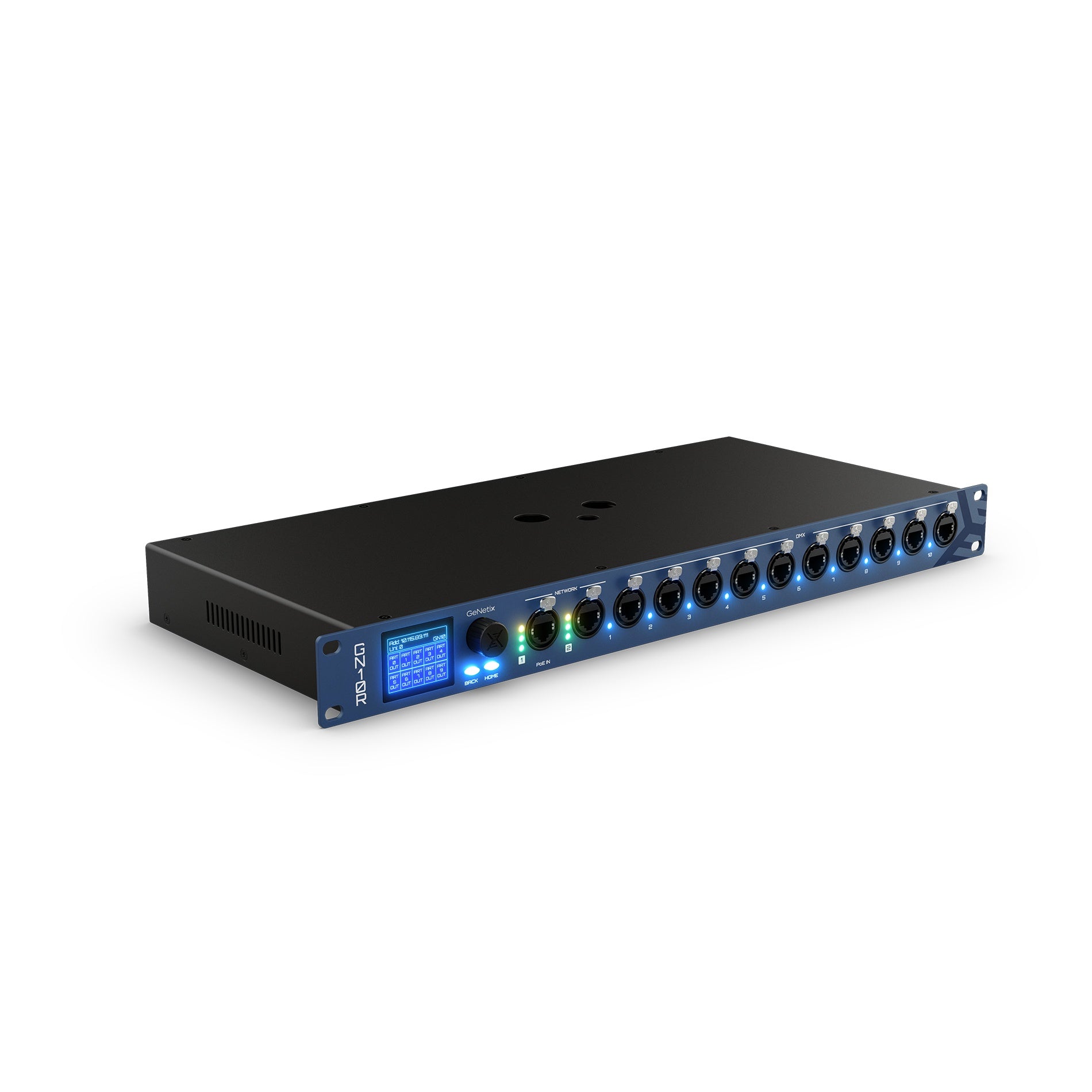

ChamSys DMX Ethernet Node With RJ45 Connectors

ChamSys DMX Ethernet Node With RJ45 Connectors

SoundPro Item: 146873 | Part Number: GENETIXGN10R

$1,555.00
$1,725.00 $1,555.00
Your Price Sold out
MSRP: $1,725.00 | MAP: $1,555.00

Usually ships in 5-7 business days

  • 10 RDM Ports For Flexible DMX Routing
  • Art-Net And sACN For Networked Control
  • LTC And MIDI Support For Show Sync
  • USB-C Unlocks MagicQ PC Workflows
  • Web Server Enables Fast Remote Setup
  • PoE Or Mains Power For Install Flexibility
  • Front Display Allows Local Configuration
Log in or register for YOUR best price

The ChamSys GENETIXGN10 is built for lighting networks that need more than basic DMX distribution. This multipurpose node provides 10 RDM-capable DMX ports that can be configured for input or output, making it suitable for touring rigs, installed systems, control rooms, and distributed production environments. Support for Art-Net, sACN, and ChamNet allows it to fit into modern Ethernet-based lighting infrastructure, while its onboard web server, front-panel display, and console integration give technicians multiple ways to deploy and manage the device.

For systems requiring synchronization and external control, the unit also handles LTC and MIDI transport over Ethernet, plus MIDI notes over ChamNet. That makes it a practical choice when timecode or MIDI sources are located away from the main console position. UDP scene recall and 10Scene gateway functionality further expand its role in architectural, themed, and show-control applications where remote triggering is essential.

The GENETIXGN10 also offers workflow advantages for MagicQ users. When connected by USB to a MagicQ PC system, it enables Full Unlocked Mode while serving as a DMX, timecode, MIDI, and 10Scene interface. Over network operation, it can unlock up to two MagicQ instances. With PoE support on one network port, mains power via powerCON TRUE1, and mounting flexibility for rack or truss deployment, it is designed for real-world production and installation demands.

View full details

Specifications

Hardware Specifications
RDM Direct DMX Ports
10
Network Ports
2
MIDI Ports
2 (1 in, 1 out)
LTC Timecode Ports
2 (1 in, 1 out)
10Scene Ports
1
PoE Input
Yes (Port 1)
USB Ports
1 USB-C
Kensington Security Lock Fixing
Yes
Power Input
Neutrik powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains)
140w
Software Specifications
Art-Net/sACN
Yes
ChamNet Support
Yes
LTC & MIDI Timecode over ChamNet
Yes
MIDI Notes over ChamNet
Yes
10Scene Gateway Functionality
Yes
Configurable DMX Timings
Yes
Web Server
Yes
DMX Redundancy Support
Yes
User Scene Store
Yes
Recall Scenes Via UDP
Yes
Included Accessories
Neutrik powerCON TRUE1 Power Cable
1
Rubber Feet
4
Quick Start Guide
1
Dimensions And Weight
Width
480mm (18.9 inches)
Depth
218mm (8.59 inches)
Height
44.4mm (1.75 inches)
Weight
2.75 KG (6.06 lb)
