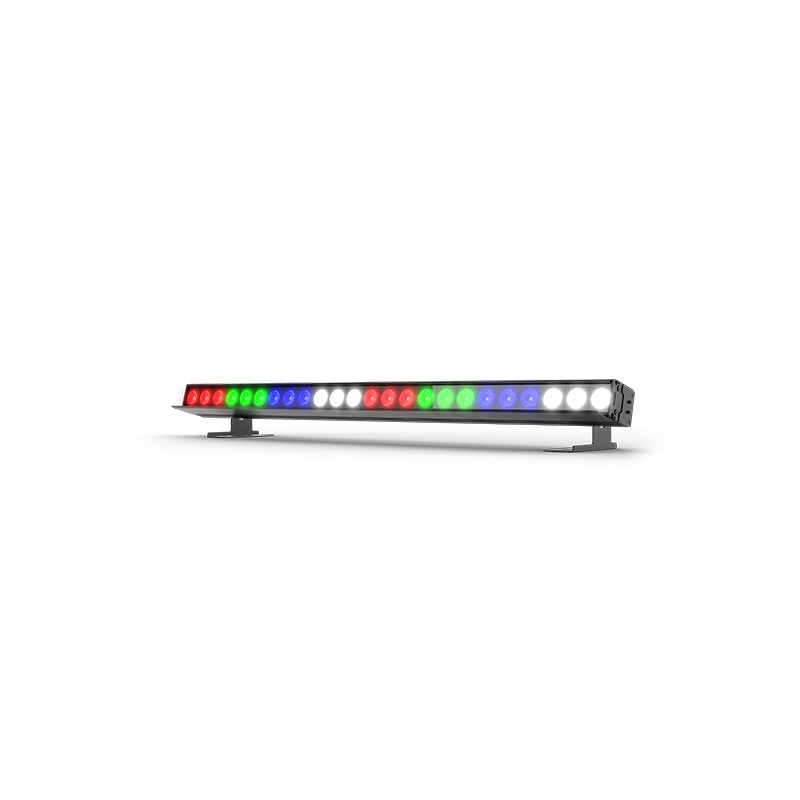

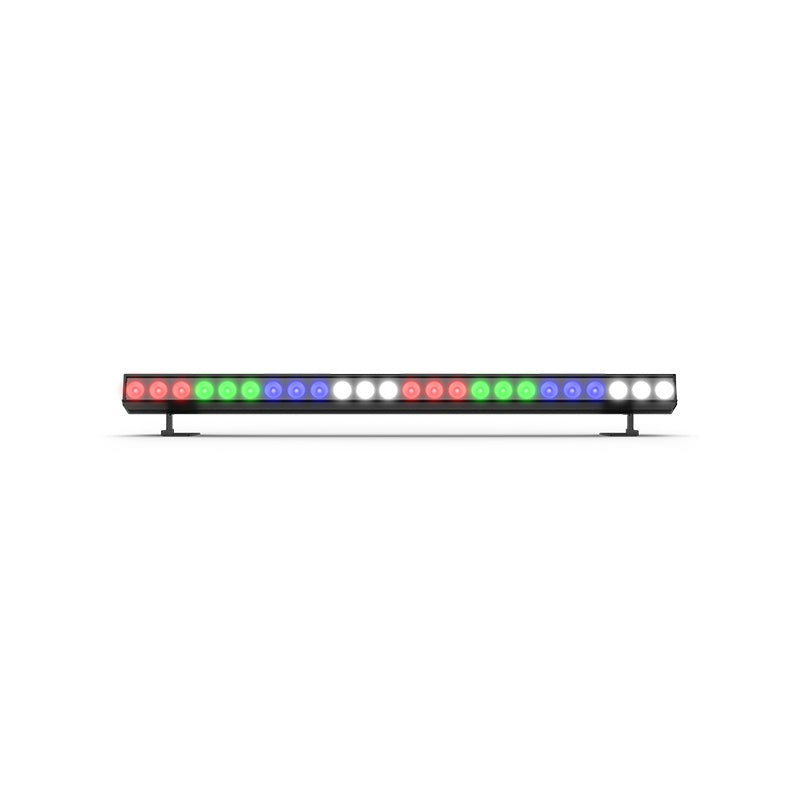

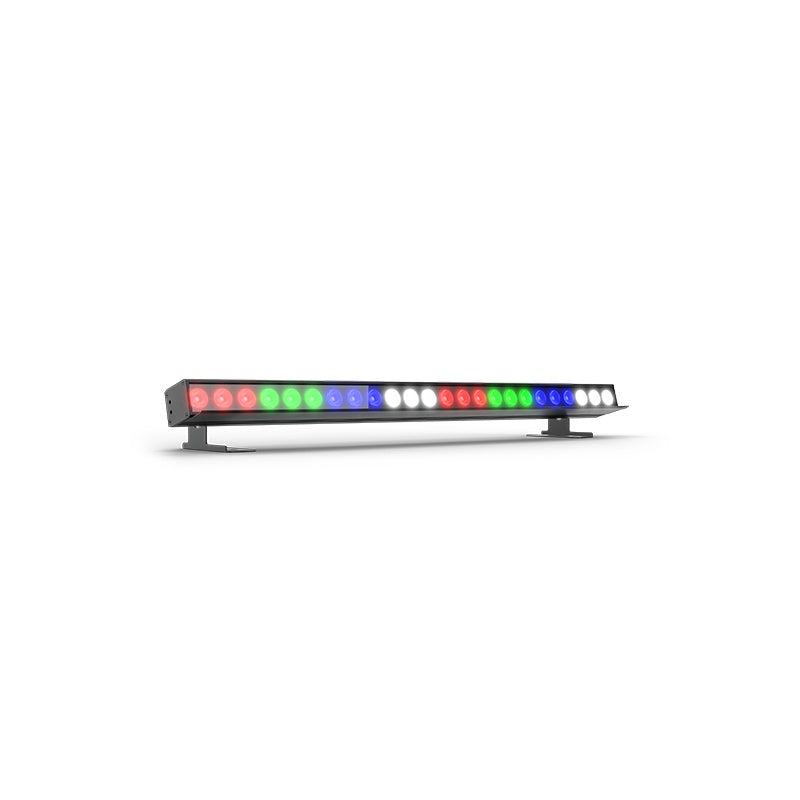

Chauvet DJ EVE B-160Q 24-LED RGBW Linear Batten With 8-Zone Control
Chauvet DJ EVE B-160Q 24-LED RGBW Linear Batten With 8-Zone Control
SoundPro Item: 206734 | Part Number: EVEB160Q
Usually ships in 5-7 business days
- Eight Independently Controllable Zones Enable Pixel Mapping And Chase Effects Without External Controllers
- Quad-Color RGBW LED Architecture Provides Extended Color Gamut And Variable White Balance
- Flicker-Free High-Speed Operation Ensures Compatibility With Broadcast And Video Production Environments
- D-Fi USB Integration Supports Wireless DMX And Master/Slave Control Without Additional Hardware
- PowerCON Input And Output Connections Simplify Daisy-Chained Power Distribution In Multi-Fixture Installations
- Color Temperature Presets Deliver Accurate Kelvin Values Without Manual Mixing
The EVE B-160Q addresses the challenge of creating dynamic linear washes in both touring and installed environments where color consistency and zoned control are essential. Built around 24 quad-color RGBW LEDs arranged in eight discrete segments, this batten enables designers to execute chase sequences, gradient effects, and pixel-mapped looks without external processing. The fixture's color engine aligns with the broader EVE ecosystem of fresnels, ellipsoidals, and PARs, ensuring uniform color rendering when used in hybrid rigs that combine multiple fixture types.
Flicker-free operation at high frame rates makes the batten suitable for environments where cameras are present, from broadcast studios to live-streamed events. Preset color temperature modes streamline setup when specific Kelvin values are required, bypassing the need for manual RGBW mixing. D-Fi USB compatibility extends control options to include wireless master/slave configurations or remote DMX triggering without hardwired infrastructure. PowerCON input and output connections support daisy-chained power runs of up to seven units at 120 V or eleven at 230 V, reducing cable complexity in multi-fixture installations.
The 15-degree beam angle and 30-degree field angle provide focused output suitable for wall washing, cyc lighting, or truss mounting where throw distance and coverage must be balanced. At two meters, the fixture delivers 8,300 lux of illuminance, providing sufficient intensity for mid-throw applications common in corporate events, theatrical productions, and architectural installations. The combination of zoned control, broadcast-safe operation, and color-matched output positions the EVE B-160Q as a tool for designers who require both creative flexibility and technical precision in linear LED arrays.
Specifications
