Specifications
Certifications
IP Rating
IP54
Approvals
CE, RoHS, FCC
Performance
Beam Angle
23°
Field Angle
44°
Illuminance
168 lux @ 2 m
Lumens
137
Strobe Rate
0 to 20 Hz
Audio
DMX Channels
6, 8, or 12
Electrical
Light Source
1 LED (hex-color RGBWA+UV) 10 W, 50,000 hours life expectancy
Input Voltage
5 VDC, 1.5 A (external power supply)
Power And Current
13 W, 0.2 A @ 230 V, 50 Hz
Power And Current
13 W, 0.3 A @ 120 V, 60 Hz
Maximum Run Time (all on)
up to 8 hours
Maximum Run Time (single color)
up to 20 hours
Recharge Time
6 hours
Connectivity
Operating Frequency
2.412 to 2.484 GHz
Max Unobstructed Distance
600' (183 m)
Construction
Bracket Mounting Hole
M12
Dimensions
Size (fixture)
3" x 3" x 4.2" (75 x 75 x 107 mm)
Weight
Weight (fixture)
1.6 lbs (0.7 kg)
Environmental
Startup Temperature
-4°F to 113°F (-20°C to 45°C)
Operating Temperature
-22°F to 113°F (-30°C to 45°C)
Included Items
What's Included

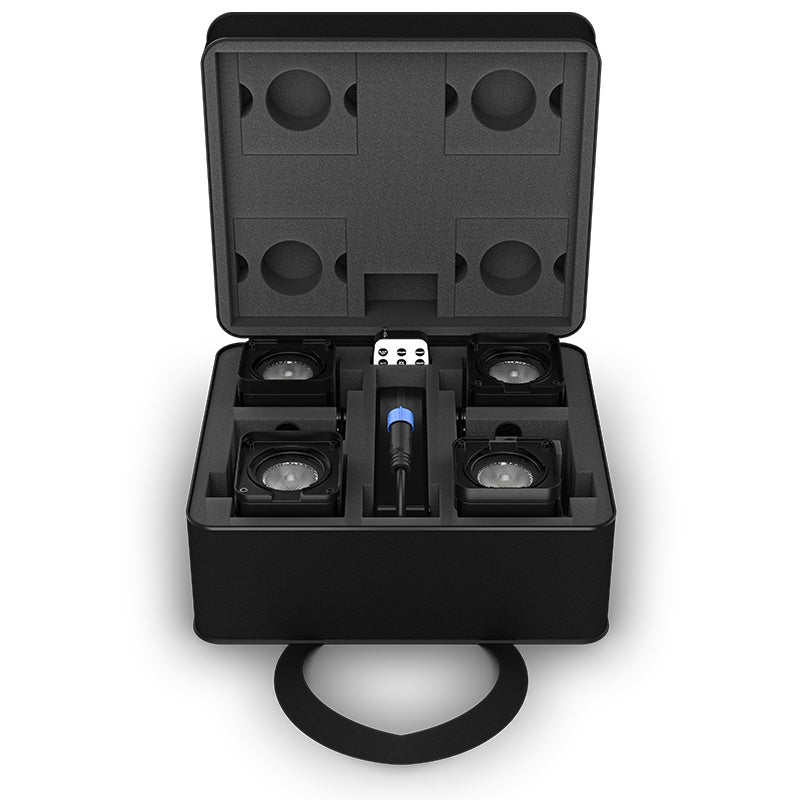

4 fixtures, 1 multi-charger, 1 carry case, 1 RF remote, 1 QRG
Optional Controllers
RFC, RFC-XL, FREEDOM Connect
