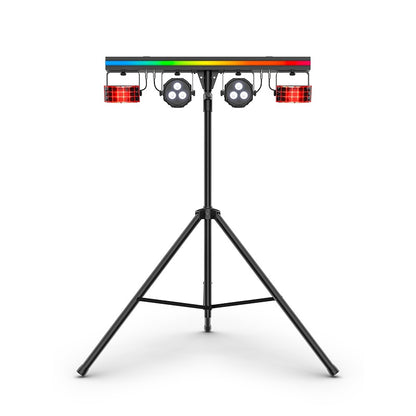

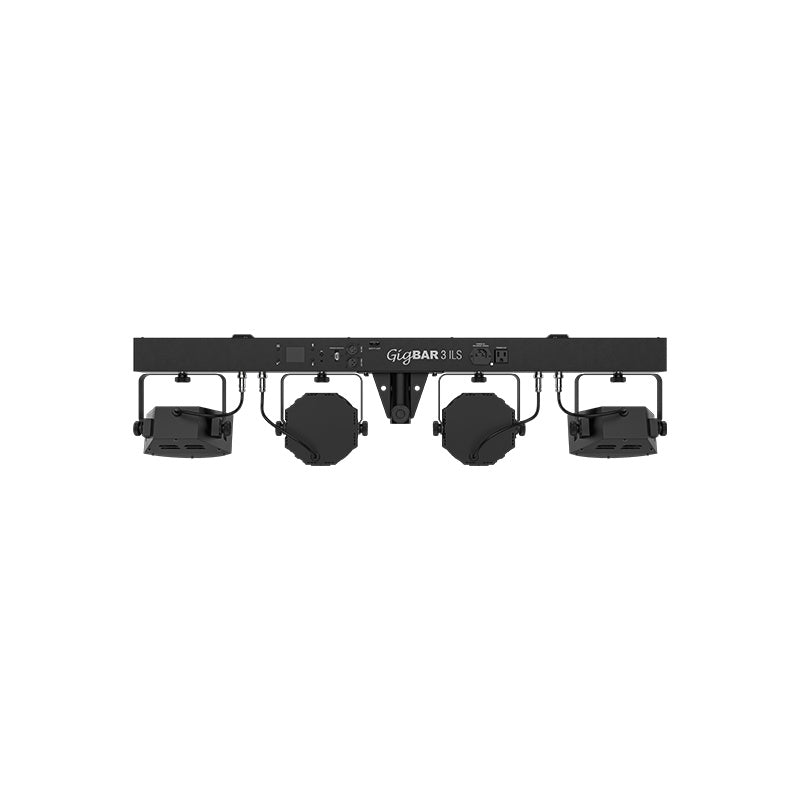

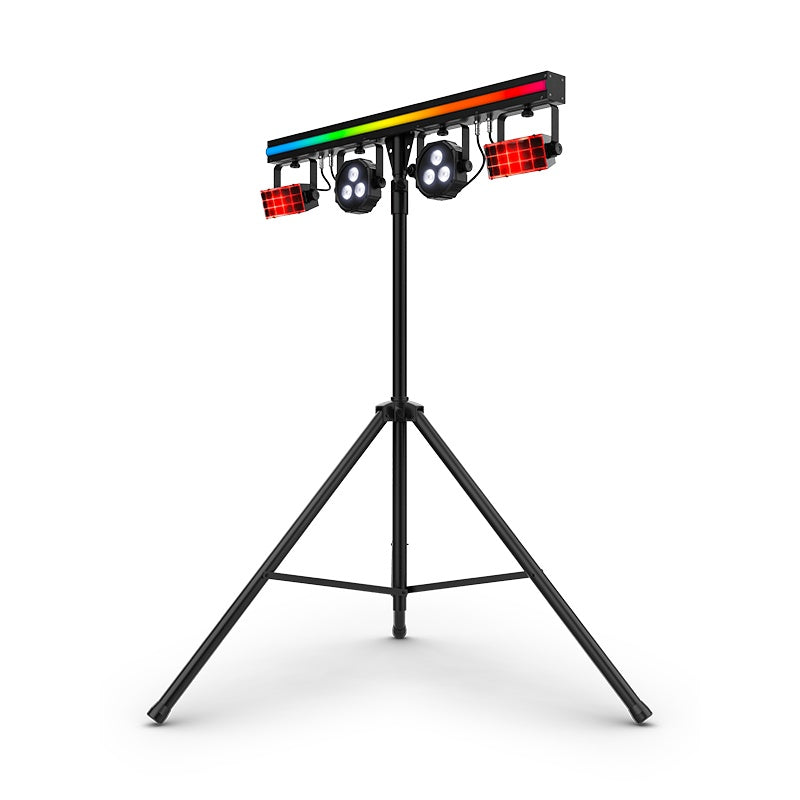

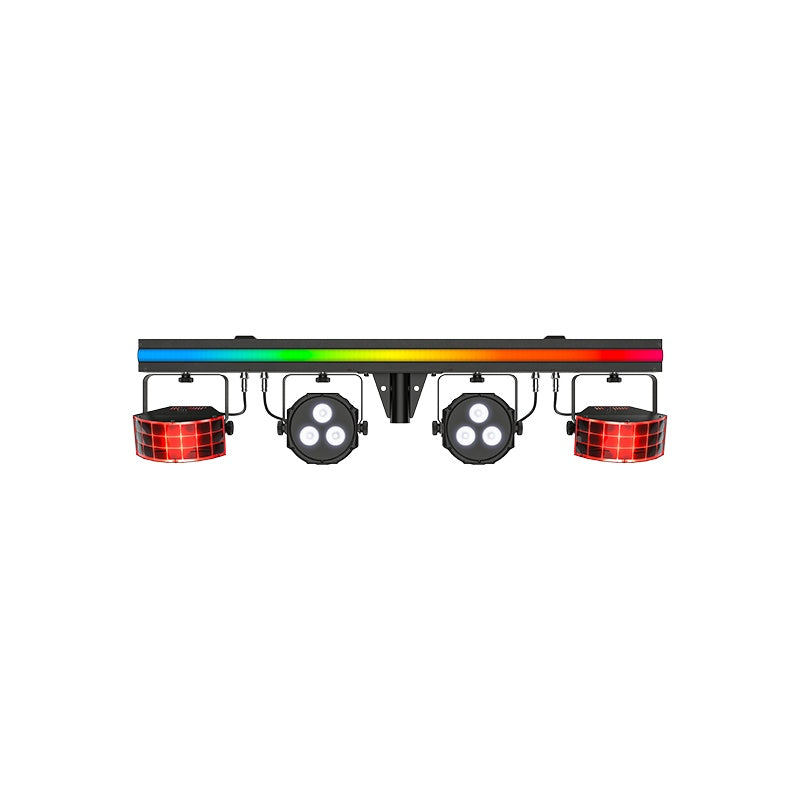

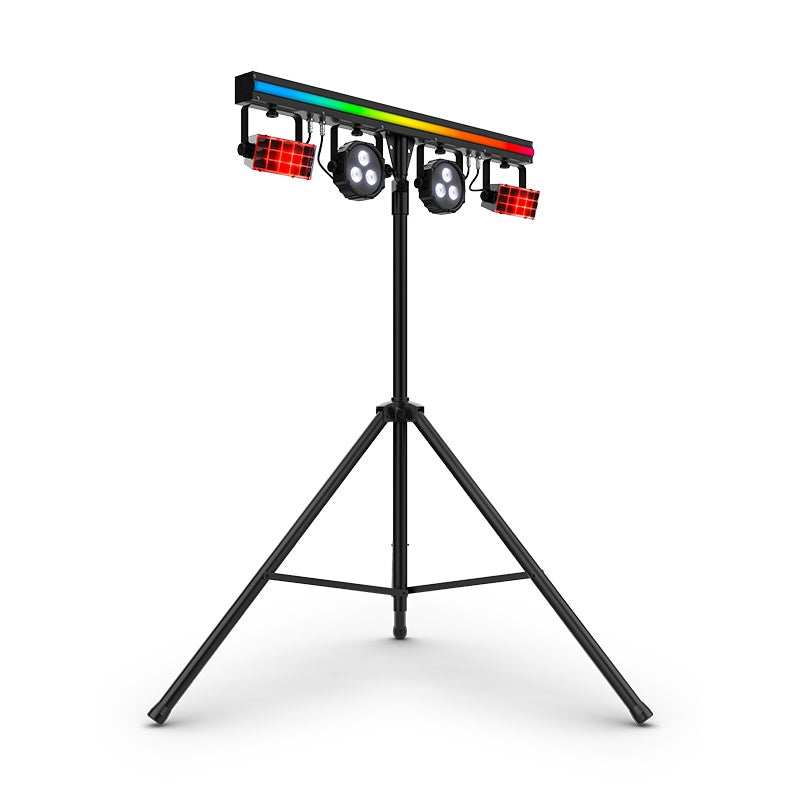

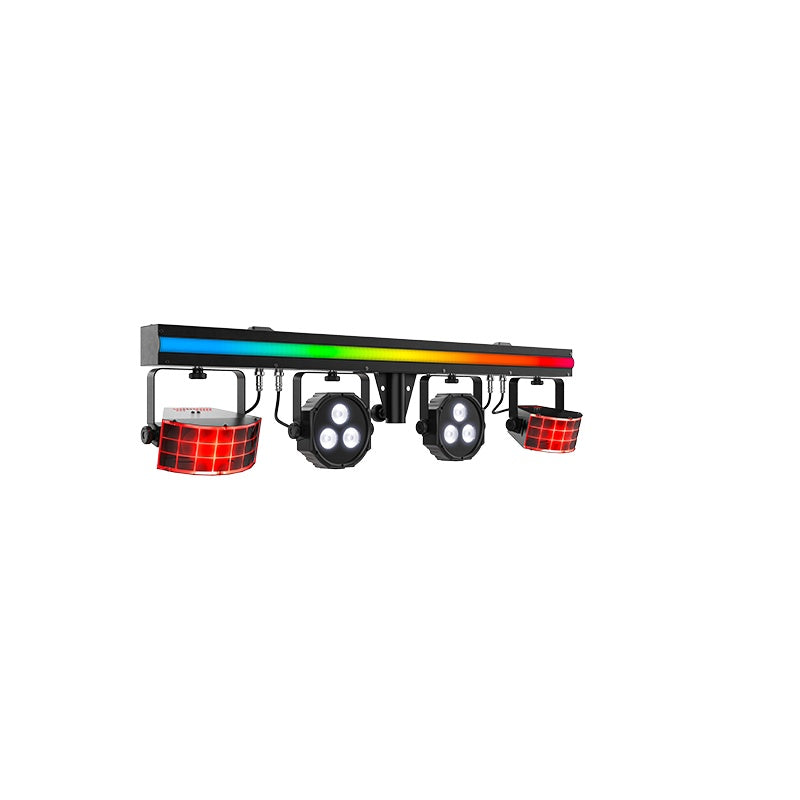

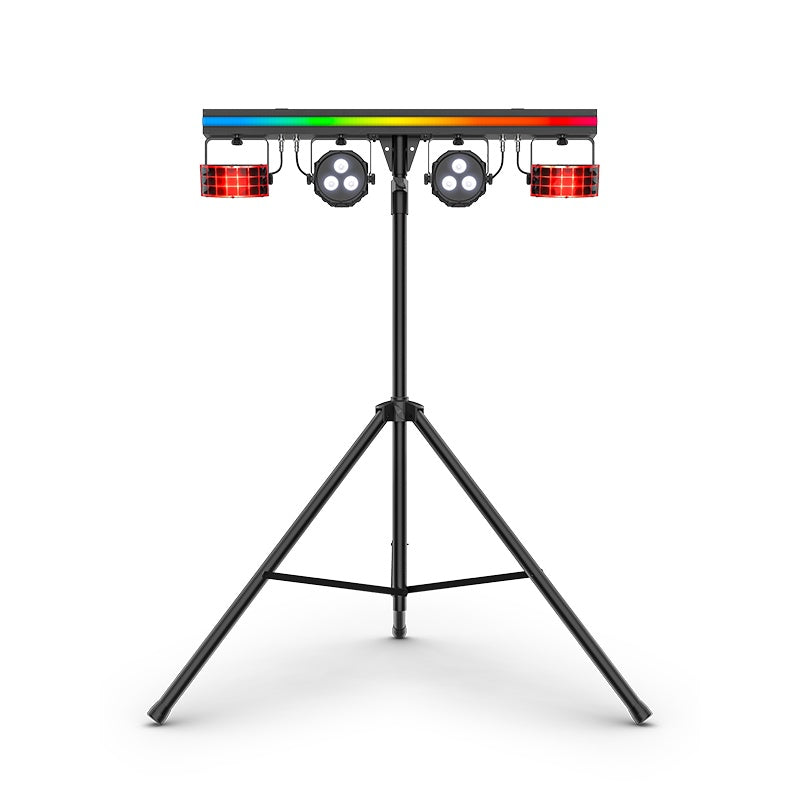

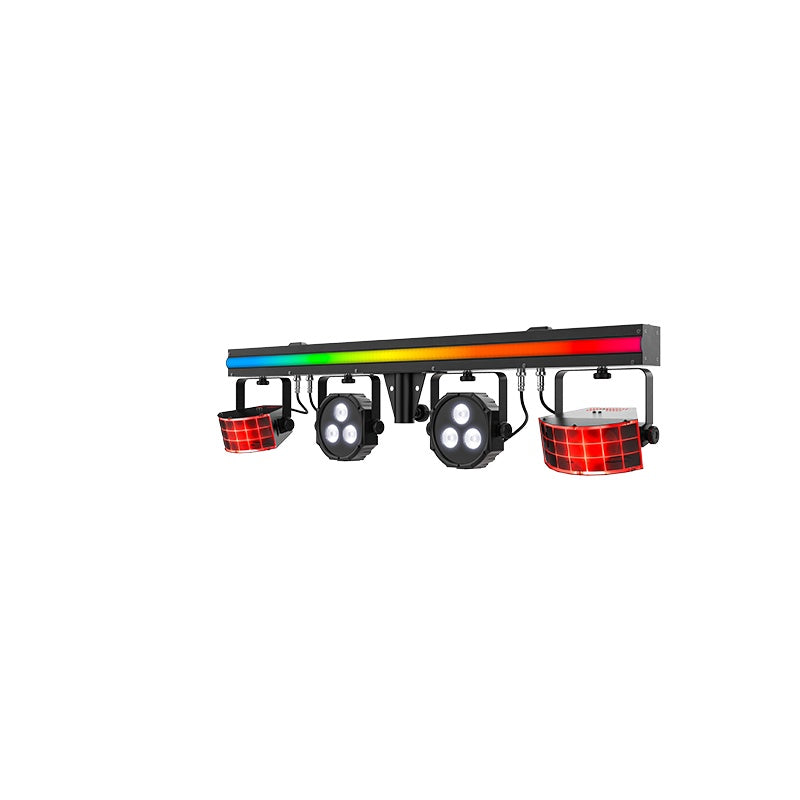

Chauvet DJ GIGBAR3ILS 3-in-1 ILS Pack-n-Go Lighting System

Chauvet DJ GIGBAR3ILS 3-in-1 ILS Pack-n-Go Lighting System

SoundPro Item: 206751 | Part Number: GIGBAR3ILS

$599.99
$799.99 $599.99
Your Price Sold out
MSRP: $799.99 | MAP: $599.99

Usually ships in 5-7 business days

  • ILS Ecosystem Integration Synchronizes Multiple Fixture Types Without Additional Controllers
  • Built-In D-Fi Transceiver Eliminates DMX Cabling Between Fixtures
  • Triple Effect Architecture Combines Derby, Par, And Strip Outputs On One Bar
  • Expansion Mounting Accommodates Four Additional Fixtures On Top Rail
  • Reversible Bracket Enables Upright Or Inverted Installation
  • Wireless Footswitch Provides Hands-Free Scene Triggering From Stage Position
  • Power Linking Supports Eleven Units On Single Circuit
Log in or register for YOUR best price

The GIGBAR3ILS delivers a complete mobile entertainment lighting rig that sets up in minutes and wirelessly synchronizes with other ILS-compatible fixtures. This integrated system mounts LED derbies for sweeping multi-colored beams, quad-color RGB+UV wash pars, and a 74-LED strip for architectural accent—all controlled from a single bar. The built-in D-Fi transceiver eliminates cable runs between fixtures while maintaining precise DMX or ILS communication across your entire setup.

Designed for mobile DJs and small venue operators who need maximum impact with minimal load-in time, the system accommodates up to four additional fixtures on top for expanded coverage. The reversible mounting bracket enables upright or inverted installation to match ceiling height and throw requirements. Automated and sound-activated programs coordinate all three effect types without programming, while the full-color LCD provides direct access to manual control when precision timing matters.

The included tripod extends from 4.8 to 7.8 feet, the wireless footswitch triggers scenes from across the room, and dedicated carry bags protect the bar and stand during transport. Power linking supports up to 11 units on a single 120V circuit, making this an efficient foundation for scalable lighting systems in mobile entertainment, house parties, and intimate club environments.

Downloads

View full details

Specifications

DMX and Control
DMX Channels
2, 21, or 132
DMX Connectors
3-pin XLR
Operating Frequency
2.412 to 2.484 GHz
Footswitch Operating Frequency
433 MHz
Footswitch Max Unobstructed Distance
100 ft
Light Source
Par LEDs
6 (quad-color RGB + UV) 3.7 W, 50,000 hours
LED Strip
74 LEDs (red, green, blue) 5 W, 50,000 hours
Derby LEDs
6 (2 red, 2 green, 2 blue) 3 W, 50,000 hours
Optics
Beam Angle (Pars)
13°
Field Angle (Pars)
24°
Coverage Angle (Derby)
114°
Coverage Angle (LED Strip)
174°
Strobe Rate
0 to 20 Hz
Dimensions
Product Size
41.2 x 3.7 x 10.7 in
Stand Height
4.8 ft to 7.8 ft
Tripod Leg Width
3.9 ft
Fits Tripod Size
1.5 in
Weight
Product Weight
13.2 lbs
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
47 W, .7 A at 120 V, 60 Hz / 45 W, .4 A at 230 V, 50 Hz
Power Linking
11 units at 120 V; 18 units at 230 V
Connectivity
Cable Length
9 ft
Certifications
Approvals
CE, ROHS, FCC
Shipping
Package Weight
38.14 lbs
Package Dimensions
50.2 x 21.26 x 7.48 in
Included Items
Footswitch Battery
9 V 300 mA
Included Accessories
Power cord, stealth filter, wireless footswitch, RF remote, tripod, carrying bag, tripod bag, user manual
