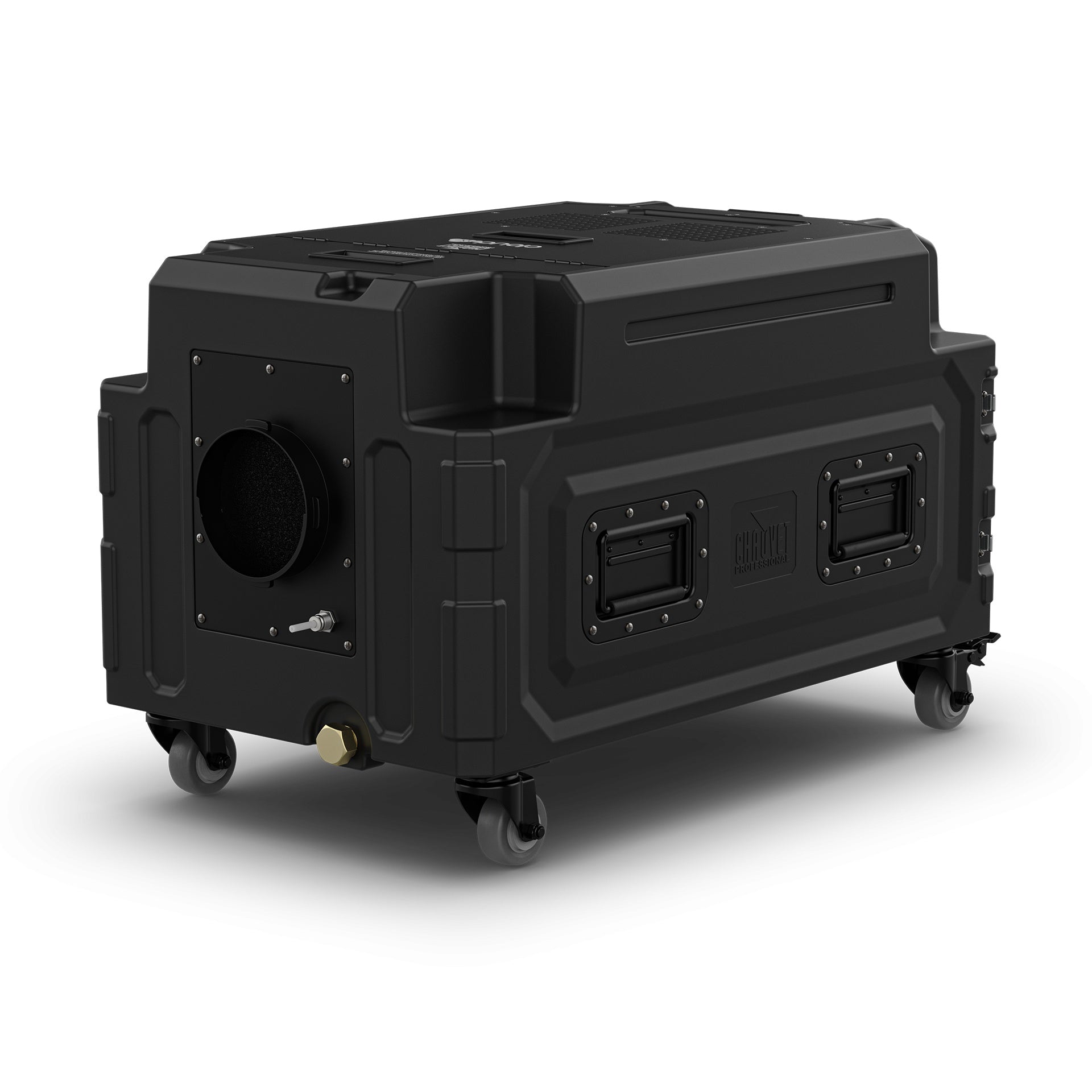

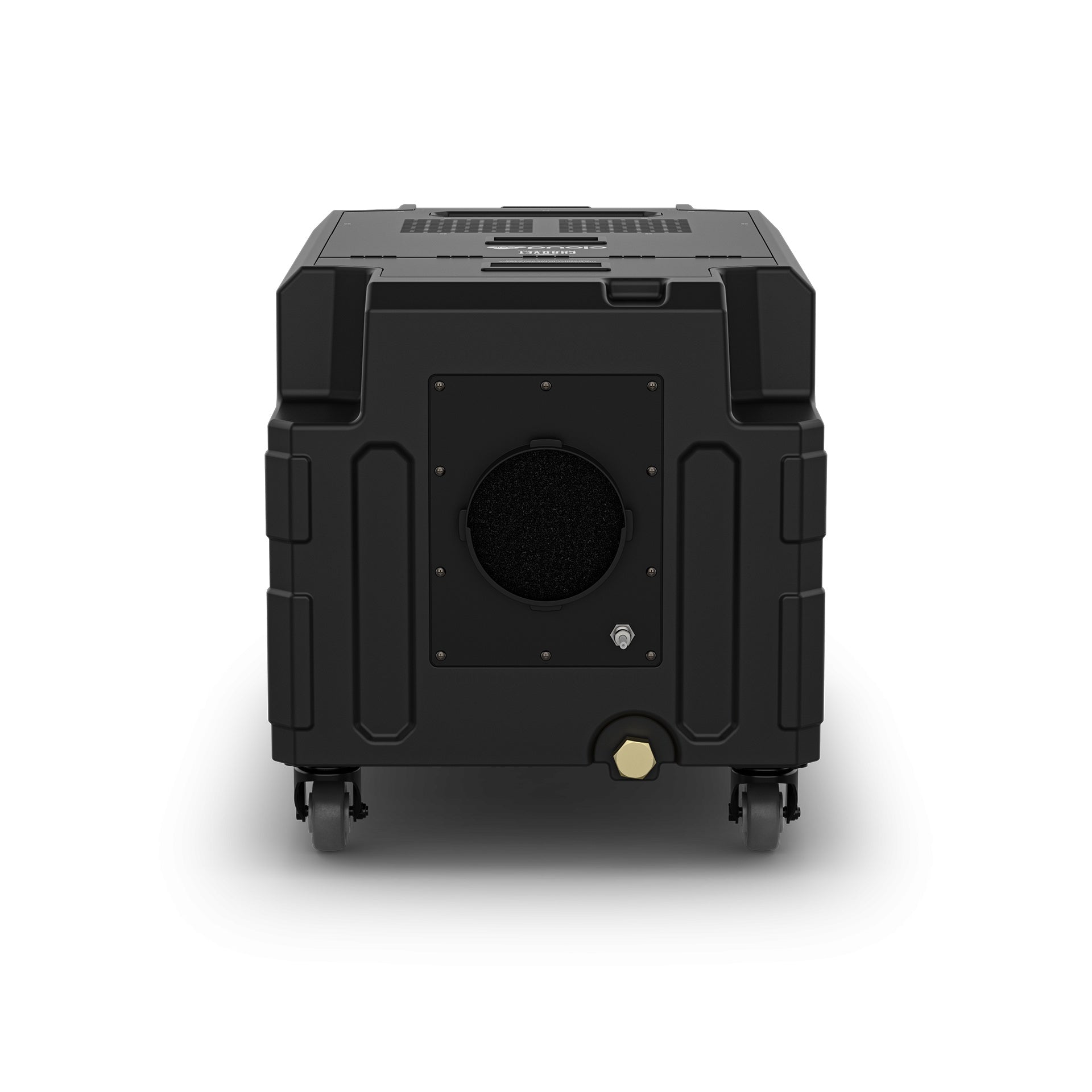

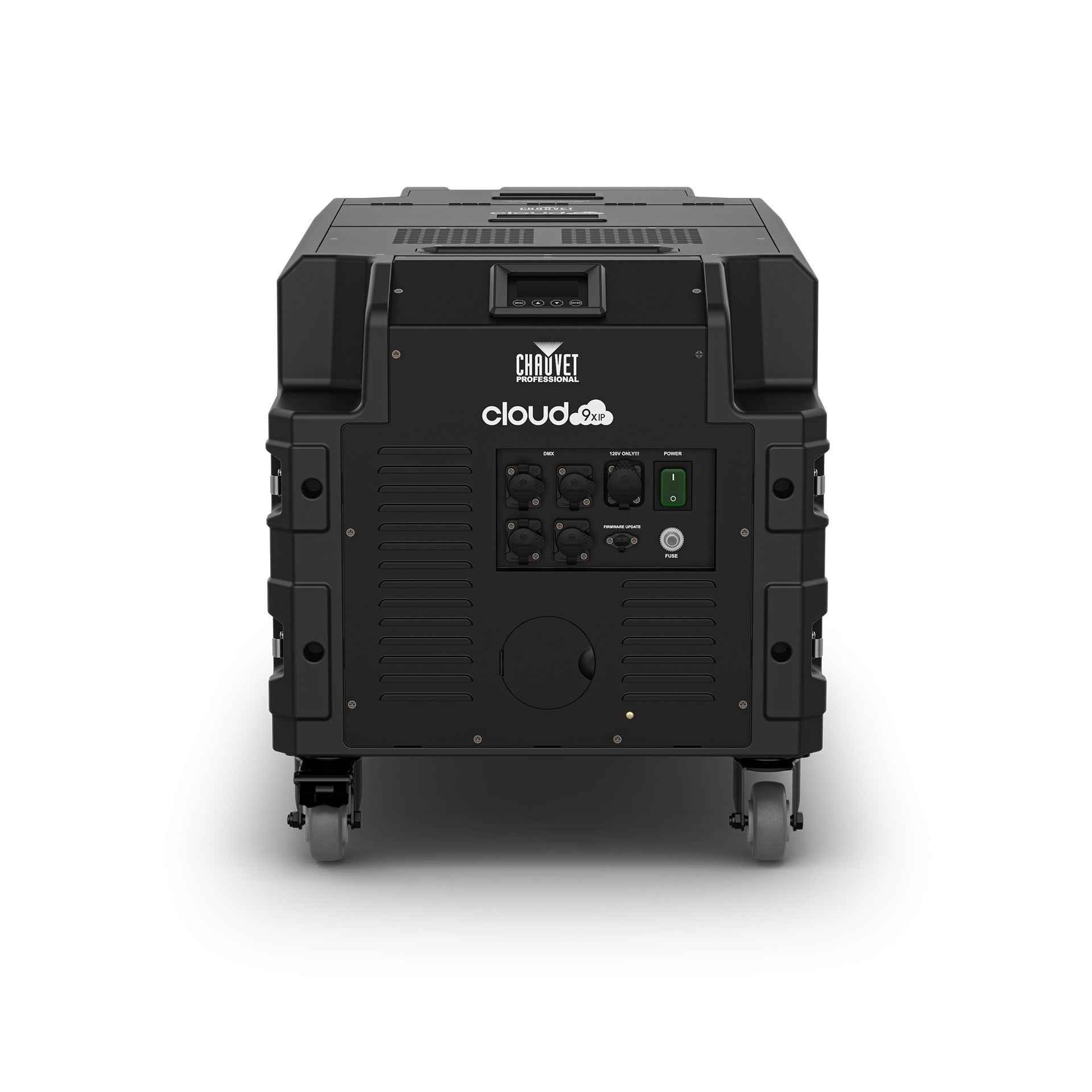

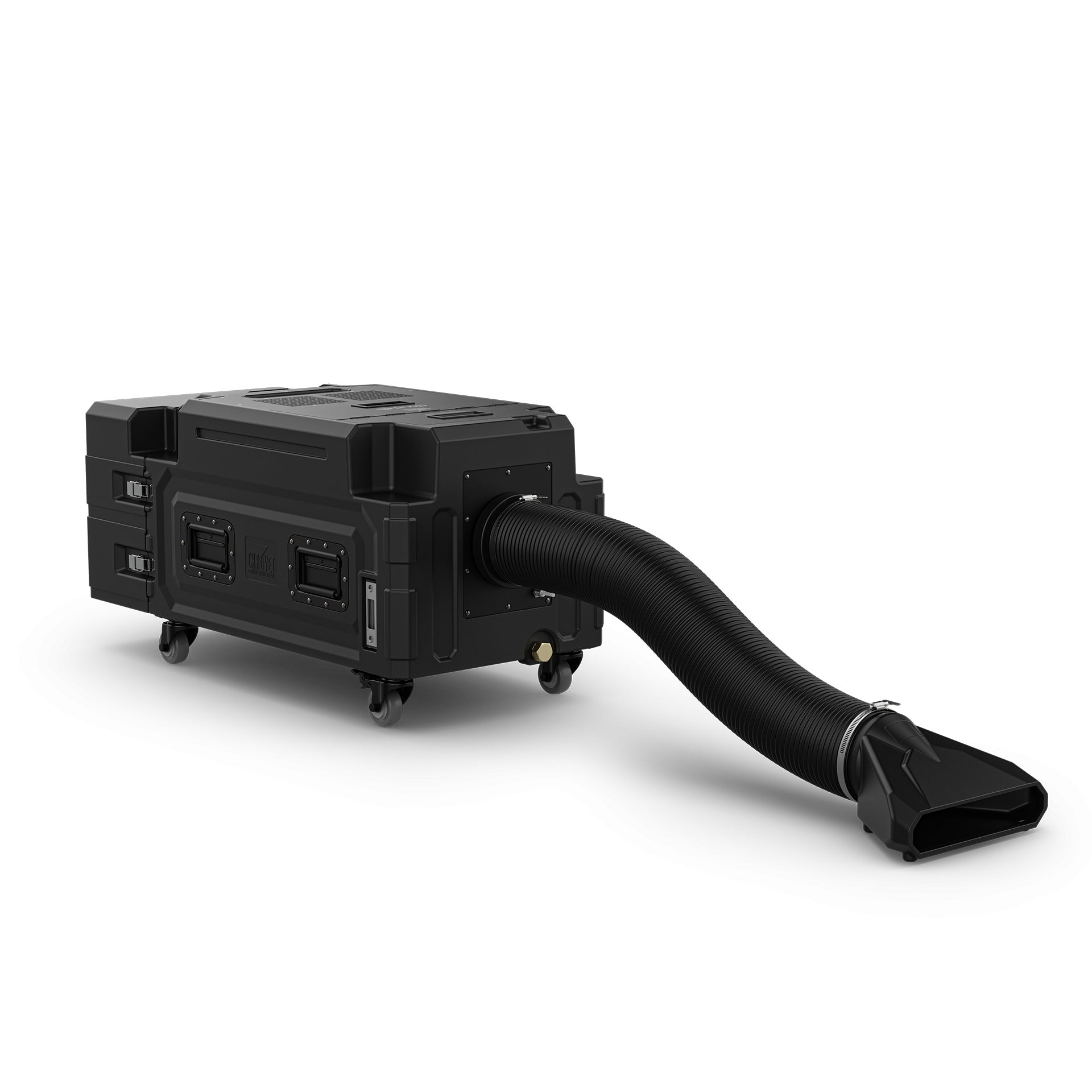

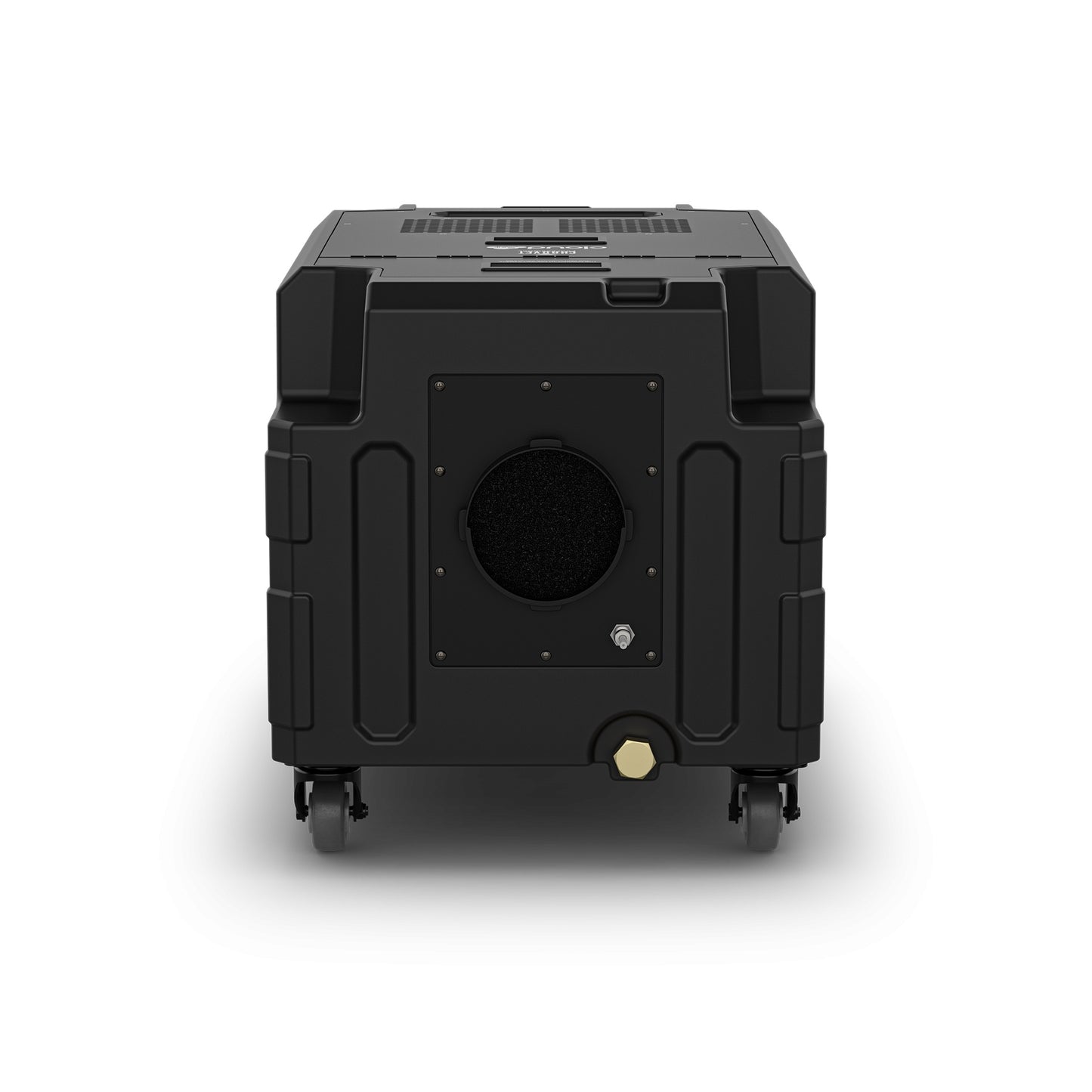

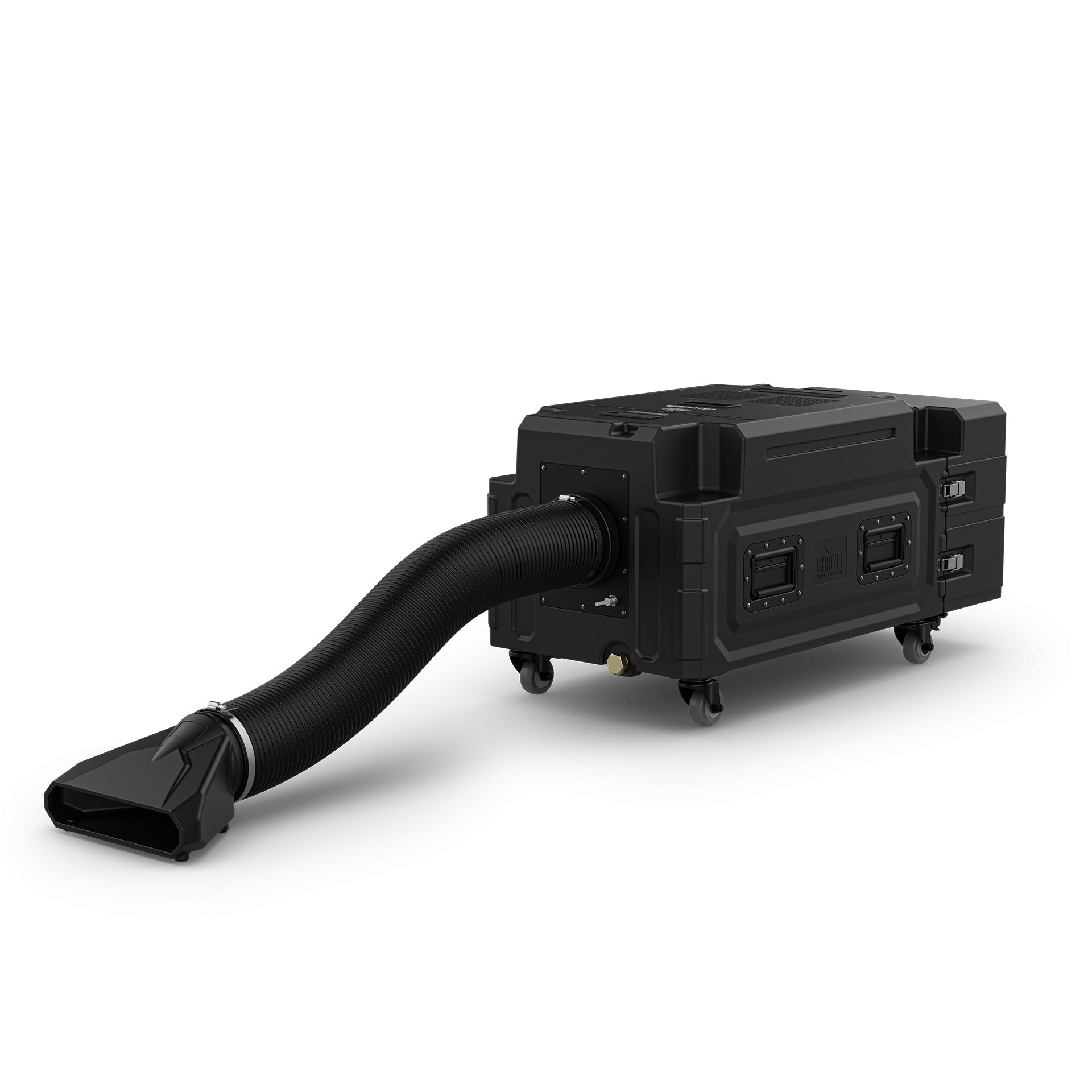

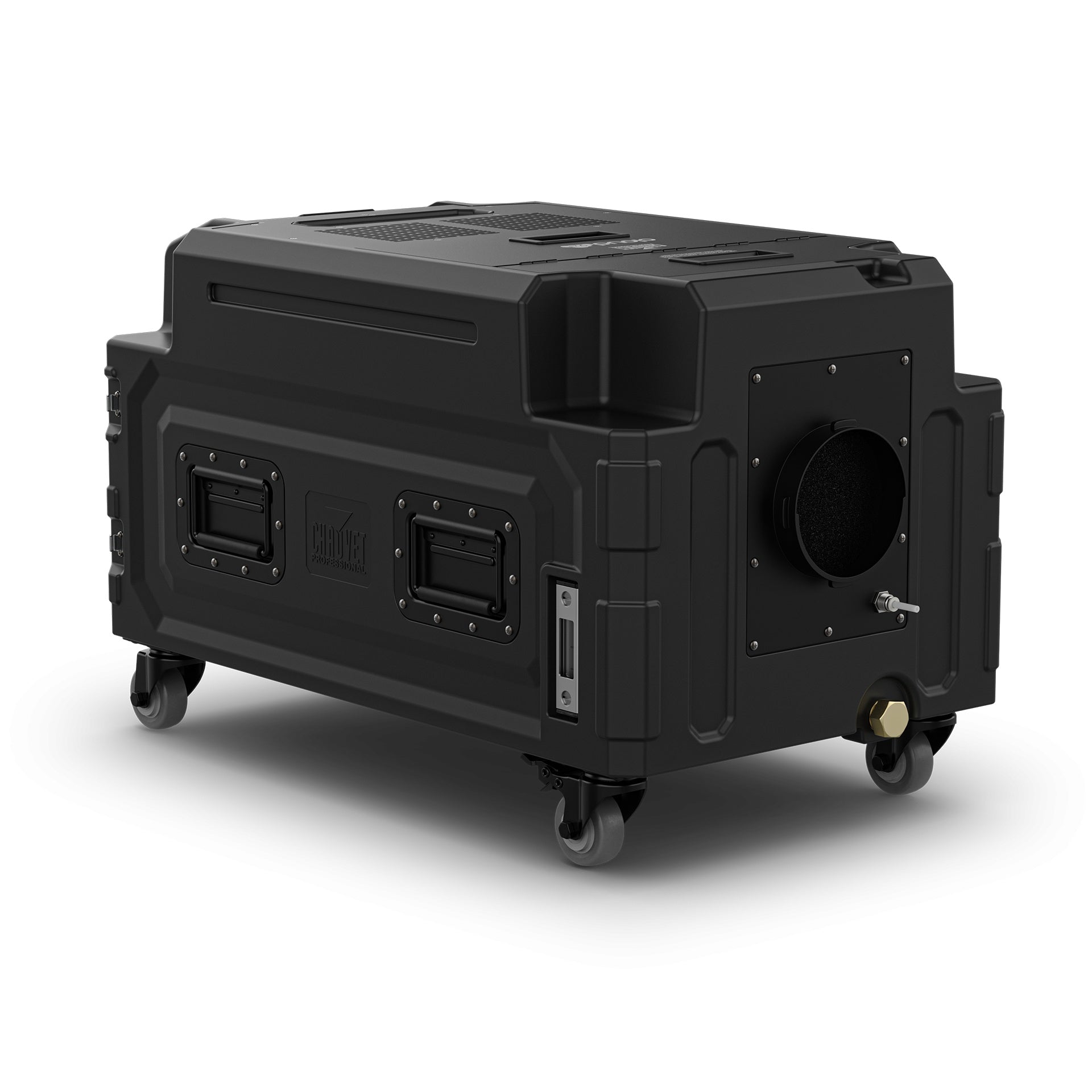

Chauvet Pro Cloud 9X IP Low-Lying Fogger For Stages | IP53

Chauvet Pro Cloud 9X IP Low-Lying Fogger For Stages | IP53

SoundPro Item: 201924 | Part Number: CLOUD9XIP

$4,322.00
$4,961.00 $4,322.00
Your Price Sold out
MSRP: $4,961.00 | MAP: $4,322.00

Usually ships in 5-7 business days

  • IP53 Rating Enables Temporary Outdoor And Wet Environment Deployment
  • Ultrasonic Agitator Technology Creates Dense Low-Lying Effect Without Dry Ice Or CO2
  • Garden Hose Rear Fitting Allows Automated Water Refill During Unattended Operation
  • Integrated Flight Case With Locking Casters Streamlines Touring And Rental Logistics
  • Stackable Corrosion-Resistant Housing Reduces Truck Pack Compared To Previous Model
  • Low Fluid Shutdown Protects The Unit And Prevents Dry Running
  • USB-C Firmware Port Enables Fast Software Updates Without Specialized Tools
Log in or register for YOUR best price

The Chauvet Pro Cloud 9X IP is built for touring production companies, rental houses, and event designers who need a dependable, high-output low-lying fog effect without the operational overhead of dry ice or CO2. Its ultrasonic agitator technology combines tap water — no distilled required — with LLG low-lying fog fluid to generate a thick, floor-hugging CO2-style effect capable of blanketing up to 3,230 square feet. The five-minute heat-up time and automated garden hose refill connection make it practical for back-to-back show days where downtime is not an option.

Where traditional low-fog systems demand refrigeration logistics, special handling permits, and trained operators, the Cloud 9X IP simplifies every step of the workflow. An IP53-rated corrosion-resistant aluminum alloy and flame-retardant polymer housing replaces the heavier legacy enclosure, reducing total weight significantly and enabling stacking up to three units high for efficient truck loading. Locking casters, a removable rear accessory storage cover, and an integrated brass-fitted drainage system mean load-in and load-out are genuinely fast.

Control flexibility matches the demands of professional production environments: a full-color onboard display, RDM two-way communication, three-channel DMX personality, and an included wireless RF remote give operators reliable options in any venue configuration. Firmware updates load via USB-C, keeping the unit current without specialized tooling. For integrators specifying atmospheric effects in ballrooms, theater installs, or touring rider fulfillment, the Cloud 9X IP delivers a technically complete, low-maintenance solution at a manageable footprint.

Downloads

View full details

Specifications

Certifications
IP Rating
IP53, temporary outdoor/wet use
Certifications
CE, ROHS, UKCA
Ambient Temperature Range
-4 °F to 113 °F (-20 °C to 45 °C)
Dimensions
Dimensions (Without Back Cover)
30 x 17.36 x 19.22 in (762 x 441 x 488.1 mm)
Dimensions (With Back Cover)
37.72 x 17.36 x 19.22 in (958 x 441 x 488.1 mm)
Output Nozzle Outer Diameter
4.76 in (121 mm)
Hose Length (Fully Extended)
11 ft (3.4 m)
Weight
Weight
76.6 lb (34.75 kg)
Electrical
Input Voltage (60 Hz)
120 VAC, 60 Hz
Input Voltage (50 Hz)
230 VAC, 50 Hz
Power And Current (120 V)
1960 W, 17.5 A @ 120 V, 60 Hz
Power And Current (230 V)
1281 W, 5.59 A @ 230 V, 50 Hz
Heat-Up Time
5 min
Breaker Size
10 A, 250 V
Performance
Fan Performance
81 cfm
Coverage Area
3,230 sq ft
Fog Fluid Consumption
25 mL/min (0.88 fl oz/min)
Fog Fluid Runtime (3 L Tank)
2 hr
Water Consumption
184.7 mL/min (6.25 fl oz/min)
Water Runtime (27.7 L Total Tank)
2.5 hr
Low Fluid Shutdown
Yes
Connectivity
Power Input
Seetronic Powerkon IP65
Data Connectors
3-pin/5-pin IP rated
Cable Length (Power)
5 ft (1.5 m)
Firmware Upgrades
USB Type-C
Control
Control Protocol
DMX, RDM, Wireless Remote
DMX Channels
3
Modes/Personalities
1 personality (3ch)
On-Board Control
Yes
Included Remote
Yes
Construction
Exterior Color
Black
Housing Material
Aluminum alloy, High-impact flame-retardant polymer
Capacity
Water Tank — Primary
4.91 gal (18.6 L)
Water Tank — Reserve
2.41 gal (9.1 L)
Water Tank — Total
7.32 gal (27.7 L)
Fog Fluid Tank Capacity
0.8 gal (3 L)
Included Items
Includes
Cloud 9X IP unit, Seetronic Powerkon IP65 power cable, RF remote (2-button), 2x hose clamps 6 in (152 mm) diameter, barbed hose adapter 0.5 in (13 mm) diameter, 2x barbed hose adapter clamp 1 in (25 mm) diameter, 6 ft (2 m) output hose 5 in (130 mm) diameter, removable rear cover, hose coupler 5 in (130 mm) diameter, floor nozzle 5 in (130 mm) diameter, overfill hose (polyurethane, 6 mm OD, 4 mm ID, 80 in / 204 cm), Quick Reference Guide
Required Accessory
Fog Fluid-LLG
Mounting
Floor mount/positioning only with locking wheels
