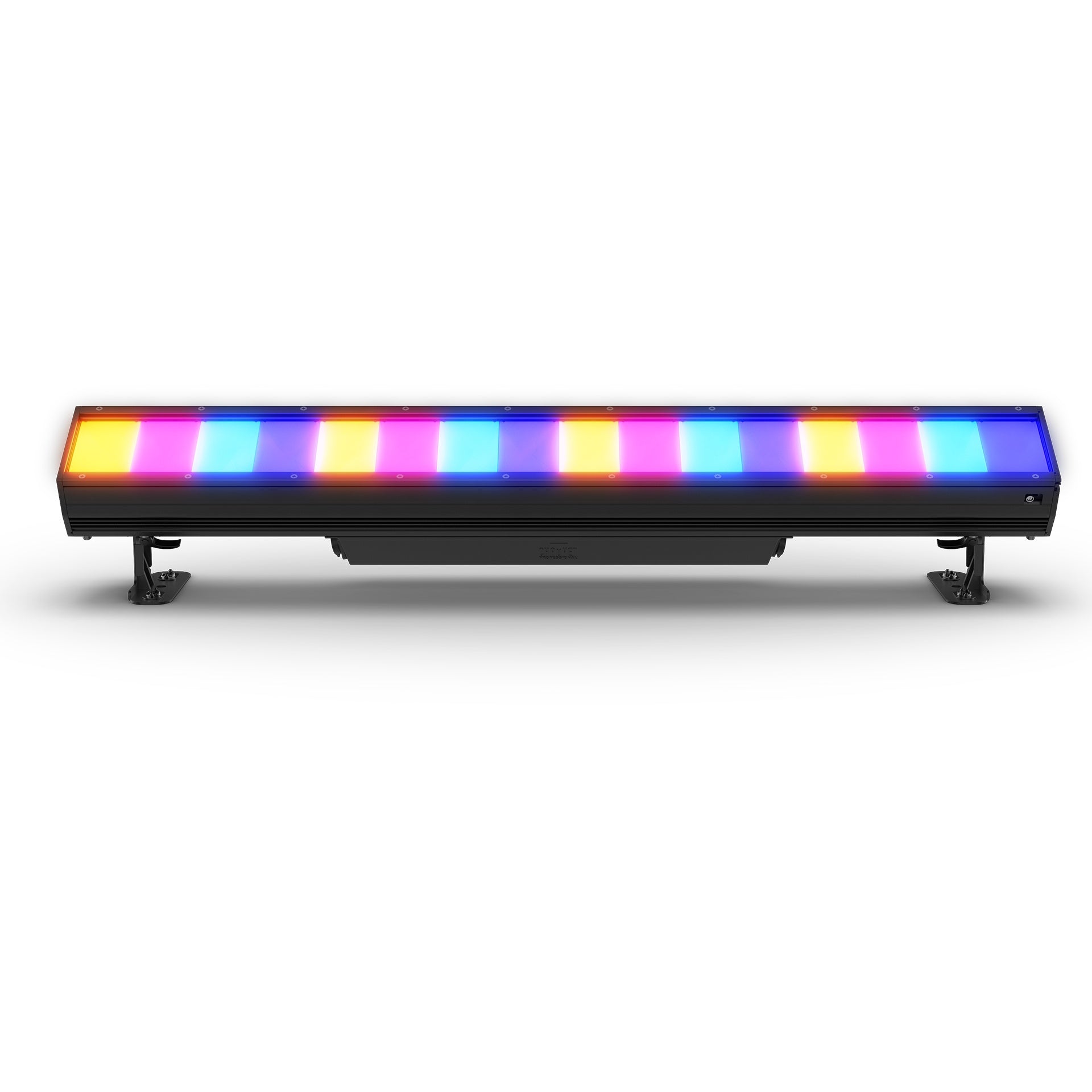

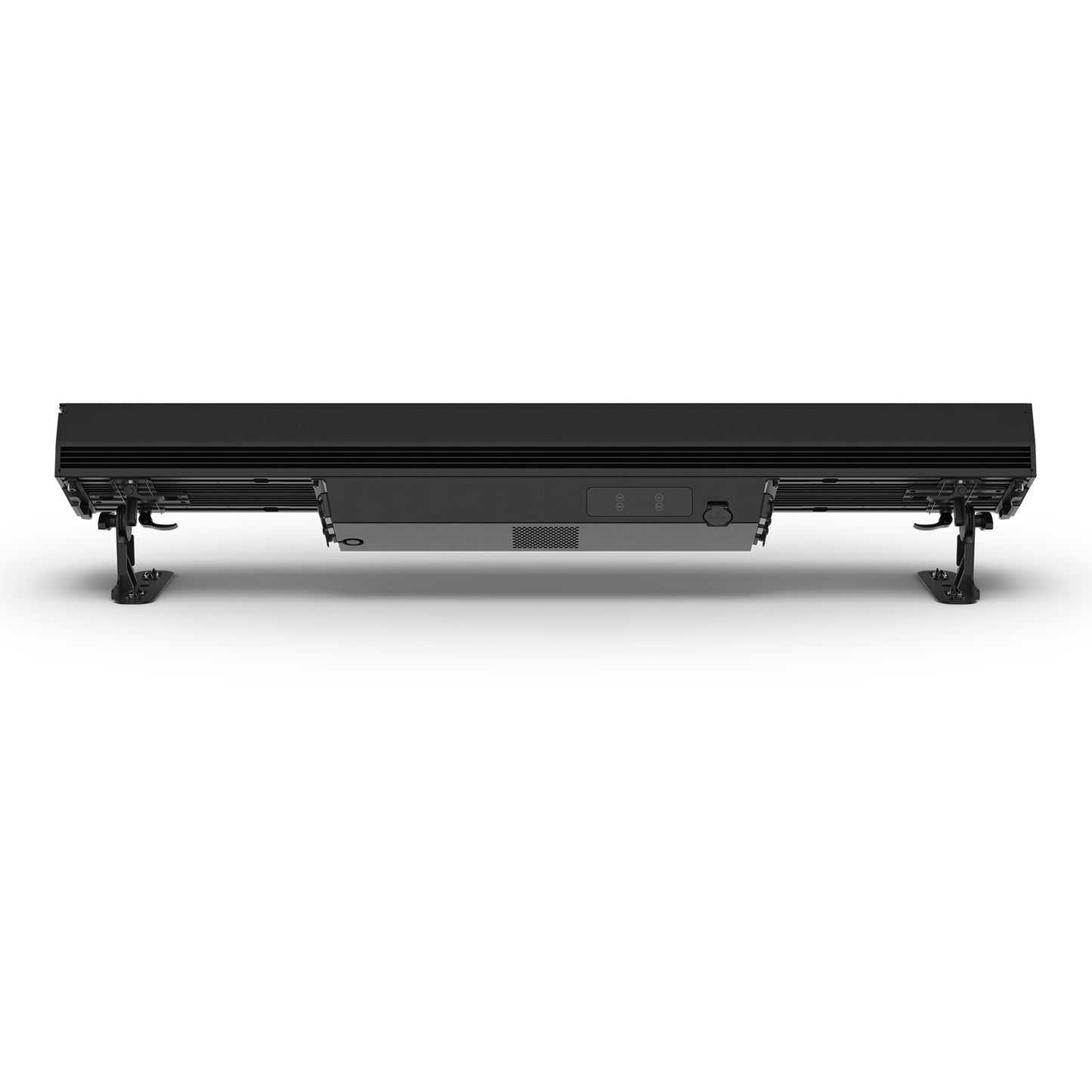

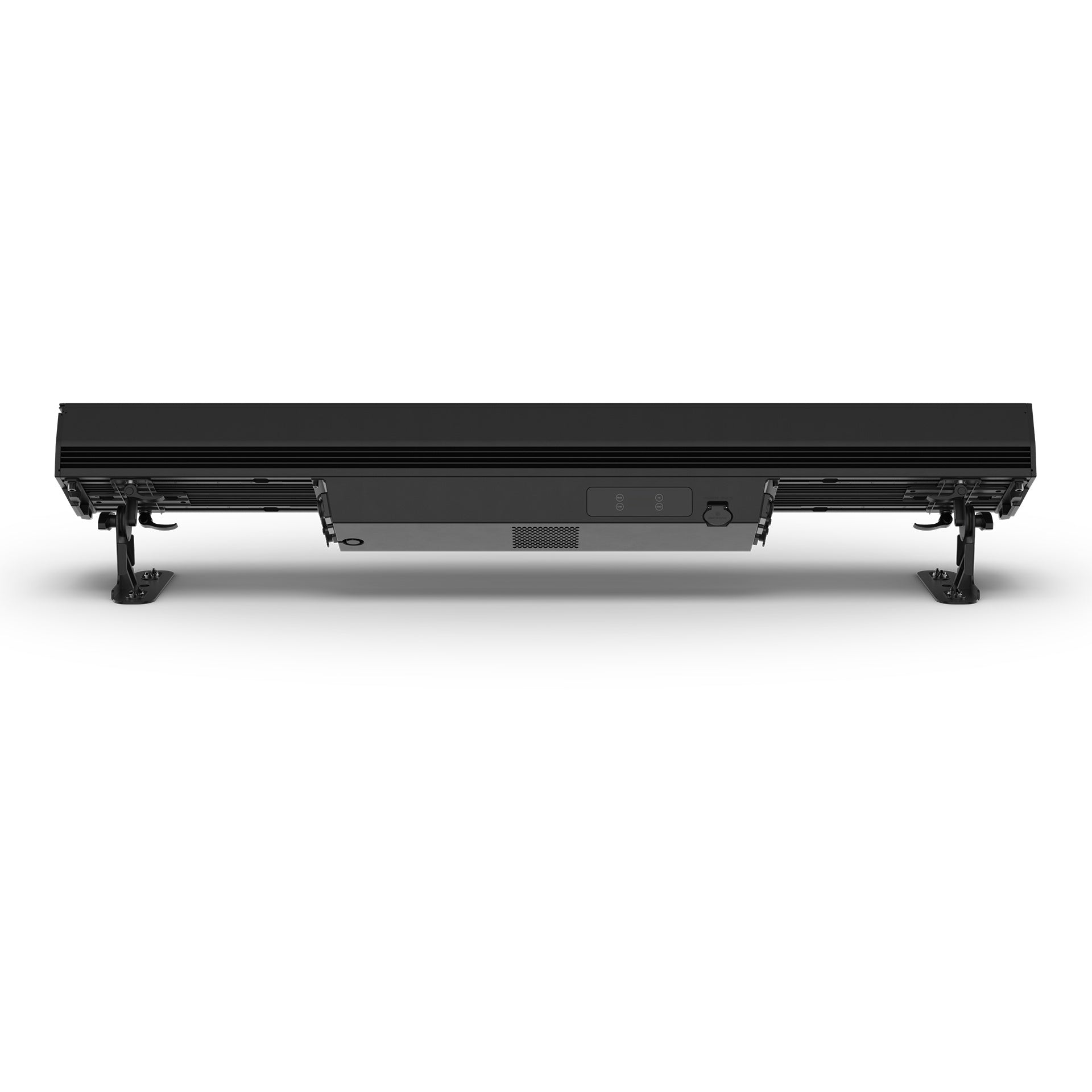

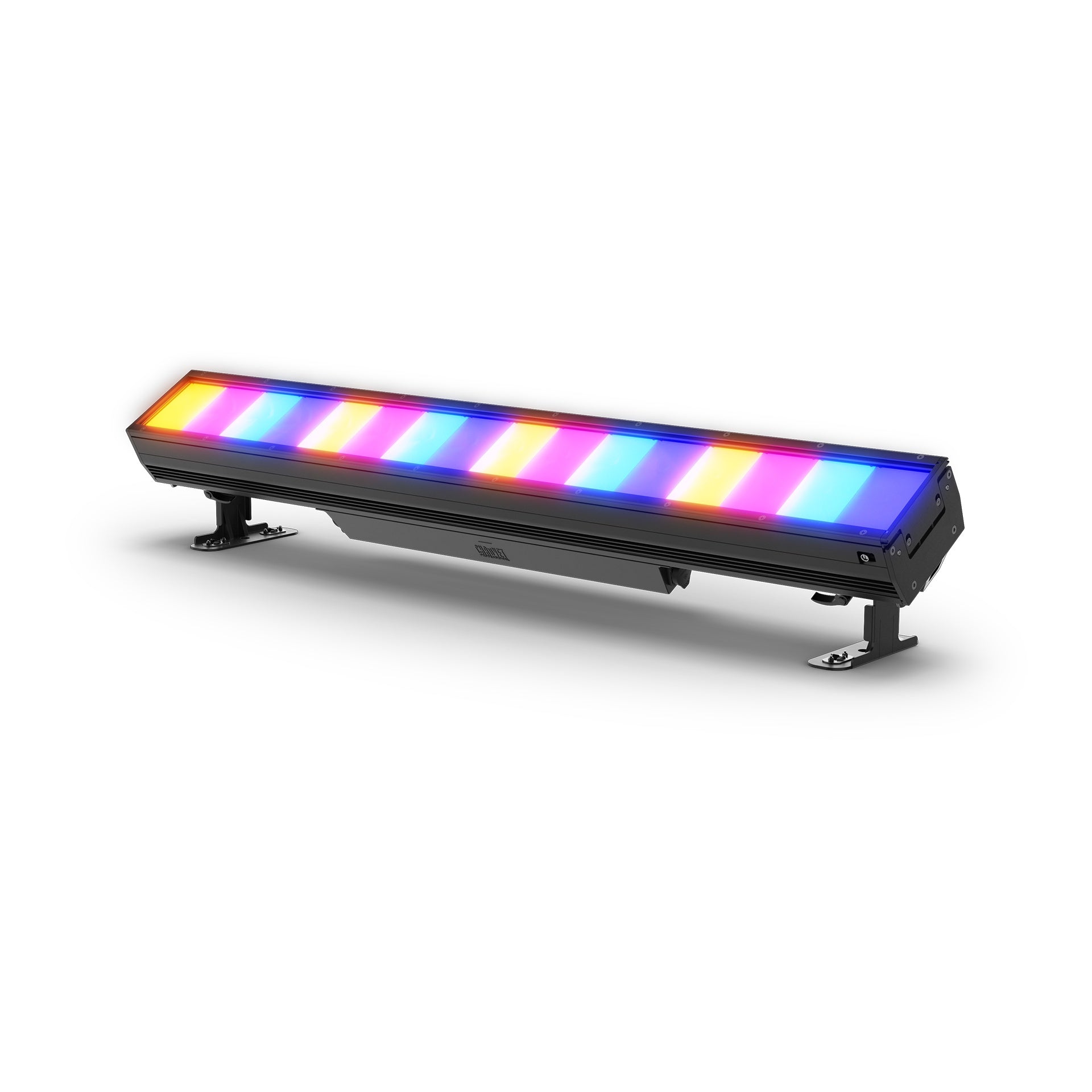

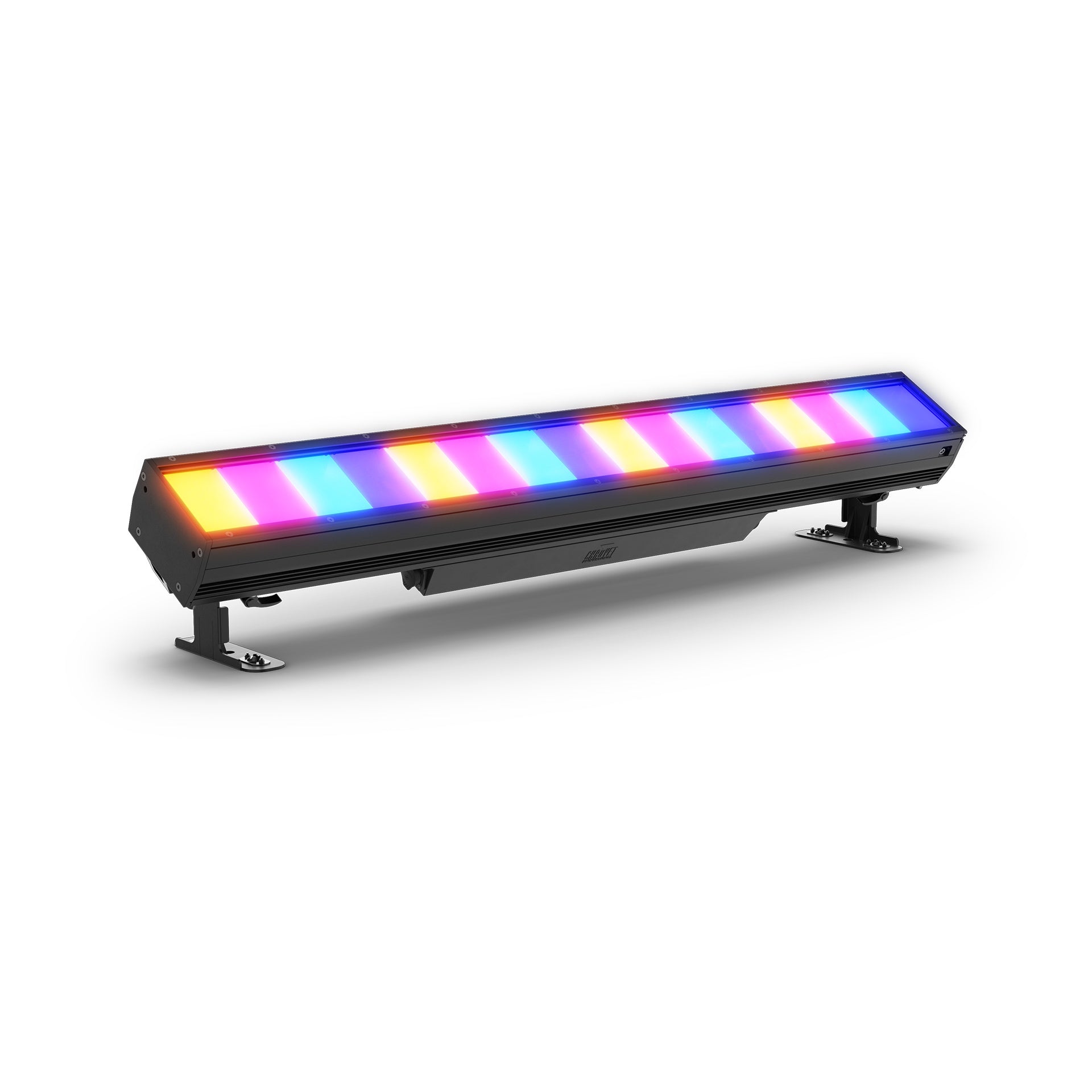

Chauvet Pro COLORado Solo Bar 4 IP65 RGBwWL LED Batten

Chauvet Pro COLORado Solo Bar 4 IP65 RGBwWL LED Batten

SoundPro Item: 201141 | Part Number: COLORADOSOLOBAR4

$4,323.00
$4,963.00 $4,323.00
Your Price Sold out
MSRP: $4,963.00 | MAP: $4,323.00

Usually ships in 5-7 business days

  • IP65 All-Weather Rating With Pressure-Equalizing GORE Valve For Outdoor And Install Use
  • Five-Color RGBwWL Array Enables Independent White Or Full-Spectrum Color Control
  • Homogenized Cell Design Produces Edge-To-Edge Consistent Pixel-Mapped Looks
  • Plus/Minus Green Adjustment And Emulated Red-Shift Accessible Via DMX Or On-Board Menu
  • Selectable PWM Eliminates Camera Flicker For Broadcast And Film Applications
  • Integrated Filter Slot And Stowable Glare Shield Allow Beam Shaping Without Extra Hardware
  • Sliding T-Rail Brackets And Guide Pins Simplify Multi-Unit Truss Alignment
Log in or register for YOUR best price

The Chauvet Pro COLORado Solo Bar 4 is built for lighting designers who need broadcast-grade color accuracy, outdoor durability, and pixel-mapping capability in a single fixture. With 16 homogenized RGBwWL LED cells producing 17,090 lumens and a CRI of 95, it delivers consistent, camera-ready output whether deployed as a cyc light, footlight, or batten down light on touring rigs, festival stages, or permanent theatrical installations.

Where comparable LED battens force a choice between color quality and all-weather construction, the COLORado Solo Bar 4 integrates both in an aluminum diecast housing rated IP65 with a pressure-equalizing GORE valve. Linear color temperature presets spanning 2800 K to 8000 K, plus/minus green adjustment, and emulated red-shift give LDs fine-grained control over white quality that standard RGBW fixtures cannot match. Ultra-smooth 18-bit dimming and selectable PWM up to 25,000 Hz eliminate flicker artifacts in broadcast and film environments.

Setup and networking are equally considered: adjustable sliding T-rail brackets, integrated alignment pins for end-to-end linking, a slide-in filter slot, and a stowable glare shield reduce prep time on busy calls. Control flexibility spans DMX, RDM, CRMX, Art-Net, and sACN across 52 personalities, giving operators a path to integrate with virtually any show control system in use today.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65, temporary outdoor use, with pressure-equalizing M12 GORE valve
Certifications
CE, MET, FCC, UKCA
Noise Level (Idle)
28.0 dB(A) @ 1 m
Noise Level (Auto)
27.5 dB(A) @ 1 m
Noise Level (Full)
37.0 dB(A) @ 1 m
Noise Level (Silent)
27.1 dB(A) @ 1 m
Noise Level (Off)
7.1 dB(A) @ 1 m
Ambient Temperature
−4 °F to 113 °F (−20 °C to 45 °C)
Optical
Light Source
16 RGBwWL LED Engines
Lumens
17,090
Lumens (w/CYC Diffusion)
14,038
Lumens (w/Half Diffusion)
14,998
Lumens (w/Stealth Diffusion)
5,090
Illuminance
3,339 lux @ 5 m
Illuminance (w/CYC Diffusion)
911 lux @ 5 m
Illuminance (w/Half Diffusion)
2,380 lux @ 5 m
Illuminance (w/Stealth Diffusion)
501 lux @ 5 m
CRI
95
Color Temperature Range
2800 to 8000 K
Color Temperature (at Full)
8,810 K
Beam Angle
17.4°
Beam Angle (w/CYC Diffusion)
37.9°
Beam Angle (w/Half Diffusion)
18.5°
Beam Angle (w/Stealth Diffusion)
24.8°
Field Angle
38.8°
Field Angle (w/CYC Diffusion)
81.3°
Field Angle (w/Half Diffusion)
45.7°
Field Angle (w/Stealth Diffusion)
60.9°
Selectable PWM
1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz
Performance
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 30 Hz
Dim Modes
4
Dim Curves
4
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Built-In Automated Programs
Yes
Controls
Control Protocol
Art-Net, sACN, DMX, CRMX, RDM
Modes/Personalities
52
DMX Channels (1 Cell)
CCT 4ch, HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch
DMX Channels (2 Cell)
CCT 7ch, HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch
DMX Channels (4 Cell)
CCT 13ch, HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch
DMX Channels (8 Cell)
CCT 25ch, HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch
DMX Channels (16 Cell)
CCT 49ch, HSV 49ch, RGB 48ch, RGBW 64ch, RGBWL 80ch, RGBWL-16bit 160ch, RGB Ext. 115ch, RGBW Ext. 131ch, RGBWL Ext. 147ch, RGBWL Full 259ch
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current @ 100 V
375 W, 3.79 A @ 100 V, 60 Hz
Power and Current @ 120 V
370 W, 3.11 A @ 120 V, 60 Hz
Power and Current @ 208 V
363 W, 1.80 A @ 208 V, 60 Hz
Power and Current @ 230 V
363 W, 1.63 A @ 230 V, 50 Hz
Power and Current @ 240 V
364 W, 1.57 A @ 240 V, 60 Hz
Power Linking
3 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V; 7 units @ 240 V
Connectivity
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-pin IP65 XLR, Seetronic etherCON compatible
Cable Length (Power)
5 ft (1.5 m)
Software Connection
USB
Construction
Dimensions
46.63 x 7.87 x 8.36 in (1184.5 x 200 x 212.4 mm)
Weight
38.0 lbs (17.0 kg)
Exterior Color
Black
Housing Material
Aluminum diecast, aluminum profile
Included Items
Included

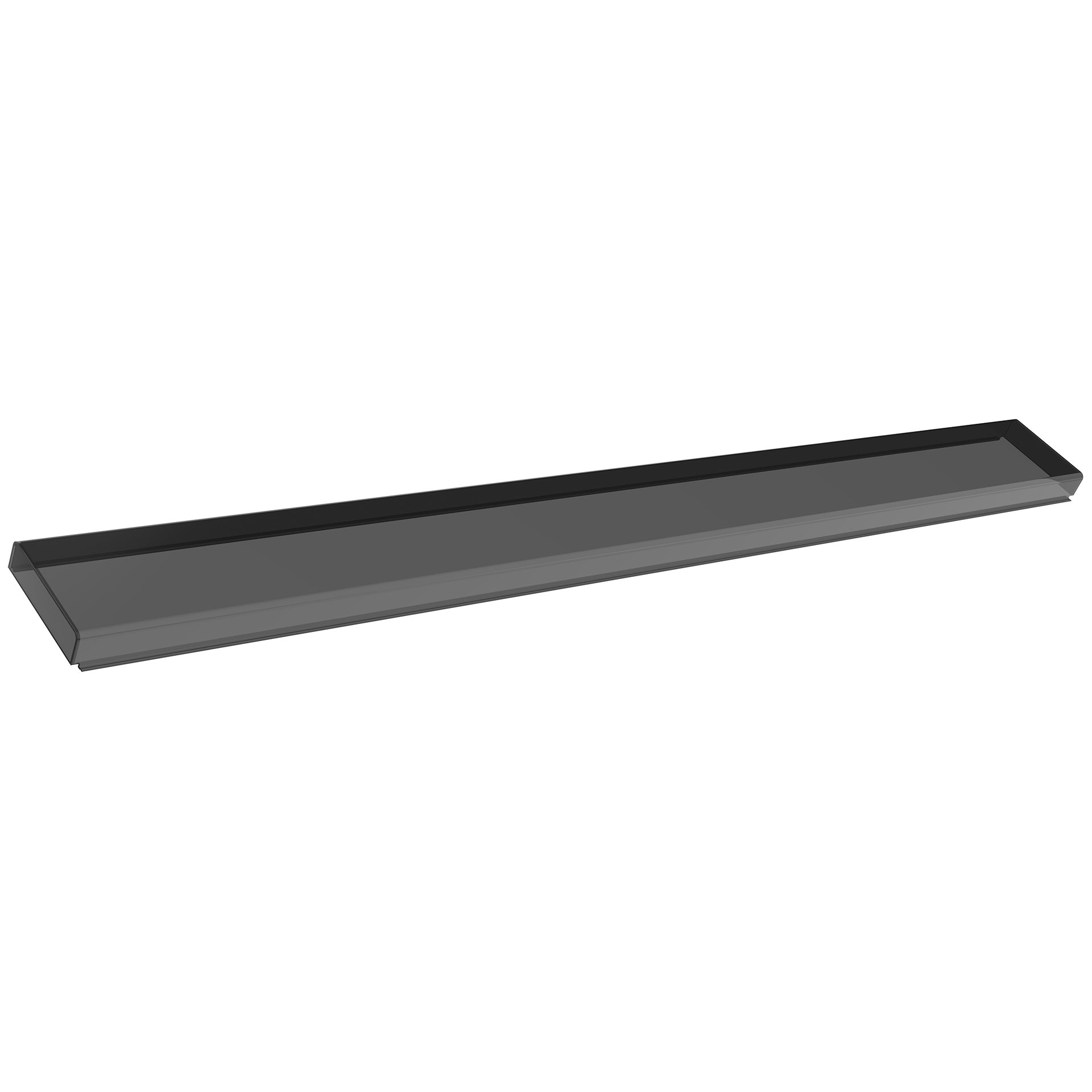

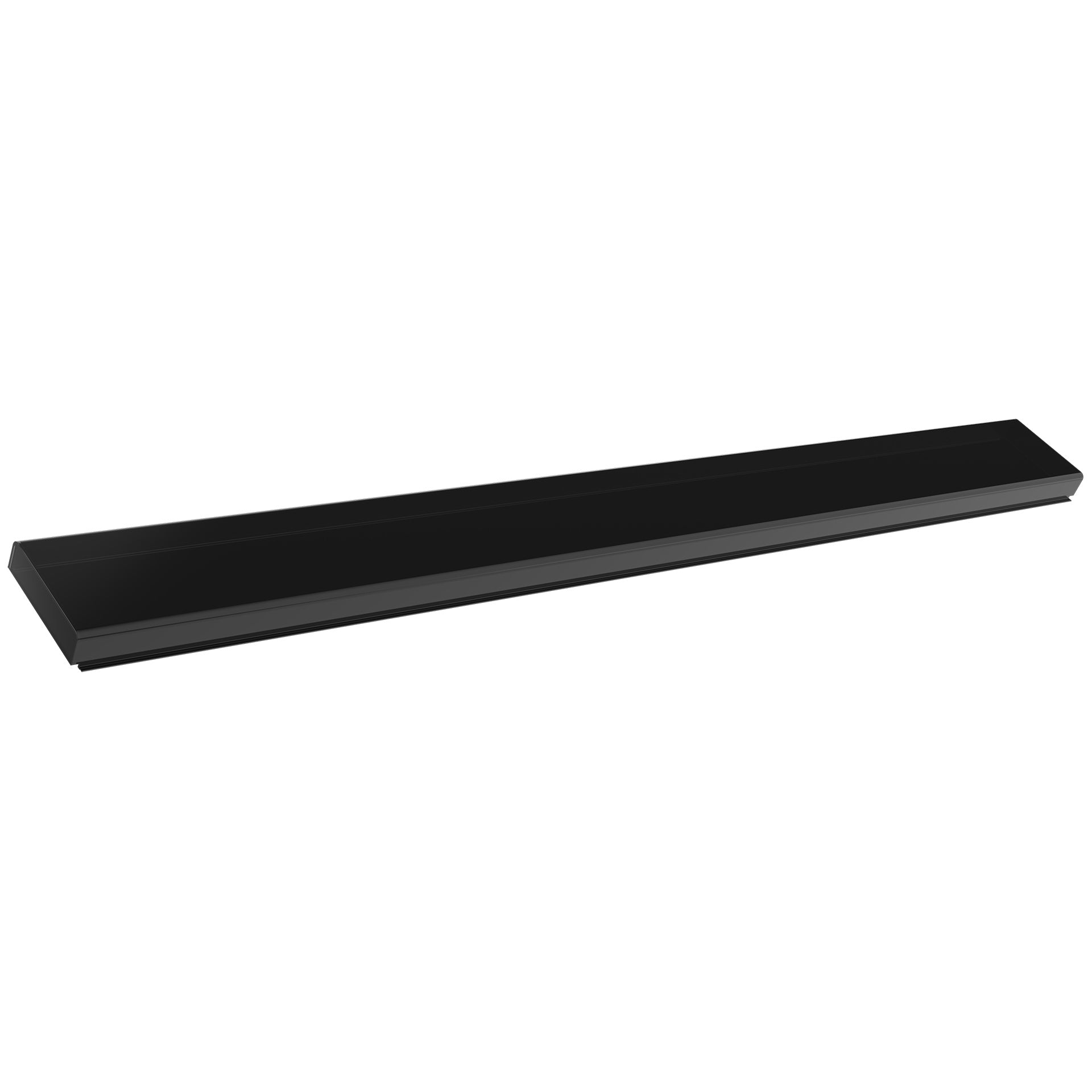

COLORado Solo Bar 4, Seetronic Powerkon IP65, Omega brackets with mounting hardware, 50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (installed), Short Mount Accessory Feet, Glare Shield
