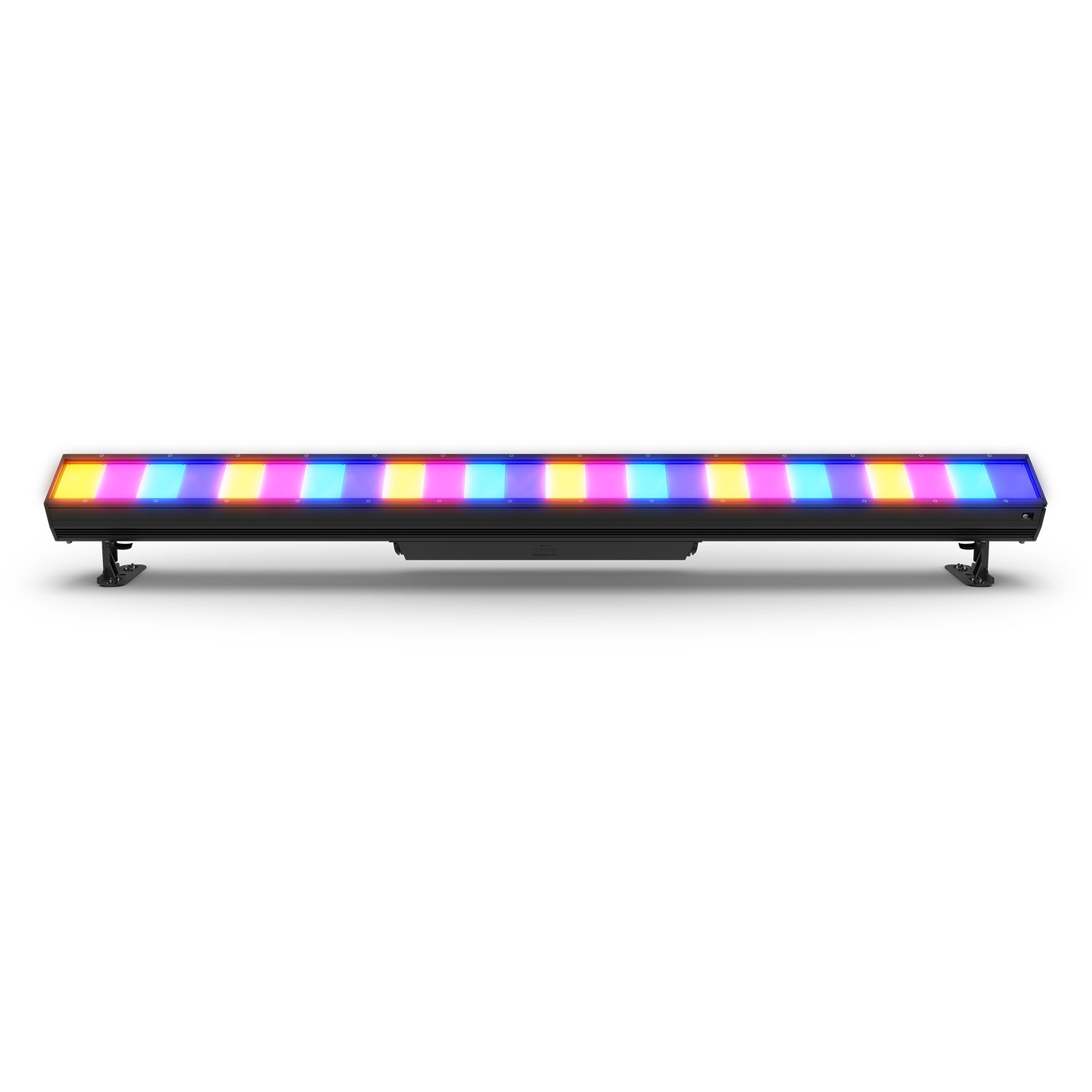

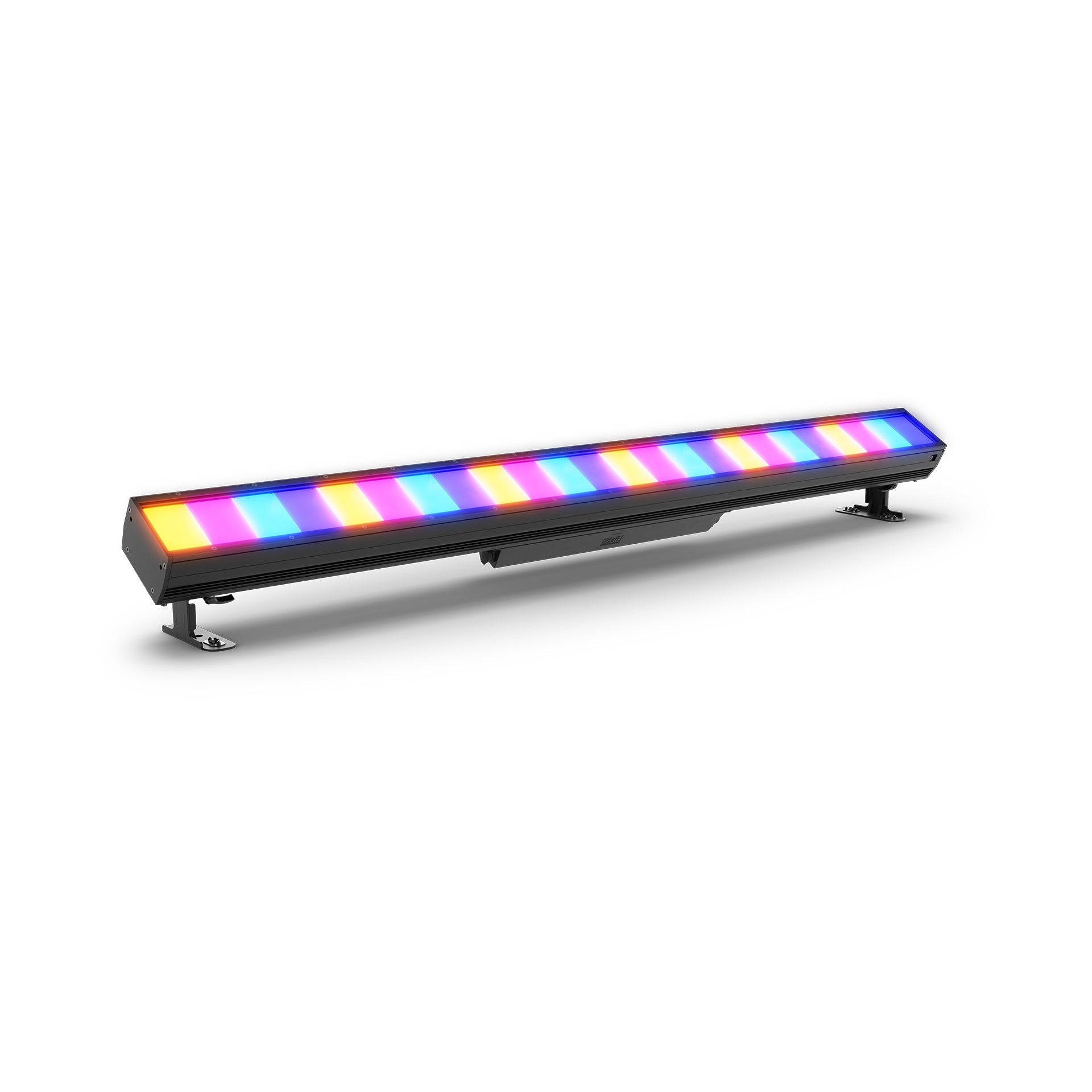

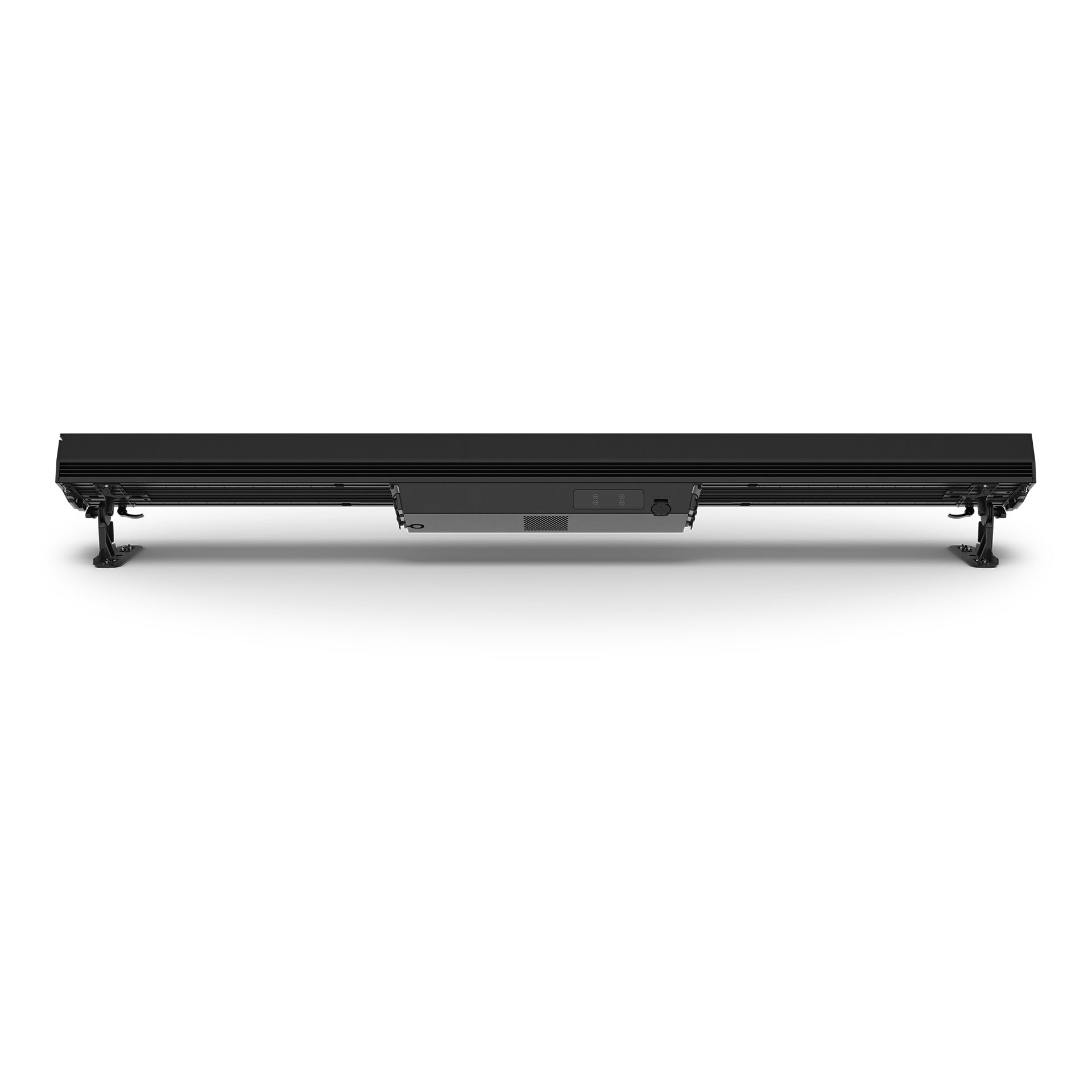

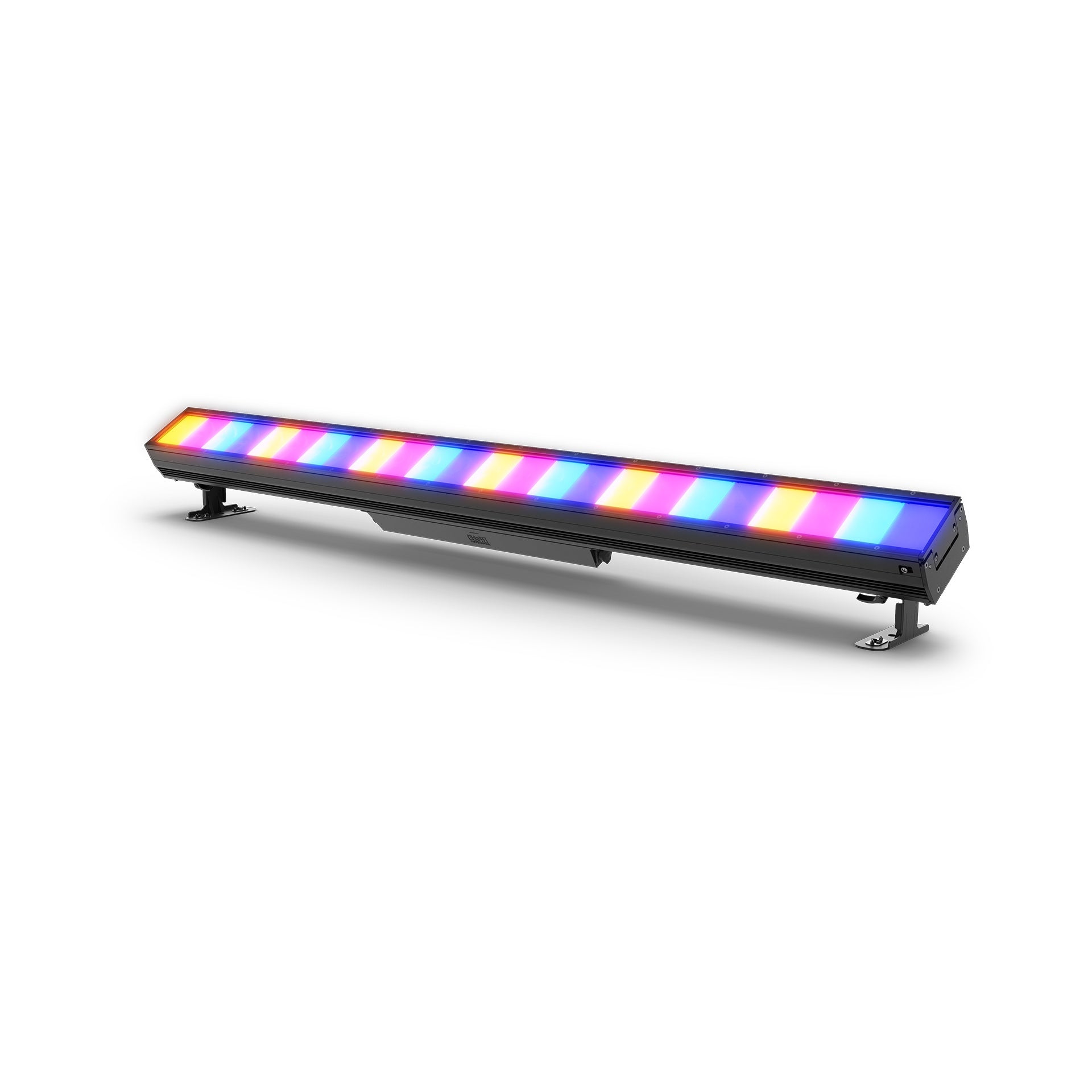

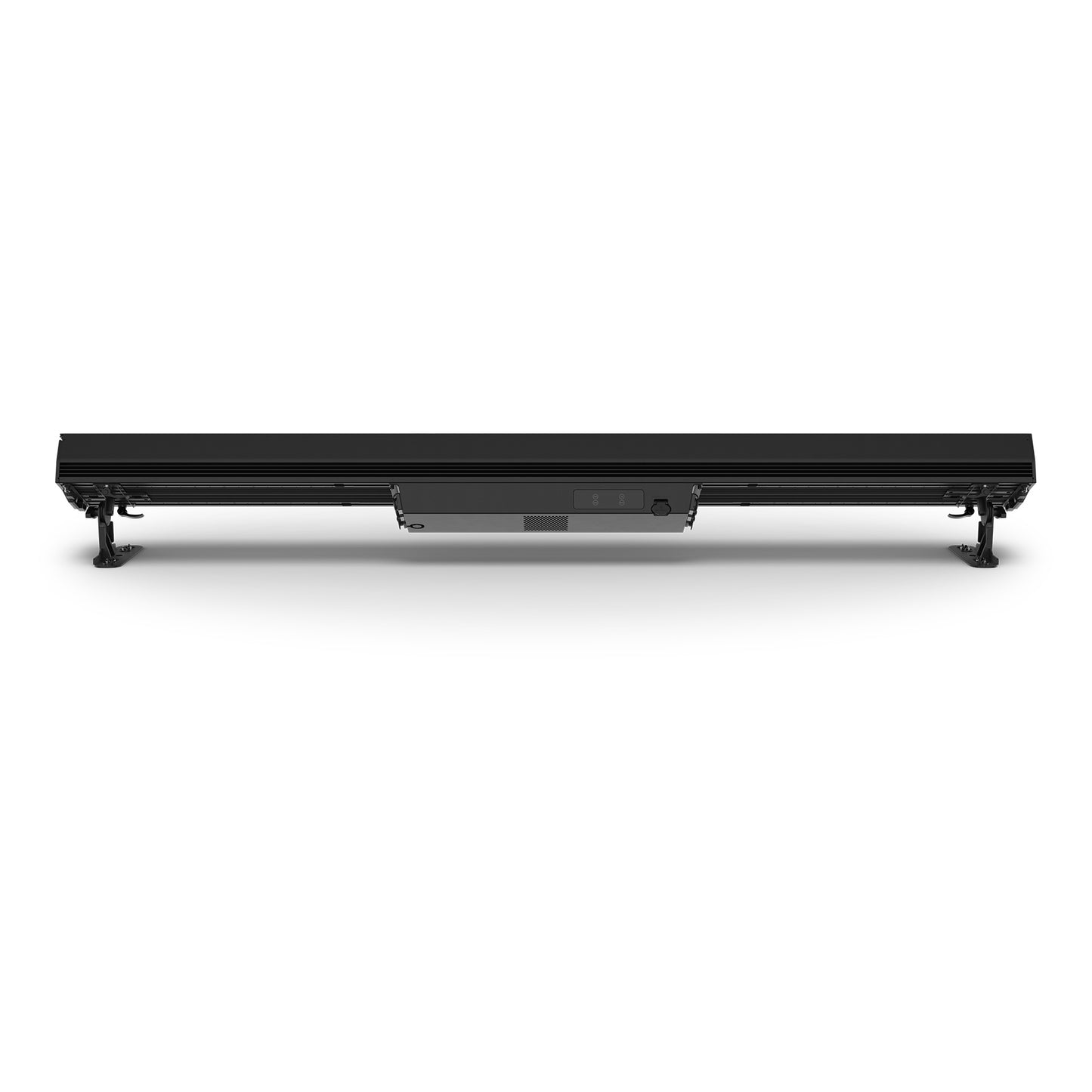

Chauvet Pro COLORado Solo Bar 6 IP65 RGBwWL LED Batten Wash Fixture

Chauvet Pro COLORado Solo Bar 6 IP65 RGBwWL LED Batten Wash Fixture

SoundPro Item: 144765 | Part Number: COLORADOSOLOBAR6

$5,743.00
$6,593.00 $5,743.00
Your Price Sold out
MSRP: $6,593.00 | MAP: $5,743.00

Usually ships in 5-7 business days

  • IP65 Rating With GORE Pressure Valve Enables Reliable Temporary Outdoor Deployment
  • Homogenized Cell Design Eliminates Circle-In-A-Square Effect For Even Color Across Each Cell
  • Selectable PWM Up To 25,000 Hz Ensures Flicker-Free Output On Any Camera Shutter Speed
  • Linear CCT Presets With Plus/Minus Green And Red-Shift Emulation For Precise Color Language
  • Sliding T-Rail Brackets And Integrated Guide Pins Simplify End-To-End Multi-Unit Alignment

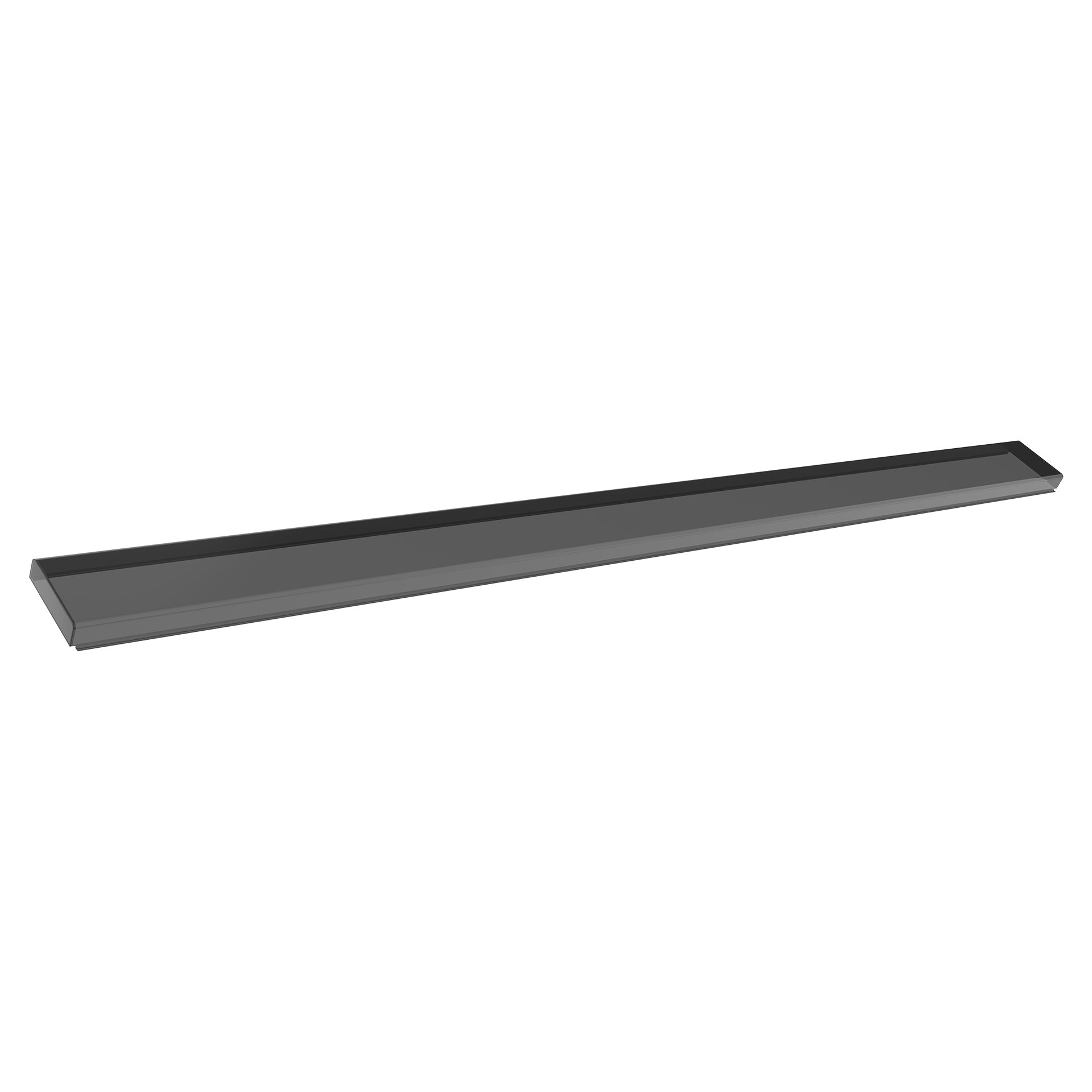

  • Stowable Glare Shield And Slide-In Filter Slot Provide On-Board Beam Control Without Accessories
  • Silent Operation Under 26 dB(A) Makes It Suitable For Noise-Sensitive Broadcast Environments
Log in or register for YOUR best price

The COLORado Solo Bar 6 is built for lighting designers who demand broadcast-grade color accuracy, flexible control, and all-weather reliability from a single fixture. With 24 homogenized RGBwWL cells producing over 25,000 lumens and a CRI of 95, it handles cyc lighting, footlighting, and batten applications with equal authority on touring rigs, permanent installs, festival stages, and televised productions. The IP65 aluminum diecast housing keeps the fixture road-worthy and outdoor-capable without sacrificing the silent, camera-friendly operation that studio and broadcast environments require.

Where comparable LED battens force a choice between pixel-mapping detail and raw output, the COLORado Solo Bar 6 delivers both. Its homogenized cells eliminate the visible cell structure common in competing fixtures, while selectable PWM rates up to 25,000 Hz and 18-bit dimming ensure flicker-free performance on any camera shutter speed. Linear CCT presets from 2800 K to 8000 K, plus/minus green adjustment, and emulated red-shift give LDs precise color language without external processing.

Integrated sliding T-rail mounting brackets and guide pins allow multiple units to align end-to-end quickly during load-in, reducing setup time on large-scale productions. A slide-in filter slot and stowable glare shield ship with the fixture, giving production teams immediate beam shaping options without sourcing additional accessories. Control flexibility via DMX, RDM, Art-Net, sACN, and CRMX means it integrates into virtually any lighting network already in use on professional rigs.

Downloads

View full details

Specifications

Certifications
Certifications
CE, MET, FCC, UKCA
IP Rating
IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Noise Level (Idle)
25.0 dB(A) @ 1 m
Noise Level (Auto)
25.2 dB(A) @ 1 m
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Optical
Light Source
24 (RGBWwL) LED Engines
CRI
95
Color Temperature (Range)
2800 to 8000 K
Color Temperature (At Full)
9167 K
Lumens
25,198
Lumens (w/CYC Diffusion)
32,913
Lumens (w/Half Diffusion)
23,920
Lumens (w/Stealth Diffusion)
8,571
Illuminance
5,834 lux @ 5 m
Illuminance (w/CYC Diffusion)
1,739 lux @ 5 m
Illuminance (w/Half Diffusion)
3,788 lux @ 5 m
Illuminance (w/Stealth Diffusion)
932 lux @ 5 m
Beam Angle
16.7°
Beam Angle (w/CYC Diffusion)
40.7°
Beam Angle (w/Half Diffusion)
18.9°
Beam Angle (w/Stealth Diffusion)
25°
Field Angle
36.1°
Field Angle (w/CYC Diffusion)
84.4°
Field Angle (w/Half Diffusion)
46.8°
Field Angle (w/Stealth Diffusion)
61.2°
Selectable PWM
1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz
Performance
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 30 Hz
Color Temperature Presets
Yes
Dim Modes
4
Dim Curves
4
Built-In Automated Programs
Yes
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current @ 100 V
610 W, 6.10 A @ 100 V, 60 Hz [10 A inrush]
Power and Current @ 120 V
600 W, 4.98 A @ 120 V, 60 Hz [12 A inrush]
Power and Current @ 208 V
590 W, 2.78 A @ 208 V, 60 Hz [17 A inrush]
Power and Current @ 230 V
575 W, 2.55 A @ 230 V, 50 Hz [34 A inrush]
Power and Current @ 240 V
573 W, 2.50 A @ 240 V, 60 Hz [27 A inrush]
Power Linking
0 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
Controls
Control Protocol
Art-Net, sACN, DMX, CRMX, RDM
Modes/Personalities
72 personalities
DMX Channels (1 Cell)
CCT 4ch, HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch
DMX Channels (2 Cell)
CCT 7ch, HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch
DMX Channels (4 Cell)
CCT 13ch, HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch
DMX Channels (6 Cell)
CCT 19ch, HSV 19ch, RGB 18ch, RGBW 24ch, RGBWL 30ch, RGBWL-16bit 60ch, RGB Ext. 45ch, RGBW Ext. 51ch, RGBWL Ext. 57ch, RGBWL Full 99ch
DMX Channels (8 Cell)
CCT 25ch, HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch
DMX Channels (12 Cell)
CCT 37ch, HSV 37ch, RGB 36ch, RGBW 48ch, RGBWL 60ch, RGBWL-16bit 120ch, RGB Ext. 87ch, RGBW Ext. 99ch, RGBWL Ext. 111ch, RGBWL Full 195ch
DMX Channels (24 Cell)
CCT 73ch, HSV 73ch, RGB 72ch, RGBW 96ch, RGBWL 120ch, RGBWL-16bit 240ch, RGB Ext. 171ch, RGBW Ext. 195ch, RGBWL Ext. 219ch, RGBWL Full 387ch
Connectivity
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-pin IP65 XLR, Seetronic etherCON compatible
Cable Length (Power)
5 ft (1.5 m)
Software Connection
USB
Construction
Dimensions
69.61 x 7.87 x 8.36 in (1768 x 200 x 212.4 mm)
Weight
49 lbs (22.3 kg)
Exterior Color
Black
Housing Material
Aluminum diecast, aluminum profile
Included Items
Included
COLORado Solo Bar 6, Seetronic Powerkon IP65, Omega brackets with mounting hardware, 50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (installed), Short Mount Accessory Feet, Glare Shield
