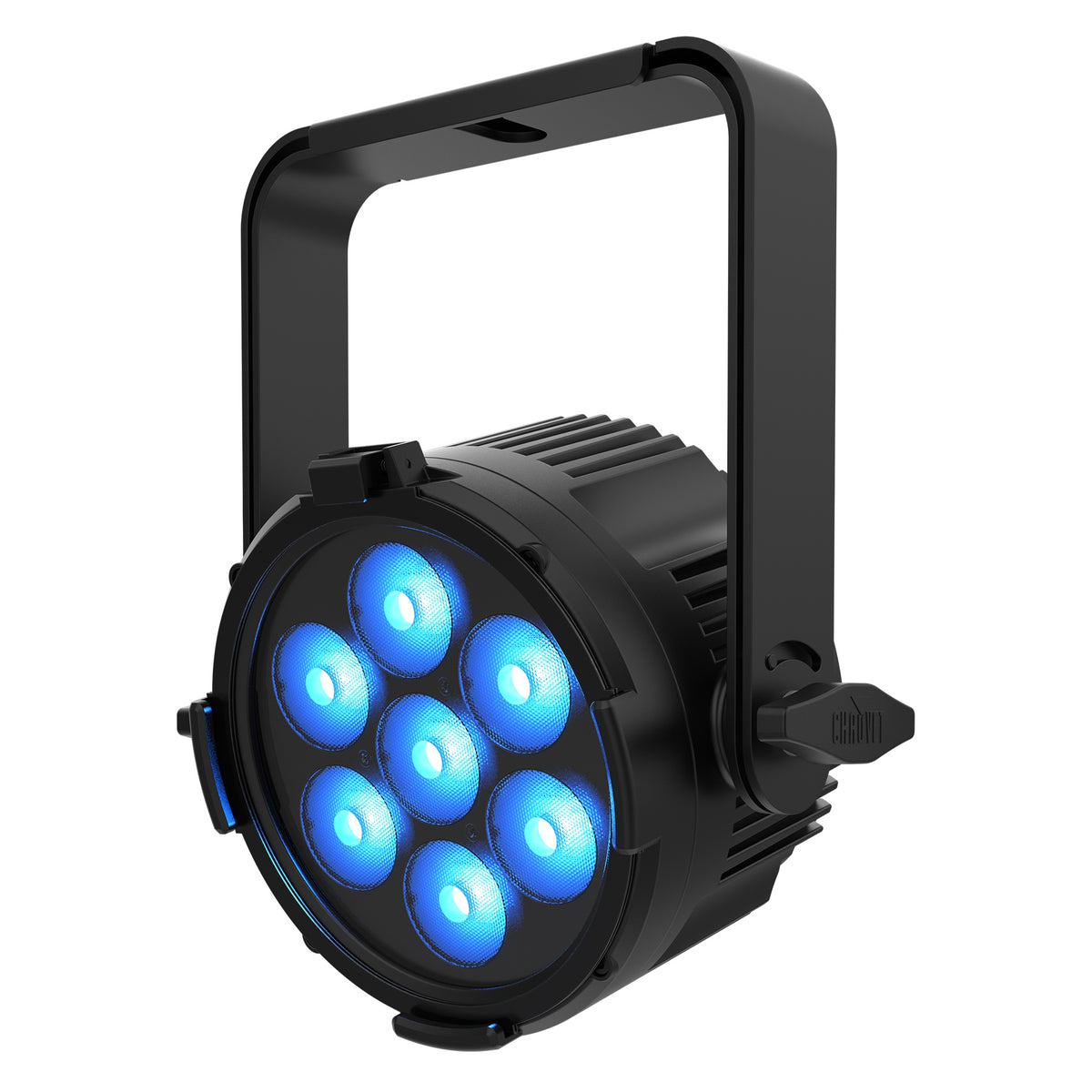

• COLORdash Par-H7X LED par wash left three-quarter view with seven RGBWA+UV lenses lit blue and dual yoke knob, Chauvet Pro

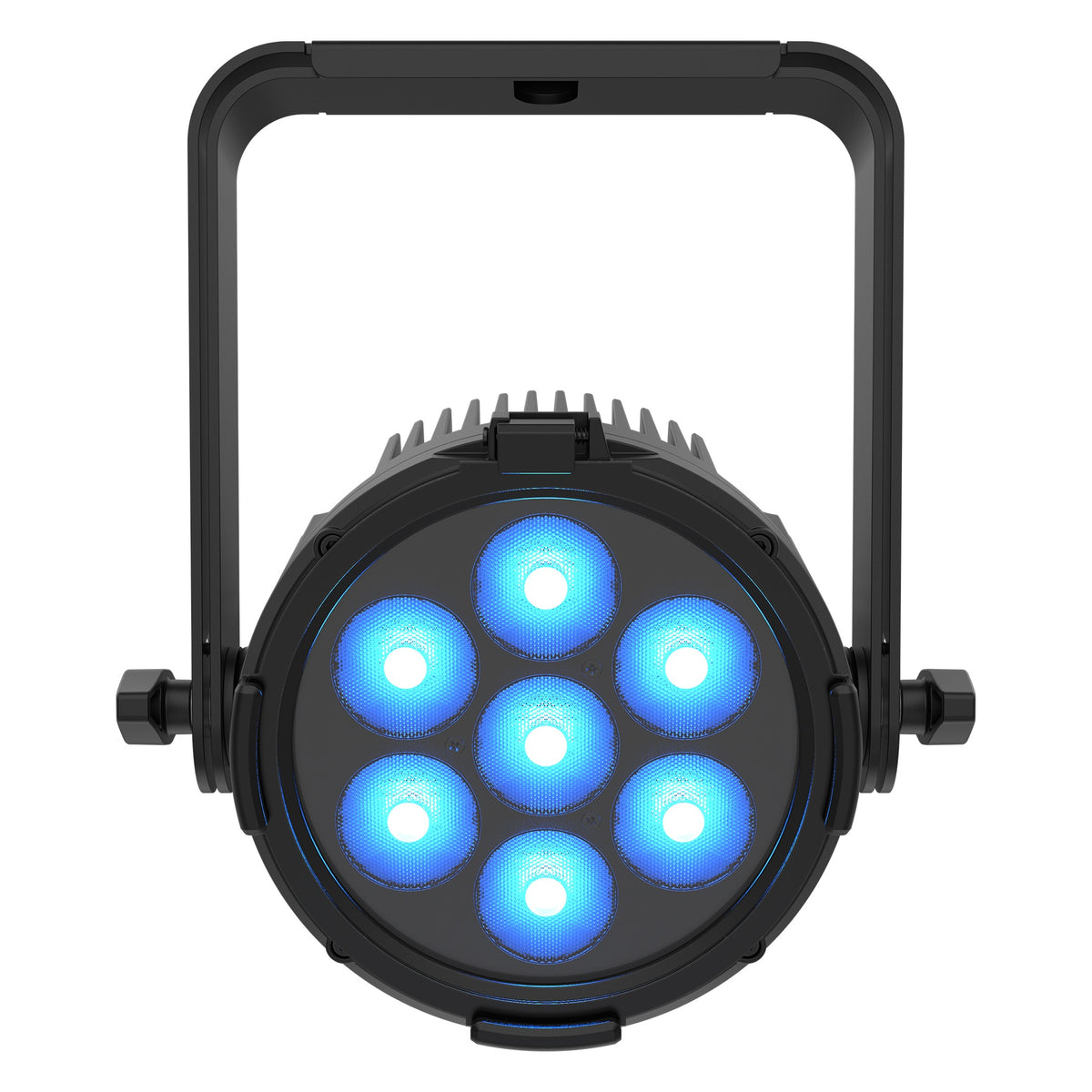

  • COLORdash Par-H7X front view showing seven-LED array in blue behind finned housing and double-bracket yoke, Chauvet Pro

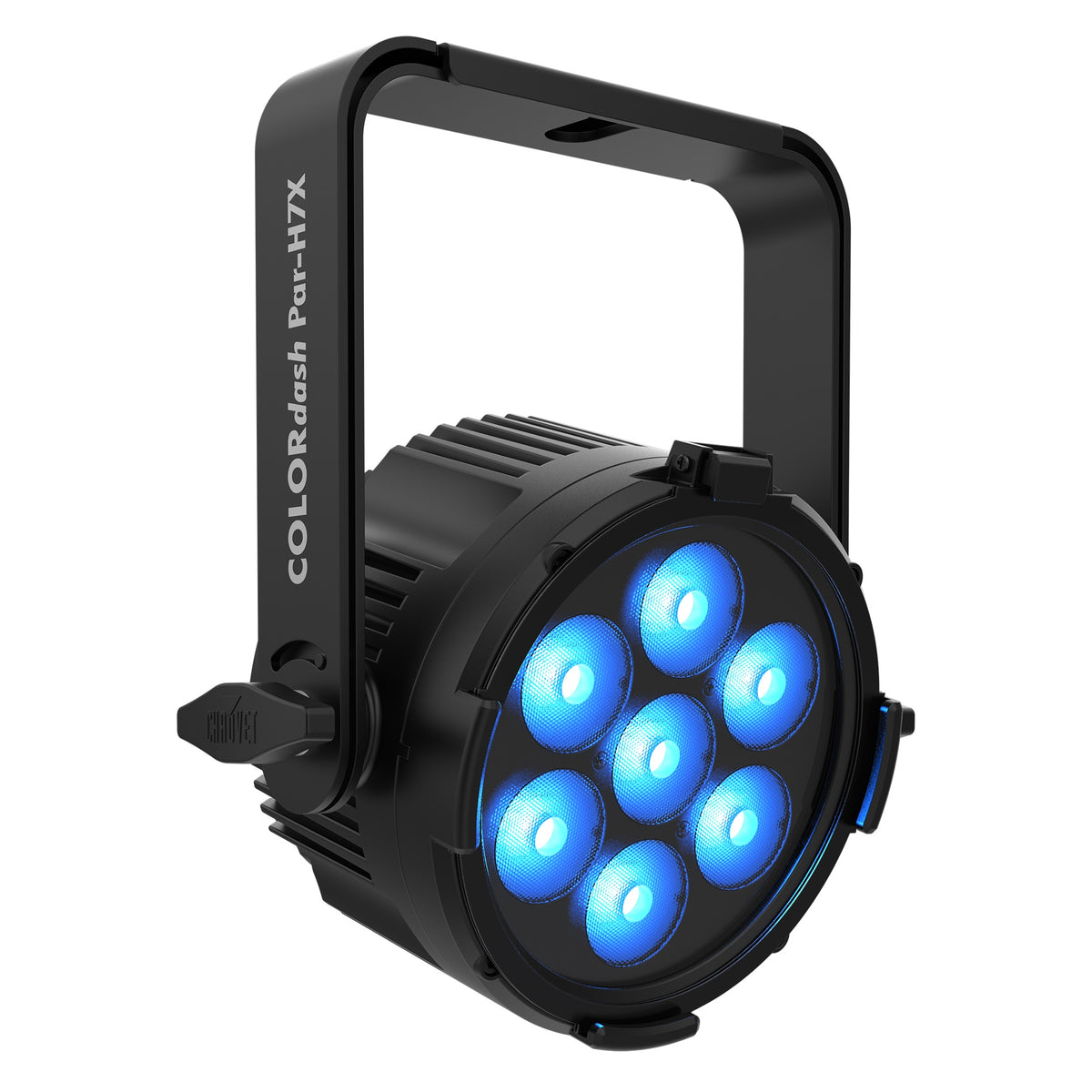

  • COLORdash Par-H7X right three-quarter view with model name printed on yoke arm and blue-lit lens array, Chauvet Pro

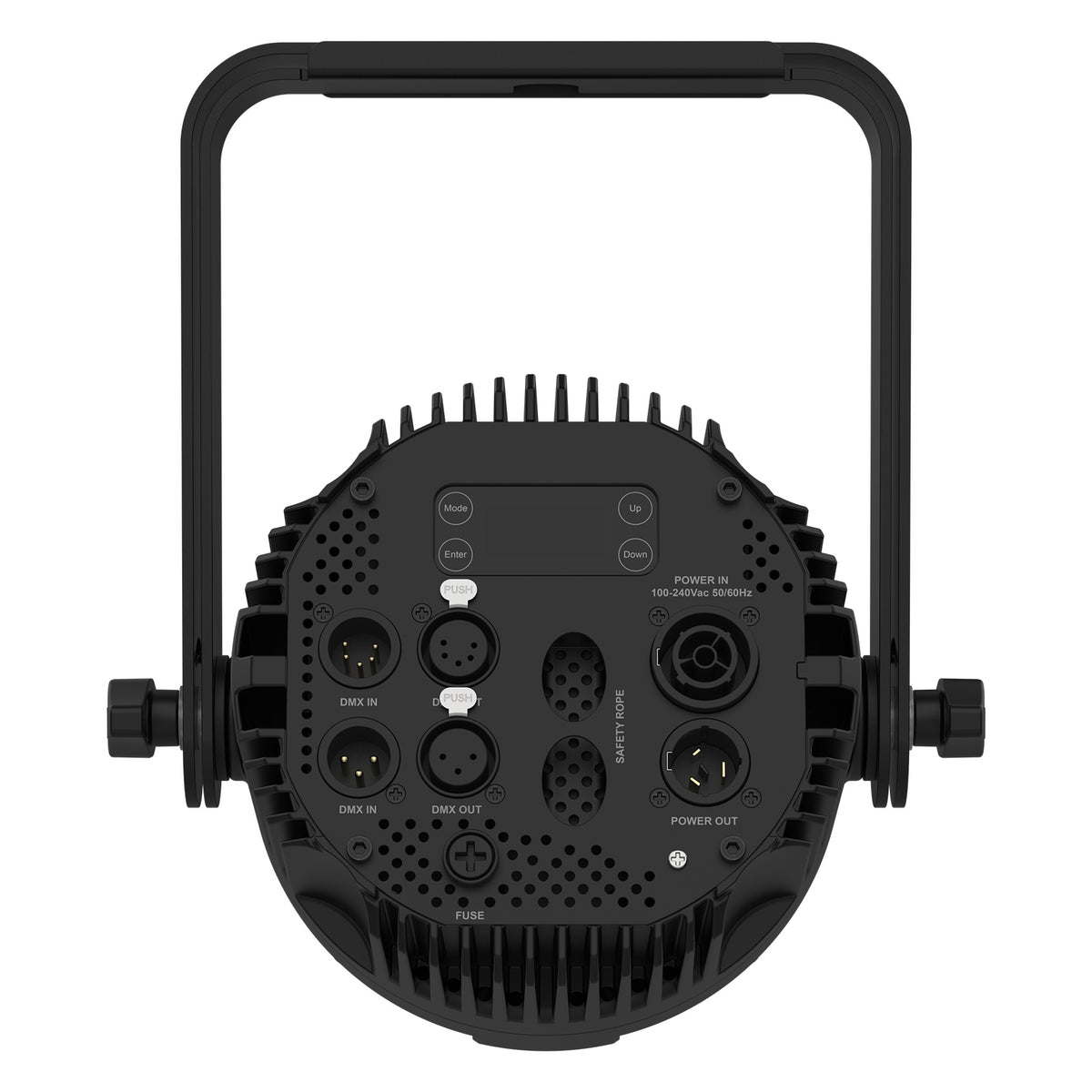

  • COLORdash Par-H7X rear panel with 3- and 5-pin DMX in/out, powerCON in/out, fuse and Mode/Enter/Up/Down menu buttons, Chauvet Pro
1 4

Chauvet Pro COLORDASHPARH7XM RGBWAUV LED Par Wash Light For Broadcast

Chauvet Pro COLORDASHPARH7XM RGBWAUV LED Par Wash Light For Broadcast

SoundPro Item: 212524 | Part Number: COLORDASHPARH7XM

$609.00
$698.51 $609.00
Your Price Sold out
MSRP: $698.51 | MAP: $609.00

Usually ships in 5-7 business days

  • Selectable Dimming Curves Deliver Smooth Fades On Stage And Camera
  • Adjustable PWM Settings Keep Video Clean On Camera
  • RDM Support Enables Remote Addressing And Personality Changes
  • Password-Protected OLED Touchscreen Display Simplifies Onboard Menu Navigation
  • Double-Bracketed Yoke Doubles As A Floor Stand For Flexible Placement
  • Dedicated UV Emitter Adds Blacklight Effects Alongside Full Color Mixing
  • Advanced Optical System Improves Color Mixing And Efficiency
Log in or register for YOUR best price

Built for lighting designers, broadcast crews, and rental houses that need one compact wash to cover stage, set, and studio work. Red, green, blue, amber, white, and UV emitters give the range to move from subtle pastels to deep saturated looks, tuned whites, and blacklight accents without carrying a second fixture type.

On camera, the fixture keeps footage clean through fades and color changes, which matters for broadcast, film, and virtual production. The light weight and die-cast housing suit rental stock that gets loaded in and out every week, and the range of DMX personalities lets one fixture type fit different consoles and show files.

For touring and installs, it hangs from truss with compatible clamps or sits on the floor for uplighting, and onboard power linking cuts cable runs between units. Compared with basic RGB pars, the amber, white, and UV emitters give finer control over skin tone and white balance. Standalone color mixing and built-in programs also make it useful in small venues without a console. A gel frame is included, so diffusion or color correction is available on the first call.

Downloads

View full details

Specifications

Certifications
Certifications
CE, MET, FCC, UKCA
IP Rating
IP20, dry location
Dimensions
Length
10.16"
Width
9.45"
Height
4.57"
Gel Frame Size
6.5"
Weight
Product Weight
6 lbs
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power And Current @ 120 V
70 W, .592 A, 60 Hz
Power And Current @ 208 V
67 W, .344 A, 60 Hz
Power And Current @ 230 V
67 W, .312 A, 50 Hz
Power Linking
20 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V
Performance
Light Source
7 LEDs (hex-color RGBAW+UV), 84 W, 505 mA
LED Life Expectancy
50,000 hours
Color Temperature Range
2800 to 10,000 K
Color Temperature At Full
14,329 K
Beam Angle
22.7°
Field Angle
37.6°
Lumens
2738
Illuminance
522 lux @ 5 m
Selectable PWM
600 Hz, 1.2K Hz, 2K Hz, 4K Hz, 6K Hz, 25K Hz
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 20 Hz
Dim Modes
4
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Built-in Automated Programs
Yes
Customizable Programs
No
Connectivity
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
3- and 5-pin XLR, 3- and 5-pin IP65 XLR
Power Cable Length
5'
Construction
Housing Material
Aluminum alloy, Aluminum die-cast
Exterior Color
Black
Controls
Control Protocol
DMX, RDM
DMX Channels
6ch, 8ch, 9ch, 13ch, or 14ch
Personalities
5
Included Items
Included Items
Colordash Par H7X, Seetronic powerkon IP65 power cord, Gel frame, Quick Reference Guide
Environmental
Ambient Temperature
-4 °F to 113 °F
Shipping
Package Weight
10.802707290725104 lbs
Package Length
14.566929133858267"
Package Width
10.62992125984252"
Package Height
11.811023622047244"
