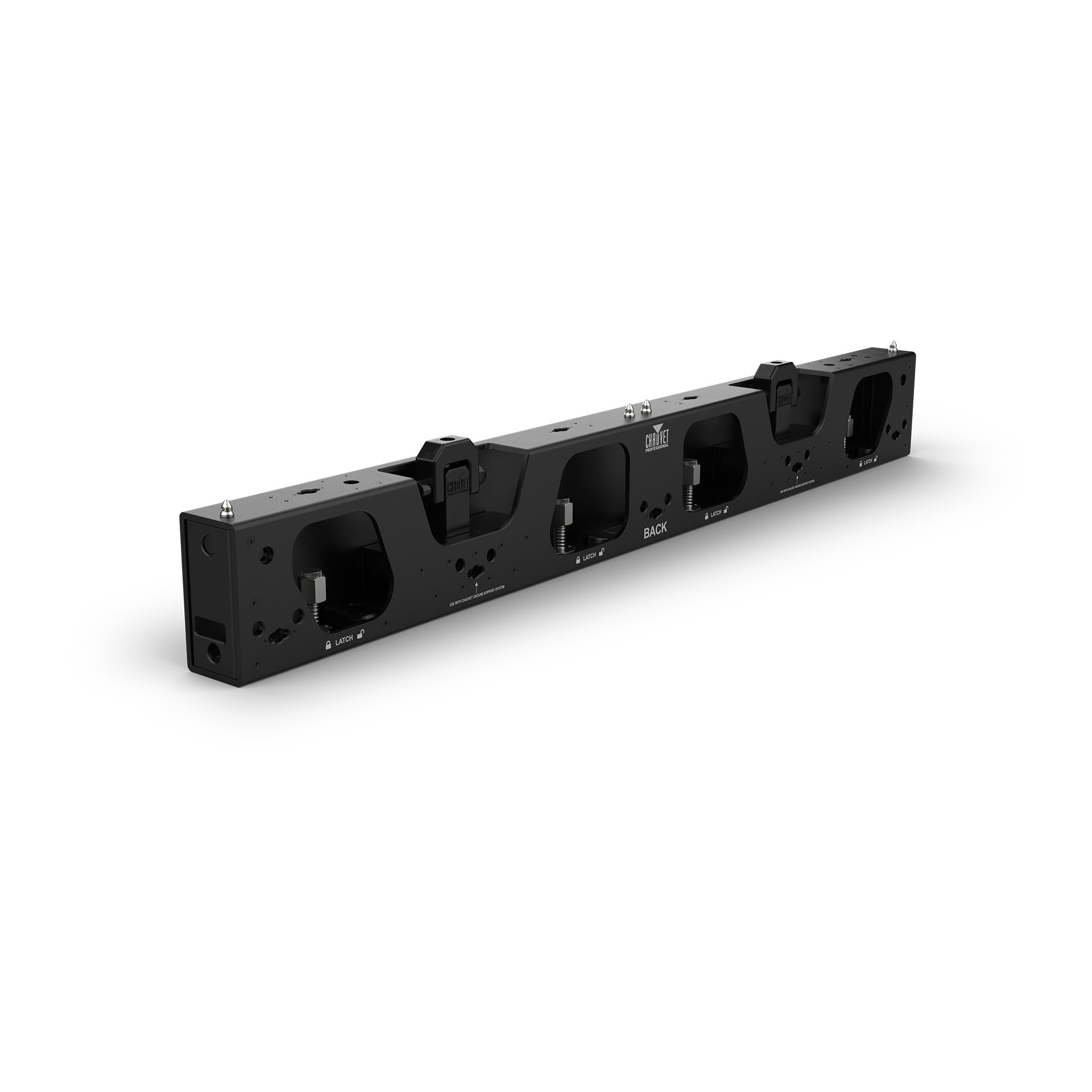

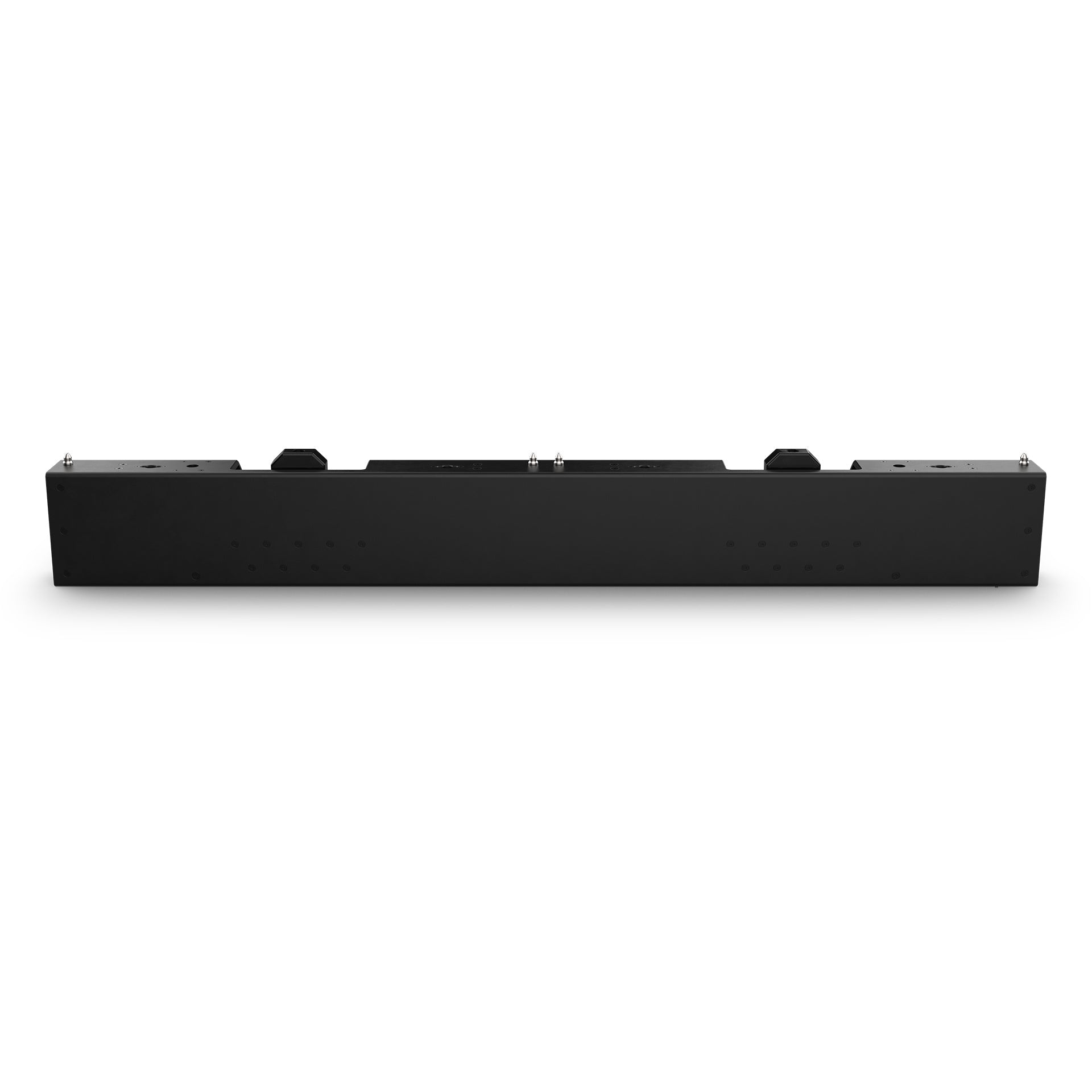

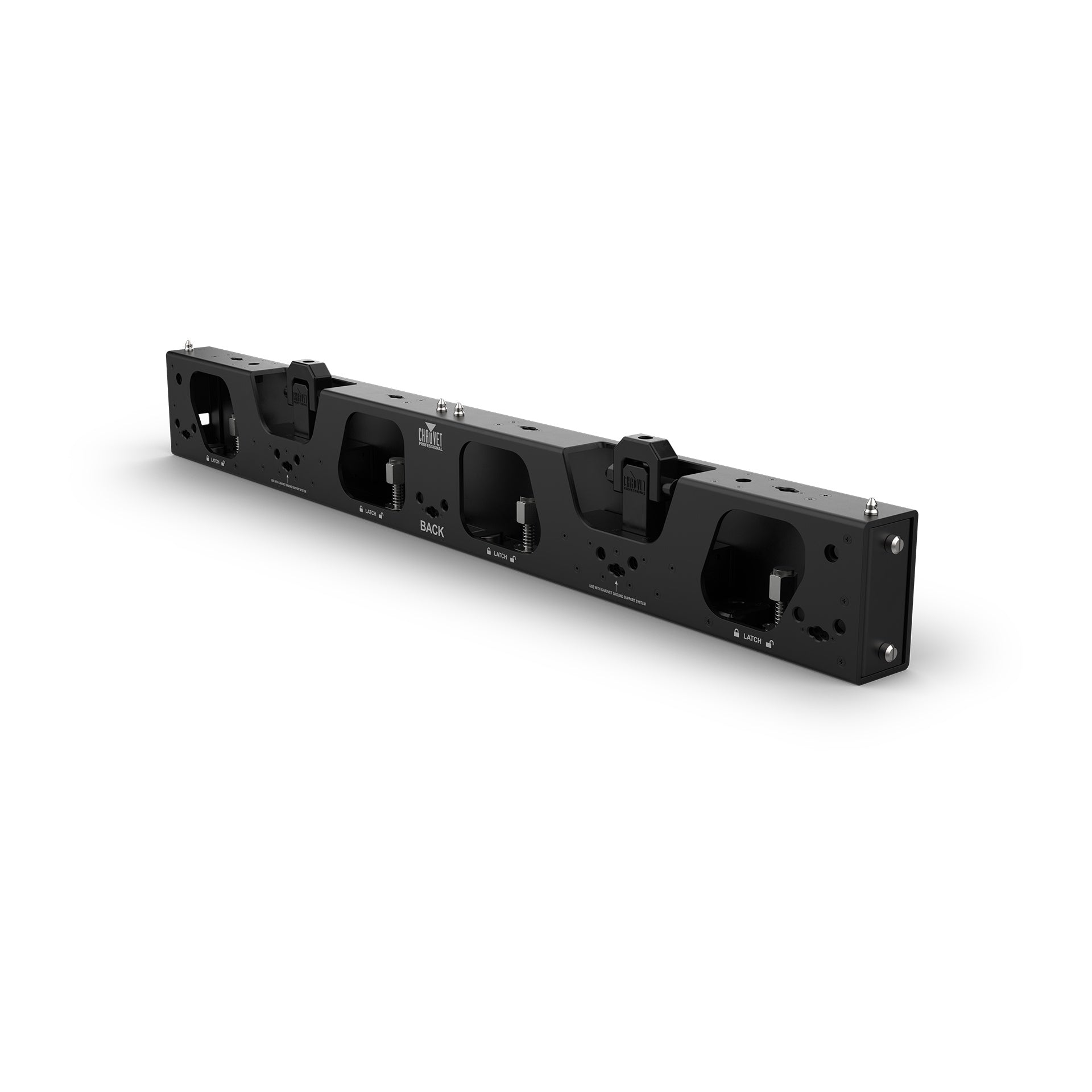

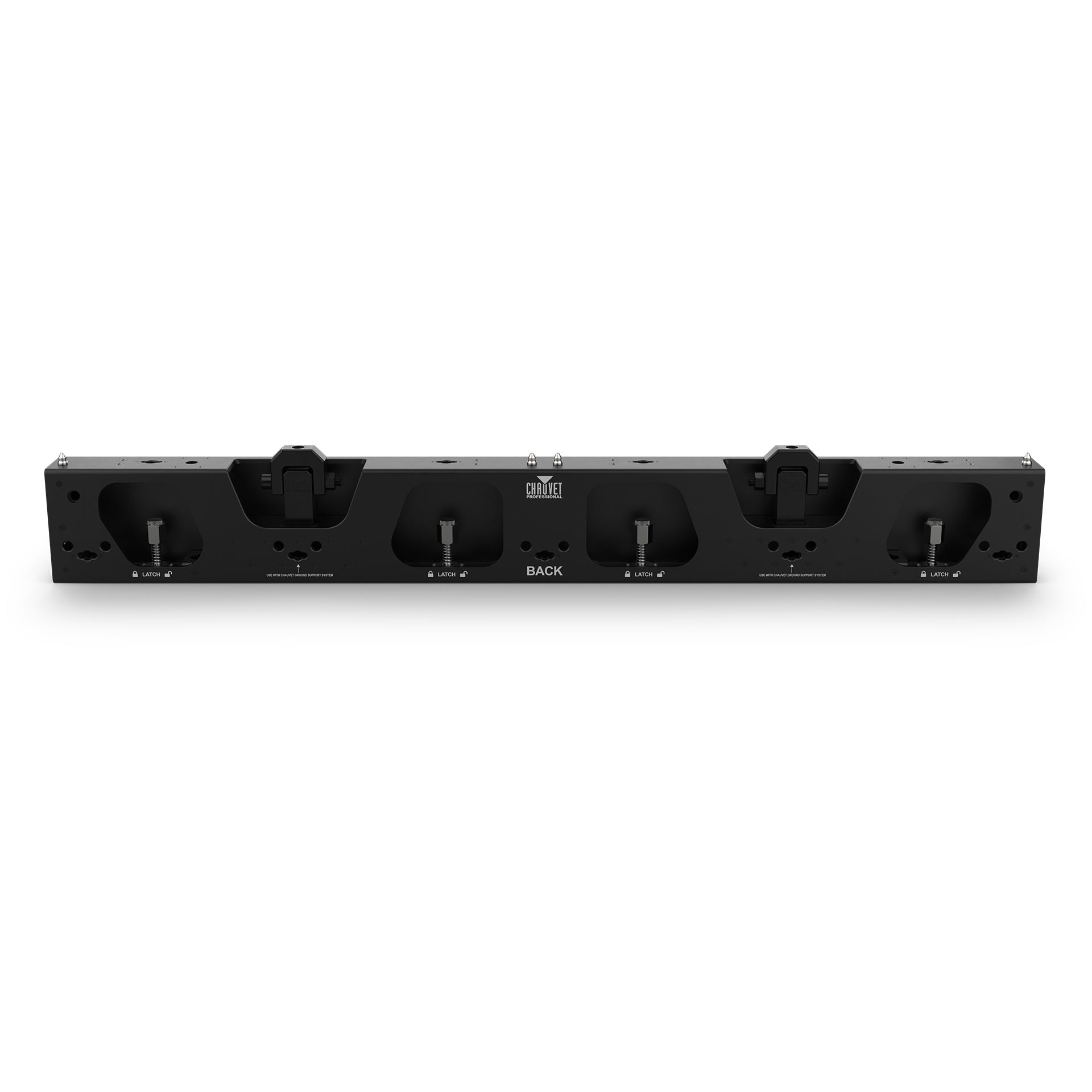

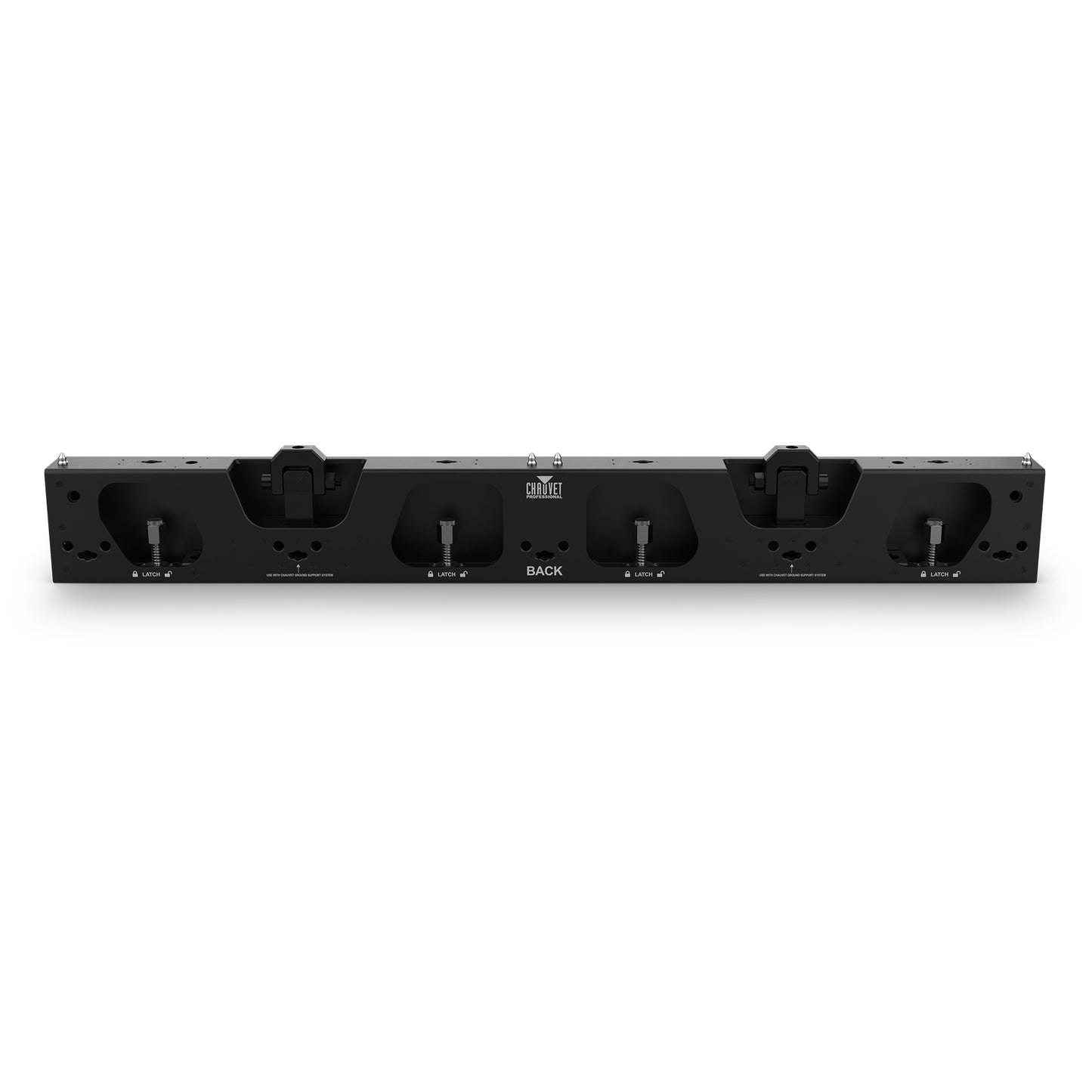

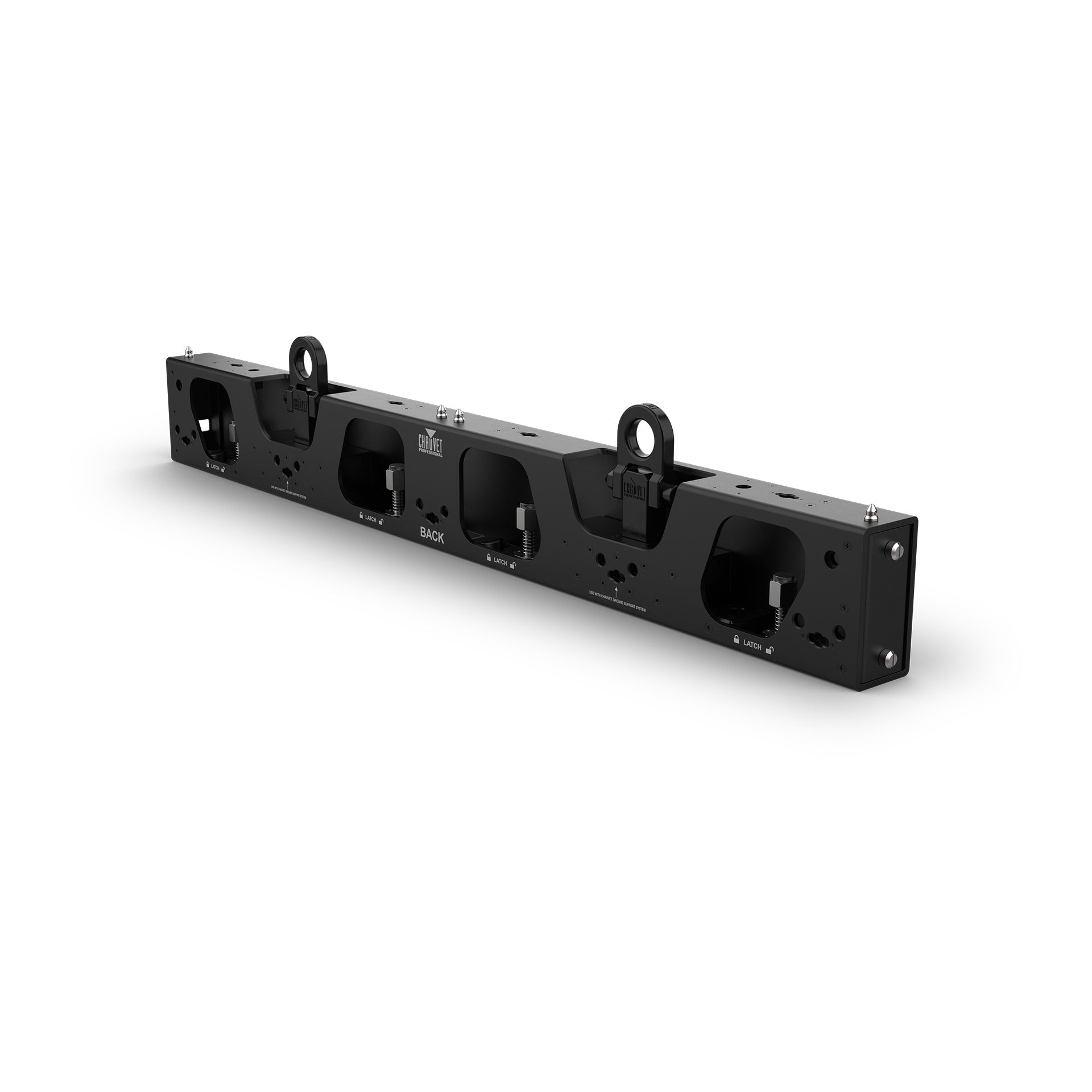

Chauvet Pro DRB-F100CMIP IP65 Dual Function Rig Bar for F-Series

Chauvet Pro DRB-F100CMIP IP65 Dual Function Rig Bar for F-Series

SoundPro Item: 137082 | Part Number: DRBF100CMIP

$1,284.40
$1,352.00 $1,284.40
Your Price Sold out
MSRP: $1,352.00 | MAP: $1,284.40

Usually ships in 5-7 business days

  • IP65 Rating Enables Safe Deployment in Outdoor and Wet-Use Production Environments
  • Dual Overhead and Ground-Stack Functionality Reduces Required Rigging Hardware per Show
  • Vertical and Horizontal Panel Orientation Supports Varied Video Wall Layout Designs

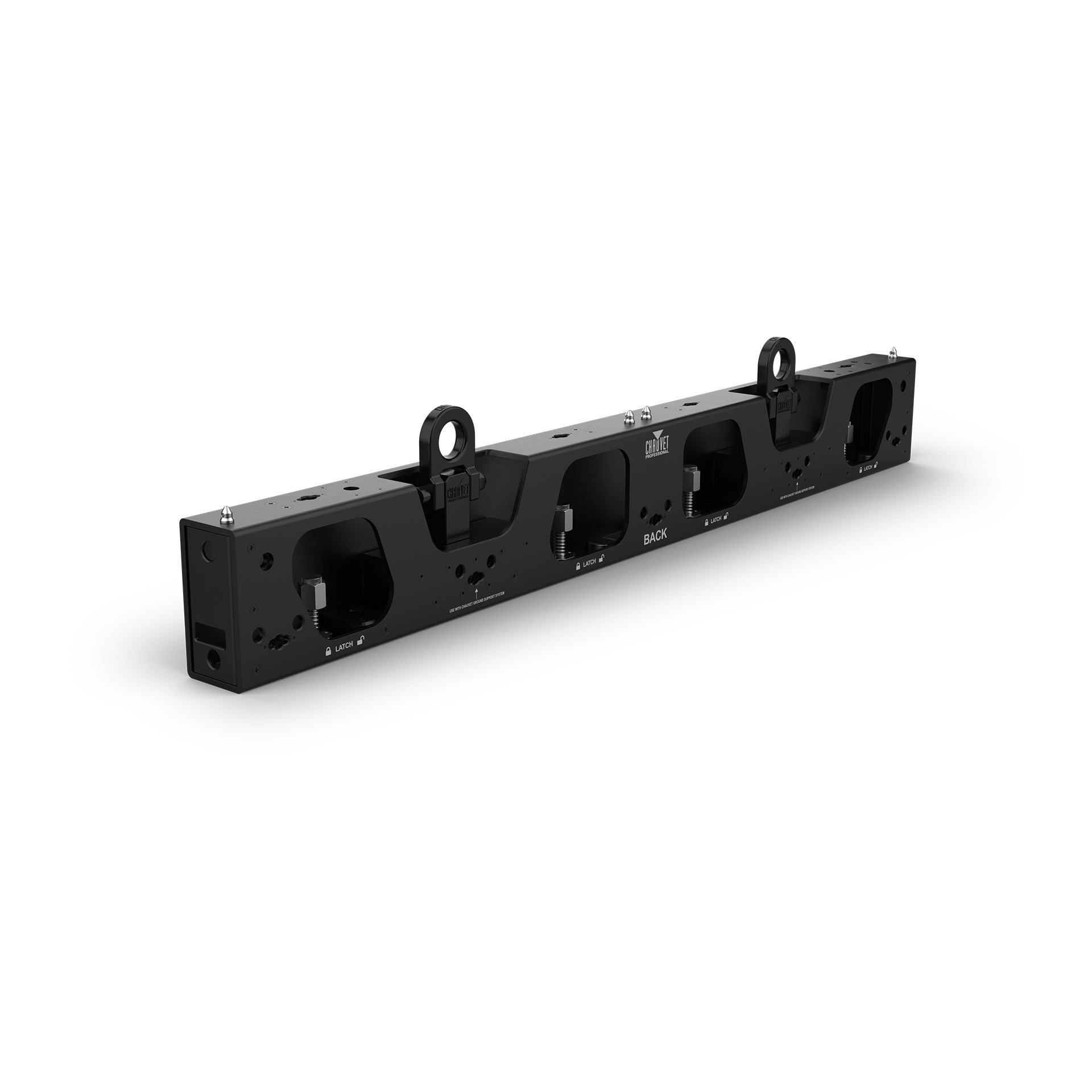

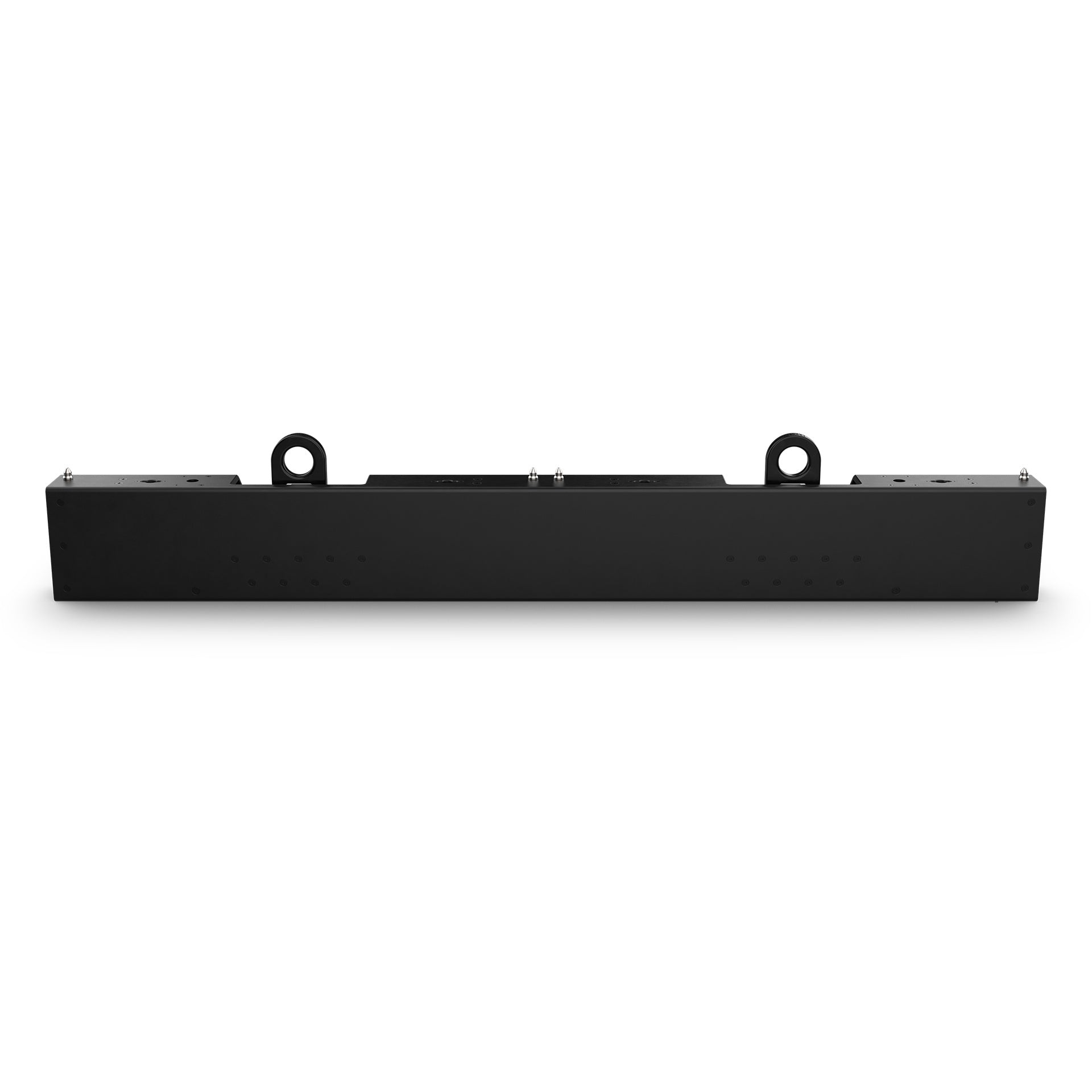

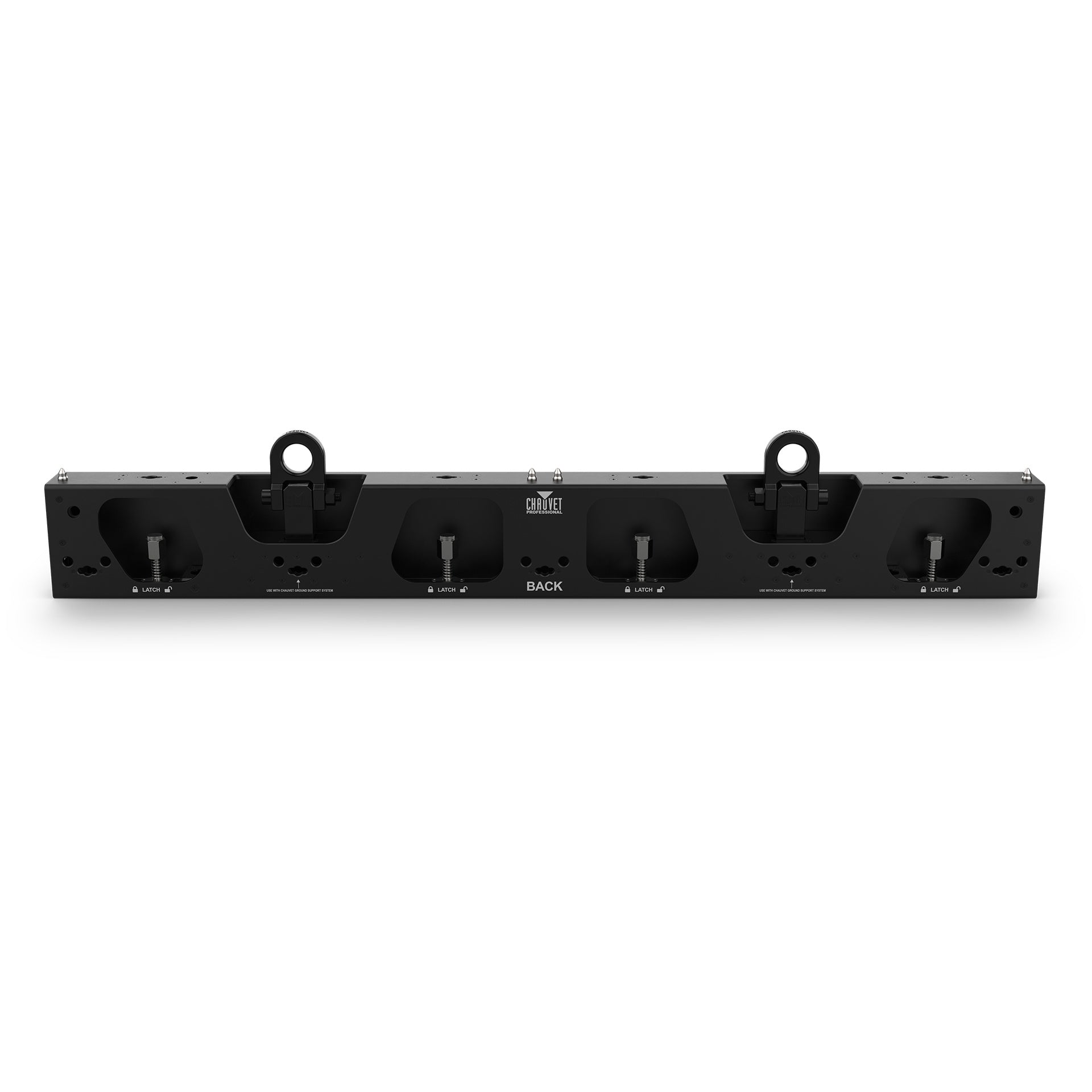

  • Hoist Ring Accepts Standard Shackle Sizes for Compatibility With Existing Rigging Kits
  • Included Clamp Attachment Brackets Allow Direct Truss Connection via M12 Bolts
  • Aluminum Extrusion and Stainless Steel Construction Withstands Repeated Touring Use
  • Compatible With DRB-CURVEKITX2 for Tool-Free Concave Curve Video Wall Configurations
Log in or register for YOUR best price

The Chauvet Pro DRB-F100CMIP is designed for production professionals who need a single rigging solution that handles both overhead and ground-supported video wall deployments. Compatible with F2, F3X, F5IP, and F4XIP panels, this 100 cm rig bar integrates directly into a flying or stacking workflow without requiring separate hardware for each application — a practical advantage on multi-day festival builds or touring productions where setup speed and gear consolidation matter.

Constructed from aluminum extrusion and stainless steel, the bar is IP65-rated for temporary outdoor and wet-use environments, making it a reliable choice for open-air concerts, corporate events, and broadcast backdrops that can't wait for ideal weather. The included clamp attachment brackets connect directly to truss using M12 bolts, and the hoist ring accepts standard 1/2-inch and 5/8-inch shackles — hardware already in most rigging kits. Panels can be oriented vertically or horizontally to accommodate a wide range of video wall layouts.

For ground stacking, the addition of the GROUNDSUPPORT2KIT adapts the bar without any modification to the bar itself, preserving its utility across setups. The optional DRB-CURVEKITX2 accessory enables tool-free concave curve configurations for productions that require non-flat display geometry. With a hanging load capacity of 1,665 lbs and stacking capacity of 2,735 lbs, the DRB-F100CMIP is built to handle large-format video wall assemblies at professional scale.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65, temporary outdoor/wet use
Certifications
ROHS
Dimensions
Dimensions
39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm)
Weight
Weight
15.4 lbs (7.0 kg)
Construction
Housing Material
Aluminum extrusion, stainless steel
Exterior Color
Black
Rigging
Load Capacity (Hanging)
1,665 lbs (755 kg)
Load Capacity (Stacking)
2,735 lbs (1,240 kg)
Recommended Shackle Sizes
1/2", 5/8"
Compatible Mounting Options
Shackle (1/2", 5/8"), Pipe Clamp (M12 threaded bolt)
Included Items
1 pc
F-Series Dual Function Rig Bar-100 cm (DRB-F100CMIP)
1 pc
0° Linking Plate
2 pcs
Clamp Attachment Brackets (DRB-CTC)
2 pcs
Clamp Bolts for TRUSST CTC-50HC
Compatible Accessories
Curve Kit
DRB-CURVEKITX2
