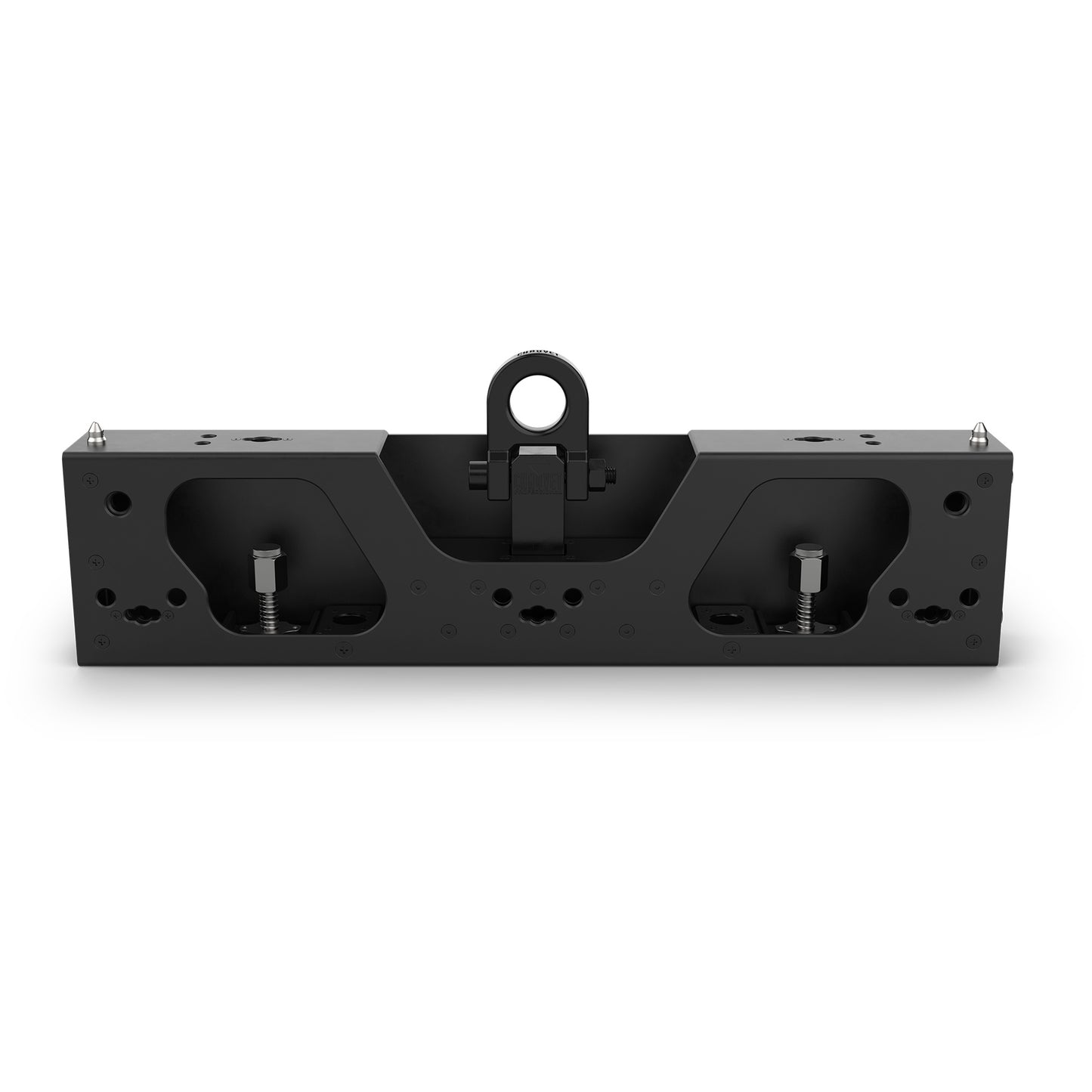

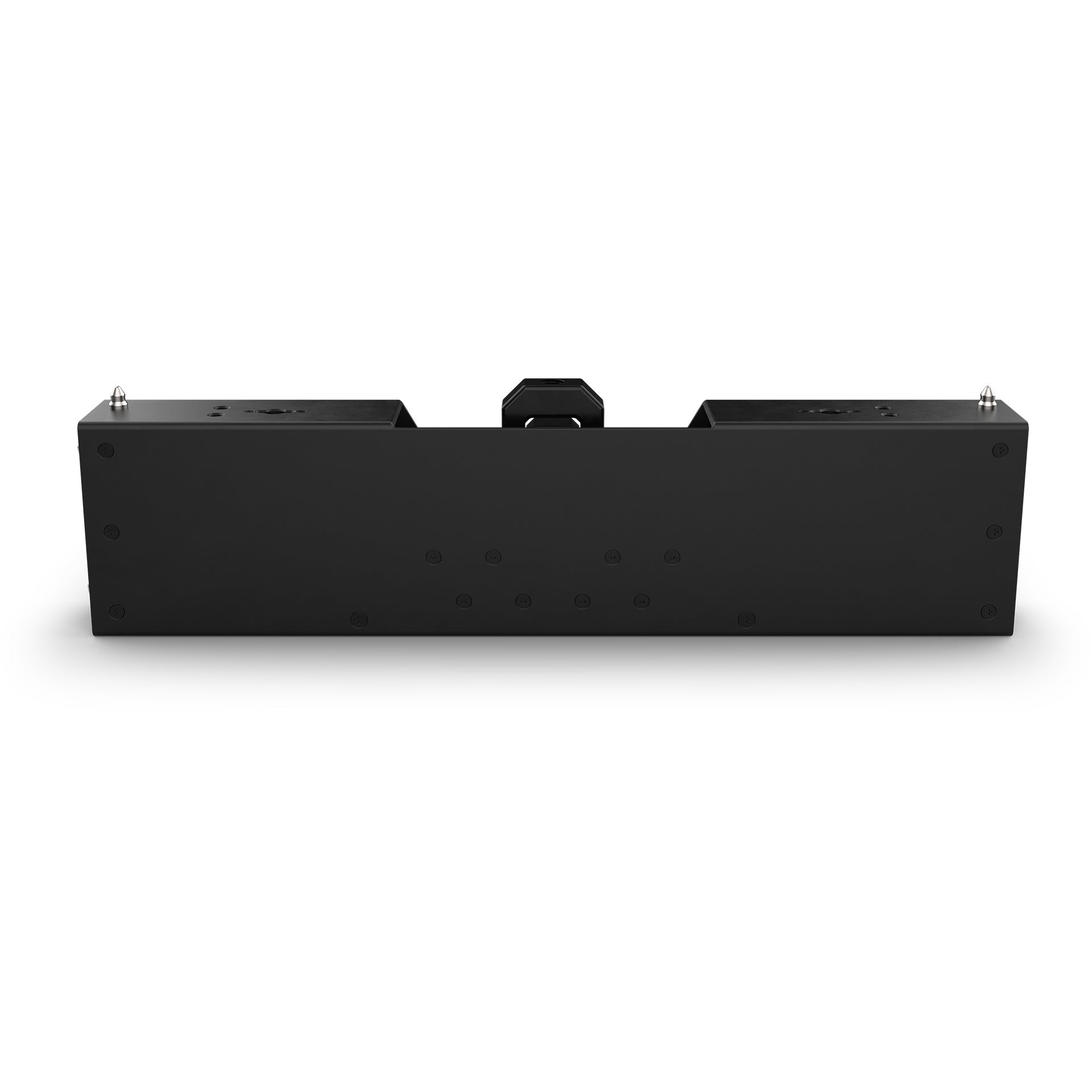

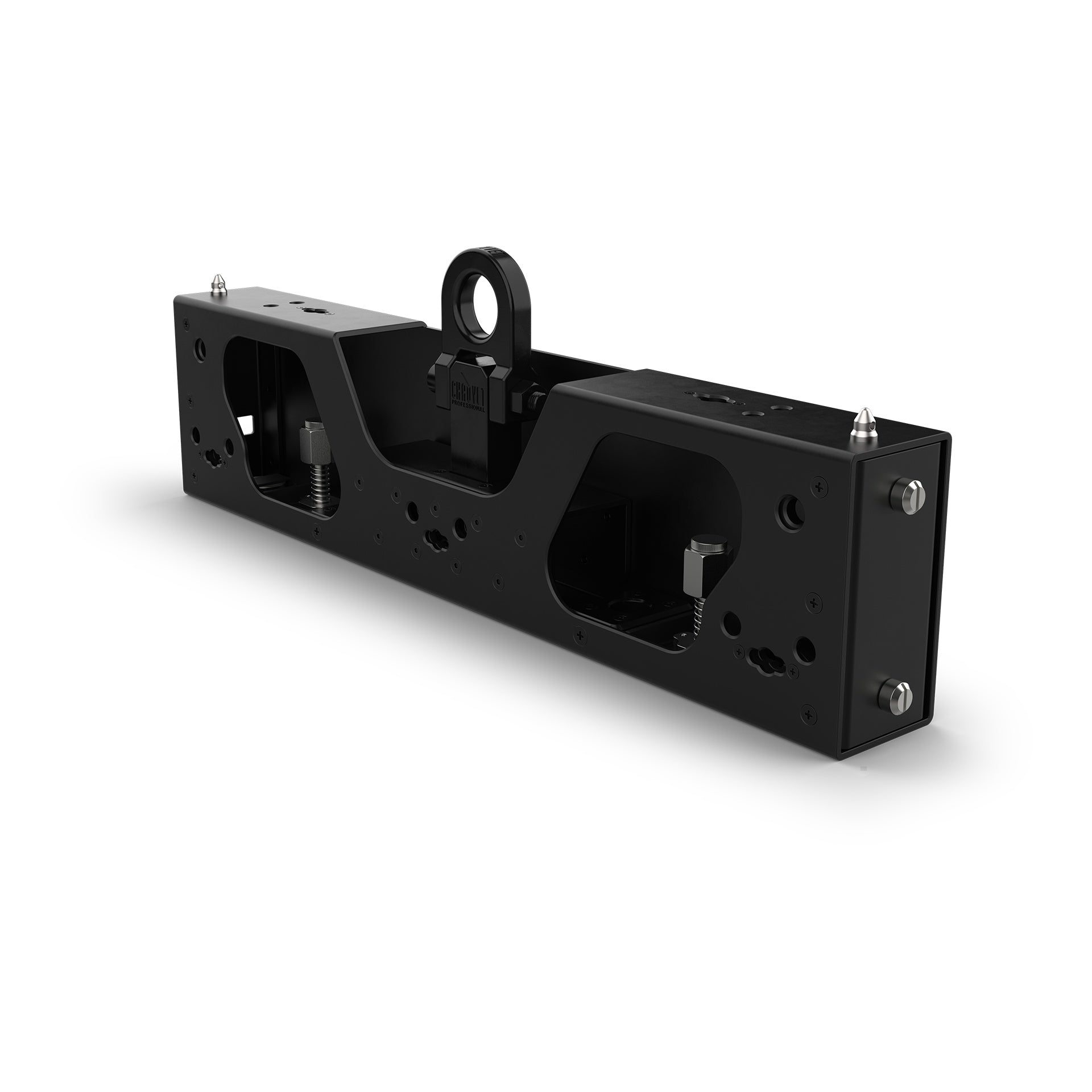

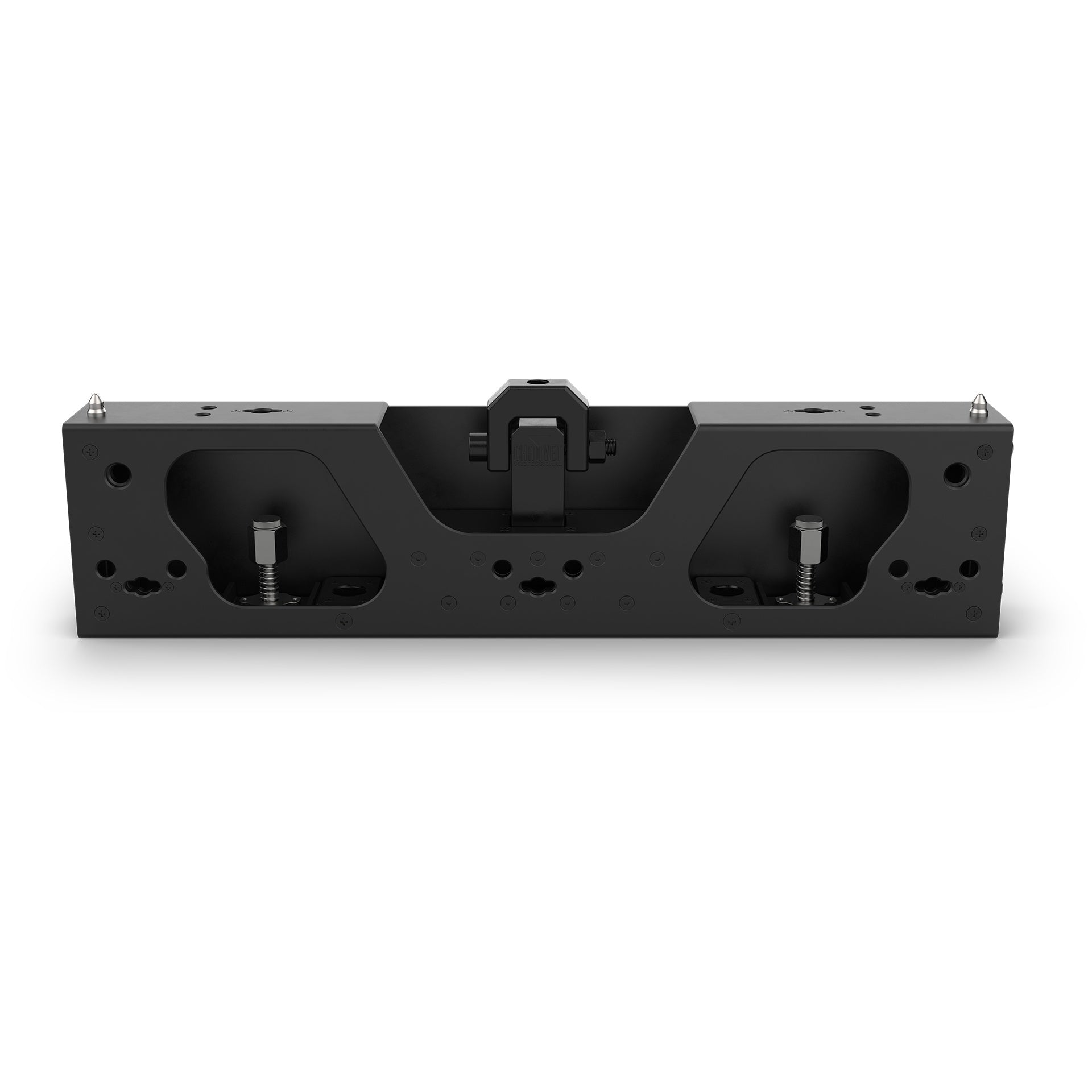

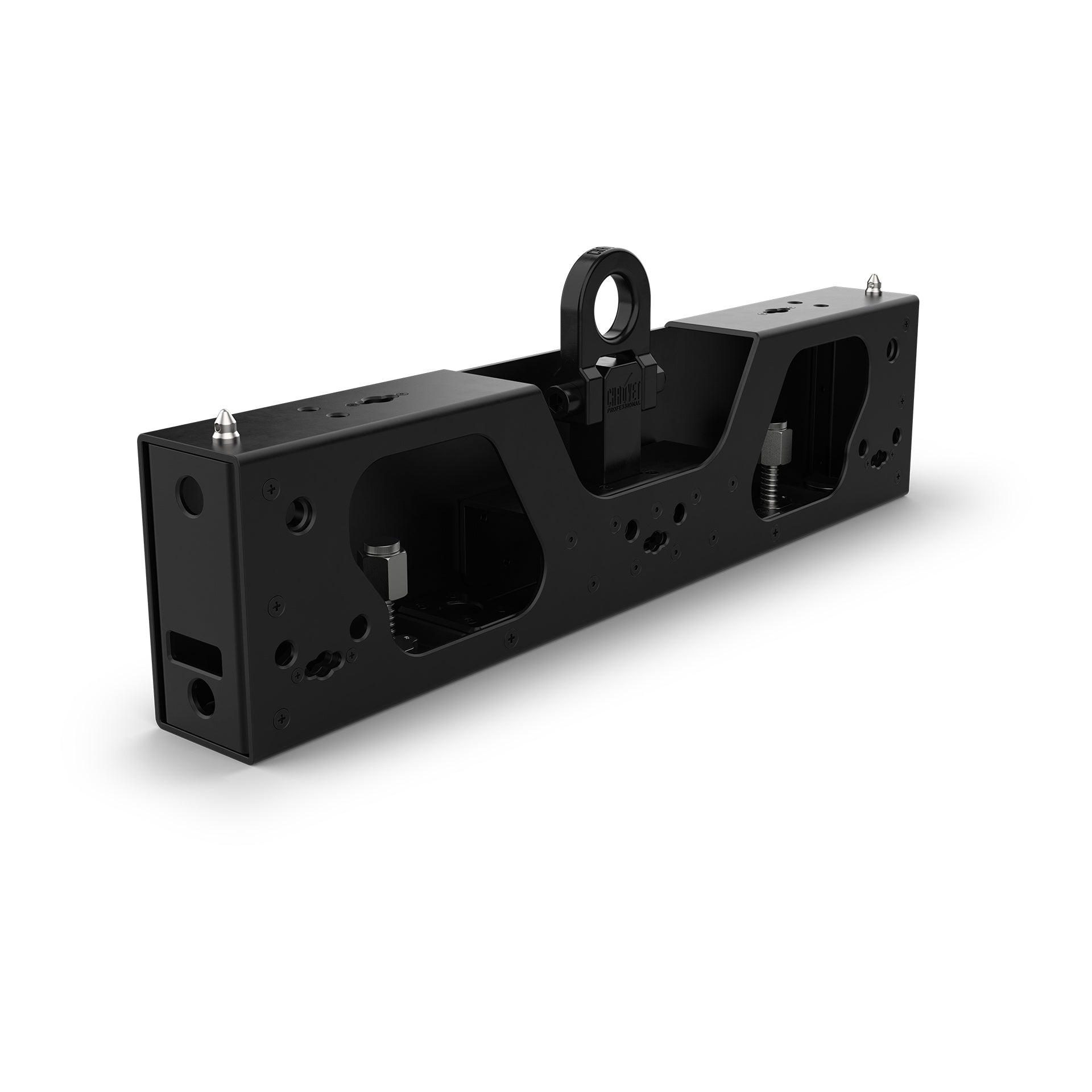

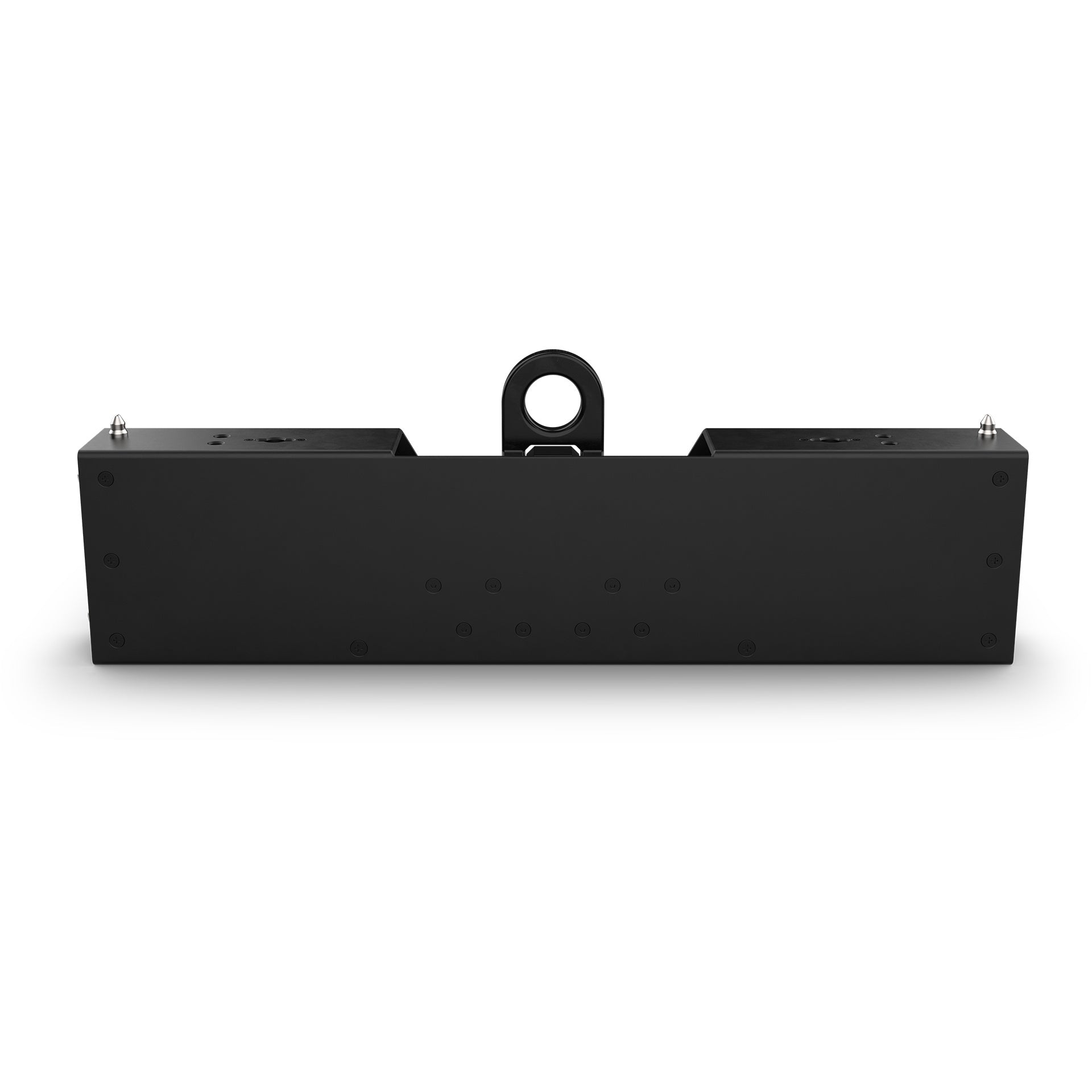

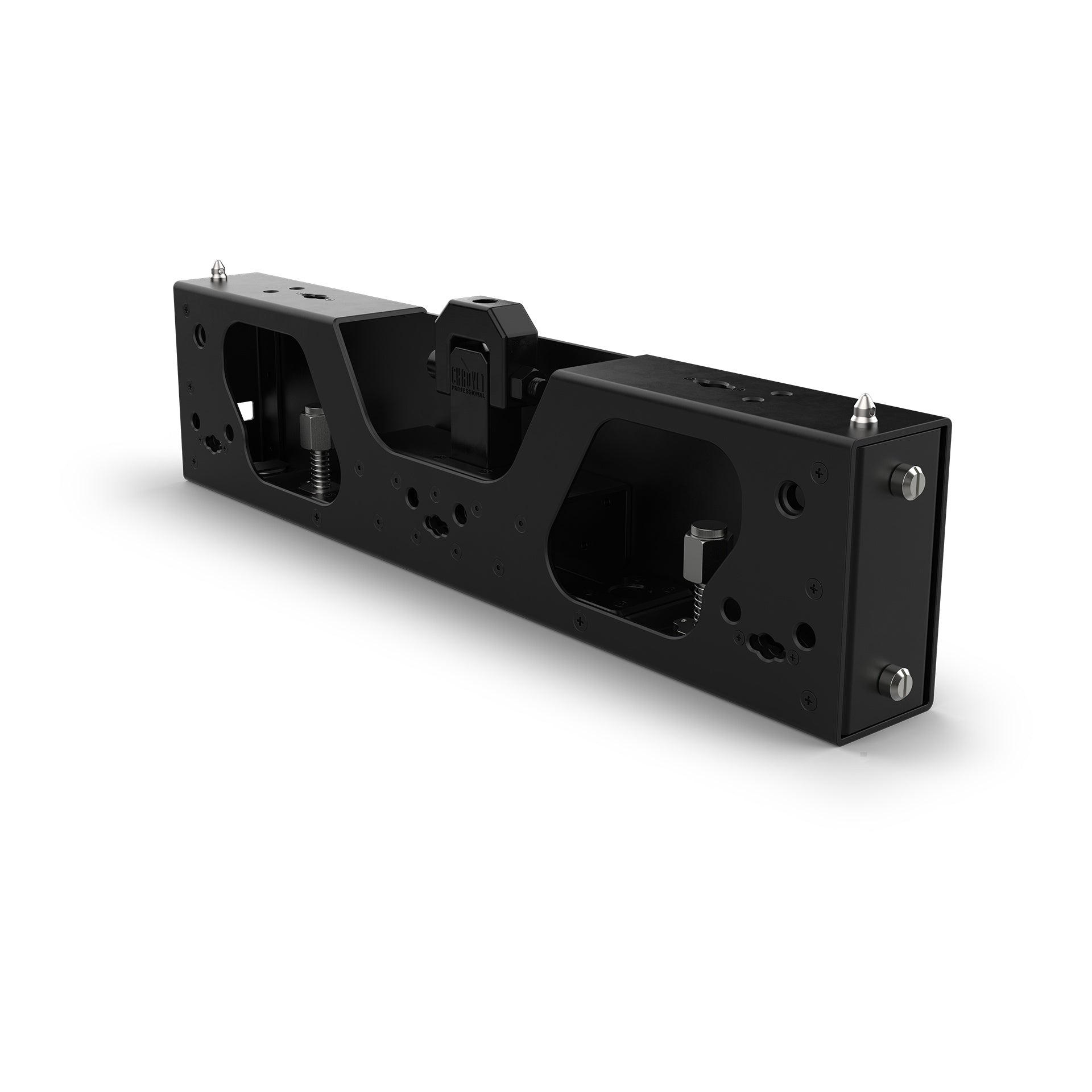

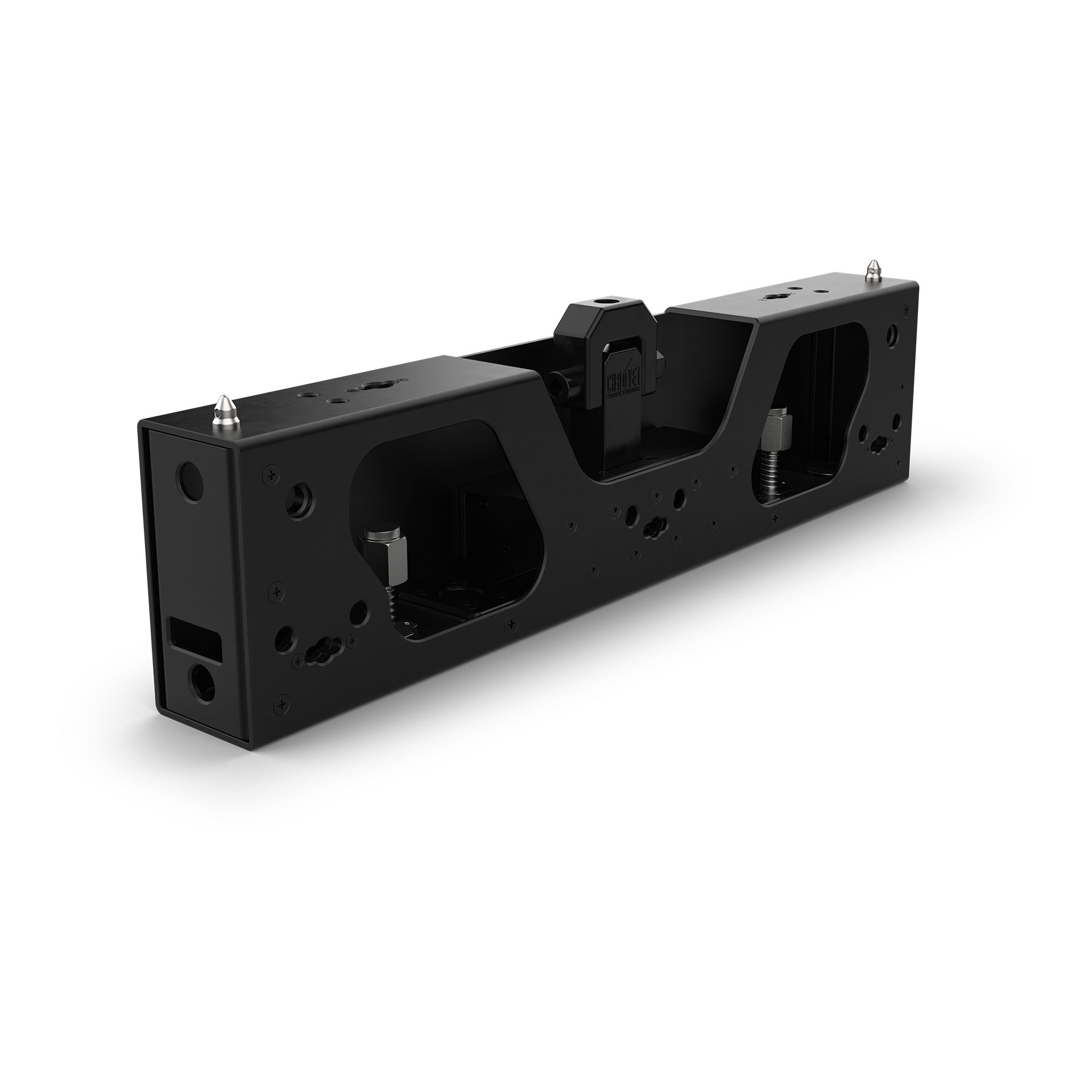

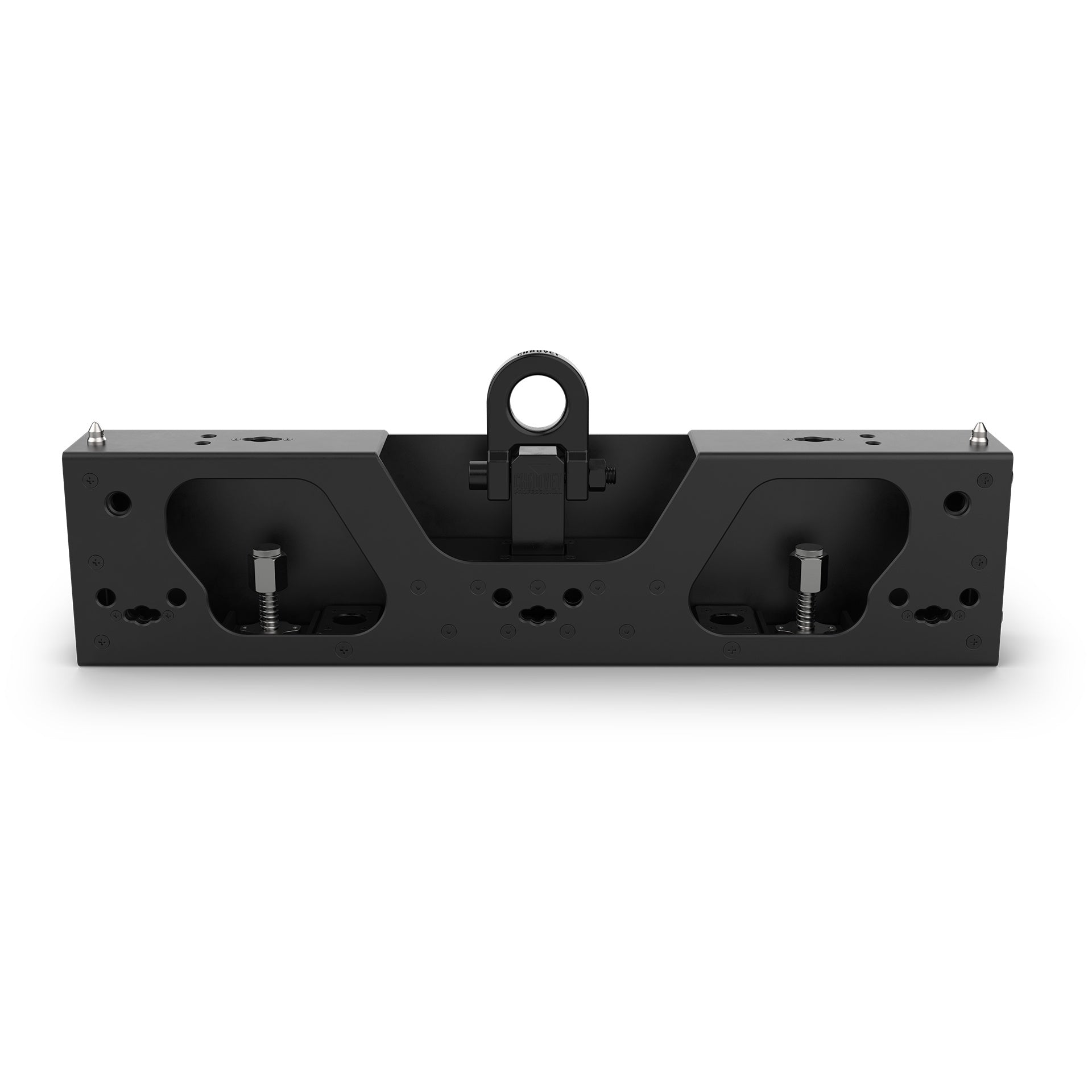

Chauvet Pro DRBF50CMIP IP65 Dual Function F-Series Video Wall Rig Bar

Chauvet Pro DRBF50CMIP IP65 Dual Function F-Series Video Wall Rig Bar

SoundPro Item: 137083 | Part Number: DRBF50CMIP

$779.95
$821.00 $779.95
Your Price Sold out
MSRP: $821.00 | MAP: $779.95

Usually ships in 5-7 business days

  • IP65 Rating Enables Reliable Use In Outdoor And Wet-Location Event Environments
  • Dual Overhead And Ground-Stack Function Reduces Required Rigging Hardware Per Build
  • Supports Vertical And Horizontal Panel Orientation For Full Layout Flexibility
  • Compatible With F2, F3X, F5IP, And F4XIP Panels For Broad F-Series Coverage
  • Included DRB-CTC Bracket Connects Directly To Truss Clamps Via M12 Bolts
  • Hoist Ring Accepts Standard Shackle Sizes Used In Professional Rigging Workflows
  • Aluminum Extrusion And Stainless Steel Construction For Durable Structural Integrity
Log in or register for YOUR best price

The Chauvet Pro DRBF50CMIP is a purpose-built rigging bar for production teams and AV integrators constructing video walls with Chauvet F-series LED panels. Its dual-function design eliminates the need for separate overhead and ground-support hardware, allowing crews to hang panels from truss or build a free-standing ground-stacked display using the same bar — an efficiency that matters in fast-paced event production and touring scenarios where setup time and gear count are critical.

Rated IP65 for outdoor and wet-location use, this rig bar is suited for festival stages, corporate events, and permanent installations where weather exposure is a real-world concern. The aluminum extrusion and stainless steel construction deliver the structural integrity needed for demanding load requirements, while the included DRB-CTC clamp attachment bracket provides a direct, secure connection to truss clamps via M12 bolts — no adapter hunting on site. The integrated hoist ring accepts standard shackle sizes used across professional rigging workflows.

Compatible with Chauvet F2, F3X, F5IP, and F4XIP panels, the DRBF50CMIP supports both vertical and horizontal panel orientation, giving designers full flexibility in wall layout without requiring additional hardware changes. For integrators specifying permanent outdoor video installations, the IP65 rating and RoHS compliance meet both environmental and regulatory requirements in a single rigging solution.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65, temporary outdoor/wet use
Certifications
RoHS
Dimensions
Product Dimensions
19.6 x 2.3 x 4.3 in (499 x 60 x 120 mm)
Weight
Product Weight
8.8 lbs (3.99 kg)
Construction
Exterior Color
Black
Housing Material
Aluminum extrusion, stainless steel
Load Capacity
Load Capacity (Hanging)
970 lbs (440 kg)
Load Capacity (Stacking)
2,204.6 lbs (1,000 kg)
Recommended Shackle Sizes
1/2", 5/8"
Compatibility
Compatible Panels
F2, F3X, F5IP, F4XIP
Compatible Mounting Options
Shackle (1/2", 5/8"), Pipe Clamp (M12 threaded bolt)
Compatible Accessories
DRB-CURVEKITX2
Included Items
Rig Bar
1x F-Series Dual Function Rig Bar-50 cm (DRB-F50CMIP)
Linking Plate
1x 0° Linking Plate
Clamp Attachment Bracket
1x DRB-CTC
Clamp Bolts
1x Clamp Bolts for TRUSST CTC-50HC
