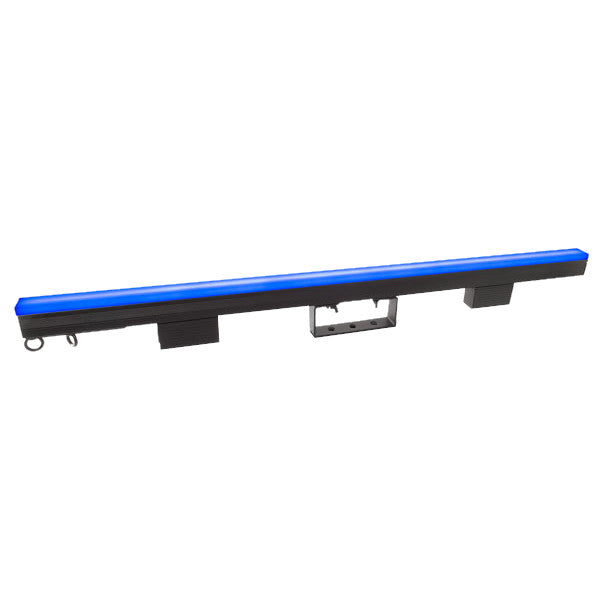

Chauvet Pro EPIX Strip IP Linear-Strip Light

Chauvet Pro EPIX Strip IP Linear-Strip Light

SoundPro Item: 50198 | Part Number: EPIXSTRIPIP

$580.50
$654.50 $580.50
Your Price Sold out
MSRP: $654.50 | MAP: $580.50

Usually ships in 5-7 business days

  • Pixel-mapping 1-meter 100 x 1 IP65 rated LED strip for showing video and/or motion graphics
  • Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast.
  • Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
  • Reduce programming time and increase application by using the alternate personalities of 7, 8 channels, 5, 10, 20, and 50 sections, or use the Pixel personality for use with video servers
  • Increase viewing angle by using the included dome accessory
  • ÉPIX Drive 2000 IP required for operation
Log in or register for YOUR best price

ÉPIX Strip IP is a dynamic IP65 outdoor-rated, pixel-mapping 1-meter LED strip fixture featuring 100 LEDs in a row. Ideal for festivals, concert touring, and installations, this versatile fixture comes with dome and flat accessories and stunning pre-built content to allow you to easily configure and program shows in minutes with minimum time/effort for sizzling looks. Power and control it through our ÉPIX Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN).

View full details
  • Optical
    • Light Source: 100 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
    • Viewing Angle (with installed square milky filter): 160°
    • Viewing Angle (with optional dome filter): 160°
    • Illuminance – open: 8,640 NITS
    • Illuminance - square milky filter (installed): 2,470 NITS
    • Illuminance - black stealth filter (included): 1,455 NITS
    • Illuminance - round milky filter (optional): 1,360 NITS
    • Pixels: 100 x 1
    • Pixel Pitch: 10 mm
    • Refresh Rate: 4800 Hz (S-PWM)
  • Physical
    • Dimensions with installed square milky filter: 39.37x3.93x1.33 in (1000x100x34 mm)
    • Dimensions with included black stealth filter: 39.37x3.46x1.33 in (1000x88x34 mm)
    • Dimensions with optional dome filter: 39.37x5.03x1.77 in (1000x128x45 mm)
    • Weight: 6 lbs (2.7 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum
  • Connections
    • Data Connectors: 4-pin XLR
    • Physical Linking: 10 inline ÉPIX Strip IP per port of Drive 2000 IP
    • Total max. cable length (shielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 210 ft (64 m)
    • Max. cable length (shielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 65 ft (20 m)
    • Max. cable length (shielded cables) between ÉPIX IP fixtures: 60 ft (18 m)
    • Total max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 300 ft (91 m)
    • Max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 150 ft (45 m)
    • Max. cable length (unshielded cables) between ÉPIX IP fixtures: 100 ft (30 m)
  • Control
    • Control Protocol: Art-Net, Kling-Net, sACN
    • Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, 150 or 300
  • Electrical
    • Power and Current: 35 W, 0.292A @120V, 60Hz
    • Power and Current: 44 W, 0.210A @208V, 60Hz
    • Power and Current: 44 W, 0.195A @230V, 50Hz
  • Certifications/Qualifications
    • CE, METIP Rating: IP65, temporary outdoor/wet use
    • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
    • MET Listing Number: E113093-1101
    • US Safety: UL 8750, UL 1573
    • Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166
