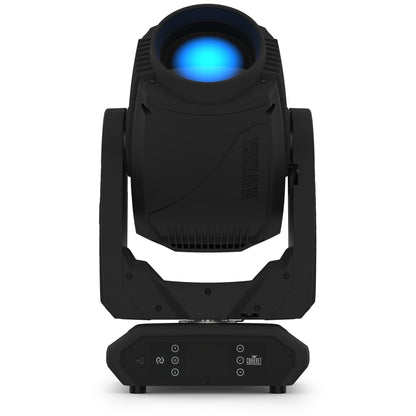

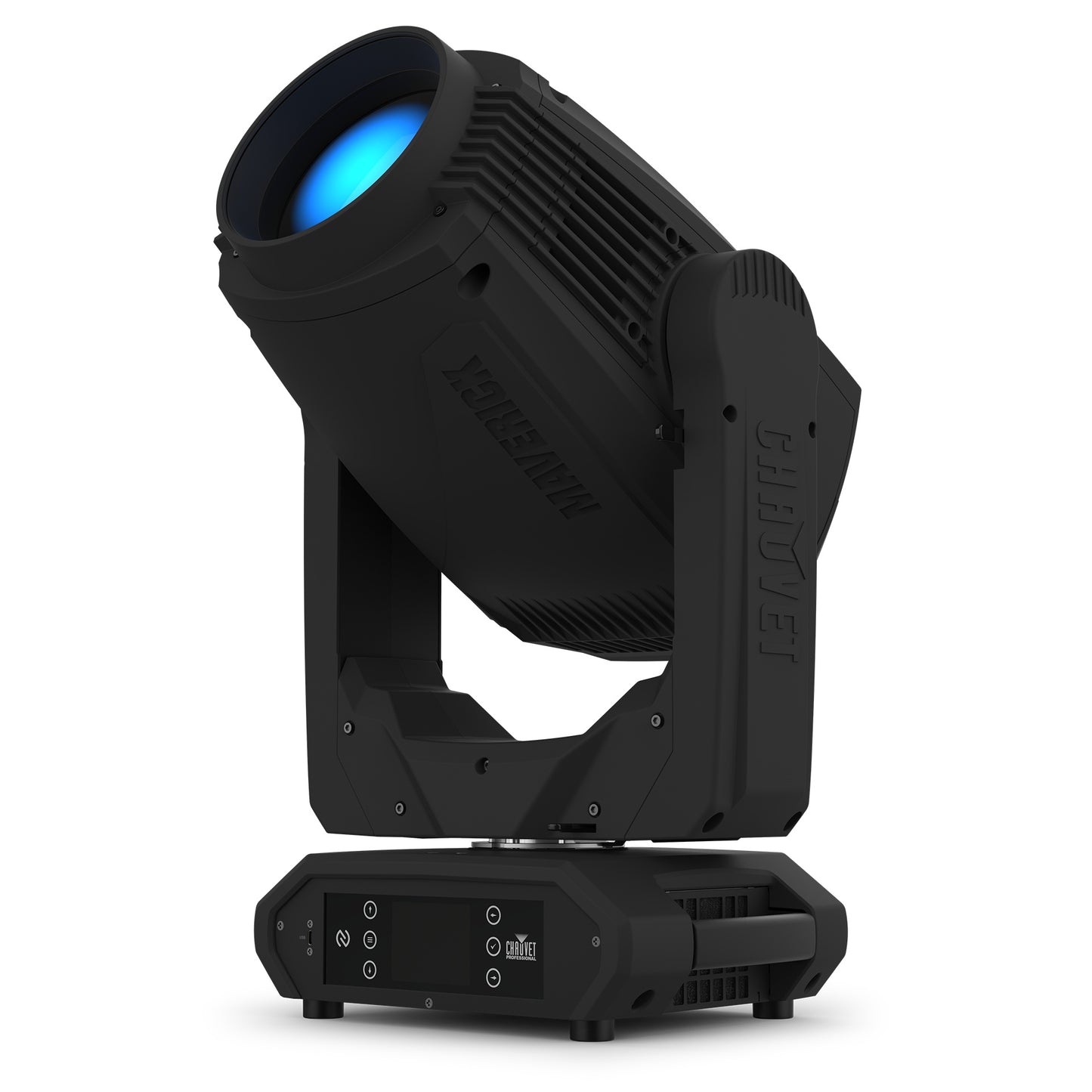

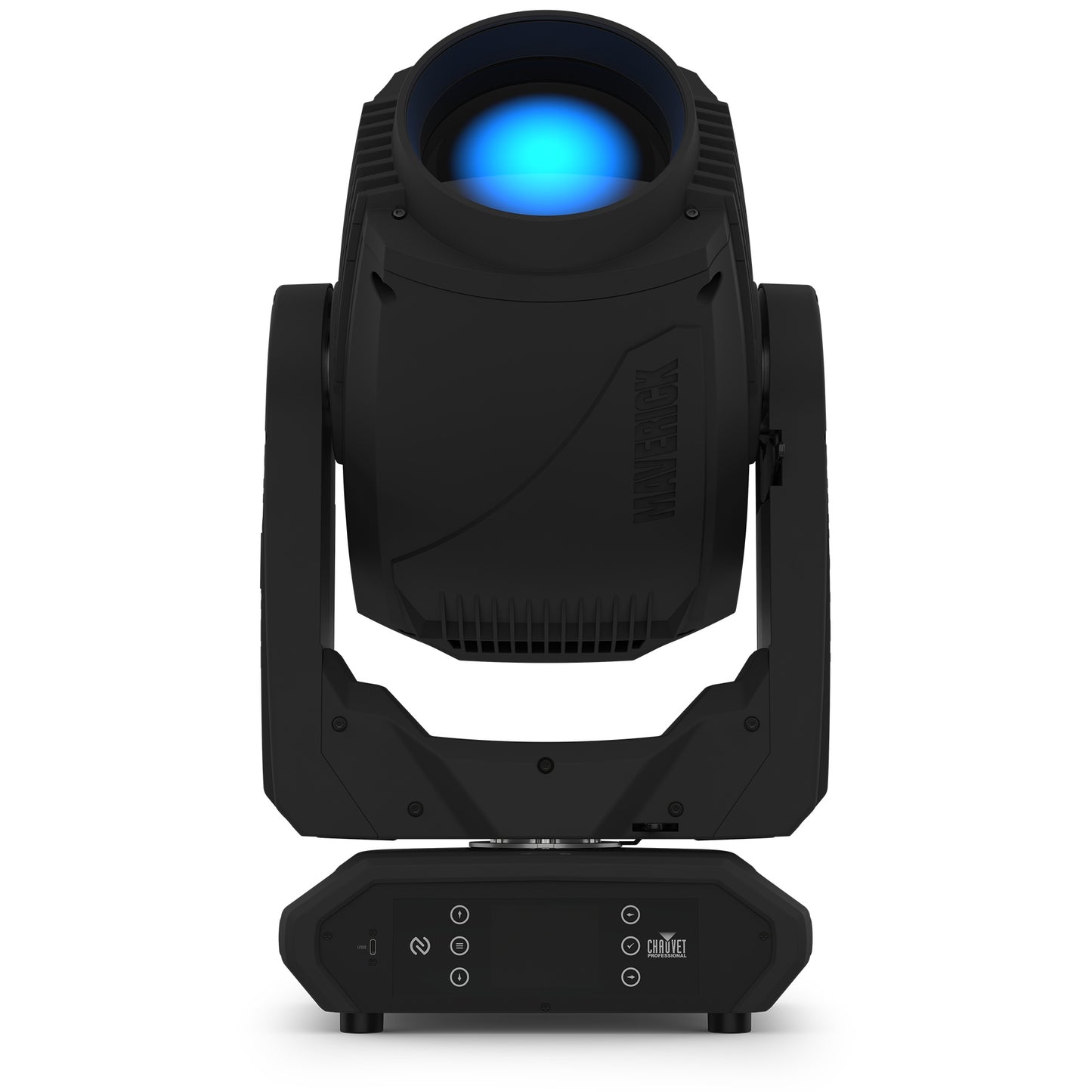

Chauvet Pro Maverick Force X Spot 520W LED Moving Head Spot

Chauvet Pro Maverick Force X Spot 520W LED Moving Head Spot

SoundPro Item: 201139 | Part Number: MAVERICKFORCEXSPOT

$4,280.00
$5,087.00 $4,280.00
Your Price Sold out
MSRP: $5,087.00 | MAP: $4,280.00

Usually ships in 5-7 business days

  • Variable CMY Color Mixing Produces True Reds And A Full Spectrum Of Saturated Colors
  • Dual Gobo Wheels With Rotating, Indexing, And Slot-N-Lock Interchangeable Glass And Metal Gobos
  • Camera-Safe PWM Rate Eliminates Flicker For Broadcast And Film Environments
  • 16-Bit Electronic Dimming Enables Exceptionally Smooth Fades Across Five Selectable Dim Curves
  • Battery-Backed Display Allows Menu Access And Configuration Without Main Power
  • NFC Fixture Setup Enables Fast Multi-Fixture Configuration From A Compatible Mobile Device
  • Failsafe Ethernet Pass-Through Keeps The Network Live If The Fixture Loses Power
  • USB Firmware Updates And Three Onboard Presets Streamline Field Maintenance And Shop Prep
Log in or register for YOUR best price

The Maverick Force X Spot is built for lighting designers and production teams who need a high-output, feature-complete moving spot without the weight penalty of larger fixtures. At 44.2 lbs, it delivers 17,325 lumens through a 520W LED engine, maintaining a flat field of focus across an 18:1 zoom range — from a sharp 3.5° beam to a wide 57.7° cutoff angle — making it equally capable as a long-throw key light or a wide aerial effect fixture on touring rigs, theatrical stages, corporate events, and broadcast studios.

The optical system centers on a variable CMY color mixing system engineered for accurate reds, paired with a seven-position color wheel that includes CRI and CTB correction filters, a rotating gobo wheel with seven interchangeable slot-n-lock gobos, a nine-position static gobo wheel, a motorized five-facet prism, motorized iris, and motorized frost. A 65,000 Hz PWM rate makes this fixture camera-safe without sacrificing smooth 16-bit dimming performance across five selectable dim curves.

Production workflow features set the Force X Spot apart from comparable fixtures in its class: a battery-backed display allows menu access without main power, NFC enables fast multi-fixture configuration from a mobile device, three onboard presets streamline shop prep, and a USB port supports firmware updates in the field. Failsafe Ethernet pass-through keeps the data network live even if a fixture loses power — a critical reliability feature in dense touring and install rigs. Control options span DMX, WDMX, sACN, Art-Net, and RDM in 22- or 29-channel personalities.

Downloads

View full details

Specifications

Certifications
Certifications
CE, MET, FCC, UKCA
IP Rating
IP20, dry location
Optical
Light Source
1 LED (CW) 520 W, 4.2 A, 6462 K, 50,000 hr rated life
Color Temperature (At Full)
6462 K
CTB Color Temperature
7946 K
Front Lens Diameter
145 mm
CRI
72.2
CQS
69.6
TLCI
50
CRI With CRI Filter
90
CQS With CRI Filter
89.8
TLCI With CRI Filter
78
Lumens Output
17,325
Beam Angle
3.5° to 51.3°
Field Angle
3.7° to 56.3°
Cutoff Angle
3.9° to 57.7°
Zoom Range
3.5° to 57.7°
Illuminance At 3.5°
93,084 lux @ 5 m
Illuminance At 57.7°
1,135 lux @ 5 m
Selectable PWM Rates
600 Hz, 1500 Hz, 2000 Hz, 65000 Hz
Performance
Pan Range
540°
Tilt Range
270°
Pan And Tilt Selectable Ranges
540°, 360°, 180° pan / 270°, 180°, 90° tilt
Colors (Color Wheel)
7 (Red, Orange, Magenta, CTO 4300K, CTO 3200K, CRI, CTB) + white, split colors, continuous scroll
Colors (CMY)
CMY wheels
Gobos Wheel 1 (Rotating)
7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos Wheel 2 (Static)
9 + open (9 metal), continuous scroll at variable speeds
Gobo Size Wheel 1
24 mm outside, 14 mm image, 1.1 mm max thickness
Prism
5-facet, motorized, rotating
Strobe Rate
0 to 25 Hz
Dimmer
Electronic
Shutter/Strobe
Electronic
Zoom
Motorized
Focus
Motorized
Frost
Motorized
Iris
Motorized
Move-In-Black
Yes
Dim Curves
5
Control
DMX Channels
22 or 29
Art-Net Channels
22 or 29
Modes/Personalities
2 personalities (22, 29)
Electrical
Input Voltage
100–240 VAC, 50/60 Hz
Power And Current At 120 V
554 W, 4.64 A @ 120 V, 60 Hz
Power And Current At 208 V
541 W, 2.68 A @ 208 V, 60 Hz
Power And Current At 230 V
542 W, 2.44 A @ 230 V, 50 Hz
Power Linking
2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
Connectivity
Power Connection
Edison plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
3- and 5-pin IP65 XLR, Seetronic etherCON
Cable Length (Signal)
5 ft (1.5 m)
Construction
Dimensions
14.21" x 9.40" x 25.43" (361 x 239 x 646 mm)
Weight
44.2 lbs (20 kg)
Exterior Color
Black
Housing Material
Aluminum die-cast, high-impact flame-retardant polymer, steel
Battery
Battery Type
Lithium Ion (display screen backup)
Rechargeable
Yes
Battery Charge Time
5 hours
Battery Life
1 hour
Battery Power
3.7 V, 500 mAh
Environmental
Ambient Temperature
-4 °F to 113 °F (-20 °C to 45 °C)
Noise Level (Idle)
33.6 dB(A) @ 1 m
Noise Level (Auto)
36.6 dB(A) @ 1 m
Noise Level (Full)
39.7 dB(A) @ 1 m
Noise Level (ECO)
34.5 dB(A) @ 1 m
Noise Level (TV25)
34.5 dB(A) @ 1 m
Noise Level (TV35)
34.5 dB(A) @ 1 m
Noise Level (Max)
42.4 dB(A) @ 1 m
Included Items
Included
Maverick Force X Spot, Seetronic Powerkon power cable, omega brackets with mounting accessories
