Chauvet Pro Maverick Silens 1X Profile Silent Moving Head Framing Fixture

Chauvet Pro Maverick Silens 1X Profile Silent Moving Head Framing Fixture

SoundPro Item: 144757 | Part Number: MAVERICKSILENS1XPROFILE

$7,270.00
$8,640.00 $7,270.00
Your Price Sold out
MSRP: $8,640.00 | MAP: $7,270.00

Usually ships in 5-7 business days

  • 100% Convection Cooling Delivers Completely Silent Operation With Zero Fan Noise
  • High-Fidelity 97.1 CRI Source Meets Color Accuracy Standards For Camera-Facing Applications
  • Variable CMY And CTO Color Mixing Produces A Wide Range Of Calibrated Colors
  • Four-Blade Framing Shutter System Rotates Up To 60 Degrees For Precise Beam Shaping
  • Integrated Animation Wheel Adds Dynamic Flowing Textures To Projections
  • Motorized Iris Provides Full Beam Diameter Control For Precise Output Shaping
  • Battery-Backed Auto-Rotating Display Speeds Up Setup In Any Fixture Orientation
Log in or register for YOUR best price

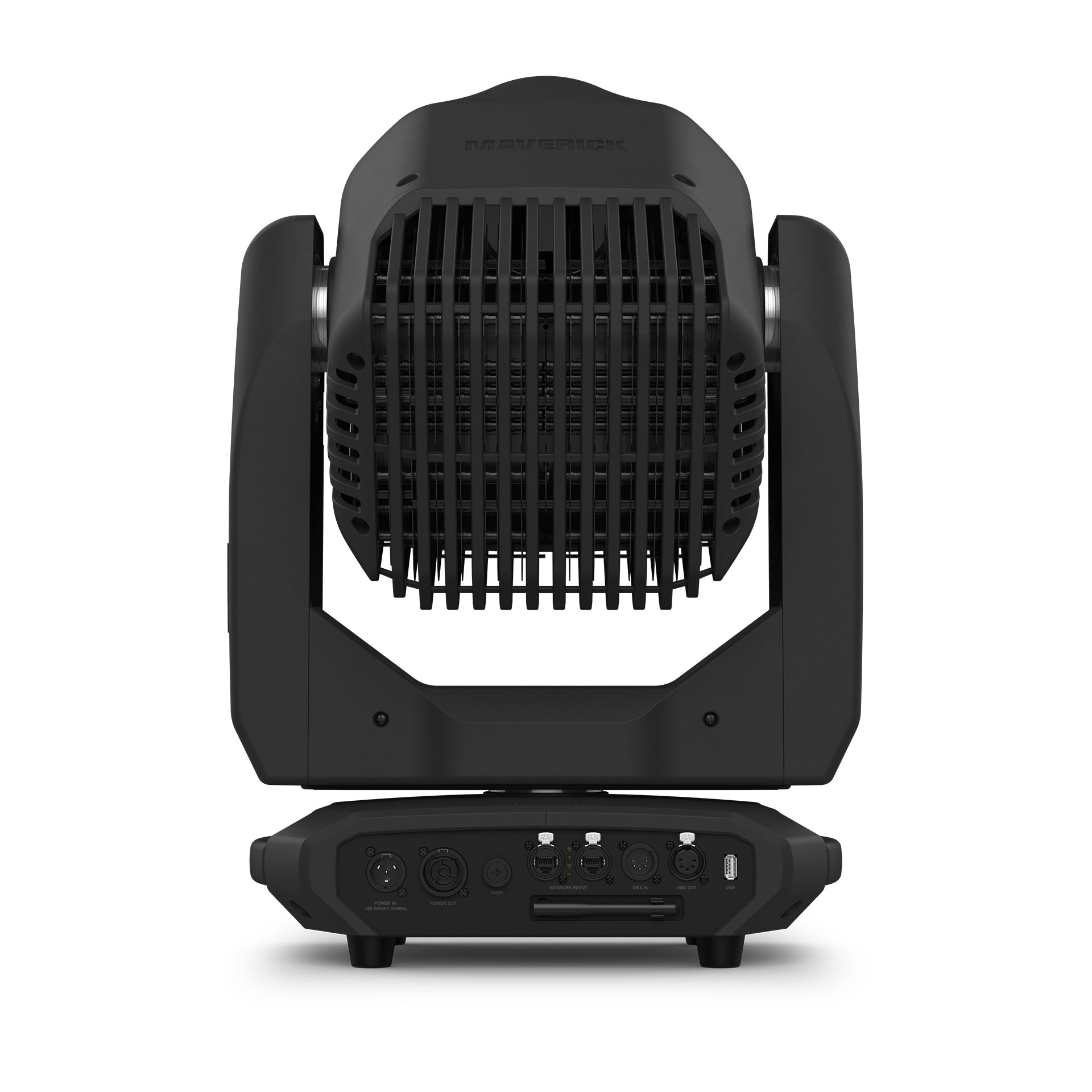

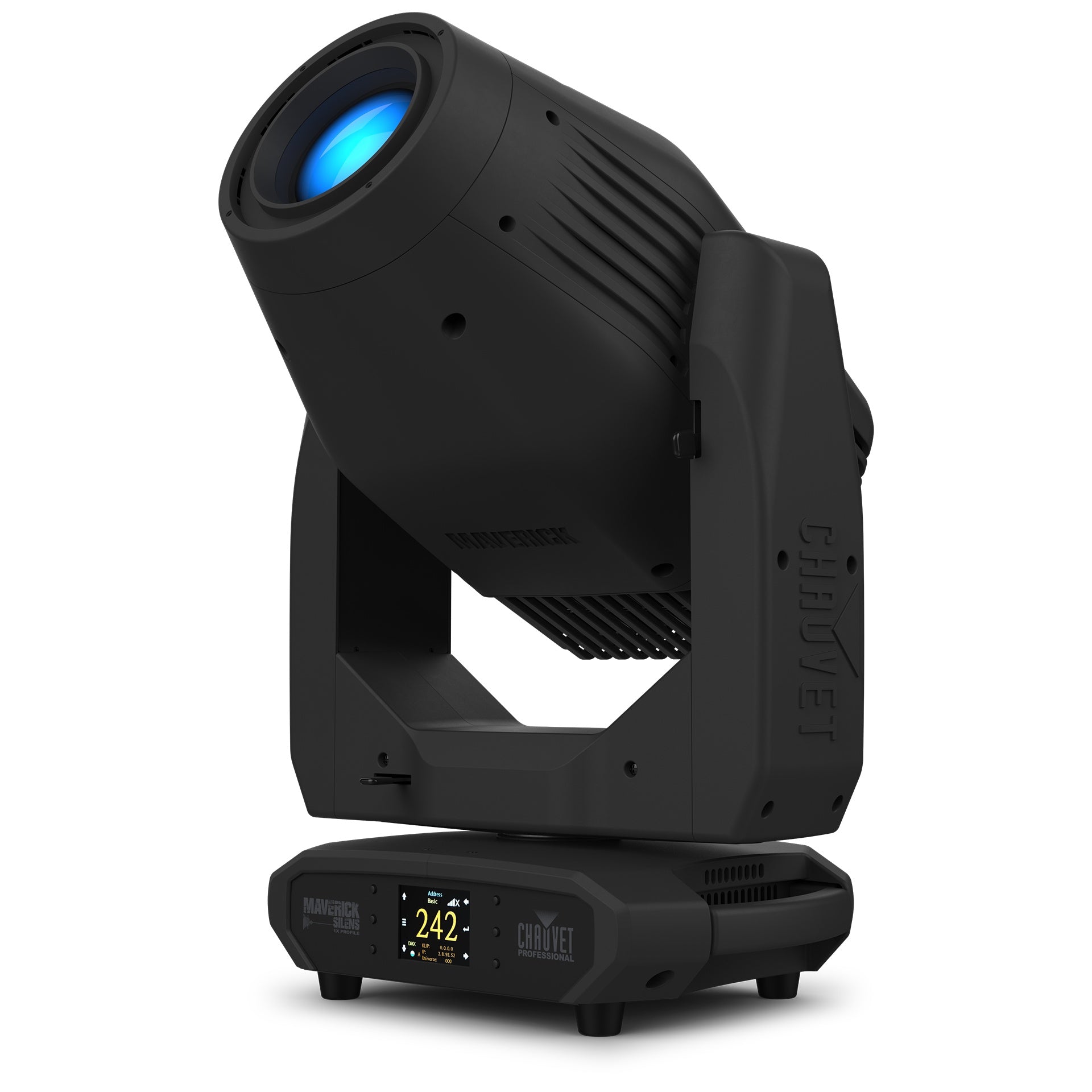

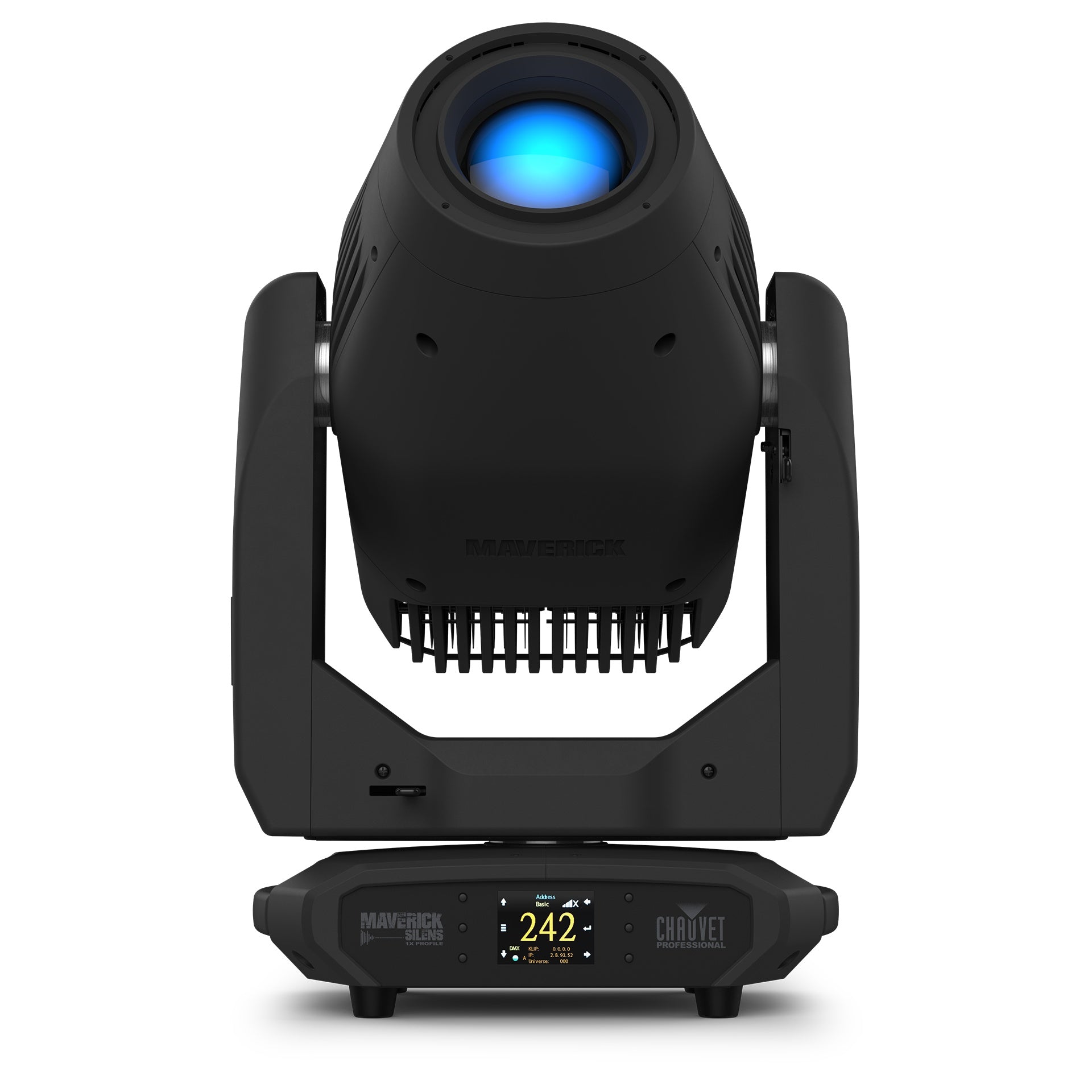

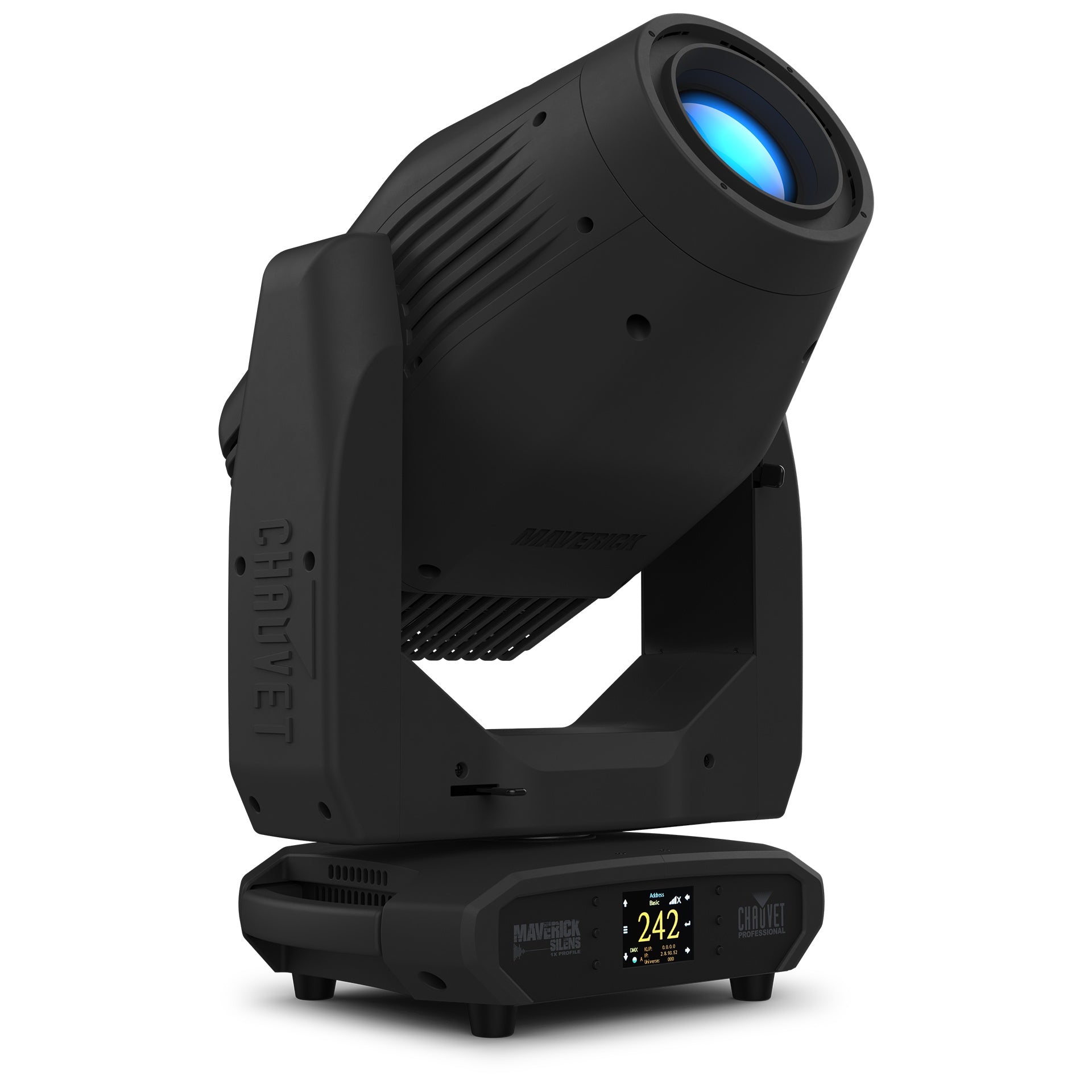

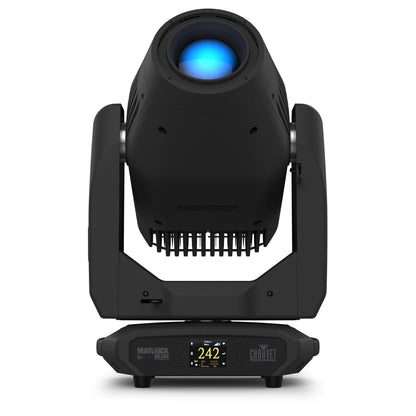

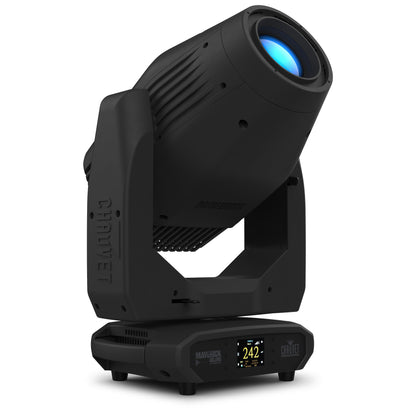

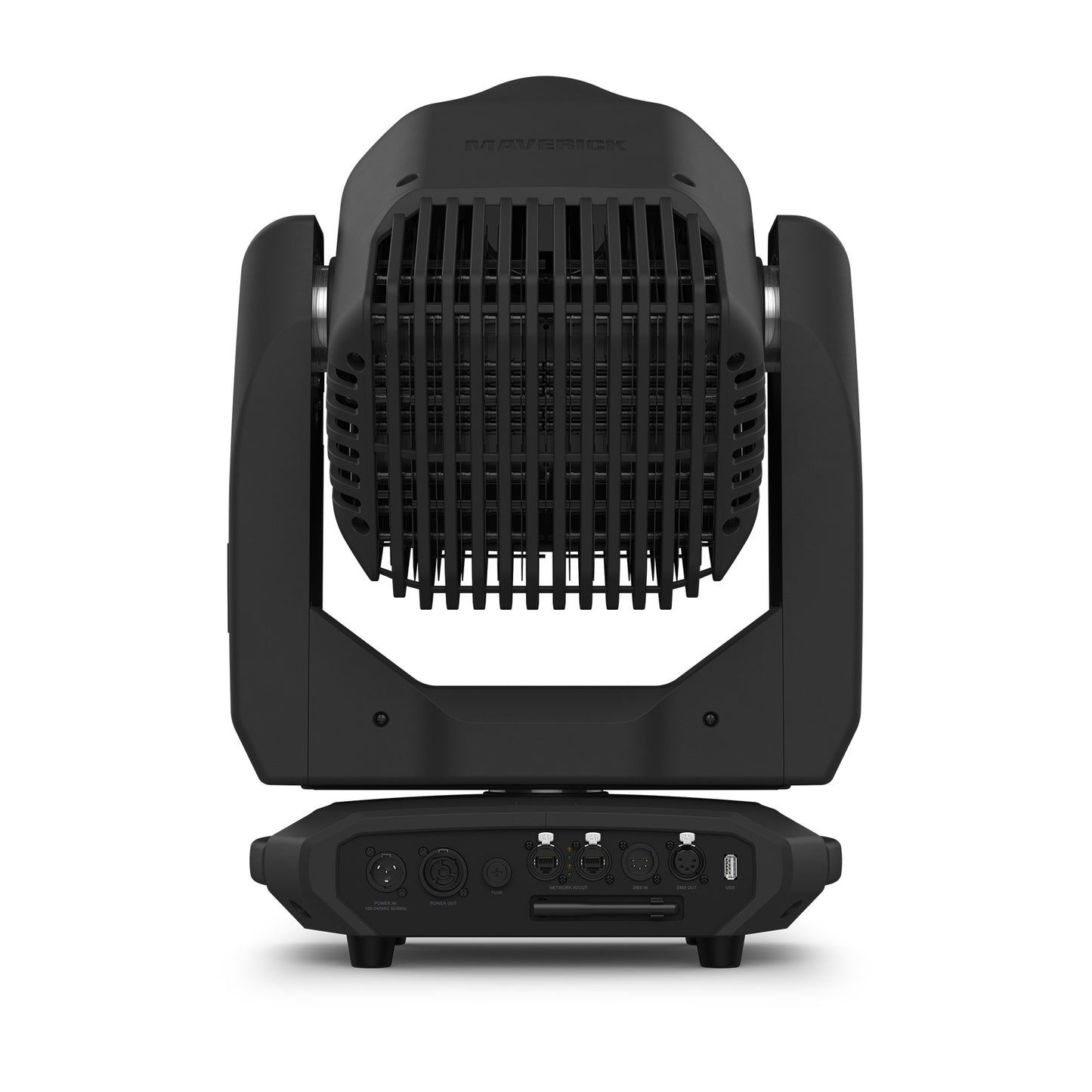

The Chauvet Pro Maverick Silens 1X Profile is engineered specifically for environments where fan noise is a non-negotiable problem — live theatre, broadcast studios, concert halls, and virtual production stages. Its 100% convection-cooled 420W LED source eliminates all mechanical fan noise while sustaining a 97.1 CRI output that meets the strict color-accuracy demands of camera-facing and film applications. Lighting designers who routinely sacrifice output for silence no longer have to compromise.

For theatrical and broadcast integrators, the fixture's four-blade framing shutter system — rotating up to 60 degrees — paired with a motorized iris, variable frost, animation wheel, and a rotating gobo wheel loaded with theatre-oriented glass patterns gives programmers a complete toolkit without stacking supplementary gear. The wide 6° to 56.2° zoom range handles everything from tight specials to broad washes from a single unit, reducing rig complexity in venue installations where trim height and weight loading are critical constraints.

System integration is straightforward: DMX, Art-Net, RDM, and CRMX wireless control are all onboard, and True 1 compatible power in/out simplifies power distribution across multi-fixture rigs. The battery-backed auto-rotating display speeds up address and orientation setup on truss or in tight ceiling pockets. For any production context where a silent profile spot is not a luxury but a technical requirement, the Maverick Silens 1X Profile is the purpose-built answer.

Downloads

View full details

Specifications

Certifications
Certifications
CE, MET, FCC
IP Rating
IP20, dry location
Ambient Temperature Range
-4 °F to 113 °F (-20 °C to 45 °C)
Optical
Light Source (CW)
1 LED (CW) 420 W, 12 A, 50,000 hours life expectancy
Light Source (RGB)
1 LED (RGB) 13 W, 2.091 A, 50,000 hours life expectancy
CRI
97.1
Color Temperature Range
2569 to 6126 K
Color Temperature (at full)
6126 K
Lumens Output
6081
Front Lens Diameter
106 mm
Beam Angle
6° to 48.4°
Field Angle
7° to 53.4°
Cutoff Angle
7.5° to 56.2°
Zoom Range
6° to 56.2°
Illuminance (6°)
18,525 lux @ 5 m
Illuminance (56.2°)
398 lux @ 5 m
Selectable PWM
20,000; 40,000
Performance
Pan Range
540°
Tilt Range
270°
Pan Ranges (selectable)
540°, 360°, 180°, 90°
Tilt Ranges (selectable)
270°, 180°, 90°
Strobe Rate
0 to 28.8 Hz
Dim Curves
4
Move-in-Black
Yes
Dimmer
Electronic
Shutter/Strobe
Electronic
Zoom
Motorized
Focus
Motorized
Frost
Motorized
Iris
15 leaf, Motorized
Prism
5 facets, round, motorized, rotating
Framing Shutters
Yes
Effect Wheel
1 effect
Colors (wheel)
6 + white, split colors, continuous scroll at variable speeds
Colors (flags)
CMY flags, CTO flag, color correction
Gobos (wheel 1)
7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size (wheel 1)
22.9 mm outside, 15.5 mm image, 1.1 mm max thickness
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current @ 120 V
441 W, 3.31 A @ 120 V, 60 Hz
Power and Current @ 208 V
425 W, 1.91 A @ 208 V, 60 Hz
Power and Current @ 230 V
422 W, 1.70 A @ 230 V, 50 Hz
Power Linking
3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
Connectivity
Power Connection
Edison plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Data Connectors
5-pin XLR, Amphenol XLR Net RJ45 in/out
Power Cable Length
5 ft (1.5 m)
Control Protocol
Art-Net, DMX, CRMX, RDM
DMX Channels
31 or 39
Art-Net Channels
31 or 39
Modes/Personalities
2 (31-channel, 39-channel)
Construction
Dimensions
15.75 x 9.68 x 24.25 in (400 x 246 x 616 mm)
Weight
56.2 lbs (25.5 kg)
Exterior Color
Black
Housing Material
High-impact flame-retardant polymer
Included Items
Included
Maverick Silens 1X Profile, Seetronic Powerkon IP65 power cord, 2 Omega brackets with mounting hardware, Gel Frame Holder and Gel Frame
