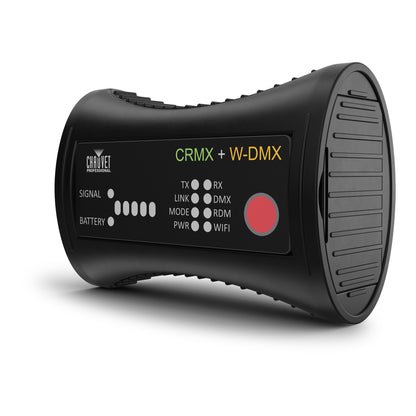

Chauvet Pro W-DMX Micro T-1 TRX G6 Wireless DMX and RDM Transceiver
Chauvet Pro W-DMX Micro T-1 TRX G6 Wireless DMX and RDM Transceiver
SoundPro Item: 137121 | Part Number: MICROT1TRXG6
Usually ships in 5-7 business days
- Bidirectional Transceiver Design Eliminates The Need For Separate TX And RX Units
- W-DMX Configurator App Enables Bluetooth-Based Remote Configuration
- G4S Mode Allows Simultaneous Control Of W-DMX And CRMX Enabled Fixtures
- Adaptive Frequency Hopping Maintains A Stable Link By Avoiding RF Interference
- Backward Compatible With W-DMX G3, G4, G4S, And G5 Series Products
- Dual Power Options Support Both USB-Powered Fixed Installs And Battery-Powered Mobile Use

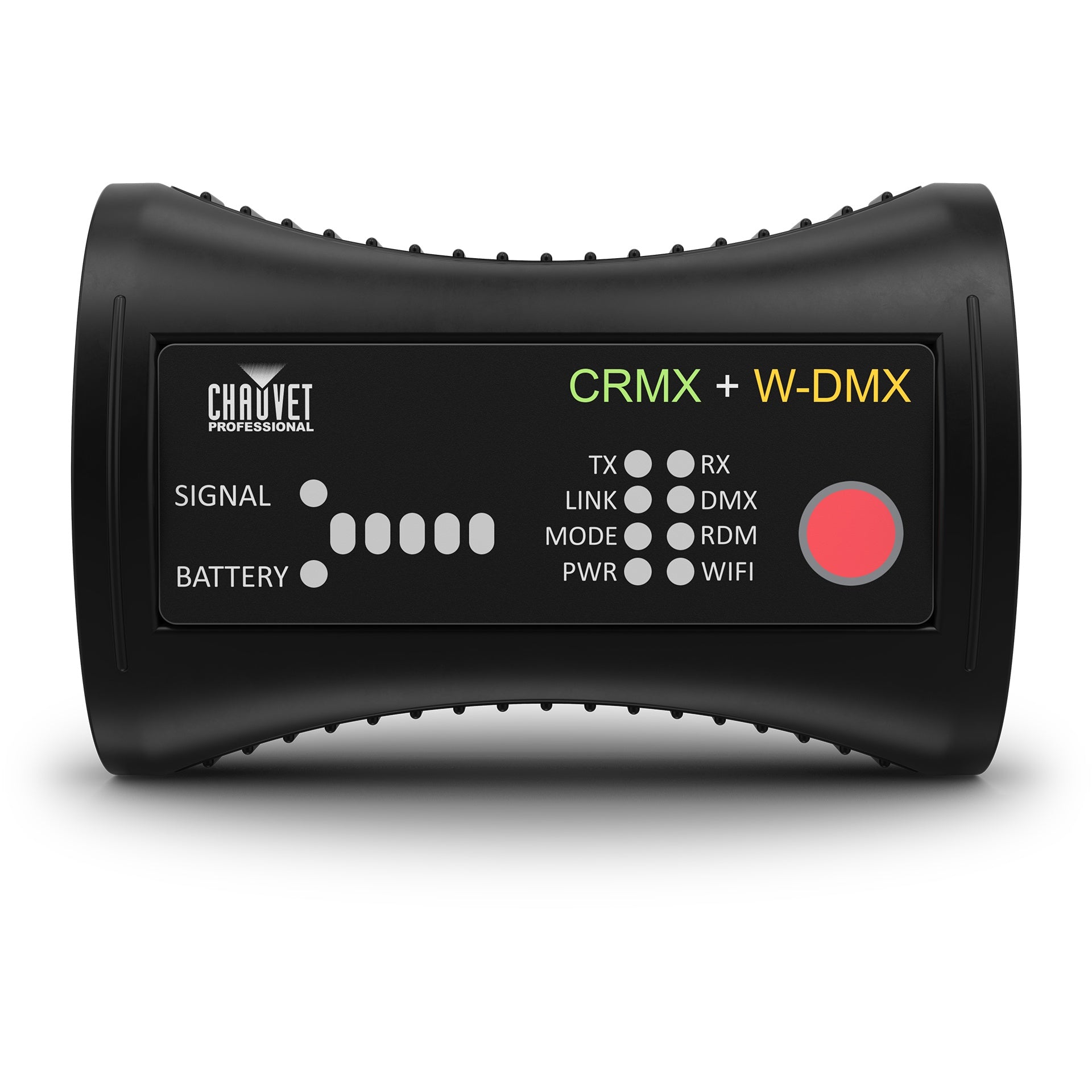

- Onboard Indicator LEDs Provide At-A-Glance Status For Signal, Battery, And Operating Mode
The Chauvet Pro W-DMX Micro T-1 TRX G6 is built for lighting programmers and production designers who need to eliminate data cabling without sacrificing control fidelity. Whether dropping a single fixture into a wireless system on a touring rig or building a fully cable-free installation in an architectural or broadcast environment, this transceiver handles both transmit and receive roles from the same compact unit — no need to stock separate TX and RX devices.
Operating on the 2.4 GHz band with adaptive frequency hopping, the Micro T-1 TRX G6 supports W-DMX, CRMX, and RDM simultaneously, with backward compatibility across G3, G4, G4S, and G5 generations. Up to 16 universes can coexist in the same space, making it viable for dense festival or multi-room install environments. Bluetooth connectivity via the W-DMX Configurator app removes the need for menu navigation on the unit itself, streamlining setup on busy calls.
For productions where AC power is unavailable at the fixture position, the battery option provides real operational runtime without compromise. Direct integration with Maverick and WELL series fixtures further reduces configuration steps for Chauvet-centric rigs, while the flame-retardant polymer housing keeps the unit compliant with dry-location install standards.
Specifications
