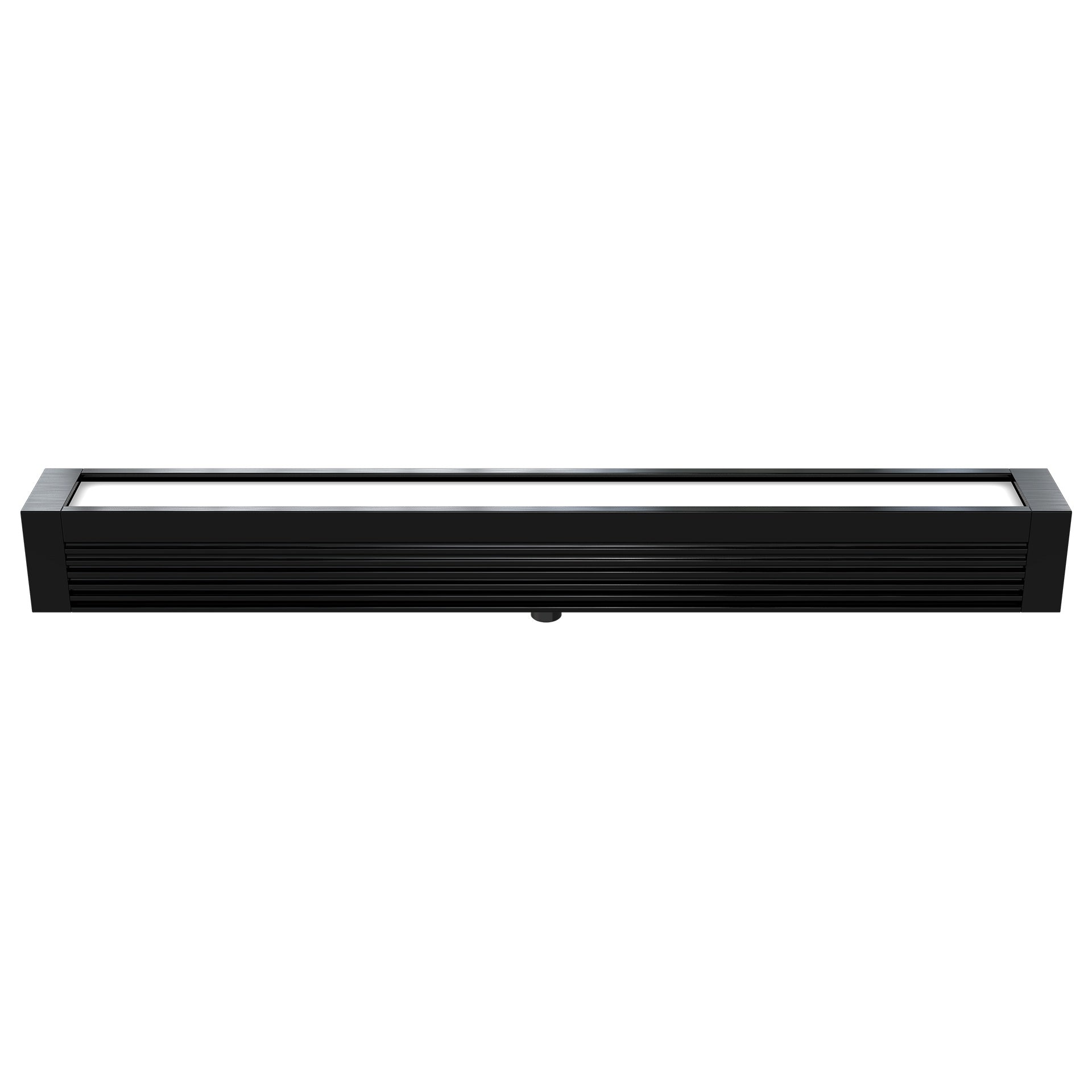

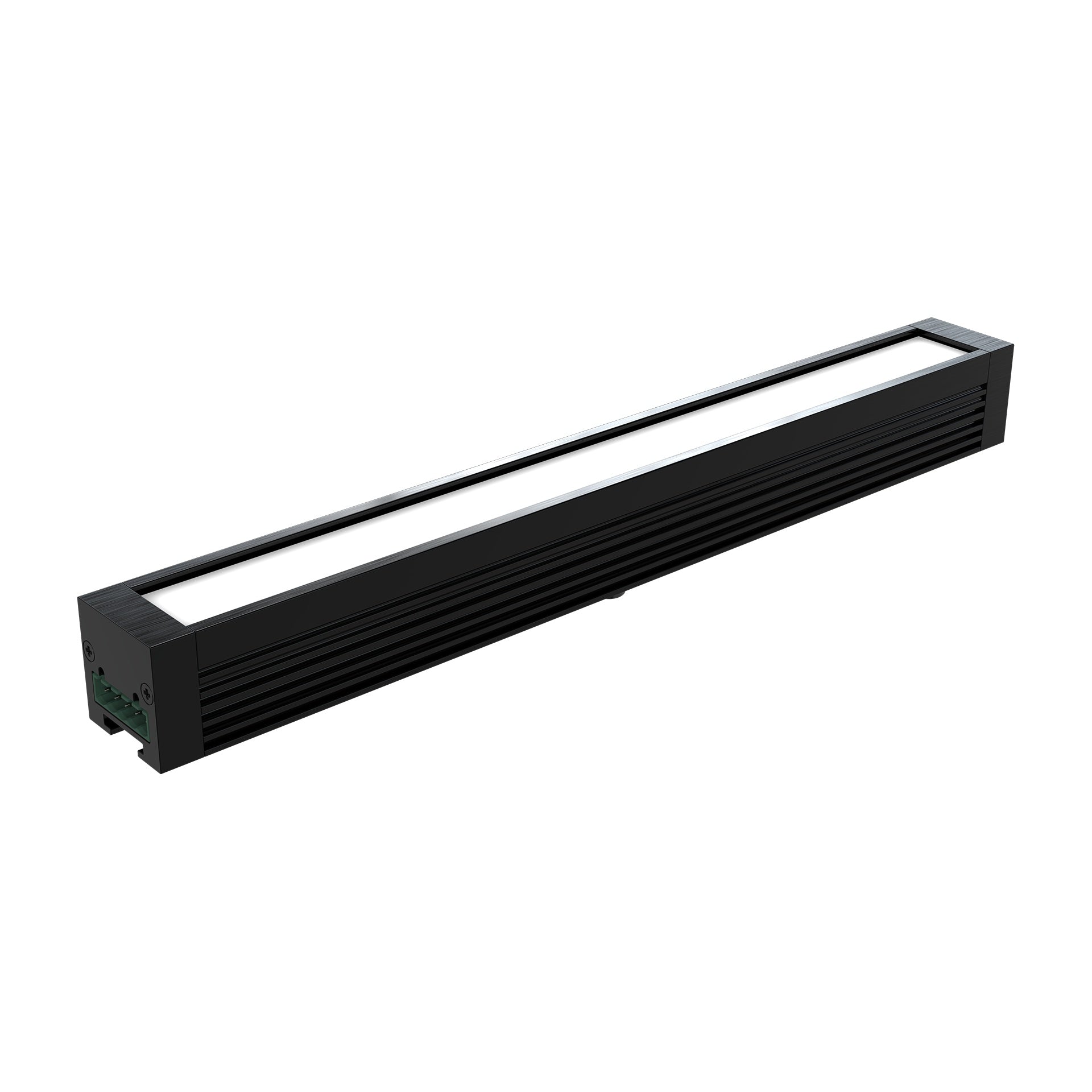

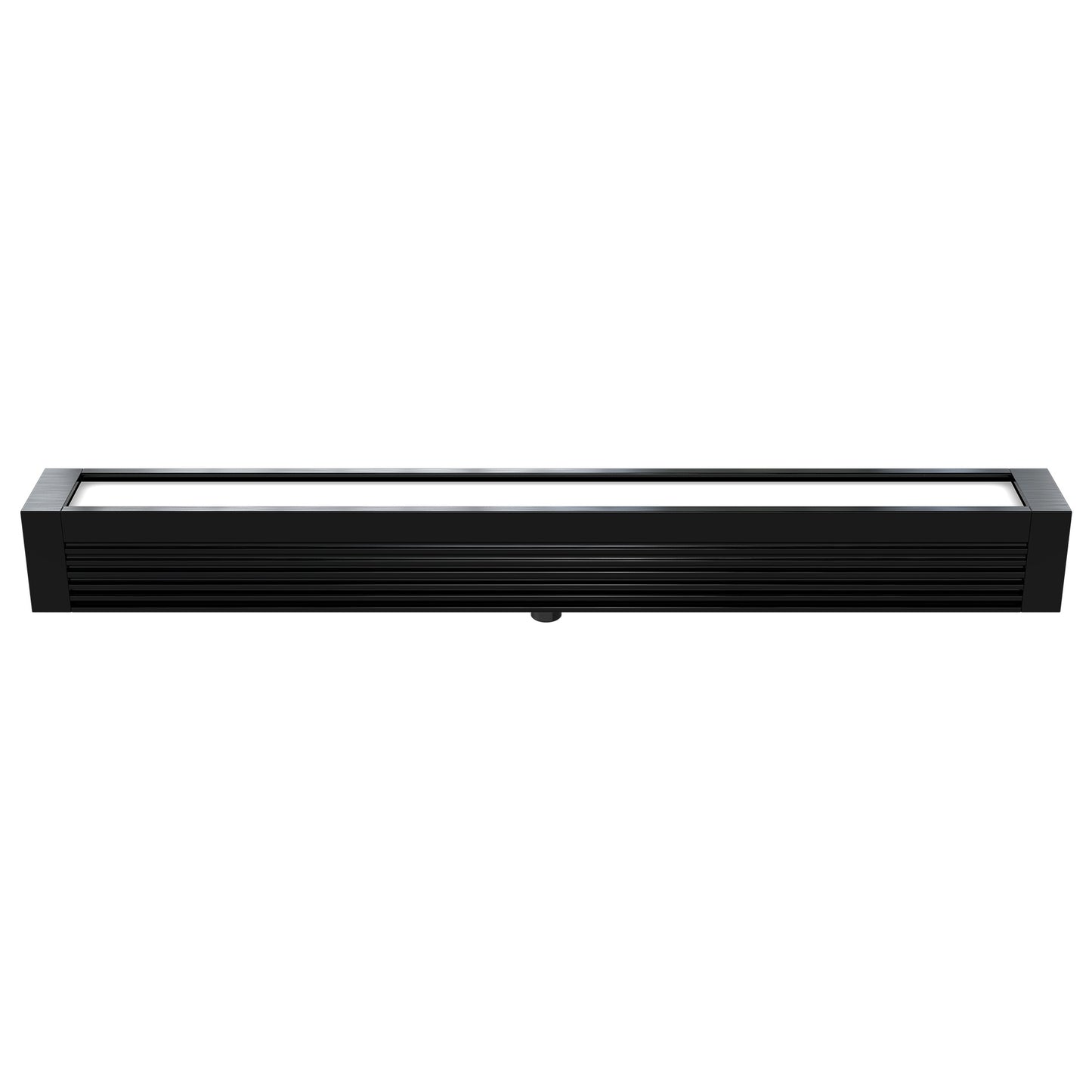

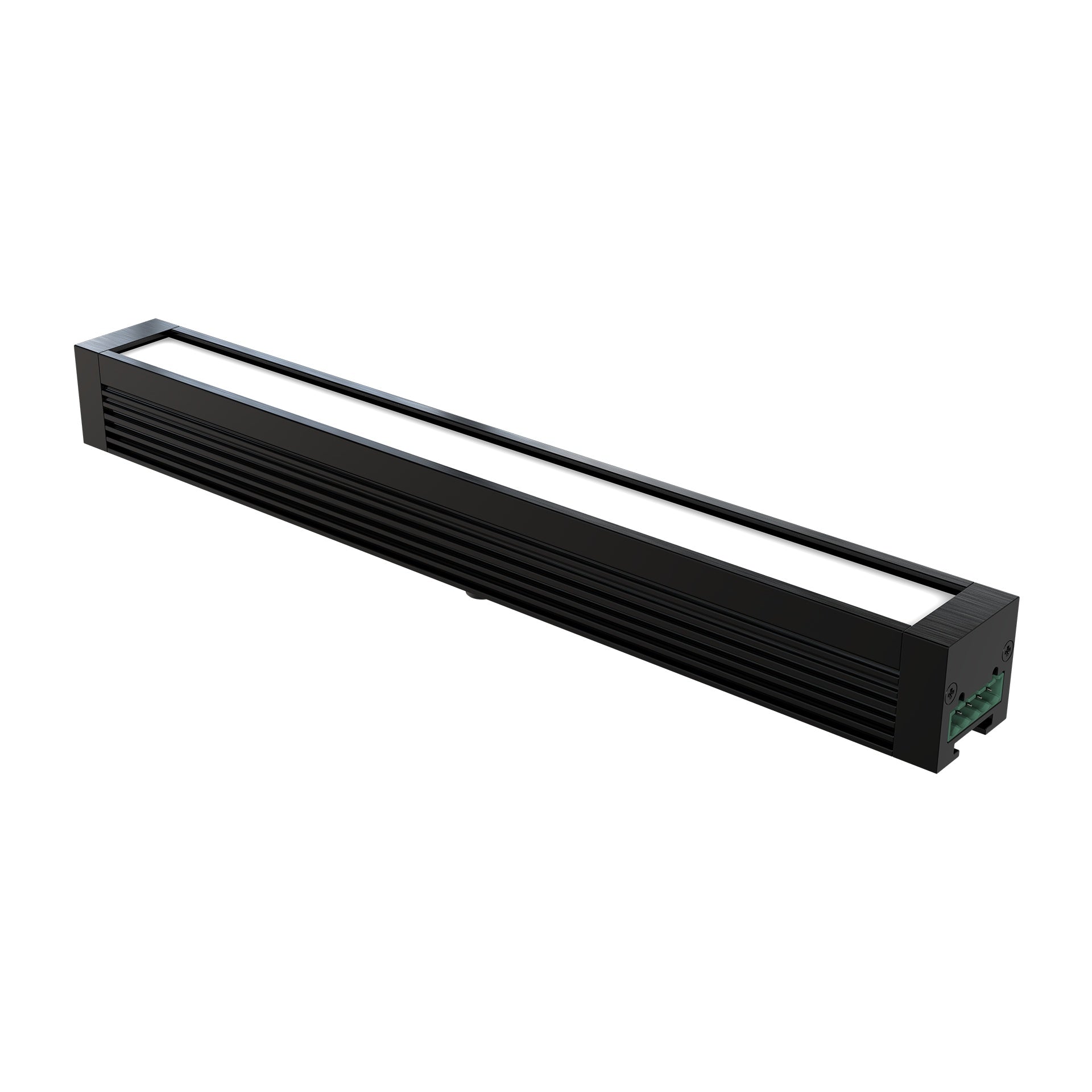

Chauvet Pro ONAIRFLEX12 DMX LED Catch Light For Studio Film

Chauvet Pro ONAIRFLEX12 DMX LED Catch Light For Studio Film

SoundPro Item: 143534 | Part Number: ONAIRFLEX12

Regular price $125.00
Regular price $155.00 Sale price $125.00
Your Price Sold out
MSRP: $155.00 | MAP: $125.00

Usually ships in 5-7 business days

  • Full-Spectrum RGB Plus Warm White LEDs Deliver Accurate Color Across All Skin Tones
  • CRI 96 Rating Ensures Faithful Color Reproduction For Film And Broadcast Capture
  • DMX Control Via onAir Flex Drive Enables Precise Scene Integration And Remote Adjustment
  • Selectable PWM Eliminates Rolling Shutter Artifacts At Any Camera Frame Rate
  • Fanless Design Allows Use In Audio-Critical Recording And Broadcast Environments
  • Extruded Aluminum Housing Provides Rigid, Thermally Stable Performance At Low Weight
  • Includes Light And Heavy Diffusion Filters For Adjustable Soft Output On Location

The Chauvet Pro onAir Flex 12 is purpose-built for cinematographers, broadcast engineers, and studio photographers who need a compact, controllable catch light that performs transparently in front of a camera. Unlike panel-style soft lights, this slim LED bar is designed specifically for short-throw placement — close to the subject — where it adds a professional eye glint without introducing noise, flicker, or color shift into a controlled production environment.

Operated exclusively via the onAir Flex Drive, the Flex 12 supports full DMX control across 8 or 10-channel modes, giving lighting directors granular command over RGBW mixing and white light tuning across a 2800K to 10000K CCT range. With a CRI of 96, it renders skin tones and surface detail faithfully on camera, making it a reliable choice wherever colorimetric accuracy is non-negotiable — narrative film sets, portrait studios, virtual production stages, and broadcast interview setups.

The extruded aluminum housing keeps the unit rigid and thermally stable at under one pound, allowing placement on lightweight rigs, camera cages, or articulating arms without load concerns. Selectable PWM via the Flex Drive eliminates rolling shutter artifacts across varying frame rates, and the completely silent design means it integrates into audio-critical recording environments without compromise.

Downloads

View full details

Specifications

Certifications
Certifications
CE, MET, FCC, UKCA
IP Rating
IP20, dry location
Ambient Temperature
-4 °F to 113 °F (-20 °C to 45 °C)
Optical
Light Source (RGB)
12 LEDs (tri-color RGB), 1.5 W, 150 mA, 50,000 hours life expectancy
Light Source (WW)
12 LEDs (WW), 0.36 W, 150 mA, 50,000 hours life expectancy
Color Temperature Range
2800 to 10000 K
Color Temperature At Full
9190 K
CRI
96
Beam Angle (Medium)
96.1° x 64.3°
Beam Angle (Light)
111° x 62°
Beam Angle (Heavy)
93.3° x 72.2°
Field Angle (Medium)
148.8° x 123.8°
Field Angle (Light)
149.8° x 126.3°
Field Angle (Heavy)
151.7° x 136°
Lumens (Medium)
765 lm
Lumens (Light)
810 lm
Lumens (Heavy)
734 lm
Illuminance (Medium)
17 lux @ 5 m
Illuminance (Light)
16 lux @ 5 m
Illuminance (Heavy)
15 lux @ 5 m
Selectable PWM
Via onAir Flex Drive
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power And Current @ 120 V
26 W, 0.28 A @ 120 V, 60 Hz
Power And Current @ 208 V
24 W, 0.31 A @ 208 V, 60 Hz
Power And Current @ 230 V
24 W, 0.29 A @ 230 V, 50 Hz
Controls
Control Protocol
DMX
DMX Channels
8 or 10
Modes/Personalities
8ch-RGBWx2, 10ch-RGBW+Dx2
Connectivity
Power Connection
Phoenix connector to bare-wire
Physical Linking
Phoenix connector to bare-wire
Cable Connector
Phoenix
Pins
5
Dimensions
Product Dimensions
12.8 x 1.46 x 1.37 in (326 x 37 x 35 mm)
Shipping Dimensions
15 x 6.5 x 4 in (381 x 165 x 102 mm)
Weight
Product Weight
0.975 lbs (0.442 kg)
Construction
Exterior Color
Black
Housing Material
Extruded Aluminum
Included Items
Included
onAir Flex 12, 6cm Cable, 12cm Cable, Blank Connectors, Light Filter, Heavy Filter
Required Accessory
onAir Flex Drive (sold separately)
