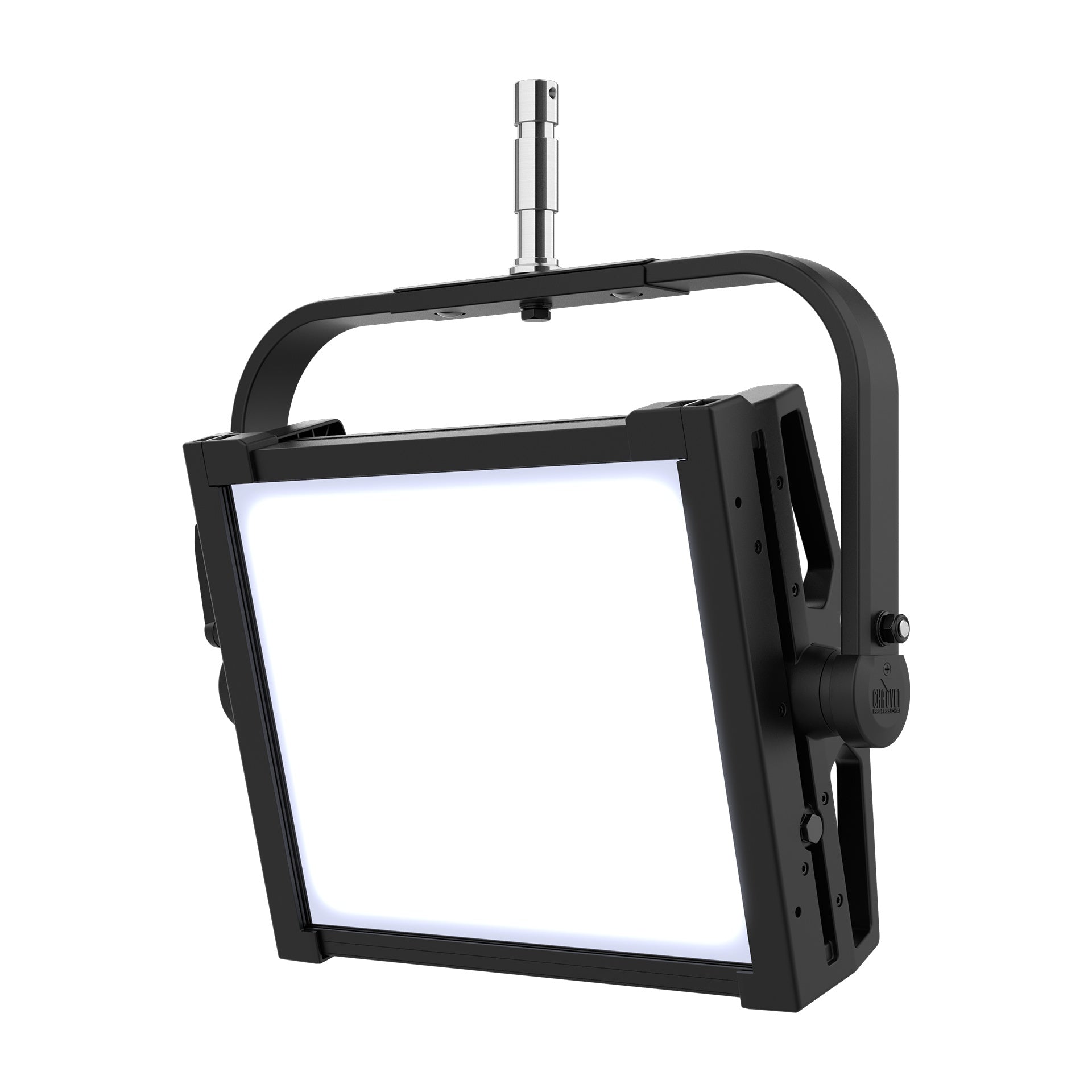

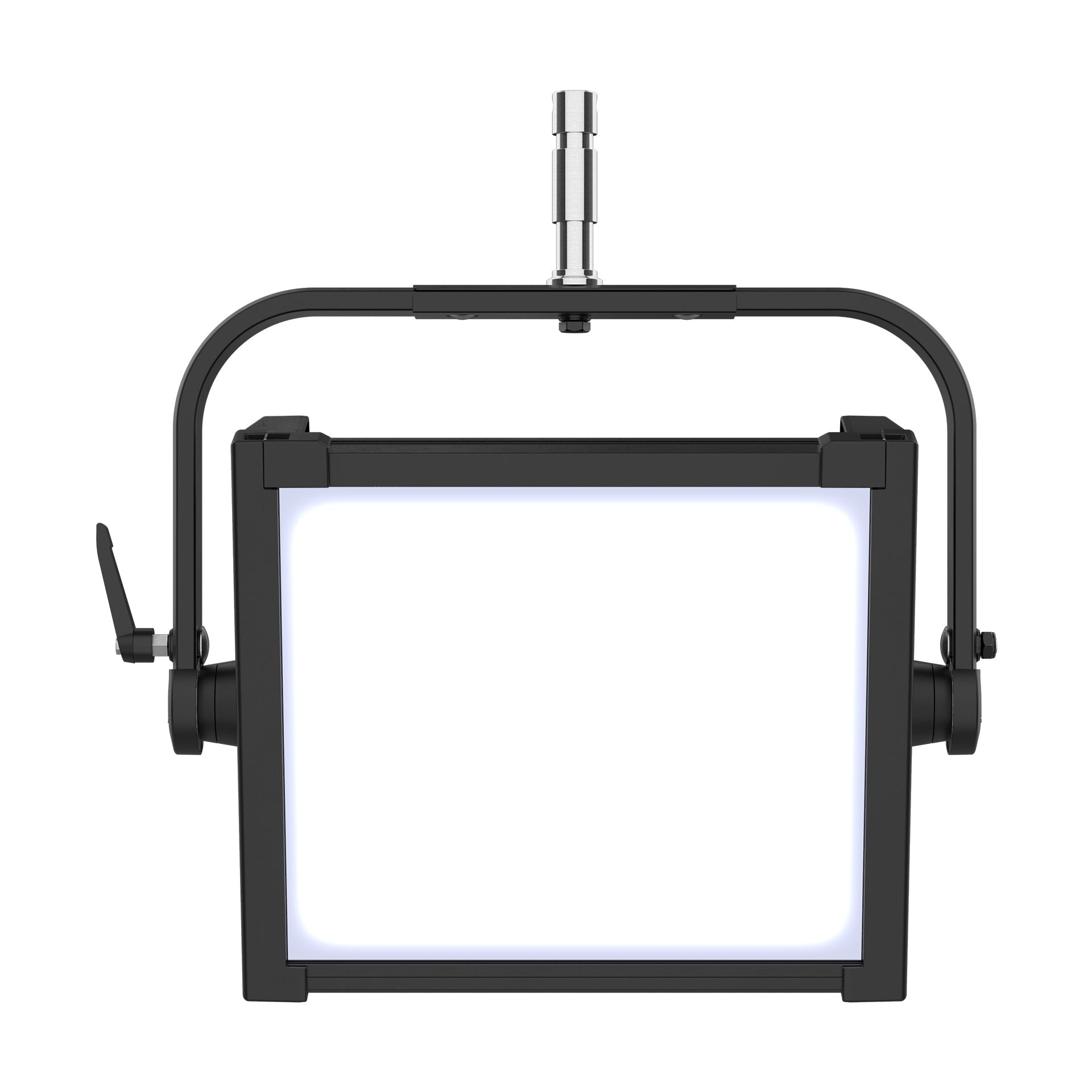

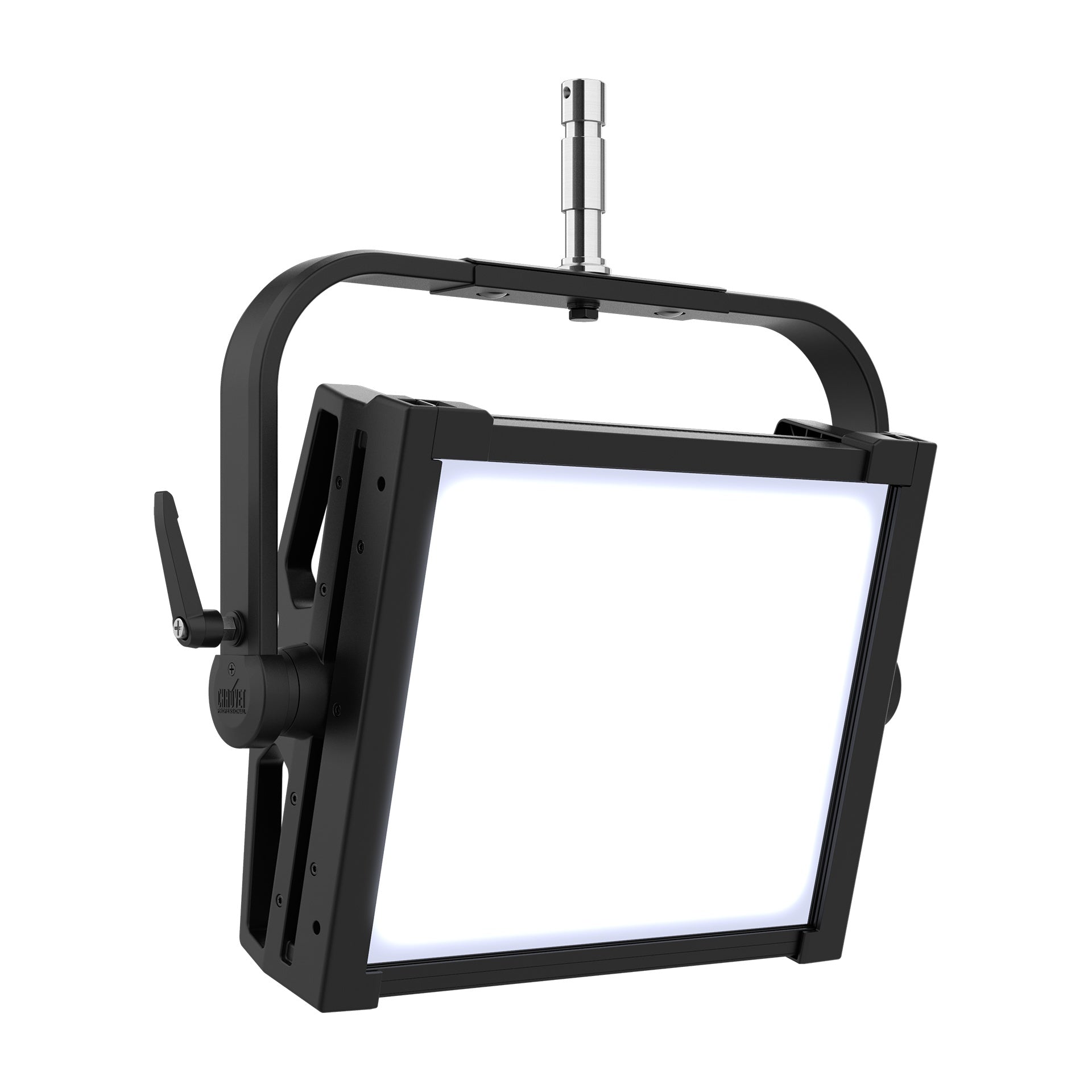

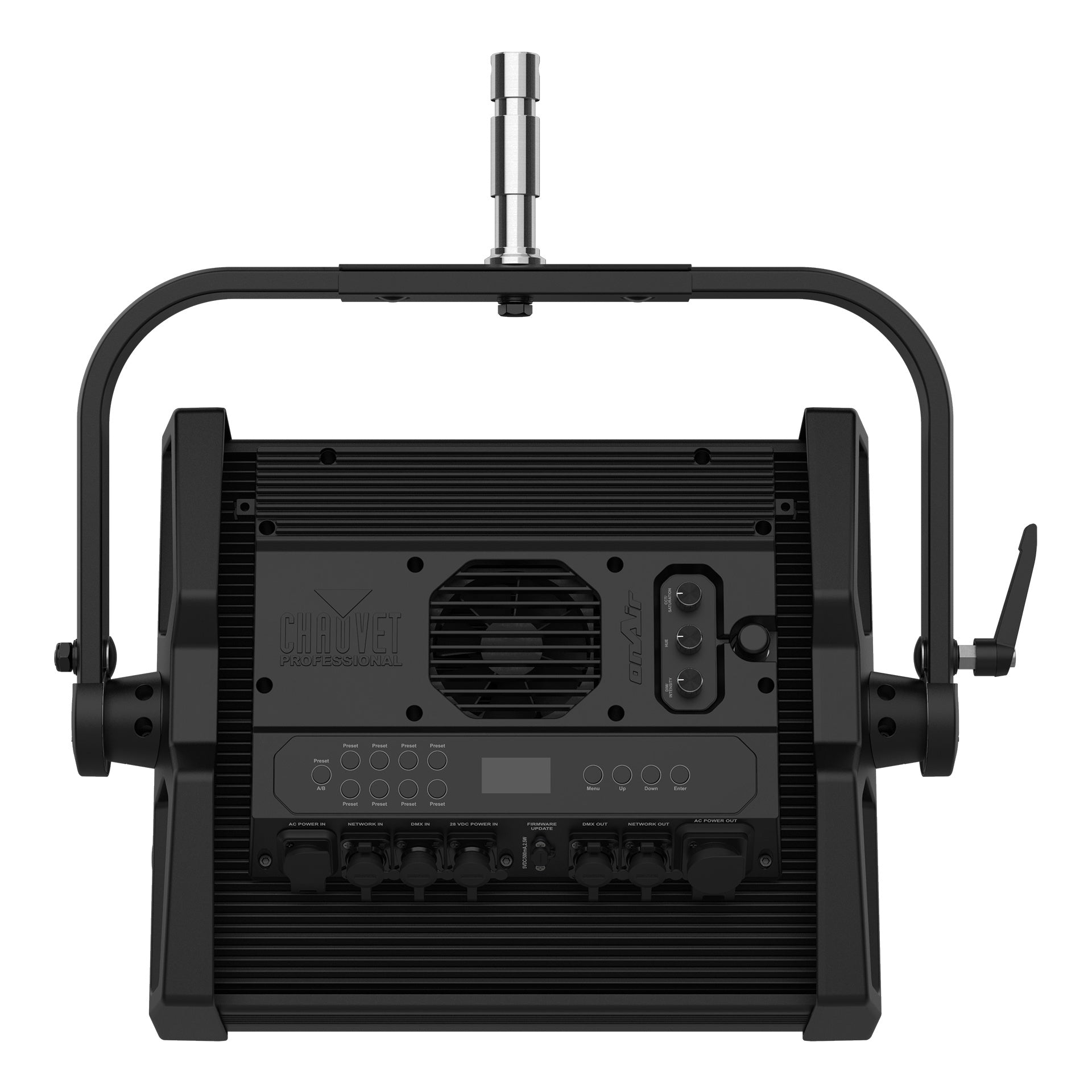

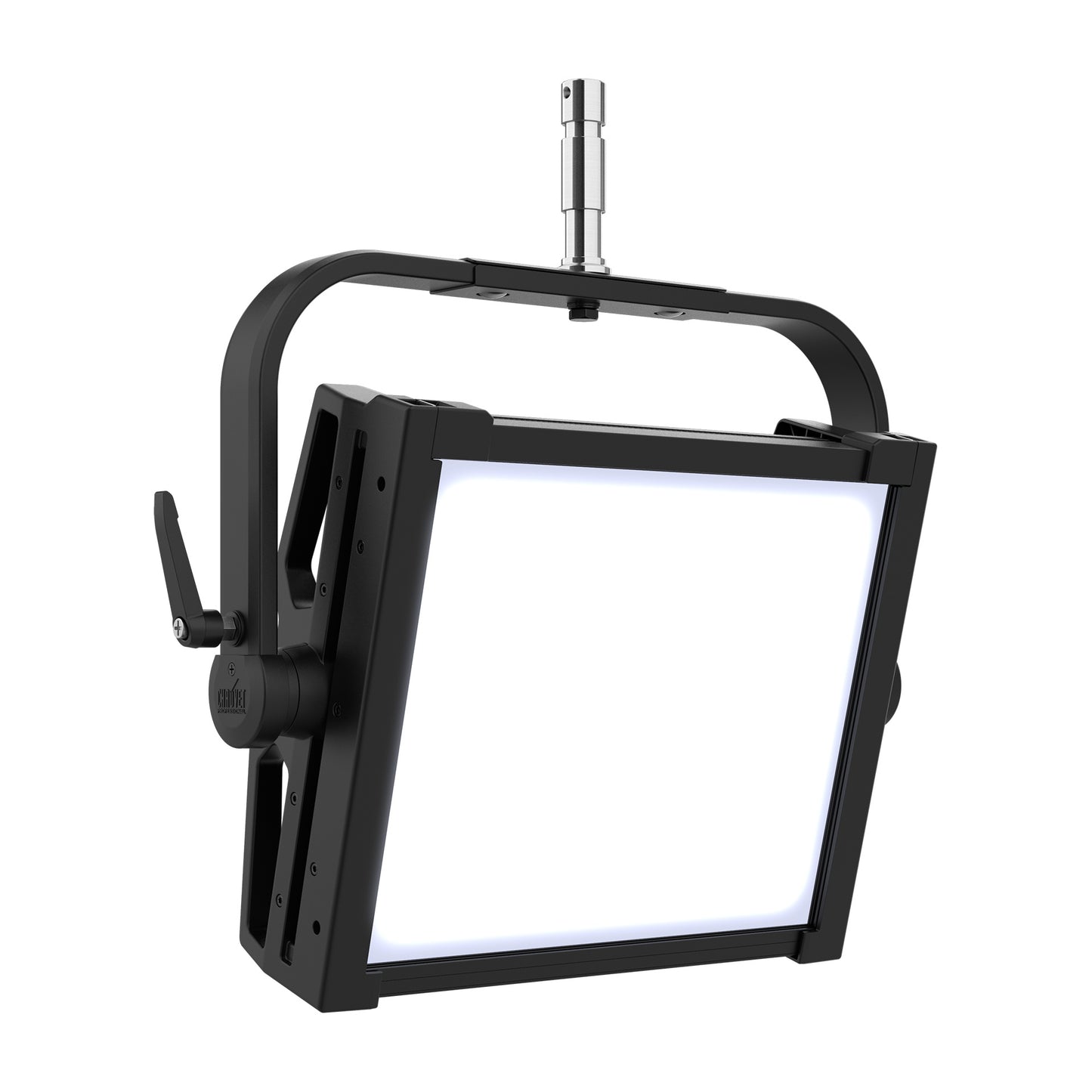

Chauvet Pro onAir Panel 1 IP Full-Spectrum LED Soft Light Panel

Chauvet Pro onAir Panel 1 IP Full-Spectrum LED Soft Light Panel

SoundPro Item: 130115 | Part Number: ONAIRPANEL1IP

$2,581.50
$2,964.00 $2,581.50
Your Price Sold out
MSRP: $2,964.00 | MAP: $2,581.50

Usually ships in 5-7 business days

  • IP65 Rating With Pressure-Equalizing GORE Valve Enables Reliable Outdoor Use In Any Weather
  • Full-Spectrum LED Engine With CRI 95 Delivers Broadcast-Grade Color Accuracy
  • Selectable PWM Frequency Eliminates On-Camera Flicker Across All Frame Rates
  • Fanless Cooling System Ensures Silent Operation For Live Audio Capture Environments
  • CRMX And RDM Support Enables Wireless DMX Control And Remote Configuration
  • 28 VDC Battery Input Via 3-Pin XLR Adds Off-Grid Power Flexibility On Remote Locations
  • Integrated Accessory Slot And Tool-Free Bracket Swap Accelerate Rigging In Production Settings
Log in or register for YOUR best price

The Chauvet Pro onAir Panel 1 IP is built for cinematographers, broadcast lighting directors, and production designers who need a weatherproof, high-fidelity soft light that performs as well outdoors on a remote location shoot as it does in a controlled studio environment. Its IP65-rated aluminum alloy housing with a pressure-equalizing GORE valve makes it one of the few 1x1 panel fixtures genuinely suited to run in rain, dust, or extreme temperature conditions without compromising optical performance.

At the core of its value proposition is a full-spectrum LED engine delivering a CRI of 95, a CCT range of 2800 K to 8000 K with linear adjustment, plus/minus green correction, and emulated redshift — tools that give gaffers and DPs the precision color matching required for multi-camera broadcast environments or color-critical film work. The virtual color wheel eliminates the need for physical gel kits on location, while the 16-bit dimming curve ensures transitions read cleanly on camera without banding.

Where this fixture separates itself from comparable 1x1 panels is in its layered control architecture: Art-Net, sACN, wired DMX, CRMX wireless DMX, and RDM are all onboard, and a 28 VDC 3-pin XLR input allows operation from an external battery pack when AC power is unavailable. Selectable PWM settings from 600 Hz to 25,000 Hz eliminate on-camera flicker across any frame rate, and the fanless cooling system keeps operation silent enough for live audio capture. An integrated accessory slot and tool-free Jr Pin to Omega Bracket swap make rigging fast in time-sensitive production contexts.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Certifications
CE, MET, FCC
Ambient Temperature
-4 °F to 113 °F (-20 °C to 45 °C)
Optical
Light Source (RGB)
224 LEDs (tri-color RGB), 1.4 W, 150 mA, 50,000 hours life expectancy
Light Source (WW)
224 LEDs (WW), 0.50 W, 150 mA, 50,000 hours life expectancy
Color Temperature Range
2800 to 8000 K
Color Temperature at Full
7566 K
CRI
95
Beam Angle
99.3°
Field Angle
154°
Lumens
10,092
Illuminance
165 lux @ 5 m
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Performance
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 28 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dim Modes
4
Dim Curves
4
Built-in Automated Programs
Yes
Control
Control Protocol
Art-Net, sACN, DMX, CRMX, RDM
DMX Channels
1, 3, 4, 5, 6, 8, 10, 11, 15, 16
Art-Net Channels
1, 3, 4, 5, 6, 8, 10, 11, 15, 16
Modes/Personalities
12 personalities (1, 3, 4, 5, 6, 8Ch1, 8Ch2, 10, 11, 15Ch1, 15Ch2, 16)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current @ 120 V
184 W, 1.524 A @ 120 V, 60 Hz
Power and Current @ 208 V
187 W, 0.891 A @ 208 V, 60 Hz
Power and Current @ 230 V
180 W, 0.824 A @ 230 V, 50 Hz
Power Linking
7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V; 17 units @ 240 V
Connectivity
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input (AC)
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Power Input (DC)
28 VDC, 3-pin IP65 XLR
Data Connectors
5-pin IP65 XLR, Seetronic etherCON Compatible
Cable Length (Power)
5 ft (1.5 m)
Software Connection
USB
Construction
Dimensions
22 x 5.74 x 21.81 in (559 x 146 x 554 mm)
Weight
28 lbs (12.7 kg)
Exterior Color
Black
Housing Material
Aluminum alloy
Environmental
Noise Level (Idle)
4.4 dB(A) @ 1 m
Noise Level (On)
8.5 dB(A) @ 1 m
Noise Level (Silent Mode)
18.9 dB(A) @ 1 m
Noise Level (Off)
6.8 dB(A) @ 1 m
Included Items
onAir Panel 1 IP
Fixture
Power Cable
Seetronic Powerkon IP65
Mounting
Omega bracket with mounting hardware
Diffusion
onAir Panel 1 IP Medium Diffusion Filter
Spigot
TV Junior Spigot
