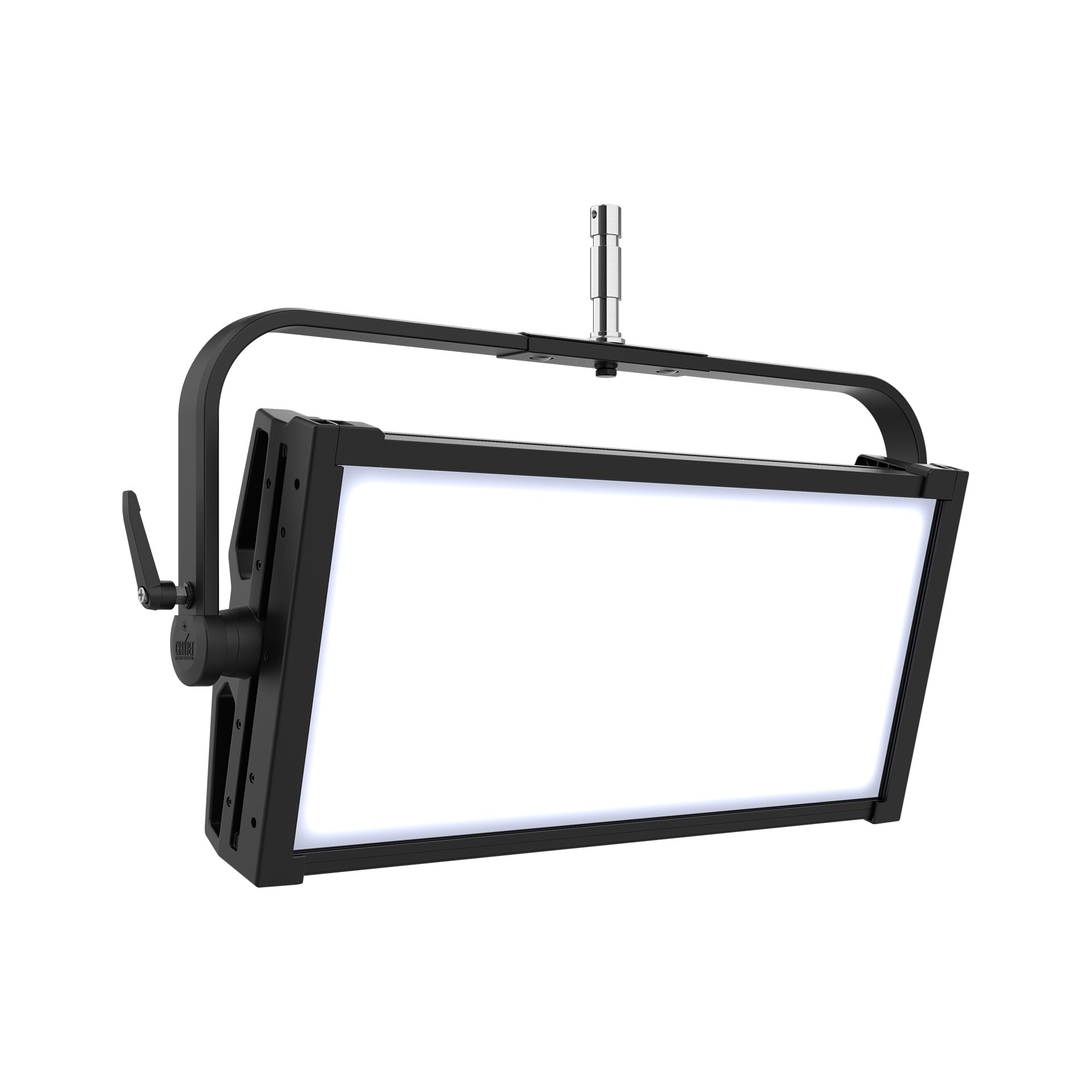

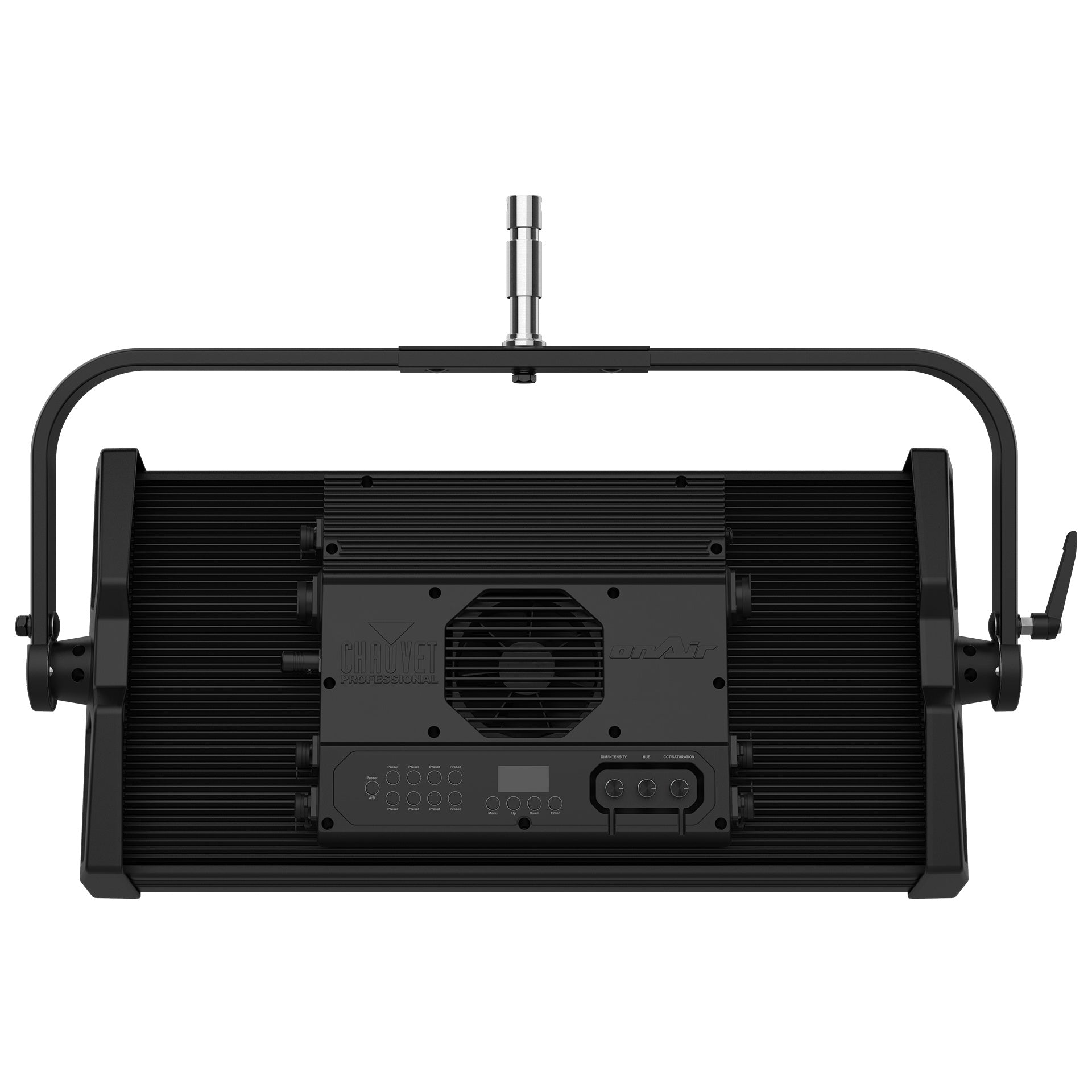

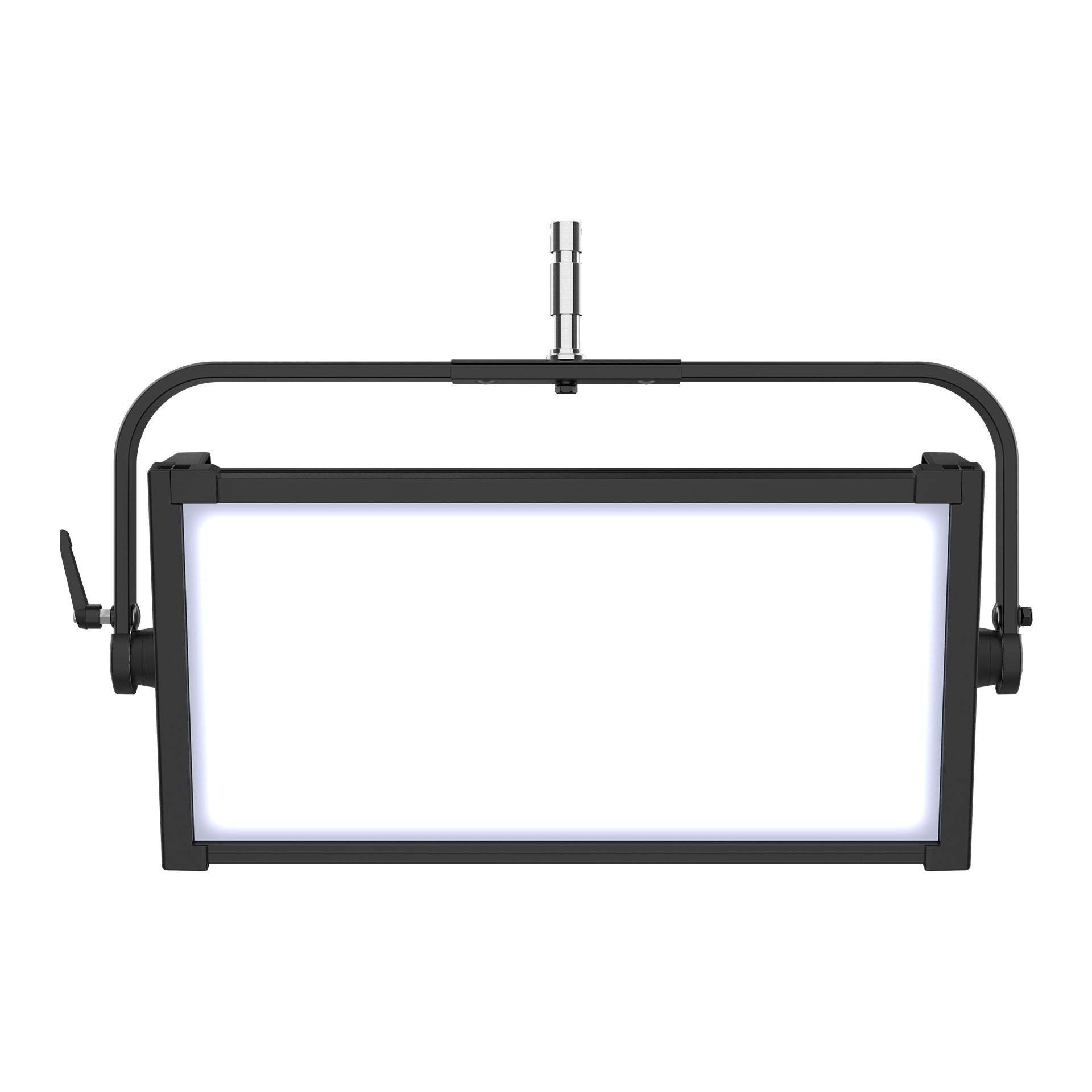

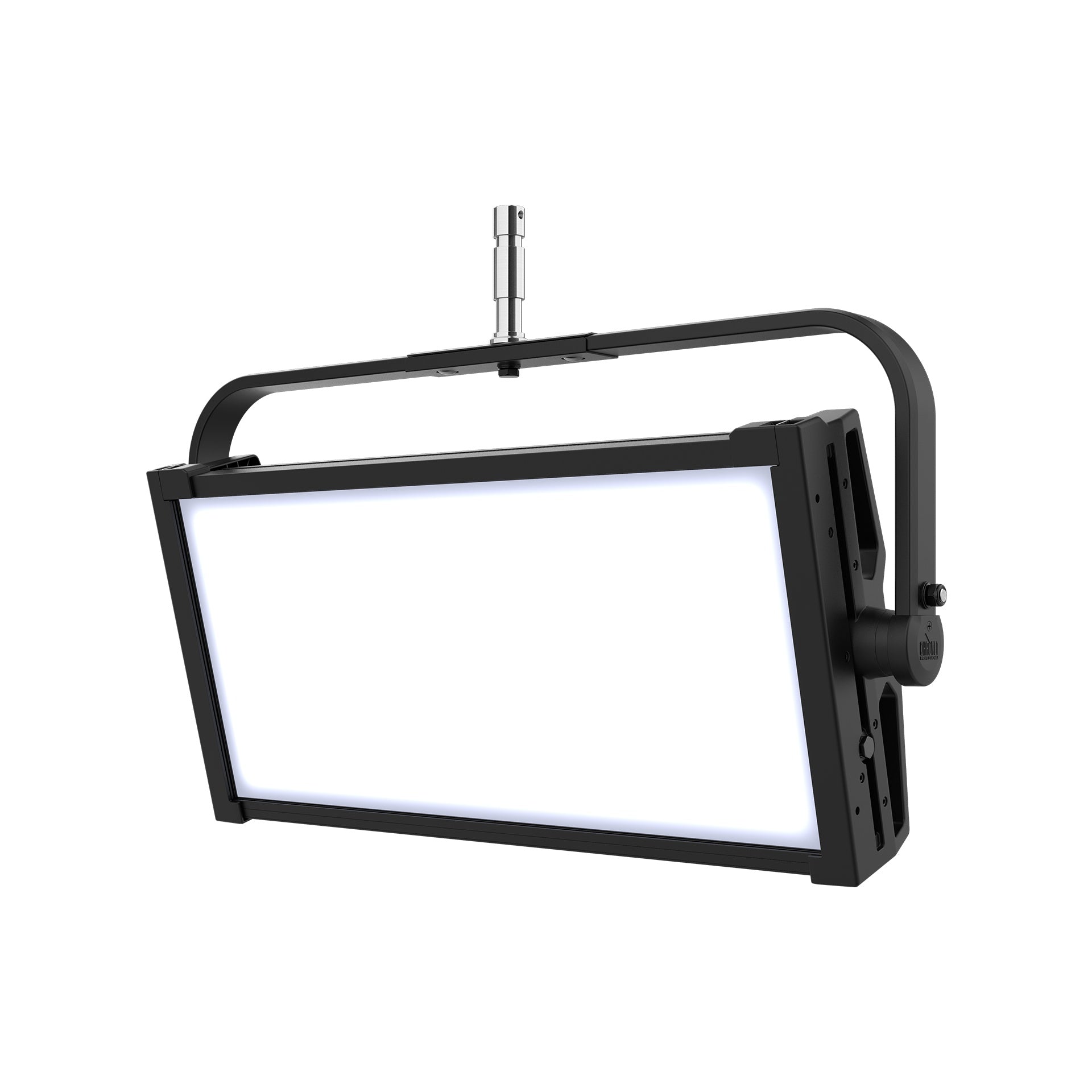

Chauvet Pro onAir Panel 2 IP Full-Spectrum LED Soft Light Panel

Chauvet Pro onAir Panel 2 IP Full-Spectrum LED Soft Light Panel

SoundPro Item: 130116 | Part Number: ONAIRPANEL2IP

$3,627.50
$4,164.00 $3,627.50
Your Price Sold out
MSRP: $4,164.00 | MAP: $3,627.50

Usually ships in 5-7 business days

  • IP65 All-Weather Housing Enables Dependable Outdoor And On-Location Operation
  • CRI 95 With TM-30 Compliance Ensures Accurate Color Reproduction For Camera
  • Adjustable PWM Up To 25,000 Hz Eliminates Rolling Shutter And Flicker Artifacts
  • CRMX Wireless Plus RDM Support Enables Remote Fixture Management Without Cabling
  • Emulated Red-Shift And Green Adjustment Replicate Tungsten And Correct Mixed Sources
  • Drop-In Accessory Slot Allows Tool-Free Filter And Grid Changes On Set
  • 28 VDC Battery Input Via XLR Extends Operation To Locations Without AC Power
Log in or register for YOUR best price

The Chauvet Pro onAir Panel 2 IP is built for cinematographers, broadcast lighting directors, and production crews who need broadcast-grade soft light that performs reliably outdoors and in demanding studio environments. Its IP65-rated aluminum alloy housing allows it to operate through rain and harsh weather without compromising output or electronics, making it a genuine alternative to indoor-only panels when shoots move on location.

Where the onAir Panel 2 IP separates itself from comparable 1x2 soft panels is in the depth of its color science and control flexibility. A CRI of 95 combined with TM-30 compliance and plus/minus green adjustment ensures accurate skin tone reproduction under camera scrutiny, while the emulated red-shift mimics the warmth of tungsten sources for narrative film work. Selectable PWM frequencies up to 25,000 Hz eliminate rolling shutter artifacts across all common frame rates, and the virtually silent fan operation keeps ambient noise below broadcast thresholds.

Control options span DMX, RDM, Art-Net, sACN, and CRMX wireless, with 12 DMX personalities covering everything from single-channel dimmer control to full 32-channel pixel-level access. An optional 28 VDC input via 3-pin XLR allows battery pack operation for remote locations without AC infrastructure. The drop-in accessory slot accommodates optional diffusion filters, intensifiers, and honeycomb grids, and mounting switches between Jr Pin and Omega Bracket without tools, streamlining rig changes on tight production schedules.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Certifications
CE, MET, FCC
Optical
Light Source (RGB)
448 LEDs (tri-color RGB), 1.4 W, 150 mA, 50,000 hours life expectancy
Light Source (WW)
448 LEDs (WW), 0.50 W, 150 mA, 50,000 hours life expectancy
Color Temperature Range
2800 to 8000 K
Color Temperature At Full
7220 K
CRI
95
Beam Angle
100.2°
Field Angle
157°
Lumens
22,508
Illuminance
349 lux @ 5 m
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Performance
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 30 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dim Modes
4
Dim Curves
4
Built-In Automated Programs
Yes
Control
Control Protocol
Art-Net, sACN, DMX, CRMX, RDM
DMX Channels
1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
Art-Net Channels
1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
Modes/Personalities
12 personalities (1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23, 32)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power And Current @ 120V
372 W, 3.104 A @ 120 V, 60 Hz
Power And Current @ 208V
371 W, 1.774 A @ 208 V, 60 Hz
Power And Current @ 230V
370 W, 1.608 A @ 230 V, 50 Hz
Power Linking
3 units @ 100 V; 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V; 8 units @ 240 V
Connectivity
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
Power Input (AC)
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Power Input (DC)
28 VDC, 3-pin IP65 XLR
Data Connectors
5-pin IP65 XLR, Seetronic etherCON compatible
Cable Length (Power)
5 ft (1.5 m)
Software Connection
USB
Construction
Dimensions
33.4" x 5.4" x 21.6" (849 x 139 x 553 mm)
Weight
37.9 lbs (17.1 kg)
Exterior Color
Black
Housing Material
Aluminum alloy
Environmental
Ambient Temperature
-4°F to 113°F (-20°C to 45°C)
Noise Level (Auto)
7.8 dB(A) @ 1 m
Noise Level (On)
20.3 dB(A) @ 1 m
Noise Level (Off)
6.1 dB(A) @ 1 m
Noise Level (Silent)
15.9 dB(A) @ 1 m
Included Items
Included
onAir Panel 2 IP, Seetronic Powerkon IP65 cable, Omega bracket with mounting hardware, onAir Panel 2 IP Medium Diffusion Filter, TV Junior Spigot
