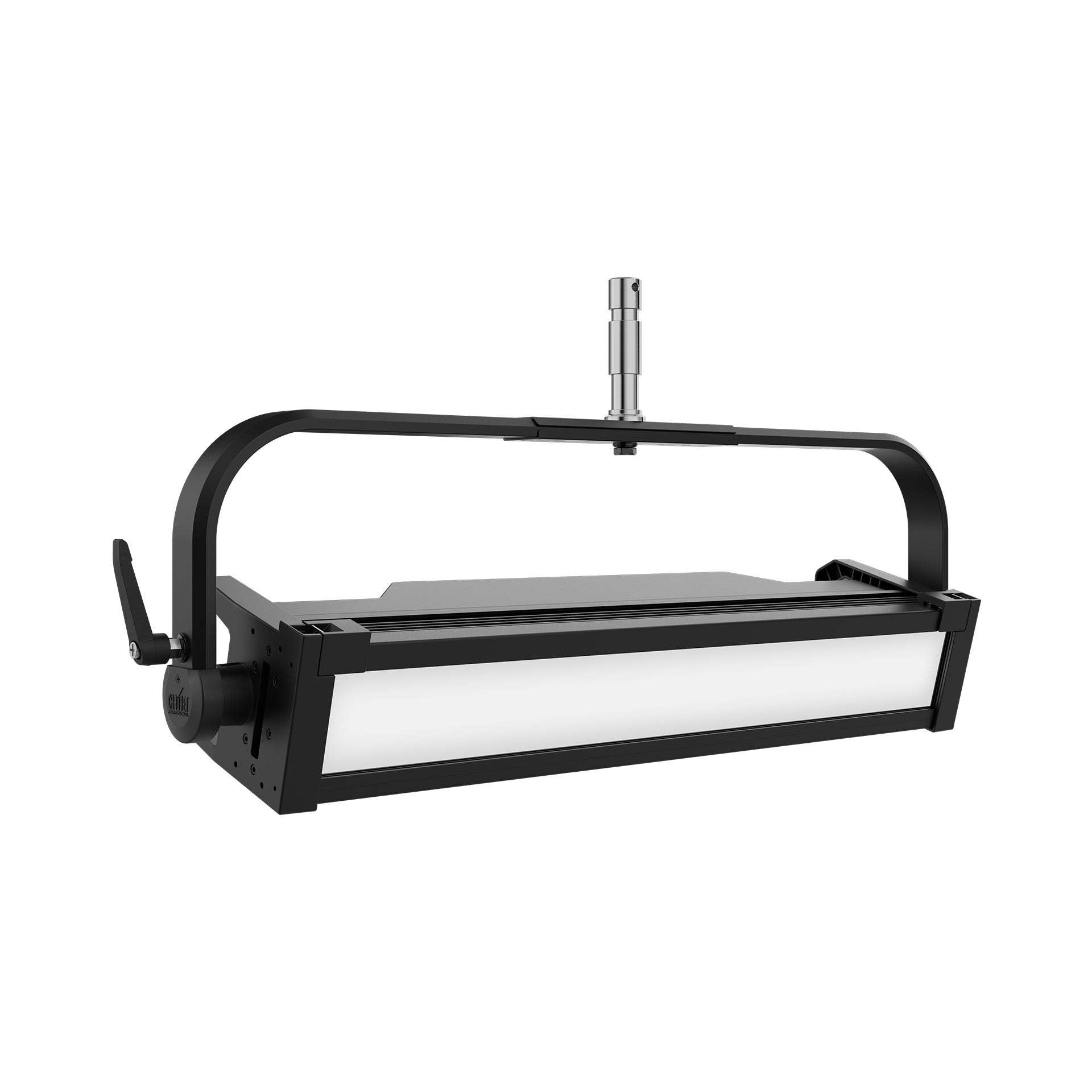

Chauvet Pro onAir Panel 3 IP Full-Spectrum LED Soft Light Panel
Chauvet Pro onAir Panel 3 IP Full-Spectrum LED Soft Light Panel
SoundPro Item: 143535 | Part Number: ONAIRPANEL3IP
Usually ships in 5-7 business days
- IP65 Rating With Pressure-Equalizing GORE Valve Enables Reliable Outdoor Deployment
- Virtual Color Wheel With Gel-Matched Presets Speeds Creative Color Matching On Set
- Adjustable PWM From 600 Hz To 25,000 Hz Eliminates On-Camera Flicker
- Emulated Red-Shift And Green Adjustment Provide Precise Color Grading Without Physical Gels
- Drop-In Accessory Slot Accepts Diffusers, Honeycomb Grids, And Intensifier Filters
- USB Type-C Port Enables Direct Firmware Updates Without External Hardware
- Swappable Jr. Pin And Omega Bracket Mounting For Fast Rigging Configuration Changes
The onAir Panel 3 IP is engineered for directors of photography, lighting directors, and production crews who need a dependable full-spectrum soft light that performs without compromise in any environment. Whether rigged above a broadcast set, deployed on a remote location shoot in unpredictable weather, or integrated into a permanent installation for live events, its IP65-sealed die-cast magnesium housing handles the demands that standard studio fixtures cannot. The 1x3 format panel produces 8080 lumens of high-CRI white light with a color temperature range of 2800K to 8000K, backed by high CRI and CQS scores that satisfy the stringent accuracy requirements of on-camera work and virtual production environments.
Operational flexibility is central to this fixture's value on a professional production. The 28 VDC input via 3-pin IP65 XLR allows the panel to run from an external battery pack, making it genuinely useful for run-and-gun location work without access to mains power. Control options span DMX, RDM, Art-Net, sACN, WDMX, and CRMX wireless, with 14 DMX personalities covering everything from single-channel intensity control to 24-channel granular color management. A drop-in accessory slot accepts optional diffusers, honeycomb grids, and intensifier filters, and mounting hardware swaps between a Jr. Pin and Omega bracket without tools, giving riggers the freedom to adapt quickly between setups.
For noise-sensitive broadcast and studio environments, the virtually silent thermal management and adjustable PWM — selectable from 600 Hz to 25,000 Hz — eliminate fan noise and on-camera flicker that plague lesser fixtures. The 16-bit dimming curve, four dim modes, and four dim curves give console operators precise control over transitions, while the virtual color wheel with gel-matched presets, plus-or-minus green adjustment, and emulated red-shift provide the color-grading tools needed to match mixed lighting conditions on set without reaching for physical gels.
Specifications
