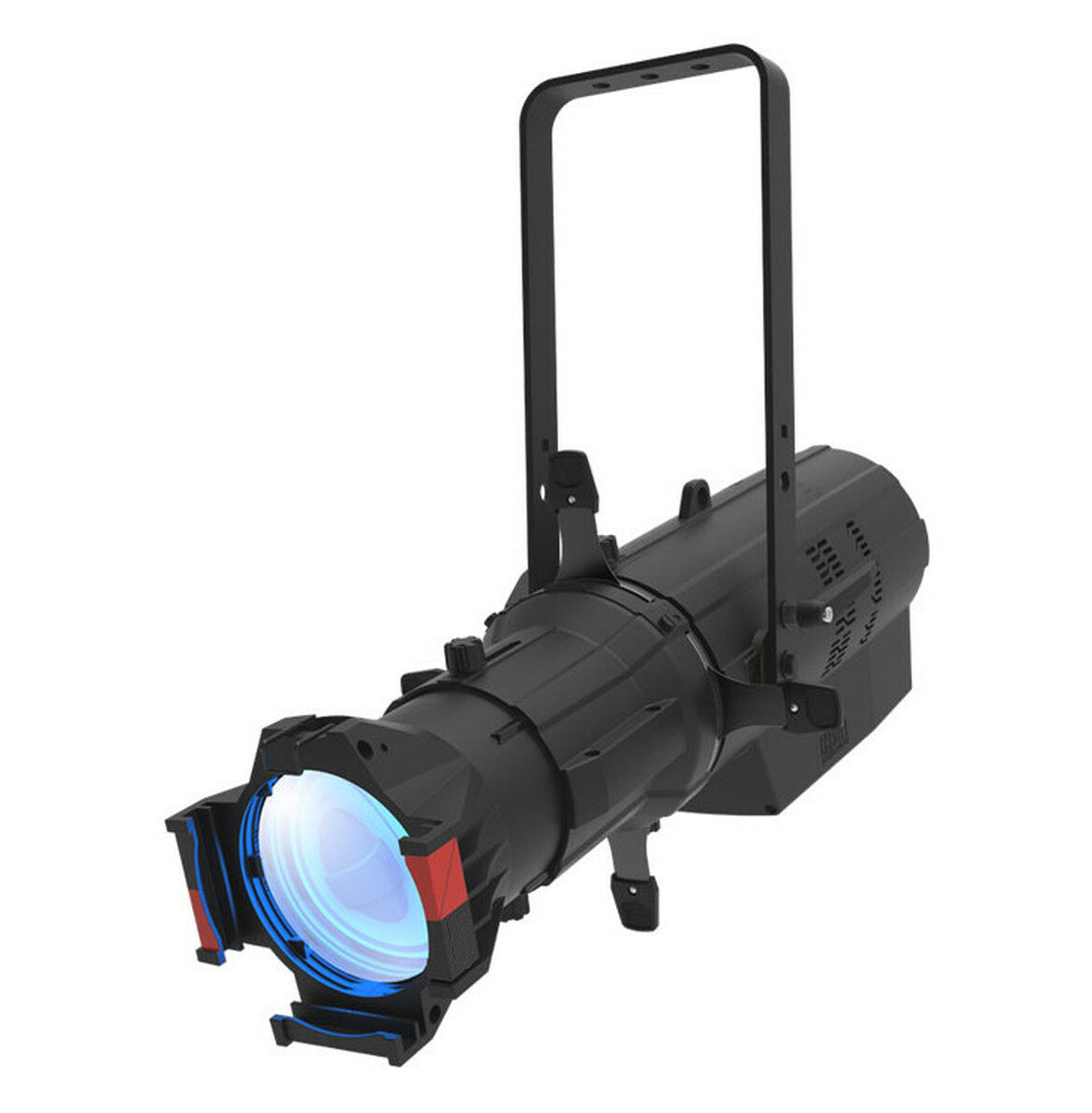

Chauvet Pro Ovation E-910FC IP RGBAL Ellipsoidal
Chauvet Pro Ovation E-910FC IP RGBAL Ellipsoidal
SoundPro Item: 35132 | Part Number: OVATIONE910FCIP
Usually ships in 5-7 business days
- Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
- Fully IP65 rated for seasonal use indoors or out
- Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
- Virtual Color wheel with color matched to popular gel colors
- Color Temperature Presets from 2800 K to 6500 K with high CRI and CQS
- Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
- Flat, even field of light for superior gobo projection
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Requires 19°, 26°, 36°, or 50° lens tube (sold separately).
Ovation E-910FC IP takes the high-performance, full RGBA-Lime color-mixing marvel of the Ovation E-910FC outdoors. Our standard shutter assembly and lenses lend familiarity and ease of use to this IP65 ERS style fixture that offers Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full bit dimming (per color and master), selectable PWM, RDM and onboard dimming curves selection. Also accessible is our virtual color wheel which matches popular color gels.
- Light source91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy
- Color temperature
- Range: 2800 to 6500 K
- At full: 6031K
- CRI (at 3200K)86
- Beam angles
- 5° lens: 7°
- 10° lens: 10°
- 14° lens: 11°
- 19° lens: 19°
- 26° lens: 24°
- 36° lens: 28°
- 50° lens: 41°
- 15° - 30° lens (narrow): 13°
- 15° - 30° lens (wide): 24°
- 25° - 50° lens (narrow): 23°
- 25° - 50° lens (wide): 36°
- Field angles
- 5° lens: 7°
- 10° lens: 10°
- 14° lens: 14°
- 19° lens: 19°
- 26° lens: 26°
- 36° lens: 34°
- 50° lens: 51°
- 15° - 30° lens (narrow): 15°
- 15° - 30° lens (wide): 29°
- 25° - 50° lens (narrow): 26°
- 25° - 50° lens (wide): 50°
- Lumens
- 19° lens: 3,236
- 26° lens: 4,316
- 36° lens: 3,918
- 50° lens: 3,813
- Illuminance
- 5° lens: 16,300 lux @ 5 m
- 10° lens: 7,430 lux @ 5 m
- 14° lens: 4,420 lux @ 5 m
- 19° lens: 2,530 lux @ 5 m
- 26° lens: 1,720 lux @ 5 m
- 36° lens: 1,020 lux @ 5 m
- 50° lens: 457 lux @ 5 m
- 15° - 30° lens (narrow): 4,260 lux @ 5 m
- 15° - 30° lens (wide): 1,620 lux @ 5 m
- 25° - 50° lens (narrow): 1,790 lux @ 5 m
- 25° - 50° lens (wide): 825 lux @ 5 m
- Selectable PWM600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000Hz
- Dynamic effects
- Dimmer: electronic
- Shutter/strobe: electronic
- Focus: manual
- Strobe rate: 0 to 28 Hz
- Standalone color mixing: yes
- Color temperature presets: yes
- Dim modes: 4
- Built-in automated programs: yes
- Connections
- Power connection: Edison (local) plug to Seetronic Powerkon IP65
- Power input: Seetronic Powerkon IP65
- Power output: Seetronic Powerkon IP65
- Data connectors: 5-pin XLR
- Power cable length: 5 ft (1.5 m)
- Control
- Control protocol: DMX, RDM
- DMX channels: 1, 4, 6, 8, 11, 13, 14, 16 or HSV
- Modes/personalities: 9 personalities (1, 4, 6, 8, 11, 13, 14, 16 or HSV)
- Electrical
- Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power linking: 7 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
- Power and current
- 225 W, 1.88 A @ 120 V, 60 Hz
- 236 W, 1.14 A @ 208 V, 60 Hz
- 241 W, 1.05 A @ 230 V, 50 Hz
- Physical
- IP rating: IP65, outdoor/wet with pressure equalizing M12 GORE valve
- Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
- Dimensions (fixture only): 26" x 11.33" x 10.4"
- Weght (fixture only): 23.2 pounds (10.5 kg)
