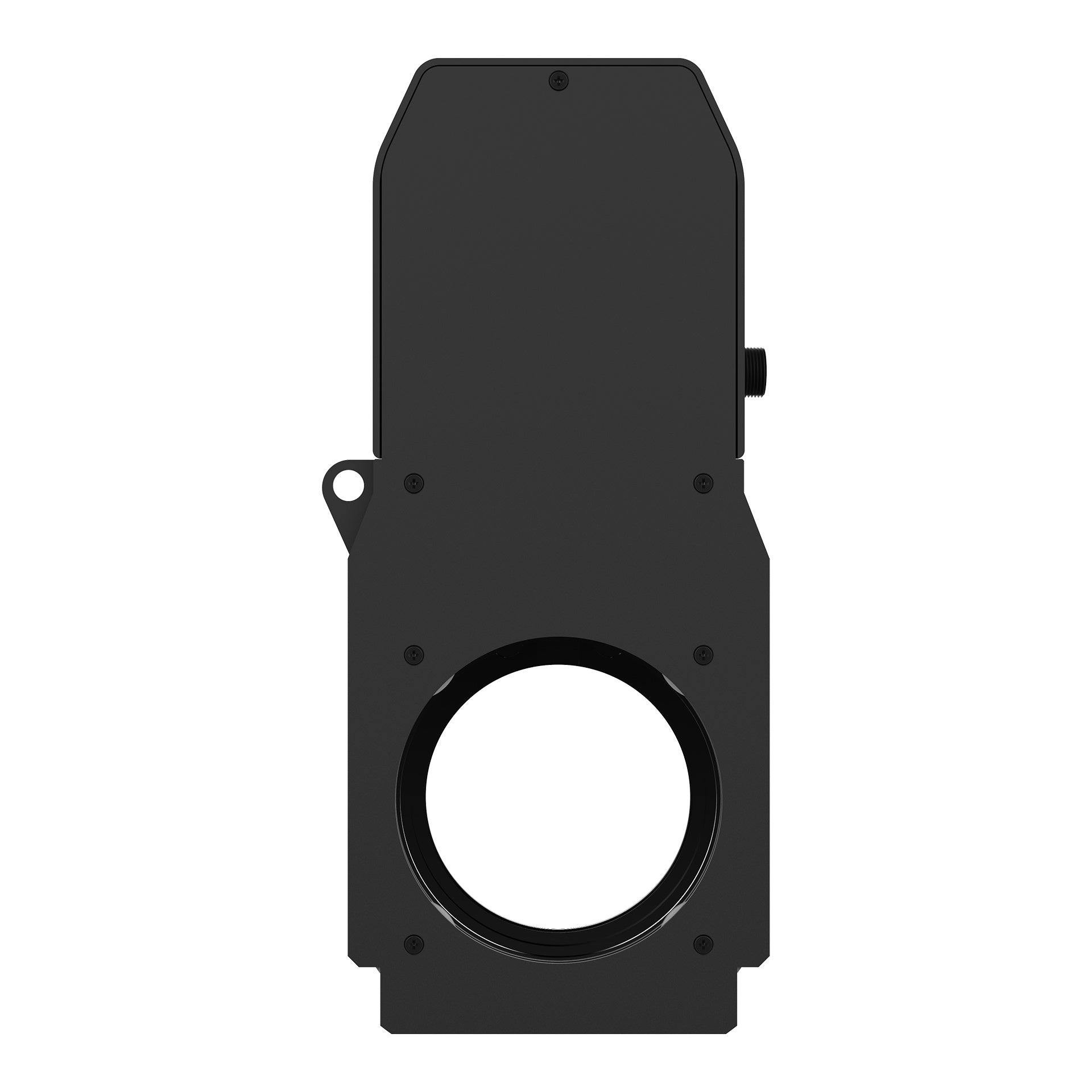

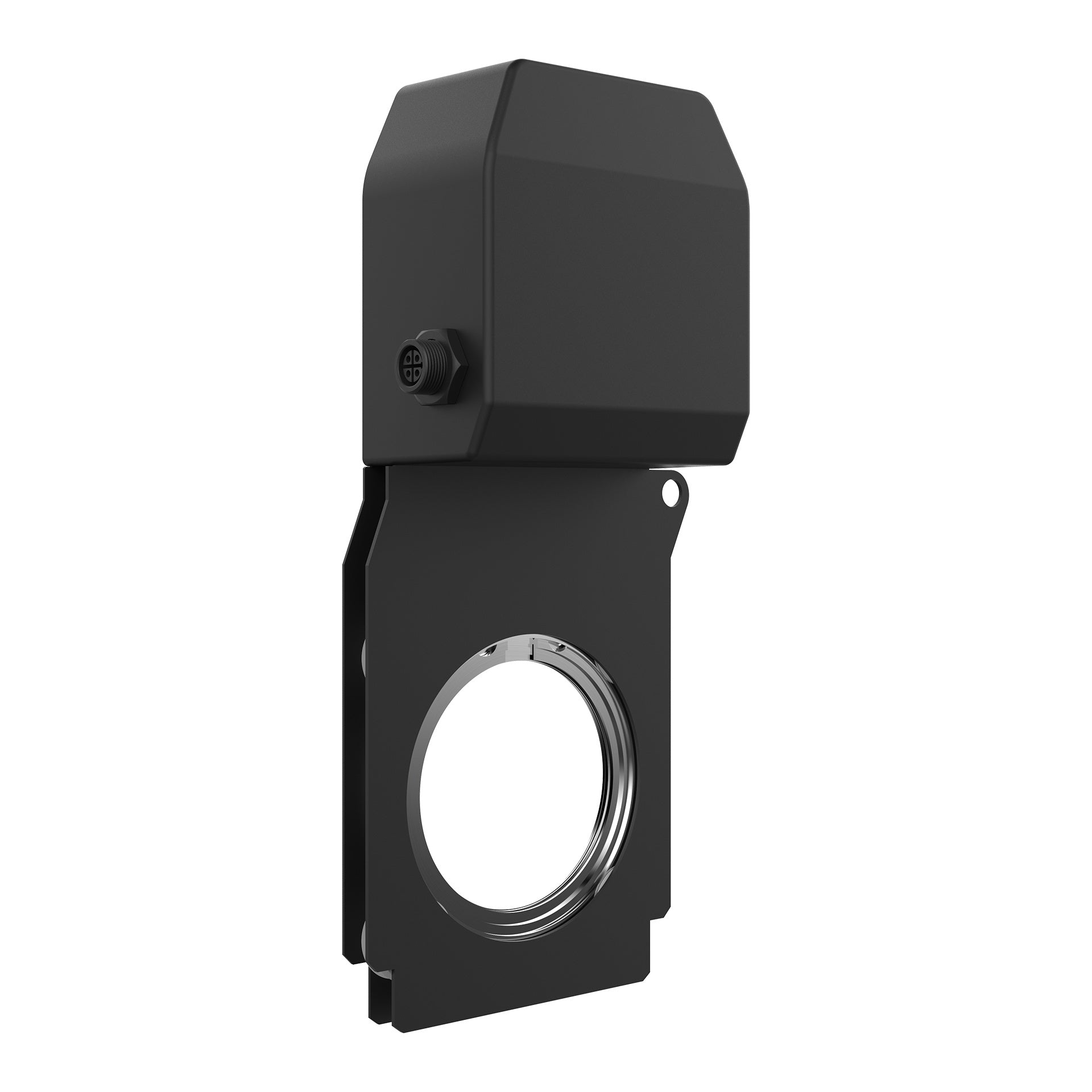

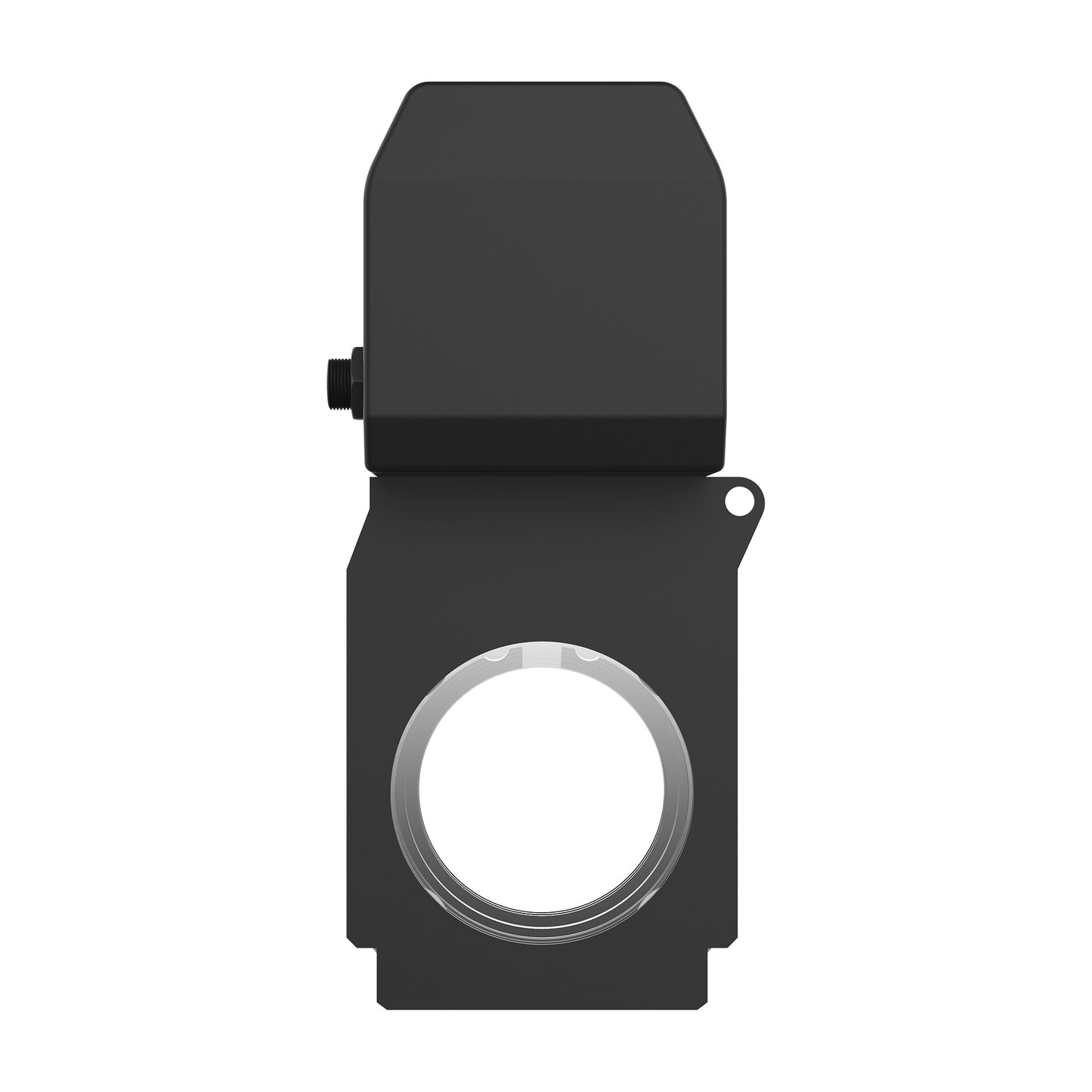

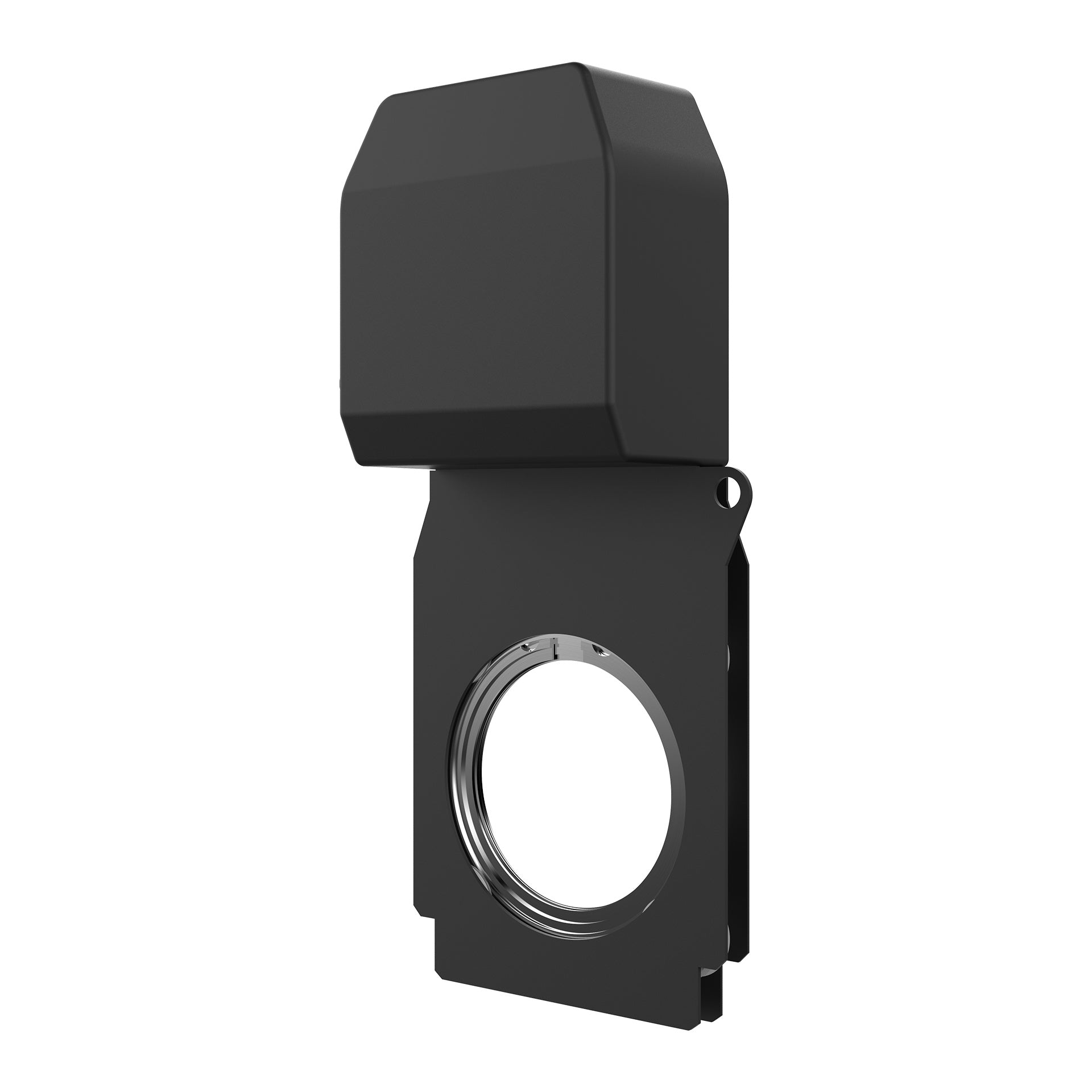

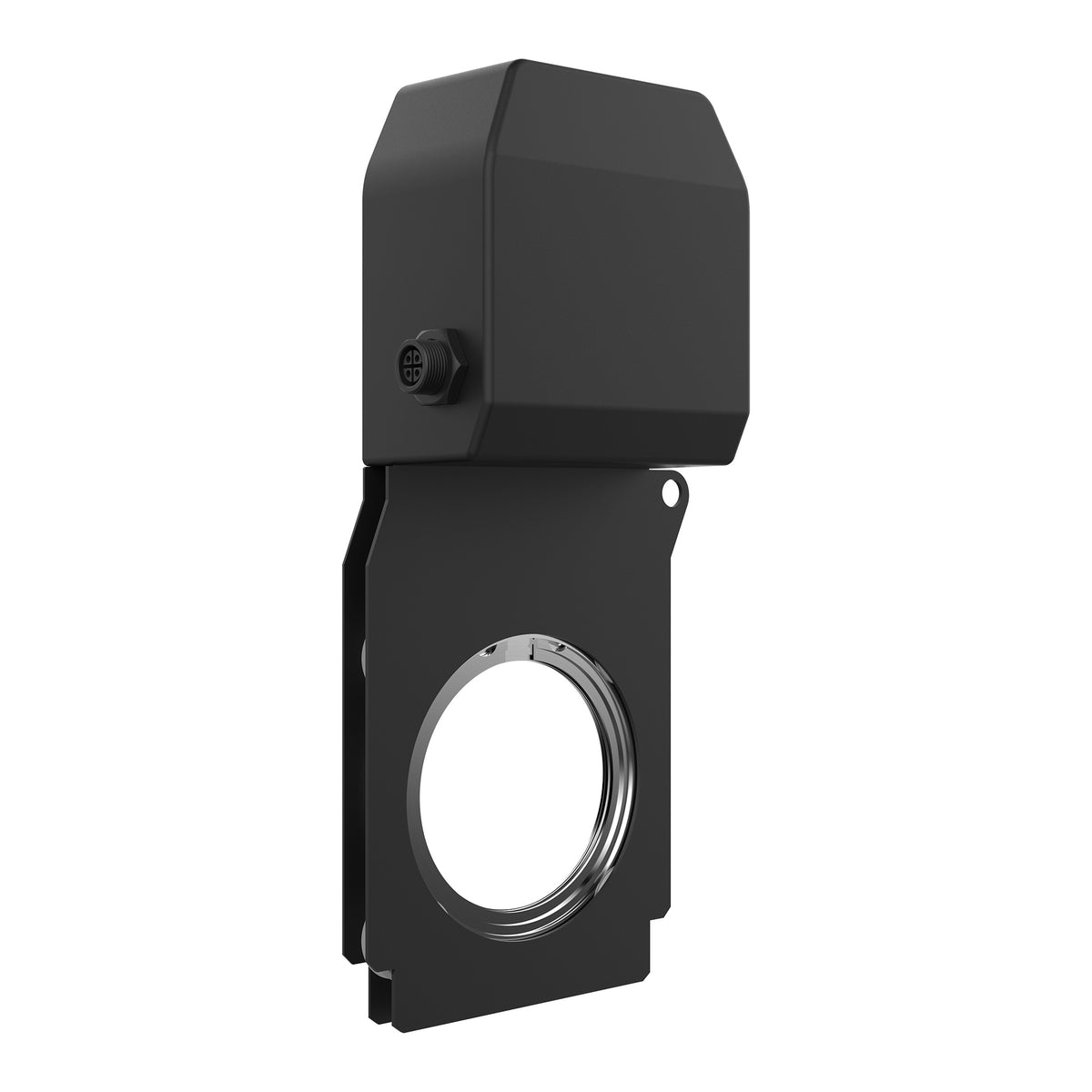

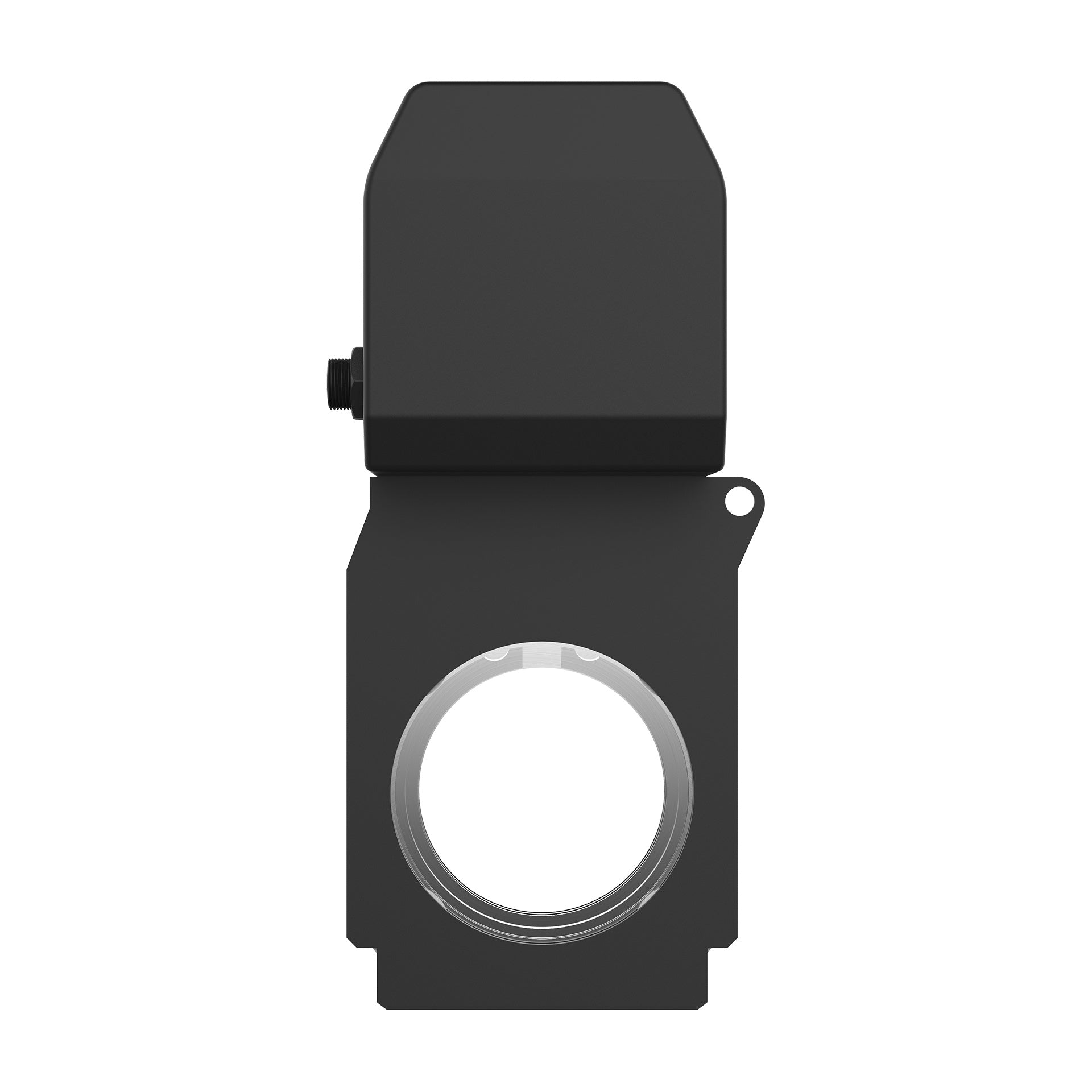

Chauvet Pro OVATIONGR1IP IP65 Gobo Rotator for Ovation Fixtures

Chauvet Pro OVATIONGR1IP IP65 Gobo Rotator for Ovation Fixtures

SoundPro Item: 18560 | Part Number: OVATIONGR1IP

$290.00
$333.00 $290.00
Your Price Sold out
MSRP: $333.00 | MAP: $290.00

Usually ships in 5-7 business days

  • IP65 Rating Enables Temporary Outdoor And Wet-Location Deployment
  • Single Or Counter-Rotating Dual Gobo Modes Create Layered Pattern Effects
  • Fully Indexable DMX Positioning Enables Exact And Repeatable Gobo Alignment
  • Stepper Motor Drive Ensures Quiet, Fluid Movement With No Stalling
  • Integrated Power And Data From Host Fixture Eliminates External Supply
  • Accepts Standard B-Size Metal, Glass, Or Effect Gobos For Creative Flexibility
Log in or register for YOUR best price

The Chauvet Pro OVATIONGR1IP is purpose-built for lighting designers and production teams who need weather-resistant gobo motion on outdoor or wet-location rigs. Engineered exclusively for the Ovation E-260WW IP and E-910FC IP, it attaches directly to the fixture and eliminates the need for a separate power run — the host unit supplies both voltage and DMX data through a proprietary IP65-rated cord. This tight integration means the rotator is governed entirely by the fixture's existing control personality, keeping patch management clean on large-format shows.

For theatrical productions, themed environments, and architectural installs where gobo effects must hold up against rain and humidity, the IP65 housing provides temporary outdoor and wet-use protection without compromise. The aluminum die-cast construction keeps the unit rigid under continuous operation, and the stepper motor drive eliminates the mechanical noise and stuttering that can pull attention during quiet dramatic moments. Operators can dial in single-gobo rotation, counter-rotating dual-gobo layering, or fully indexed static positioning — all via a single DMX channel — giving programmers precise, repeatable control over every cue.

Accepting standard B-size metal, glass, or effect gobos, the OVATIONGR1IP is compatible with the broadest range of stock and custom gobo inventory already in most touring and install shops, making it a low-friction addition to any Ovation-based rig that demands dynamic projection in demanding outdoor conditions.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65, temporary outdoor/wet use
Certifications
CE
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Dimensions
Dimensions
10.9 x 4.7 x 2.2"
Weight
Weight
2.4 lbs
Electrical
Input Voltage
24 VDC, 372 mA (via Ovation E-260WW IP)
Performance
Gobo Size
B (metal, glass or effect)
Effects
CW or CCW Rotation, indexing, infinite rotation at variable speeds
Speed Range
0.047 – 21 RPM (17° – 7,560° per minute)
Controls
Control Protocol
DMX
DMX Channels
1
Connectivity
Power Connection
Proprietary 4-pin IP65 input power/data cord
Data Connectors
Proprietary 4-pin IP65 input power/data cord
Cable Length (Power/Data)
19"
Construction
Housing Material
Aluminum die-cast
Exterior Color
Black
Included Items
Included
Ovation GR-1 IP, Power & Data Control Cable
