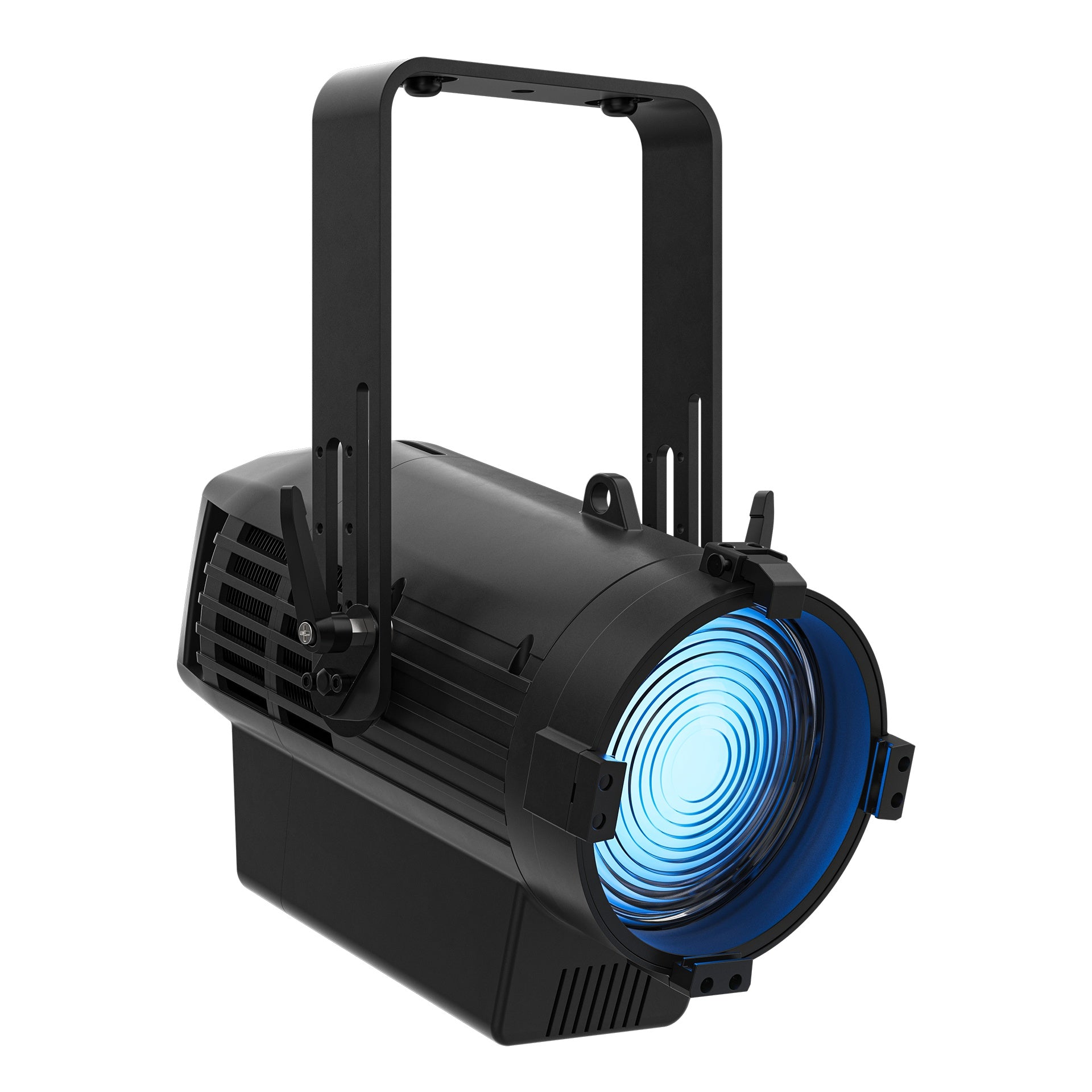

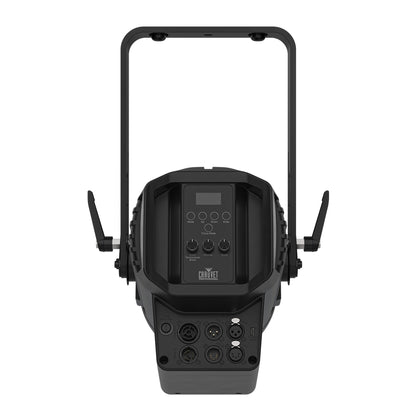

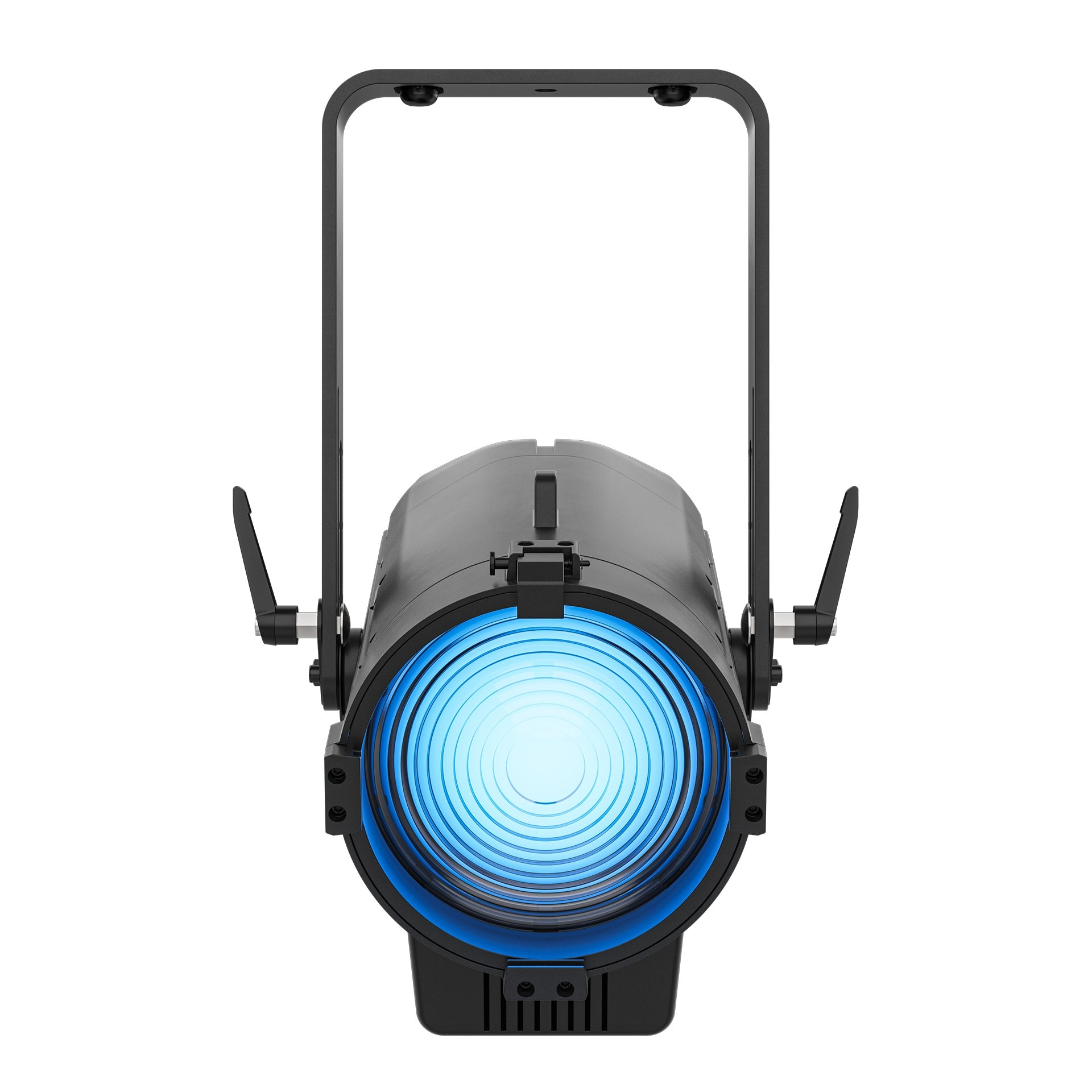

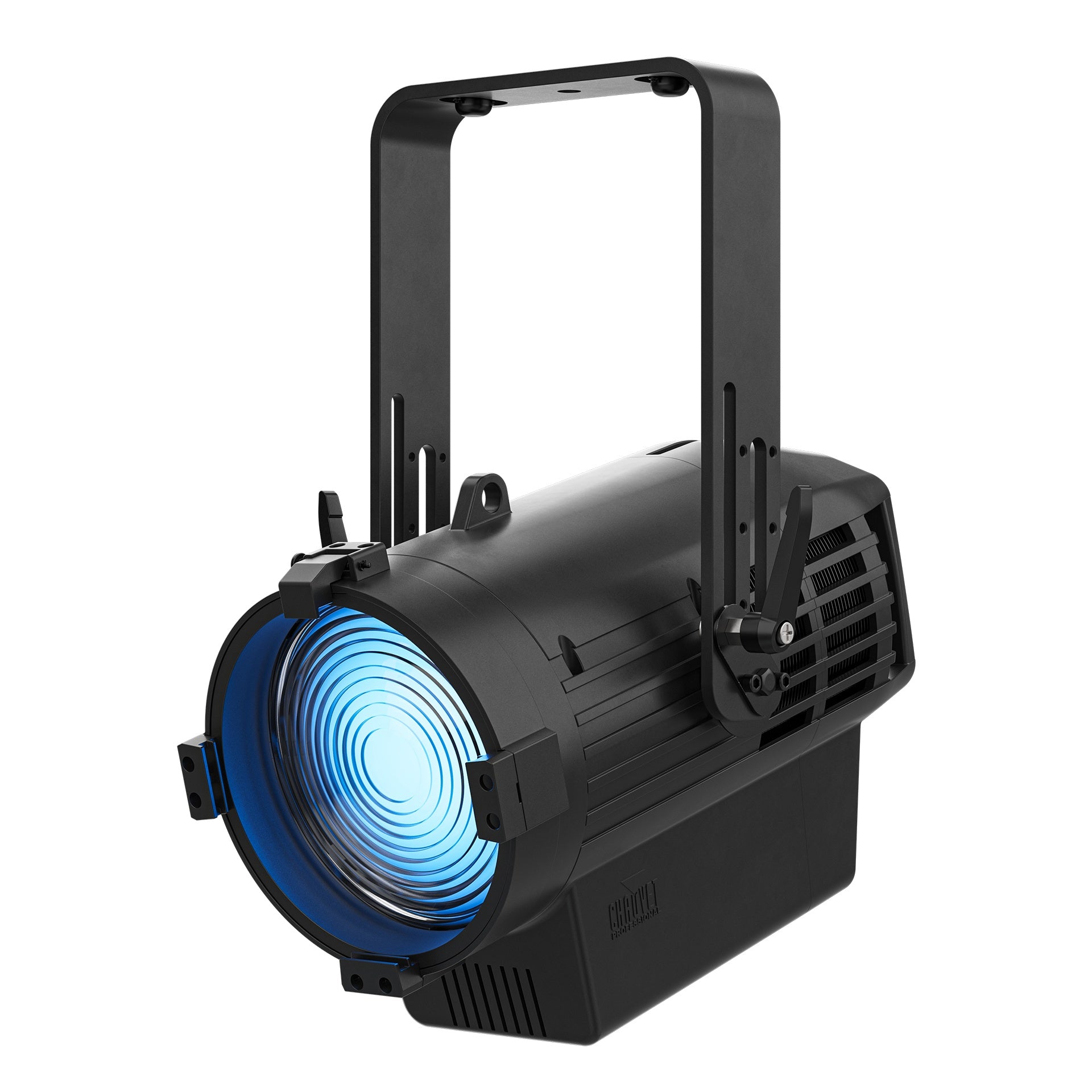

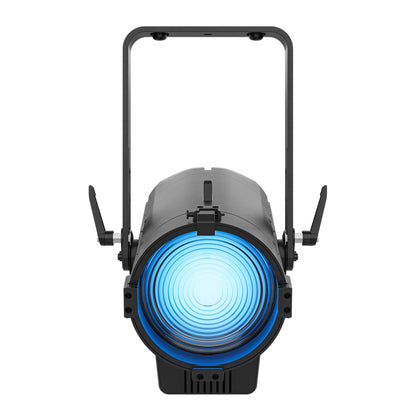

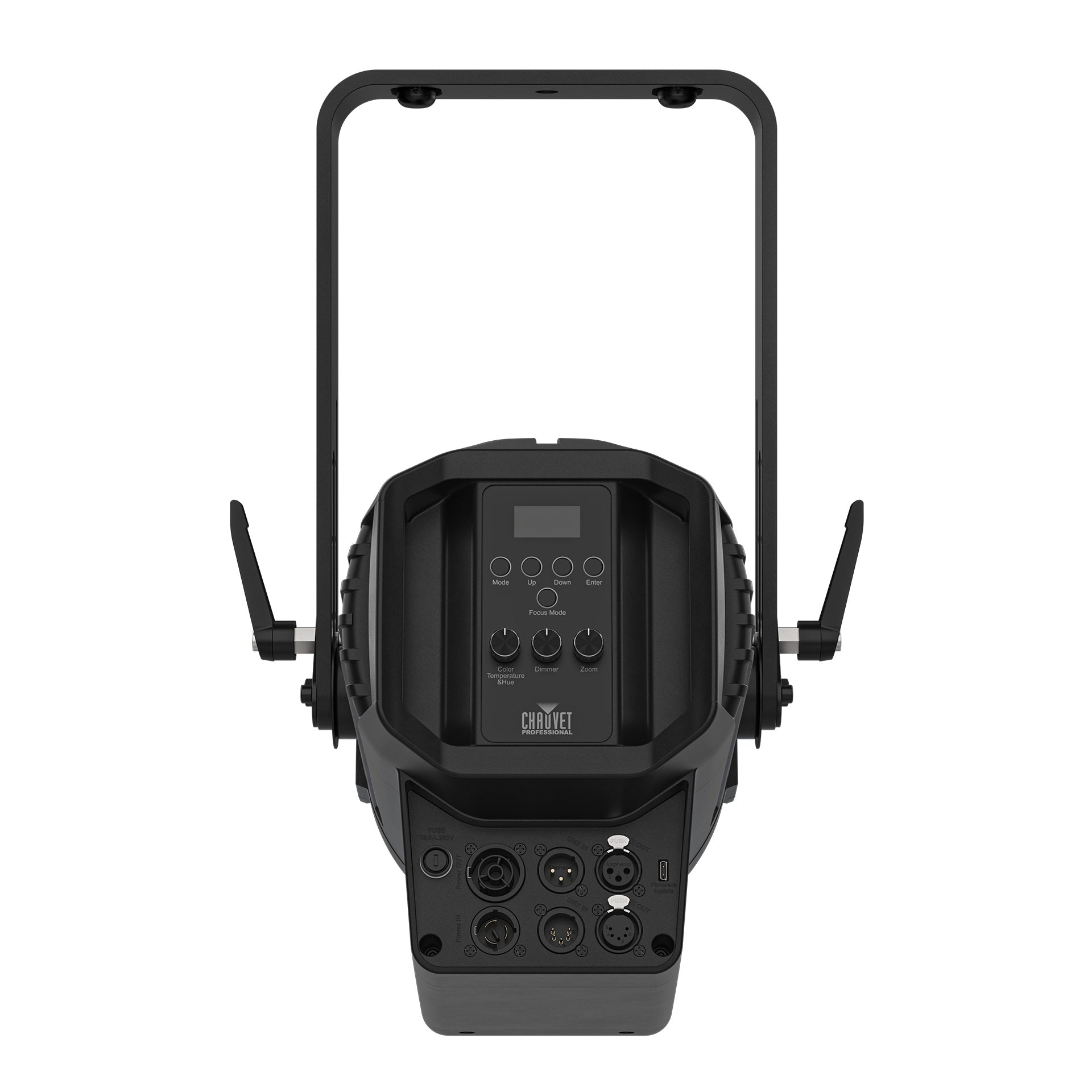

Chauvet Pro Ovation Rêve F-3 RGBAM Motorized Fresnel Wash Fixture

Chauvet Pro Ovation Rêve F-3 RGBAM Motorized Fresnel Wash Fixture

SoundPro Item: 143530 | Part Number: OVATIONREVEF3

$2,672.50
$3,068.00 $2,672.50
Your Price Sold out
MSRP: $3,068.00 | MAP: $2,672.50

Usually ships in 5-7 business days

  • Full-Spectrum RGBAM LED Engine With 96 CRI Delivers Film-Grade Color Accuracy
  • Virtual Color Wheel Digitally Replicates Popular Gel Colors Without Consumables
  • Adjustable PWM Selectable Up To 25,000 Hz Eliminates On-Camera Flicker
  • Ultra-Smooth 18-Bit Dimming Produces Artifact-Free Fades In Live Capture Environments
  • RDM Support Enables Remote Addressing And Configuration Across Large Rigs
  • Adjustable Yoke Design Allows Mounting In Low-Clearance Grid Positions
  • USB Port Enables In-Field Firmware Updates Without Returning To Shop
Log in or register for YOUR best price

The Chauvet Pro Ovation Rêve F-3 is engineered for lighting designers and rental houses working in environments where noise and on-camera flicker are unacceptable. Powered by a 126-LED RGBAM engine with a 96 CRI, it produces soft, richly colored wash light that holds up under camera scrutiny as well as to the live eye. With a motorized zoom spanning from a tight narrow throw to a sweeping wide wash, a single fixture covers a broad range of positions across a repertoire production or a touring television shoot without swapping units or repositioning.

The fixture's linear CCT control from 2800 K to 8000 K with plus/minus green adjustment gives cinematographers and broadcast LDs the same color science tools found in high-end film fresnels, while the virtual color wheel digitally replicates popular gel colors without consumables. Adjustable PWM — selectable from 600 Hz up to 25,000 Hz — eliminates on-camera flicker regardless of shutter angle, and ultra-smooth 18-bit dimming ensures clean fades in live performance capture. Three on-board control dials allow stand-alone operation and quick in-situ adjustments without a console, and RDM support enables remote addressing in large installed or touring rigs.

An aluminum die-cast housing, an adjustable yoke designed for low-clearance rigging scenarios, and an auto-ranging universal power supply make the Ovation Rêve F-3 equally at home in a permanent theater grid, a television studio, or a house of worship with challenging overhead geometry. Eight DMX personalities give programmers the channel granularity they need whether running a compact show or a fully channeled broadcast rig.

Downloads

View full details

Specifications

Certifications
Certifications
CE, MET, FCC
IP Rating
IP20, dry location
Optical
Light Source
126 LEDs (22 red, 14 green, 16 blue, 6 royal blue, 28 amber, 40 mint) 5.8 to 8 W, (1.82 A) 50,000 hours life expectancy
CRI
96
Color Temperature Range
2800 to 8000 K
Color Temperature (At Full)
5249 K
Beam Angle
10.9° to 66.5°
Field Angle
19.3° to 88.5°
Cutoff Angle
26.2° to 97.3°
Zoom Range
10.9° to 97.3°
Lumens (Narrow)
6179 lm
Lumens (Wide)
14302 lm
Lumens (50%)
10330 lm
Illuminance (Narrow)
5375 lux @ 5 m
Illuminance (Wide)
539 lux @ 5 m
Illuminance (50%)
1858 lux @ 5 m
Front Lens Diameter
210.8 mm
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Performance
Dimmer
Electronic
Shutter/Strobe
Electronic
Zoom
Motorized
Strobe Rate
0 to 30 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dim Modes
4
Dim Curves
4
Built-In Automated Programs
Yes
Control
Control Protocol
DMX, RDM
DMX Channels
1, 5, 6, 8, 12, 14ch1, 14ch2, or 18
Modes/Personalities
8
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current (120 V)
528 W, 4.39 A @ 120 V, 60 Hz
Power and Current (208 V)
517 W, 2.52 A @ 208 V, 60 Hz
Power and Current (230 V)
513 W, 2.22 A @ 230 V, 50 Hz
Power Linking
2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
Connectivity
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
3- and 5-pin XLR
Cable Length (Power)
5 ft (1.5 m)
Software Connection
USB
Construction
Dimensions
15 x 13.5 x 15.7 in (381.4 x 342 x 399.3 mm)
Weight
26.2 lb (11.9 kg)
Exterior Color
Black
Housing Material
Aluminum die-cast
Accessory Holder/Gel Frame Size
7.8 in (198 mm)
Environmental
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Noise Level (Idle)
4.1 dB(A) @ 1 m
Noise Level (Auto)
37.2 dB(A) @ 1 m
Noise Level (On)
39.1 dB(A) @ 1 m
Noise Level (Off)
6.5 dB(A) @ 1 m
Noise Level (Silent)
35.1 dB(A) @ 1 m
Included Items
Includes
Ovation Reve F-3, Seetronic Powerkon power cord, gel frame holder (7.5 in/191 mm accessories), gel frame, (1) 140mm Omega bracket with mounting hardware
