Specifications
Certifications
IP Rating
IP20
Compliance
CE, MET, FCC, CB
Dimensions
Product Length
14"
Product Width
8"
Product Height
8"
Weight
Product Weight
16.4 lbs
Electrical
Input Voltage
100 to 277 VAC, 50/60 Hz (auto-ranging)
Power And Current At 120 V
199 W, 1.66 A @ 120 V, 60 Hz
Power And Current At 208 V
197 W, 0.96 A @ 208 V, 60 Hz
Power And Current At 230 V
196 W, 0.87 A @ 230 V, 50 Hz
Performance
Light Source
RGBCAM LED Array. L70 rating: 55,000 hours under LED manufacturers test conditions (LM-80: 10,000hrs)
Colors
VCW and CCT Presets
Connectivity

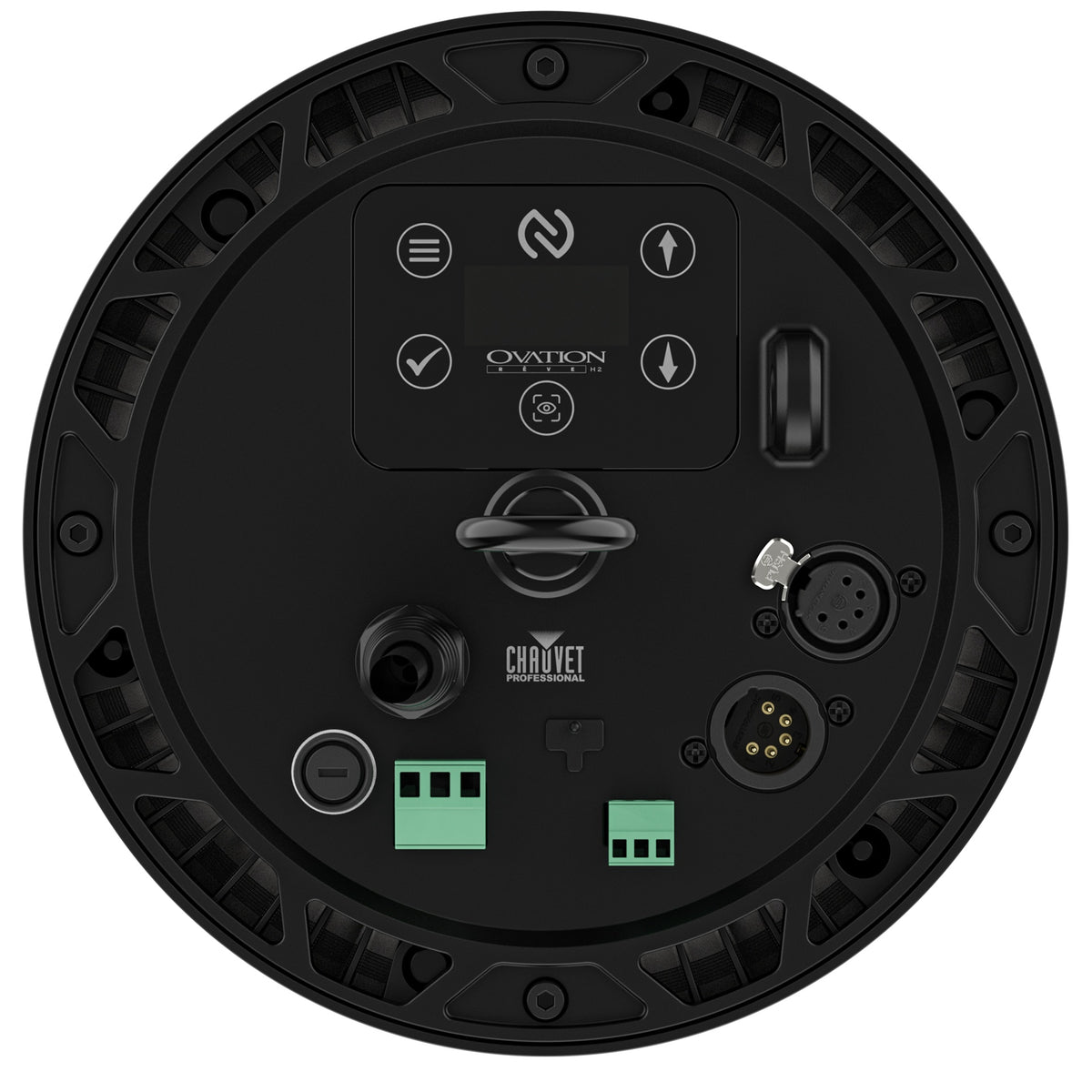

Power Input
Hard-wired, Seetronic Powerkon IP65, 48v Emergency
Data Connectors
5-pin XLR, Phoenix connector
Control Protocol
DMX, RDM, CRMX
Shipping
Package Weight
18.73939019819661 lbs
Package Length
20.669291338582678"
Package Width
12.401574803149606"
Package Height
10.826771653543307"
