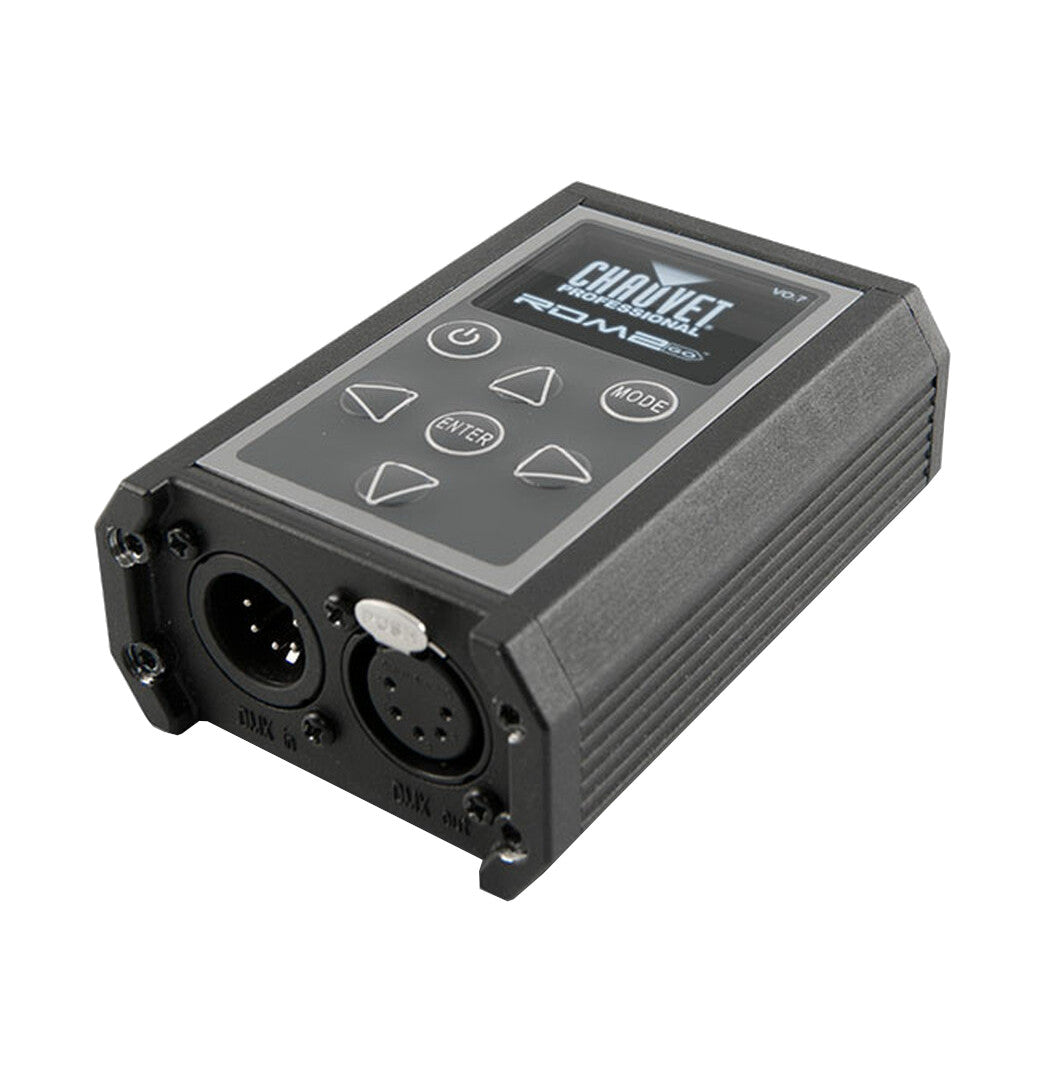

Chauvet Pro RDM2go RDM Configuration and Test Tool
Chauvet Pro RDM2go RDM Configuration and Test Tool
SoundPro Item: 32932 | Part Number: RDM2GO
Usually ships in 5-7 business days
- Handheld tool for managing fixtures and systems with DMX, RDM, and Ilumicode based control
- Easily address, locate and monitor RDM capable fixtures
- Check DMX addressing, cabling, and store/playback basic snapshots
- Address and set personalities of Ilumicode based architectural fixtures
Requires DMX cables (not included)
The Chauvet Pro RDM2go RDM Configuration and Test Tool is a multi-functional tool for working with fixtures over a DMX/RDM data line. This palm-sized controller performs a multitude of tasks including RDM functionality, DMX snapshot and test-scene record and playback, DMX input and output monitoring. RDM2go features a built-in DMX cable integrity checker, and an easy to read OLED display. It also addresses Chauvet's Iluminarc IP fixtures that do not have a display. The unit easily recharges via a standard micro USB jack and comes with a convenient carry pouch and DMX connector converters.
- Dynamic effects
- Standalone color mixing: yes
- Color temperature presets (Illumicode): yes
- Dim modes (Illumicode): yes
- Customizable programs: yes
- Recall custom programs: yes
- Connections
- Power input: micro USB-B male
- Data connectors: 5-pin XLR
- Power cable length: 3 ft (0.91 m)
- Battery
- Type: Lithium Ion
- Rechargeable: yes
- Life: 8 hours
- Power: 3.7 V, 1,200 mAh
- Control
- Protocols: DMX, RDM, Illumicode
- DMX channels: 1, 2, 3, 4, 5, 6 or 7
- Modes/personalities (Illumicode): 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D)
- Power and current
- 18 W, 0.15 A @120V, 60Hz
- 18 W, 0.09 A @208V, 60Hz
- 18 W, 0.08 A @230V, 50Hz
- Physical
- Housing: aluminum die-cast
- IP rating: IP20, dry location
- Dimensions: 2.76x1.52x3.92"
- Weight: 0.77 pounds (0.35 kg)
