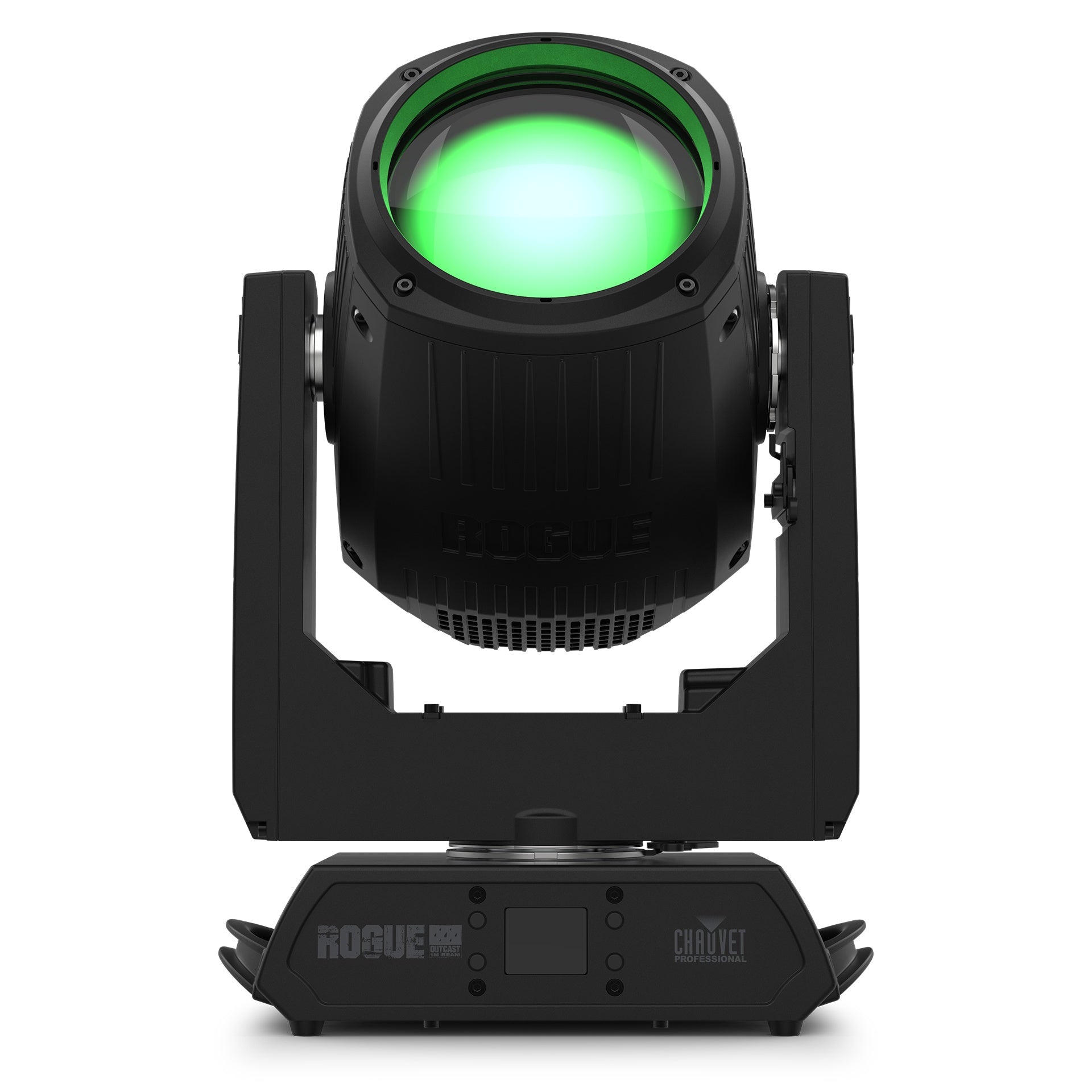

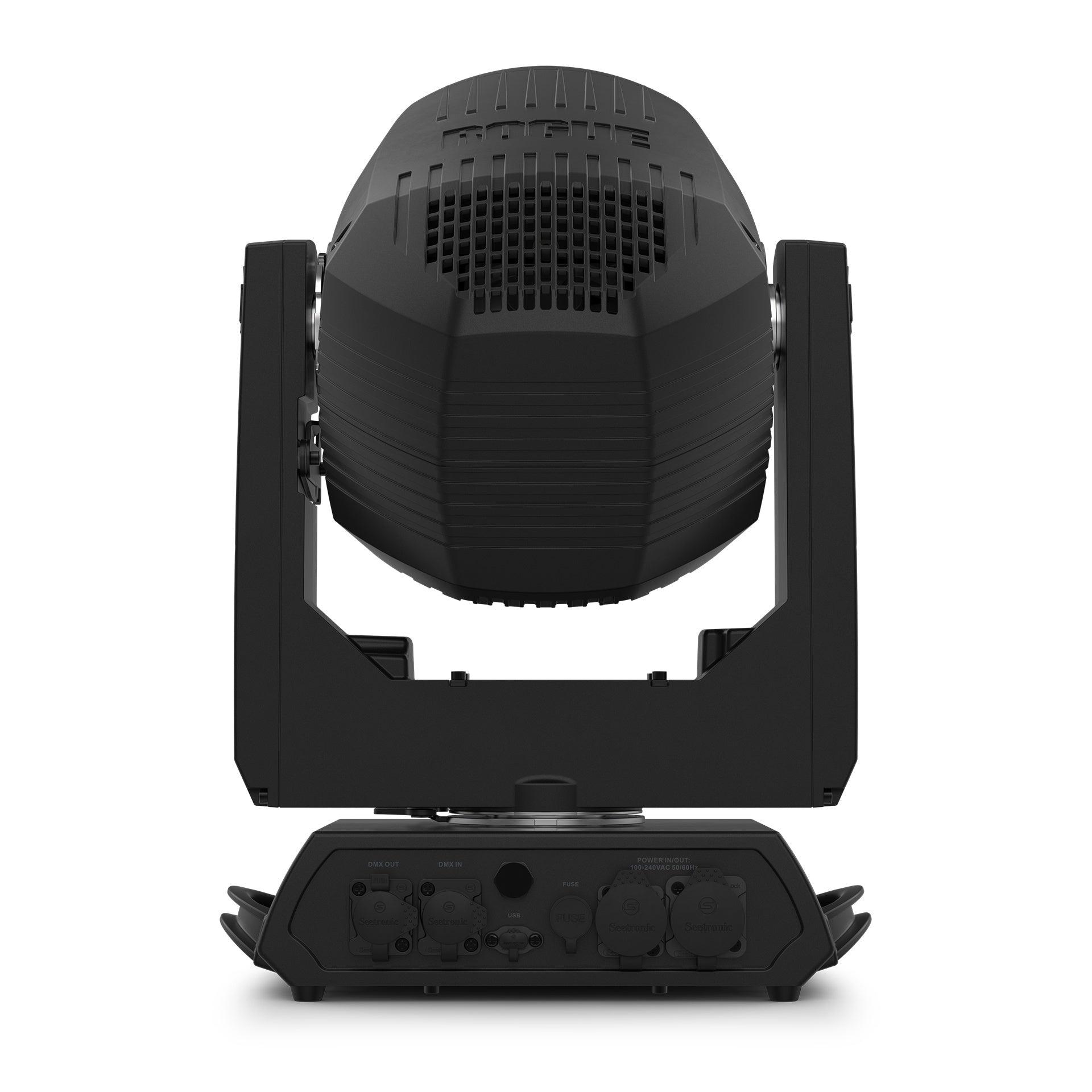

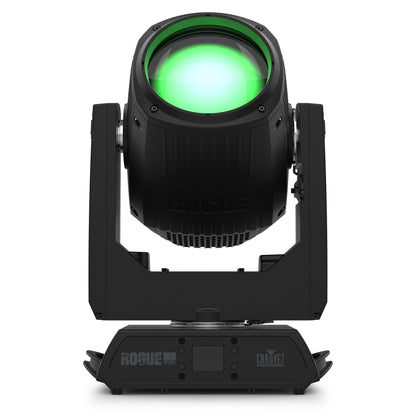

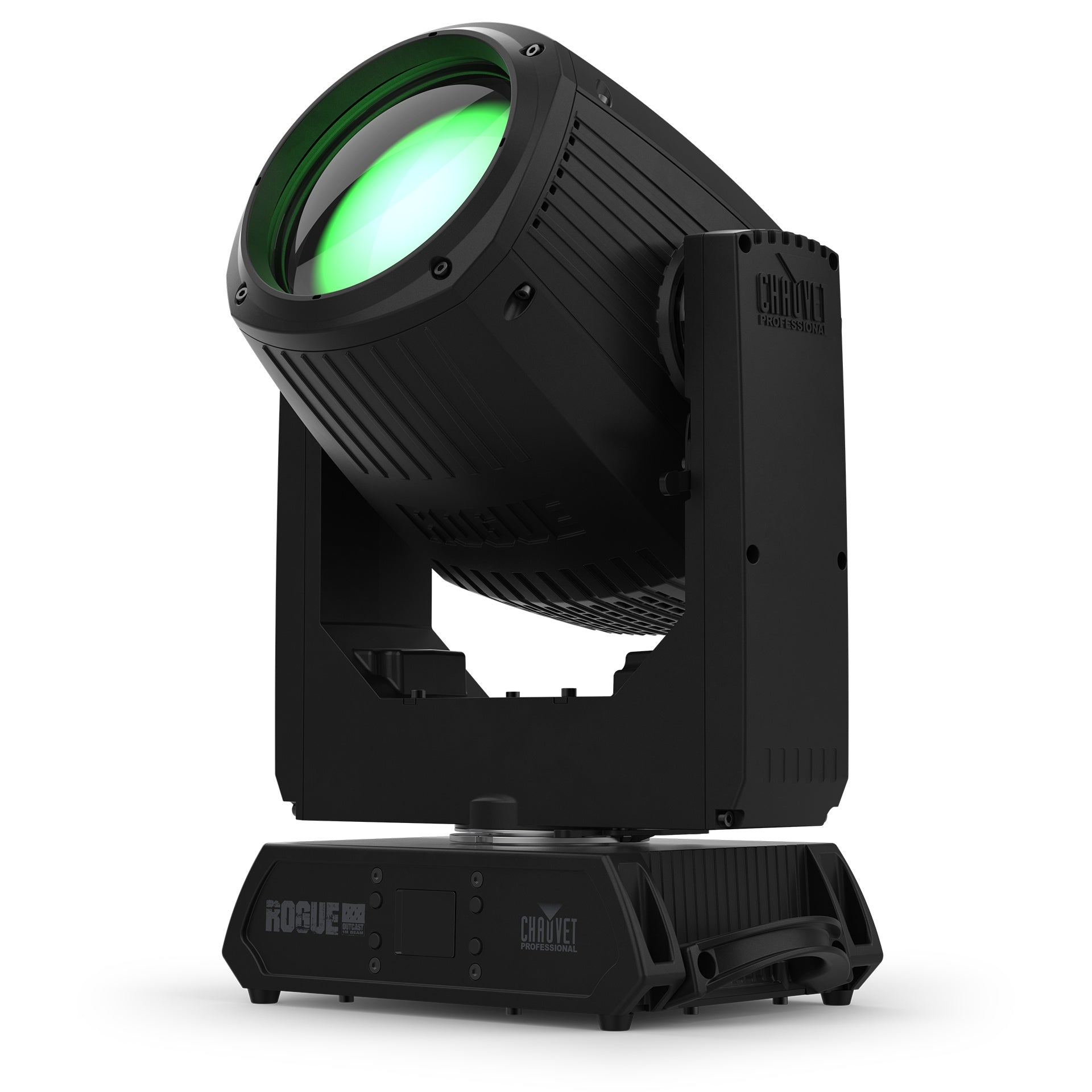

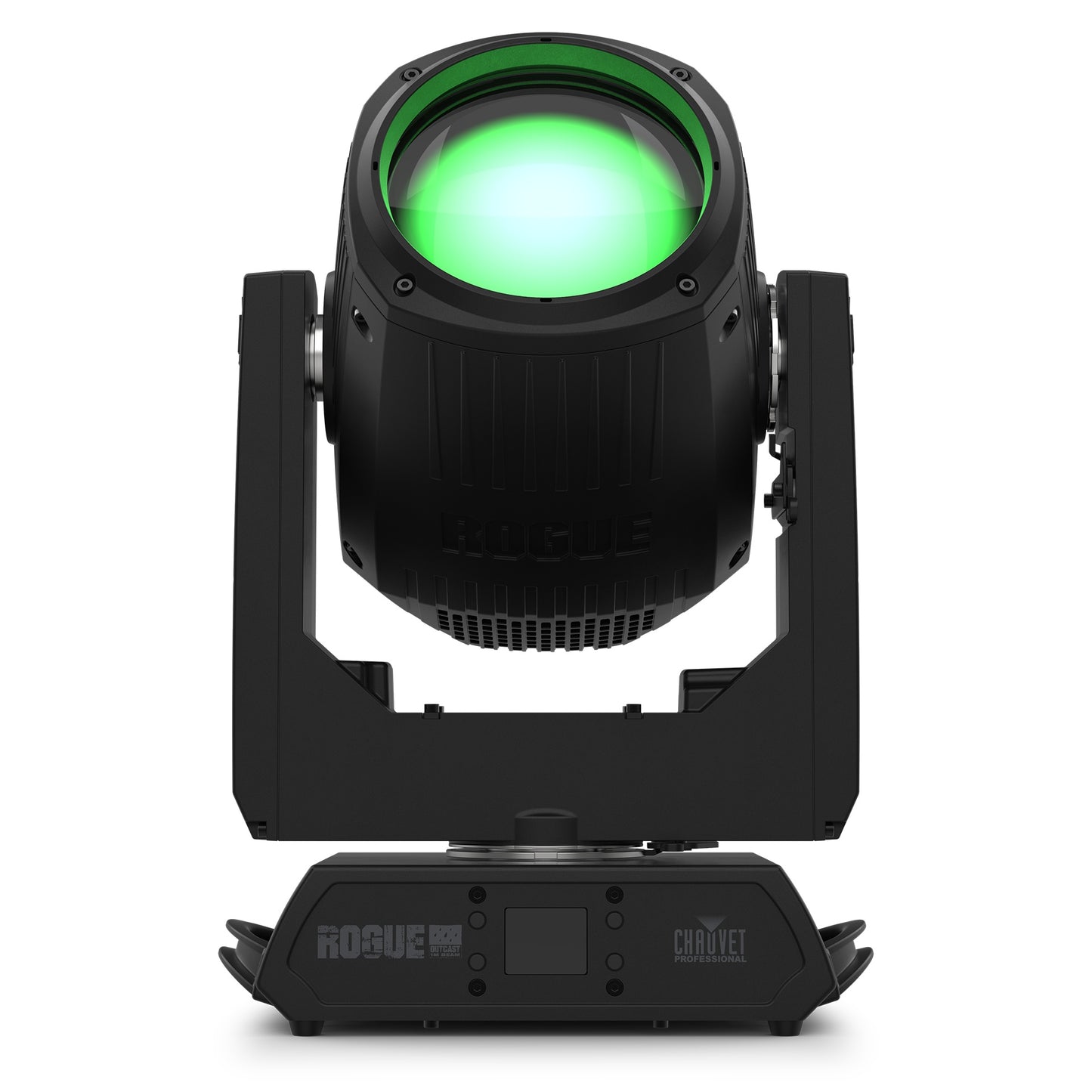

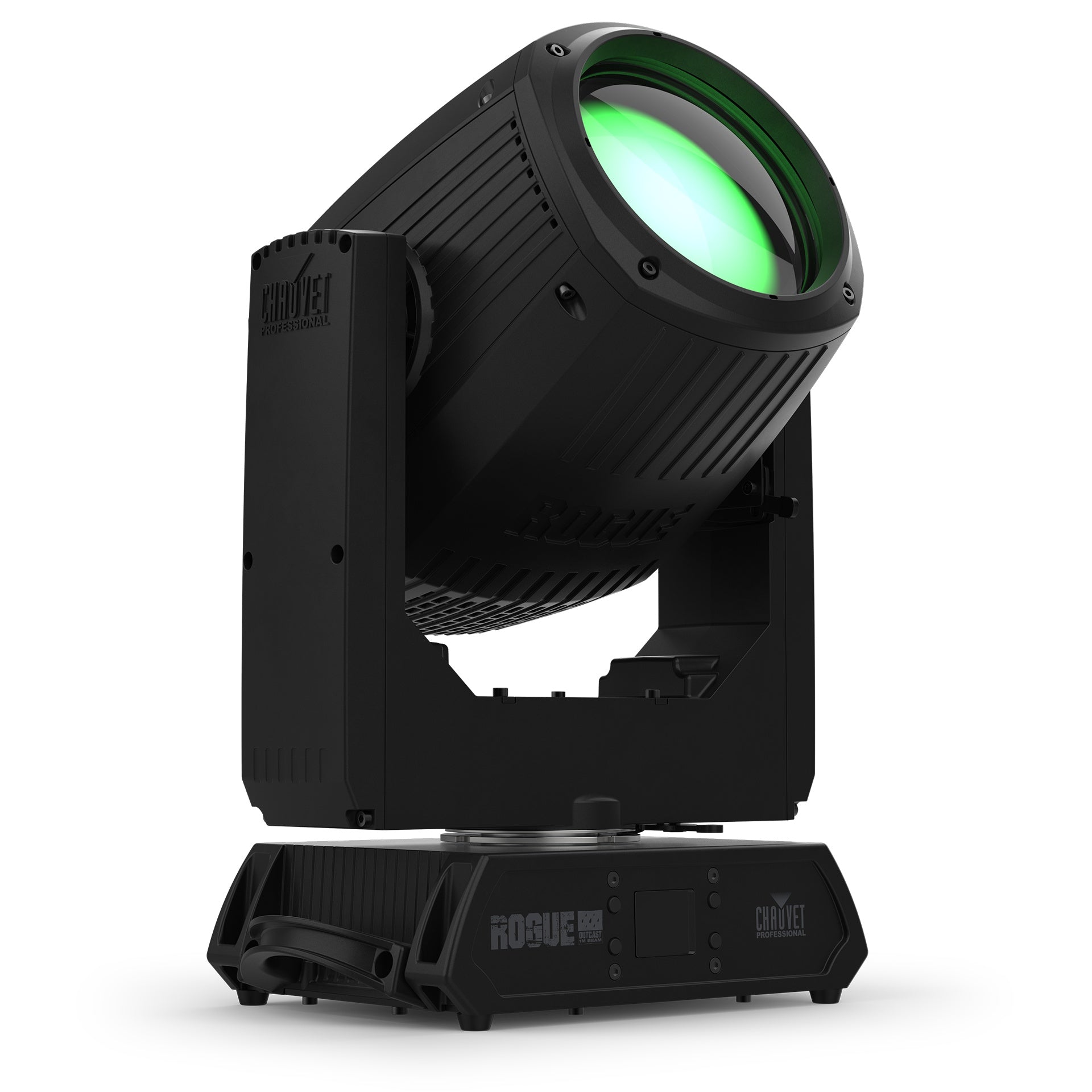

Chauvet Pro ROGUEOUTCAST1MBEAM IP65 LED Moving Head Beam Fixture

Chauvet Pro ROGUEOUTCAST1MBEAM IP65 LED Moving Head Beam Fixture

SoundPro Item: 144759 | Part Number: ROGUEOUTCAST1MBEAM

$3,065.00
$3,519.00 $3,065.00
Your Price Sold out
MSRP: $3,519.00 | MAP: $3,065.00

Usually ships in 5-7 business days

  • IP65 Rating With Pressure-Equalizing GORE Valve Enables True Outdoor And Wet-Location Deployment
  • Red, Mint, And Blue LED Engine Delivers Full Color Mixing Without A Color Wheel
  • Dual Layerable Prisms — Six-Facet Linear And Eight-Facet Round — Create Complex Aerial Effects
  • Seventeen Static Aperture Gobos Plus Motorized Frost Expand Beam Shaping Options
  • RDM Support Allows Remote Addressing And Troubleshooting Without Physical Fixture Access
  • Selectable PWM Up To 15,000 Hz Eliminates Flicker For Camera And Broadcast Applications
  • USB-C Firmware Port Enables In-Field Software Updates Without Specialized Tools
Log in or register for YOUR best price

The Rogue Outcast 1M Beam is built for lighting designers and production companies who need a compact, weather-sealed beam fixture that performs without compromise at outdoor festivals, touring productions, and permanent installs. Its IP65-rated aluminum and magnesium diecast housing means it can be deployed in rain, haze, dust, and confetti-heavy environments without dedicated enclosures or added maintenance burden — a real operational advantage over non-rated moving heads that require shelter or frequent cleaning.

The Red, Mint, and Blue LED engine eliminates the color wheel entirely, delivering full-spectrum color mixing with exceptional white light quality that traditional lamp-based beam fixtures struggle to match at this form factor. At under thirty pounds with continuous 360-degree pan and tilt rotation, it fits tight truss positions and keeps rigging loads manageable across multi-unit festival rigs. Dual individually controllable prisms — a 6-facet linear and an 8-facet round — can be layered for complex aerial looks, while 17 static aperture gobos let operators punch in defined beam shapes on cue.

For programmers and system integrators, RDM support enables remote addressing and troubleshooting from the console without climbing to the fixture, and the USB-C port streamlines firmware updates in the field. Selectable PWM frequencies up to 15,000 Hz eliminate camera flicker artifacts for broadcast and film-adjacent live event work, making this fixture equally at home on a televised stage as on an outdoor festival site.

Downloads

View full details

Specifications

Certifications
Certifications
CE, MET, FCC, UKCA
IP Rating
IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Ambient Temperature
−4 °F to 113 °F (−20 °C to 45 °C)
Optical
Light Source
1 LED (Red, Mint, Blue) 120 W, 3.34 A, 50,000 hours life expectancy
Color Temperature (at Full)
10,398 K
CRI
80.8
Beam Angle
1.9°
Field Angle
2.7°
Cutoff Angle
3.4°
Lumens Output
4,488
Illuminance (Total)
117,690 lux @ 5 m
Front Lens Diameter
140 mm
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects
Pan and Tilt Total Movement
360°/360°
Pan Ranges
540°, 360°, 180°
Tilt Ranges
270°, 180°, 90°
Gobos (Wheel 1)
17 + open (metal), continuous scroll at variable speeds
Gobo Size (Outside Diameter)
6 mm
Gobo Max Thickness
0.6 mm
Prism 1
6-facet, motorized, linear, rotating
Prism 2
8-facet, motorized, round, rotating
Frost
Motorized
Focus
Motorized
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 30 Hz
Dim Curves
4
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current @ 120 V
232 W, 1.95 A @ 120 V, 60 Hz
Power and Current @ 208 V
223 W, 1.11 A @ 208 V, 60 Hz
Power and Current @ 230 V
220 W, 0.990 A @ 230 V, 50 Hz
Power Linking
6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
Control
Control Protocol
DMX, RDM
DMX Channels
21 or 25
Modes/Personalities
2 (21-channel, 25-channel)
Connectivity
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-pin IP65 XLR
Cable Length (Power)
5 ft (1.5 m)
Construction
Dimensions (L x W x H)
11.9" x 7.56" x 17.9" (302 x 192 x 455 mm)
Weight
27.2 lbs (12.34 kg)
Housing Material
Aluminum/magnesium diecast
Exterior Color
Black
Performance (Noise)
Noise Level (Idle)
15.9 dB(A) @ 1 m
Noise Level (Eco)
15.0 dB(A) @ 1 m
Noise Level (Auto)
38.3 dB(A) @ 1 m
Noise Level (Full)
47.4 dB(A) @ 1 m
Noise Level (Max)
47.3 dB(A) @ 1 m
Included Items
Included
Rogue Outcast 1M Beam, Seetronic Powerkon IP65 power cord, 105 mm Omega bracket with mounting hardware
