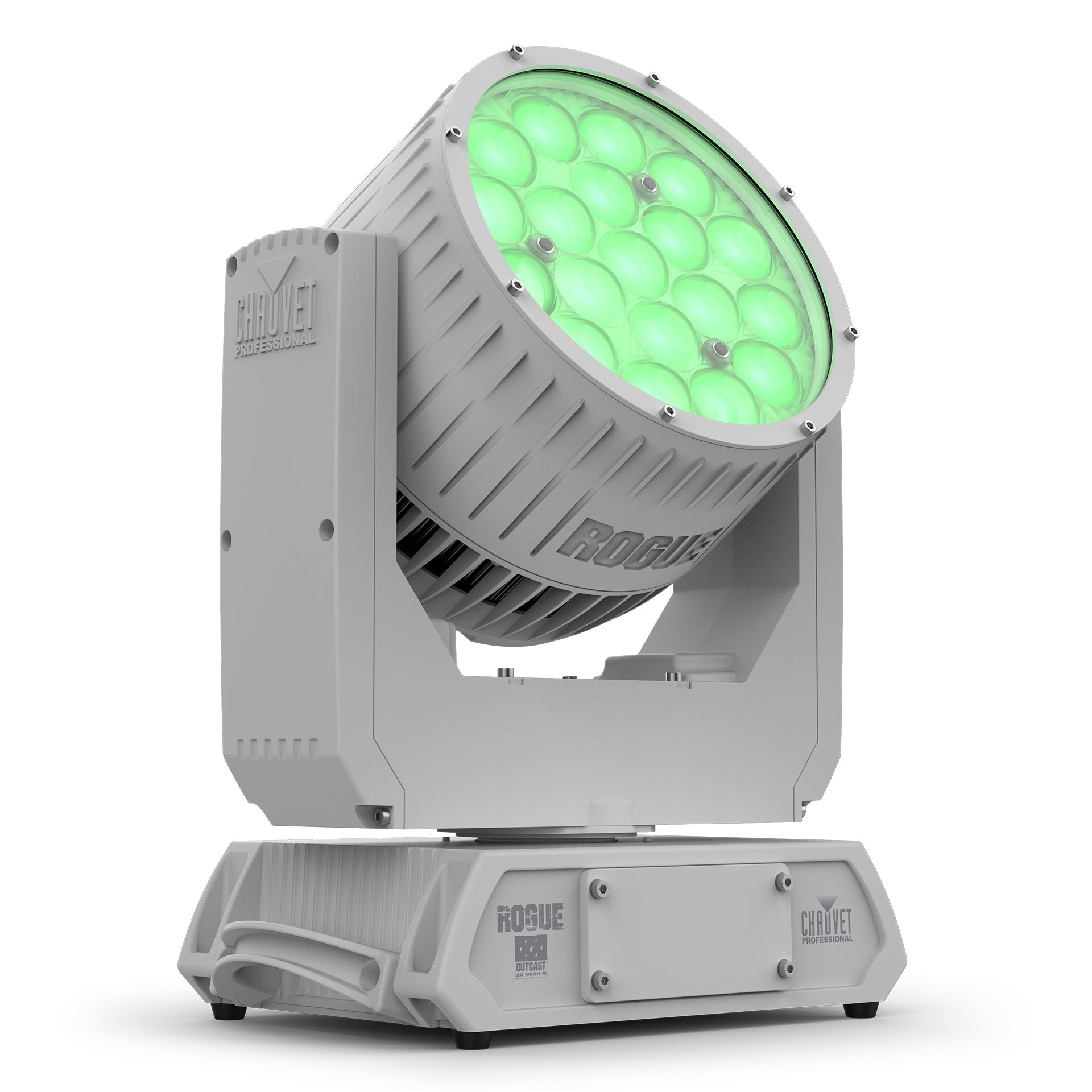

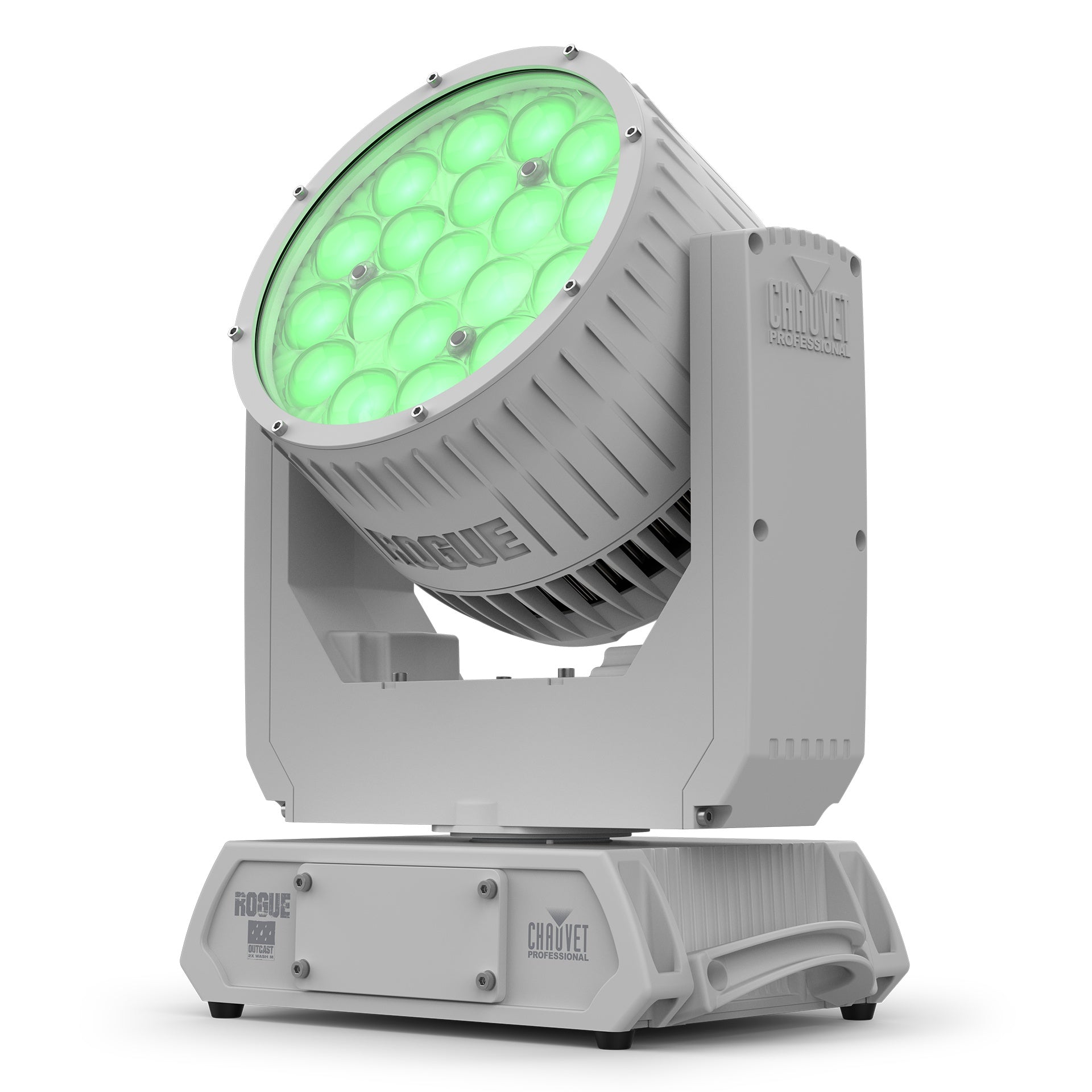

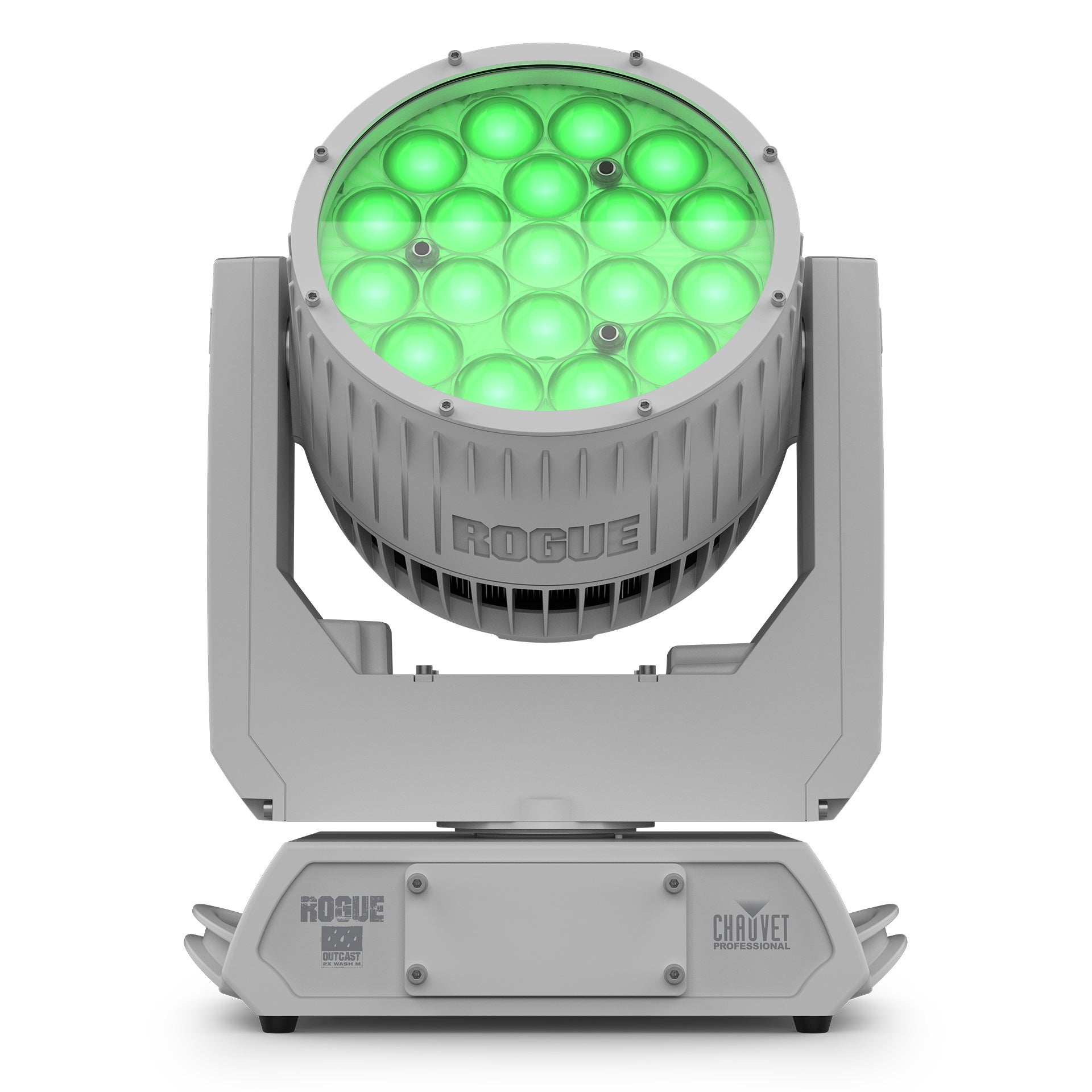

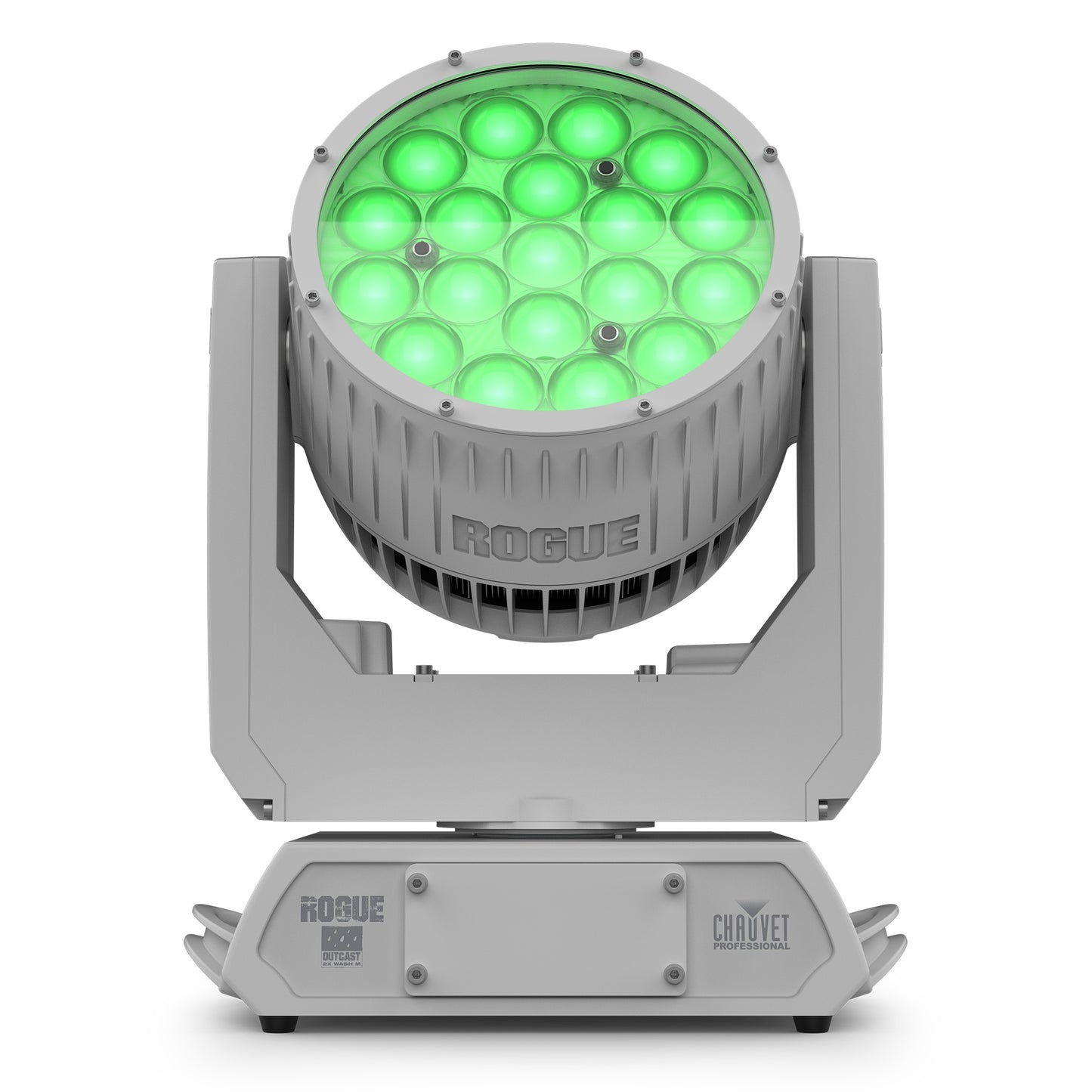

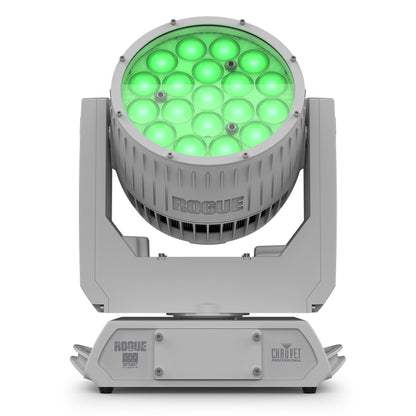

Chauvet Pro ROGUEOUTCAST2XWASHM IP66 Marine RGBW Moving Wash

Chauvet Pro ROGUEOUTCAST2XWASHM IP66 Marine RGBW Moving Wash

SoundPro Item: 201180 | Part Number: ROGUEOUTCAST2XWASHM

$3,222.50
$3,699.00 $3,222.50
Your Price Sold out
MSRP: $3,699.00 | MAP: $3,222.50

Usually ships in 5-7 business days

  • C5M Marine-Grade Paint Process Extends Corrosion Resistance In Salt-Air Environments
  • IP66 Rating With Pressure-Equalizing GORE Valve Seals Against Dust And Water Ingress
  • Five Independently Controllable LED Zones Enable Pixel-Mapping Effects Across The Wash Head
  • Selectable PWM Up To 15,000 Hz Eliminates Flicker For Broadcast And Film Capture
  • RDM Support Enables Remote Addressing And Diagnostics From A Compatible Controller
  • Calibrated White Mode Delivers A Consistent 7500 K Output For Repeatable Color Matching
  • USB-C Firmware Port Keeps The Fixture Current Without Console Or Physical Rewiring
Log in or register for YOUR best price

The Rogue Outcast 2X Wash M is engineered for production professionals who cannot compromise on environmental durability. Built around a full aluminum body with a C5M marine-grade paint process, this fixture meets the IP66 rating needed for permanent or semi-permanent deployment on cruise ships, coastal theme parks, seaside architectural facades, and touring rigs that see prolonged outdoor exposure. Where standard IP65 fixtures fall short in salt-laden air, the C5M finish adds a critical layer of corrosion resistance that extends fixture lifespan in the harshest marine climates.

Nineteen 25W RGBW LEDs are organized across five independently controllable pixel-mapping zones, enabling LD teams to generate dynamic zone-by-zone chase effects or smooth full-wash blends — all with 16-bit master and per-color dimming that eliminates visible stepping during slow fades. A motorized zoom spanning 7.9° to 63.7° makes this fixture equally useful as a tight aerial wash or a broad flood, and pan/tilt ranges of 540°/270° give programmers full positional freedom. Selectable PWM frequencies from 600 Hz to 15,000 Hz ensure flicker-free capture across broadcast and film camera formats, while RDM support enables remote addressing and diagnostics without physical access to the fixture.

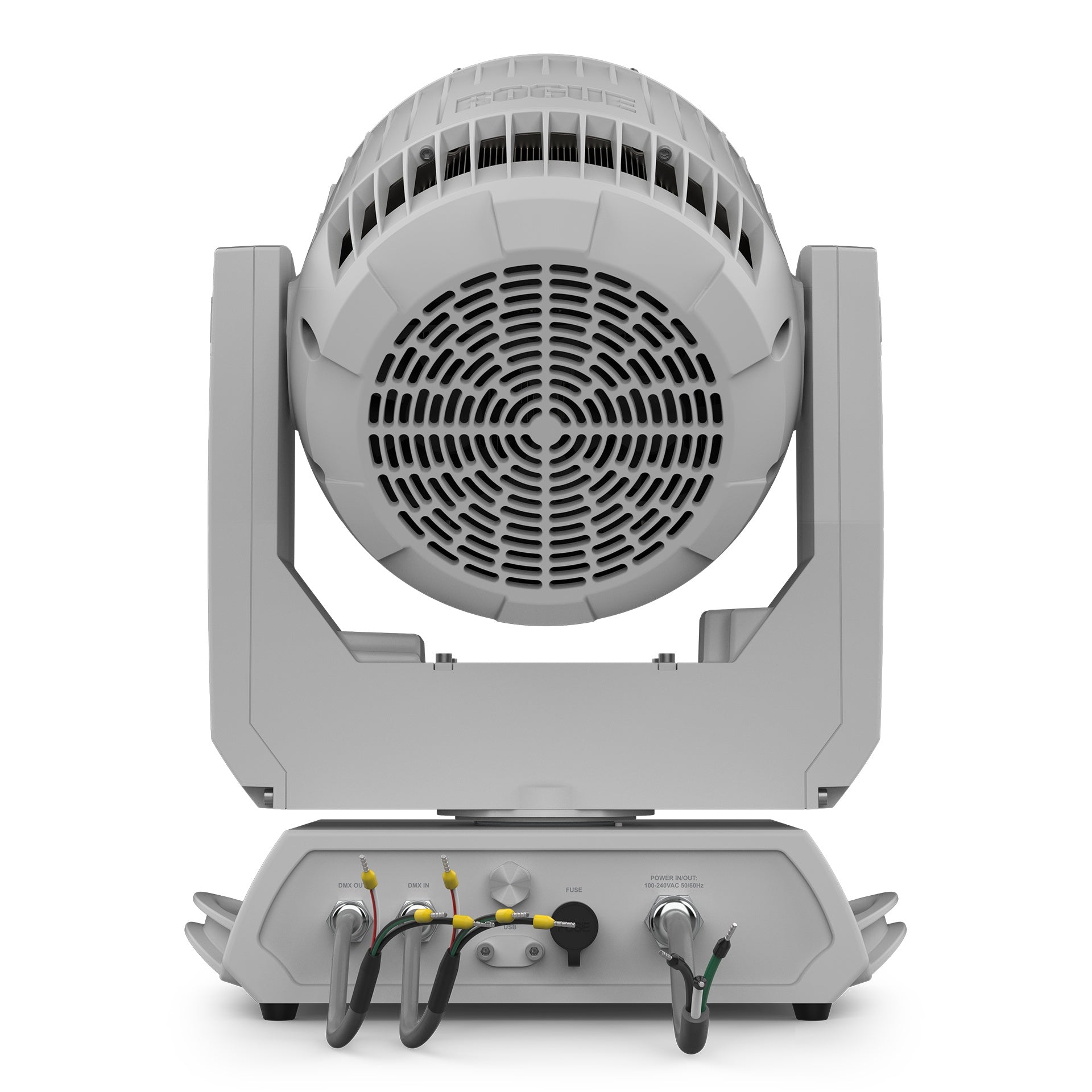

For installation crews, the termination-ready bare-ended power and data cables simplify integration into permanent wiring schemes, and the USB-C port keeps firmware current without physical console patching. The onboard OLED display with a protective cover, six selectable dimming curves, and eight DMX personalities — from a compact 15-channel mode up to a full 56-channel profile — give both simple touring setups and complex install environments the control depth they require.

Downloads

View full details

Specifications

Certifications
IP Rating
IP66 temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Certifications
CE, MET, FCC, UKCA
Optical
Light Source
19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature Range
2800 to 10000 K
Beam Angle
7.9° to 35.3°
Field Angle
11.6° to 50.5°
Cutoff Range
18.5° to 63.7°
Zoom Range
7.9° to 63.7°
Lumens – Output
5,371
Illuminance at 7.9°
7,632 lux @ 5 m
Illuminance at 63.7°
639 lux @ 5 m
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan / Tilt
540° / 270°
Pan Ranges
180°, 360°, 540°
Tilt Ranges
90°, 180°, 270°
Zoom
Motorized
Dimmer
Electronic
Shutter / Strobe
Electronic
Strobe Rate
0 to 20 Hz
Dim Curves
6
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Built-in Automated Programs
Yes
Customizable Programs
Yes
Recall Custom Programs
Yes
Controls
Control Protocol
DMX, RDM
DMX Channels
15, 17, 22, 23, 33, 54, 55, or 56
Modes / Personalities
8 personalities (15CH, 17CH, 22CH, 23CH, 33CH, 33CH MS, 54CH, 54CH MS, 55CH or 56CH)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current @ 120 V
291 W, 2.47 A @ 120 V, 60 Hz
Power and Current @ 208 V
284 W, 1.41 A @ 208 V, 60 Hz
Power and Current @ 230 V
282 W, 1.28 A @ 230 V, 50 Hz
Power Linking
5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
Connectivity
Power Connection
Termination-ready bare-ended
Data Input / Output
Termination-ready bare-ended
Cable Length (Power Input)
5 ft (1.5 m)
Cable Length (Signal In/Out)
5 ft (1.5 m)
Construction
Dimensions
11.92 x 8.58 x 14.1" (303 x 218 x 361 mm)
Weight
21.2 lbs (9.6 kg)
Housing Material
Aluminum
Exterior Color
White
Finish
C5M marine-grade paint process
Included Items
Fixture
Rogue Outcast 2X Wash M
Mounting
2 Omega brackets with mounting hardware (2 Allen Key bolts)
Accessory
Display cover
