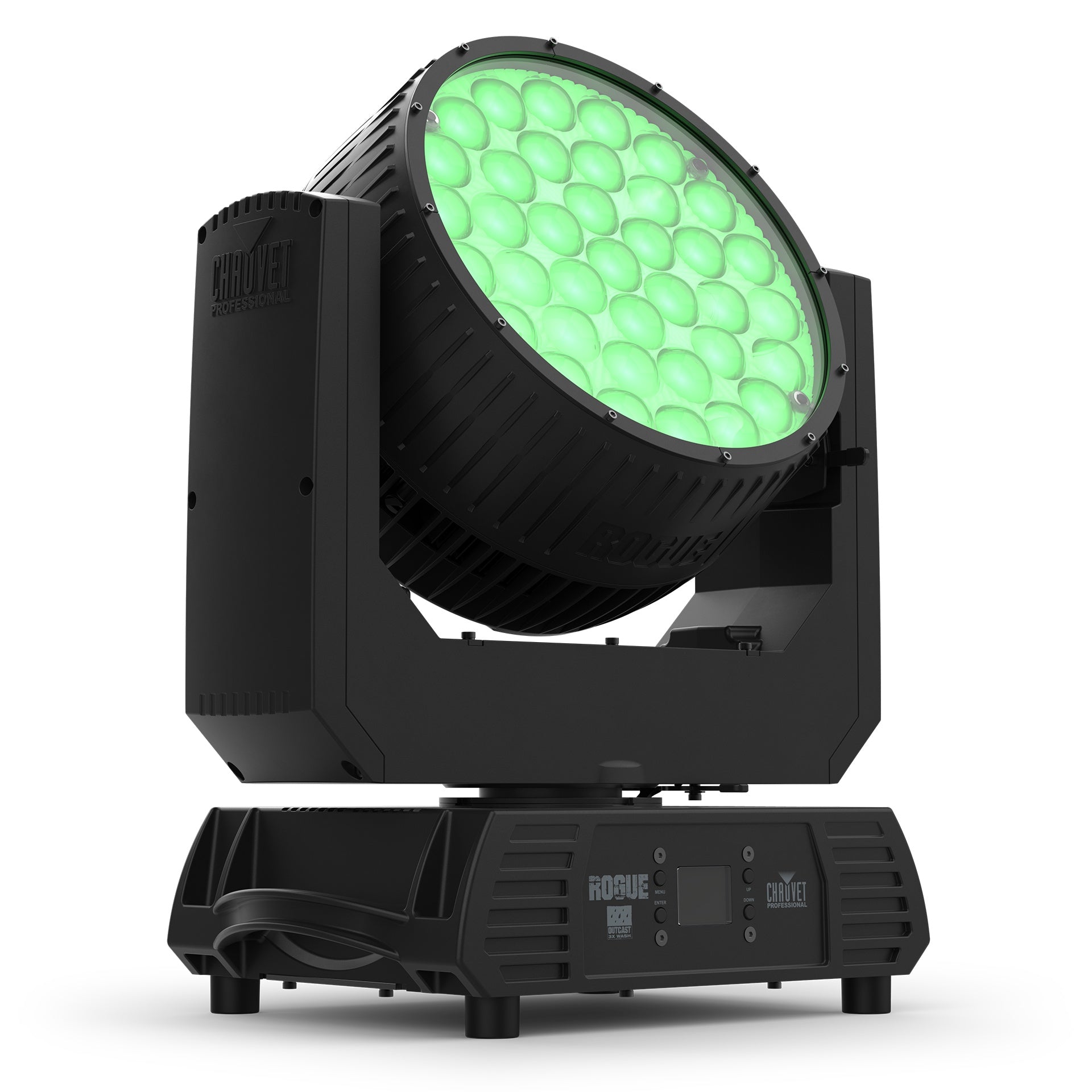

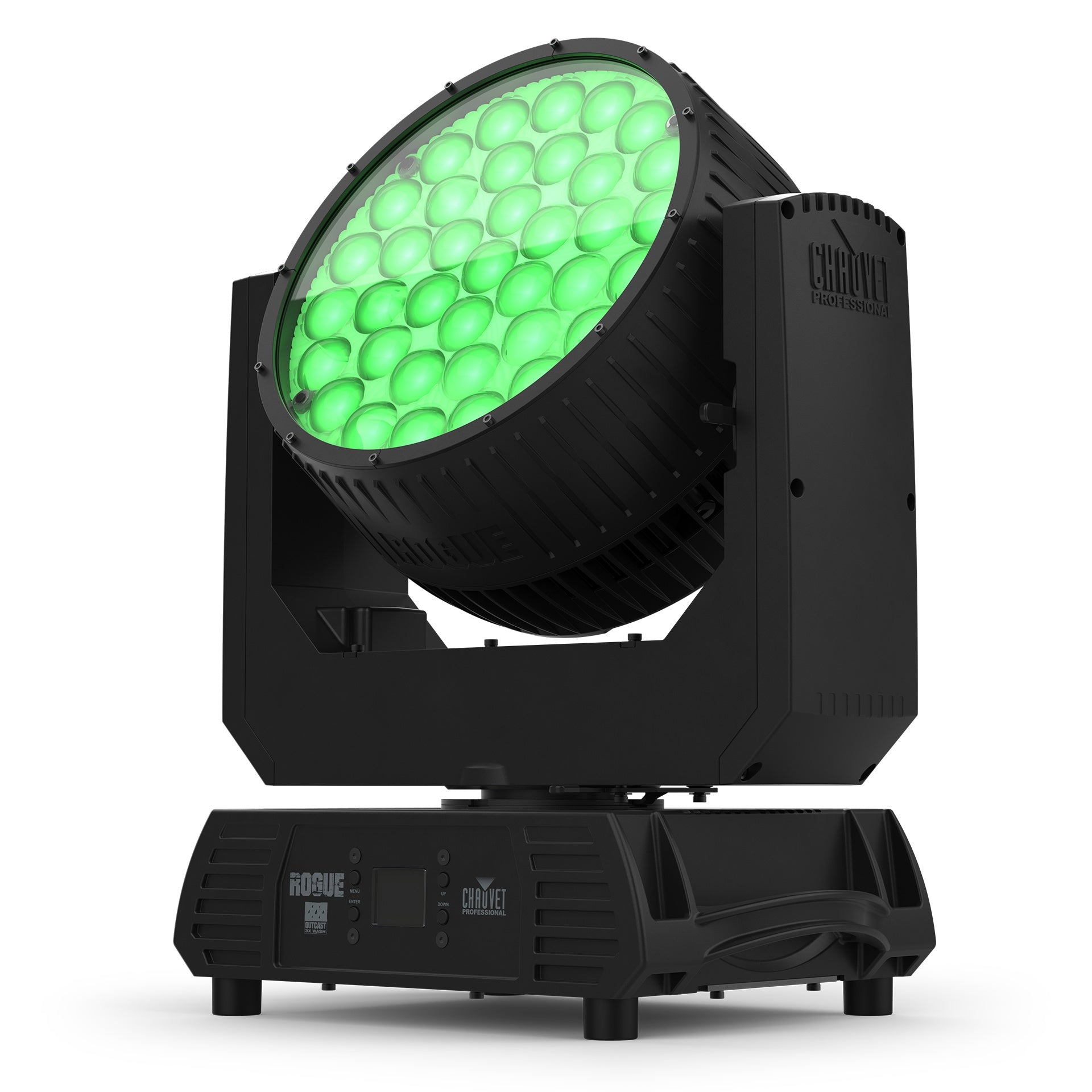

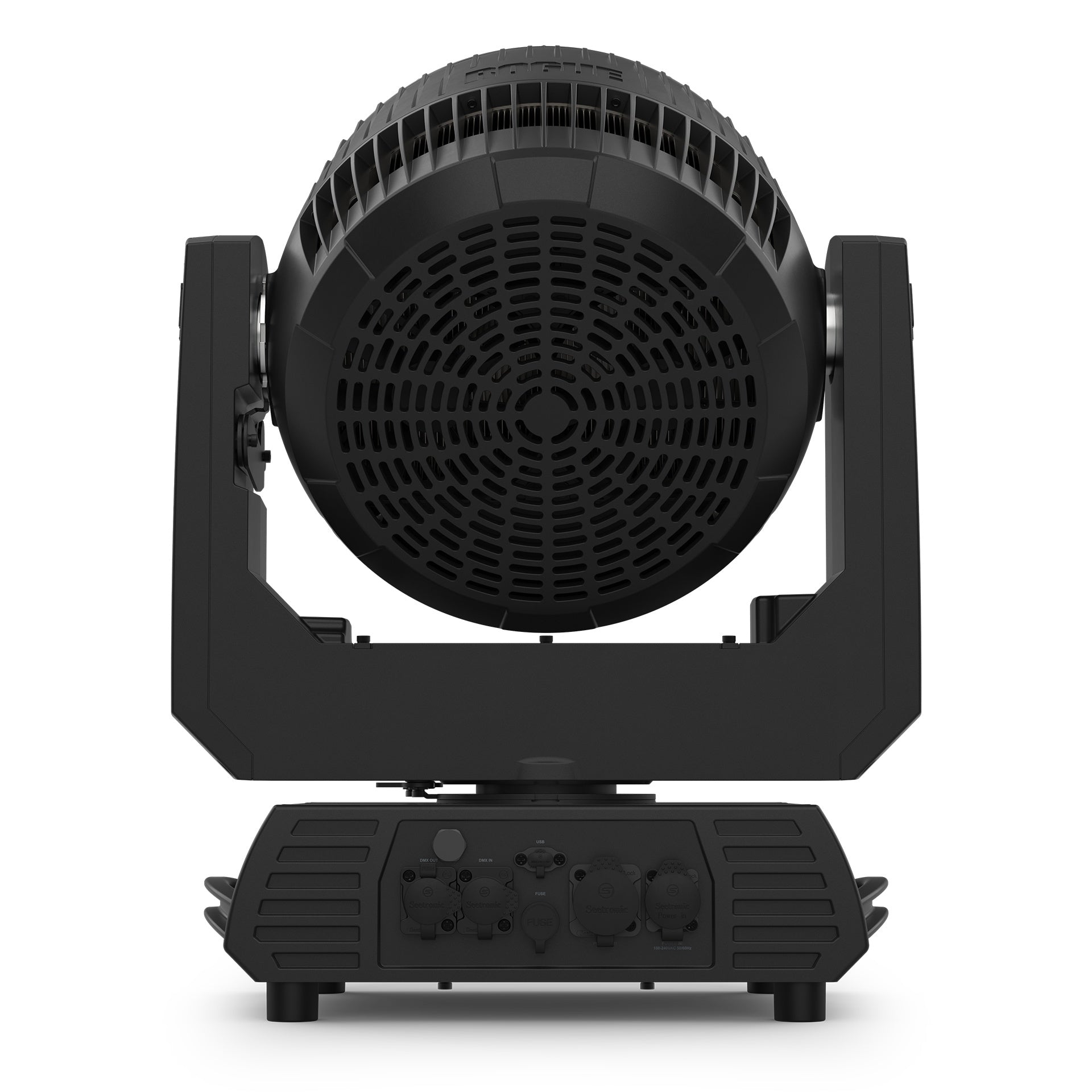

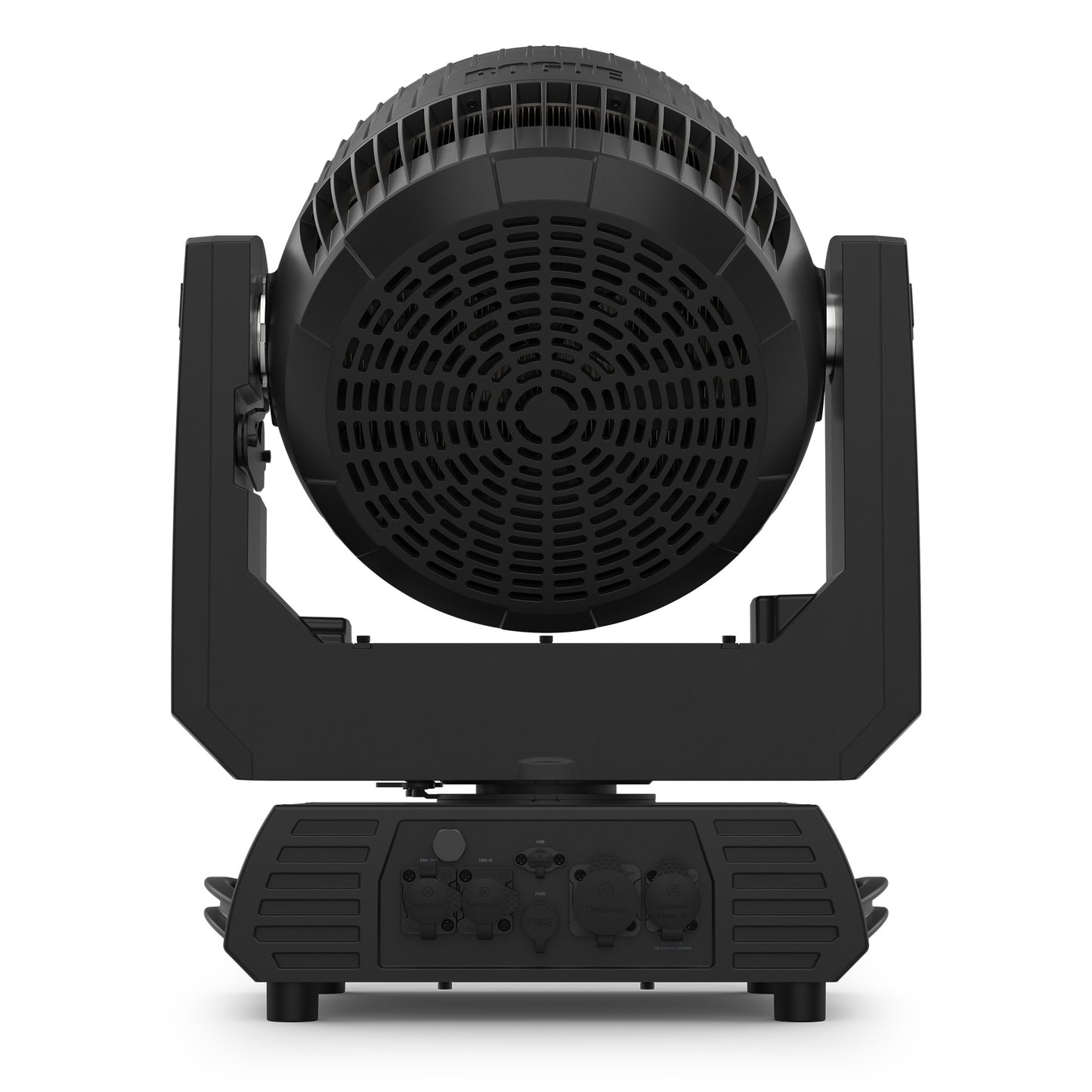

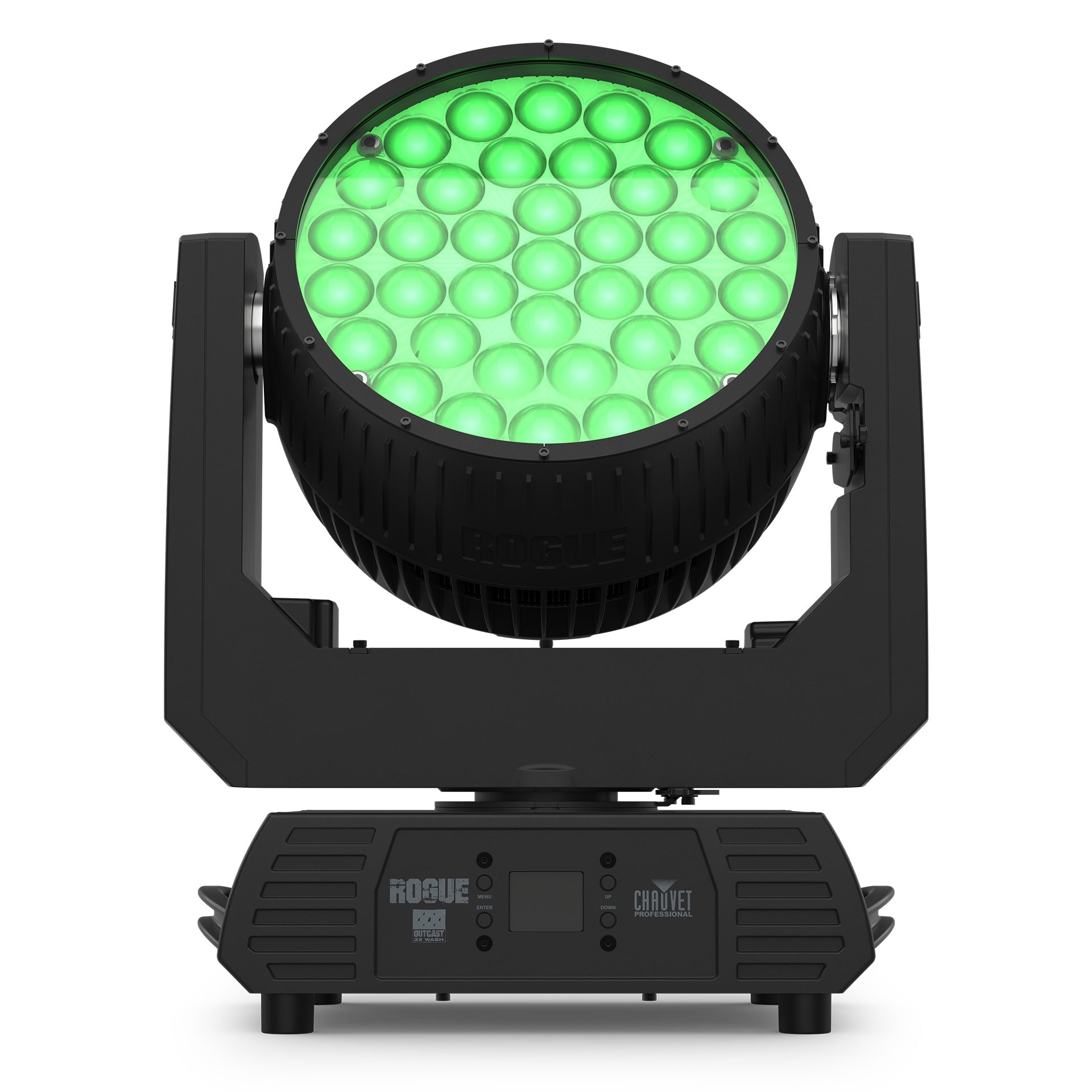

Chauvet Pro Rogue Outcast 3X Wash IP65 RGBW Moving Wash Fixture

Chauvet Pro Rogue Outcast 3X Wash IP65 RGBW Moving Wash Fixture

SoundPro Item: 146904 | Part Number: ROGUEOUTCAST3XWASH

$3,955.00
$4,540.00 $3,955.00
Your Price Sold out
MSRP: $4,540.00 | MAP: $3,955.00

Usually ships in 5-7 business days

  • IP65 Aluminum And Magnesium Alloy Housing Withstands Dust, Rain, And Demanding Tour Environments
  • Nine Individually Controllable LED Zones Enable Pixel-Mapping And Dynamic Color Effects Over DMX
  • Selectable PWM And Calibrated White Mode Ensure Flicker-Free Performance For Broadcast And Live-Stream Use
  • 16-Bit Master And Per-Color Dimming Delivers Exceptionally Smooth Fades Across Six Dimming Modes
  • Four DMX Personalities With RDM Support Allow Flexible Programming And Remote Fixture Management
  • Motorized Zoom Transitions Smoothly From Tight Beam To Wide Wash For Versatile Stage Coverage
  • USB-C Firmware Port And OLED Display Simplify Maintenance And On-Site Configuration
Log in or register for YOUR best price

The Chauvet Pro Rogue Outcast 3X Wash is built for production professionals who need a single fixture to cover outdoor concerts, touring rigs, and broadcast-critical environments without compromise. Its IP65-rated aluminum and magnesium alloy housing holds up against dust, rain, and temperature extremes from -4°F to 113°F, making it a dependable choice where consumer-grade alternatives simply fail. The motorized zoom sweeps from a tight 9.3° beam angle to a wide 62.6° field, giving lighting designers the flexibility to punch through fog or haze on large stages or wash intimate areas with equal control.

For broadcast and live-stream productions, the fixture's selectable PWM frequencies and calibrated 7500 K white mode eliminate flicker across a range of camera frame rates — a capability that separates it from many IP-rated wash competitors that ignore on-camera performance. Nine individually controllable LED zones enable pixel-mapping sequences and dynamic color effects directly over DMX, with four programmable personalities spanning 21 to 107 channels to match any console workflow. RDM support streamlines addressing and remote diagnostics across large fixture counts, while the USB-C port simplifies firmware updates without pulling fixtures from their hang positions.

Integrators and rental houses will value the Seetronic PowerKON IP65 power-linking connections that allow up to three units per circuit at 208 V or 230 V, reducing cable runs on outdoor rigs. The OLED display and 16-bit master and per-color dimming round out a fixture that delivers precision at every level of programming complexity, from a one-operator festival show to a fully cued broadcast production.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65, temporary outdoor/wet use
Certifications
CE, MET, FCC, UKCA
Optical
Light Source
37 LEDs (quad-color RGBW) 25 W, 1.5 A, 50,000 hours life expectancy
Color Temperature Range
2800 to 10000 K
Calibrated White
7500 K
Beam Angle
9.3° to 33.9°
Field Angle
11.6° to 49.5°
Cutoff Angle
13.1° to 62.6°
Zoom Angle
9.3° to 62.6°
Lumens – Source
17,000
Lumens – Output
13,440
Illuminance (9.3°)
18,260 lux @ 5 m
Illuminance (62.6°)
1,556 lux @ 5 m
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dimensions
Product Dimensions
15.59 x 11.73 x 17.20 in (396 x 298 x 437 mm)
Shipping Dimensions
23.62 x 14.17 x 18.70 in (600 x 360 x 475 mm)
Weight
Product Weight
38.2 lbs (17.38 kg)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current @ 120 V
711 W, 5.98 A @ 120 V, 60 Hz
Power and Current @ 208 V
701 W, 3.40 A @ 208 V, 60 Hz
Power and Current @ 230 V
695 W, 3.07 A @ 230 V, 50 Hz
Power Linking
2 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
Performance
Pan Range
540°
Tilt Range
270°
Pan Ranges (selectable)
180°, 360°, 540°
Tilt Ranges (selectable)
90°, 180°, 230°
Strobe Rate
0 to 25 Hz
Dimmer
Electronic
Shutter/Strobe
Electronic
Zoom
Motorized
Dim Curves
4
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Built-in Automated Programs
Yes
Controls
Control Protocol
DMX, RDM
DMX Channels
21, 62, 71, 107
Modes/Personalities
4
Connectivity
Power Input
Seetronic PowerKON IP65
Power Output
Seetronic PowerKON IP65
Power Cable Included
Edison (local) plug to Seetronic PowerKON IP65, 5 ft (1.5 m)
Data Connectors
5-pin XLR
Construction
Exterior Color
Black
Housing Material
High-impact flame-retardant polymer
Environmental
Ambient Temperature Range
-4 °F to 113 °F (-20 °C to 45 °C)
Noise Level (Idle)
22.8 dB(A) @ 1 m
Noise Level (Auto)
47.5 dB(A) @ 1 m
Noise Level (Eco)
34.3 dB(A) @ 1 m
Noise Level (Full)
47.3 dB(A) @ 1 m
Noise Level (Max)
37.2 dB(A) @ 1 m
Included Items
Fixture
Rogue Outcast 3X Wash
Power Cord
Seetronic PowerKon IP65 power cord
Mounting Hardware
(2) 140D Omega brackets with mounting hardware
