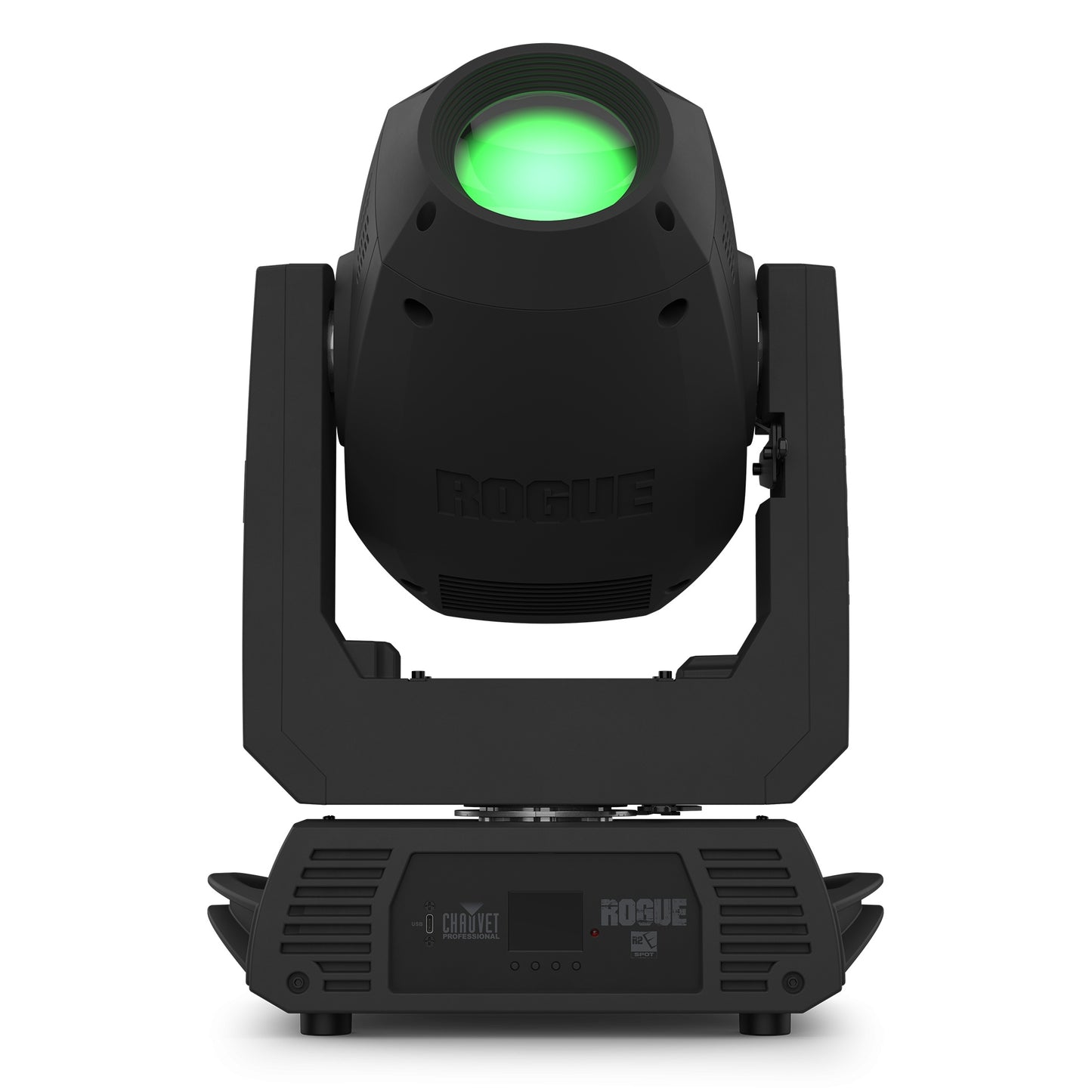

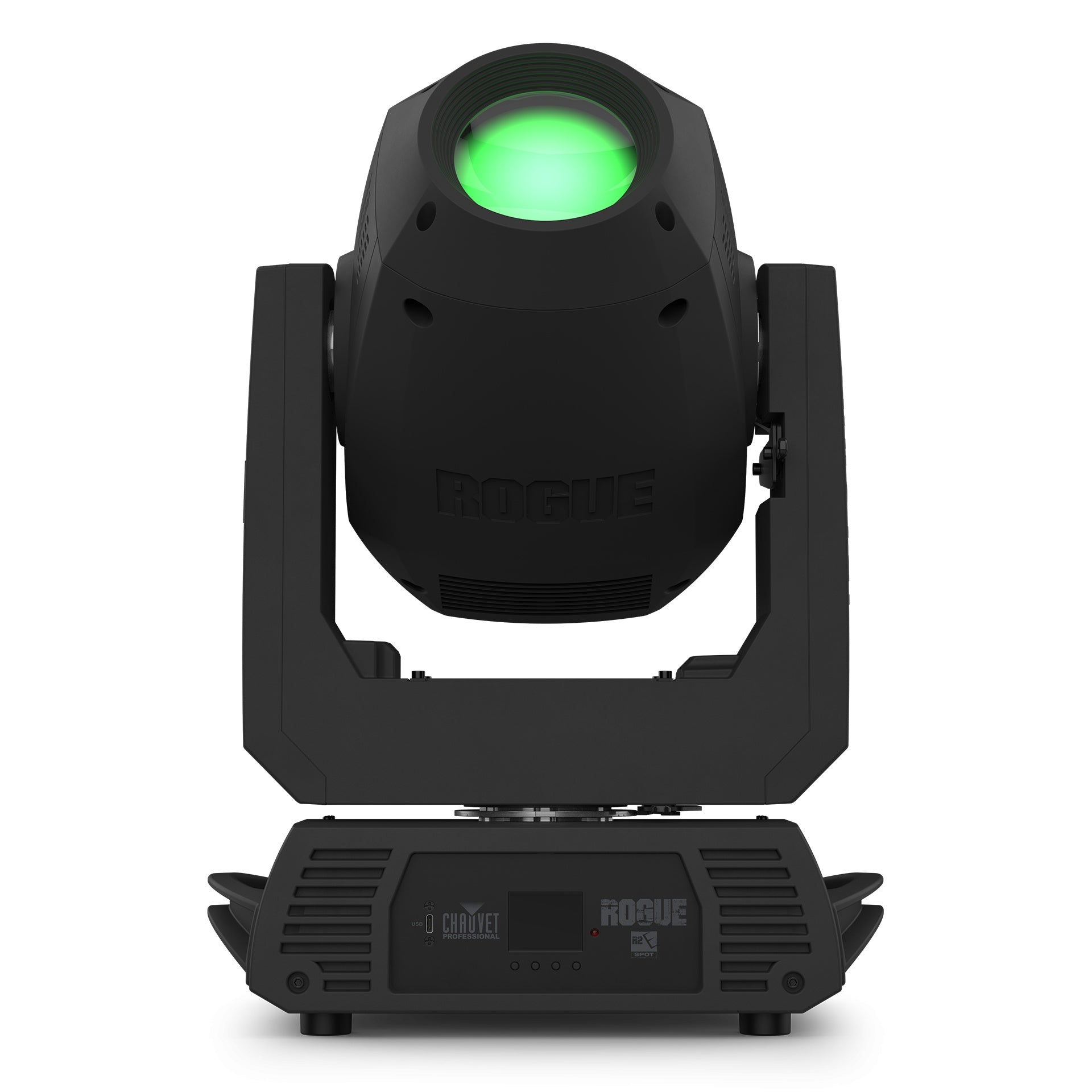

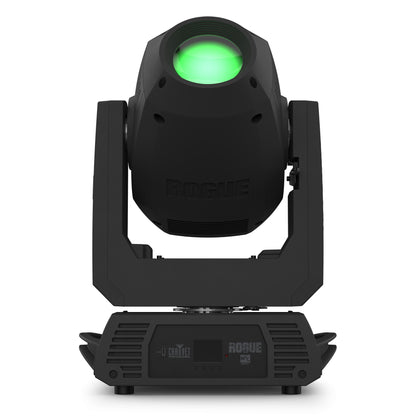

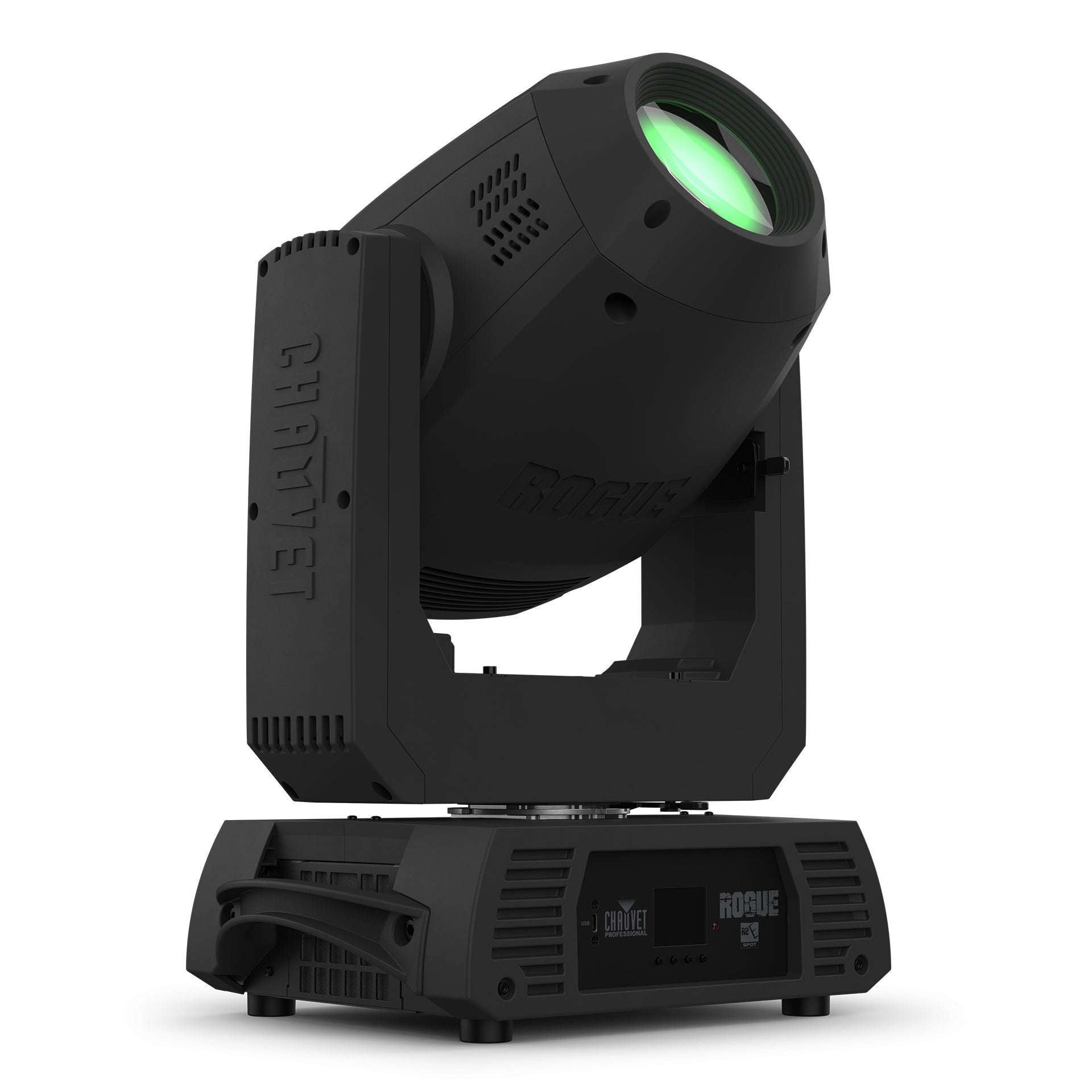

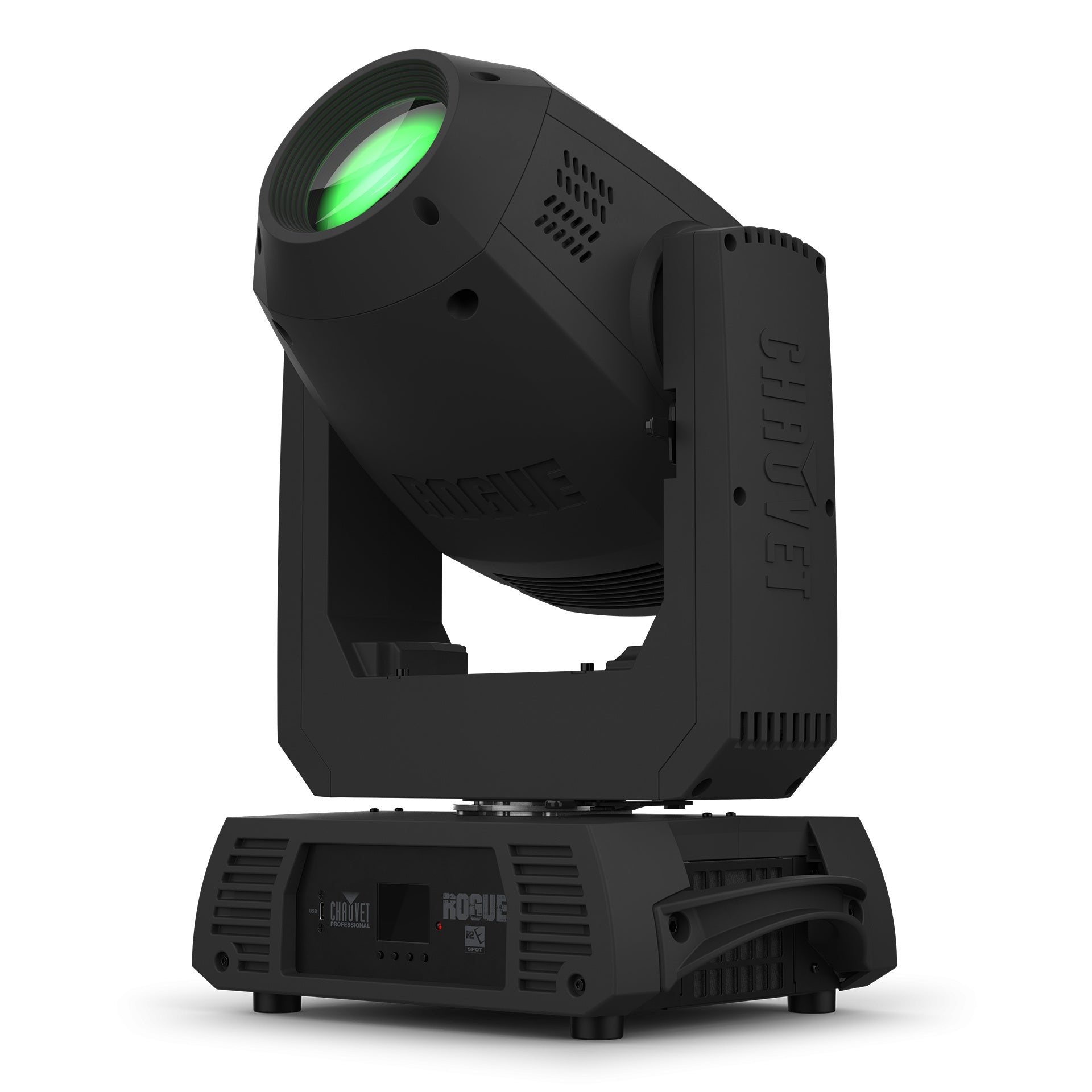

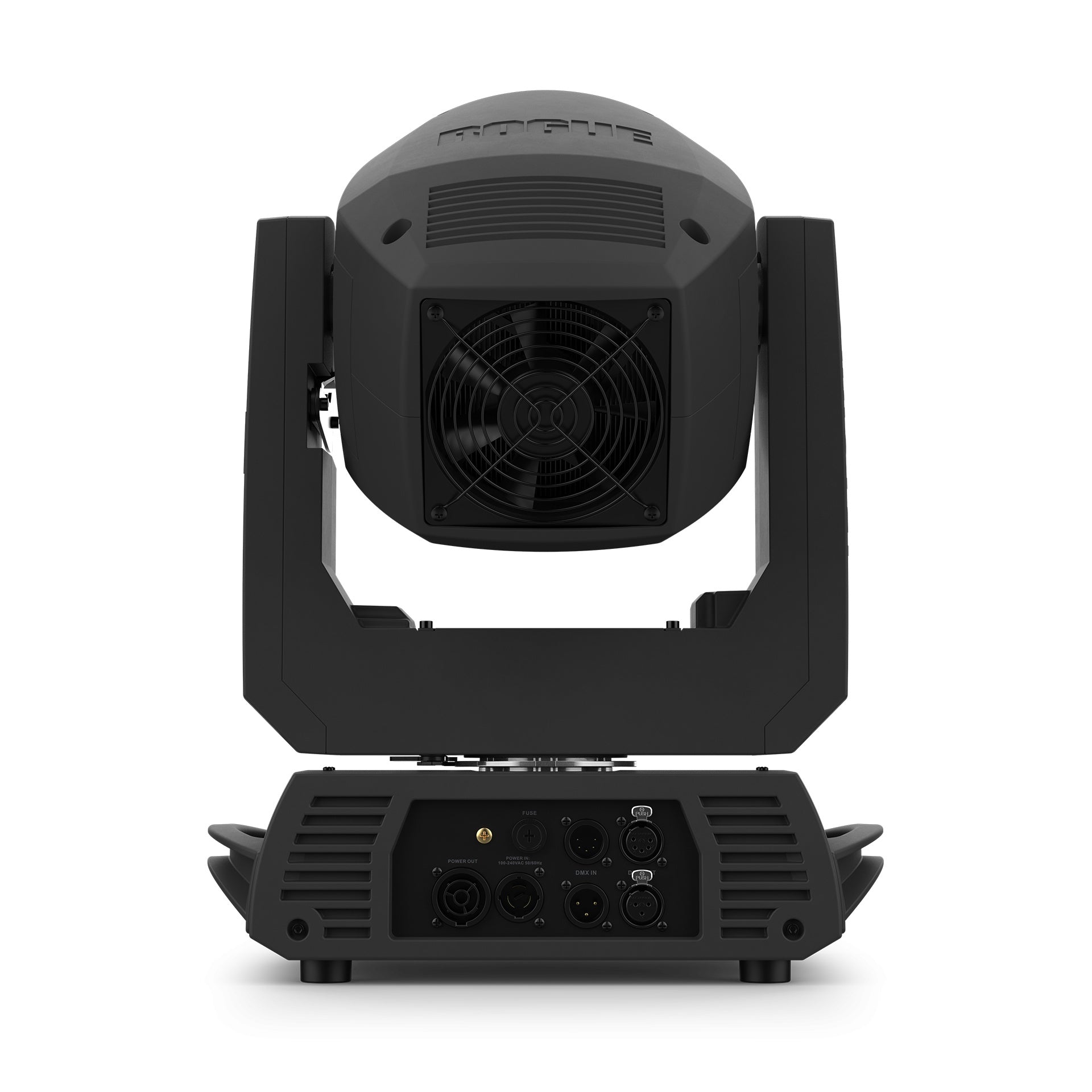

Chauvet Pro ROGUER2ESPOT 350W LED Moving Spot With Dual Gobos

Chauvet Pro ROGUER2ESPOT 350W LED Moving Spot With Dual Gobos

SoundPro Item: 142234 | Part Number: ROGUER2ESPOT

$3,020.00
$3,467.00 $3,020.00
Your Price Sold out
MSRP: $3,467.00 | MAP: $3,020.00

Usually ships in 5-7 business days

  • Dual Gobo Wheels Enable Pattern Layering And Real-Time Gobo Morphing
  • Rotating Interchangeable Gobo Wheel With Slot-N-Lock And Full Indexing
  • Dual Color Wheels With Split-Color Capability And Variable-Speed Continuous Scroll
  • Motorized 3-Facet Rotating Prism For Aerial Beam Multiplication Effects
  • Motorized Iris And Frost Filter For Precise Beam Shaping And Edge Control
  • 16-Bit Dimming Delivers Smooth Fades And Precise Intensity Resolution
  • Selectable PWM From Low To Ultra-High Frequency For Flicker-Free Camera Use
  • RDM Support Enables Remote Addressing And Diagnostics From The Console
  • Selectable LED Output Mode Matches Legacy Rogue R2X Spot Fixtures In Existing Rigs
  • True 1 Compatible Power Linking Reduces Cable Runs Across The Rig
Log in or register for YOUR best price

The Rogue R2E Spot is built for lighting designers and programmers who need a full-featured moving spot that can pull serious double duty across touring rigs, concert stages, and permanent installs without the bulk of a larger fixture. Its 350W LED engine produces 16,345 lumens of output with a tight 15.9° beam angle, delivering crisp gobo projections at throw distances where lesser fixtures fall short. A selectable LED output mode lets it match brightness levels of legacy Rogue R2X Spots already in a rig, making it a practical upgrade or supplement rather than a forced replacement.

Where the R2E Spot separates itself from single-wheel spot fixtures is its dual gobo and dual color wheel configuration. The rotating, interchangeable gobo wheel accepts slot-n-lock gobos with full indexing and continuous scroll, while the fixed wheel adds eight additional metal patterns for layering and morphing transitions in real time. Both color wheels carry eight colors plus white with split-color capability and variable-speed continuous scrolling, enabling a wide palette without any additional color mixing hardware. A motorized 3-facet rotating prism, motorized iris, and motorized frost filter round out the effect toolkit, giving programmers beam splitting, precise spot sizing, and edge softening from a single fixture.

Control is handled via DMX and RDM over both 3-pin and 5-pin XLR connections, with two DMX personalities at 19 or 22 channels to accommodate simple or complex programming environments. Selectable PWM settings from 600 Hz to 15,000 Hz ensure flicker-free performance in broadcast and camera-heavy productions. True 1 compatible power linking via Seetronic PowerKon connectors reduces cable runs across the rig, and the auto-ranging universal power supply accepts 100–240 VAC for international deployments.

Downloads

View full details

Specifications

Certifications
Certifications
CE, MET, FCC, UKCA
IP Rating
IP20, dry location
Optical
Light Source
1 LED (CW), 350 W, 5 A, 7057 K, 50,000 hours life expectancy
Color Temperature
7057 K
Front Lens Diameter
90 mm
CRI
70.4
Beam Angle
15.9°
Field Angle
18.1°
Cutoff Angle
20.3°
Lumens – Source
24,500
Lumens – Output
16,345
Illuminance
11,345 lux @ 5 m
Selectable LED Power Output
50–100%
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan Range
540° (selectable: 540°, 360°, 180°)
Tilt Range
270° (selectable: 270°, 180°, 90°)
Colors (Wheel 1)
8 + white, split colors, continuous scroll at variable speeds
Colors (Wheel 2)
8 + white, split colors, continuous scroll at variable speeds
Gobos (Wheel 1)
7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (Wheel 2)
8 + open (8 metal), continuous scroll at variable speeds
Gobo Wheel 1 Size
20 mm outside, 16 mm image, 1.5 mm max thickness
Framing Shutters
No
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 22 Hz
Focus
Motorized
Frost
Motorized
Iris
Motorized
Prism
3 facets, motorized, rotating
Move-In-Black
Yes
Standalone Color Mixing
No
Color Temperature Presets
No
Dimensions
Dimensions (Single Unit)
14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
Weight
Weight (Single Unit)
31.2 lbs (14.2 kg)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current @ 120 V
481 W, 4.05 A @ 120 V, 60 Hz
Power and Current @ 208 V
472 W, 2.32 A @ 208 V, 60 Hz
Power and Current @ 230 V
469 W, 2.13 A @ 230 V, 50 Hz
Power Linking
2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Connectivity
Power Connection
Edison (local) plug to Seetronic PowerKon
Power Input
Seetronic PowerKon
Power Output
Seetronic PowerKon
Data Connectors
3-pin and 5-pin XLR
Power Cable Length
5 ft (1.5 m)
Controls
Control Protocol
DMX, RDM
DMX Channels
19 or 22
DMX Personalities
2 (19-channel, 22-channel)
Construction
Exterior Color
Black
Housing Material
High-impact flame-retardant polymer
Included Items
Includes
Rogue R2E Spot, Neutrik powerCON power cord, 2x 140D Omega brackets with mounting hardware
