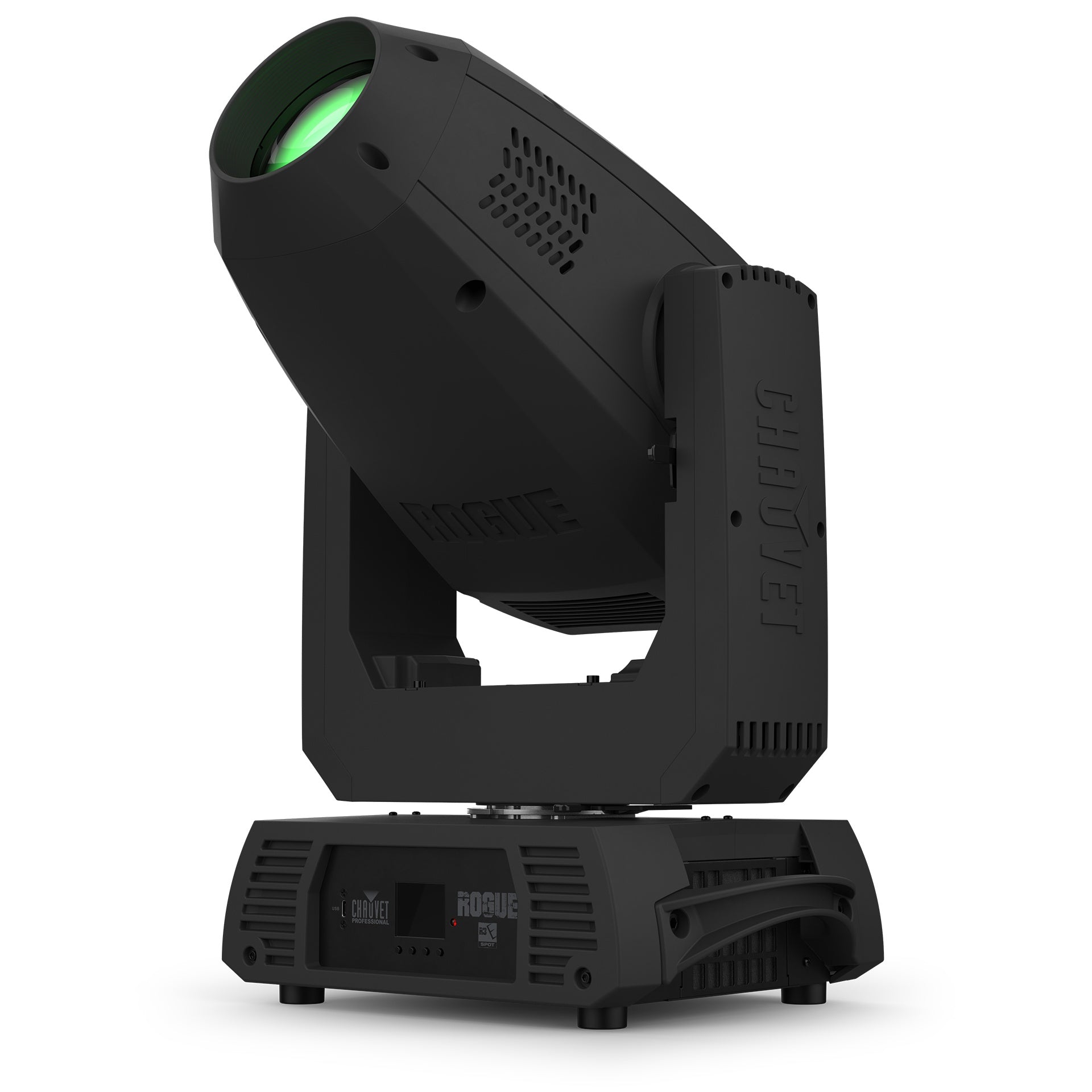

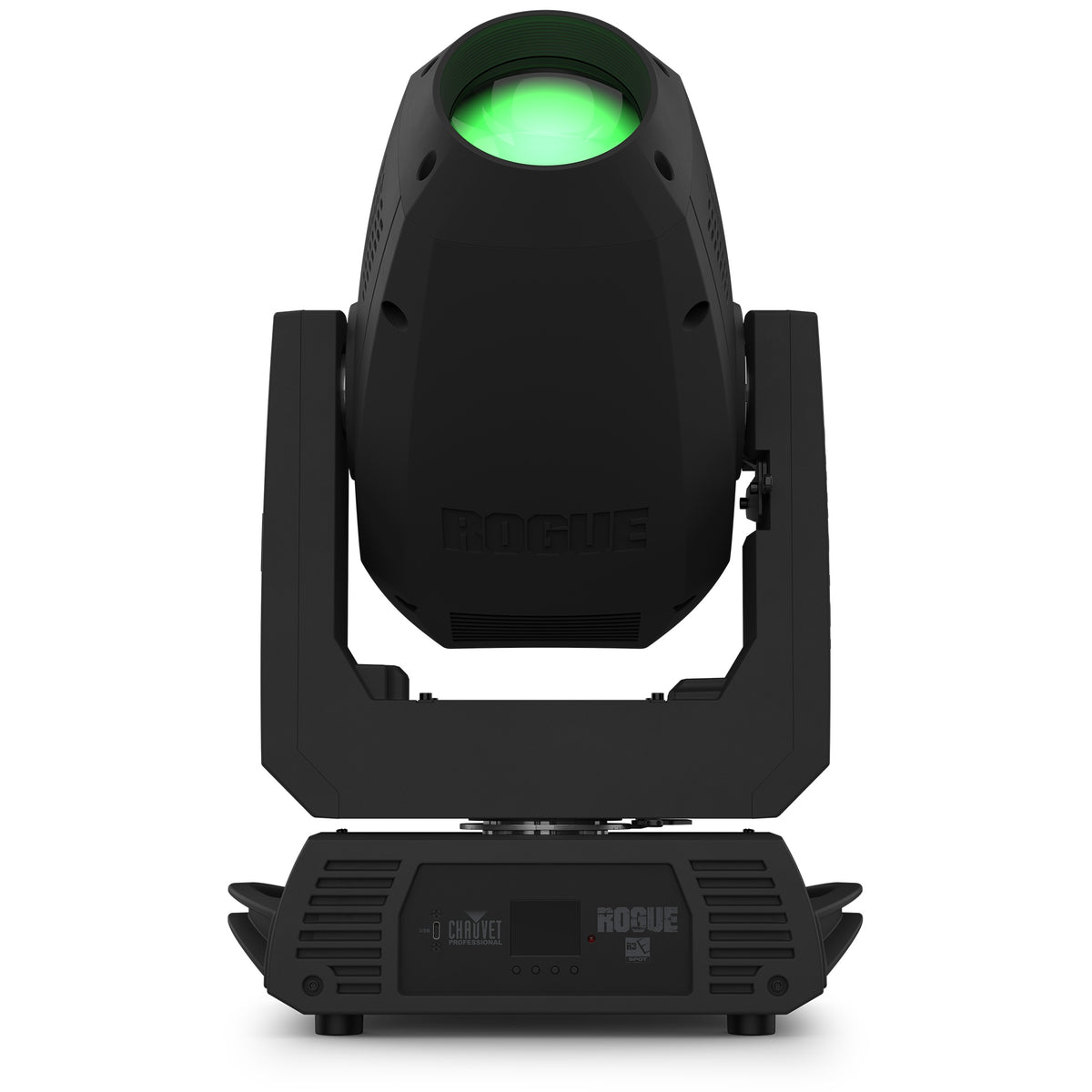

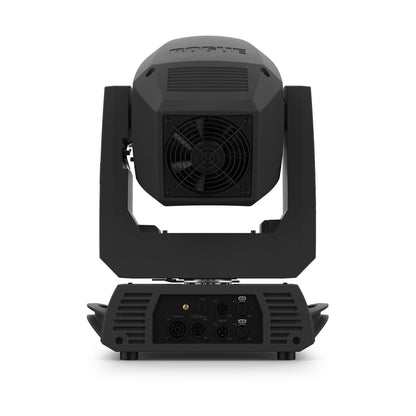

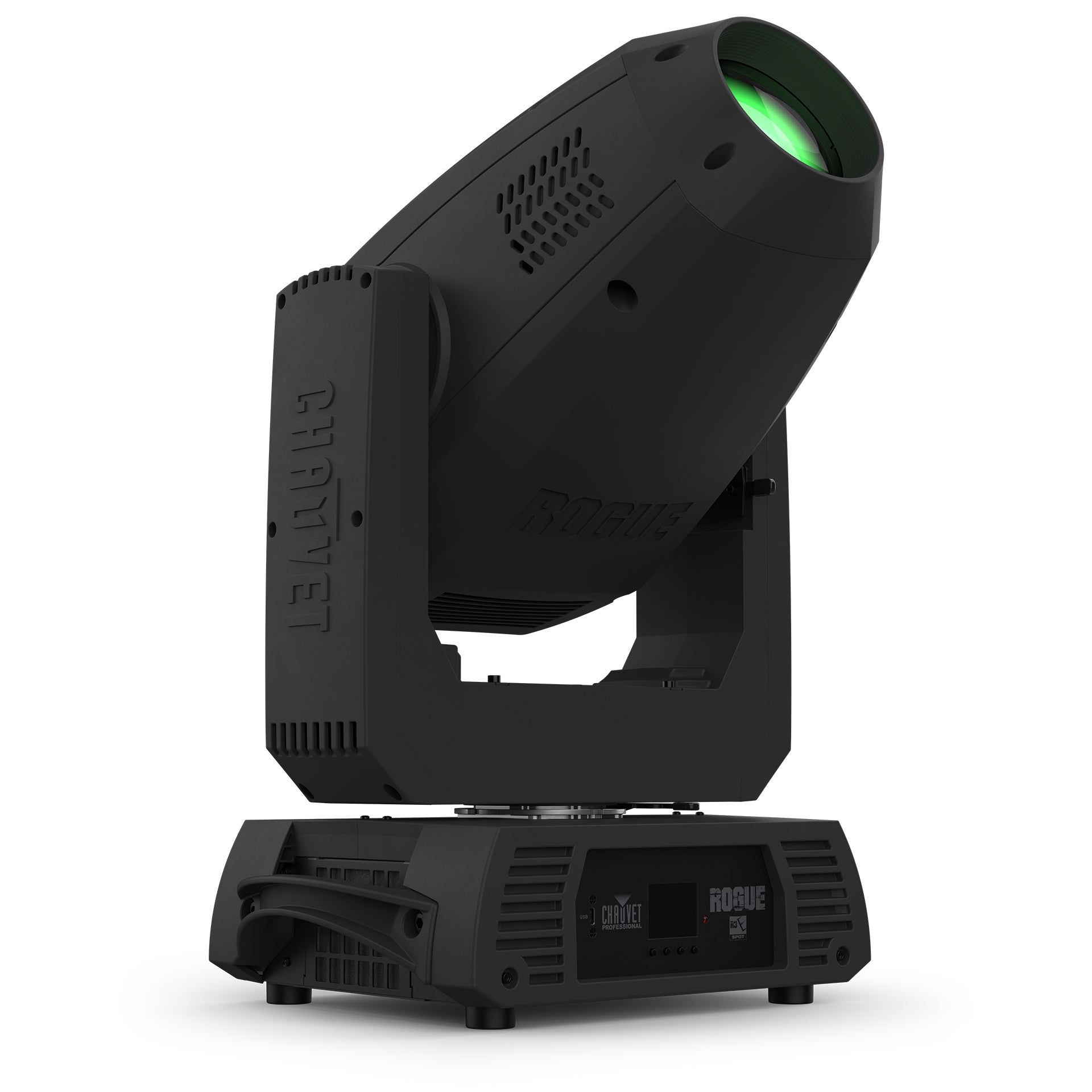

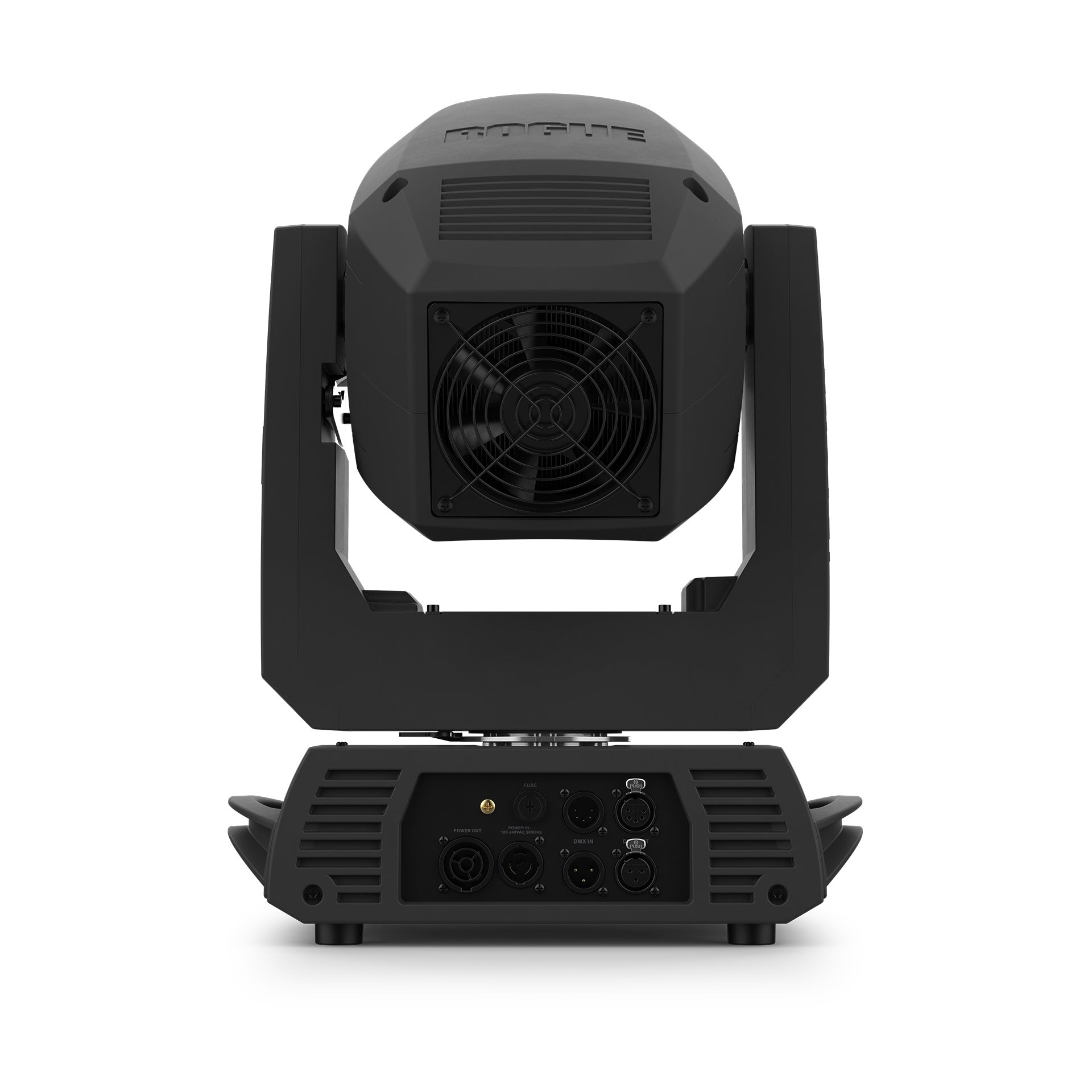

Chauvet Pro ROGUER3ESPOT 350W LED Moving Yoke Spot Fixture

Chauvet Pro ROGUER3ESPOT 350W LED Moving Yoke Spot Fixture

SoundPro Item: 143528 | Part Number: ROGUER3ESPOT

$3,418.50
$3,924.00 $3,418.50
Your Price Sold out
MSRP: $3,924.00 | MAP: $3,418.50

Usually ships in 5-7 business days

  • Dual Gobo Wheels Enable Real-Time Morphing Between Rotating And Static Patterns
  • Dual Color Wheels With Split-Color Capability Expand Palette Beyond Single-Wheel Fixtures
  • Selectable PWM From 600 Hz To 15,000 Hz Eliminates Flicker For On-Camera Applications
  • Motorized Iris, Frost, And 3-Facet Rotating Prism Provide Complete Beam Shaping Control
  • Legacy Output Matching Allows Seamless Integration With Existing Rogue R1X Spot Rigs
  • RDM Support Enables Remote Addressing And Troubleshooting From The Console
  • Seetronic Powerkon Power Linking Simplifies Multi-Unit Cabling For Touring And Install
Log in or register for YOUR best price

The Chauvet Pro Rogue R3E Spot is built for lighting directors, rental houses, and production designers who need a feature-complete moving spot that punches above its weight class. With a 350W LED engine producing 15,705 lumens of output and a zoom range spanning 8.4° to 42.8°, it covers everything from tight aerial beam work to wide soft washes within a single fixture — eliminating the need to mix multiple fixture types in a rig.

Where comparable mid-range spots offer a single gobo wheel and basic color mixing, the Rogue R3E Spot provides two independent color wheels and two gobo wheels — one rotating and interchangeable, one static — enabling real-time gobo morphing that creates layered pattern looks not achievable with simpler fixtures. The motorized frost, iris, and 3-facet rotating prism add further beam-shaping flexibility that touring LDs and club installers typically reserve for higher-tier fixtures.

For on-camera applications in broadcast studios, hybrid venues, or livestream productions, selectable PWM settings from 600 Hz to 15,000 Hz eliminate flicker at any frame rate. Seetronic Powerkon IP65 power in and out support daisy-chain linking of up to nine units at 240V, and both 3-pin and 5-pin XLR DMX connections with RDM support streamline integration into existing rigs. Selectable LED output levels allow seamless brightness matching with legacy Rogue R1X Spot fixtures already in inventory.

Downloads

View full details

Specifications

Certifications
Certifications
CE, MET, FCC, UKCA
IP Rating
IP20, dry location
Operating Temperature
-4 °F to 113 °F (-20 °C to 45 °C)
Optical
Light Source
1 LED (CW) 350 W, 8527 K, 50,000 hours life expectancy
Color Temperature
8527 K
CRI
68.2
Front Lens Diameter
90 mm
Lumens – Source
24,500
Lumens – Output
15,705
Beam Angle
8.4° to 33°
Field Angle
10.1° to 39.3°
Cutoff Angle
11.5° to 42.8°
Zoom Range
8.4° to 42.8°
Illuminance (7°)
35,405 lux @ 5 m
Illuminance (42.8°)
2,492 lux @ 5 m
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan / Tilt
540° / 270°
Pan Ranges
180°, 360°, 540°
Tilt Ranges
90°, 180°, 270°
Colors (Wheel 1)
8 + white, split colors, continuous scroll at variable speeds
Colors (Wheel 2)
8 + white, split colors, continuous scroll at variable speeds
Gobos (Wheel 1)
7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (Wheel 2)
8 + open (8 metal), continuous scroll at variable speeds
Gobo Wheel 1 Size
20 mm outside, 16 mm image, 1.5 mm max thickness
Gobo Wheel 2 Size
24 mm outside, 16 mm image, 0.6 mm max thickness
Prism
3-facet, motorized, rotating
Strobe Rate
0 to 25 Hz
Iris
Motorized
Frost
Motorized
Zoom
Motorized
Focus
Motorized
Dimmer
Electronic
Shutter / Strobe
Electronic
Move in Black
Yes
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current @ 120 V
535 W, 4.541 A @ 120 V, 60 Hz
Power and Current @ 208 V
522 W, 2.576 A @ 208 V, 60 Hz
Power and Current @ 230 V
523 W, 2.345 A @ 230 V, 50 Hz
Power Linking
4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V; 9 units @ 240 V
Control
Control Protocol
DMX, RDM
DMX Channels
19 or 25
DMX Personalities
2 (19-channel, 25-channel)
Connectivity
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
Data Connectors
3-pin and 5-pin XLR
Cable Length (Power)
5 ft (1.5 m)
Software Connection
USB-C
Construction
Dimensions
13.77" x 9.44" x 23.03"
Weight
34 lbs (15.4 kg)
Exterior Color
Black
Housing Material
Aluminum die-cast, high-impact flame-retardant polymer, steel
Environmental
Noise Level – Idle
4.1 dB(A) @ 1 m
Noise Level – Max
35.0 dB(A) @ 1 m
Noise Level – Auto
33.3 dB(A) @ 1 m
Noise Level – Eco
31.2 dB(A) @ 1 m
Noise Level – Full
40.2 dB(A) @ 1 m
Included Items
Included
Rogue R3E Spot, Seetronic PowerKon power cord, 2x 140D Omega brackets with mounting hardware
