Chauvet Pro STRIKE Array 1 IP65 Modular Audience Blinder With Red Shift

Chauvet Pro STRIKE Array 1 IP65 Modular Audience Blinder With Red Shift

SoundPro Item: 144767 | Part Number: STRIKEARRAY1

$2,650.00
$3,042.00 $2,650.00
Your Price Sold out
MSRP: $3,042.00 | MAP: $2,650.00

Usually ships in 5-7 business days

  • IP65 Rated Housing With GORE Valve Enables Reliable Outdoor And Wet-Weather Deployment
  • Tool-Free Interlocking System Allows Fast On-Site Assembly Of Larger Blinder Arrays
  • Red Shift Dimming Emulates Tungsten Warm-Glow As Intensity Decreases
  • Selectable PWM From 600 Hz To 25,000 Hz Eliminates Camera Flicker For Broadcast Use

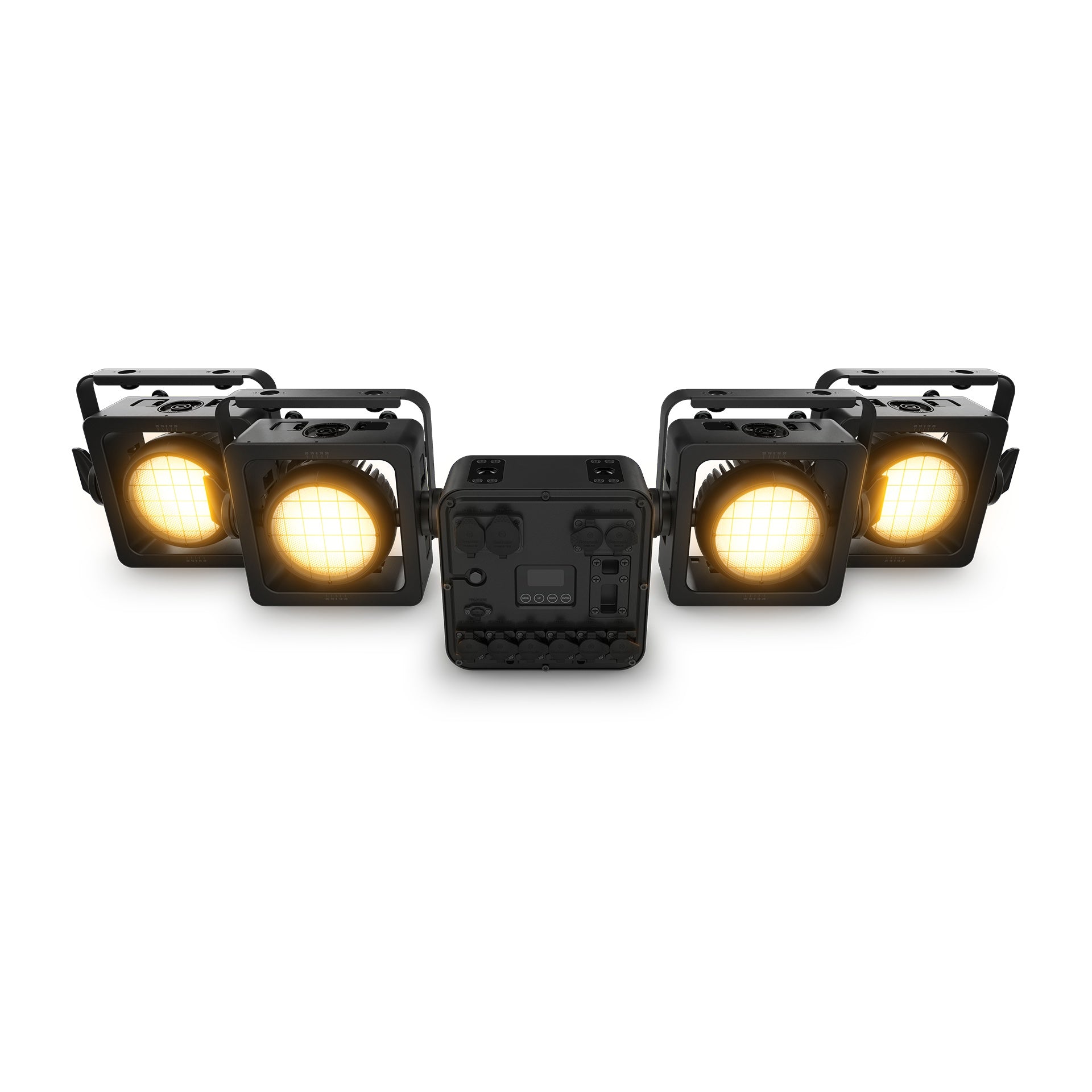

  • Remote Driver Auto-Addresses Up To Eight Pods For Streamlined Installation

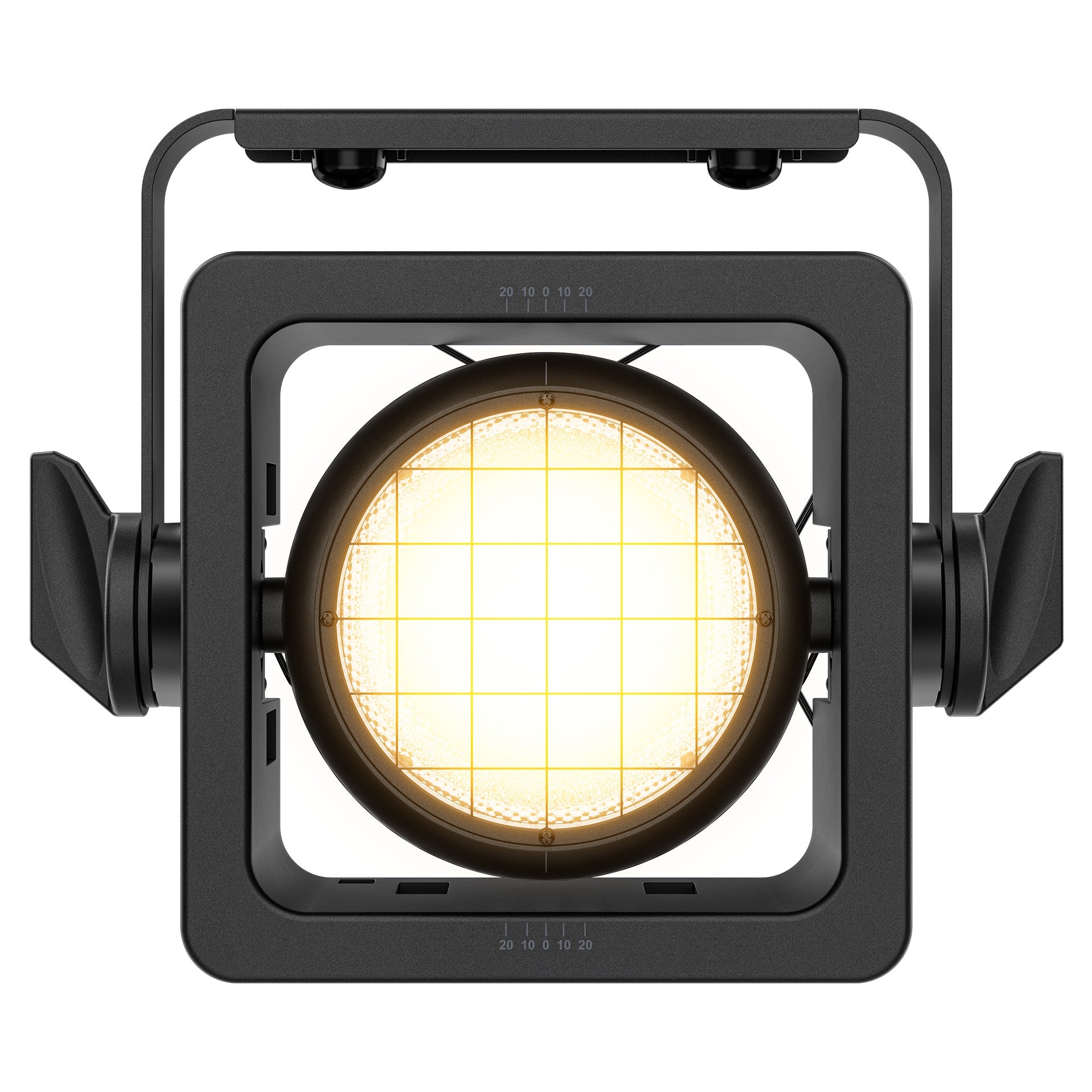

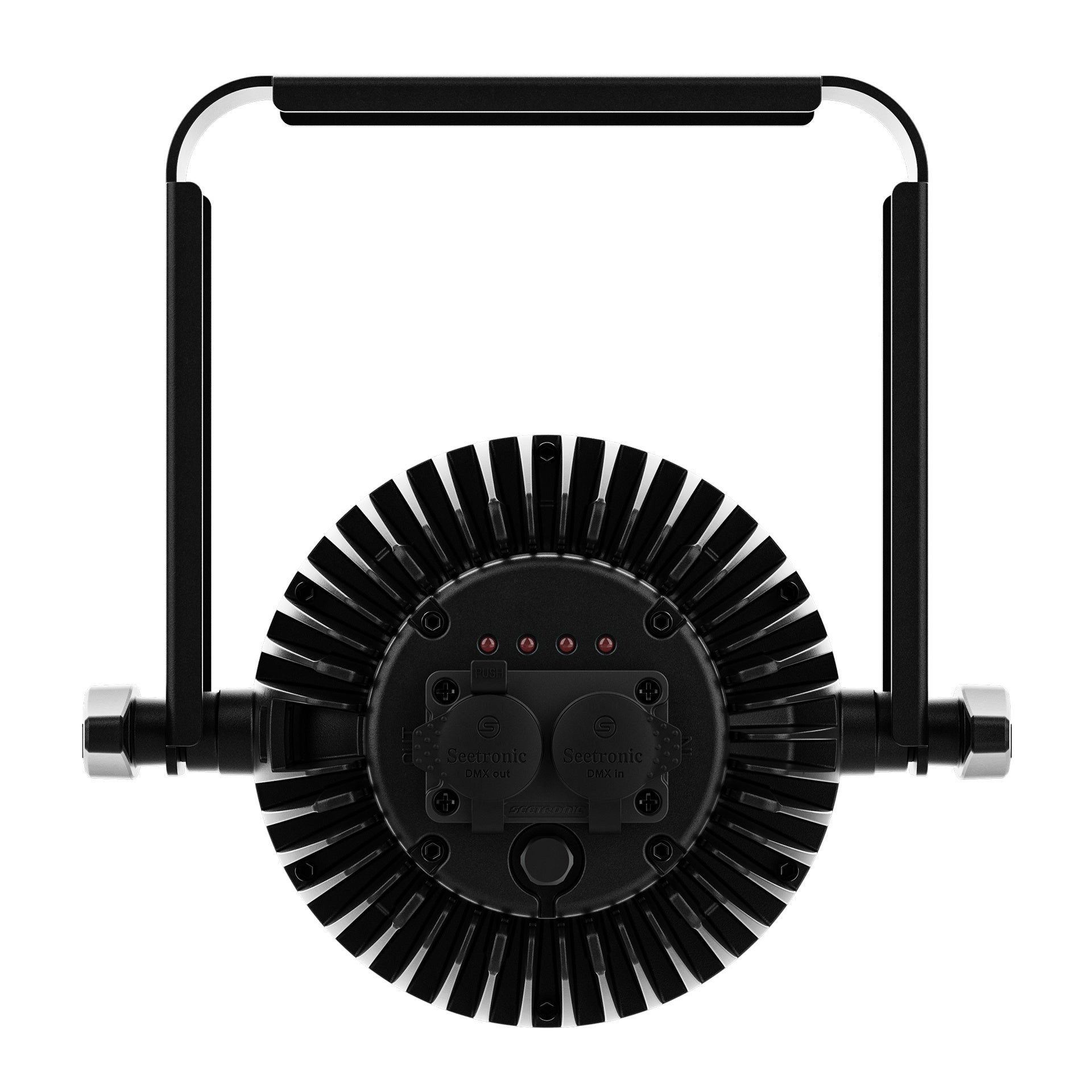

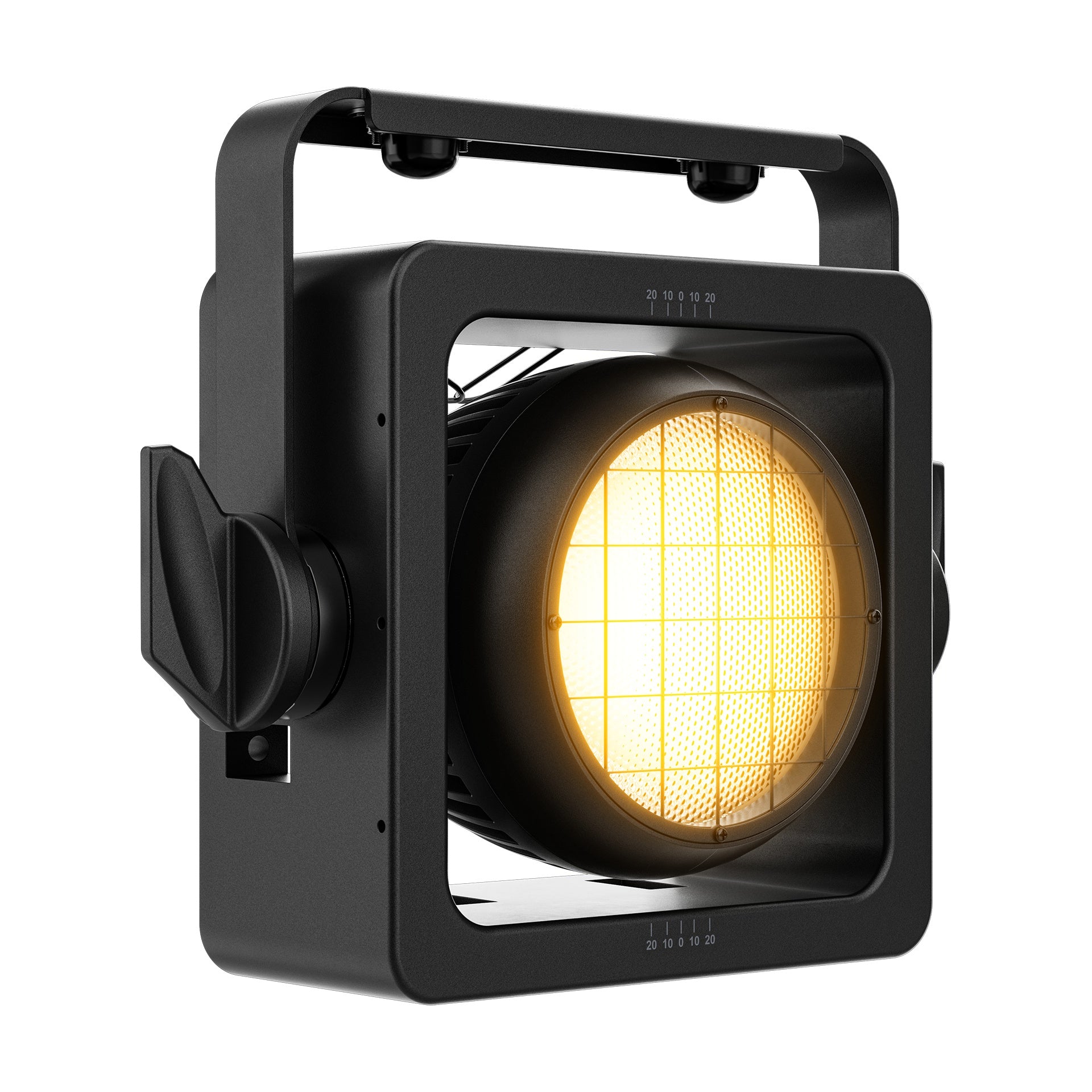

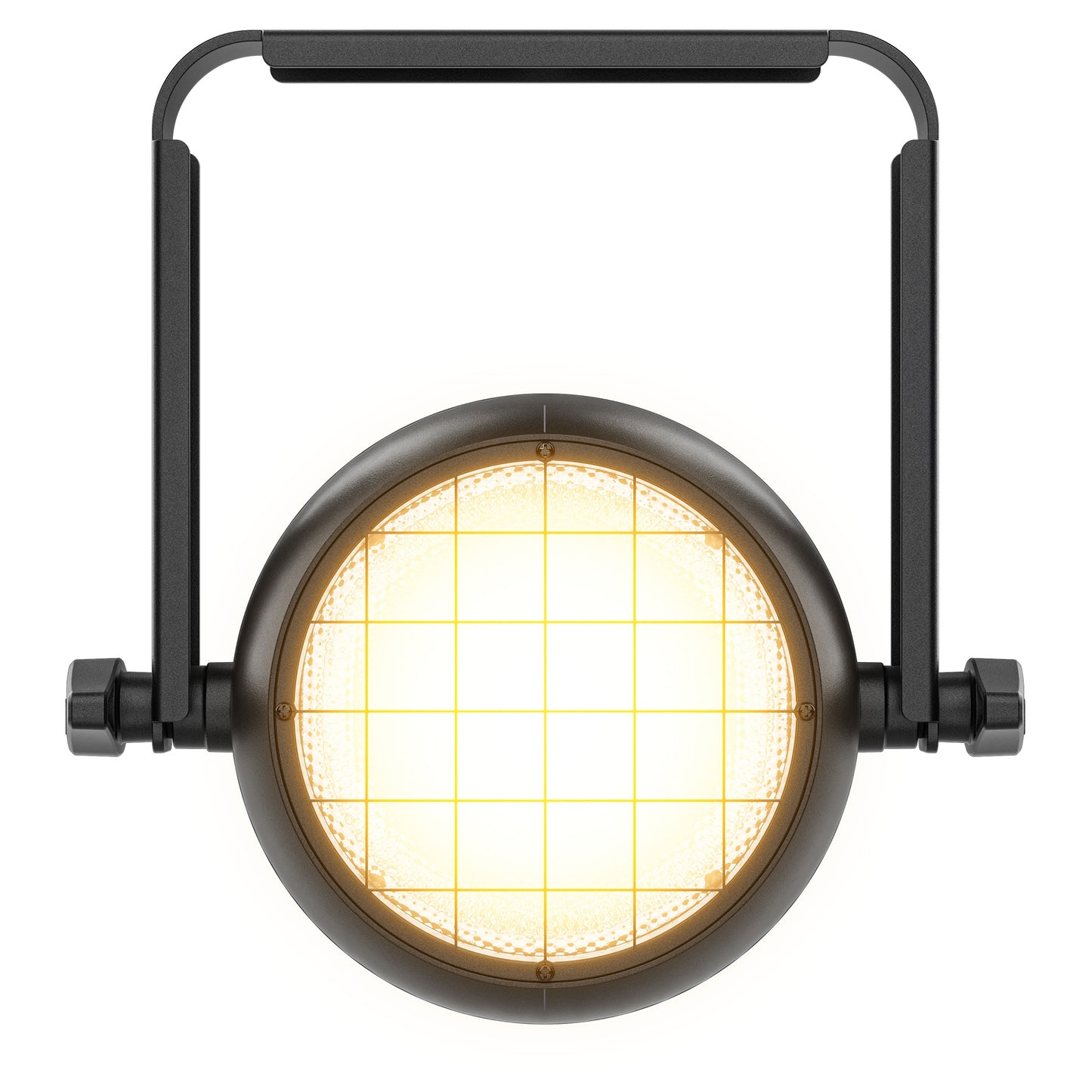

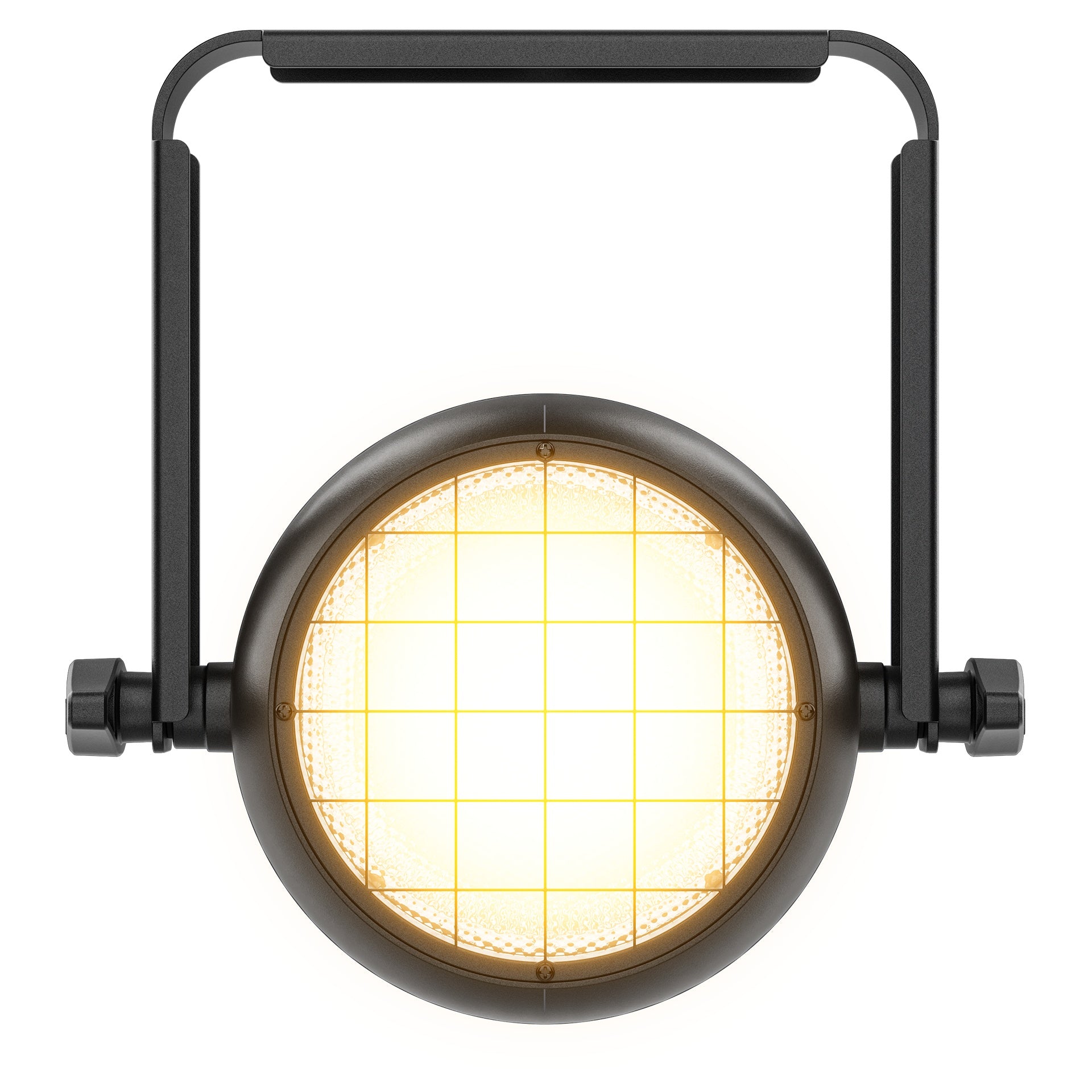

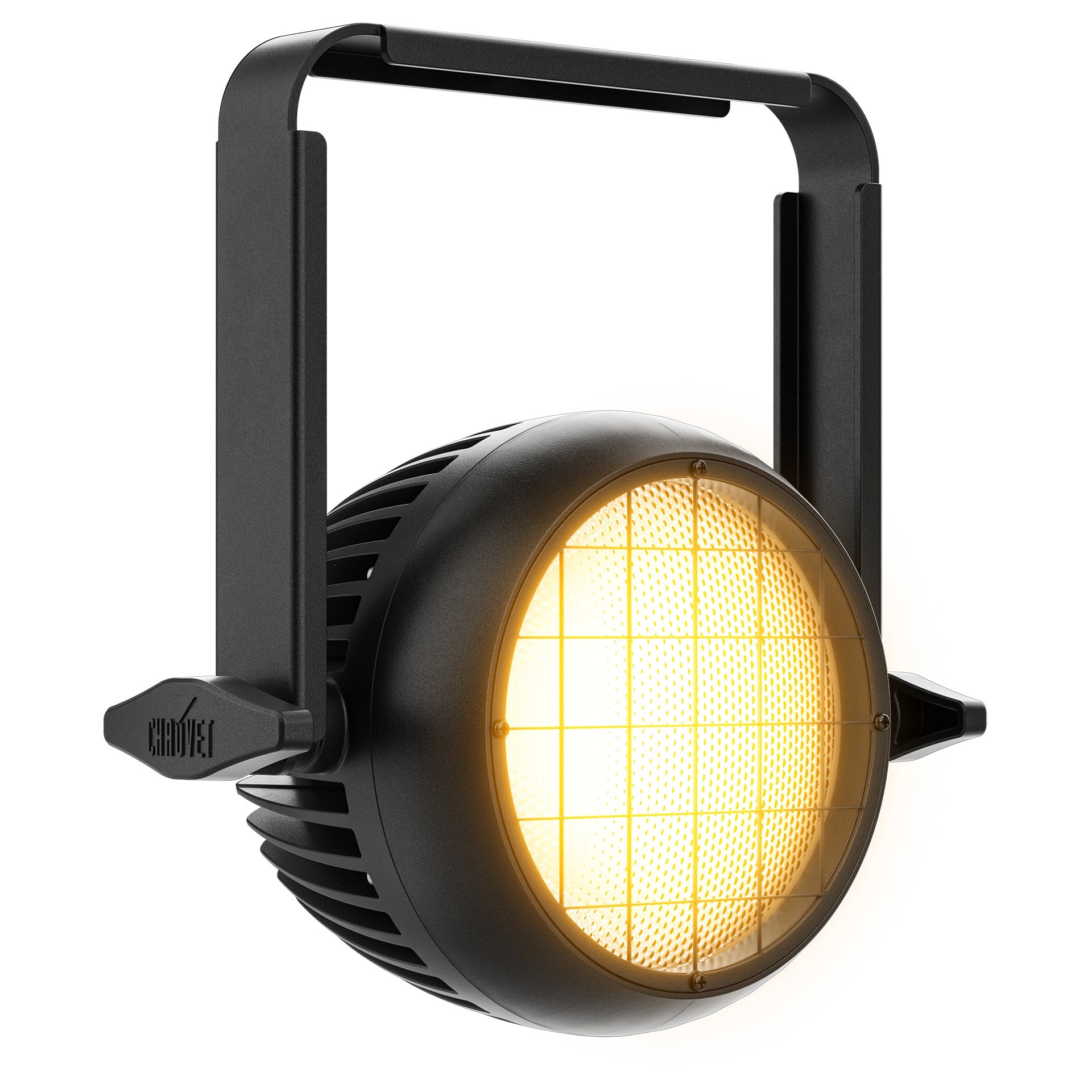

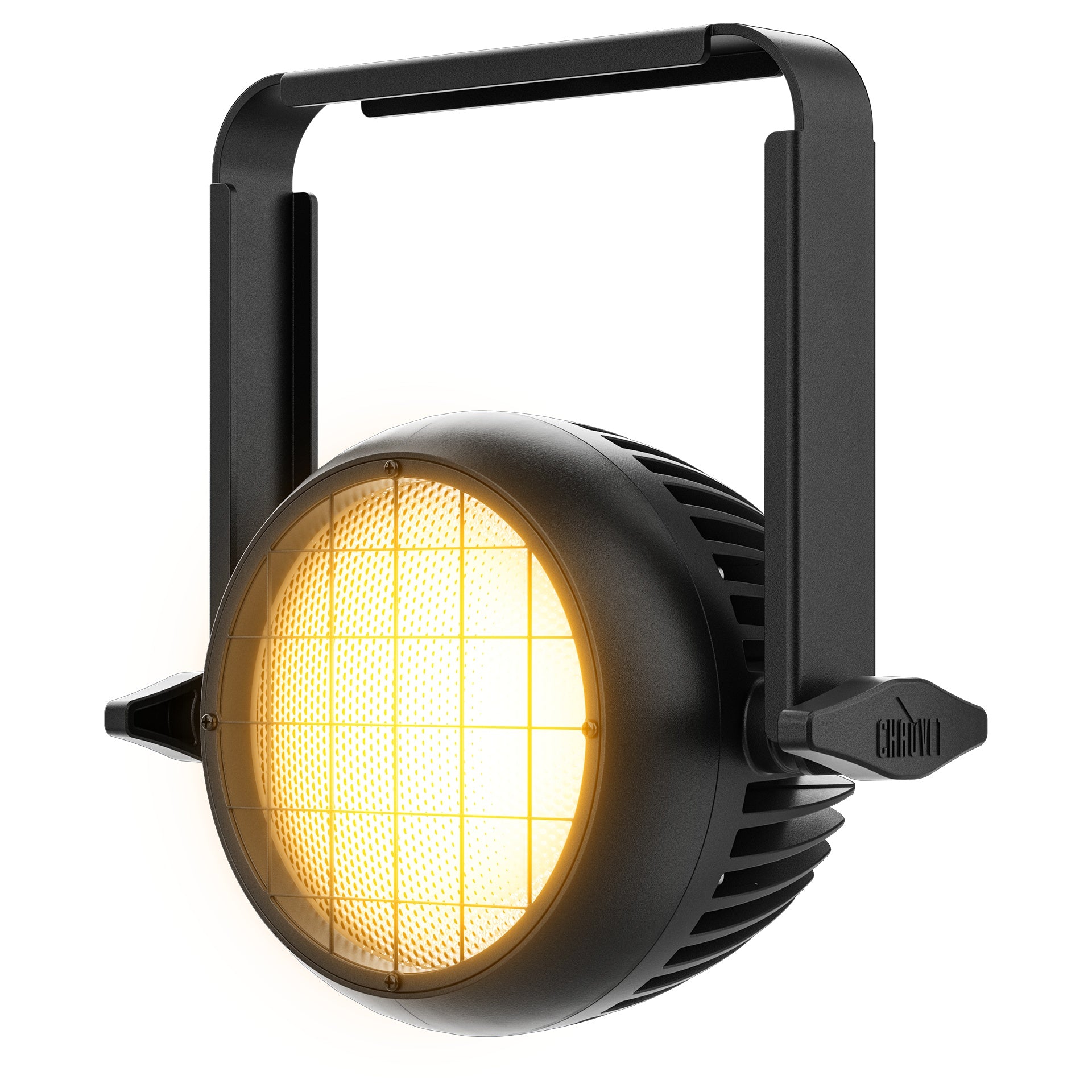

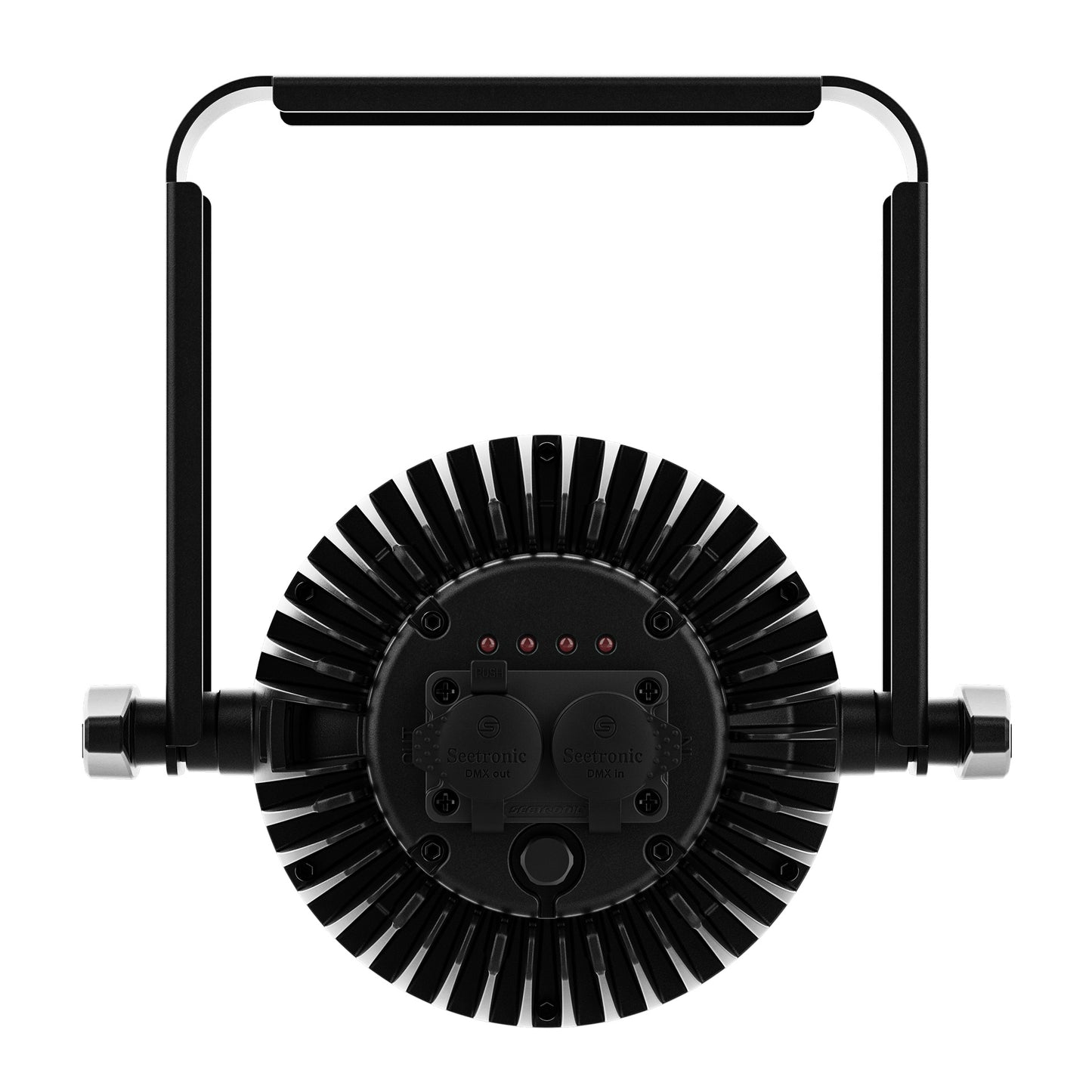

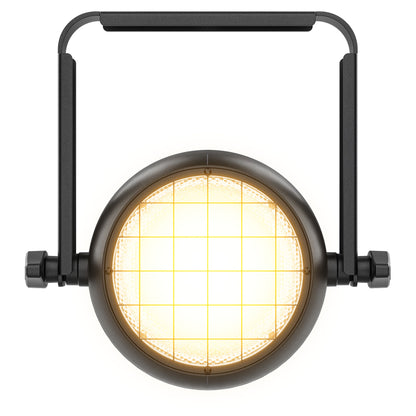

  • Individual Pods Mount On Included Yoke For Standalone Or Traditional Blinder Rigging
  • 18-Bit Dimming Resolution Produces Seamless Fades With No Visible Stepping
Log in or register for YOUR best price

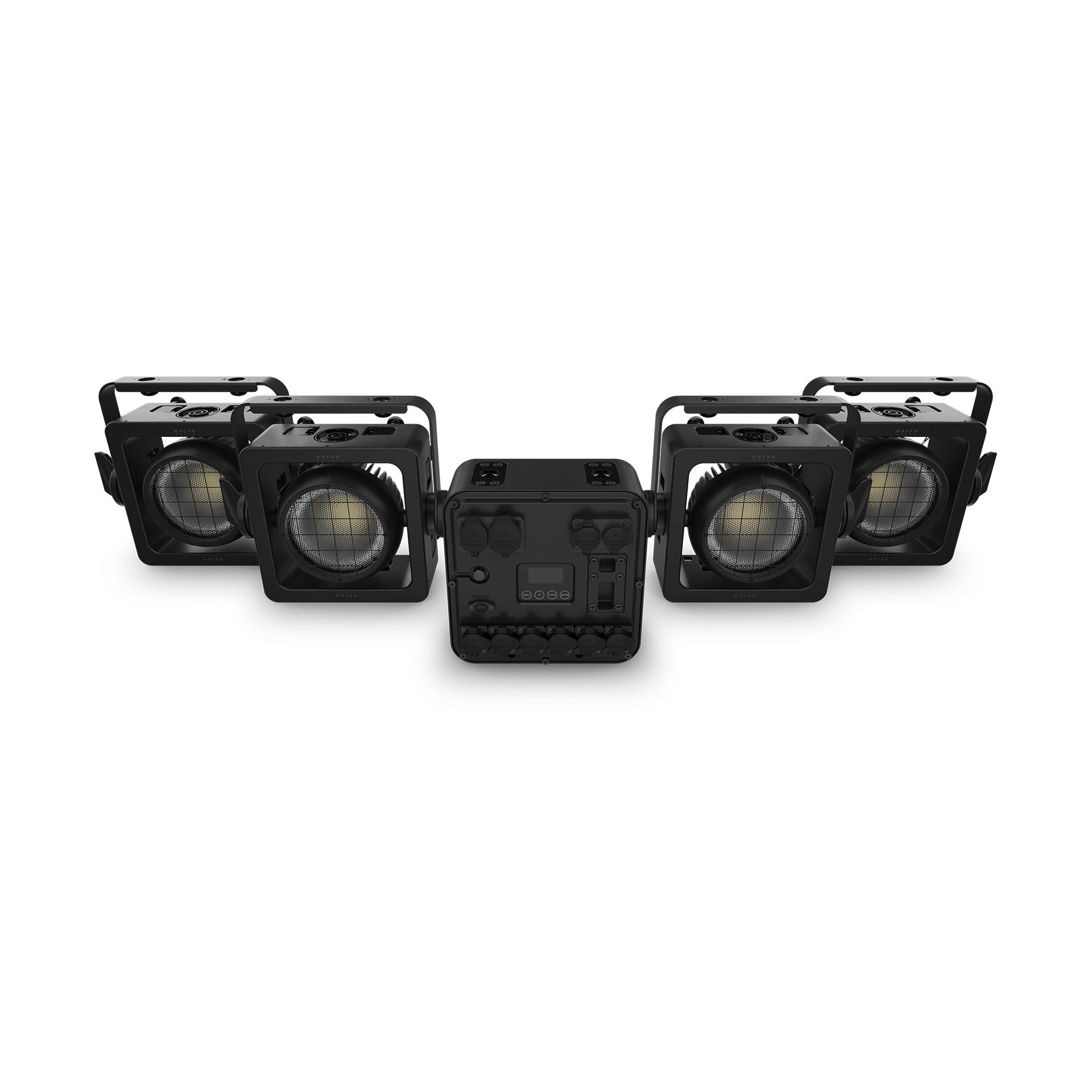

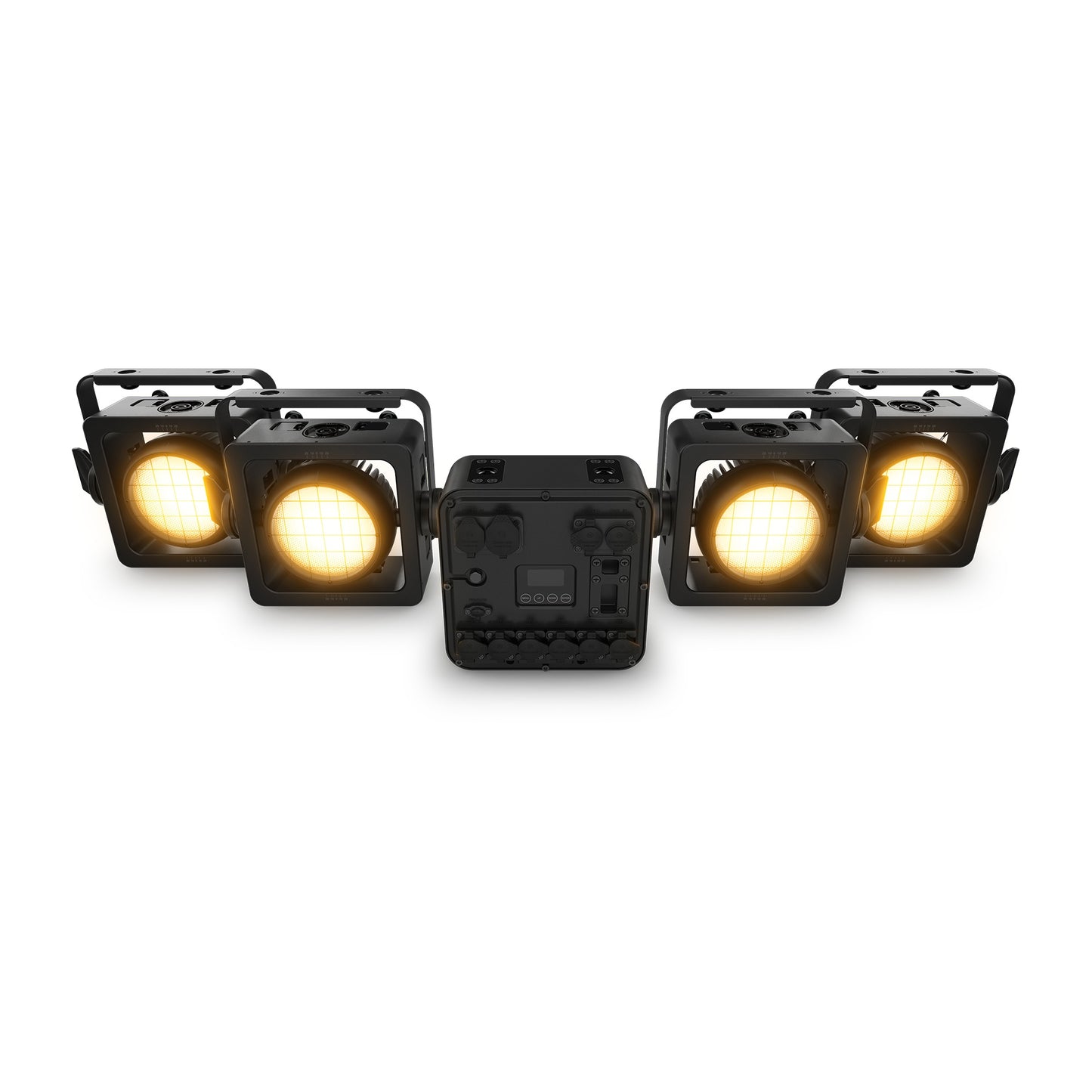

The STRIKE Array 1 is built for lighting designers and production crews who need a scalable, all-weather audience blinder that performs equally well at a festival downpour, a broadcast stage, or a large-scale touring show. Each unit ships as a four-pod assembly with a remote driver that auto-addresses up to eight connected pods, eliminating manual addressing overhead during compressed load-in windows. The tool-free interlocking system lets crews build wider arrays on the fly without tools or adapters, while individual pods can be pulled from the frame and rigged on the included yoke for a more targeted, conventional blinder look.

For broadcast and virtual production environments where camera flicker is a liability, the selectable PWM — spanning 600 Hz to 25,000 Hz — keeps footage clean across frame rates. The CRI of 83.9 and a 2657 K color point at full intensity deliver the warm punch audiences expect from a front-wash blinder, while the Red Shift dimming curve replicates the amber glow of incandescent sources as intensity drops, preserving the tungsten aesthetic that film and broadcast colorists depend on. Eighteen-bit dimming resolution eliminates stepping artifacts through the low end of the curve.

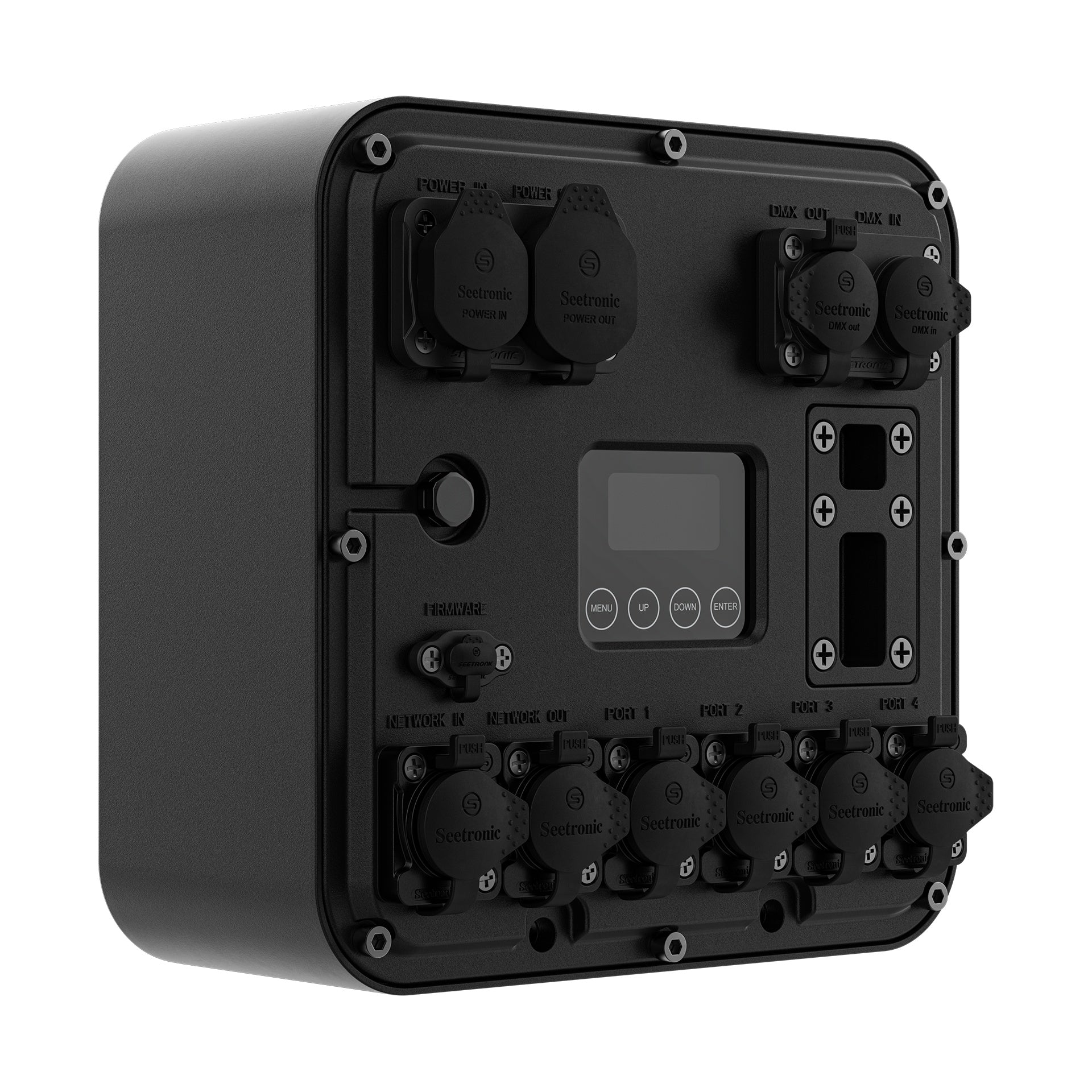

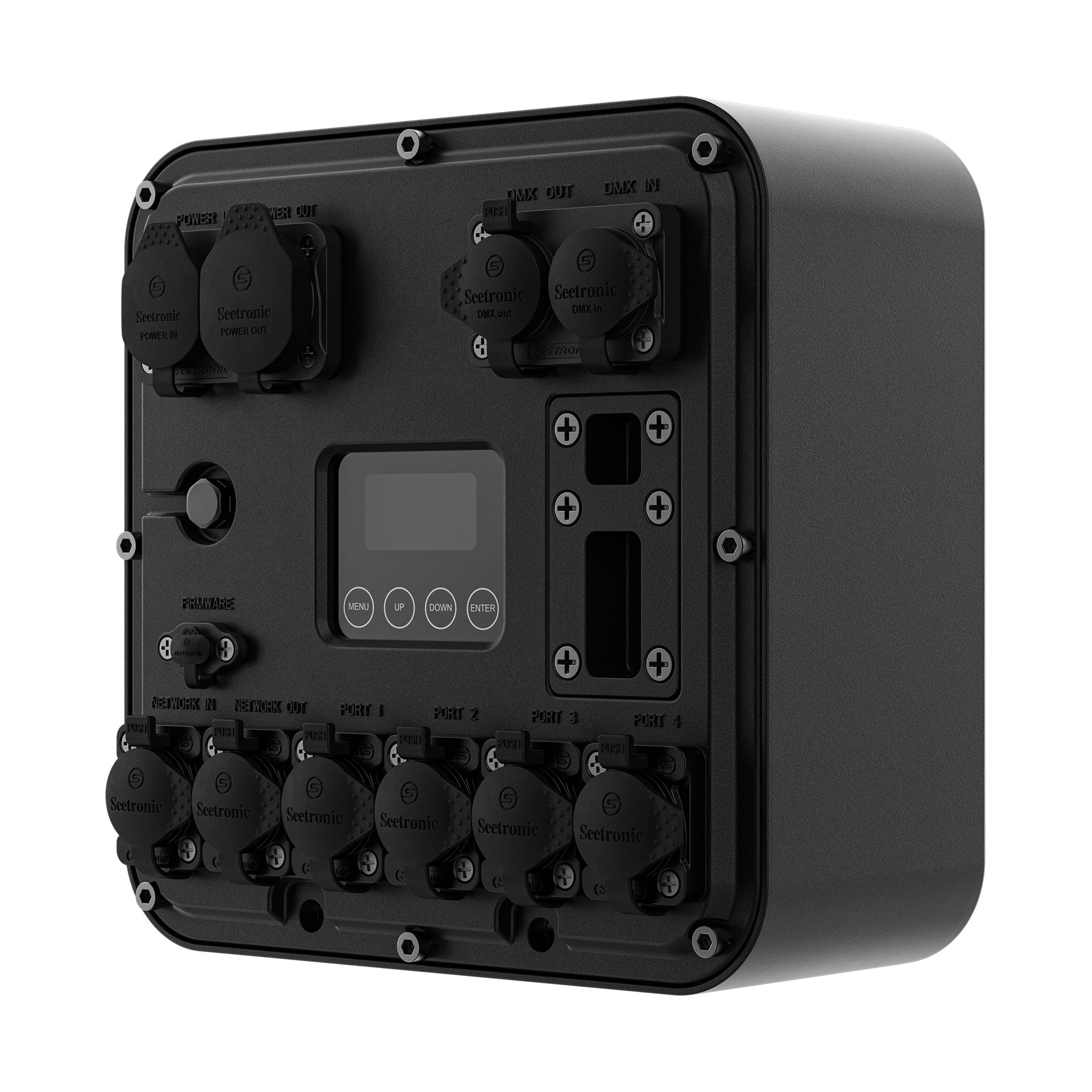

Control flexibility matches the fixture's physical versatility: DMX, RDM, ArtNet, and sACN are all supported through IP65-rated Seetronic data connectors, and the driver accepts USB for firmware updates via UPLOAD 03 software. The aluminum die-cast housing carries an IP65 rating with a pressure-equalizing GORE valve, making it a dependable choice wherever weather or moisture exposure is a factor.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65, temporary outdoor/wet use, with pressure equalizing M6 GORE valve
Certifications
CE, MET, FCC
Ambient Temperature
-4 °F to 113 °F (-20 °C to 45 °C)
Optical
Light Source — WW (Single Pod)
48 LED (WW) 1.33 W, (1.1 A), 2700 K, 50,000 hours life expectancy
Light Source — Amber (Single Pod)
5 LED (Amber) 1.92 W, (.770 A), 50,000 hours life expectancy
Color Temperature (At Full)
2657 K
CRI
83.9
Beam Angle
62.8°
Field Angle
104.5°
Lumens (Single Pod)
4,353 lm @ 5 m
Illuminance (Single Pod)
153 lux @ 5 m
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
Performance
Dimmer
Electronic
Strobe Rate
0 to 25 Hz
Dim Modes
4
Built-In Automated Programs
Yes
Dimensions
Single Unit With Bracket
8.19 x 8.62 x 4.57 in (208 x 219 x 116 mm)

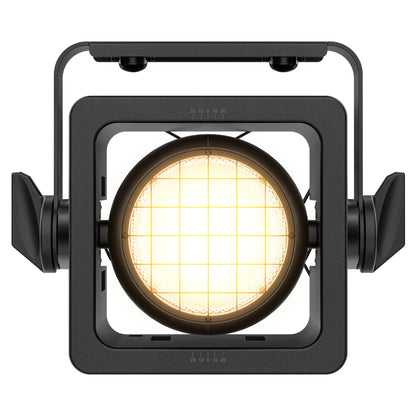

Single Unit With Frame
7.48 x 7.48 x 4.57 in (190 x 190 x 116 mm)
Single Unit With Frame And Bracket
10.87 x 9.06 x 4.57 in (276 x 230 x 116 mm)

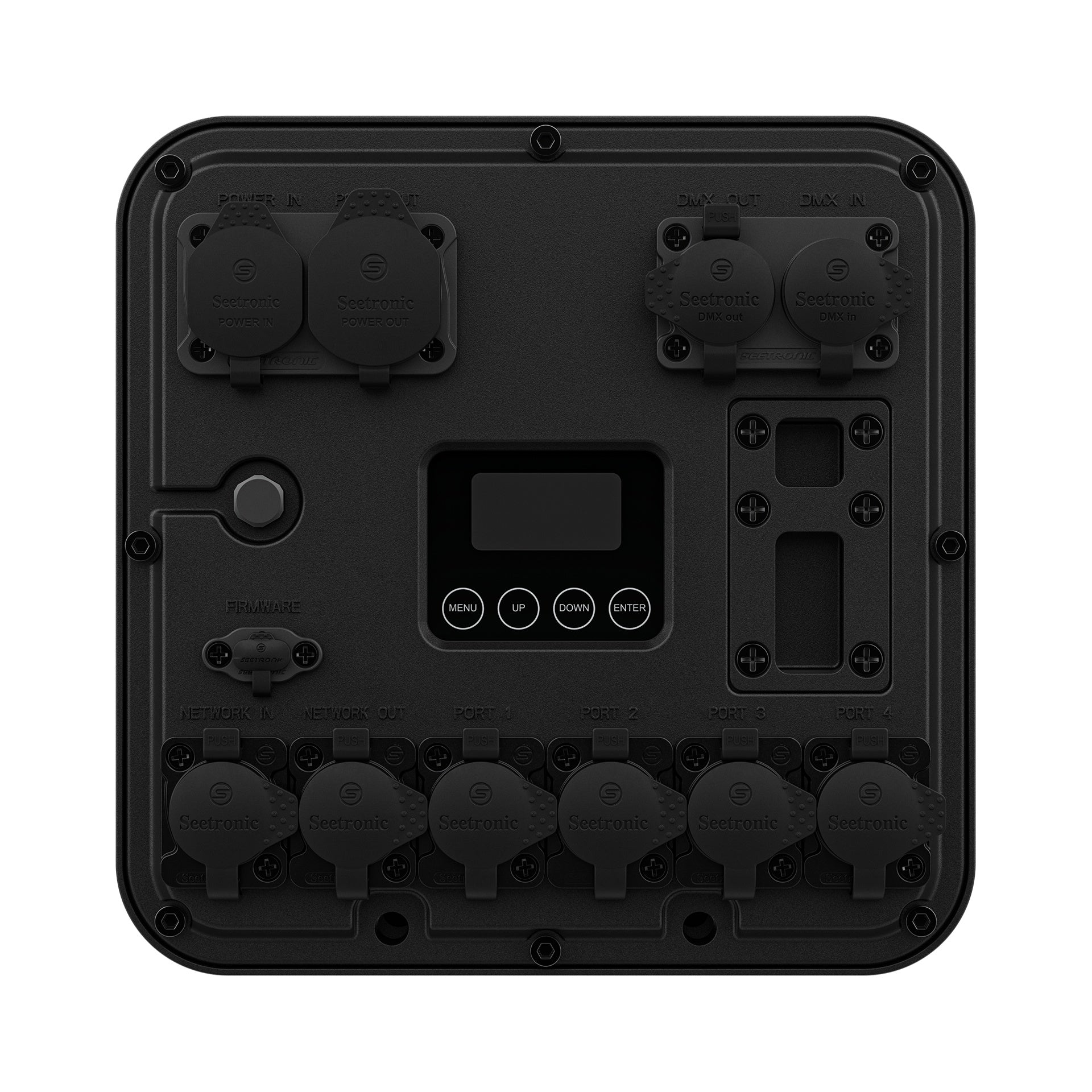

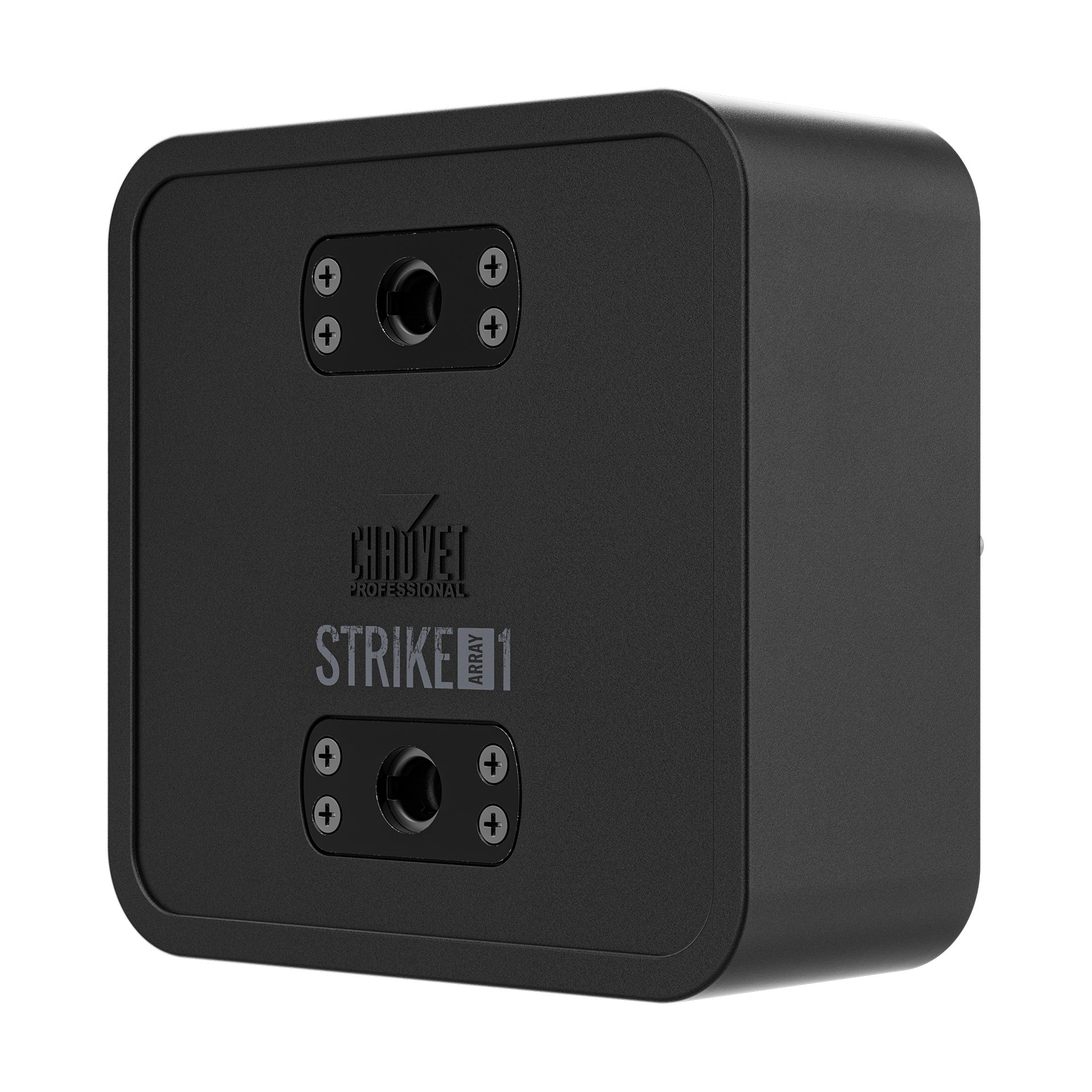

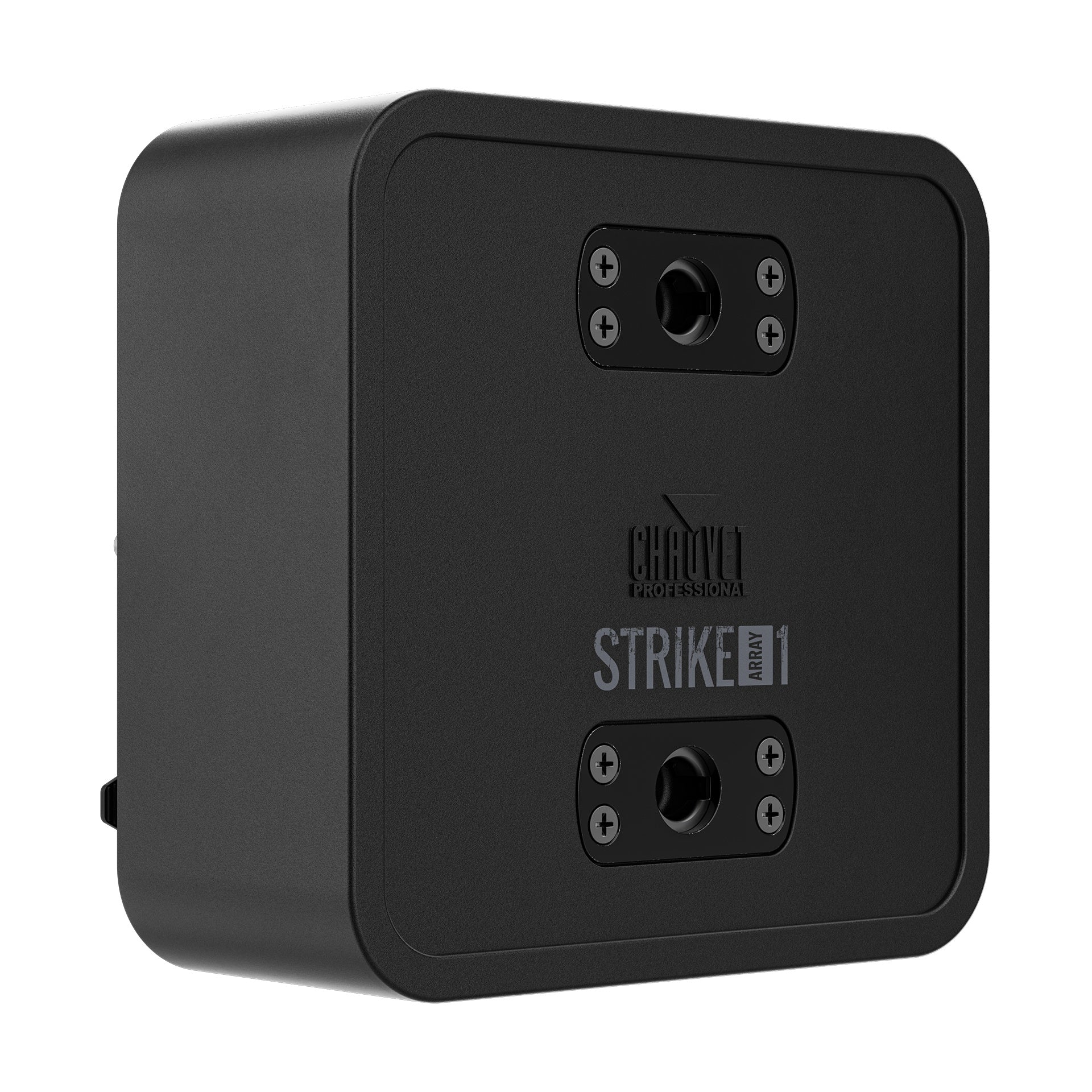

Control Box
7.375 x 4.00 x 7.375 in (186.87 x 101.6 x 186.87 mm)
Weight
Single Unit With Bracket
3.2 lbs (1.5 kg)
Single Unit With Frame
6.6 lbs (3.0 kg)
Single Unit With Frame And Bracket
7.6 lbs (3.5 kg)
Control Box
6.4 lbs (2.9 kg)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power And Current (4 Pods) @ 120 V
253 W, 2.13 A @ 120 V, 60 Hz
Power And Current (4 Pods) @ 208 V
248 W, 1.21 A @ 208 V, 60 Hz
Power And Current (4 Pods) @ 230 V
248 W, 1.09 A @ 230 V, 50 Hz
Power And Current (8 Pods) @ 120 V
509 W, 4.22 A @ 120 V, 60 Hz
Power And Current (8 Pods) @ 208 V
494 W, 2.38 A @ 208 V, 60 Hz
Power And Current (8 Pods) @ 230 V
490 W, 2.14 A @ 230 V, 50 Hz
Power Linking (4-Pod Units)
2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power Linking (8-Pod Units)
5 units @ 120 V; 9 units @ 208 V; 11 units @ 230 V
Connectivity
Control Protocol
DMX, RDM, ArtNet, sACN
DMX Channels
1, 2, 5, 4P-5CH, 4P-14CH, 4P-23CH, 4P-26CH, 8P-9CH, 8P-26CH, 8P-43, 8P-46CH
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Device Outputs (4)
4-pin XLR
Data Connectors
5-pin IP65 XLR, Seetronic Etherkon IP65
Software Connection
USB
Power Cable Length
5 ft (1.5 m)
Max Cable Length — Driver To Last Head
147 ft (45 m)
Construction
Housing Material
Aluminum die-cast
Exterior Color
Black
Included Items
Pods

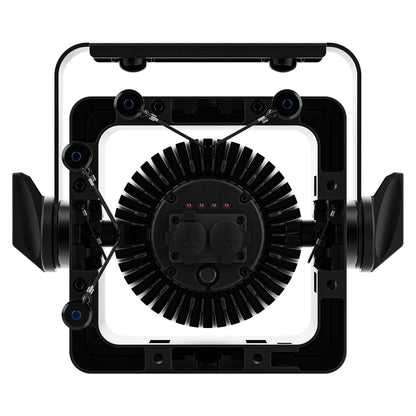

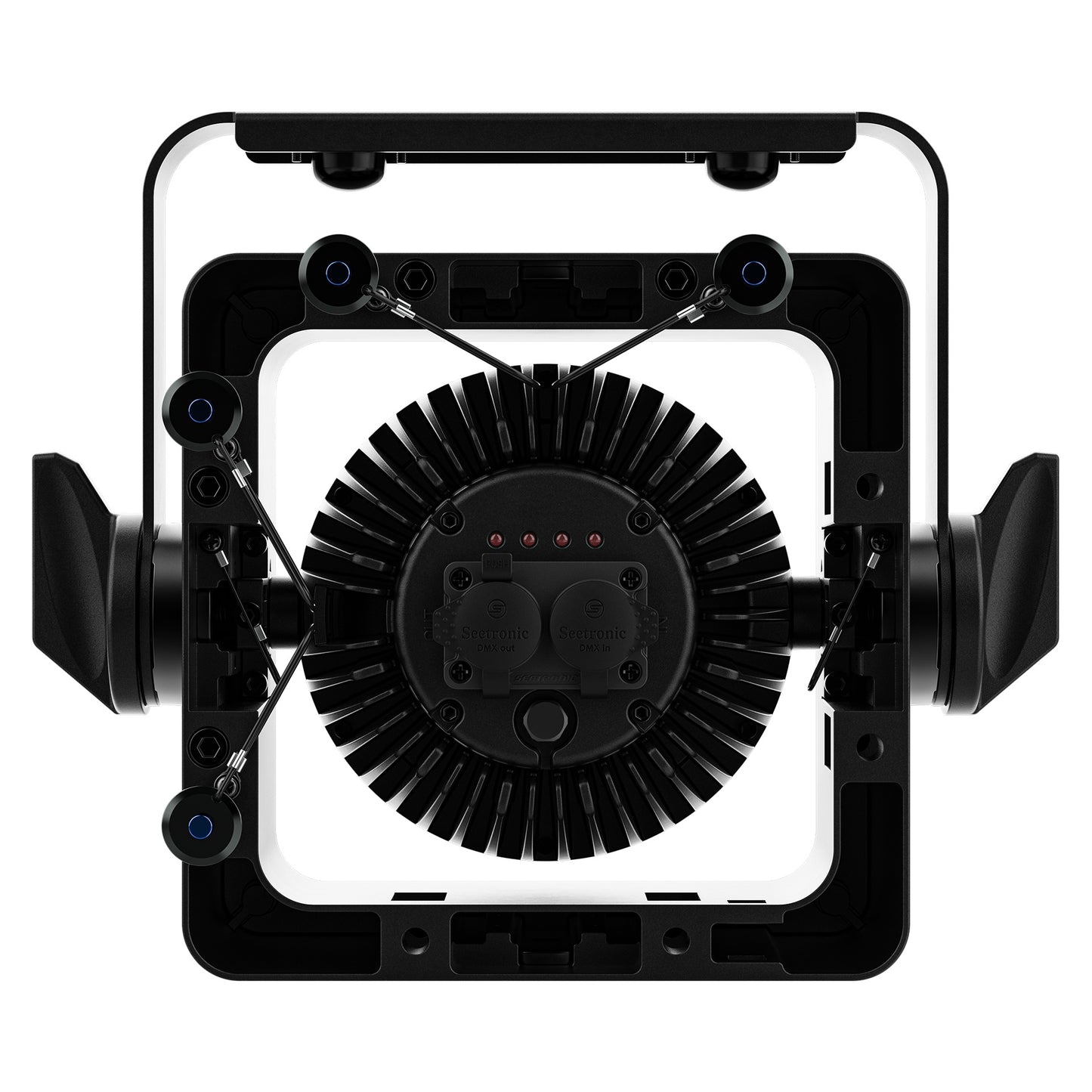

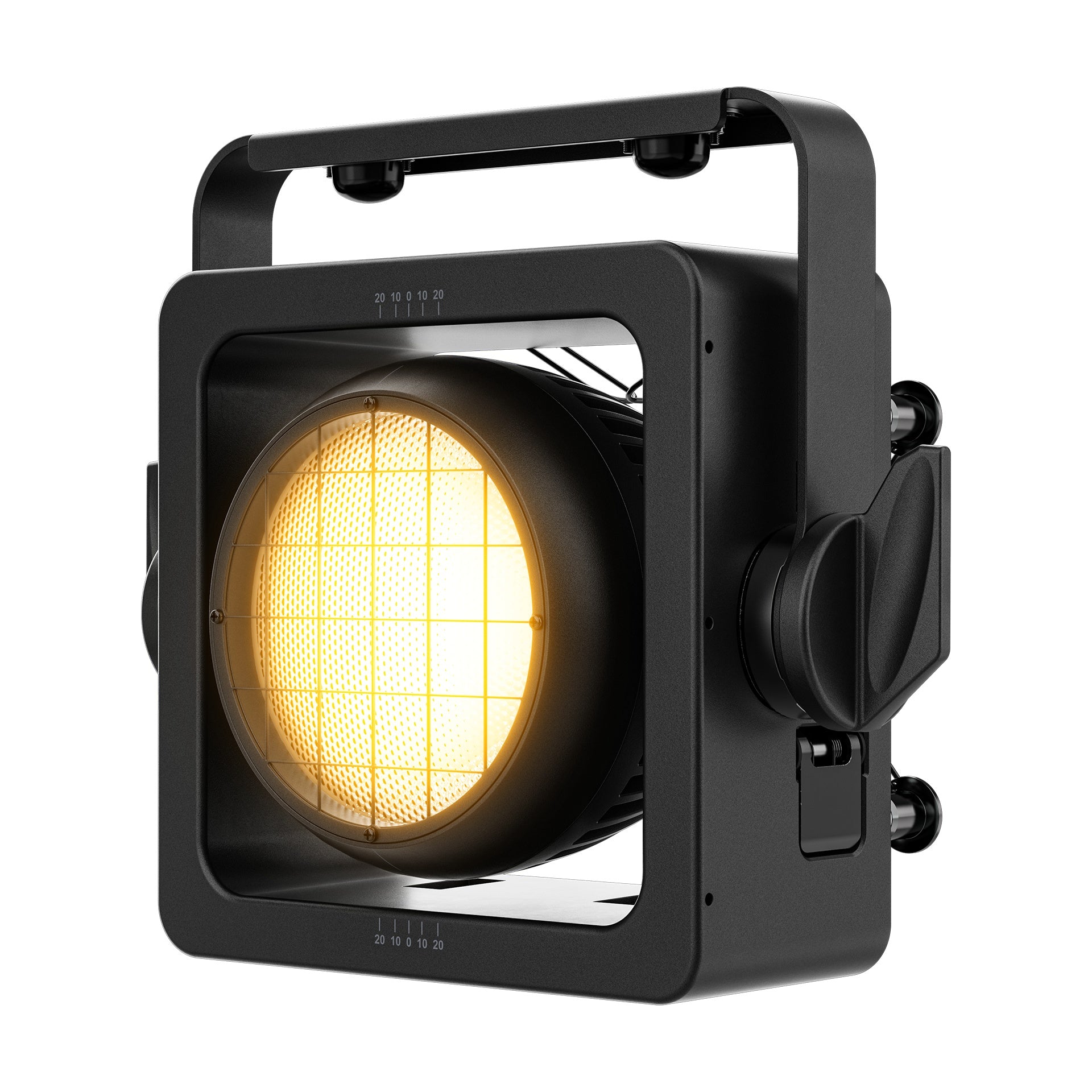

4x STRIKE Array 1 pods mounted in square frame with yokes
Linking Cables
4x linking cables (1 m)
Powerkon Cable
1x Seetronic Powerkon IP65
Driver
1x driver (controls and powers up to 8 pods)
Head Only Yokes
4x head only yokes
Omega Brackets
5x omega bracket
