Specifications
Certifications
IP Rating
IP65
Compliance
CE, MET, FCC
MET Listing Number
E113093-1110, E113093-1125
US Safety
UL 60950-1
Canadian Safety
CSA C22.2 No. 60950-1
Dimensions
Product Length
19.13"
Product Width
17.79"
Product Height
11.02"
Weight
Product Weight
39.6 lbs
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
1024 W, 8.54 A @ 120 V, 60 Hz
Power and Current
995 W, 4.81 A @ 208 V, 60 Hz
Power and Current
995 W, 4.34 A @ 230 V, 50 Hz
Power Linking
1 unit @ 120 V; 2 units @ 208 V; 2 units @ 230 V
Performance
Lumens
60,000+
Strobe Rate
0 to 30 Hz
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
CRI @ 3200K
92.8
Pan Range
+/-25 deg (50 deg total)
Dim Modes
4
Dim Curves
4
Color Temperature Presets
Yes
Standalone Color Mixing
Yes
Built-in Automated Programs
Yes
Dimmer
Electronic
Shutter/Strobe
Electronic
Control
Control Protocol
Art-Net, sACN, DMX, RDM
DMX Channels
4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
Art-Net Channels
4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
Modes/Personalities
11 personalities
Connectivity
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Data Connectors
5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
Cable Length (Power)
5 ft (1.5 m)
Software Update
USB-C
Construction
Exterior Color
Black
Housing Material
Aluminum Profile, Die-casting Magnesium
Environmental
Ambient Temperature Range
-4 deg F to 113 deg F (-20 deg C to 45 deg C)
Shipping
Package Length
22.64"
Package Width
21.46"
Package Height
13.19"
Package Weight
39.68 lbs
Included Items
Fixture

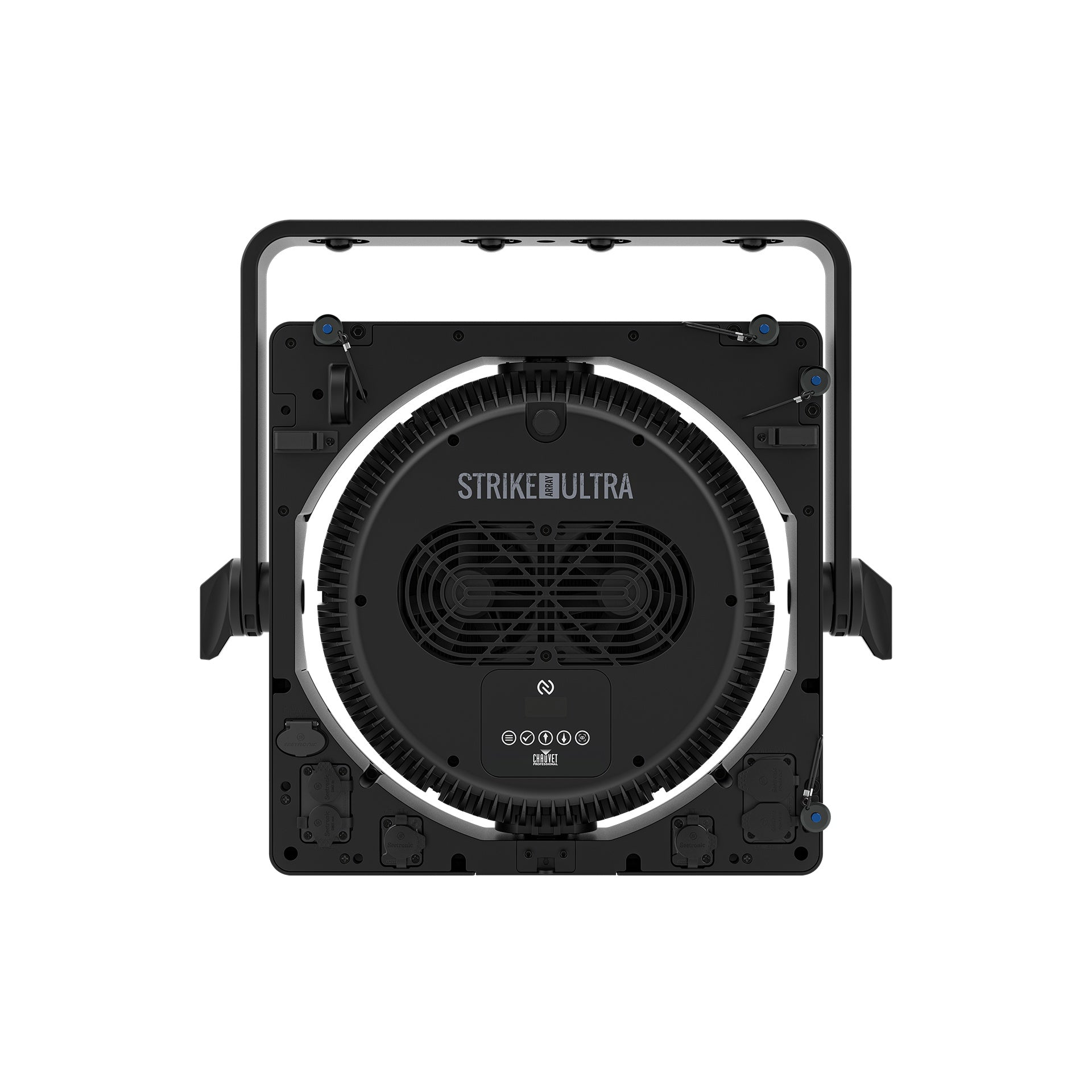

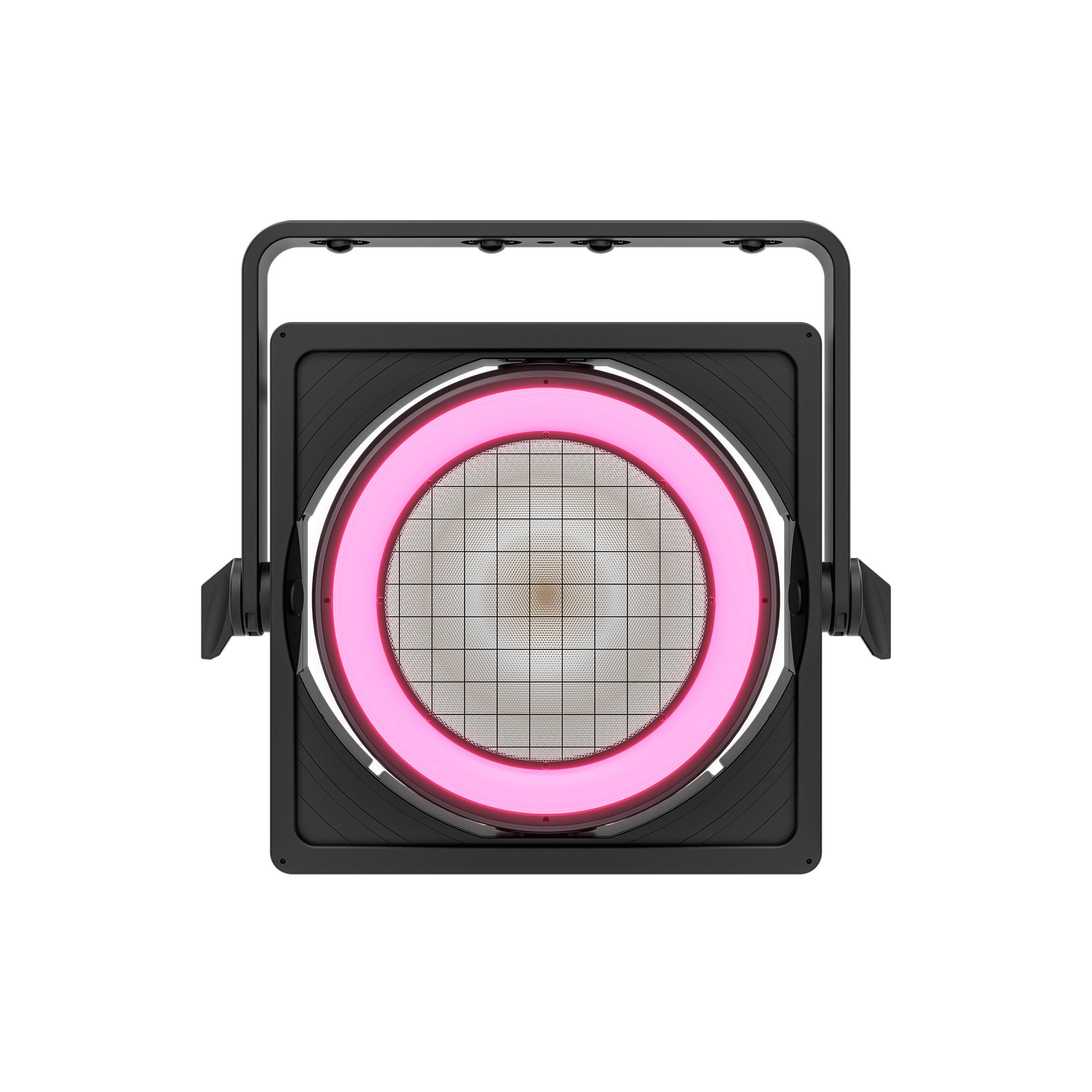

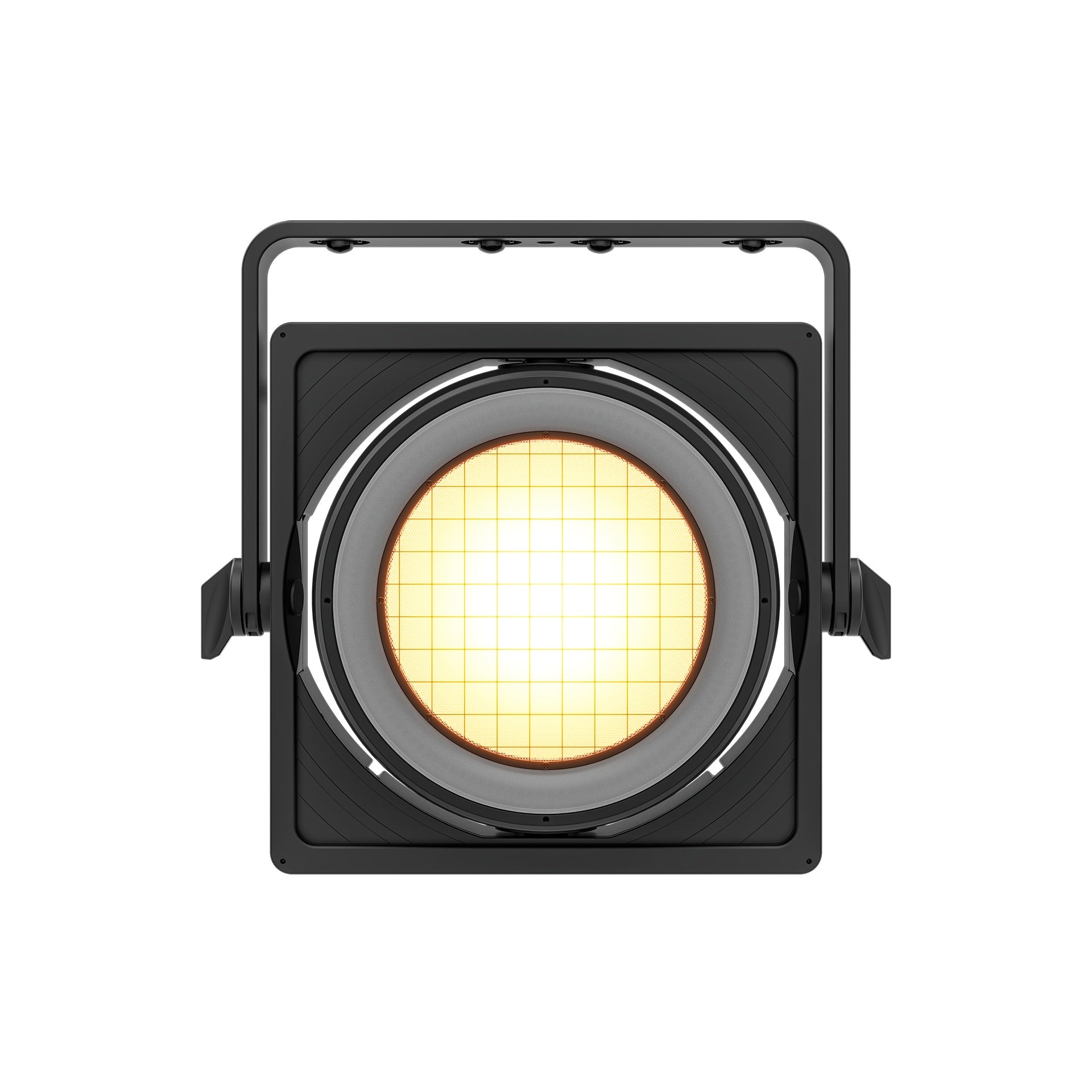

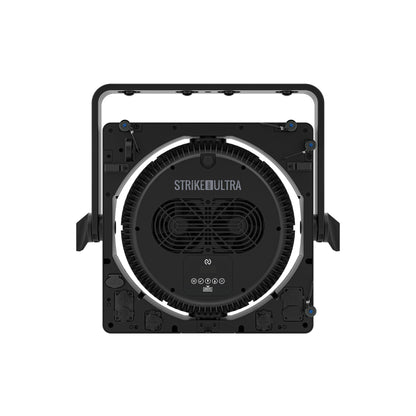

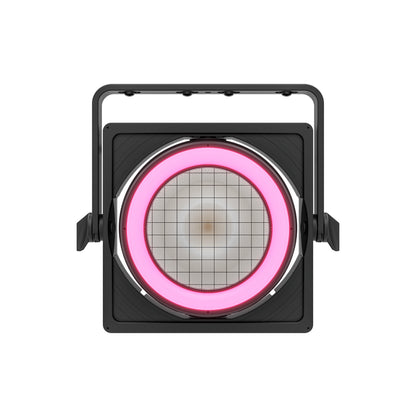

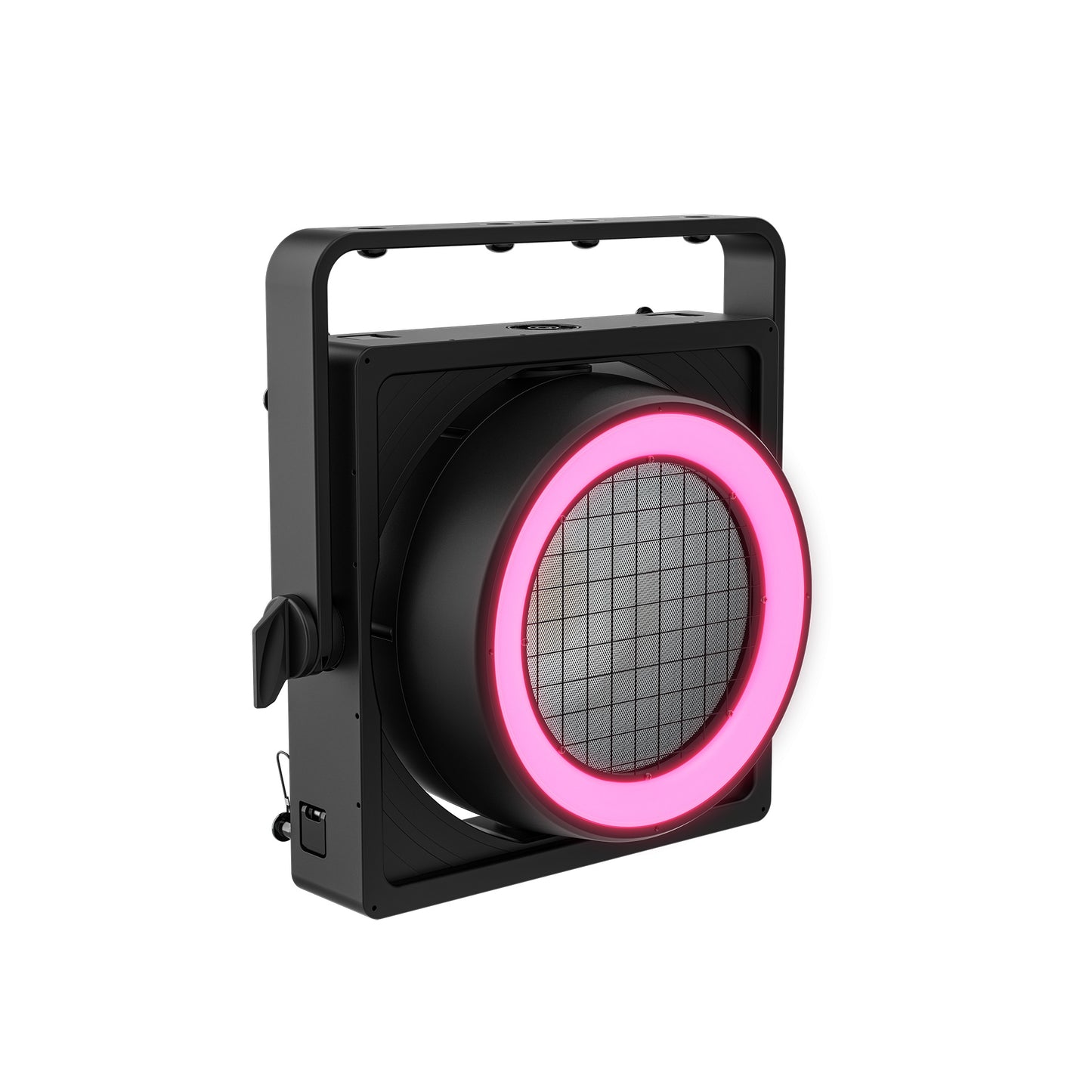

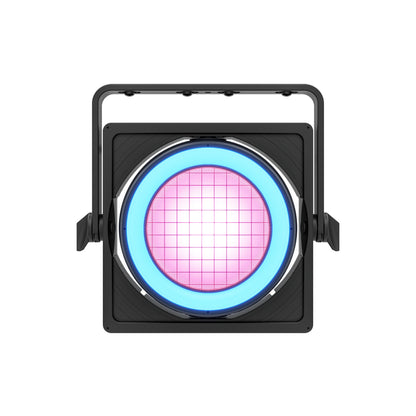

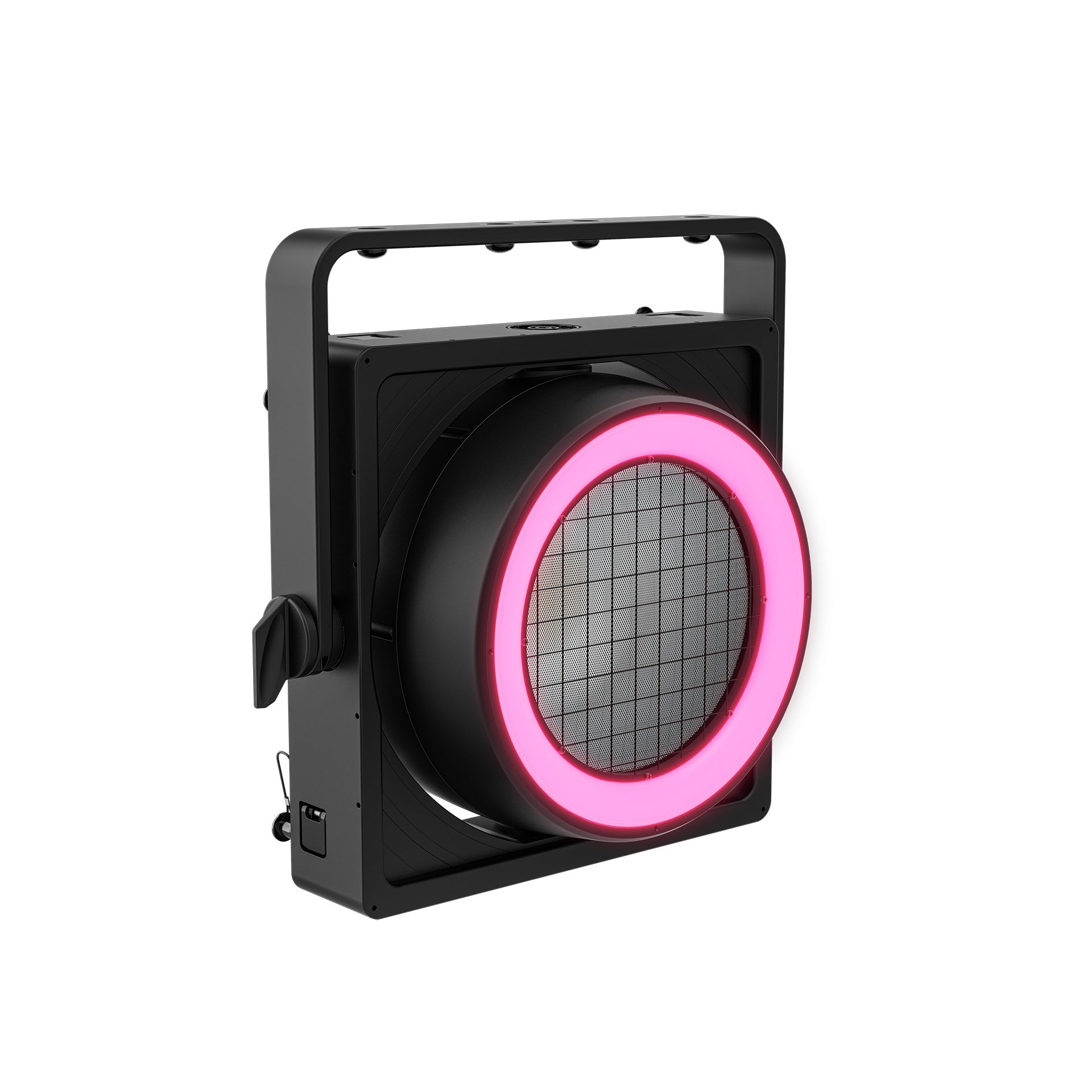

STRIKE Array Ultra
Power Connection
Seetronic Powerkon IP65
Mounting
2 Omega bracket with mounting hardware
