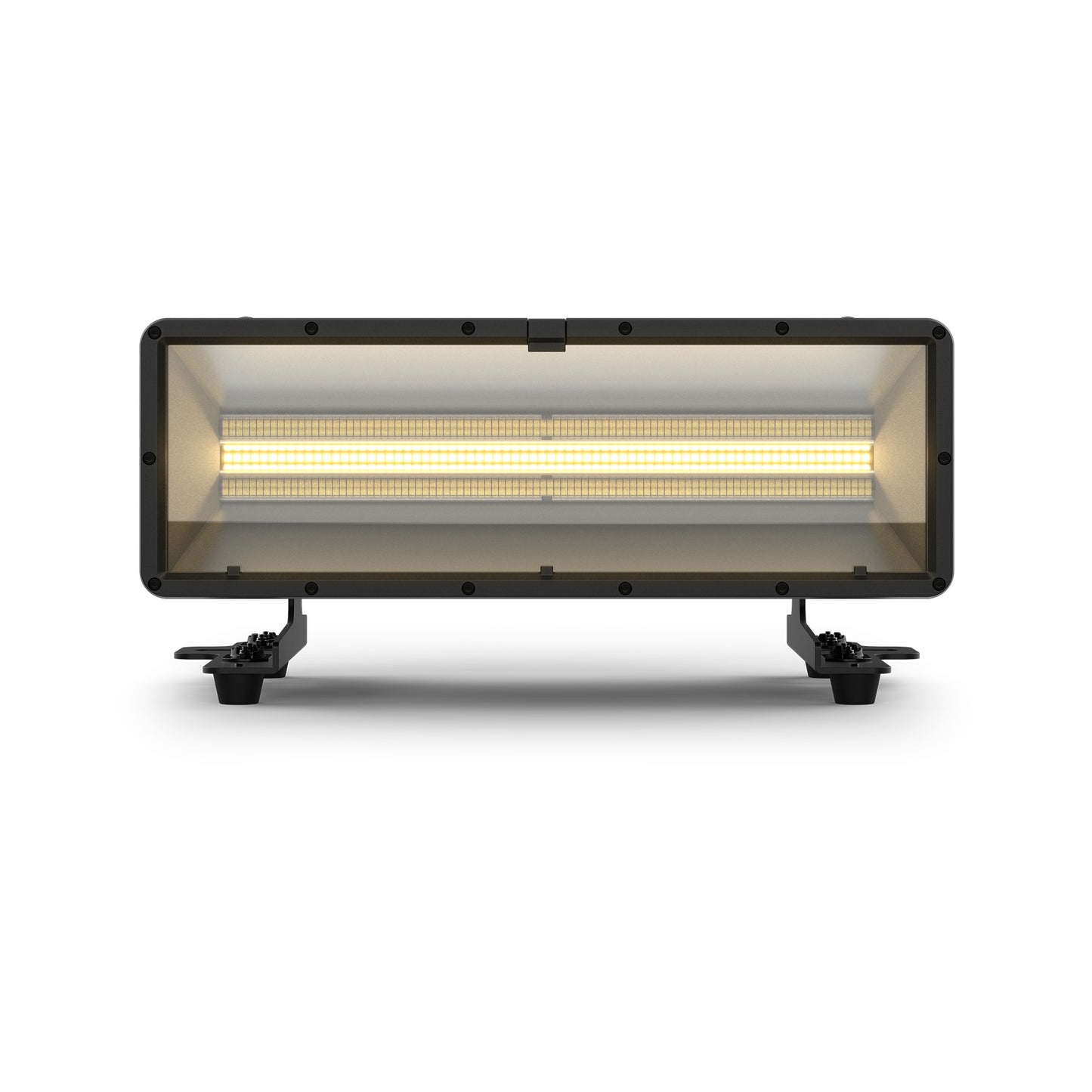

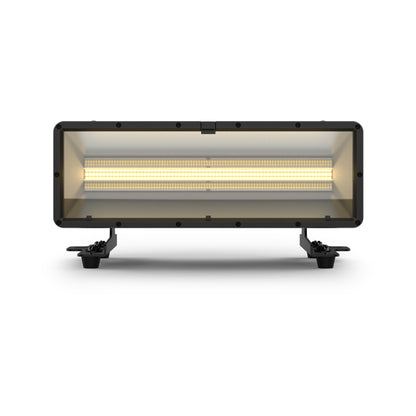

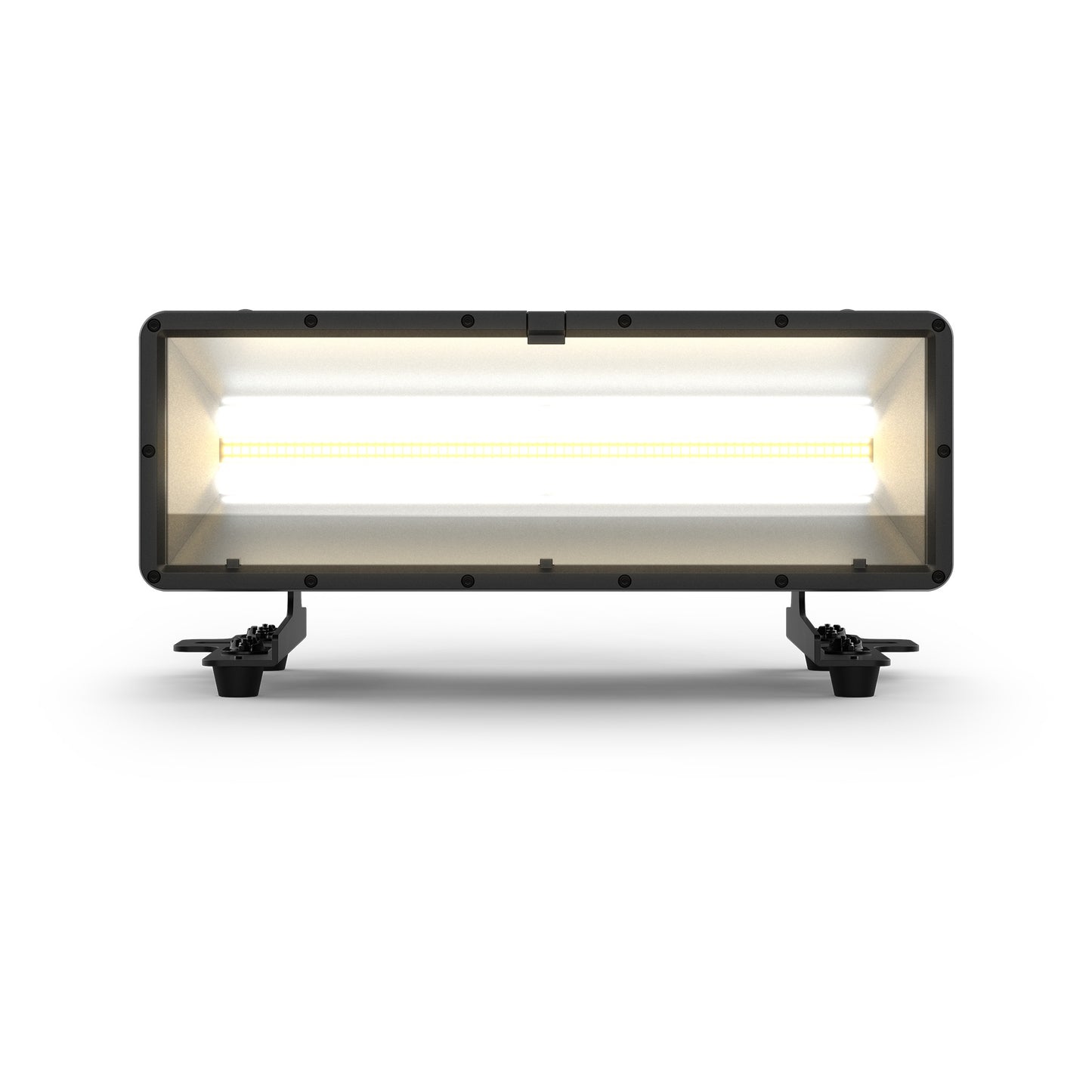

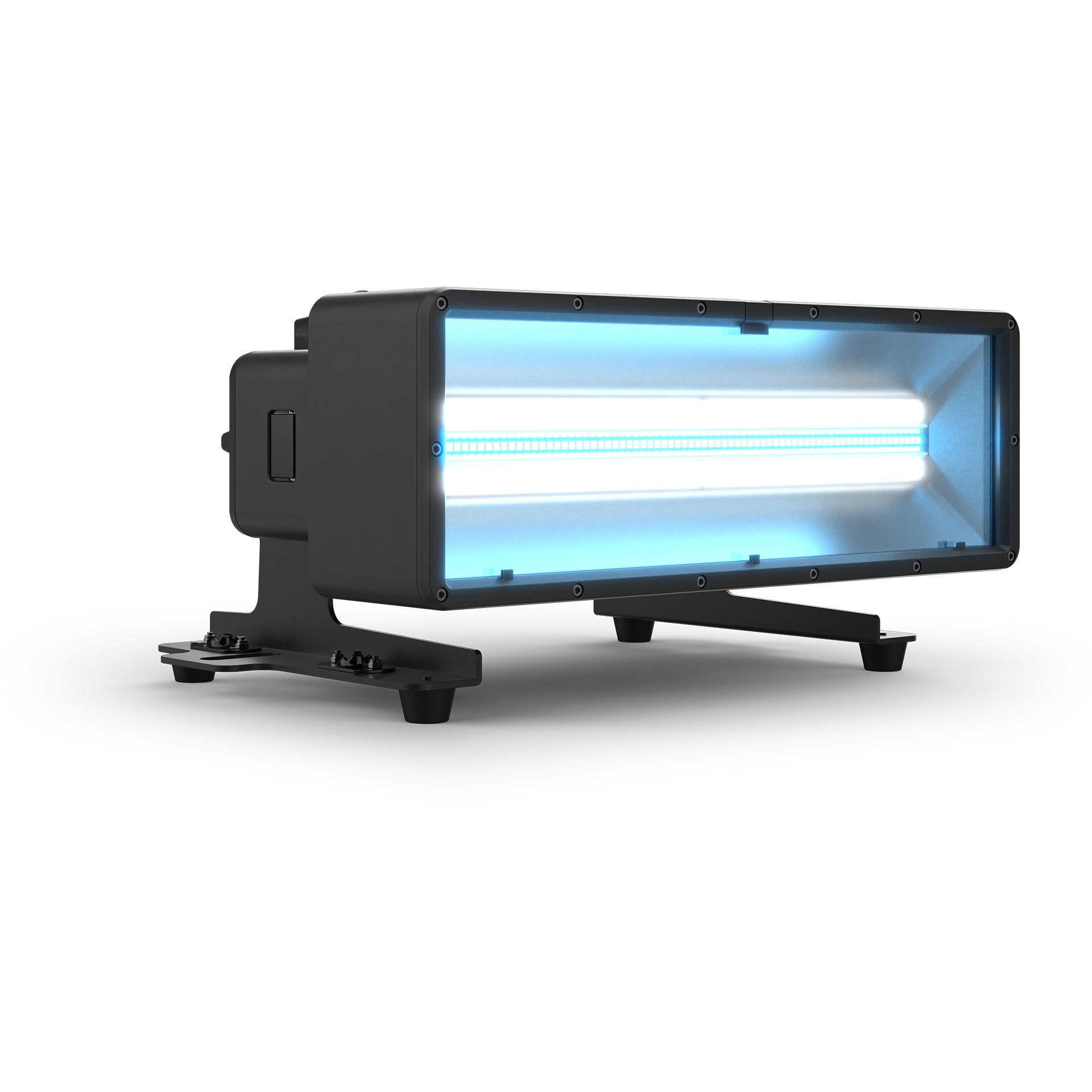

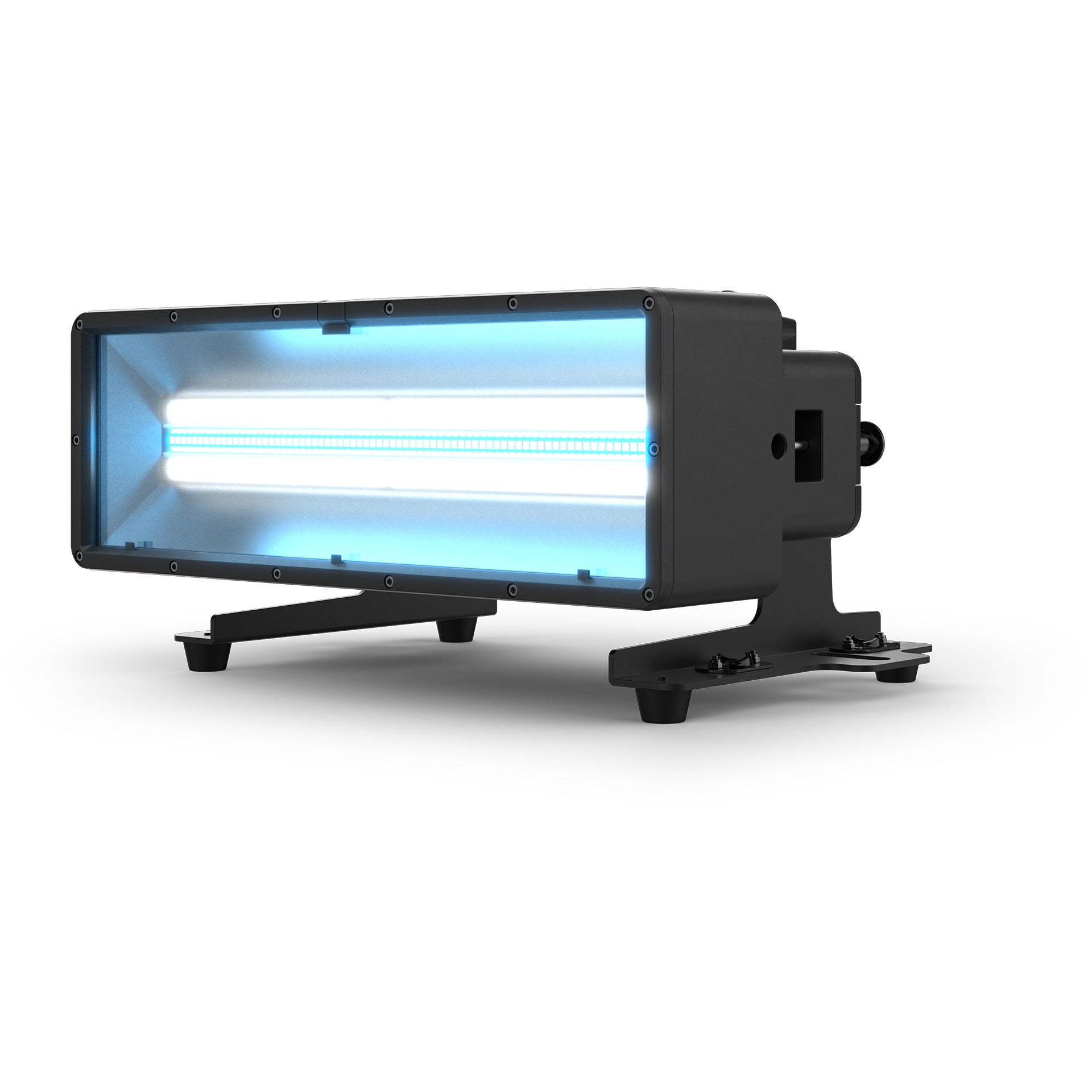

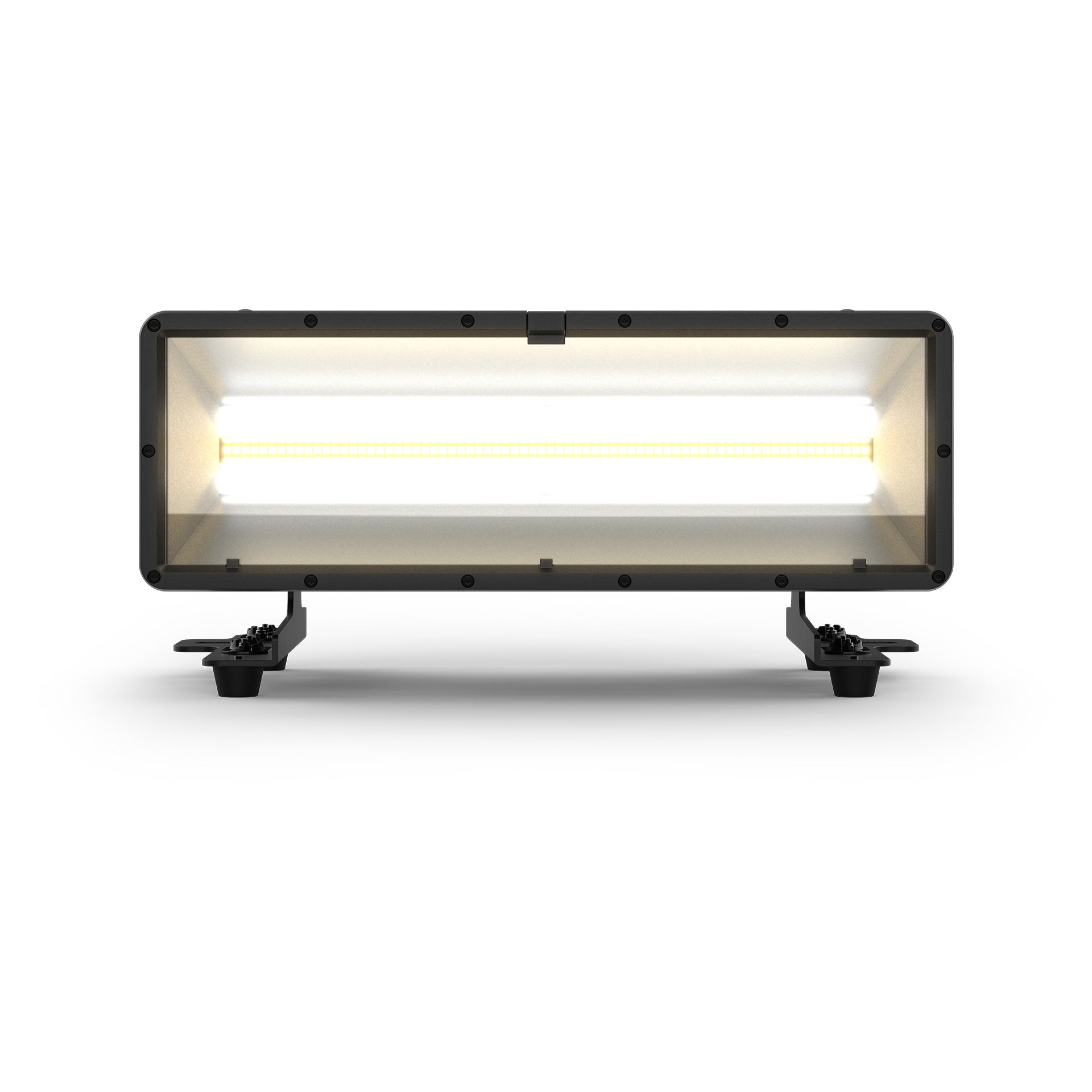

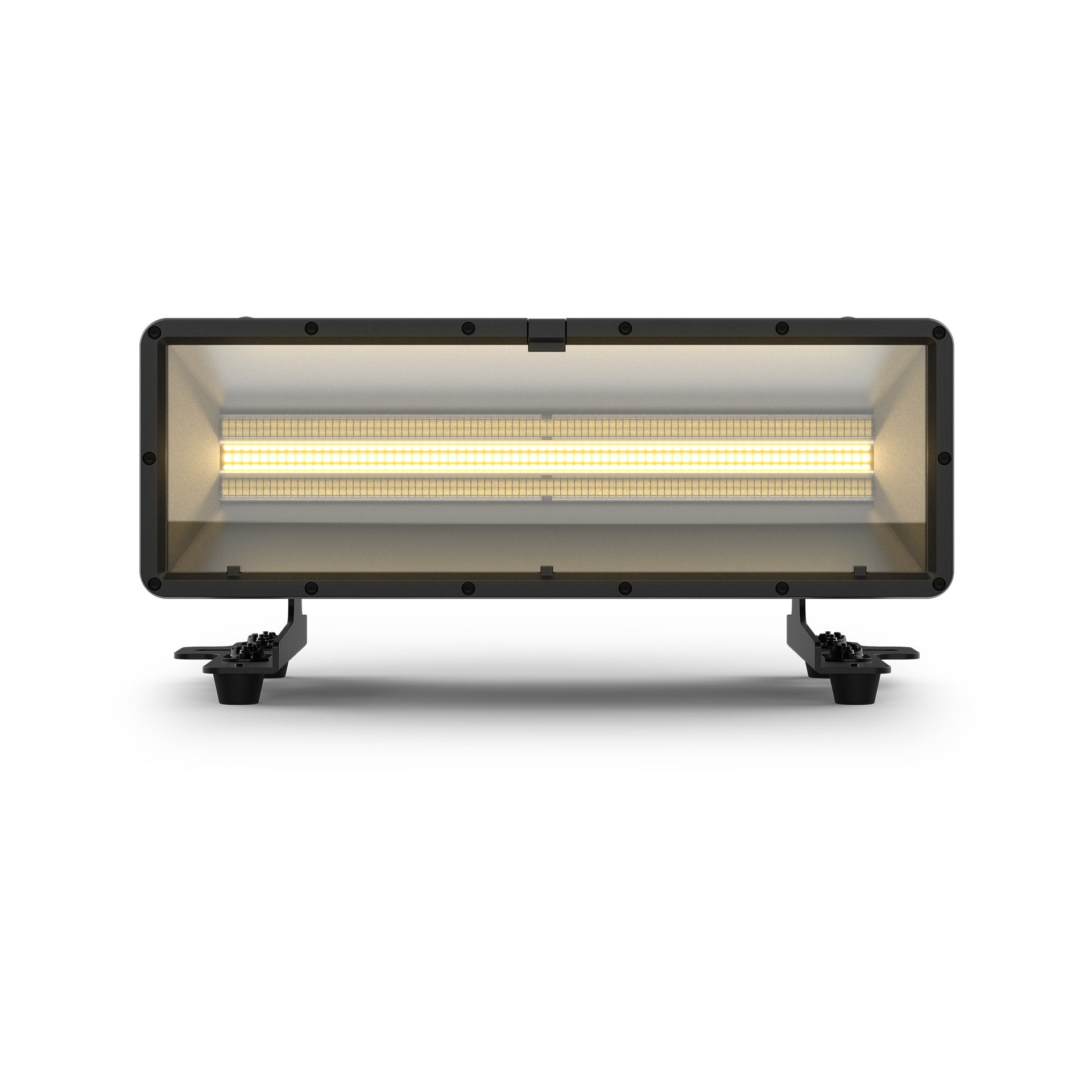

Chauvet Pro STRIKE Bolt 1C IP65 Strobe Blinder With Smart Frost

Chauvet Pro STRIKE Bolt 1C IP65 Strobe Blinder With Smart Frost

SoundPro Item: 143566 | Part Number: STRIKEBOLT1C

$2,071.50
$2,378.00 $2,071.50
Your Price Sold out
MSRP: $2,378.00 | MAP: $2,071.50

Usually ships in 5-7 business days

  • IP65 Rating With GORE Valve Enables Permanent Outdoor And All-Weather Deployment
  • Integrated Smart Frost Switches Instantly Between Strobe And Color Block Modes
  • Twin Strobe Tubes Deliver Classic High-Intensity White Strobe Output

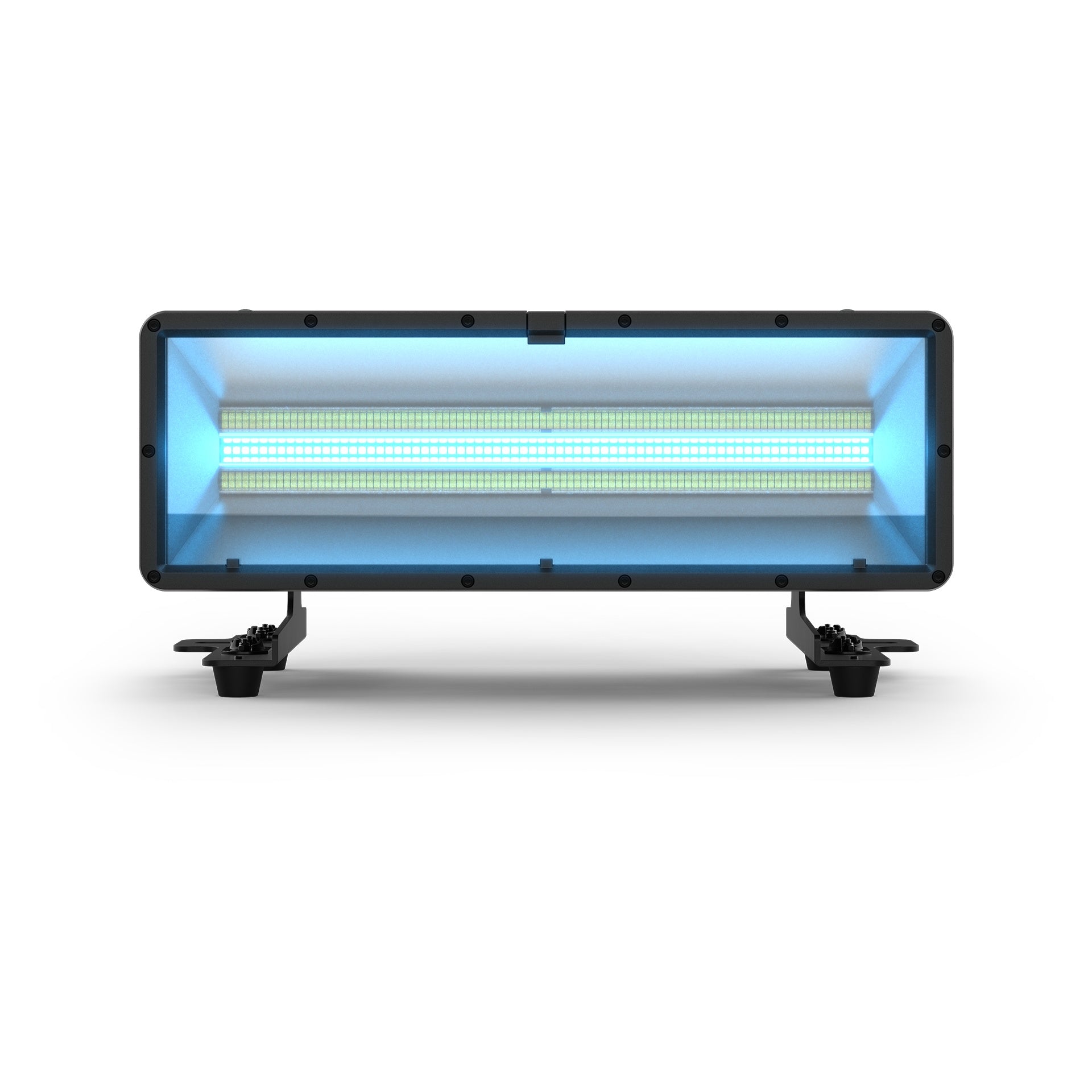

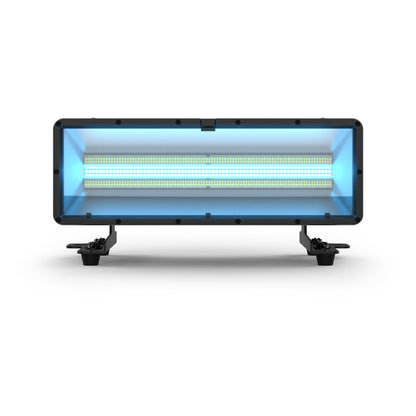

  • RGBA LED Row Produces Vibrant Color Block Effects Behind Electronic Frost
  • Tool-Free Stacking Connects Directly To STRIKE Array Fixtures For Scalable Arrays
  • Included Stealth Filter Reduces On-Camera Fixture Visibility For Broadcast Use
  • Eight DMX Personalities With RDM Support For Precise Programming Control
Log in or register for YOUR best price

The Chauvet Pro STRIKE Bolt 1C is engineered for lighting designers and production teams who need a single fixture capable of delivering both a classic high-impact strobe and a smooth, full-color blinder effect. The integrated Smart Frost electronic frost filter enables instant switching between the two modes without physical gel changes or hardware swaps, making it a genuinely versatile tool for concert, touring, and festival rigs where fast programming decisions matter.

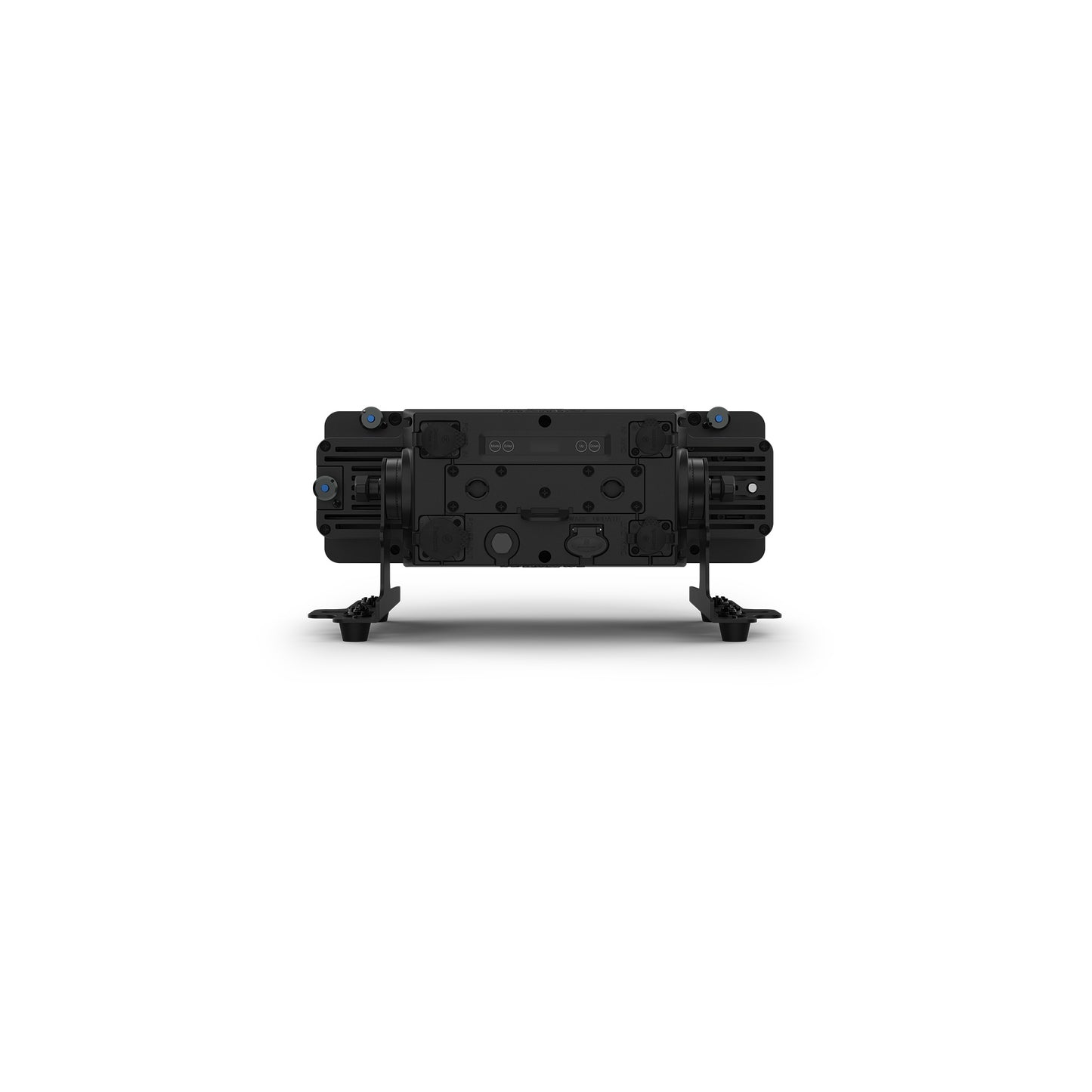

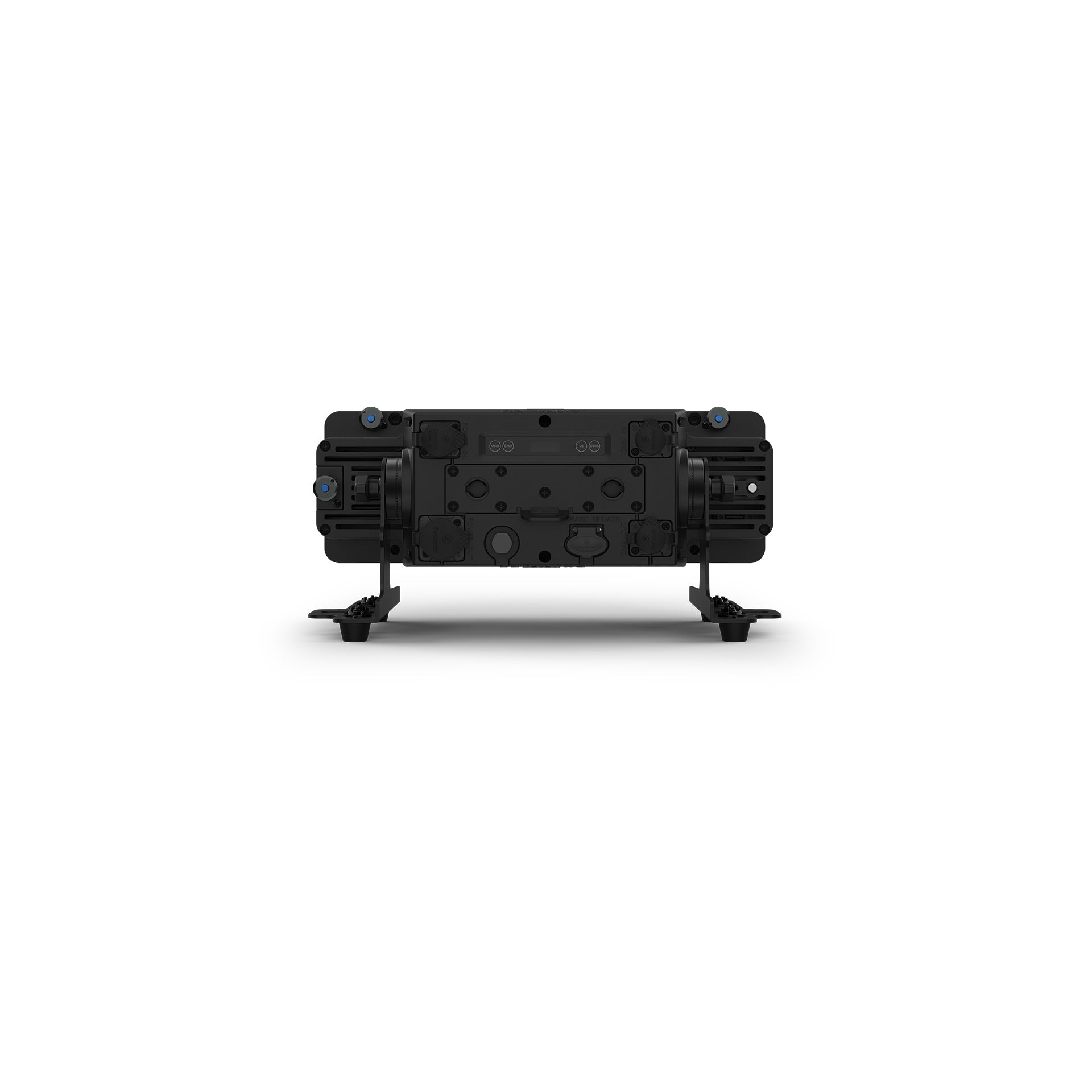

Built on a magnesium alloy chassis with an IP65 rating and a pressure-equalizing M12 GORE valve, the STRIKE Bolt 1C handles outdoor and all-weather festival environments as readily as arena touring. Multiple hanging points, end-to-end connections, and floor feet give riggers the flexibility to deploy it in virtually any orientation, while proprietary tool-free stacking allows direct integration with STRIKE Array fixtures to build scalable blinder and strobe arrays without custom hardware. An included stealth filter reduces on-camera presence, making it equally at home in broadcast and livestream productions where fixture visibility is a concern.

Control is handled via DMX and RDM with eight distinct channel personalities ranging from 7 to 53 channels, giving programmers granular control over strobe rate, color mixing, dimming curves, and effect timing. Auto-ranging universal voltage input means the unit moves between North American and European power infrastructure without modification, a practical advantage for touring productions crossing multiple markets.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Ambient Temperature Range
-4 °F to 113 °F (-20 °C to 45 °C)
Optical
Light Source (Color)
66 LEDs (quad-color) SMD 5050, 0.9 – 1.5 W, 470 mA, 50,000 hours life expectancy
Light Source (Strobe)
392 LEDs (CW) 1.5 W, 5660 K, 50,000 hours life expectancy
Color Temperature (At Full)
5692 K
CRI
89.2
Beam Angle (Combined)
77.5° x 55.8°
Beam Angle (Plate)
84.6° x 73.6°
Beam Angle (Beam)
77.7° x 54.7°
Field Angle (Combined)
130.6° x 104.4°
Field Angle (Plate)
139.7° x 114.5°
Field Angle (Beam)
129.1° x 102.3°
Lumens (Combined)
20,251
Lumens (Plate)
2,735
Lumens (Beam)
23,736
Illuminance (Combined)
605 lux @ 5 m
Illuminance (Plate)
66 lux @ 5 m
Illuminance (Beam)
729 lux @ 5 m
Selectable PWM
1000 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz, 64,000 Hz
Dimming
Ultra-smooth 18-bit dimming curves and speeds
Performance
Strobe Rate
0 to 30 Hz
Dimmer Type
Electronic
Shutter/Strobe Type
Electronic
Dim Modes
4
Standalone Color Mixing
Yes
Built-In Automated Programs
Yes
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power And Current @ 120 V
329 W, 2.82 A @ 120 V, 60 Hz
Power And Current @ 208 V
326 W, 1.82 A @ 208 V, 60 Hz
Power And Current @ 230 V
323 W, 1.48 A @ 230 V, 50 Hz
Power Linking
4 units @ 120 V; 6 units @ 208 V; 8 units @ 230 V
Connectivity
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (Power)
5 ft (1.5 m)
Control
Control Protocol
DMX, RDM
DMX Channels
10, 11, 13, 17, 20, 25, 27, 40
Modes/Personalities
8 personalities (7, 10, 12, 16, 19, 32, 40, 53)
Construction
Dimensions
14.96" x 8.39" x 11.81" (380 x 213 x 300 mm)
Weight
19 lbs (8.7 kg)
Exterior Color
Black
Housing Material
Magnesium alloy
Included Items
Included
STRIKE Bolt 1C, Stealth Filter, Seetronic Powerkon IP65, Omega bracket with mounting hardware
