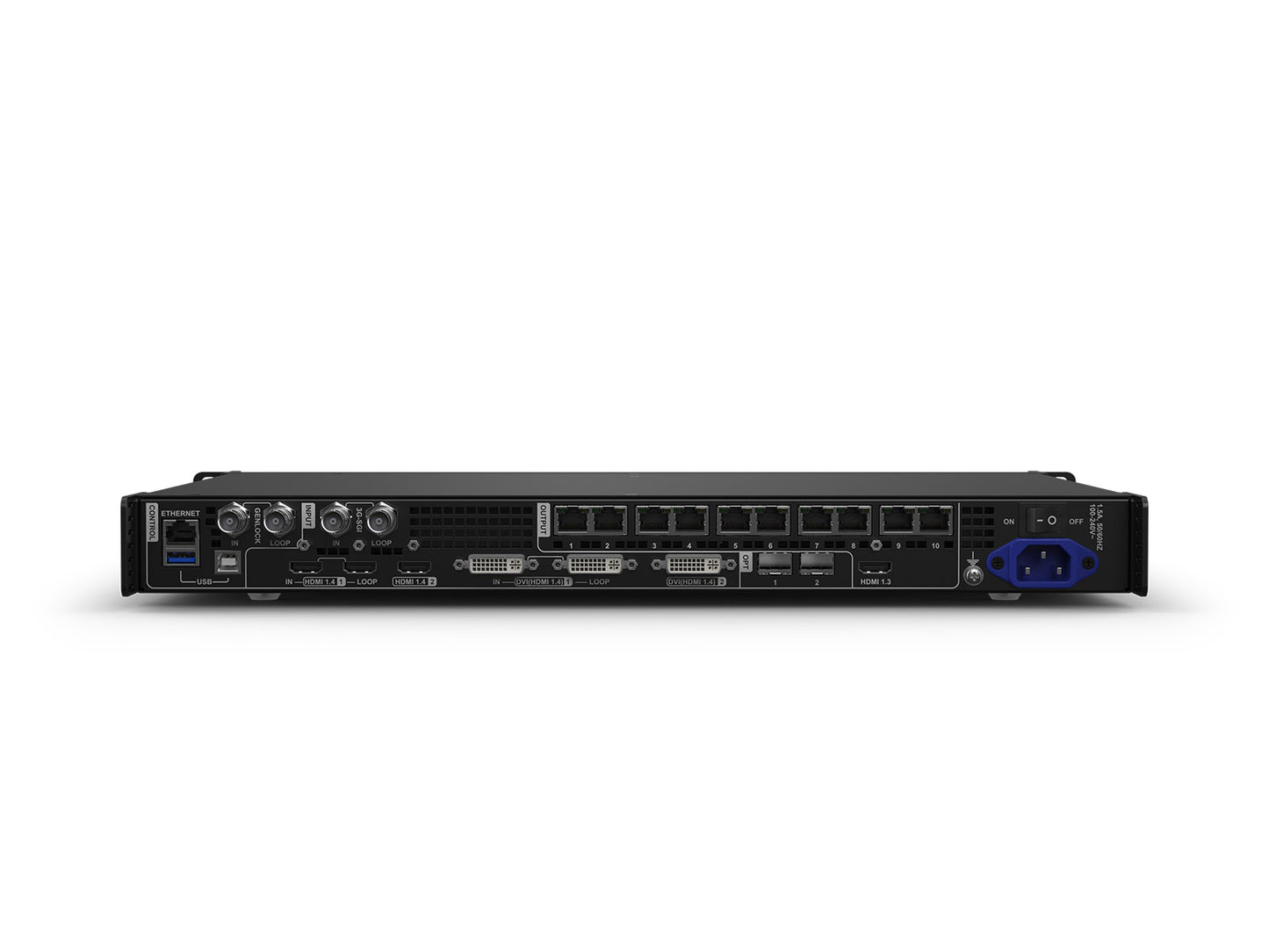

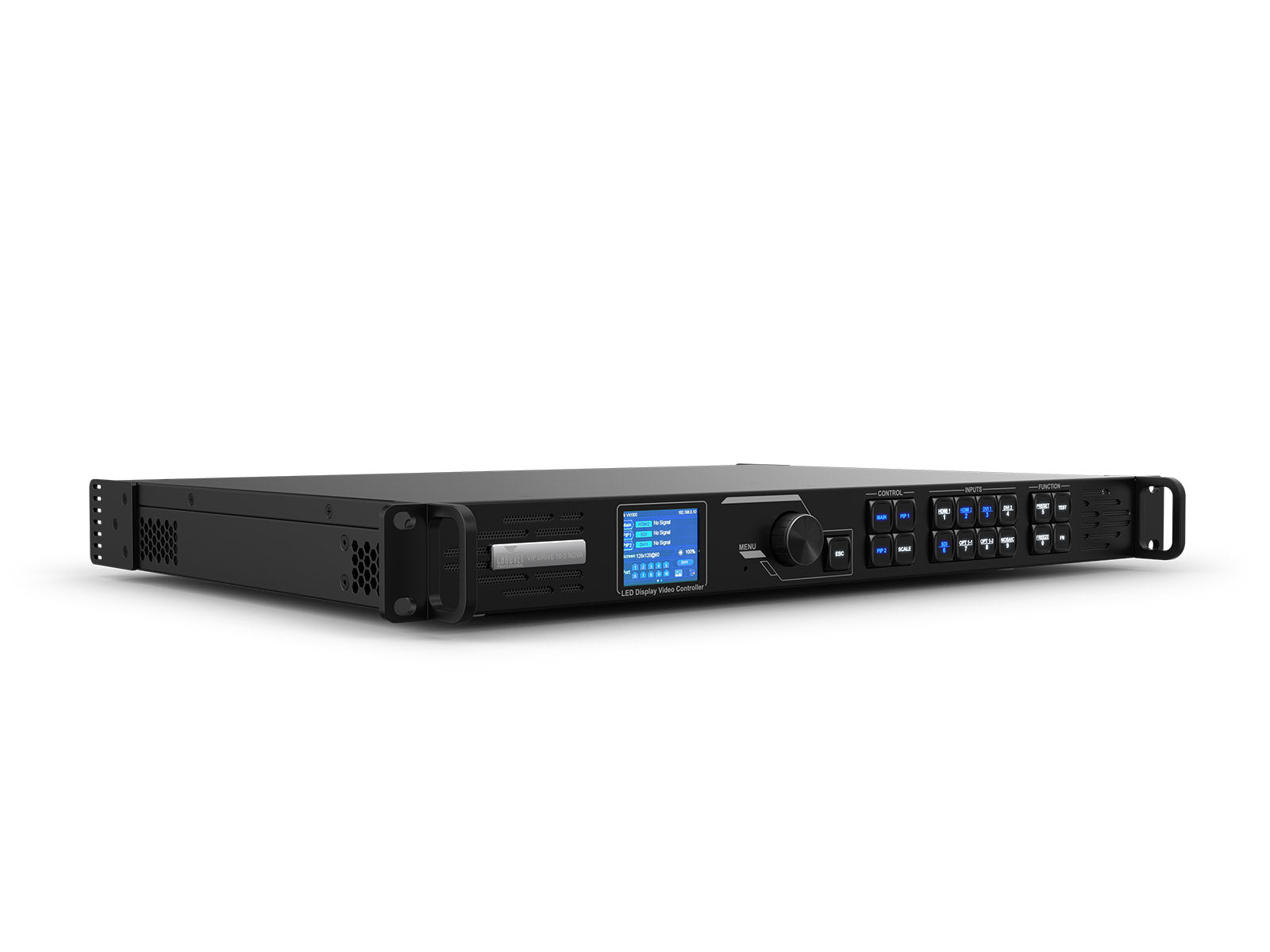

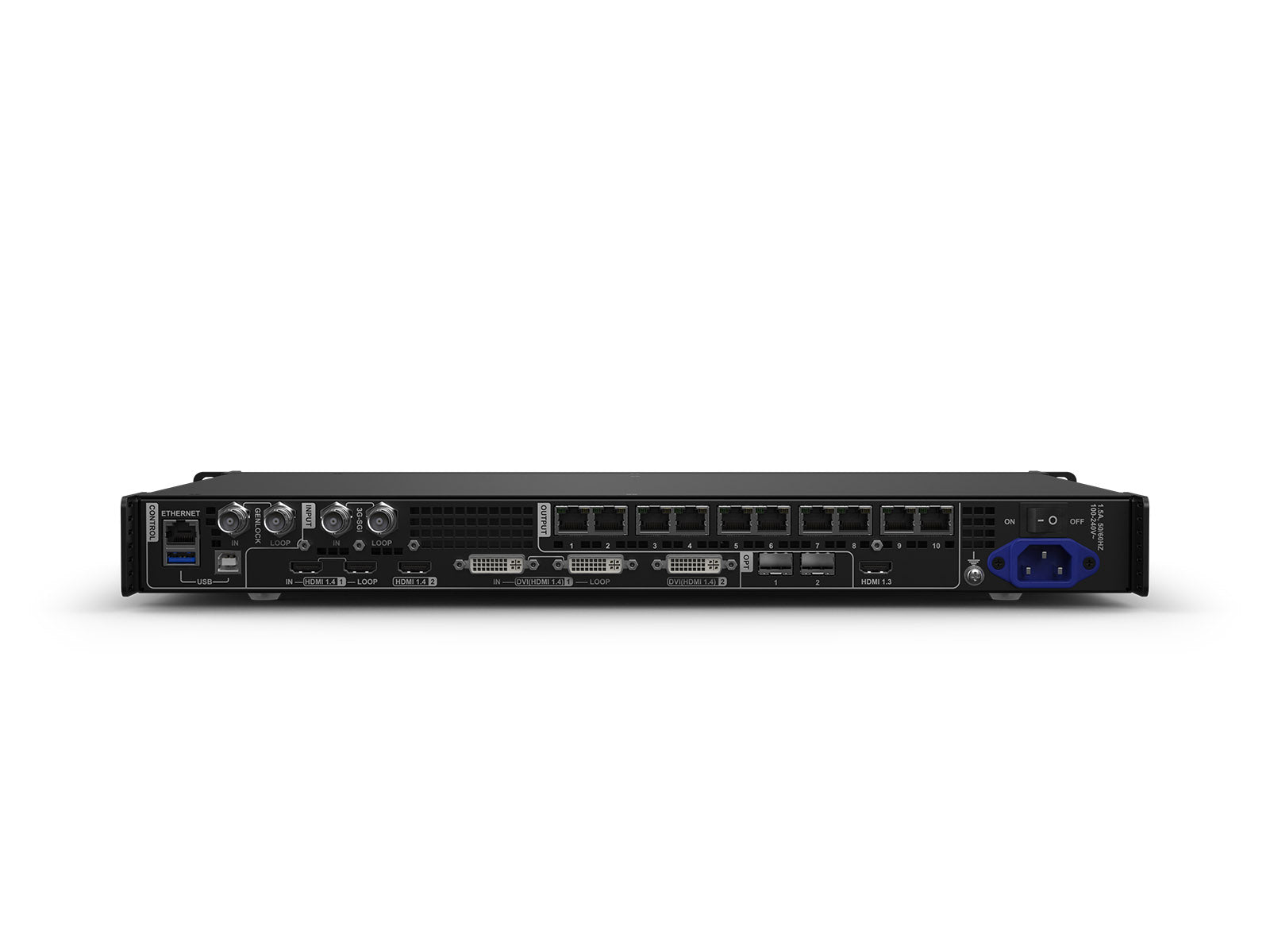

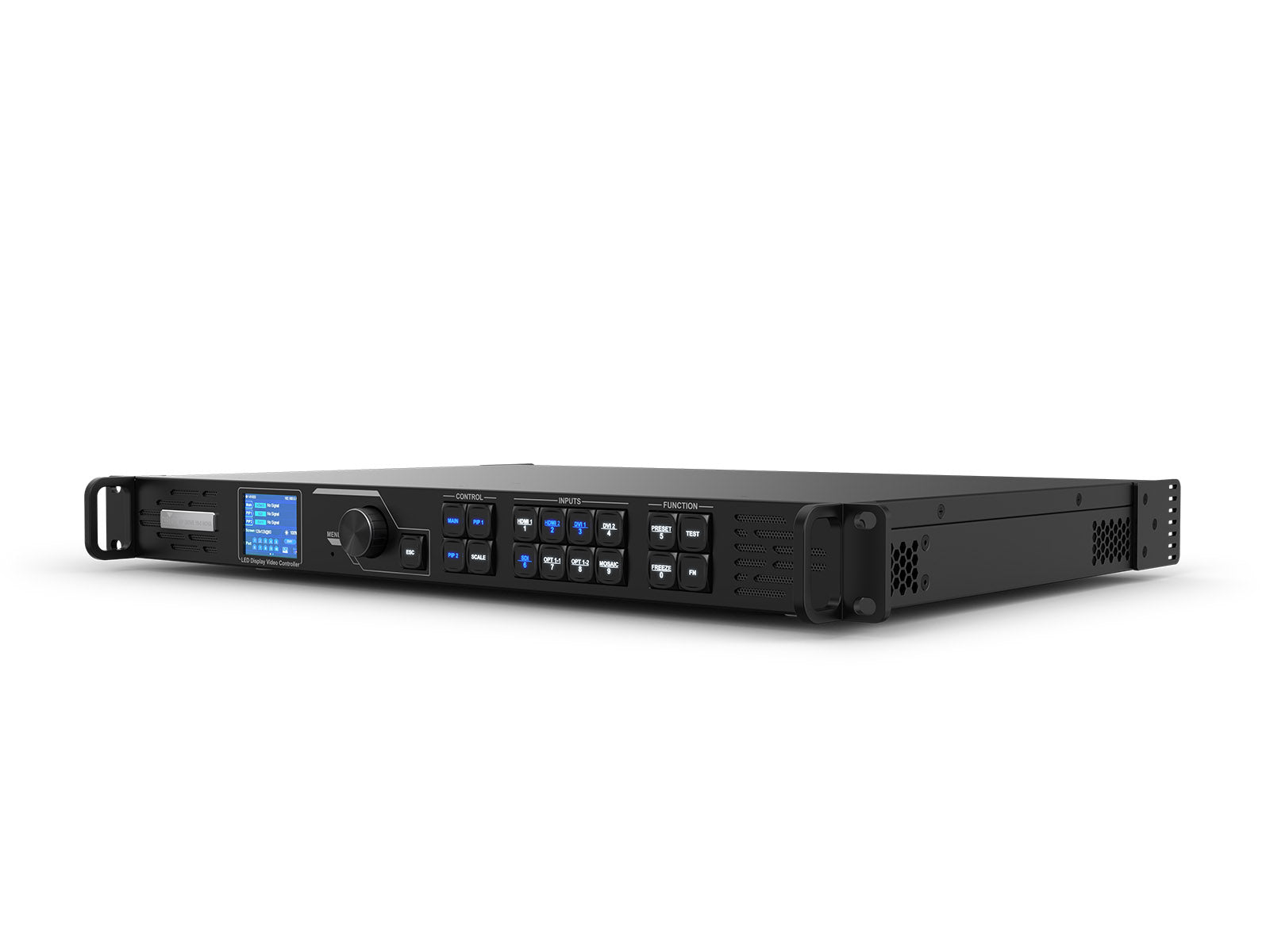

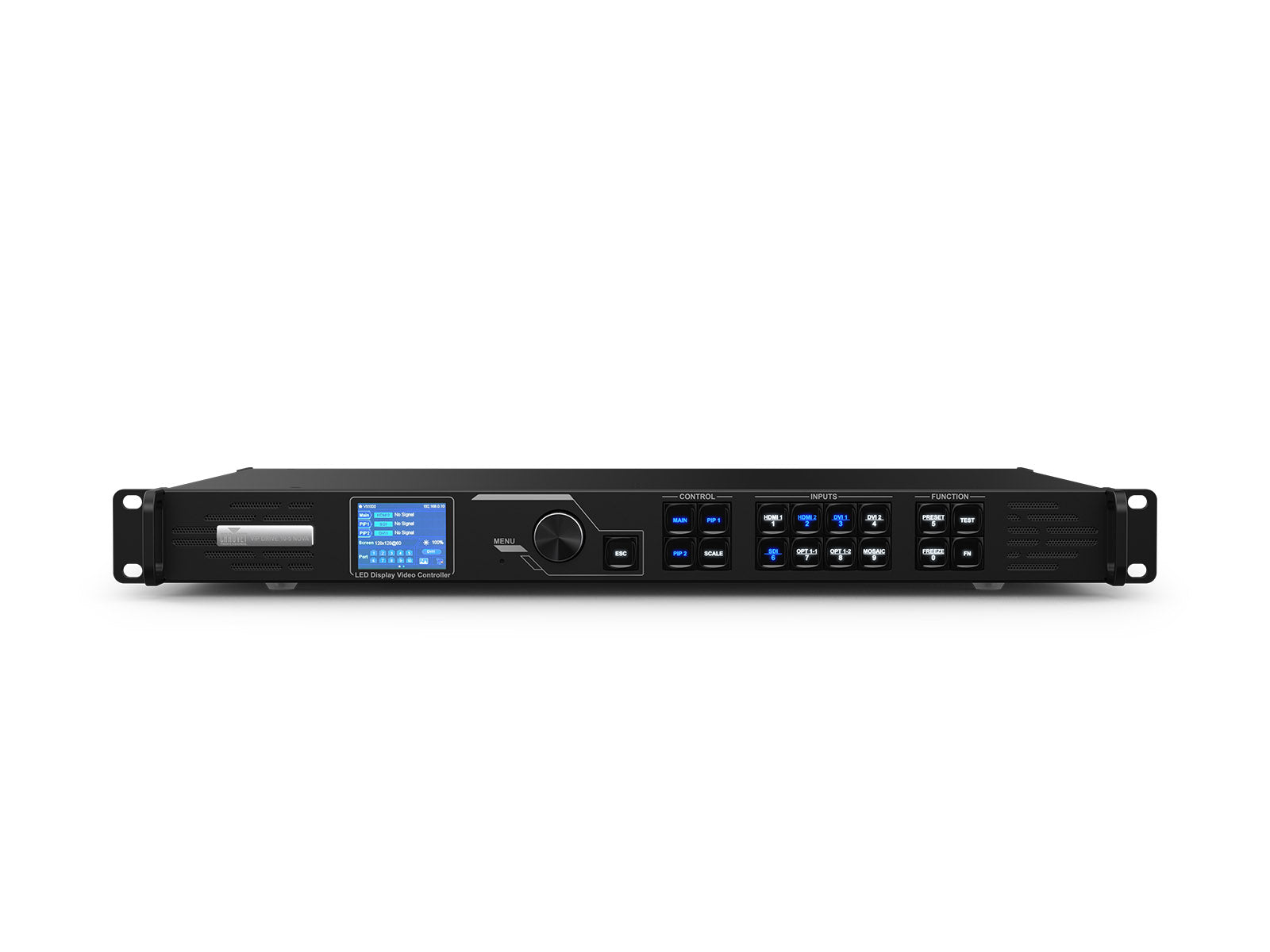

Chauvet Pro VIPDRIVE105NOVA VIP Drive 10-5 Nova

Chauvet Pro VIPDRIVE105NOVA VIP Drive 10-5 Nova

SoundPro Item: 124041 | Part Number: VIPDRIVE105NOVA

$4,734.75
$4,734.75 $4,734.75
Your Price Sold out
MSRP: $4,734.75 | MAP: $4,734.75

Usually ships in 5-7 business days

  • Video wall processor that outputs video signal to any NovaStar video panel
  • Integrated 3-layer Scaler supports full screen, pixel to pixel, and custom scaling options
  • Automatically scales to the wall detected
  • Automatically detect connected video panels/strips in the Smart-LCT mapping software without the need to manually input panel/strip resolution
  • Powerful standalone mapping configures most video walls without a computer
  • Custom MAPPING function makes setting up your wall fast and easy with on-screen visual feedback
  • Specialized on-screen mapping overlay makes mapping fast and easy by identifying the port and order of each video panel live, while video continue to play in the background.
  • 10 Ethernet video outputs support 4K at 6.55 million LED resolution
  • Works with NovaLCT and Smart-LCT software for complex configurations and panel calibration
  • Fiber SFP output for all 10 ports of the processor (primary and backup)
  • 1 of the fiber SFP ports may be used as a direct video input
  • Mode selection in menu allows the processor to function as a regular video controller to screen, a fiber converter to input fiber and output to your screen from another video controller, or in Bypass mode for automatic fault detection and backup from another primary video controller
  • Genlock input and loop supports synchronizing multiple VIP processors and with your video source (switcher) to eliminate scan lines on camera.
  • Mosaic function allows you to use multiple video inputs on the screen at the same time (2x DVI or 2x HDMI)
  • Video backup settings allow you to designate backup video inputs for increased stability
  • HDMI Video output enables previewing video sources and monitoring screen output locally
  • Image Mosaic function supports synchronizing multiple VIP Drive 10-5 Nova processors, up to 32,768 x 32,768 total resolution
  • Supports output LED screen refresh rate 23.98 - 120 Hz
  • Low latency, 3D features supported in the drive
Log in or register for YOUR best price

VIP Drive 10-5 Nova is a streamlined all-in-one video processor that outputs signal to any NovaStar video panel. The integrated 3-layer Scaler supports full screen, pixel to pixel, and custom scaling options. VIP Drive 10-5 NOVA can automatically scale to the wall detected and detect connected video panels and strips in the Smart-LCT mapping software without the need to manually input panel/strip resolution. The powerful, standalone mapping configures most video walls without a computer, and the custom mapping function is fast and easy with on-screen visual feedback. With 10 Ethernet video outputs, VIP Drive 10-5 Nova supports 4K at 6.55 million LED resolution.

View full details
  • Dimensions19 x 13.8 x 1.97 in (483 x 351.2 x 50.1 mm)
  • Weight9 lb (4.08 kg)
  • Exterior ColorBlack
  • Housing MaterialAluminum alloy
  • Rackmount1U
  • Power ConnectionEdison (local) plug to IEC
  • Power InputIEC
  • Cable Length (power)5 ft (1.5 m)
  • Video InputDVI-I (2) (HDMI 1.4) Single Link (VESA/EIA/CEA-861 standard, 3840 x 1080 @ 60 Hz - 3840x2160@30hz, HDCP 1.4 compliant)
  • Video InputHDMI 1.4 (2) (VESA standard, 3840 x 1080 @60 Hz - 3840 x 2160 @30 Hz, HDCP 1.4 compliant)
  • Video InputHD-SDI (480i, 576i, 720p, 1080i/p)
  • Video InputSFP-LC Fiber optical (2) (SFP fiber module not included)
  • Genlock InputBlackburst via locking BNC
  • Genlock Loop OutputBlackburst via locking BNC
  • Video OutputDVI Loop
  • Video OutputSDI Loop
  • Video OutputHDMI 1.4 Loop
  • Video OutputHDMI 1.3 (Preview)
  • Video OutputSFP-LC Fiber optical (2) (SFP fiber module not included)
  • AudioInput/Output (2.5mm) TRS, Stereo
  • Video OutputRJ45 Ethernet (10)
  • Linking ConnectionUSB 2.0 (Type A to Type B)
  • Software ConnectionRear USB /RJ45 Ethernet
  • Backup/update ConnectionRear USB/RJ45 Ethernet
  • Control ProtocolNovaStar
  • Maximum Supported Resolution3840 x 2160
  • Maximum Supported LEDs (Per Port @ 60Hz)655,360
  • Maximum Supported LEDs(Total 10 Ports @ 60Hz) 6,553,600
  • Remote ControlNovaLCTMars PC software via rear USB (1), RJ-45 Ethernet port
  • Supports Video StandardsSMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C and DVB-ASI
  • Color Space Supported (DVI)RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
  • Color Space Supported (HDMI)RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
  • Color Space Supported (OPT 1)RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
  • Input Voltage100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current150 W, 1.25 A @ 120 V, 60 Hz
  • Power and Current150 W, 0.72 A @ 208 V, 60 Hz
  • Power and Current150 W, 0.65 A @ 230 V, 50 Hz
