Chauvet Pro MediaMaster VS4+ Media Server

Chauvet Pro MediaMaster VS4+ Media Server

SoundPro Item: 203135 | Part Number: CHAMMMVS4PLUS

$30,000.00
$33,300.00 $30,000.00
Your Price Sold out
MSRP: $33,300.00 | MAP: $30,000.00

Usually ships in 5-7 business days

  • 4 x 4K Video Output
  • MediaMaster Pro Software
  • Includes LED Mapper & Video Mapper
  • NDI Support
Log in or register for YOUR best price

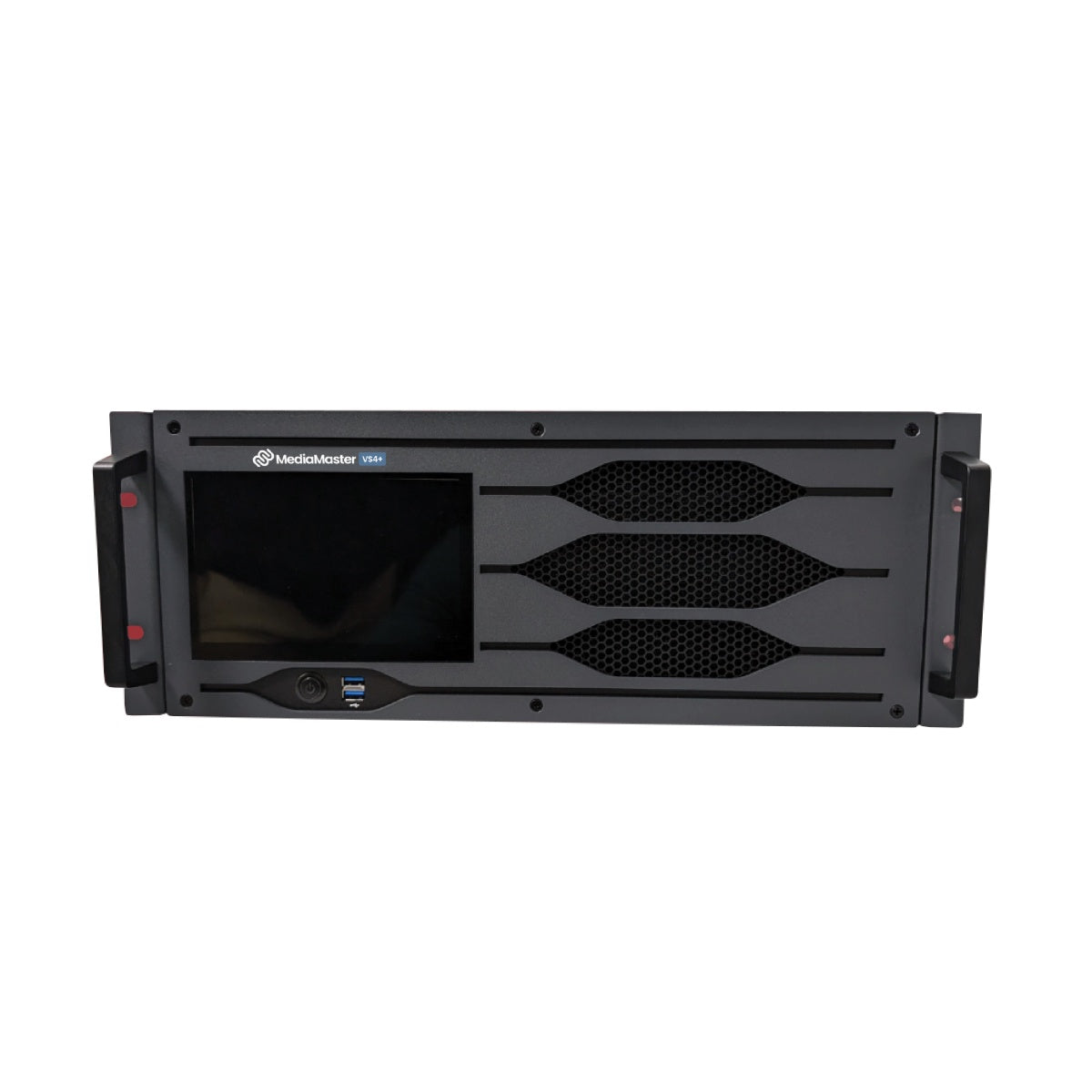

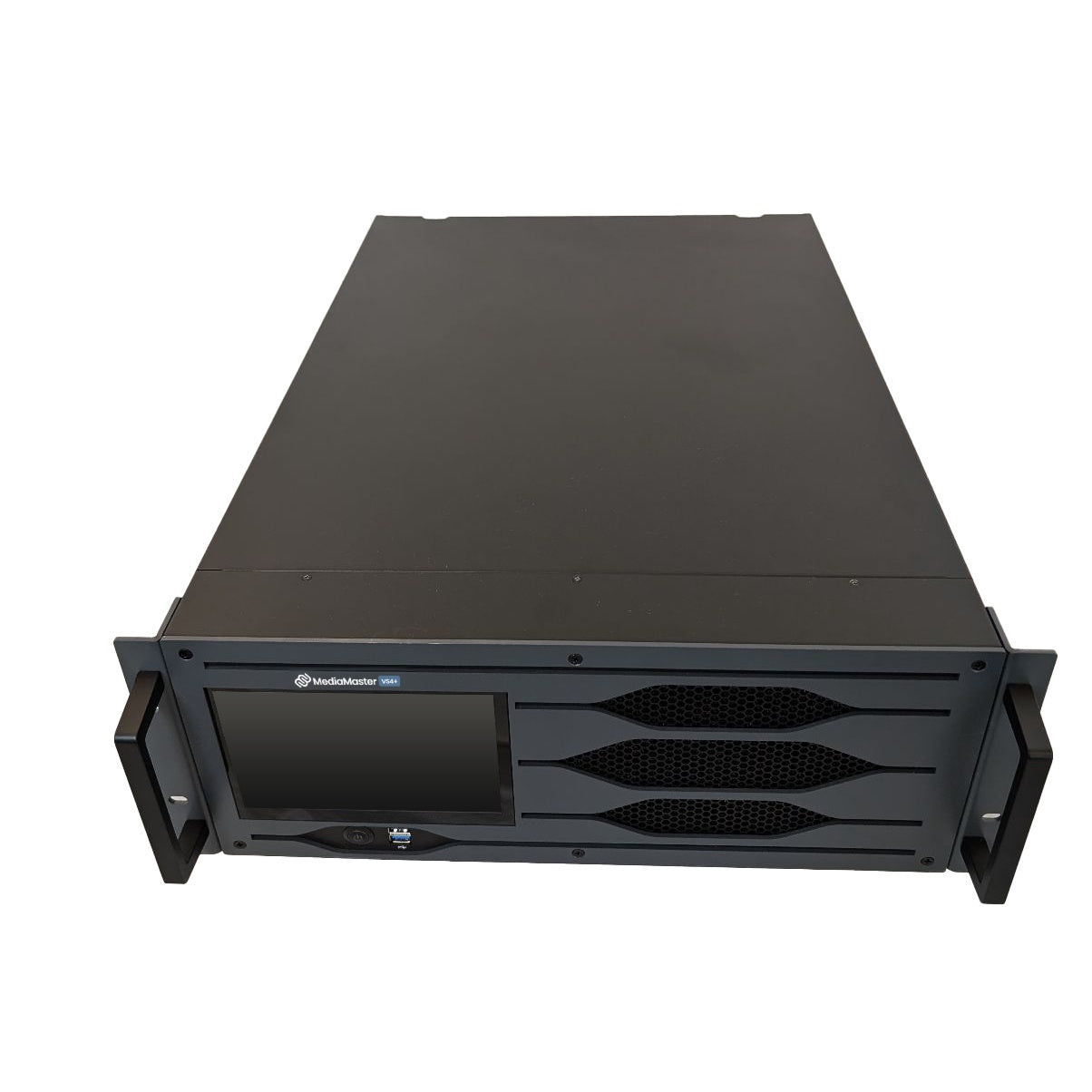

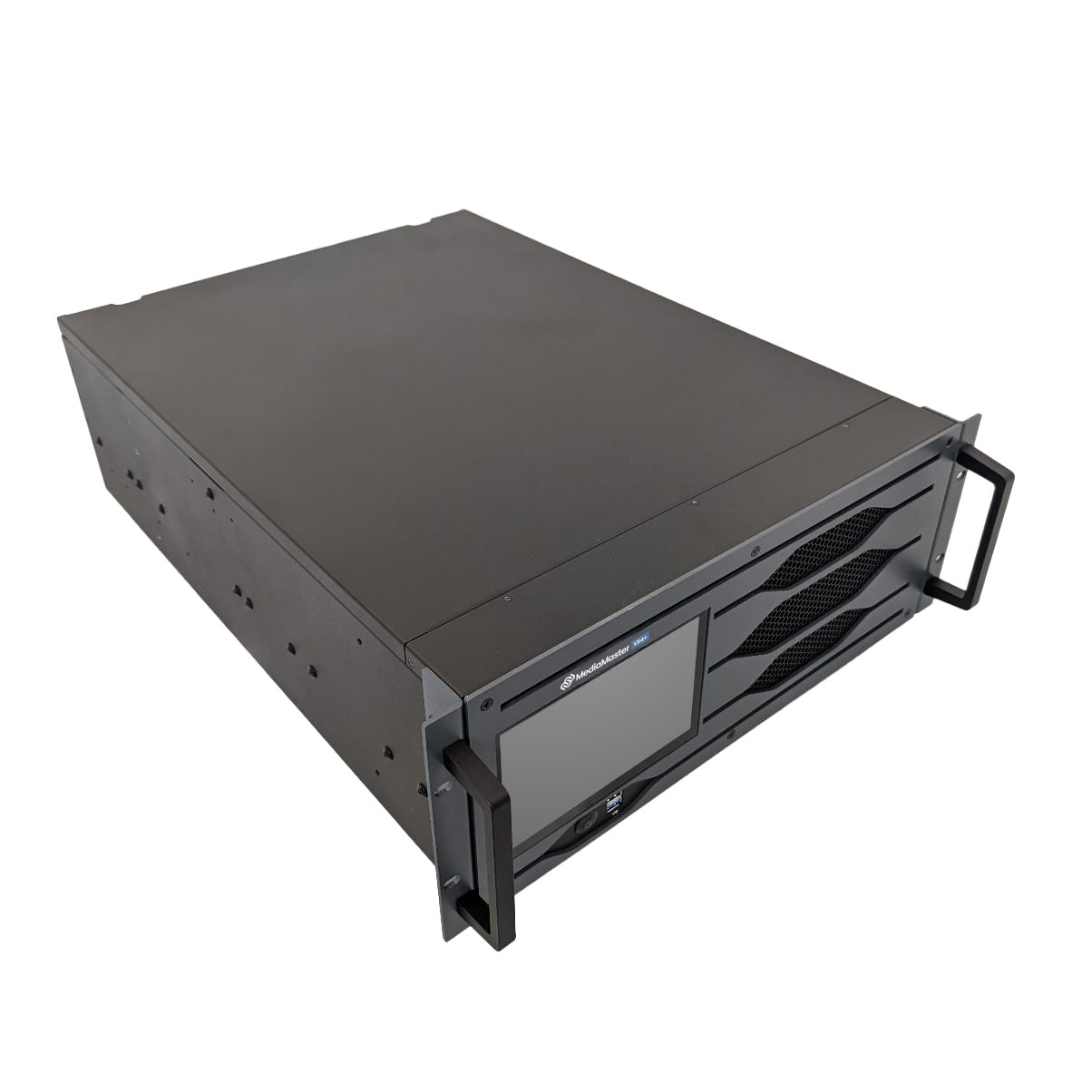

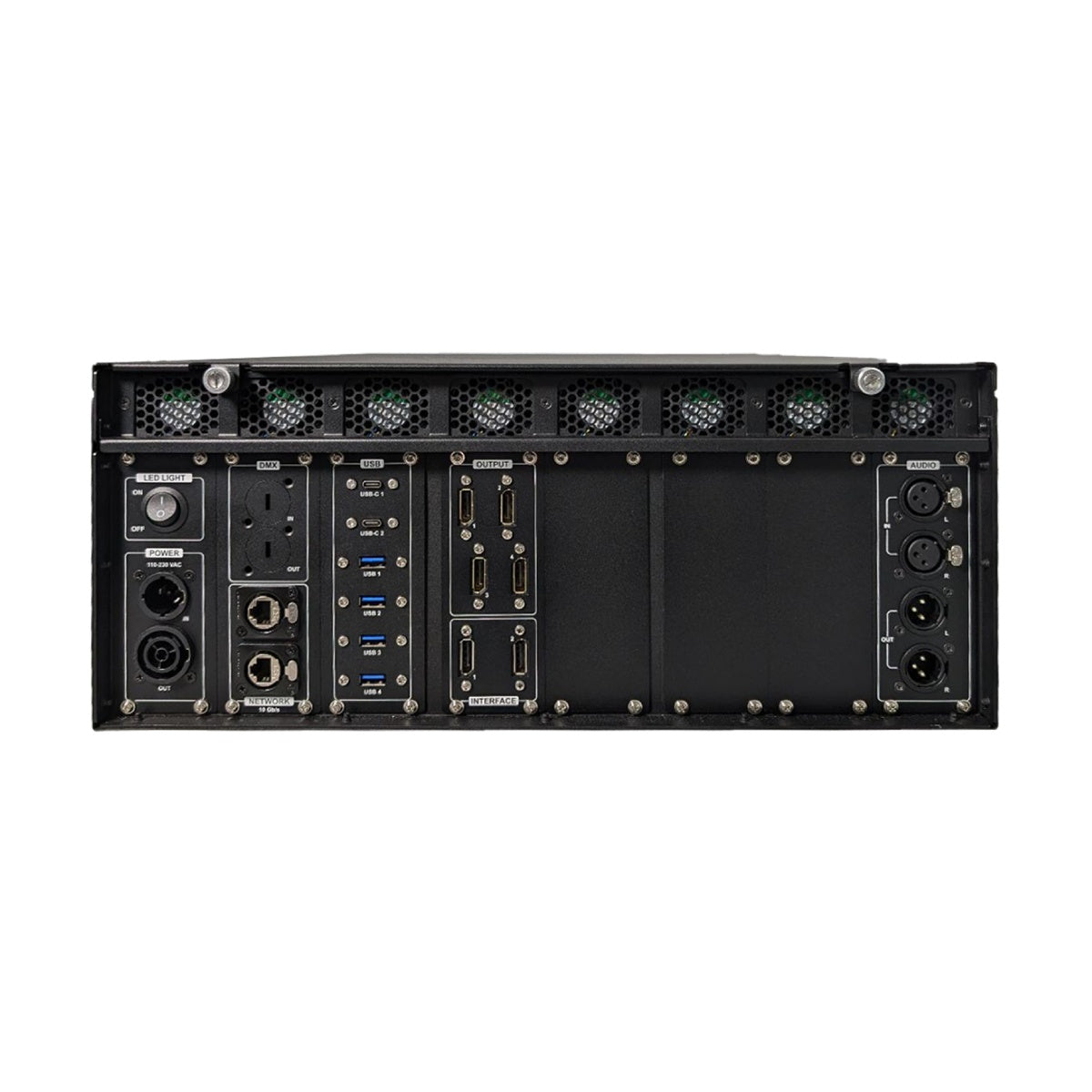

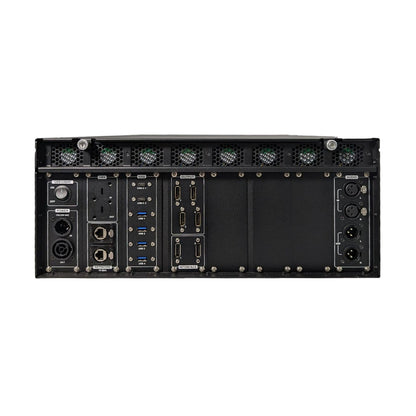

The VS4+ is a rugged 19″ rackmount media server with seamless MediaMaster Pro integration, supporting up to 4×4K or 16×HD outputs. Compact, reliable, and versatile, it’s perfect for broadcast, streaming, touring, and rental applications.

View full details

Specifications

Hardware Specifications
Processor
AMD Ryzen Threadripper PRO 5955WX
Threads (Cores)
32(16)
RAM
32GB (4x 8GB) Crucial
RAM Type
DDR4 3200 MHz SODIMM
Graphics Card
nVIDIA RTX A4000 16GB / NVIDIA T400 4GB
Power Input
powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains)
TBC
System Drive
SSD 1 TB
Storage Drive
SSD 1 TB
System Restore Drive
USB 128 GB
Interface Output
2x DisplayPort – 4K
Media Output
4x DisplayPort – 4K
Ethernet Output
2x 10Gb/s (cat6A)
Front USBs
2 – USB 3.0 A Type
Rear USBs
4 x USB 3.0 A Type , 2 x USB-C
Sync
NVIDIA PNY Quadro Sync 2
Audio
1- Audio/SMPTE/LTC/BPM
DMX In/Out
Optional
Genlock
Optional
Input
2x/4x/8x SDI (optional) / 2x/4x/8x HDMI (optional)
Software Specifications
Operating System
Windows 11 Pro
MediaMaster Software
Pro
Playback Layers
48
Surfaces
250
Outputs
4
Presets
4096
LED Mapper
Yes
King Net Mapper
Yes
Video Mapper
Yes
Soft Edge / Geometric Correction
Yes
NDI®5
Yes
CITP/MSEX
Yes
GDTF Personality Export
Yes
Factory System Restore
Yes
Control
Art-Net
Yes
sACN
Yes
Stand Alone Keyboard Control
Yes
DMX Control
Yes
Front Panel Control
Yes
Boxed Weights and Dimensions
Width
600mm (23.62 inches)
Depth
810mm (31.88 inches)
Height
360mm (14.17 inches)
Weight
20.3 kg (44.75 lb)
Unit Weights and Dimensions
Width
425mm (16.73 inches)
Depth
625mm (24.60 inches)
Height
177mm (6.96 inches) – 4U High
Weight
16 kg (35.27 lb)
