Chauvet Pro COLORado PXL Curve 1 Moving Wash Light

Chauvet Pro COLORado PXL Curve 1 Moving Wash Light

SoundPro Item: 204579 | Part Number: COLORADOPXLCURVE1

$1,492.50
$1,492.50 $1,492.50
Your Price Sold out
MSRP: $1,492.50 | MAP: $1,492.50

Usually ships in 5-7 business days

  • IP65 Housing Supports Outdoor Deployment
  • Motorized Pan Tilt And Zoom Shape Dynamic Looks
  • Alignment Pins Preserve Consistent Pixel Pitch
  • Dual White Strobe Sections Expand Effect Variety
  • RDM And NFC Streamline Fixture Setup
  • Compact Body Helps Reduce Rigging Load
Log in or register for YOUR best price

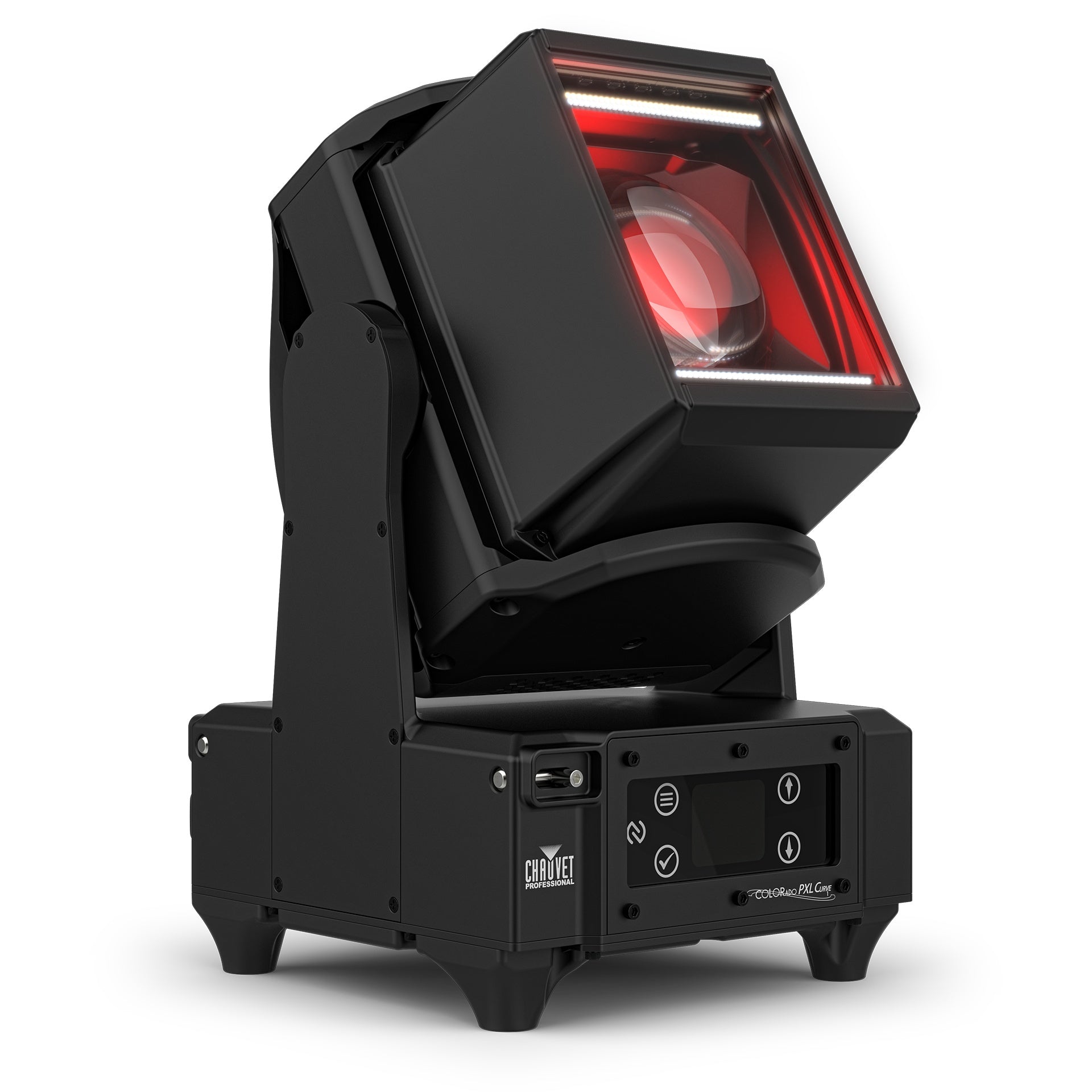

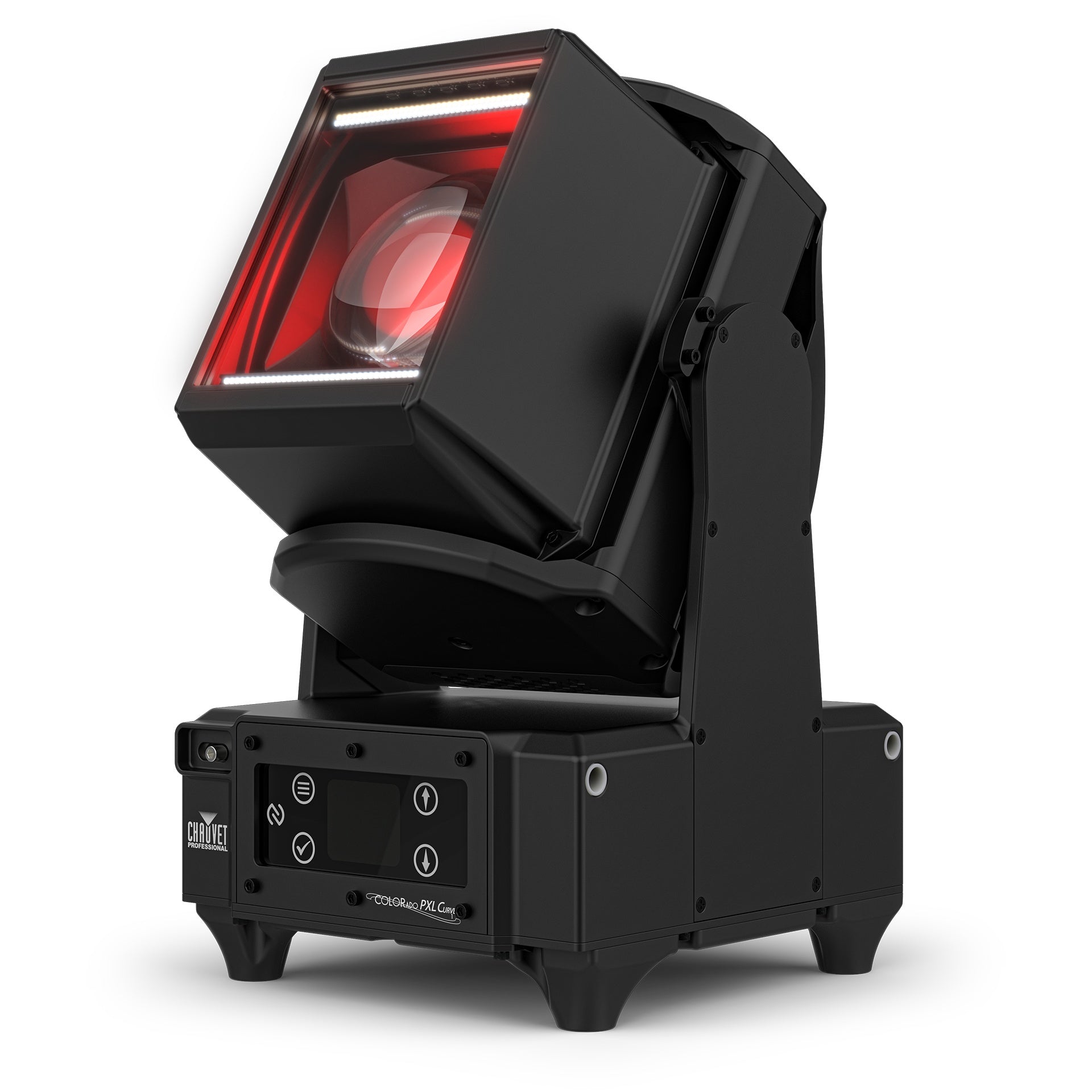

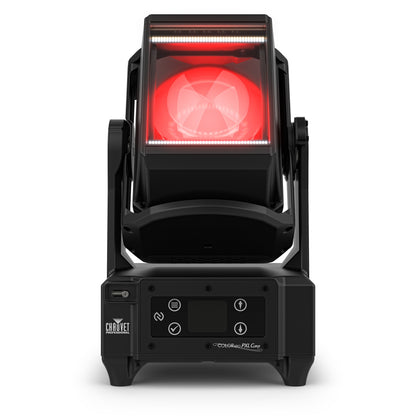

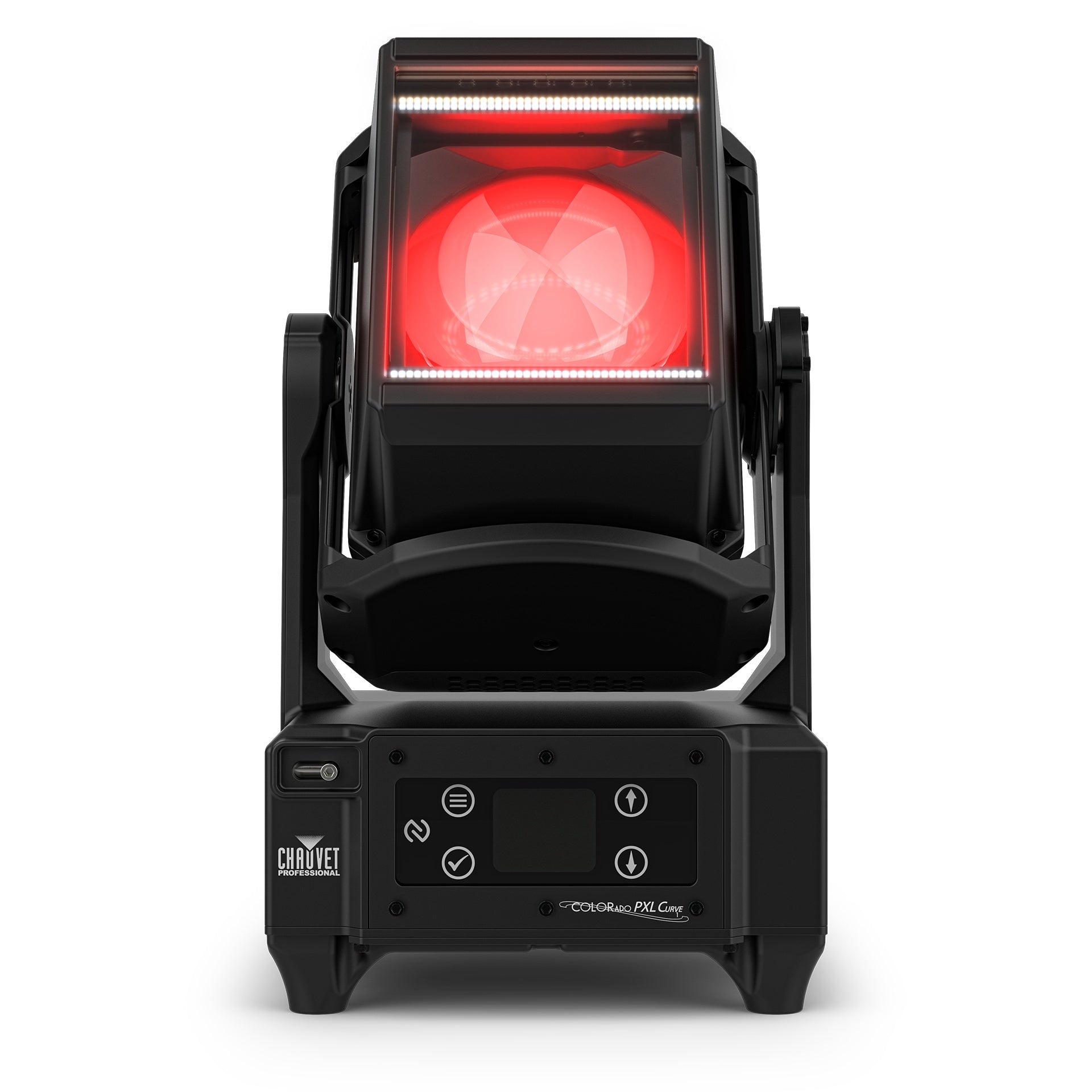

The Chauvet Pro COLORADOPXLCURVE1 is a compact IP65-rated moving wash fixture built for productions and installations that need weather-ready performance, articulated movement, and clean integration into larger pixel-mapped systems. Its RGBW source supports beam and wash looks, while the dual linear cool white and warm white strobe sections add layered visual texture for concert stages, broadcast environments, event lighting, and permanent outdoor deployments.

This fixture is designed for side-by-side arraying, with built-in alignment pins that help maintain consistent pixel pitch across multiple units. Motorized pan, tilt, and zoom provide flexibility when building animated lines, scenic accents, or architectural effects. Control support for DMX, sACN, and Art-Net allows it to fit into modern lighting networks, while RDM simplifies remote addressing and NFC enables fixture configuration without applying power.

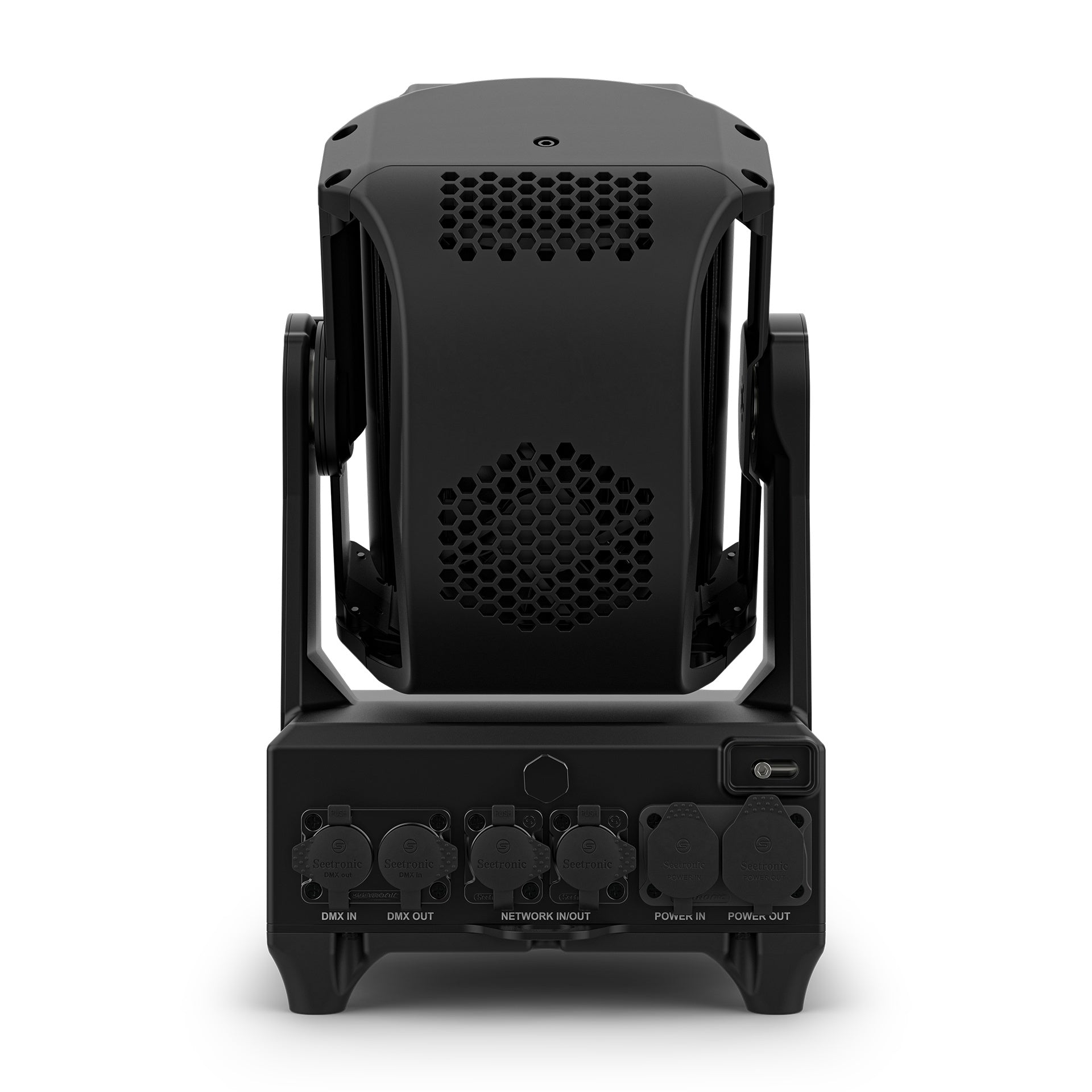

For touring and installed applications alike, the COLORADOPXLCURVE1 also supports dependable outdoor operation through IP65-rated 5-pin DMX, etherCON, and USB-C connectivity. A lightweight form factor and included slotted Omega bracket help crews rig quickly in a wide range of orientations, making it a practical choice for designers who want motion, array consistency, and weather resistance in one compact fixture.

Downloads

View full details

Specifications

Lighting Fixtures
Color Temperature (at full)
22,089 K
Illuminance without strobe (3.4°)
14,009 lux @ 5 m
Pan and Tilt
60°/190°
Dimmer
Electronic
Shutter/Strobe
Electronic
Zoom
Motorized/Manual
Strobe Rate
0 to 25 Hz
Color Temperature Presets
Yes
Move-in-Black
Yes
Dim Modes
2
Dim Curves
4
Dimensions
7.83 x 8.46 x 12.99 in (199 x 215 x 330 mm)
Weight
15 lb (6.8 kg)
Power Input
Seetronic Powerkon
Power Output
Seetronic Powerkon
Data Connectors
5-pin IP65 XLR, etherCON
Cable Length (power)
5 ft (1.5 m)
Control Protocol
[Art-Net, sACN, DMX, RDM, NFC]
DMX Channels
24 or 45
Art-Net Channels
24 or 45
Modes/Personalities
2 personalities (24, 45)
Light Source(s) – Light Source (Cell)
1 LEDs (quad-color RGBW) 120 W, (5 A), 50,000 hours life expectancy
Light Source(s) – Light Source (Strobe/Blinder)
160 SMD-LEDs (80 CW, 80 WW), 50,000 hours life expectancy
Light Source (Cell)
1 LEDs (quad-color RGBW) 120 W, (5 A), 50,000 hours life expectancy
Light Source (Strobe/Blinder)
160 SMD-LEDs (80 CW, 80 WW), 50,000 hours life expectancy
Beam Angle(s) – Beam Angle (without strobe)
3.4 – 30.2°
Beam Angle(s) – Beam Angle (with strobe)
3.4 – 32.1°
Beam Angle (without strobe)
3.4 – 30.2°
Beam Angle (with strobe)
3.4 – 32.1°
Field Angle(s) – Field Angle (without strobe)
4.4 – 38.7°
Field Angle(s) – Field Angle (with strobe)
4.3 – 66.3°
Field Angle (without strobe)
4.4 – 38.7°
Field Angle (with strobe)
4.3 – 66.3°
Cutoff Angle(s) – Cutoff Angle (without strobe)
4.7 – 40.8°
Cutoff Angle(s) – Cutoff Angle (with strobe)
4.6 – 144.3°
Cutoff Angle (without strobe)
4.7 – 40.8°
Cutoff Angle (with strobe)
4.6 – 144.3°
Zoom Range(s) – Zoom Range (without strobe)
3.4 – 40.8°
Zoom Range(s) – Zoom Range (with strobe)
3.4 – 144.3°
Zoom Range (without strobe)
3.4 – 40.8°
Zoom Range (with strobe)
3.4 – 144.3°
Lumens – Lumens (without strobe)
1,558
Lumens – Lumens (with strobe)
4,630
Lumens (without strobe)
1,558
Lumens (with strobe)
4,630
Compatible Accessories
CTC-50HC, CTC-50HCN, RIGLINKPOWERKON, RIGLINK, RIGLINKDMX, CPRACKUS
What's Included
COLORado PXL CURVE 1, Power Cord – Edison to PowerKon IP, Omega bracket with mounting hardware
