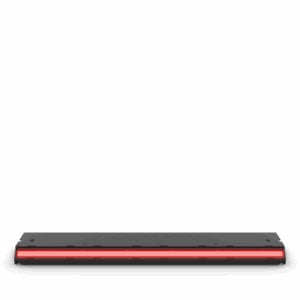

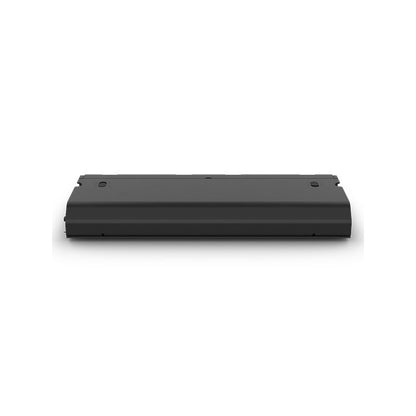

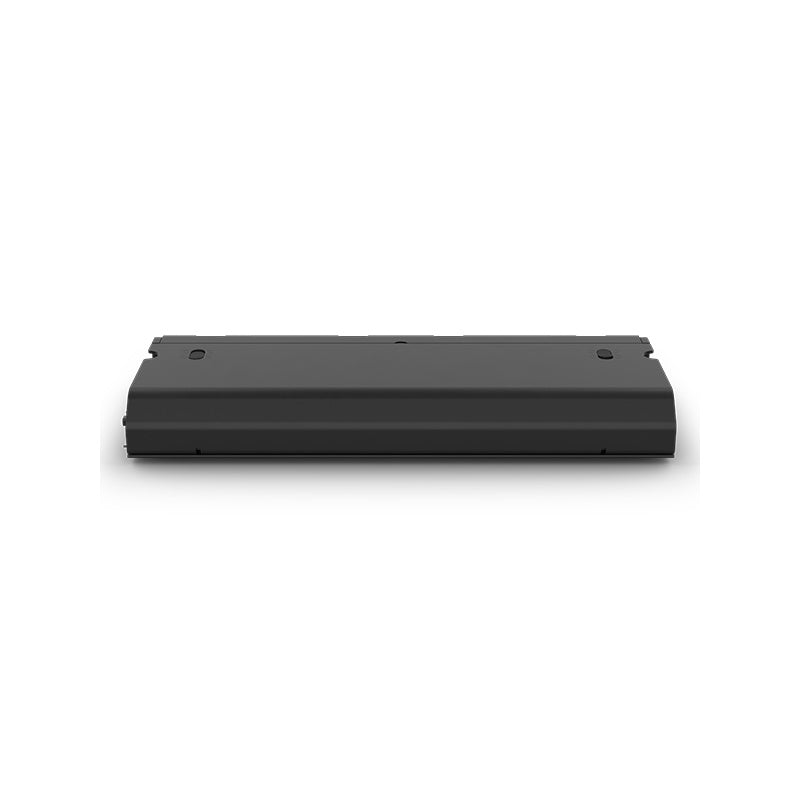

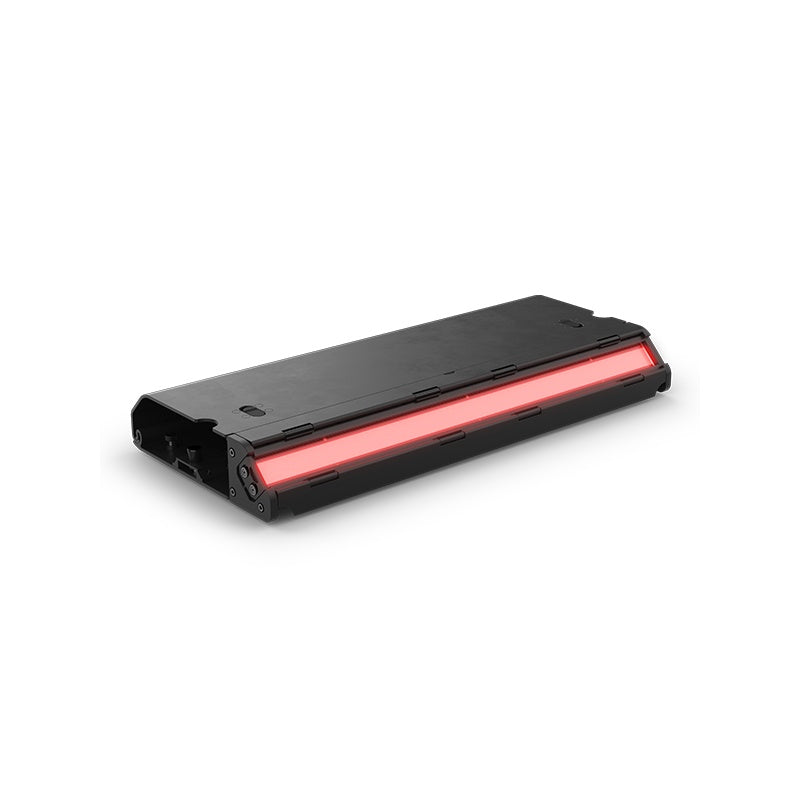

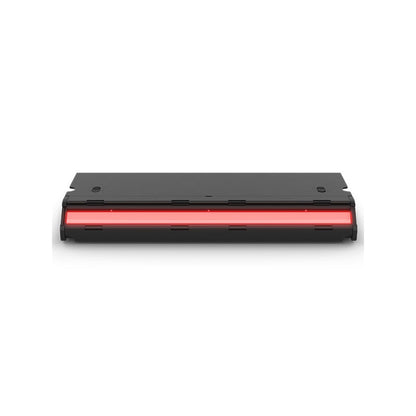

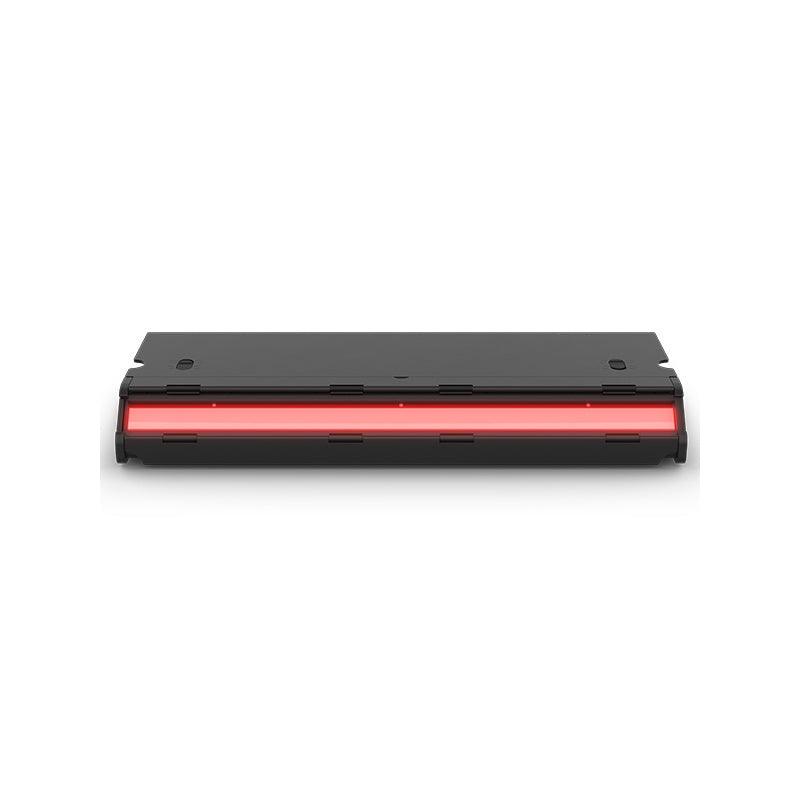

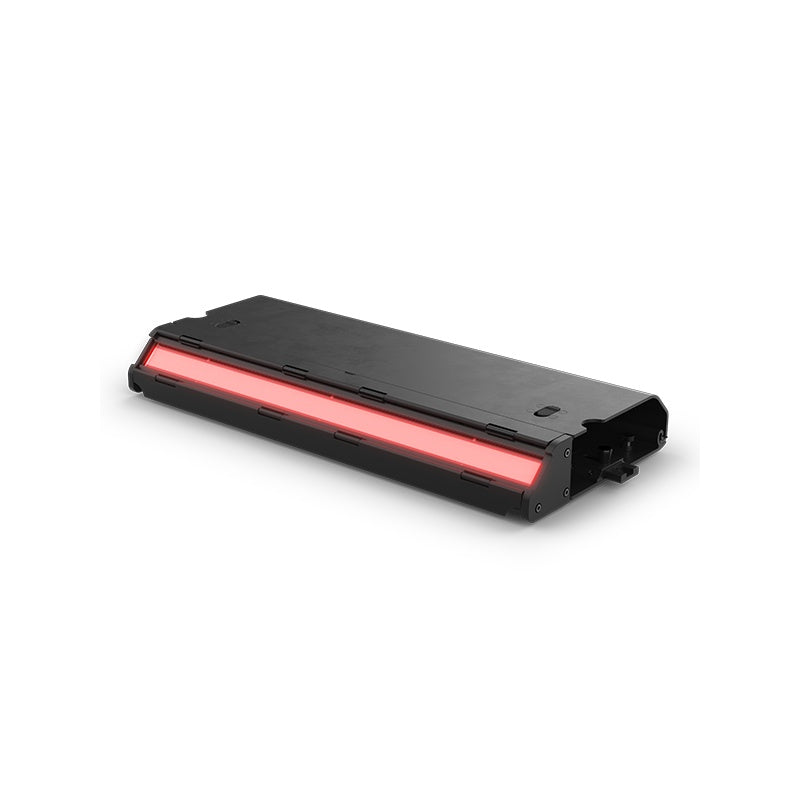

Chauvet Pro COLORado Solo Edge 1 Footlight

Chauvet Pro COLORado Solo Edge 1 Footlight

SoundPro Item: 203106 | Part Number: COLORADOSOLOEDGE1

$1,899.00
$2,143.00 $1,899.00
Your Price Sold out
MSRP: $2,143.00 | MAP: $1,899.00

Usually ships in 5-7 business days

  • Low-profile, 0.5mIP65 rated footlight with full-color and high-quality white light
  • Single-source lens for smooth, even output with no distracting points of light and an additional “stealth” filter to help the fixture disappear when off
  • Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage
  • Designed for end-to-end use with no gaps or distracting cable mess, and a covered display to keep everything elegant unseen.
Log in or register for YOUR best price

This low-profile 0.5-meter IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off. *PRELIMINARY SPECIFICATIONS ONLY

View full details

Specifications

Optical
Light Source
56 LEDs (Quintuple-color-RGBwWL), K 20,000 hours life expectancy
Color Temperature (range)
2800 to 8000 K
Color Temperature (at full)
6350K
CRI (2800)
96.2
Beam Angle
111.1° (Horizontal)
Beam Angle
120.1° (Vertical)
Field Angle
134.1 ° (Horizontal)
Field Angle
161.4° (Vertical)
Lumens
7,144
Illuminance (total)
104 lux @ 5 m
PWM Frequency
1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Selectable PWM
1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Dynamic Effects
Dimmer
Electronic
Shutter/Strobe
Electronic
Framing Shutters
No
Strobe Rate
0 to 30Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dim Modes
4
Dim Curves
4
Built-in Automated Programs
Yes
Customizable Programs
Yes
Recall Custom Programs
Yes/No
Construction / Physical
Dimensions
19.68 x 8.85 x 2.51 in (500 x 225 x 64 mm)
Weight
12.6 lb. (5.7kg)
Exterior Color
Black
Housing Material
Aluminum alloy and Aluminum diecast
Connections
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-pin XLR
Cable Length (power)
5 ft (1.5 m)
Control
Control Protocol
Art-Net, DMX, sACN
DMX Channels
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21 2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
Art-Net Channels
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21 2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
Modes/Personalities
Personalities (22)
Frequency (operating)
1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking
Power and Current
126 W, 1.05 A @ 120 V, 60 Hz
Power and Current
125 W, .61 A @208 V, 60 Hz
Power and Current
125 W, .55 A @230 V, 50 Hz
Certifications / Qualifications
CE, MET, ROHS
IP Rating
IP65, outdoor/wet, with pressure equalizing M6 GORE valve
Temperature (Ambient)
5 °F to 113 °F (-15 °C to 45 °C)
What's Included
COLORado Solo Edge 1
1
Seetronic Powerkon IP65 power cord
1
Power and Data linking cables
1
Stealth Filter
1
Omega bracket with mounting hardware
1
