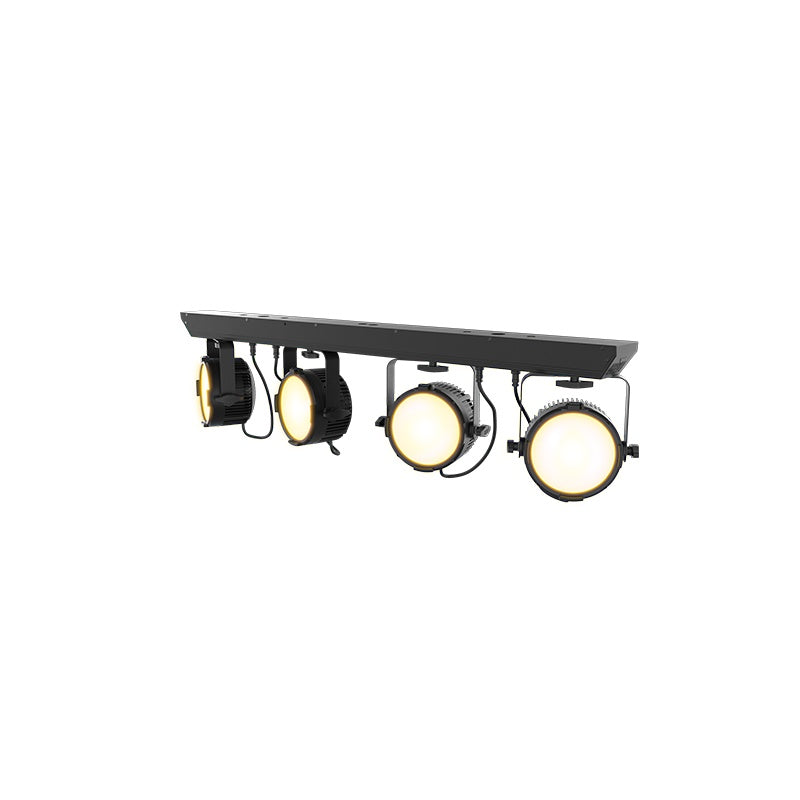

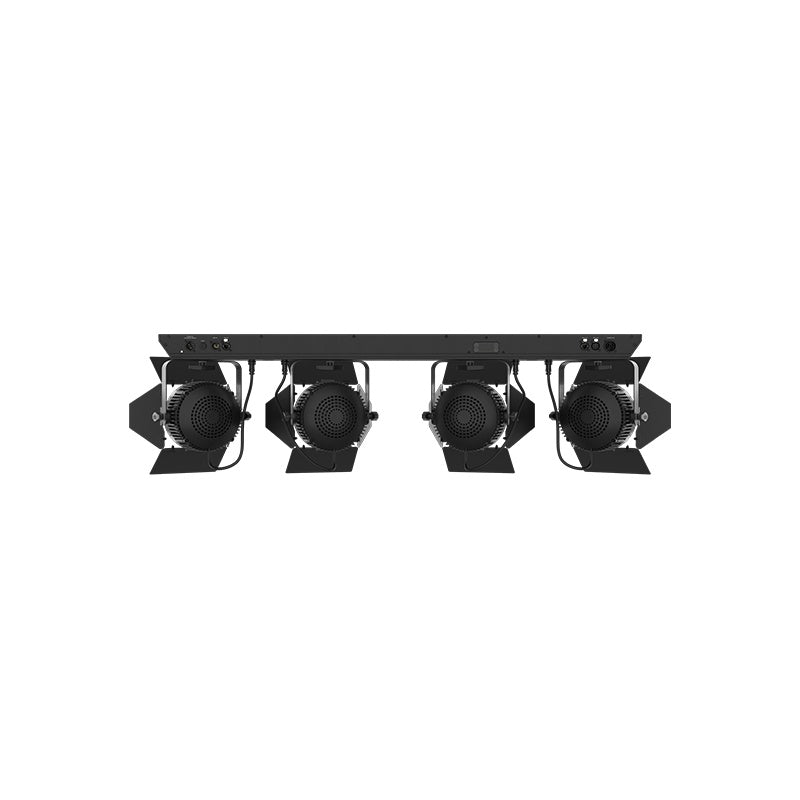

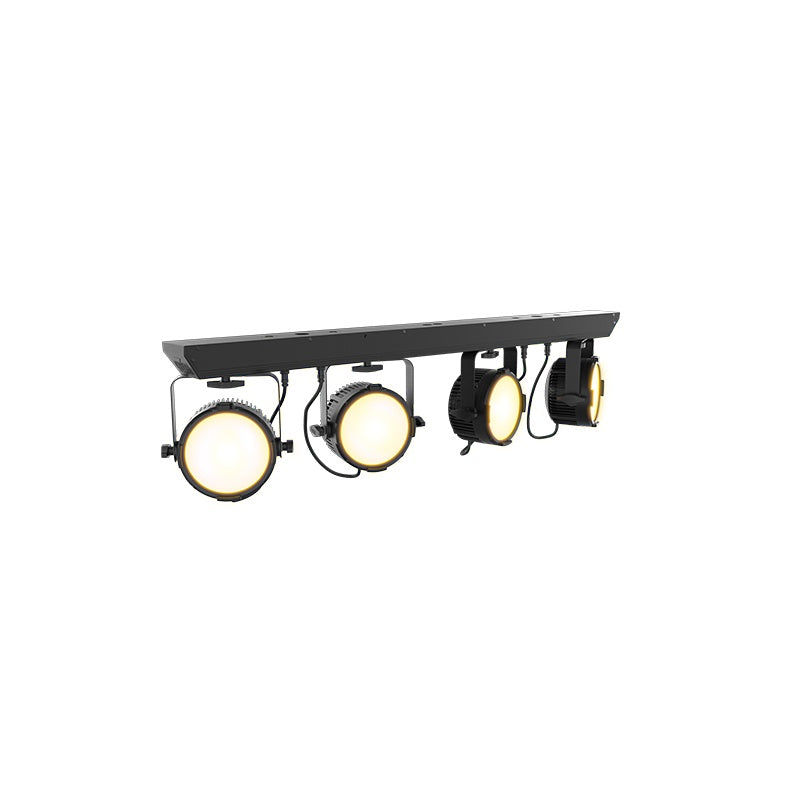

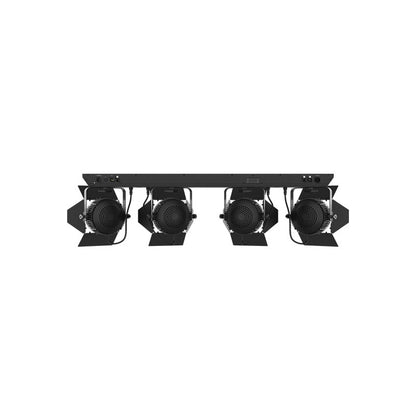

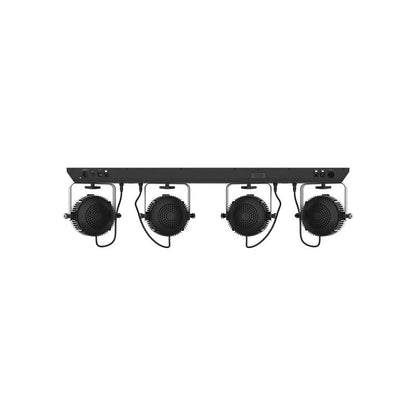

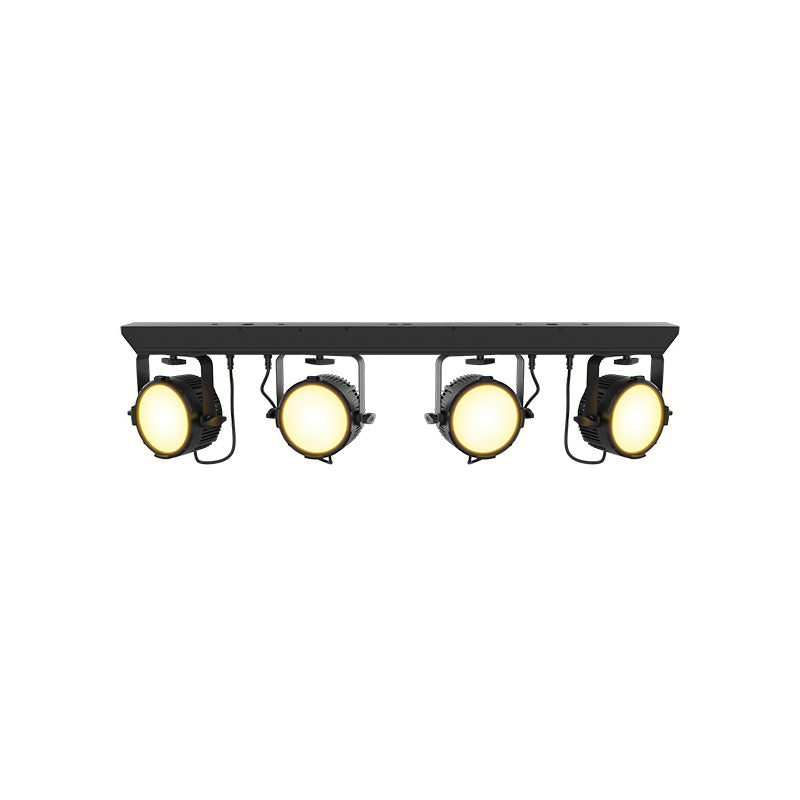

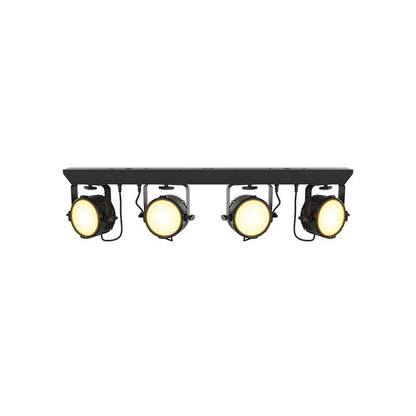

Chauvet Pro COLORdash PAR Bar 4

Chauvet Pro COLORdash PAR Bar 4

SoundPro Item: 203113 | Part Number: COLORDASHPARBAR4

$2,237.50
$2,523.50 $2,237.50
Your Price Sold out
MSRP: $2,523.50 | MAP: $2,237.50

Usually ships in 5-7 business days

  • Complete, 4-head wash lighting solution with high-power RGBAW-UV LED Arrays
  • Multiple, convenient mounting options for maximum versatility
  • Independently focusable heads allow for customizable stage coverage

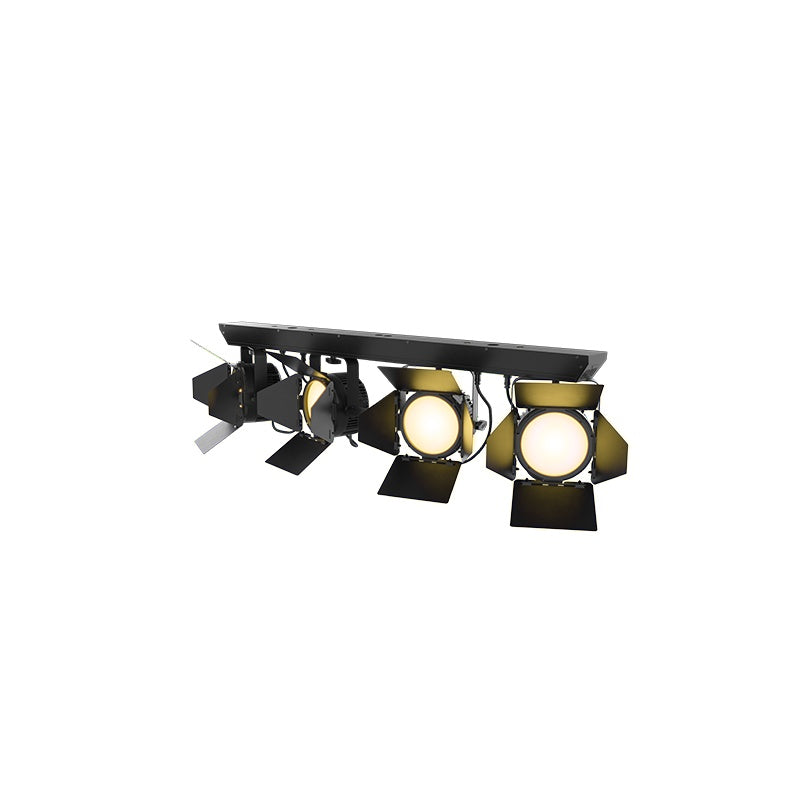

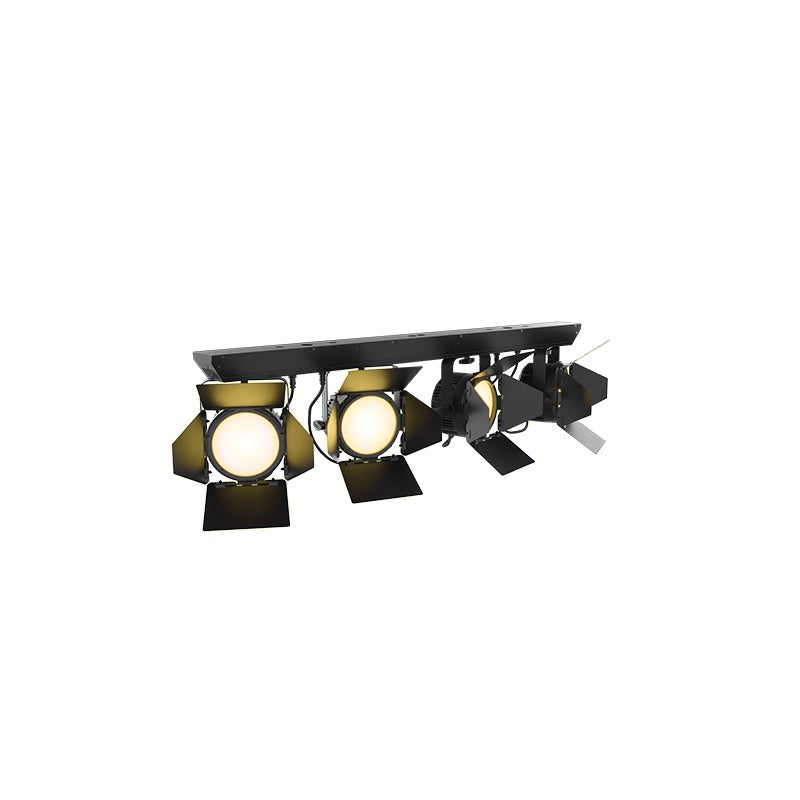

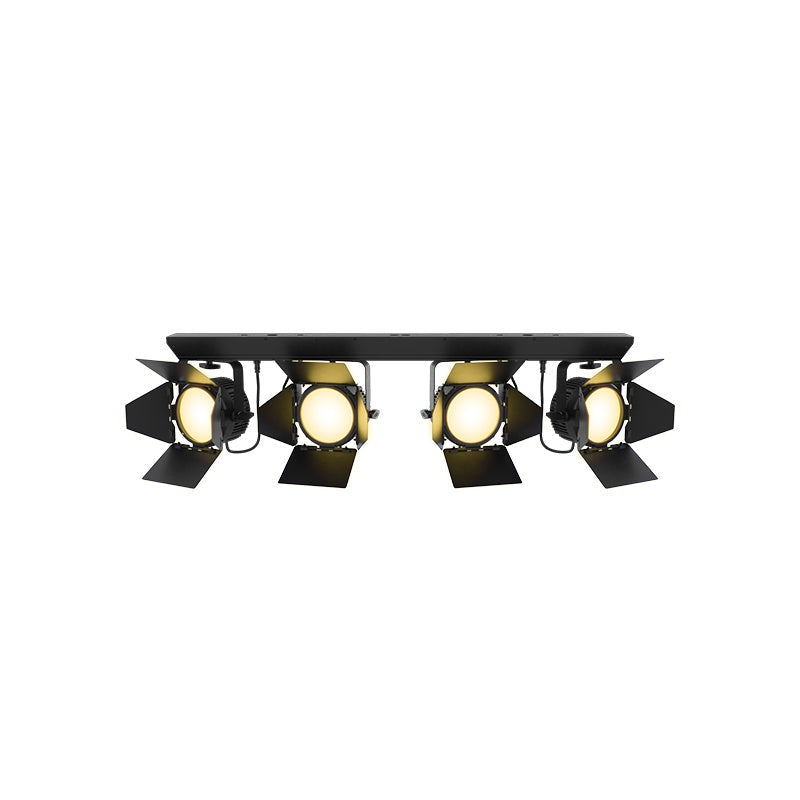

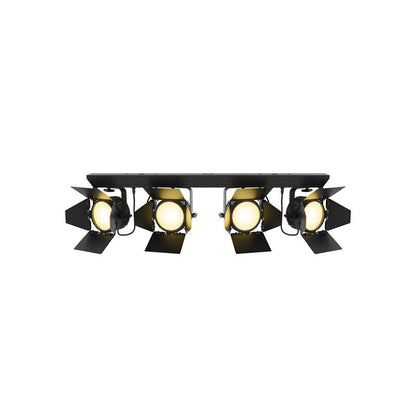

  • Included barndoors for each head to cut light out of unwanted areas
  • Easily connect to DMX control using standard CAT6 Ethernet cable
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • RDM (Remote Device Management) for added flexibility
  • Selectable, smooth dimming curves for eliminating flicker and choppiness in fades
  • Easy to read OLED display with password protection and touchscreen interface
  • Advanced optics provide exceptional color mixing and high efficiency
Log in or register for YOUR best price

A complete wash light solution designed with convenience and versatility in mind for small theatres, events and multi-use spaces. COLORdash Par Bar 4 comes with all the features and accessories to shape light coverage to your needs. Independently focus each of four RGBAW-UV LED heads, change beam angles from 15° to 30° with the included wide filter, and keep light where it’s wanted with four-leaf barndoors. Selectable dimming curves mean fades are always smooth, and superior optics produce smooth color mixes. Advanced electronics with adjustable pulse width modulation make for flicker-free on-camera performance. Connect to DMX control via 5-pin XLR or with standard CAT6 Ethernet cable. A touchscreen interface and multiple mounting options complete this versatile package.

View full details

Specifications

Optical
Light Source
1, RGBAW-UV LED Array (per head)
Beam Angle narrow (Single Par)
15.3°
Field Angle narrow (Single Par)
29.8°
Beam Angle wide (Single Par)
30.4°
Field Angle wide (Single Par)
49.4°
Lumens (Single Par)
4305 lm
Lumens (All Pars)
17930 lm
Illuminance Narrow (Single Par)
1482 lux @ 5 m
Illuminance Wide (Single Par)
510 lux @ 5 m
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer
Electronic
Strobe Rate
0 to 20 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dim Modes
4
Built-in Automated Programs
Yes
Construction / Physical
Dimensions
45.3 x 5.16 x 11.08 in ( 1150.6 x 131 x 281.4 mm)
Weight
28.8 lb (12 kg)
Exterior Color
Black
Housing Material
Aluminum Alloy

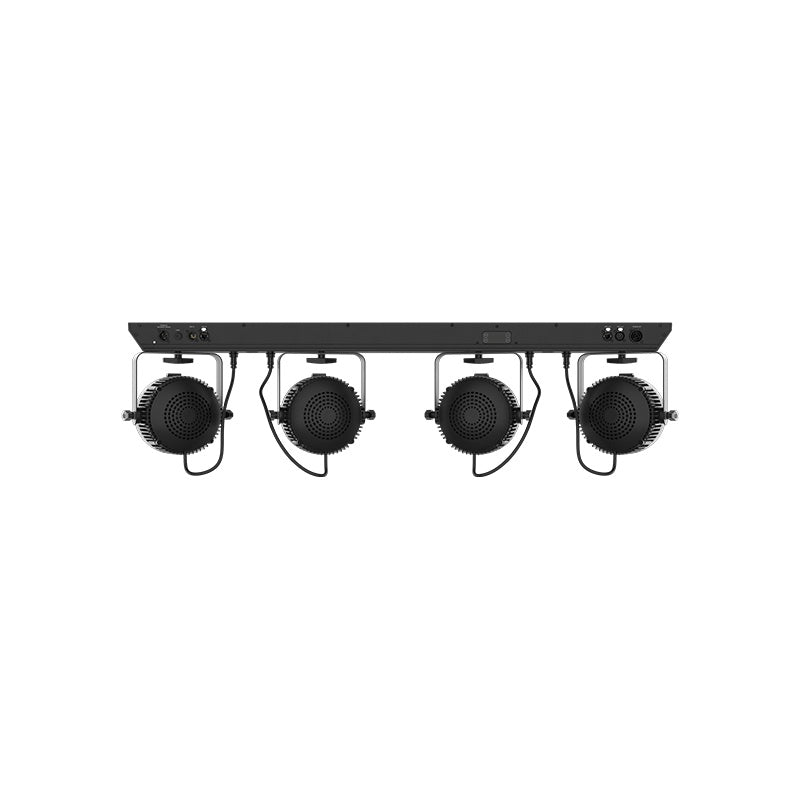

Connections
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-pin XLR, Neutrik etherCON or Amphenol XLRnet (etherCON Compatible)
Cable Length (power)
5 ft (1.5 m)
Control
Control Protocol
DMX, RDM
DMX Channels
6,8,9,14,24,32,36,41
Modes/Personalities
8 personalities (6,8,9,14,24,32,36,41)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking
2 units @ 100 V; 2 units @ 120V; 4 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
Power and Current
557W, 5.55 A @ 100 V, 60 Hz
Power and Current
551W, 4.63 A @ 120 V, 60 Hz
Power and Current
546 W, 2.63 A @ 208 V, 60 Hz
Power and Current
550W, 2.41 A @ 230 V, 50 Hz
Power and Current
559W, 2.33 A @ 240 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating
IP20, dry location
Temperature (Ambient)
32 °F to 104 °F (0 °C to 40 °C)
What's Included
COLORdash Par Bar
1
Seetronic Powercon IP65 power cord
1
Wide Filter
4
Barndoors
4
Tripod mount
1
